Issue 16, 2022

Surface electronic corrugation of a one-dimensional topological metal: Bi(114)

Abstract

The surface of Bi(114) is a striking example where the reduced dimensionality gives rise to structural rearrangement and new states at the surface. Here, we present a study of the surface structure and electronic corrugation of this quasi one-dimensional topological metal based on helium atom scattering (HAS) measurements. In contrast to low-index metal surfaces, upon scattering from the stepped (114) truncation of Bi, a large proportion of the incident beam is scattered into higher order diffraction channels which in combination with the large surface unit cell makes an analysis challenging. The surface electronic corrugation of Bi(114) is determined, using measurements upon scattering normal to the steps, together with quantum mechanical scattering calculations. Therefore, minimisation routines that vary the shape of the corrugation are employed, in order to minimise the deviation between the calculations and experimental scans. Furthermore, we illustrate that quantum mechanical scattering calculations can be used to determine the orientation of the in- and outgoing beam with respect to the stepped surface structure.

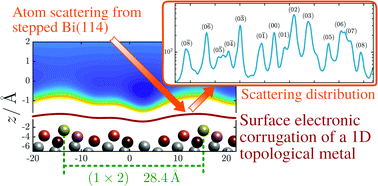

Graphical abstract: Surface electronic corrugation of a one-dimensional topological metal: Bi(114)

Article information

Article type
Paper
Submitted
18 11 2021
Accepted
09 2 2022
First published
09 2 2022
This article is Open Access
Creative Commons BY license

Phys. Chem. Chem. Phys., 2022,24, 9146-9155

Surface electronic corrugation of a one-dimensional topological metal: Bi(114)

S. J. Schmutzler, A. Ruckhofer, W. E. Ernst and A. Tamtögl, Phys. Chem. Chem. Phys., 2022, 24, 9146 DOI: 10.1039/D1CP05284E

This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. You can use material from this article in other publications without requesting further permissions from the RSC, provided that the correct acknowledgement is given.

Read more about how to correctly acknowledge RSC content.
