Application of TMU-17-UR as a pillar-layered MOFs as a hydrogen bonding catalyst for the preparation of pyrazolo[3,4-b]quinolines†
Received
11th March 2025
, Accepted 7th July 2025
First published on 16th July 2025
Abstract
In this report, TMU-17-UR was synthesized as a new H-bond catalyst. In the structure of TMU-17, carboxylic acid and pyridine ligands were used for the formation of desired pillar-layered metal–organic frameworks (MOFs). TMU-17-UR was created via a post-modification method by creating urea groups on TMU-17-NH2, which turned it into a suitable H-bond catalyst. The structure of TMU-17-UR was characterized and confirmed using various techniques. The catalytic ability of this structure was investigated in the preparation of pyrazolo[3,4-b]quinolines as important biological compounds under environmentally friendly and mild reaction conditions. The structure of the obtained products was confirmed using techniques such as FT-IR, 1H-NMR, 13C-NMR and their melting point. The results obtained here have shown that the development of task-specific heterogeneous catalysts can be continued.
Introduction
Pillar-layered MOFs are an important class of MOFs that received attention recently. Pillar-layered MOFs in their structure have alternating layers with columns containing metal and organic ligands.1–3 The pillars and ligands in their framework are held together by coordination bonds and form a three-dimensional porous structure with suitable surface area and adjustable pore size. Pillar-layered MOFs have considerable versatility, as they can be synthesized from different metals such as copper, zinc, or cobalt. Also, various organic ligands can be used in their structure, which gives various chemical properties to this type of MOFs.4,5 Due to the diversity of their structure, these three-dimensional compounds have various applications in various fields, such as gas storage, catalysts, drug delivery, etc..6–8 One of the characteristics of pillar-layered MOFs is that the structure of these compounds can be easily changed by replacing the metal column or organic ligand components, increasing their functional diversity.9
Urea derivatives are one of the most important studied organic structures in the field of catalysts. Urea derivatives have been used as catalysts in many organic reactions such as Strecker, Mannich, Friedel–Crafts reactions, etc. The hydrogen bonding agent activates the substrate for catalysis through donor/acceptor acidic N–H bonds and nitrogen lone pairs.10–14 Combining H-bond catalysts with MOFs can lead to the development of new heterogeneous catalysts with higher activity and selectivity. In this case, metal–organic frameworks are designed that will have the ability to give hydrogen bonding, which has been considered in recent studies.15–18 It is worth noting that the porous nature of MOFs allows the diffusion of reactive molecules in the catalyst sites, which can increase the reaction efficiency.19,20 Metal–organic frameworks, which have shown their importance as a new generation of nanoreactors in recent years, can act as a suitable bed with pendants such as urea or thiourea groups as hydrogen bonding donors.21,22 H-bond donating MOF catalysts are new-generation catalysts that can play a role as catalysts for the production of pharmaceutical products and organic compounds.23,24 These MOFs have good properties such as high chemical and thermal stability as well as good activity. The selectivity of this type of hydrogen bond catalyst is high, which in turn can be effective in increasing product yield and saving energy.25,26
In recent years, the importance of new and effective medicinal compounds has increased. Various research studies have been conducted in this field, which has been accompanied by significant progress.27,28 It should be considered that these compounds need to be expanded. Heterocyclic compounds have suitable medicinal properties and have been used in various fields, such as antidepressants, antifungals, antimalarials, anticancer, etc..29,30 Also, these compounds have been used in various industries such as agriculture and paint production. Heterocyclic compounds are formed from important nuclei. Among the most important effective nuclei, we can mention pyrazoles, pyrazoloquinoline, dimedone, etc., which give suitable properties to the synthesized compound. Fig. 1 shows the most important properties of these cores that have been proven.31–36 Pyrazolo[3,4-b]quinoline compounds have shown important biological activities including anti-inflammatory, anti-cancer and antimicrobial properties. Also, the unique biological properties of these compounds have been confirmed in the treatment of many neurological diseases.37–39
 |
| Fig. 1 Various properties of dimedone, pyrazole and pyrazoloquinoline compounds. | |
In continuation of the research on targeted catalysts, the design of the catalyst based on the metal–organic framework is the main goal of this research. In this report, a pillar-layered MOFs containing acidic and pyridine ligands is used, and in the next step, urea group is created on it by solvothermal method. This method creates an efficient hydrogen bonding catalyst based on metal–organic frameworks. The use of this catalyst in the preparation of pyrazolo[3,4-b]quinoline derivatives will be investigated to determine the importance of the design of this catalyst. The created pyrazolo[3,4-b]quinoline derivatives have effective medicinal cores. These derivatives are synthesized in solvent-free conditions with a mild and green method.
Experimental section
Preparation of TMU-17-NH2
The preparation of TMU-17-NH2 was done through the solvothermal method according to the method of the previous report.40 Initially, NH2-BDC (1 mmol, 0.181 g), Zn(NO3)2·6H2O (1 mmol, 0.298 g), and 1,4-bis(4-pyridyl)-2,3-diaza-2,3-butadiene (4-bpdb) (1 mmol, 0.210 g) were dissolved in 15 mL of DMF. The resulting mixture was transferred to a 60 mL Teflon autoclave and heated at 80 °C for 3 days. After this time, the autoclave was allowed to cool down to room temperature, and the product was formed. The crystals obtained were separated from the soluble compounds by centrifugation (2 × 4000 rpm). Finally, the obtained TMU-17-NH2 crystals were washed with ethanol (EtOH) and DMF (2 × 10 mL). In the last step, it was immersed in CHCl3 for 24 h and dried in a vacuum oven at 100 °C for 24 h.
Preparation of TMU-17-UR as an H-bond pillar-layered MOFs-based catalyst
The solvothermal method was used for the synthesis of TMU-17-NH2 and its functionalization through post-modification. A mixture of phenyl isocyanate (5 mmol, 0.595 g), TMU-17-NH2 (0.2 g), and dry CH3CN (10 mL) as a solvent was stirred for 30 min at 25 °C. Then the reaction mixture was placed in a 25 mL Teflon autoclave and heated at 120 °C for 12 h. Then the precipitate obtained was separated using a centrifuge (2 × 4000 rpm min−1) and washed with CH3CN and EtOH 3 times. Finally, TMU-17-UR was dried at 80 °C for 12 h (Scheme 1).
 |
| Scheme 1 Schematic general strategy for preparation of TMU-17-UR as an efficient H-bond pillar-layered MOFs-based catalyst. | |
Catalytic reaction
For the preparation of pyrazolo[3,4-b]quinoline derivatives, in a 10 mL round-bottomed flask, a mixture of aromatic aldehydes (0.5 mmol), dimedone (0.5 mmol, 0.07 g), 3-(1H-indol-3-yl)-1H-pyrazol-5-amine and 3-(4-chlorophenyl)-1H-pyrazol-5-amine (0.5 mmol), which has been synthesized according to previous reports41,42 and TMU-17-UR as an H-bond pillar-layered MOFs-based catalyst (15 mg) were stirred at 100 °C. After the completion of the reaction that was monitored by the TLC technique, the catalyst was isolated from the reaction mixture by centrifugation (2 × 4000 rpm min−1) after adding hot ethanol (20 mL). After, the solvent evaporates to form a precipitate. Finally, in order to purify the synthesized products, the resulting precipitate was washed several times with cold EtOH. The pyrazolo[3,4-b]quinoline derivatives were obtained in high yield (70–85%) (Scheme 2).
 |
| Scheme 2 Synthesis of pyrazolo[3,4-b]quinoline derivatives using TMU-17-UR as an efficient H-bond pillar-layered MOFs-based catalyst. | |
Spectral data of pyrazolo[3,4-b]quinoline derivatives
4-(4-Chlorophenyl)-3-(1H-indol-3-yl)-7,7-dimethyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FC1). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3406, 3253, 3167, 1657, 1614. 1H NMR (250 MHz, DMSO-d6) δppm 12.17 (s, 1H), 11.33 (s, 1H), 9.91 (s, 1H), 7.63 (d, J = 7.2 Hz, 1H), 7.38 (d, J = 7.5 Hz, 1H), 7.21 (s, 1H), 7.12–6.93 (m, 6H), 5.19 (s, 1H), 2.45–2.27 (m, 2H), 2.13 (d, J = 16.1 Hz, 1H), 1.93 (d, J = 16.1 Hz, 1H), 0.98 (s, 3H), 0.84 (s, 3H). 13C NMR (63 MHz, DMSO-d6) δppm 193.2, 153.0, 147.4, 136.3, 134.7, 130.0, 129.6, 127.8, 125.2, 124.8, 122.2, 120.0, 112.2, 107.7, 105.0, 102.5, 50.9, 41.4, 35.2, 32.4, 29.3, 27.1.
4-(4-Chlorophenyl)-3-(1H-indol-3-yl)-7,7-dimethyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FC1) (D2O exchange). 1H NMR (250 MHz, DMSO-d6) δppm 7.58 (d, J = 7.4 Hz, 1H), 7.39 (d, J = 7.7 Hz, 1H), 7.22 (s, 1H), 7.09–6.92 (m, 6H), 5.17 (s, 1H), 2.42 (d, J = 9.3 Hz, 2H), 2.13 (d, J = 16.3 Hz, 1H), 1.92 (d, J = 16.1 Hz, 1H), 0.96 (s, 3H), 0.81 (s, 3H).
4-(4-Bromophenyl)-3-(1H-indol-3-yl)-7,7-dimethyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FC2). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3320, 3248, 3158, 1655, 1501. 1H NMR (400 MHz, DMSO-d6) δppm 12.20 (s, 1H), 11.38 (s, 1H), 9.94 (s, 1H), 7.65 (d, J = 7.9 Hz, 1H), 7.41 (d, J = 8.1 Hz, 1H), 7.25 (d, J = 2.7 Hz, 2H), 7.23 (s, 1H), 7.15 (t, J = 7.4 Hz, 1H), 7.07 (t, J = 7.4 Hz, 1H), 6.96 (d, J = 8.4 Hz, 2H), 5.21 (s, 1H), 2.50 (d, J = 8.0 Hz, 1H), 2.40 (d, J = 16.6 Hz, 1H), 2.16 (d, J = 16.0 Hz, 1H), 1.97 (d, J = 16.0 Hz, 1H), 1.02 (s, 3H), 0.88 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 192.7, 162.3, 152.5, 147.4, 147.3, 135.8, 134.2, 130.3, 129.5, 124.7, 124.3, 121.7, 119.5, 119.4, 118.1, 111.8, 107.1, 104.4, 102.0, 50.4, 40.9, 34.8, 31.9, 28.9, 26.7.
4-(3,4-Dimethoxyphenyl)-3-(1H-indol-3-yl)-7,7-dimethyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FC3). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3249, 3060, 2964, 1561, 1500. 1H NMR (250 MHz, DMSO-d6) δppm 12.08 (s, 1H), 11.37 (s, 1H), 9.78 (s, 1H), 7.64 (d, J = 5.9 Hz, 1H), 7.40 (d, J = 7.2 Hz, 1H), 7.29 (s, 1H), 7.17–7.04 (m, 2H), 6.59 (d, J = 8.0 Hz, 1H), 6.50–6.38 (m, 2H), 5.16 (s, 1H), 3.55 (s, 3H), 3.25 (s, 3H), 2.77 (d, J = 38.6 Hz, 1H), 2.39 (d, J = 17.6 Hz, 1H), 2.15 (d, J = 15.9 Hz, 1H), 1.97 (d, J = 16.0 Hz, 1H), 1.01 (s, 3H), 0.93 (s, 3H). 13C NMR (63 MHz, DMSO-d6) δppm 193.3, 153.0, 148.0, 147.6, 146.7, 141.3, 136.4, 134.4, 125.4, 125.0, 122.1, 120.0, 118.9, 112.2, 111.9, 111.7, 107.8, 105.3, 103.5, 55.7, 55.1, 51.0, 41.4, 35.0, 32.3, 29.5, 27.2.
3-(1H-Indol-3-yl)-7,7-dimethyl-4-phenyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FC4). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3268, 3202, 3050, 1633, 1614. 1H NMR (400 MHz, DMSO-d6) δppm 12.19 (s, 1H), 11.37 (s, 1H), 9.89 (s, 1H), 7.68 (d, J = 7.9 Hz, 1H), 7.41 (d, J = 8.1 Hz, 1H), 7.21 (d, J = 2.4 Hz, 1H), 7.15 (t, J = 7.2 Hz, 1H), 7.09–7.05 (m, 2H), 7.05–7.02 (m, 3H), 6.98–6.93 (m, 1H), 5.21 (s, 1H), 2.50–2.37 (m, 2H), 2.16 (d, J = 16.0 Hz, 1H), 1.97 (d, J = 16.0 Hz, 1H), 1.02 (s, 3H), 0.88 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 192.7, 162.3, 152.4, 148.1, 135.8, 128.1, 127.5, 127.3, 125.1, 124.8, 124.2, 121.6, 119.6, 119.5, 111.7, 107.7, 102.6, 50.5, 41.0, 35.1, 31.9, 28.9, 26.6.
3-(1H-Indol-3-yl)-7,7-dimethyl-4-(pyridin-3-yl)-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FC5). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3241, 2955, 1614, 1594, 1561. 1H NMR (400 MHz, DMSO-d6) δppm 12.23 (s, 1H), 11.39 (s, 1H), 10.00 (s, 1H), 8.20 (s, 1H), 8.11 (dd, J = 4.7, 1.5 Hz, 1H), 7.64 (d, J = 7.9 Hz, 1H), 7.41 (d, J = 8.1 Hz, 1H), 7.33 (d, J = 2.5 Hz, 1H), 7.29 (d, J = 7.8 Hz, 1H), 7.15 (t, J = 7.3 Hz, 1H), 7.09–7.04 (m, 2H), 5.26 (s, 1H), 2.53 (d, J = 13.7 Hz, 1H), 2.44 (d, J = 16.6 Hz, 1H), 2.17 (d, J = 16.0 Hz, 1H), 1.98 (d, J = 16.0 Hz, 1H), 1.03 (s, 3H), 0.89 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 192.7, 152.9, 148.5, 147.1, 146.3, 143.0, 135.8, 134.4, 134.3, 124.8, 124.4, 123.0, 121.7, 119.5, 119.4, 111.8, 106.6, 104.2, 101.8, 50.3, 40.9, 33.1, 31.9, 28.8, 26.7.
3-(1H-Indol-3-yl)-4-(4-isopropylphenyl)-7,7-dimethyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FC6). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3347, 3274, 3055, 1675,1627, 1609. 1H NMR (400 MHz, DMSO-d6) δppm 12.13 (s, 1H), 11.38 (s, 1H), 9.84 (s, 1H), 7.67 (d, J = 7.9 Hz, 1H), 7.41 (d, J = 8.1 Hz, 1H), 7.24 (d, J = 2.4 Hz, 1H), 7.15 (t, J = 7.4 Hz, 1H), 7.06 (t, J = 7.4 Hz, 1H), 6.97–6.88 (m, 4H), 5.18 (s, 1H), 2.72 (p, 1H), 2.49–2.39 (m, 2H), 2.15 (d, J = 16.0 Hz, 1H), 1.99 (d, J = 16.0 Hz, 1H), 1.09 (s, 3H), 1.08 (s, 3H), 1.02 (s, 3H), 0.91 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 192.7, 152.5, 147.5, 145.6, 144.9, 135.8, 133.8, 128.1, 127.1, 125.4, 124.7, 124.2, 121.7, 119.6, 119.5, 111.7, 107.8, 104.7, 102.8, 50.5, 41.0, 32.8, 31.9, 28.8, 26.9, 23.9, 23.7.
4-(4-Hydroxy-3-methoxyphenyl)-3-(1H-indol-3-yl)-7,7-dimethyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FC7). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3253, 3162, 3068, 1658, 1599. 1H NMR (400 MHz, DMSO-d6) δppm 12.10 (s, 1H), 11.40 (s, 1H), 9.79 (s, 1H), 8.46 (s, 1H), 7.67 (d, J = 7.9 Hz, 1H), 7.43 (d, J = 8.1 Hz, 1H), 7.30 (d, J = 2.5 Hz, 1H), 7.17 (t, J = 7.5 Hz, 1H), 7.10 (t, J = 7.4 Hz, 1H), 6.49–6.43 (m, 2H), 6.33 (d, J = 8.1 Hz, 1H), 5.14 (s, 1H), 3.32 (s, 3H), 2.50–2.39 (m, 2H), 2.17 (d, J = 16.0 Hz, 1H), 2.00 (d, J = 15.9 Hz, 1H), 1.04 (s, 3H), 0.96 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 192.8, 162.3, 152.4, 147.2, 146.4, 143.8, 139.4, 135.9, 133.8, 124.9, 124.5, 121.6, 119.5, 118.9, 114.7, 111.7, 107.6, 104.9, 103.2, 54.9, 50.6, 41.0, 34.4, 31.9, 29.0, 26.8.
4-(2-Hydroxy-3-methoxyphenyl)-3-(1H-indol-3-yl)-7,7-dimethyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FC8). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3308, 3213, 3054, 1670, 1611. 1H NMR (400 MHz, DMSO-d6) δppm 12.38 (s, 1H), 11.50 (s, 1H), 10.52 (s, 1H), 10.08 (s, 1H), 7.86 (d, J = 7.9 Hz, 1H), 7.39 (d, J = 8.1 Hz, 1H), 7.18 (t, J = 7.5 Hz, 1H), 7.10 (t, J = 7.4 Hz, 1H), 6.88 (d, J = 2.1 Hz, 1H), 6.70–6.65 (m, 2H), 6.38 (dd, J = 7.2, 2.1 Hz, 1H), 5.31 (s, 1H), 3.77 (s, 3H), 2.55–2.46 (m, 2H), 2.33 (d, J = 16.5 Hz, 1H), 2.17 (d, J = 16.4 Hz, 1H), 1.07 (s, 3H), 0.89 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 195.5, 156.0, 149.0, 147.4, 142.3, 136.0, 135.7, 134.1, 124.1, 123.7, 121.8, 120.6, 119.9, 119.6, 111.6, 109.6, 107.3, 104.5, 102.1, 55.3, 49.5, 41.1, 32.0, 28.5, 28.3, 26.6.
4-(4-Fluorophenyl)-3-(1H-indol-3-yl)-7,7-dimethyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FC9). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3250, 2956, 1657, 1600, 1564. 1H NMR (400 MHz, DMSO-d6) δppm 12.19 (s, 1H), 11.37 (s, 1H), 9.92 (s, 1H), 7.66 (d, J = 7.8 Hz, 1H), 7.41 (d, J = 8.1 Hz, 1H), 7.23 (d, J = 2.3 Hz, 1H), 7.15 (t, J = 7.5 Hz, 1H), 7.08 (d, J = 7.4 Hz, 1H), 7.05–7.01 (m, 2H), 6.87 (t, J = 8.8 Hz, 2H), 5.23 (s, 1H), 2.50–2.36 (m, 2H), 2.16 (d, J = 16.0 Hz, 1H), 1.98 (d, J = 16.0 Hz, 1H), 1.02 (s, 3H), 0.88 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 192.7, 162.3, 161.1, 158.7, 152.4, 147.3, 144.2, 135.8, 134.1, 128.9, 128.8, 124.7, 124.3, 121.7, 119.5, 114.2, 111.8, 107.5, 104.5, 102.4, 50.4, 40.9, 34.5, 31.9, 28.9, 26.6.
4-(4-Hydroxyphenyl)-3-(1H-indol-3-yl)-7,7-dimethyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FC10). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3275, 3165, 2956, 1594, 1553. 1H NMR (400 MHz, DMSO-d6) δppm 12.11 (s, 1H), 11.35 (s, 1H), 9.79 (s, 1H), 8.95 (s, 1H), 7.70 (d, J = 7.8 Hz, 1H), 7.41 (d, J = 8.1 Hz, 1H), 7.18 (d, J = 2.4 Hz, 1H), 7.14 (d, J = 7.6 Hz, 1H), 7.07 (t, J = 7.4 Hz, 1H), 6.84 (d, J = 8.2 Hz, 2H), 6.46 (d, J = 8.4 Hz, 2H), 5.09 (s, 1H), 2.46–2.35 (m, 2H), 2.14 (d, J = 16.0 Hz, 1H), 1.96 (d, J = 16.0 Hz, 1H), 1.02 (s, 3H), 0.88 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 192.7, 154.7, 152.0, 147.5, 138.8, 135.8, 133.8, 128.2, 124.7, 124.2, 121.7, 119.5, 114.2, 111.7, 108.2, 104.7, 102.9, 50.5, 40.9, 34.1, 31.9, 28.9, 26.6.
3-(4-Chlorophenyl)-4-(2-methoxyphenyl)-7,7-dimethyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FD1). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3254, 3126, 1662, 1627, 1583. 1H NMR (400 MHz, DMSO-d6) δppm 12.44 (s, 1H), 9.86 (s, 1H), 7.57 (d, J = 8.6 Hz, 2H), 7.46 (d, J = 8.6 Hz, 2H), 7.04 (dd, J = 7.5, 1.6 Hz, 1H), 6.97–6.92 (m, 1H), 6.73 (d, J = 7.7 Hz, 1H), 6.69 (t, J = 7.4 Hz, 1H), 5.61 (s, 1H), 3.61 (s, 3H), 2.49 (s, 1H), 2.38 (d, J = 16.4 Hz, 1H), 2.13 (d, J = 16.0 Hz, 1H), 1.90 (d, J = 15.9 Hz, 1H), 1.02 (s, 3H), 0.89 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 192.3, 155.4, 152.5, 148.3, 136.1, 135.8, 132.2, 129.5, 128.4, 128.3, 128.1, 126.6, 119.8, 110.7, 107.4, 104.0, 55.0, 50.5, 40.9, 31.9, 29.4, 29.1, 26.4.
3-(4-Chlorophenyl)-4-(4-methoxyphenyl)-7,7-dimethyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FD2). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3179, 2956, 1583, 1561, 1539. 1H NMR (250 MHz, DMSO-d6) δppm 12.60 (s, 1H), 9.87 (s, 1H), 7.53 (d, J = 5.8 Hz, 2H), 7.43 (d, J = 7.8 Hz, 2H), 6.99 (d, J = 7.9 Hz, 2H), 6.62 (d, J = 8.1 Hz, 2H), 5.25 (s, 1H), 3.58 (s, 3H), 2.45–2.27 (m, 2H), 2.12 (d, J = 16.1 Hz, 1H), 1.92 (d, J = 15.8 Hz, 1H), 0.97 (s, 3H), 0.81 (s, 3H). 13C NMR (63 MHz, DMSO-d6) δppm 193.3, 157.4, 152.3, 148.6, 140.1, 136.5, 132.8, 129.2, 128.8, 128.3, 128.0, 113.4, 108.4, 104.4, 55.2, 50.8, 41.3, 34.7, 32.3, 29.4, 27.0.
3-(4-Chlorophenyl)-4-(4-methoxyphenyl)-7,7-dimethyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FD2) (D2O exchange). 1H NMR (250 MHz, DMSO-d6) δppm 7.46 (d, J = 8.2 Hz, 2H), 7.36 (d, J = 7.4 Hz, 2H), 6.95 (d, J = 8.0 Hz, 2H), 6.57 (d, J = 7.7 Hz, 2H), 5.21 (s, 1H), 3.52 (s, 3H), 2.45–2.26 (m, 2H), 2.12 (d, J = 16.4 Hz, 1H), 1.91 (d, J = 16.3 Hz, 1H), 0.93 (s, 3H), 0.78 (s, 3H).
3-(4-Chlorophenyl)-7,7-dimethyl-4-(4-nitrophenyl)-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FD3). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3415, 3276, 2951, 1514, 1350. 1H NMR (400 MHz, DMSO-d6) δppm 12.76 (s, 1H), 10.15 (s, 1H), 8.00 (s, 1H), 7.97 (d, J = 6.3 Hz, 1H), 7.55 (d, J = 8.6 Hz, 2H), 7.46 (d, J = 8.6 Hz, 2H), 7.37 (d, J = 8.8 Hz, 2H), 5.50 (s, 1H), 2.55 (s, 1H), 2.41 (d, J = 16.5 Hz, 1H), 2.17 (d, J = 16.1 Hz, 1H), 1.96 (d, J = 16.0 Hz, 1H), 1.02 (s, 3H), 0.85 (s, 3H).
3-(4-Chlorophenyl)-7,7-dimethyl-4-(3-nitrophenyl)-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FD4). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3251, 3185, 1627, 1530, 1350. 1H NMR (400 MHz, DMSO-d6) δppm 12.76 (s, 1H), 10.15 (s, 1H), 7.92 (s, 1H), 7.85 (d, J = 8.1 Hz, 1H), 7.60–7.52 (m, 3H), 7.45 (d, J = 8.4 Hz, 2H), 7.39 (t, J = 7.9 Hz, 1H), 5.53 (s, 1H), 2.55 (s, 1H), 2.43 (d, J = 16.6 Hz, 1H), 2.18 (d, J = 16.1 Hz, 1H), 1.98 (d, J = 16.1 Hz, 1H), 1.02 (s, 3H), 0.86 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 192.8, 152.7, 149.3, 147.2, 134.1, 132.7, 129.1, 128.7, 127.9, 121.8, 120.6, 106.5, 102.5, 50.2, 40.8, 35.3, 32.0, 28.8, 26.5.
4-(2-Chlorophenyl)-3-(4-chlorophenyl)-7,7-dimethyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FD5). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3202, 3047, 1625, 1577, 1561. 1H NMR (400 MHz, DMSO-d6) δppm 12.54 (s, 1H), 10.03 (s, 1H), 7.45 (d, J = 8.7 Hz, 2H), 7.41 (d, J = 8.6 Hz, 2H), 7.23 (d, J = 7.3 Hz, 1H), 7.12–7.05 (m, 2H), 6.97 (td, J = 7.7, 1.5 Hz, 1H), 5.62 (s, 1H), 2.50–2.32 (m, 2H), 2.14 (d, J = 16.1 Hz, 1H), 1.92 (d, J = 16.0 Hz, 1H), 1.02 (s, 3H), 0.90 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 192.5, 152.6, 147.8, 144.2, 137.2, 132.6, 131.7, 131.5, 129.1, 128.7, 128.3, 128.2, 127.0, 126.3, 106.6, 102.7, 50.4, 40.9, 33.9, 31.8, 28.9, 26.5.
3-(4-Chlorophenyl)-7,7-dimethyl-4-(2-nitrophenyl)-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FD6). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3246, 3187, 1584, 1531, 1357. 1H NMR (400 MHz, DMSO-d6) δppm 12.76 (s, 1H), 10.15 (s, 1H), 7.69–7.65 (m, 1H), 7.51 (d, J = 8.5 Hz, 2H), 7.47 (d, J = 7.3 Hz, 1H), 7.37 (d, J = 8.6 Hz, 2H), 7.26–7.21 (m, 1H), 7.18–7.14 (m, 1H), 6.06 (s, 1H), 2.46–2.29 (m, 2H), 2.07 (d, J = 16.1 Hz, 1H), 1.86 (d, J = 16.3 Hz, 1H), 0.97 (s, 3H), 0.74 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 192.7, 152.1, 148.3, 147.9, 141.2, 137.4, 132.8, 132.7, 131.2, 130.9, 128.4, 128.4, 126.6, 123.3, 107.0, 101.8, 50.0, 40.8, 31.9, 30.3, 28.6, 26.3.
3-(4-Chlorophenyl)-7,7-dimethyl-4-(pyridin-3-yl)-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FD7). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3427, 3170, 1619, 1584, 1538. 1H NMR (400 MHz, DMSO-d6) δppm 12.72 (s, 1H), 10.08 (s, 1H), 8.35 (s, 1H), 8.16 (d, J = 3.5 Hz, 1H), 7.56 (d, J = 8.5 Hz, 2H), 7.48 (d, J = 8.5 Hz, 2H), 7.40 (d, J = 7.9 Hz, 1H), 7.12 (dd, J = 7.8, 4.8 Hz, 1H), 5.38 (s, 1H), 2.50–2.37 (m, 2H), 2.17 (d, J = 16.1 Hz, 1H), 1.97 (d, J = 16.0 Hz, 1H), 1.02 (s, 3H), 0.86 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 192.7, 152.5, 148.6, 147.8, 146.6, 142.4, 136.5, 134.66, 132.5, 130.9, 129.3, 128.8, 127.7, 123.1, 106.7, 102.8, 50.3, 40.8, 33.2, 31.9, 28.8, 26.5.
3-(4-Chlorophenyl)-4-(3,4-dimethoxyphenyl)-7,7-dimethyl-1,4,6,7,8,9-hexahydro-5H-pyrazolo[3,4-b]quinolin-5-one (FD8). Yellow solid; Mp: >300 °C; FT-IR (KBr, cm−1): 3267, 3195, 1585, 1506, 1420. 1H NMR (400 MHz, DMSO-d6) δppm 12.61 (s, 1H), 9.91 (s, 1H), 7.60 (d, J = 8.6 Hz, 2H), 7.50 (d, J = 8.6 Hz, 2H), 6.74 (d, J = 1.8 Hz, 1H), 6.67 (d, J = 8.4 Hz, 1H), 6.52 (dd, J = 8.3, 1.9 Hz, 1H), 5.30 (s, 1H), 3.61 (s, 3H), 3.54 (s, 3H), 2.50–2.34 (m, 2H), 2.18 (d, J = 16.1 Hz, 1H), 1.99 (d, J = 15.9 Hz, 1H), 1.02 (s, 3H), 0.91 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 192.8, 152.1, 147.9, 147.7, 146.5, 140.3, 136.2, 132.4, 128.7, 128.4, 127.9, 118.9, 111.7, 111.3, 107.6, 104.0, 55.3, 55.1, 50.4, 40.8, 34.5, 31.9, 29.0, 26.5.
Result and discussion
Nowadays, international researchers have attempted to elucidate important roles of the catalytic power of biologically enzymatic processes through hydrogen bonding via in vivo and in vitro.43–57 In this regard, the design, synthesis, and application of the H-bond catalyst are our research interests. On the other hand, our experiences led us to develop pillar-layered metal–organic frameworks (MOFs) containing pending H-bond donor/acceptor functional groups. With this aim, we decided to synthesize TMU-17-UR as a new H-bond catalyst in the preparation of pyrazolo[3,4-b]quinolines as an important biological compound. The required starting materials were synthesized according to our recently reported educational synthetic organic theory.58
Catalyst preparation strategy
With the ever-increasing advances in science and technology, addressing environmental concerns should be prioritized. Efforts to preserve environmental resources have attracted the attention of researchers in recent years. As mentioned above, our research group has been working on the design and creation of various catalysts for catalytic and photocatalytic applications.59–69 Here, the aim is to design and synthesize a new heterogeneous catalyst that will increase the range of existing catalysts. Accordingly, TMU-17-NH2 was created as a pillar-layered MOF. In the following, through the post-modification method, urea groups were created on the desired framework. For this purpose, the NH2 groups of the structure react with the isocyanate compound, and the urea group is created. In both stages, the solvothermal method has been used to create TMU-17-UR as an H-bond pillar-layered MOFs-based catalyst (Scheme 1).
The urea groups created on TMU-17-UR act as hydrogen bond donors/acceptors that activate the target bonds in the structure of the raw materials to perform the desired reaction. The proof of catalytic application of TMU-17-UR in the synthesis of pyrazolo[3,4-b]quinoline derivatives was investigated to reveal its performance. For this synthesis, raw materials synthesized with dimedone and various derivatives of aromatic aldehydes were used in a multicomponent reaction under solvent-free, mild, and green conditions. Purification of the products was done easily. Methods such as melting point, FT-IR, 1H-NMR, and 13C-NMR were used to prove the structure of the synthesized products (Scheme 2) (details are in ESI†).
Characterization
After the design and synthesis of the target catalyst, the chemical structure of TMU-17-UR was confirmed using FT-IR, XRD, SEM, BET/BJH, 13C-NMR (See in ESI) and TGA/DTG techniques. The Fourier-transform infrared spectroscopy (FT-IR) was used to investigate the functional groups present in the initial and final catalyst structures. The results are comparatively shown in Fig. 2. The FT-IR spectrum of TMU-17-NH2 is consistent with previous reports.40 The peak of two branches, 3461 cm−1 and 3361 cm−1, represents the NH2 group. Also, the peak area of 1679 cm−1 shows the presence of the carbonyl group in resonance, which is bonded with Zn metal. After the reaction of this structure with phenyl isocyanate, the urea group was created. The presence of peaks in the area of 3192–3457 cm−1 indicates the NH group in the urea moiety, and the peak in the area of 1650 cm−1 indicates its amidic carbonyl group in urea. The presence of these peaks in both structures indicates the formation of the desired structures (Fig. 2).
 |
| Fig. 2 FT-IR spectrum of TMU-17-NH2 and TMU-17-UR as an efficient H-bond pillar-layered MOFs-based catalyst. | |
The XRD analysis is generally used to show the growth pattern of crystal plates. Metal–organic frameworks have a unique crystal pattern. Investigating the growth of crystalline plates of structure TMU-17-NH2 showed close agreement with the simulation previous reports.40 After the post-modification method at the TMU-17-NH2 by creating urea groups on it, the crystal structure has been preserved and remained stable (Fig. 3). In another study, the SEM technique was used to determine the morphology of the designed catalyst (Fig. S1, identification details are given in the ESI file†). SEM images of TMU-17-UR show uniform lumpy, and plate-like morphologies. This type of morphology may be effective in increasing its efficiency in the direction of the target catalytic application.
 |
| Fig. 3 XRD spectra of simulated TMU-17-NH2, TMU-17-NH2 and TMU-17-UR as an efficient H-bond pillar-layered MOFs-based catalyst. | |
In another exploration, N2 adsorption–desorption isotherms (BET) were used to investigate the surface area and pore size of TMU-17-UR as a hydrogen bonding catalyst (Fig. 4a). Based on the obtained results, the surface area based on the BET equation for TMU-17-UR was calculated at 75 m2 g−1. In addition, the total pore volume for TMU-17-UR was calculated to be 0.599 cm3 g−1. Also, the corresponding pores diameter distribution of the final catalyst is also shown in Fig. 4b. The mean pore diameter of the final catalyst is 31.7 nm. It should be noted that pillar-layered MOFs do not have a large surface area and pore size. Thus, the most previous reports did not have N2 adsorption–desorption isotherms for this structure.40,70
 |

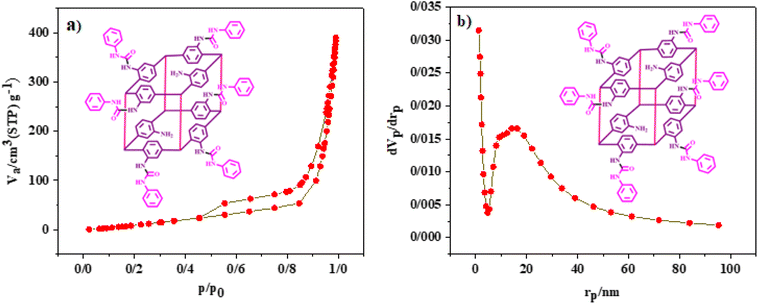

| Fig. 4 (a) N2 adsorption–desorption isotherms and (b) BJH plot TMU-17-UR as an efficient H-bond pillar-layered MOFs-based catalyst. | |
One of the most important parameters and properties of catalysts that will be used in various organic reactions is their appropriate chemical and thermal stability. Thermogravimetry/derivative thermal gravimetric (TGA/DTG) and thermogravimetry/differential thermal analysis (TGA/DTA) analyses were used to prove the stability of the initial catalyst (TMU-17-NH2) and its corresponding final catalyst (TMU-17-UR). The obtained results are shown in Fig. 5. The presented results show that TMU-17-UR has stability of up to 250 °C so that it can catalyze reactions up to this temperature. The reaction for the preparation of pyrazolo[3,4-b]quinoline derivatives in this report is at 100 °C. Due to the stability of this catalyst up to 250 °C, the proper stability of the catalyst is proven. Therefore, in the course of the desired reactions, the catalyst is not destroyed.
 |
| Fig. 5 (a) Thermogravimetry/derivative thermal gravimetric (TGA/DTG) analysis of TMU-17-NH2 and (b) thermogravimetry/differential thermal analysis (TGA/DTA) analysis of TMU-17-UR as an efficient H-bond pillar-layered MOFs-based catalyst. | |
After the complete analysis of the synthesized catalyst and approving its structure, the use of TMU-17-UR as an efficient H-bond pillar-layered MOFs-based catalyst in the synthesis of pyrazolo[3,4-b]quinoline derivatives was evaluated. At first, the reaction conditions were optimized to determine the optimal synthesis conditions. For this purpose, the reaction between 3-(1H-indol-3-yl)-1H-pyrazol-5-amine (0.5 mmol, 0.099 g), 4-chlorobenzaldehyde (0.5 mmol, 0.07 g) and dimedone (0.5 mmol, 0.07 g), was chosen as the model reaction. First, solvent optimization was done, and the reaction was investigated in the presence of different organic solvents as well as solvent-free conditions (Fig. 6a). Solvent-free conditions were chosen as the best choice. Next, in the solvent-free conditions, the above reaction was carried out at different temperatures and with different amounts of catalyst. Based on the results obtained (Fig. 6b and c), performing the reaction at 100 °C and in the presence of 15 mg of TMU-17-UR yielded the best results.
 |
| Fig. 6 Optimization of some model reaction parameters using TMU-17-UR as an efficient H-bond pillar-layered MOFs-based catalyst. | |
After determining the optimal reaction conditions (Fig. 6), a wide range of compounds pyrazolo[3,4-b]quinoline were synthesized with the help of the catalyst TMU-17-UR. As shown in Table 1, performing the model reaction in the presence of TMU-17-UR as an H-bond catalyst leads to the preparation of products in high yields (70–82%) and reduced reaction time (20–35 min). It should be noted that all the synthesized desired derivatives were fully identified, and their molecular structures were confirmed (identification details are given in the ESI file†).
Table 1 The molecular structures of the desired synthesized pyrazolo[3,4-b]quinolines were obtained by using TMU-17-UR as an efficient H-bond pillar-layered MOF-based catalyst under solvent-free conditions
To confirm how the synthesized products are formed, a proposed mechanism is presented in Scheme 3. According to the proposed mechanism, at first, the catalyst activates the dimedone carbonyl bond with its urea part, which acts as a hydrogen donor, and turns it into an enolic form. In a simultaneous process, the carbonyl aldehyde group is also activated by the catalyst and reacts with dimedone. From the condensation between these two, an intermediate (I) is created by removing one H2O molecule. Next, 3-(1H-indol-3-yl)-1H-pyrazol-5-amine or 3-(4-chlorophenyl)-1H-pyrazol-5-amine performs a nucleophilic attack on intermediate (I), and intermediate (II) is formed via a Michael addition reaction. Intermediate (II) undergoes tautomerization by the catalyst to form intermediate (III). In the next step, intermediate (III) undergoes catalytic intramolecular cyclization. Finally, by removing another H2O molecule, the target product is created.59,60
 |

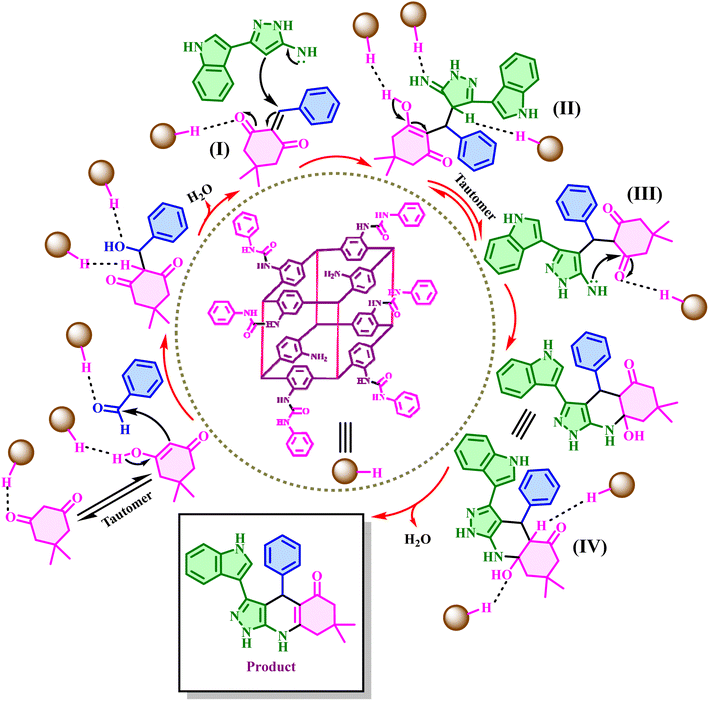

| Scheme 3 The proposed mechanism for the synthesis of pyrazolo[3,4-b]quinolines using TMU-17-UR as an efficient H-bond pillar-layered MOFs-based catalyst. | |
Following the process of investigating the catalytic capabilities of TMU-17-UR as an efficient H-bond pillar-layered MOF-based catalyst, a comparative study was done on the synthesis of pyrazolo[3,4-b]quinolines using other catalysts. For this purpose, a wide range of organic and inorganic catalysts containing acidic, basic, and H-bond groups are used under the model reaction conditions. The results are shown in Table 2. According to the obtained results, the reaction in the presence of TMU-17-UR has better efficiency and a shorter reaction time in compared to other catalysts. One of the most important advantages of the presented heterogeneous catalysts is their recovery capability. Due to the heterogeneous nature of the designed catalyst, its recyclability was also investigated. The results are shown in Fig. 7c. The results show that TMU-17-UR can be recycled and reused 5 times without much change in its catalytic activity. In order to check the stability of the recovered catalyst structure, FT-IR and XRD analyses were taken from the recovered catalyst (Fig. 7a and b). The obtained results show that after recovery, the catalyst has good stability, and the above catalyst can be used and recycled several times without significant changes in the efficiency and reaction time.
Table 2 Synthesis of pyrazolo[3,4-b]quinoline derivatives in the presence of various catalysts
Entry |
Catalyst |
(Mol%) |
Time (min) |
Yield (%) |
1 |
MIL-100(Cr)/NHEtN(CH2PO3H2)2 (ref. 71) |
15 mg |
75 |
35 |
2 |
GTBSA72 |
15 mg |
6 |
65 |
3 |
p-TSA |
15 |
120 |
40 |
4 |
NaOH |
15 |
65 |
40 |
5 |
Pipyridine |
15 |
180 |
30 |
6 |
[PVI-SO3H]Cl73 |
15 mg |
90 |
36 |
7 |
H2SO4 |
15 |
50 |
35 |
8 |
Et3N |
15 |
20 |
30 |
9 |
CQDs-N(CH2PO3H2)2/SBA-15 (ref. 74) |
15 mg |
50 |
45 |
10 |
CQDs-N(CH2PO3H2)2 (ref. 75) |
15 mg |
60 |
40 |
11 |
Ti-MOF-UR24 |
15 mg |
45 |
50 |
12 |
SSA76 |
15 mg |
80 |
25 |
13 |
TMU-17-NH2 (ref. 40) |
15 mg |
60 |
40 |
14 |
TMU-17-UR |
15 mg |
20 |
80 |
 |
| Fig. 7 (a) XRD analysis, (b) FT-IR spectra and (c) recyclability of TMU-17-UR as an efficient H-bond pillar-layered MOFs-based catalyst in the synthesis of pyrazolo[3,4-b]quinoline derivatives. | |
Conclusion
The design and development of hydrogen bond catalysts occurred. In this regard, the TMU-17-UR catalyst was designed and synthesized as the target catalyst using a post-modification method to create urea fragments with hydrogen bond donors/acceptor's ability. The structure of the catalyst was evaluated to prove the correctness of its formation using various techniques. In the next step, the application of TMU-17-UR as an efficient H-bond pillar-layered MOFs-based catalyst in the preparation of a wide range of pyrazolo[3,4-b]quinoline derivatives was evaluated, and good results were obtained. Among the features of this work, we can mention performing the reaction under mild and green conditions, high speed of production of the desired products, high efficiency, and the ability to recycle and reuse the catalyst. The synthesis of a task-specific H-bond catalyst successfully occurred using suitable starting materials for creating urea moieties on the surface of the desired catalyst. The H-bond ability of the presented catalyst acts as an important factor in obtaining the desired results.
Data availability
The datasets used and/or analyzed during the current study available from the corresponding author on reasonable request.
Conflicts of interest
The authors declare no competing financial interest.
