New MCR based on intramolecular Heck reaction under aerobic conditions: a direct access to cytotoxic fused N-heterocycles

Abstract

We report a new MCR involving the reaction of isatoic anhydrides, allyl amine and o-bromo arylaldehydes in the presence of Pd(OAc)₂, X-Phos and air to afford various isoquinolino[1,2-b]quinazolinones as new cytotoxic agents. The strategy was extended successfully towards the synthesis of a methyl analogue of 7,8-dehydrorutaecarpine.

---

Multi component reactions (MCRs) catalyzed by transition metals have emerged as powerful tools in modern organic synthesis as they allow quick introduction of complexity into a particular scaffold in a single-step.¹ Pd-catalyzed reactions on the other hand allow creation of new C–Z (Z = C or N or O) bonds under milder conditions.² Thus development of new MCRs based on Pd catalyzed reactions^2b is of high demand as these methodologies can easily construct pre-designed complex frameworks relevant to natural products access of which may be difficult or cumbersome via conventional multi-step methods.

Natural products containing N-heterocycles are attractive scaffolds in medicinal/pharmaceutical chemistry as well as in the early stage of drug discovery due to their wide range of remarkable pharmacological properties. For example, indolopyridoquinazolinone alkaloid rutaecarpine (A, Fig. 1) isolated from rutaceae (a tropical family of trees and shrubs) has been explored and evaluated as a potential agent in various therapeutic areas.³ Among the various naturally occurring analogues of rutaecarpine, the 7,8-dehydrorutaecarpines (B, Fig. 1) attracted our particular attention due to their potential in the treatment of Alzheimer's disease (AD).⁴ At the same time, we also became interested in the structurally similar another framework C i.e. isoquinolino[1,2-b]quinazolinone (Fig. 1) as compounds based on C though seemed to have drug-like properties are rather uncommon in the literature.^5a Additionally, in view of the well known anticancer properties^5b of isoquinolines and quinazolinones individually, we anticipated that their combined form i.e. C might show anti-proliferative effects against cancer cells. The reported synthesis of B and its analogues are few and involved a lengthy and multistep process.^4,6–8 In some cases B has been isolated as a side product in low or poor yield. Notably, the reported synthesis of isoquinolino[1,2-b]quinazolinones are also few.⁹ We therefore decided to develop a new and general route to construct the framework C extendable to the framework of B. In a retro synthetic analysis we envisaged that ring opening of isatoic anhydride with allyl amine could provide the quinazolin-4-one precursor in situ which on condensation with o-halo benzaldehyde followed by intramolecular Heck reaction could construct the framework C (Fig. 2). Indeed, this strategy worked well as the MCR of isatoic anhydrides (1), allyl amine (2) and o-bromo arylaldehydes (3) in the presence of Pd(OAc)₂, ligand X-Phos and air afforded the desired isoquinolino[1,2-b]quinazolinones (4) smoothly (Scheme 1). While combination of MCR with a Pd-catalyzed reaction e.g. Ugi/Heck,^10a,b Ugi/C–H activation,^10c Ugi–Smiles/Heck^10d or Biginelli–Heck^10e is known in majority of these cases the individual steps were performed separately in a single pot with the addition of Pd-catalyst after completion of the initial step.^10f In contrast the present methodology does not require the monitoring or completion of any initial step as the Pd-catalyst can be added in the beginning of the reaction. Thus the strategy presented here is not common in the literature.

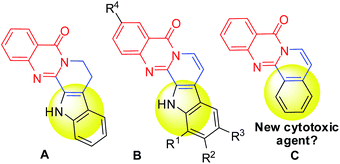

Fig. 1 Rutaecarpine (A), 7,8-dehydrorutaecarpines (B) and isoquinolino[1,2-b]quinazolinone (C).

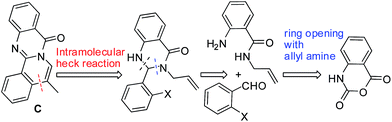

Fig. 2 Retro synthetic analysis for the construction of framework C.

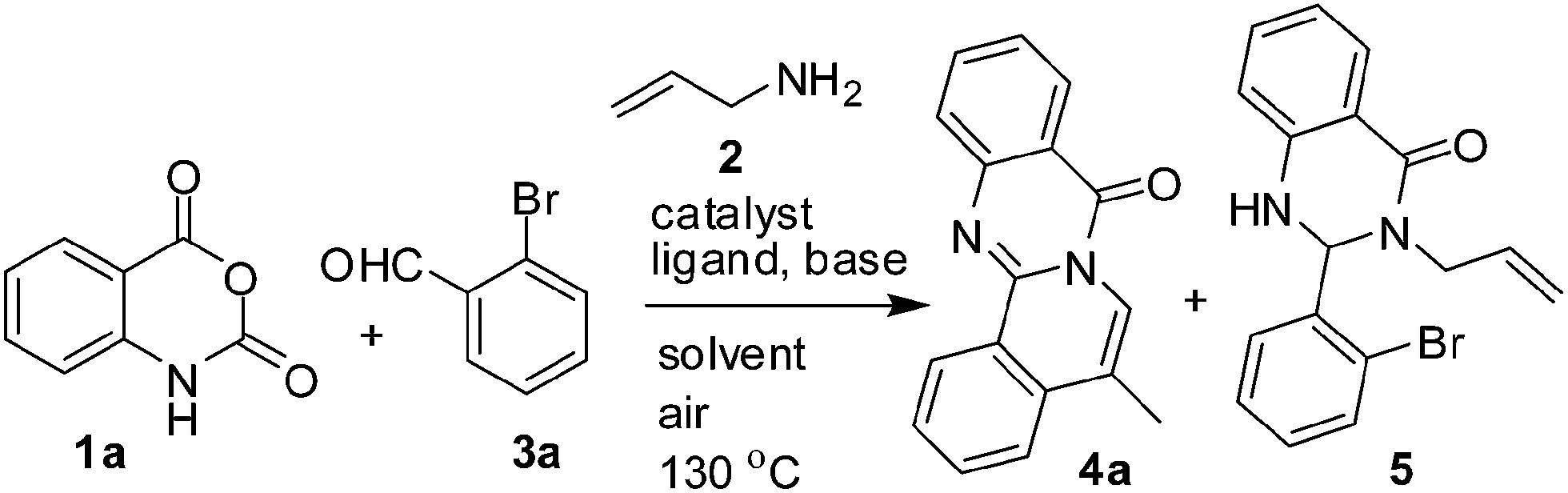

Scheme 1 New MCR based on intramolecular Heck reaction under aerobic condition leading to 4.

Herein we present our preliminary results of this study.¹¹ Initially, the reaction of isatoic anhydride (1a), allyl amine (2) and 2-bromo benzaldehyde (3a) was examined under various conditions (Table 1). We preferred 3a over the corresponding 2-iodo derivative as 3a is less expensive. The reaction was performed in the presence of Pd(OAc)₂ and DIPEA in DMF when the desired product 4a was isolated in poor yield (entry 1, Table 1). A 2,3-dihydroquinazolin-4(1H)-one derivative 5 (thought to be an reaction intermediate) was obtained as a major product in this case. We then examined the effect of ligands such as PPh₃, X-Phos and bipyridine (entries 2–4, Table 1). While yield of 4a was improved in all these cases the best result was obtained when X-Phos was used (entry 3, Table 1). To improve the yield of 4a further, the catalyst Pd(OAc)₂ was replaced with other Pd-catalysts e.g. Pd₂(dba)₃, Pd(PPh₃)₂Cl₂ and Pd(PPh₃)₄ (entry 5–7, Table 1). However, the yield of 4a was not improved. The use of Cu(OAc)₂ as an additive also did not improve the yield (entry 8, Table 1). Similar observation was noted when the base DIPEA was replaced with Et₃N (entry 9, Table 1) or inorganic bases like K₂CO₃ and Cs₂CO₃ (entries 10–11, Table 1). The use of other solvents like DMA, 1,4-dioxane and MeCN in place of DMF afforded lower yield of 4a compared to that of DMF (entry 3 vs. entry 12–14, Table 1). We also varied the quantity of Pd-catalyst used. While the use of a lower quantity of Pd-catalyst decreased the product yield (entry 15, Table 1), the MCR did not provide 4a in the absence of Pd(OAc)₂ (entry 16, Table 1) confirming the key role played by the catalyst. Overall, the combination of Pd(OAc)₂, X-Phos and DIPEA in DMF was found to be optimum. The compound 4a was characterized by spectral data (see ESI†). The ¹HNMR of 4a showed the appearance of Me protons at δ 2.53 along with an allylic coupling i.e. J = 1.2 Hz between the Me protons and the aromatic C-6 proton. The proximity of Me with aromatic C-4 and C-6 protons was confirmed by NOE study (Fig. 3).

Table 1 Optimization of reaction conditions^a

Entry	Catalyst	Ligand/additive	Base/solvent	% yield^b
				4a	5
a Reactions were carried out using 1a (1 mmol), 2 (1 mmol), 3a (1 mmol), catalyst (5 mol%), ligand (10 mol%) and base (3 mmol) in a solvent (2 mL) at rt for 5 min and then slowly at 130 °C for 18 h in the presence of air under anhydrous conditions.b Isolated yield.c 1 equiv. of Cu(OAc)2 was used.d Reaction was performed at 100 °C.e Reaction was performed at 80 °C.f 2.5 mol% catalyst and 5 mol% of ligand was used.g Reaction was performed without catalyst and ligand.h N-allyl-2-aminobenzamide was isolated in >70% yield.
1	Pd(OAc)2	—	DIPEA/DMF	30	57
2	Pd(OAc)2	PPh3	DIPEA/DMF	55	21
3	Pd(OAc)2	X-Phos	DIPEA/DMF	78	—
4	Pd(OAc)2	2,2′-bipyridine	DIPEA/DMF	64	12
5	Pd(dba)3	—	DIPEA/DMF	34	51
6	Pd(PPh3)2Cl2	—	DIPEA/DMF	34	49
7	Pd(PPh3)4	—	DIPEA/DMF	31	49
8^c	Pd(OAc)2	Cu(OAc)2	DIPEA/DMF	42	33
9	Pd(OAc)2	X-Phos	Et3N/DMF	45	29
10	Pd(OAc)2	X-Phos	K2CO3/DMF	32	45
11	Pd(OAc)2	X-Phos	Cs2CO3/DMF	35	44
12	Pd(OAc)2	X-Phos	DIPEA/DMA	73	—
13^d	Pd(OAc)2	X-Phos	DIPEA/1,4-dioxane	45	34
14^e	Pd(OAc)2	X-Phos	DIPEA/MeCN	22	25
15^f	Pd(OAc)2	X-Phos	DIPEA/DMF	52	30
16^g	—	—	DIPEA/DMF	—	20^h

---

Fig. 3 Allylic coupling and NOE correlations observed for compound 4a.

To assess the scope and generality of the newly developed MCR, a number of isatoic anhydrides (1a–e) and a range of 2-bromo arylaldehydes (3a–j) were employed (Table 2). Both electron donating e.g. OH, OMe and OiPr (entry 4–5 & 7–10, Table 2) and electron withdrawing e.g. NO₂ group (entry 3 & 13, Table 2) present on the benzene ring of 3 were well tolerated. However, the O-acetyl group was not tolerated under the conditions employed and de-acetylation was observed (entry 6, Table 2). While isatoic anhydrides containing Cl or OMe participated well in the MCR (entries 11–17, Table 2) the presence of an electron withdrawing NO₂ group was not favorable (entry 18, Table 2). Since all the reactions were performed in the presence of air hence the methodology does not require the use of any closed vessel or inert atmosphere thereby reducing the risk of pressure development in scale up synthesis. Nevertheless the present MCR appeared to be a general method for accessing isoquinolino[1,2-b]quinazolinones. To expand the scope of this methodology further we extended this strategy successfully towards the synthesis of a natural product analog i.e. 8-methyl-7,8-dehydrorutaecarpine (6). Thus, 6 was prepared via the reaction of 1a, 2 and 3-bromo-1H-indole-2-carbaldehyde (3k)¹² in a single synthetic operation (Scheme 2) indicating the potential of this methodology over the conventional multi-step sequences.

Table 2 Synthesis of isoquinolino[1,2-b]quinazolinone derivatives (4) via new MCR^a

Entry	Isatoic anhydride R1, R2 (1)	Aldehyde R3, R4, R5 (3)	Product R1, R2, R3, R4, R5 (4)	% yield^b
a All the reactions were carried out using 1 (1 mmol), 2 (1 mmol), 3 (1 mmol), Pd(OAc)2 (5 mol%), X-Phos (10 mol%) and DIPEA (3 mmol) in DMF (2 mL) at rt for 5 min and then slowly at 130 °C for 18 h in the presence of air under anhydrous conditions.b Isolated yield.c Deacetylated product was obtained.
1	H, H, 1a	H, H, H, 3a	H, H, H, H, H, 4a	78
2	1a	H, H, F, 3b	H, H, H, H, F, 4b	69
3	1a	H, H, NO2, 3c	H, H, H, H, NO2, 4c	65
4	1a	OH, OMe, H, 3d	H, H, OH, OMe, H, 4d	70
5	1a	OMe, OMe, H, 3e	H, H, OMe, OMe, H, 4e	71
6	1a	H, OCOCH3, OMe, 3f	H, H, H, OH, OMe, 4f	62^c
7	1a	H, OH, OMe, 3g	H, H, H, OH, OMe, 4f	65
8	1a	H, OMe, OMe, 3h	H, H, H, OMe, OMe, 4g	70
9	1a	H, O^iPr, OMe, 3i	H, H, H, O^iPr, OMe, 4h	73
10	1a	H, OMe, O^iPr, 3j	H, H, H, OMe, O^iPr, 4i	72
11	Cl, H, 1b	3a	Cl, H, H, H, H, 4j	79
12	1b	3b	Cl, H, H, H, F, 4k	64
13	1b	3c	Cl, H, H, H, NO2, 4l	64
14	H, Cl, 1c	3a	H, Cl, H, H, H, 4m	75
15	1c	3b	H, Cl, H, H, F, 4n	62
16	OMe, OMe, 1d	3a	OMe, OMe, H, H, H, 4o	66
17	1d	3b	OMe, OMe, H, H, F, 4p	60
18	NO2, H, 1e	3a	NO2, H, H, H, H, 4q	45

---

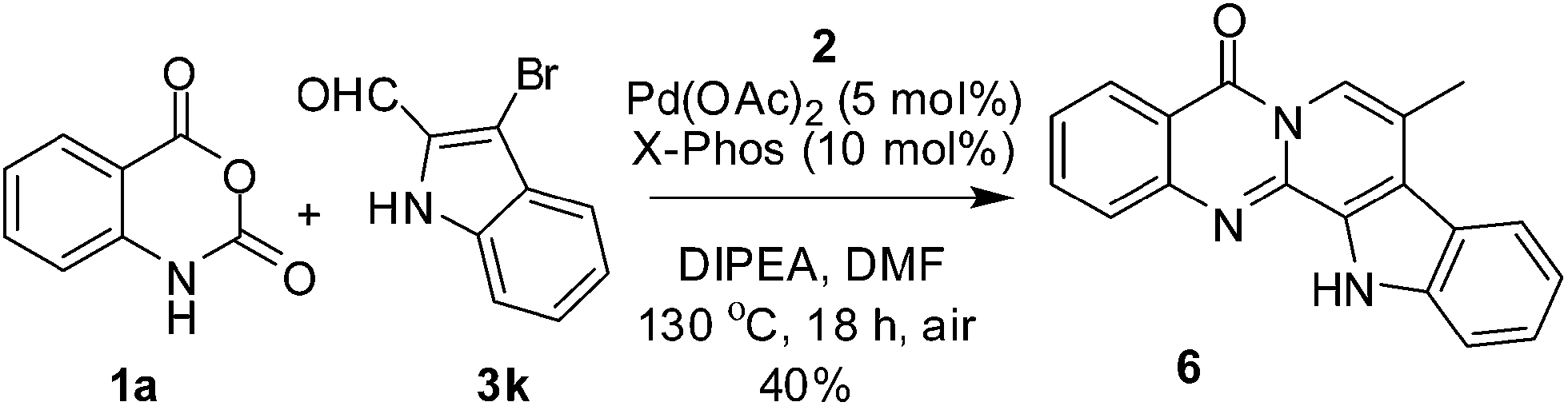

Scheme 2 One-step synthesis of a natural product analog 8-methyl 7,8-dehydrorutaecarpine (6).

Based on our observations summarized in Table 1, the reaction seemed to proceed (Scheme 3) via a rapid in situ generation of E-1 (ref. 13) (from 1 and 2) followed by condensation with 3 to give E-2 (cf. compound 5, Table 1). The results of entry 16 of Table 1 indicate that the ligand may have a role in this step. The E-2 then underwent intramolecular Heck reaction via an exo trig fashion in the presence of Pd(0) species generated from Pd(II) in situ.¹⁴ The exo trig cyclization leading to E-4 was favored over the endo trig pathway perhaps due to the unfavorable ring strain encountered by the 7-membered ring that would formed in the second case. A typical β-hydride elimination from E-4 followed by the base mediated isomerization afforded E-6 which on aerial oxidation gave 4. To gain further evidence we performed two reactions separately. The N-allyl-2-aminobenzamide 7, prepared from 1a and 2 was treated with 3a under the condition of entry 3 of Table 1 for 18 h when 4a was isolated in 77% yield (Scheme 4). Similarly, the compound 5 afforded 4a in 82% yield when treated with the Pd catalyst maintaining the condition of entry 3 of Table 1 for 10 h (Scheme 4). These observations suggested that the reaction proceeded via E-1 followed by E-2.¹⁵

Scheme 3 Proposed reaction mechanism leading to compound 4.

Scheme 4 The reaction of N-allyl-2-aminobenzamide 7 with aldehyde 3a and conversion of 5 to 4a via intramolecular Heck reaction.

Compounds 4a–q were tested against the breast cancer cell e.g. MCF-7 and non-cancer cells e.g. HEK 293T in vitro at 10 μM using the sulphorhodamine B (SRB) assay^16a,b with gemcitabine^16c as a reference compound. Among the active compounds (Fig 4), 4a, 4e and 4h showed 66, 43 and 47% inhibition (better or comparable to gemcitabine's 49% inhibition) and 4a being the best. However, none of them showed significant inhibition of HEK 293T cells indicating their selectivity towards cancer cells. The 4a therefore is of further interest as a potential agent against breast cancer.

Fig. 4 % inhibition of MCF-7 cells by 4 at 10 μM after 72 h of compound treatment (Gem = Gemcitabine).

In conclusion, a Pd-based new MCR has been developed for the direct access to novel isoquinolino[1,2-b]quinazolinones as potential anticancer agents. The MCR involved the reaction of commercially available isatoic anhydrides, allyl amine and o-bromo arylaldehydes in the presence of Pd(OAc)₂, X-Phos and air. This straightforward and operationally simple.

Methodology does not require the monitoring or completion of the initial step before adding the Pd-catalyst. Some of the compounds synthesized showed promising inhibition of breast cancer cell growth and one of them is undergoing further pharmacological evaluation. The strategy was extended successfully towards the synthesis of 8-methyl-7,8-dehydrorutaecarpine avoiding a multi-step procedure. The methodology would find application in constructing library of molecules based on complex and fused N-heterocycles useful for medicinal/pharmaceutical chemistry as well as in the early stage of drug discovery.
