An improved miniprotein host for fluorogenic supramolecular assembly on the surface of living cells

Abstract

An improved miniprotein host capable of fluorogenic supramolecular assembly with a sI-Pht guest is reported. This improved host, termed 6.2.22, displays significant enhancements in both the EC₅₀ for complexation and fluorescence activation of the sI-Pht guest, allowing for improved resolution of supramolecular complexation on the surface of living yeast.

---

Supramolecular assembly harnesses noncovalent interactions between a host–guest pair to allow for the controlled self-assembly of macromolecular complexes.^1,2 This strategy has been employed in a wide variety of applications including the assembly of functional materials with tunable properties^3–8 as well as the construction of sensors.^9,10 However, the design of host–guest pairs that are compatible with living systems remains challenging.¹¹ As a consequence, native protein-based hosts capable of rapamycin-,¹² abscisic acid-,¹³ or gibberellic acid-induced¹⁴ assembly are commonly used in biological systems. In addition, rationally designed host–guest systems using naturally occurring small-molecule binding proteins have been used to control biological responses.¹⁵ While these systems provide a powerful means to manipulate biological functions,^16–22 more work is needed in order to define multiple host–guest systems to allow for the control of multiple biological functions in an orthogonal manner. One potential solution to this problem would be the development of design principles that could afford non-native host–guest systems compatible with living cells. Elegant work along these lines has shown that the β-cyclodextrin²³ and cucurbit[n]uril^24–30 hosts can be employed to induce the supramolecular assembly of proteinaceous guests. Importantly, these non-native host–guest systems may avoid potential off-target effects associated with native host–guest systems.³¹ However, facile delivery of these reagents into living cells represents a potential barrier to their routine use.

Inspired by this work, we have recently described an approach capable of affording miniprotein hosts that undergo supramolecular assembly with user-defined small-molecule guests.³² As our first example, we reported the evolution of a consensus mutant based on the tenth type III domain of fibronectin (Fn3),^33–35 termed 6.2.18, capable of supramolecular assembly with an environment-sensitive dye known as sI-Pht³⁶ to afford an approximately 5 : 1, 6.2.18 : sI-Pht complex and a concurrent 570-fold increase in fluorescence. We hypothesized that selection via fluorescence-activated cell sorting (FACS) for increased fluorescence during successive rounds of yeast surface display³⁷ yielded mutants capable of undergoing supramolecular assembly with sI-Pht. Leveraging the genetically encodable nature of the host molecule, we demonstrated the ability to visualize supramolecular complexation of 6.2.18 with sI-Pht on the surface of living yeast without the need for washing. Herein, we provide further support for the utility of our design approach by disclosing the characterization of an improved Fn3 mutant termed 6.2.22. Importantly, this mutant undergoes supramolecular complexation in response to addition of sI-Pht, forming an approximately 5 : 1, 6.2.22 : sI-Pht complex. In addition, 6.2.22 displays a 4.1-fold improvement in the EC₅₀ of complex formation compared to 6.2.18 and yields a 750-fold increase in fluorescence upon complex formation. These properties allow for improved imaging of supramolecular assembly on the surface of living yeast. Taken together, these results indicate that our new design paradigm could provide a general approach for identifying non-native host–guest pairs that are compatible with biological systems.

Utilizing yeast surface display, we have previously described the evolution of a consensus Fn3 domain, termed 6.2.18 (Fig. 1a and b), capable of supramolecular assembly with sI-Pht (Fig. 1c).³² This consensus mutant was shown to be capable of producing a 570-fold enhancement in fluorescence upon sI-Pht binding and displayed an EC₅₀ of 14 μM for supramolecular complexation. However, while screening one hundred and five positive colonies for binding to sI-Pht we identified an additional mutant, termed 6.2.22, which yielded a 3.7-fold increase in sI-Pht fluorescence on the surface of yeast compared to 6.2.18 (Fig. 1b and d). Intrigued by this result, we set out to characterize the binding between 6.2.22 and sI-Pht.

Fig. 1 (a) Structure of the wild-type Fn3 domain with the randomized BC, DE, and FG loops highlighted in red (PDB: 1TTG). (b) Amino acid sequences for loop regions in wild-type Fn3 (wtFn3), 6.2.18, and 6.2.22. (c) The structure of sI-Pht. (d) Fluorescence of yeast cells (10⁷) displaying the indicated mutant. Cells were incubated with 300 nM sI-Pht for 30 min. Data are normalized to cells displaying wtFn3.

The mutant Fn3 domain, 6.2.22, and wild-type Fn3 (wtFn3) were expressed as C-terminal fusions to the maltose binding protein (MBP, Fig. S1†). Fusion proteins were purified to homogeneity (Fig. S2†). The CD spectrum of MBP-6.2.22 and MBP-wtFn3 could be overlaid (Fig. 2a). However, it should be noted that since we could not obtain sufficient quantities of untagged protein, we cannot definitively rule out differences between the structure of 6.2.22 and wtFn3. Nonetheless, taken together with the bias of yeast surface display for folded proteins,³⁸ this experiment indicates that 6.2.22 likely maintains a folded structure. Titration of sI-Pht with increasing concentrations of MBP-6.2.22 yielded an EC₅₀ of 3.4 μM (Fig. 2b). Importantly, this represents a 4.1-fold improvement in EC₅₀ compared to 6.2.18. From a practical perspective, this decrease in EC₅₀ lowers the amount of sI-Pht needed in order to obtain a fluorescence signal. The resulting complex displayed an excitation maximum at 591 nm and an emission maximum at 613 nm (Fig. S3†). The quantum yield and molar extinction coefficient of the complex was determined to be 0.31 and 107 000 M⁻¹ cm⁻¹, respectively. This represents a 1.6-fold increase in brightness compared to the 6.2.18–sI-Pht complex. Thus, we attribute the increased fluorescence of the 6.2.22–sI-Pht complex on the surface of yeast (Fig. 1d) to a combination of the enhanced fluorescence of the 6.2.22–sI-Pht complex as well as increased affinity for sI-Pht. Interestingly, the transition between unbound and bound sI-Pht occurred over a relatively narrow concentration range of 6.2.22 (Hill slope = 28, Fig. 2b). To further investigate the nature of 6.2.22–sI-Pht binding, we performed a Job's plot analysis (Fig. 3a). These data clearly indicated that binding was not 1 : 1, and instead pointed to a binding stoichiometry in which excess protein was bound to sI-Pht. Further analysis using a Scatchard plot demonstrated positive cooperativity during the formation of the 6.2.22–sI-Pht complex (Fig. 3b).

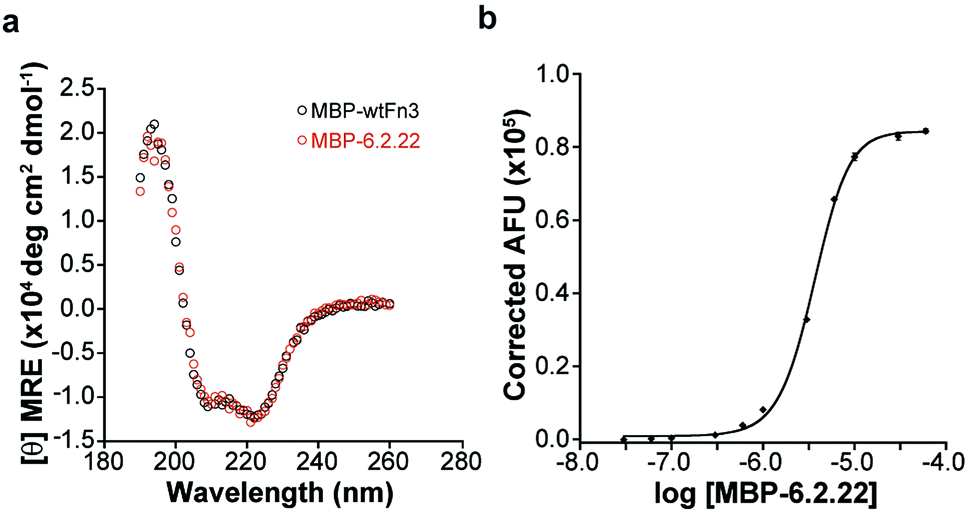

Fig. 2 (a) CD spectrum of MBP-wtFn3 and MBP-6.2.22 (2 μM each). (b) Fluorescence from the indicated concentration of MBP-6.2.22 incubated with 500 nM sI-Pht. Samples were excited at 575 nm and fluorescence emission was monitored at 619 nm.

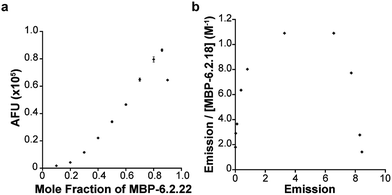

Fig. 3 (a) Fluorescence as a function of the mole fraction of MBP-6.2.22 is shown, the remaining mole fraction is sI-Pht. Samples were excited at 575 nm and emission was monitored at 619 nm. (b) A Schatchard plot analysis of sI-Pht titrated with MBP-6.2.22.

Encouraged by the above results, we asked whether 6.2.22 was capable of selectively recognizing sI-Pht. As potential off-target dyes we chose 4DMN^39–41 and NBD^42,43 (Fig. 4a). Importantly, both dyes are capable of achieving dramatic increases in fluorescence upon changes in the local solvent environment. For example, 4DMN undergoes a 1200-fold increase in fluorescence in dioxane compared to water, accompanied by a blue-shift in emission maximum from 554 to 512 nm.⁴⁰ Exposure of MBP-6.2.22 to sI-Pht resulted in a 750-fold increase in fluorescence, while no observable increase in fluorescence was seen in the presence of NBD (Fig. 4b). In the presence of 4DMN, a modest 32-fold increase in fluorescence was observed coupled with a shift in the emission maximum to 535 nm. We attribute this increase in 4DMN fluorescence to weak, nonspecific interactions between the uncharged 4DMN dye and the relatively hydrophobic 6.2.22 mutant (Fig. 1b).³² These results demonstrate the ability of 6.2.22 to selectivity activate the fluorescence of the sI-Pht fluorophore.

Fig. 4 (a) Structures of the off-target guests 4DMN and NBD. (b) Fluorescence emission in the absence (tan) or presence (red) of the indicated guest fluorophore (500 nM). The concentration of MBP-6.2.22 host was 10 μM. Samples were excited at 460, 485, and 575 nm respectively for 4DMN, NBD, and sI-Pht. Emission maxima were 535, 560, and 619 nm respectively for 4DMN, NBD, and sI-Pht.

Satisfied that 6.2.22 was capable of selectively recognizing the sI-Pht dye, we further investigated 6.2.22–sI-Pht complexation using sedimentation velocity to directly visualize protein species before and after addition of dye (Fig. 5). Prior to the addition of dye, both monomeric (∼44.1 kDa, 48%) and dimeric (∼88.8 kDa, 51%) MBP-6.2.22 were observed. However, in the presence of sI-Pht, we clearly observed the formation of a new, larger molecular weight complex (∼227 kDa). This new complex could be directly visualized by monitoring at the dye absorbance (Fig. S4†). To further characterize the binding between 6.2.22 and sI-Pht, we performed isothermal titration calorimetry (ITC) experiments (Fig. 6). These data demonstrated that complex formation was enthalpically favoured and entropically disfavoured, as expected for supramolecular assembly. Taken together, these experiments provide clear evidence for supramolecular complexation of 6.2.22 upon addition of sI-Pht. Based on this data, we estimate a binding stoichiometry of 5 : 1, 6.2.22 : sI-Pht. The precise determination of the molecular structure and binding stoichiometry of the complex awaits further high resolution structural studies.

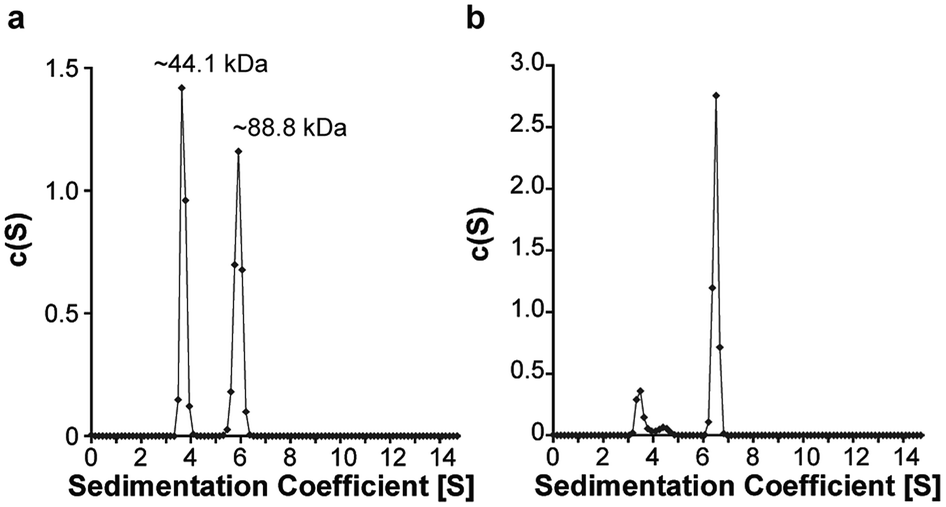

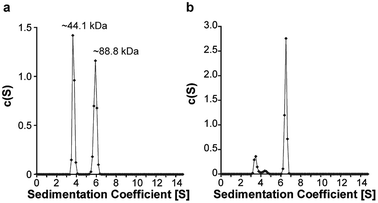

Fig. 5 Sedimentation velocity experiments with MBP-6.2.22 (50 μM) in the absence (a) or presence (b) of sI-Pht (5 μM). Samples were monitored at 295 nm. The calculated molecular weight of MBP-6.2.22 is 53.8 kDa.

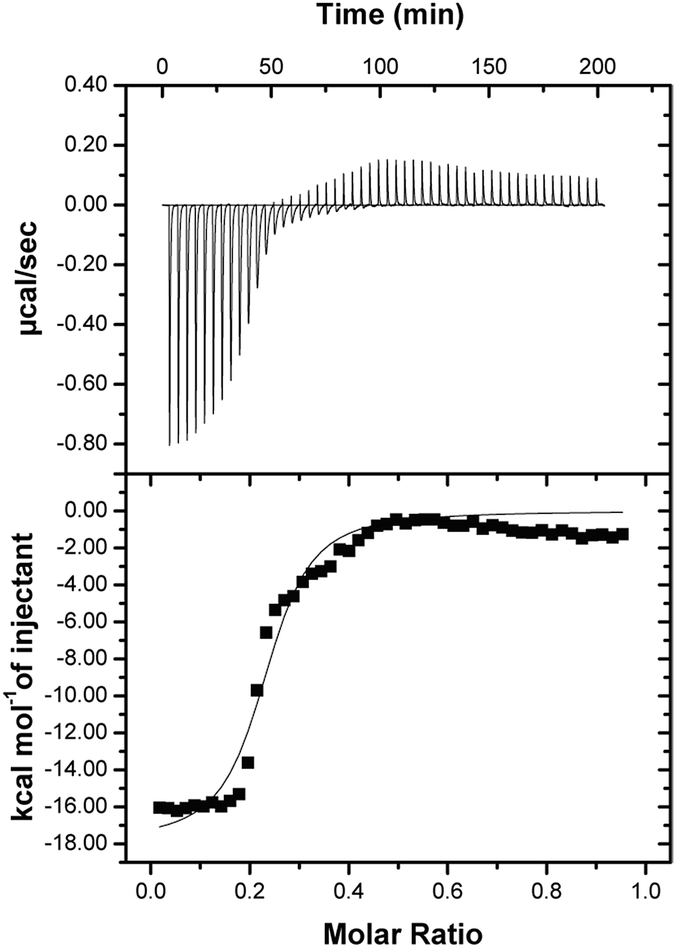

Fig. 6 ITC data obtained from titrating MBP-6.2.22 (80 μM) with sI-Pht (400 μM). Fit values are: N = 0.2, EC₅₀ = 790 nM, ΔH = −17.9 kcal mol⁻¹, ΔS = −32 cal mol⁻¹ deg⁻¹. The difference between the EC₅₀ measured in Fig. 2b may be due to the difference in the physical parameters measured by these techniques.

Taking advantage of the genetically encodable nature of the 6.2.22 host, we expressed 6.2.22 on the surface of living yeast utilizing the covalent interaction of Aga1 and Aga2 (Fig. 7a).³⁷ In addition, we expressed 6.2.18 and wtFn3 as controls. Labelling each population of cells with an Alexa Fluor 488 conjugated anti-c-myc antibody and subsequent imaging using confocal microscopy, demonstrated expression of all proteins on the yeast cell surface (Fig. 7b). Additional labelling with sI-Pht, without washing, only produced observable fluorescence on the cells expressing 6.2.18 and 6.2.22. Moreover, fluorescence images obtained from the 6.2.22 population were brighter than those obtained from the 6.2.18 population under the same conditions. These results further demonstrate the selectivity of the sI-Pht guest, as no appreciable red fluorescence is observed on cells expressing wtFn3 (Fig. 7b).

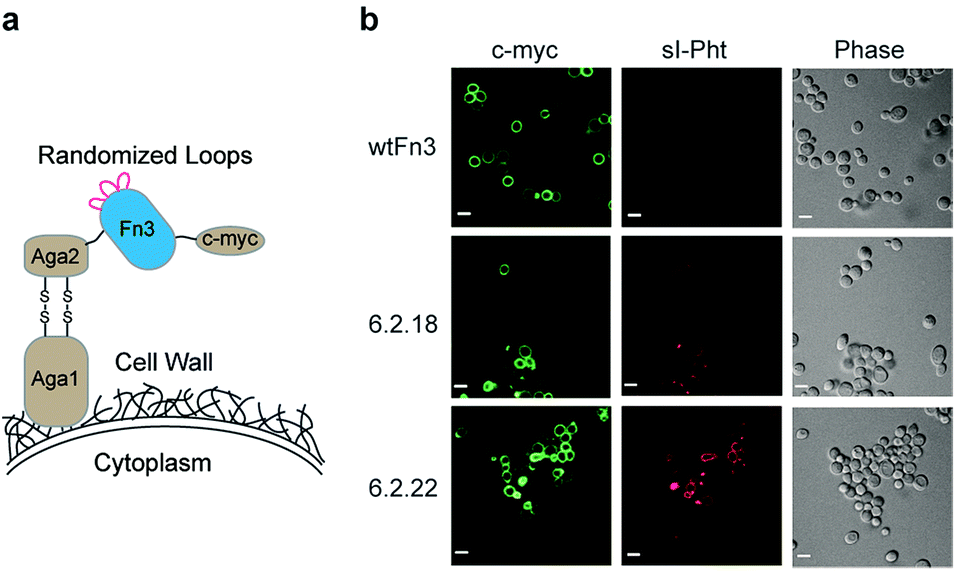

Fig. 7 (a) The Fn3 domain is tethered to the yeast surface through the covalent interaction of Aga1 and Aga2. The c-myc epitope tag allows for labeling of cells expressing Fn3 domains. (b) Confocal microscopy images of yeast expressing the indicated Fn3 domain. Images are false colored for c-myc or sI-Pht (500 nM) labeling. Scale bars represent 5 μm.

Conclusions

In conclusion, we have characterized an improved host, 6.2.22, capable of fluorogenic supramolecular assembly with the sI-Pht guest. This host–guest pair displays marked improvements in the EC₅₀ for supramolecular assembly as well as fluorescence enhancement upon complex formation. In comparison to our previously described system, these advantages enable improved visualization of host–guest complexation on the surface of living yeast. In a broader context, these results further support our design paradigm, in which selection for fluorescence enhancement of environment-sensitive dyes can be utilized to bias directed evolution of miniprotein hosts towards supramolecular assembly. Our laboratory is currently investigating the use of this system to control the proximity of membrane-bound signaling enzymes in cells. In addition, we envision the ability to isolate hosts that selectively recognize spectrally orthogonal guest molecules, enabling potential multiplexing applications. We are also pursuing strategies to modulate the stoichiometry of host–guest assembly during directed evolution.

Acknowledgements

We acknowledge Prof. K. Dane Wittrup for providing the Fn3 domain library as well as the EBY100 yeast strain, the Morrison Miscopy Facility, the Biophysical Core, the Research Instrumentation/NMR facility, the Nebraska Center for Mass Spectrometry, and helpful technical discussions with D. Rajasekhar Reddy. This work was supported by a Nebraska EPSCoR First Award and the University of Nebraska – Lincoln.

Notes and references

1. J. M. Lehn, Science, 1985, 227, 849–856.
2. J. M. Lehn, Proc. Natl. Acad. Sci. U. S. A., 2002, 99, 4763–4768.
3. V. Hernandez-Gordillo and J. Chmielewski, Biomaterials, 2014, 35, 7363–7373.
4. R. A. Miller, A. D. Presley and M. B. Francis, J. Am. Chem. Soc., 2007, 129, 3104–3109.
5. D. E. Przybyla, C. M. Rubert Perez, J. Gleaton, V. Nandwana and J. Chmielewski, J. Am. Chem. Soc., 2013, 135, 3418–3422.
6. F. G. Klarner, B. Kahlert, A. Nellesen, J. Zienau, C. Ochsenfeld and T. Schrader, J. Am. Chem. Soc., 2006, 128, 4831–4841.
7. C. Renner, J. Piehler and T. Schrader, J. Am. Chem. Soc., 2006, 128, 620–628.
8. E. R. Kay and D. A. Leigh, Angew. Chem., 2015, 54, 10080–10088.
9. E. V. Anslyn, J. Org. Chem., 2007, 72, 687–699.
10. L. You, D. Zha and E. V. Anslyn, Chem. Rev., 2015, 115, 7840–7892.
11. D. A. Uhlenheuer, K. Petkau and L. Brunsveld, Chem. Soc. Rev., 2010, 39, 2817–2826.
12. S. N. Ho, S. R. Biggar, D. M. Spencer, S. L. Schreiber and G. R. Crabtree, Nature, 1996, 382, 822–826.
13. F. S. Liang, W. Q. Ho and G. R. Crabtree, Sci. Signaling, 2011, 4, rs2.
14. T. Miyamoto, R. DeRose, A. Suarez, T. Ueno, M. Chen, T. P. Sun, M. J. Wolfgang, C. Mukherjee, D. J. Meyers and T. Inoue, Nat. Chem. Biol., 2012, 8, 465–470.
15. H. N. Lin, W. M. Abida, R. T. Sauer and V. W. Cornish, J. Am. Chem. Soc., 2000, 122, 4247–4248.
16. E. R. Ballister, C. Aonbangkhen, A. M. Mayo, M. A. Lampson and D. M. Chenoweth, Nat. Commun., 2014, 5, 5475.
17. E. R. Ballister, S. Ayloo, D. M. Chenoweth, M. A. Lampson and E. L. Holzbaur, Curr. Biol., 2015, 25, R407–R408.
18. K. A. Brown, Y. Zou, D. Shirvanyants, J. Zhang, S. Samanta, P. K. Mantravadi, N. V. Dokholyan and A. Deiters, Chem. Commun., 2015, 51, 5702–5705.
19. A. V. Karginov, Y. Zou, D. Shirvanyants, P. Kota, N. V. Dokholyan, D. D. Young, K. M. Hahn and A. Deiters, J. Am. Chem. Soc., 2011, 133, 420–423.
20. K. M. Schelkle, T. Griesbaum, D. Ollech, S. Becht, T. Buckup, M. Hamburger and R. Wombacher, Angew. Chem., 2015, 54, 2825–2829.
21. L. A. Banaszynski and T. J. Wandless, Chem. Biol., 2006, 13, 11–21.
22. M. Putyrski and C. Schultz, FEBS Lett., 2012, 586, 2097–2105.
23. L. Zhang, Y. Wu and L. Brunsveld, Angew. Chem., 2007, 46, 1798–1802.
24. D. T. Dang, H. D. Nguyen, M. Merkx and L. Brunsveld, Angew. Chem., 2013, 52, 2915–2919.
25. D. T. Dang, J. Schill and L. Brunsveld, Chem. Sci., 2012, 3, 2679–2684.
26. L. M. Heitmann, A. B. Taylor, P. J. Hart and A. R. Urbach, J. Am. Chem. Soc., 2006, 128, 12574–12581.
27. L. A. Logsdon, C. L. Schardon, V. Ramalingam, S. K. Kwee and A. R. Urbach, J. Am. Chem. Soc., 2011, 133, 17087–17092.
28. H. D. Nguyen, D. T. Dang, J. L. van Dongen and L. Brunsveld, Angew. Chem., 2010, 49, 895–898.
29. L. C. Smith, D. G. Leach, B. E. Blaylock, O. A. Ali and A. R. Urbach, J. Am. Chem. Soc., 2015, 137, 3663–3669.
30. D. A. Uhlenheuer, J. F. Young, H. D. Nguyen, M. Scheepstra and L. Brunsveld, Chem. Commun., 2011, 47, 6798–6800.
31. S. D. Liberles, S. T. Diver, D. J. Austin and S. L. Schreiber, Proc. Natl. Acad. Sci. U. S. A., 1997, 94, 7825–7830.
32. B. Xu, X. Zhou and C. I. Stains, J. Am. Chem. Soc., 2015, 137, 14252–14255.
33. T. F. Chen, S. de Picciotto, B. J. Hackel and K. D. Wittrup, Methods Enzymol., 2013, 523, 303–326.
34. B. J. Hackel, A. Kapila and K. D. Wittrup, J. Mol. Biol., 2008, 381, 1238–1252.
35. A. Koide, C. W. Bailey, X. L. Huang and S. Koide, J. Mol. Biol., 1998, 284, 1141–1151.
36. C. J. MacNevin, D. Gremyachinskiy, C. W. Hsu, L. Li, M. Rougie, T. T. Davis and K. M. Hahn, Bioconjugate Chem., 2013, 24, 215–223.
37. E. T. Boder and K. D. Wittrup, Nat. Biotechnol., 1997, 15, 553–557.
38. D. W. Colby, B. A. Kellogg, C. P. Graff, Y. A. Yeung, J. S. Swers and K. D. Wittrup, Methods Enzymol., 2004, 388, 348–358.
39. J. Kollar, P. Hrdlovic, S. Chmela, M. Sarakha and G. Guyot, J. Photochem. Photobiol., A, 2005, 170, 151–159.
40. G. Loving and B. Imperiali, J. Am. Chem. Soc., 2008, 130, 13630–13638.
41. G. Loving and B. Imperiali, Bioconjugate Chem., 2009, 20, 2133–2141.
42. P. B. Ghosh and M. W. Whitehouse, Biochem. J., 1968, 108, 155–156.
43. D. Lancet and I. Pecht, Biochemistry, 1977, 16, 5150–5157.

---

Footnote

† Electronic supplementary information (ESI) available: Supporting figures, characterization data, and experimental details. See DOI: 10.1039/c6ra01215a

---
