Non-precious Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite as a synergistic catalyst for oxygen reduction in alkaline media

Abstract

In this study we show a method of preparing a high performing catalyst by designing functional nano boundaries in a nanocomposite material. A non-precious nanocomposite material composed of spinel Mn_1.5Co_1.5O₄ nano crystals and FeN_x-functioned graphene nano platelets (FeN_x/C) was synthesized by an ultrasonic process. The crystal structure and elemental composition of the bimetal oxide were determined by X-ray diffraction (XRD) and energy dispersive X-ray spectroscopy (EDS). The surface morphology of the Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite was characterized with transmission electron microscopy (TEM) and scanning transmission electron microscopy (STEM). The catalytic activity for the oxygen reduction reaction (ORR) was analyzed by an electrochemical method. The enhancement of activity for the ORR at the nanocomposite material is attributed to double synergistic effects from the bimetal particles and the FeN_x/C nano sheets. The nanocomposite material is able to catalyze 4-electron oxygen reduction to generate water in alkaline media with a high kinetic rate constant (7.6 × 10⁻² cm s⁻¹ at 0.7 V vs. reversible hydrogen electrode, RHE). Finally, the activity and stability of the nanocomposite material were compared with that of 40% Pt supported on active carbon (40% Pt/C), which reaches 95% activity and a comparable stability of 40% Pt/C at 0.7 V (vs. RHE).

---

1. Introduction

Fuel cells are ideal energy conversion devices that efficiently use fuel with low to zero emission. However, the cost of fuel cell materials and components is unacceptably high for commercial application. For example, platinum catalysts are common core materials in fuel cell devices, which accounts for ∼60% of the total cost of fuel cell stacks.¹ Non-precious materials as an alternative for fuel cell catalysts have received much attention. Unpyrolyzed and pyrolyzed transition metal macrocycles,^2–10 as a large group of non-precious materials, were extensively investigated for the catalytic oxygen reduction reaction (ORR). It is interesting that the macrocycles after pyrolysis contain only carbon with a micro amount of nitrogen and metal atoms (∼5%), but have better activity and stability than those that have not been pyrolyzed.^9,10 Therefore, major efforts have focused on pyrolyzed macrocycles such as nitrogen-doped carbons (N_x/C), as well as metal-nitrogen co-doped carbon (MN_x/C). Lately, it has been reported that the N_x/C or MN_x/C catalysts may be obtained from non-macrocyclic precursors, such as nitrogen-rich polymers and bio-materials.^11–20 Although the N_x/C or MN_x/C materials have good initial activity, their activity decays rapidly with time, especially in acidic media. The gradual activity decrease is attributed to continuous loss of catalytic sites in acidic media and harsh fuel cell operating condition. The decrease in catalytic stability is potentially mitigated by increasing the concentration of catalytic sites in the MN_x/C materials.²⁰ In addition to N_x/C and MN_x/C catalysts, another notable group of non-precious materials investigated for the ORR are transition metal oxides,^21–34 which show promising activity and persistent stability in alkaline media. Non-noble metal oxides are earthly-abundant, low cost, and ideal catalyst materials for fuel cells with alkaline electrolyte membranes or anion exchange membranes.^35–38 As non-noble metal oxides are poorly electrically conductive, they have to be supported on inert conductive materials such as high surface area carbons. However, the ORR mechanisms for metal oxides are complex. There are 2-electron, mix 2 & 4-electron, and 4-electron reactions, which often depend on the metal oxides' structure, composition, morphology, supporting materials, and dopants. The 2-electron reaction mainly occurs on free metal oxides, carbon supports, and their simple mixtures.^{21,23,25,26,31,32,34} The 4-electron reaction mainly occurs on the nano-structures of metal oxides coupled with a functional support or a dopant, such as MnO₂ intercalated in graphene oxides,²³ Co₃O₄ nano-rod supported on carbon,²⁹ Co₃O₄ nanocrystals on graphene,³⁰ Co₃O₄ nano-sheets interleaved with graphene sheets,³³ and mesoporous Mn₂O₃ doped with Pd nanoparticles.³² The mechanism of 4-electron reaction is attributed to a synergistic effect at the nano boundaries between metal atoms and the support. Most recently, more innovative nano materials were synthesized with high catalytic activity and stability. For example, Xia et al.³⁹ synthesized a high performing bifunctional catalyst composed of hollow frameworks of nitrogen-doped carbon nanotubes for oxygen reduction and evolution.

In the present research, we attempt to explore how oxygen is reduced at the nano boundaries between metal oxides and carbon supports. Scheme 1 shows a mixed mechanism containing a 4-electron O₂ reduction reaction to produce water (Scheme 1a) and a 2-electron reaction to produce hydrogen peroxide (Scheme 1b) at the boundary between a mono-metal oxide (Mn₂O₃/C or Co₃O₄/C) and a traditional carbon support (un-doped).

Scheme 1 Mixed mechanism for ORR at mono-metal oxide and un-doped carbon support.

In order to minimize the 2-electron reduction of oxygen, we combined the two metals to form a bimetal oxide, and observed an enhancement of the ORR activity at the boundaries between the bimetal oxide, Mn_1.5Co_1.5O₄, and the carbon support. Scheme 2 shows a mixed mechanism of ORR with a larger fraction of the 4-electron reaction (Scheme 2a) compared to the smaller 2-electron reduction fraction (Scheme 2b).

Scheme 2 Mixed mechanism for ORR at bimetal oxide and un-doped carbon support.

To further increase the catalytic activity, we used a functional carbon (i.e., a metal-nitrogen co-doped graphene) as a support to replace the traditional carbon. We prepared the nanocomposite material, Mn_1.5Co_1.5O₄, supported on FeN_x/C, by ultrasonic processing. Interestingly, we realized a near completed 4-electron oxygen reduction reaction for the nano-composite as a catalyst. Scheme 3 shows a 4-electron reaction mechanism of ORR at the nano boundaries between the bimetal sites and the FeN_x/C nano sheets.

Scheme 3 A mechanism for ORR at bimetal oxide and FeN_x-doped carbon support.

The enhancement of catalytic activity is believed to be a synergistic effect of the bimetal atoms (Mn and Co), and a synergistic effect of the bimetal oxide nano crystals and the FeN_x/C nano sheets.

2. Experimental section

2.1. Chemicals and materials

Hemin from porcine, cobalt(II) oxalate dihydrate (CoC₂O₄·2H₂O), manganese(II) oxalate dihydrate (MnC₂O₄·2H₂O), and ammonium hydroxide (28% NH₃), were purchased from Aldrich. Graphene nano platelets (GNP) with a BET surface area between 600 and 650 m² g⁻¹ were purchased from Cheap Tubes Inc. Platinum nano catalyst supported on 60% active carbon (40% Pt/C) was purchased from Johnson Matthey. Deionized water was used for all synthesis and experiments.

2.2. Synthesis of Mn₂O₃, Co₃O₄ and Mn_1.5Co_1.5O₄

1 g CoC₂O₄·2H₂O and 1 g MnC₂O₄·2H₂O were mixed with 3 mL NH₄OH water, ground to a paste and dried at 70 °C. The dry mixture was put in a ceramic boat and heat-treated at 400 °C in the presence of air for two hours. A bimetal oxide with black color was obtained, and determined as Mn_1.5Co_1.5O₄. The Mn₂O₃ and Co₃O₄ were synthesized by weighing 2 g MnC₂O₄·2H₂O and 2 g CoC₂O₄·2H₂O, respectively, and following the same procedure as that of making Mn_1.5Co_1.5O₄, except processing and heat-treating them separately. For comparison, a mixture of Mn₂O₃ and Co₃O₄ was also prepared by ultrasonic treatment of equal amount of Mn₂O₃ and Co₃O₄ in water for 30 minutes and dried at 60 °C.

2.3. Synthesis of FeN_x/C

Synthesized according to our previous reports^6–8 and briefly described here. 1 g hemin and 1 g GNP were uniformly dispersed in 50 mL N,N-dimethylformamide (DMF). After drying on a hot-plate, the mixture was placed in a ceramic boat and sent to a tubular furnace for heat-treatment for 2 hours under a nitrogen atmosphere at 600 °C. The material after pyrolysis contained 4.9% Fe (w/w), 4.3% N (w/w), 1.5% H (w/w) and 77.8% C (w/w), with N/Fe atomic ratio ∼3.5 by elemental analysis.

2.4. Synthesis of Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite

The nanocomposite was synthesized by ultrasonically processing Mn_1.5Co_1.5O₄ and FeN_x/C to break the large particles into nano-sized particles. A Branson Sonifier 450 was used with an ultrasound tip source. Here, 32 mg Mn_1.5Co_1.5O₄ and 75 mg FeN_x/C were mixed in a small beaker containing 4 mL 1-propanol and 4 mL water. The samples were cooled in an ice bath, and processed at a duty cycle of 40 and output control of 8 for 20 minutes. After ultrasound treatment an ink-like solution was obtained, containing 4 mg mL⁻¹ Mn_1.5Co_1.5O₄ dry sample and 9.4 mg mL⁻¹ FeN_x/C. The dried material is referred to a Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite. The ink was directly used for electrochemical analysis by adding 5% Nafion solution as binder. As mentioned in our previous report,⁶ the ultrasound method is a powerful tool for processing nano-materials. Moreover, the FeN_x/C is a high surface area nanomaterial with high electric conductivities and relatively good chemical stabilities to accommodate the metal oxides. The Mn₂O₃/C, Co₃O₄/C, and Mn_1.5Co_1.5O₄/C samples were prepared by ultrasonically mixing with 70% GNP in chilled in an ice bath.

2.5. Instrumental analysis

X-Ray Diffraction data (XRD) were obtained from a Rigaku Ultima III instrument with Cu Kα radiation (λ = 1.5418 Å) using a Bragg–Brentano configuration. The measurements were conducted with a scan rate of 1.0 degree (2θ) per minute; and each diffraction data point was collected at the interval of 0.02 degree (2θ) for the total spectrum range of 10 to 80 degree (2θ). Transmission electron microscopy (TEM) were obtained with a high-resolution JEOL 2100 FE instrument equipped with an EDAX X-ray detector and a high angle annular dark field (HAADF) detector. Before imaging, a solution was prepared by adding 5 mg of the catalyst into 5 mL of 1-propanol followed by a short ultrasonic bath (Branson 3510) treatment. An aliquot of ink was loaded onto a QUANTIFOIL®-Holey Carbon Films (0.6 μm hole, 1.6 μm space 300 mesh copper grid, Electron Microscopy Science) with a micro-pipette and dried overnight at room temperature. Elemental mapping were obtained by scanning transmission electron microscopy (STEM) based on atomic resolution HAADF imaging. Elemental analysis was obtained by energy dispersive X-ray spectroscopy (EDS).

2.6. Electrochemical characterization

A Pine Bipotentiostat RDE4 was used for electrochemical characterization. A glassy carbon (GC) disk electrode (0.196 cm²) and a ring-disk electrode were used. The ring-disk electrode had a GC disk electrode (0.247 cm²) and a Pt-ring electrode (collection coefficient 0.37). A catalyst sample was first suspended in 1 : 1 water/1-propanol solution and cooled in an ice bath. The catalyst ink was prepared by ultrasonic treatment with a Branson Sonifier 450 with a duty cycle of 40 and an output control of 8 for 10 minutes. The final catalyst content was 4 mg mL⁻¹ metal oxides (Mn_1.5Co_1.5O₄, or Mn₂O₃, or Co₃O₄). Then, 10 μL of catalyst ink was coated on a GC disk working electrode for RDE experiments; and on the disk electrode of the ring-disk electrode for RRDE experiments, respectively. The ink was dried at 40 °C for over 60 minutes. The final coating on the GC disk electrode contained 95% total catalyst materials and 5% dry Nafion with a metal oxide loading of 0.20 mg cm⁻². An ink of 40% Pt/C was prepared using the same procedure as that discussed for the metal oxide samples. The final loading of 40% Pt/C on the GC electrode was 0.20 mg cm⁻². The catalyst coated electrode was mounted onto a Pine ASR rotator and used as the working electrode. All voltammetry experiments were performed in argon (Ar) or O₂ saturated 0.1 M potassium hydroxide (KOH) solution at room temperature (20 ± 1 °C). A three electrode glass cell was used for electrochemical study containing three compartments separated by porous ceramic layers. A platinum wire counter electrode and a saturated calomel reference electrode (SCE) were used in the cell. The experimental results were reported based on reversible hydrogen electrode (RHE). The difference between SCE and RHE was experimentally determined with an SCE and a fresh-prepared RHE in 0.1 M KOH solution in the same electrochemical cell. The current density reported in this article is based on the geometrical area of the GC disk electrode (mA cm⁻²), which can be changed to current density based on mass (mA mg⁻¹) by simply multiplying a factor of 5 according to the mass of the catalyst loading.

3. Results and discussion

3.1. XRD results

The composition and morphology of several metal oxides were characterized with XRD, including the mono metal oxides (manganese oxide and cobalt oxide) and the bimetal oxide (manganese–cobalt oxide). As shown in Fig. 1, all of them are highly crystalized. Their structures and compositions were determined with the XRD results, as α-Mn₂O₃, Co₃O₄, and (Mn,Co)₃O₄, respectively. The atomic ratio of Mn to Co in the (Mn,Co)₃O₄ crystals was further determined with EDS analysis, as ∼1 (see the following EDS results). Therefore, it is determined that the bimetal oxide is Mn_1.5Co_1.5O₄ with a spinel structure. The crystallite size of Mn_1.5Co_1.5O₄ (11.8 nm) is significantly smaller than that of α-Mn₂O₃ (21.3 nm) or Co₃O₄ (24.5 nm). As shown in Fig. 1, the XRD pattern of the Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite has the main peaks of both Mn_1.5Co_1.5O₄ and FeN_x/C. The chemical states of Co and Mn in the nanocomposite have been cleared from the XRD results showing in Fig. 1, as Co³⁺/Co²⁺ and Mn³⁺/Mn²⁺. The chemical state of nitrogen in the nanocomposite can be determined from X-ray photoelectron spectroscopy (XPS) according to the reports.^13,40,41 For Fe-porphyrins pyrolyzed at 600 °C,^40,41 the deconvoluted high-resolution XPS spectra at the N 1s region showed three peaks, assigned as pyrrolic, pyridinic and Fe–N₄ based nitrogen atoms, with peak positions (binding energy, eV) at 400.3, 398.8 and 398.1, respectively. The chemical state of iron has been determined from the electrochemical results (cyclic voltammograms), as Fe⁺³/Fe⁺².

Fig. 1 X-ray diffraction pattern of non-precious metal oxides, FeN_x-doped carbon and Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite.

3.2. TEM and STEM images

The nano boundaries between these metal oxides and GNP are examined with TEM. Fig. 2A–C shows TEM images of Mn_1.5Co_1.5O₄–FeN_x/C. Some small darker and round regions are seen, and identified as Mn_1.5Co_1.5O₄ particles. The positions of GNP can also be recognized from the larger and lighter regions. However, the boundaries between Mn_1.5Co_1.5O₄ particles and GNP are unclear, which implies that the nano boundaries are well formed between the two materials with no gaps. Fig. 2D shows TEM image of unsupported Mn_1.5Co_1.5O₄ with measured particle sizes around 10–20 nm, which is consistent with that of the XRD results. The purity and uniformity of Mn_1.5Co_1.5O₄–FeN_x/C are examined by atomic resolution elemental mapping with STEM-EDS imaging. Fig. 2E–G shows elemental mapping of Co, Mn and Fe, respectively. The spatial distributions of Fig. 2E and F are matched very well, which indicates that the Mn_1.5Co_1.5O₄ is a uniform bimetal oxide, instead of a mixture of α-Mn₂O₃ and Co₃O₄. The crystals of Mn_1.5Co_1.5O₄, are formed when the Co atoms are replaced by some Mn atoms in the spinel structure of Co₃O₄. The Fe element is evenly dispersed on the small graphene sheets. The spatial distribution of Fe element (see Fig. 2G) is also approximately matched with that of Mn_1.5Co_1.5O₄, which indicates that the nano boundaries between FeN_x/C and Mn_1.5Co_1.5O₄ are well formed. The elemental content of Mn_1.5Co_1.5O₄–FeN_x/C and Mn_1.5Co_1.5O₄ is measured with STEM-EDS, and listed in Table 1. Equal Mn and Co atomic concentrations of are seen, which matches the elemental composition of Mn_1.5Co_1.5O₄ and the XRD results.

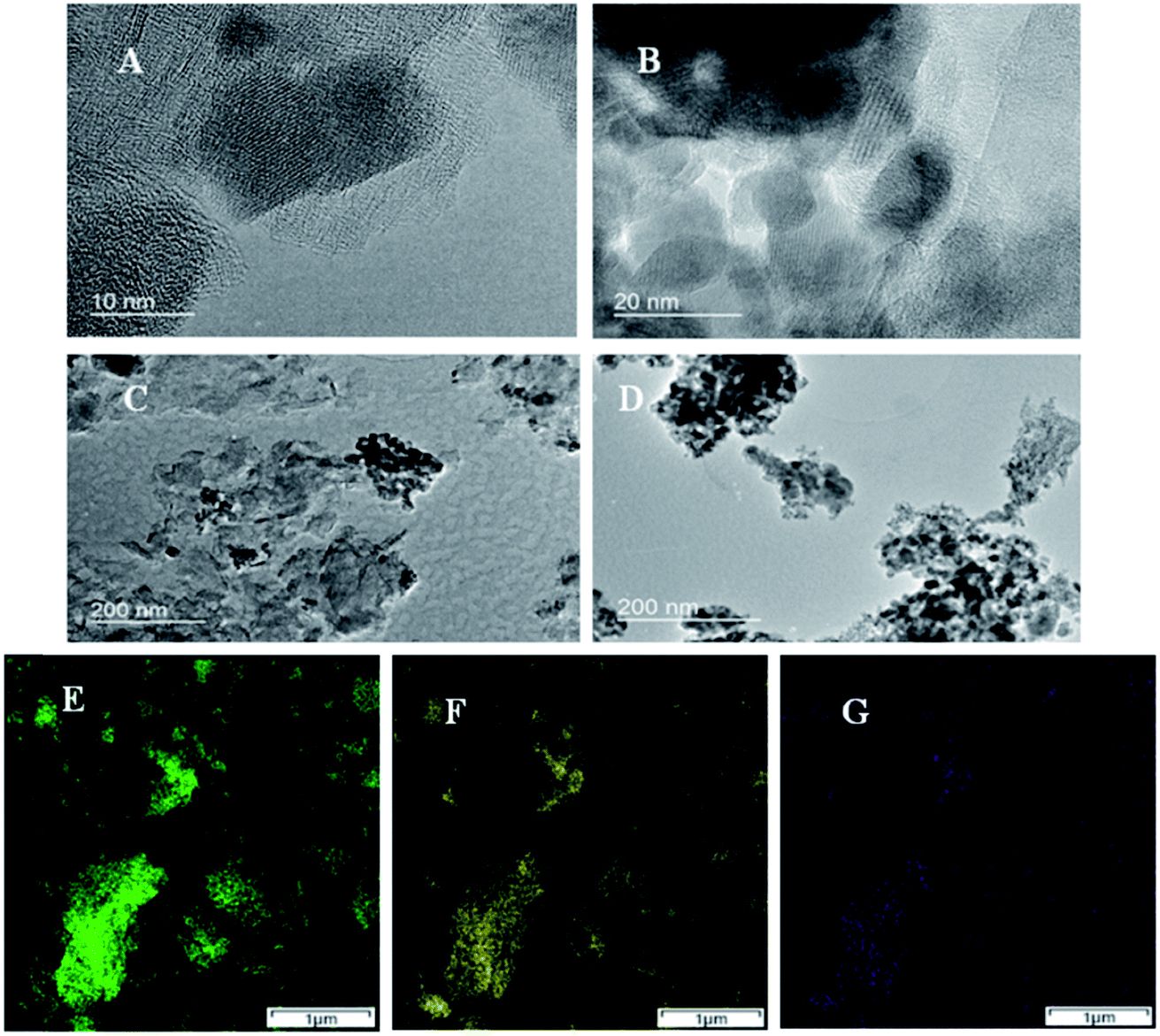

Fig. 2 TEM images of Mn_1.5Co_1.5O₄–FeN_x/C (A–C), and Mn_1.5Co_1.5O₄ (D); and elemental maps of Mn_1.5Co_1.5O₄–FeN_x/C obtained from atomic resolution STEM-EDS imaging (E–G) Co Ka1 (E), Mn Ka1 (F), and Fe Ka1 (G).

Table 1 Relative metal contents in Mn_1.5Co_1.5O_x–FeN_x/C and Mn_1.5Co_1.5O_x samples obtained from STEM-EDS analysis (note: the C% content is excluded for clarification)

Sample		Mn%	Co%	Fe%	O%	Total
MnCoOx–FeNx/C	w%	24.9	26.9	4.6	43.6	100
	at%	12.2	12.3	2.2	73.3	100
MnCoOx	w%	31.1	29.3	—	39.6	100
	at%	14.9	15.1	—	70.0	100

---

3.3. Electrocatalytic activity and mechanisms of the ORR at the Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite electrode

The electrochemical behaviors of various non-precious nanocomposites coated GC electrodes are initially examined by cyclic voltammetry (CV) in 0.1 M KOH in the absence of oxygen, as shown in Fig. 3A and B. An oxidation peak at ∼1.0 V and a reduction peak appearing between 0.5 and 0.7 V are seen for the samples of Mn₂O₃/C, Mn_1.5Co_1.5O₄/C and Mn_1.5Co_1.5O₄–FeN_x/C. It is noticeable that all of the three materials contain Mn element in their composition, indicating redox peaks for Mn ion oxidation and reduction. No peak is observed for the polarization curve obtained from the Co₃O₄/C nanocomposite. In addition, no peak is observed for the FeN_x/C electrode, however, the background current increases when the potential is less than 0.8 V. The rapid increase in background current at the lower potential is likely due to ions adsorption and desorption at the FeN_x/C surface. The ORR catalytic activity is detected by bubbling O₂ through the electrolyte solution. The catalytic activity is accurately analyzed by the rotating disk electrode method (RDE). Fig. 3C shows polarization curves for the mono-metal oxides, and bimetal oxide coated RDEs in O₂ saturated 0.1 M KOH. The ORR limiting current increases in the order of Mn_1.5Co_1.5O₄/C > Mn₂O₃/C > Co₃O₄/C. The half wave potential positively shifts from 0.73 V for Mn₂O₃/C to 0.76 V for Mn_1.5Co_1.5O₄/C, which implies that the Mn_1.5Co_1.5O₄/C has better catalytic activity than that of the mono-metal oxides Co₃O₄/C and Mn₂O₃/C investigated in this study. The enhancement of activity at the bimetal oxide is attributed to a synergistic effect of different metal atoms in the bimetal crystal. The Co₃O₄ shows a spinel structure, with Co²⁺ ions in tetrahedral interstices and Co³⁺ ions in the octahedral interstices of the cubic close-packed lattice of oxide anions. The Mn is also able to form a Mn₃O₄ spinel structure. When Co and Mn form a bimetal oxide, the atoms of Co and Mn are positioned in the same spinel structure, which changes the parameters of their original structure, resulting in smaller crystallite size and particle size as shown by XRD and TEM results. The smaller crystal and particle size of a catalyst are corresponding to the higher surface area, the more active catalytic sites, and the higher catalytic activity for ORR. Therefore, we call this phenomenon as synergistic catalytic effect of bimetal composition. Fig. 3D shows polarization curves of FeN_x/C, Mn_1.5Co_1.5O₄/C, and Mn_1.5Co_1.5O₄–FeN_x/C coated RDEs in O₂ saturated 0.1 M KOH. The highest limiting current and the most positive half wave potential (0.82 V) is observed for the Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite-coated RDE.

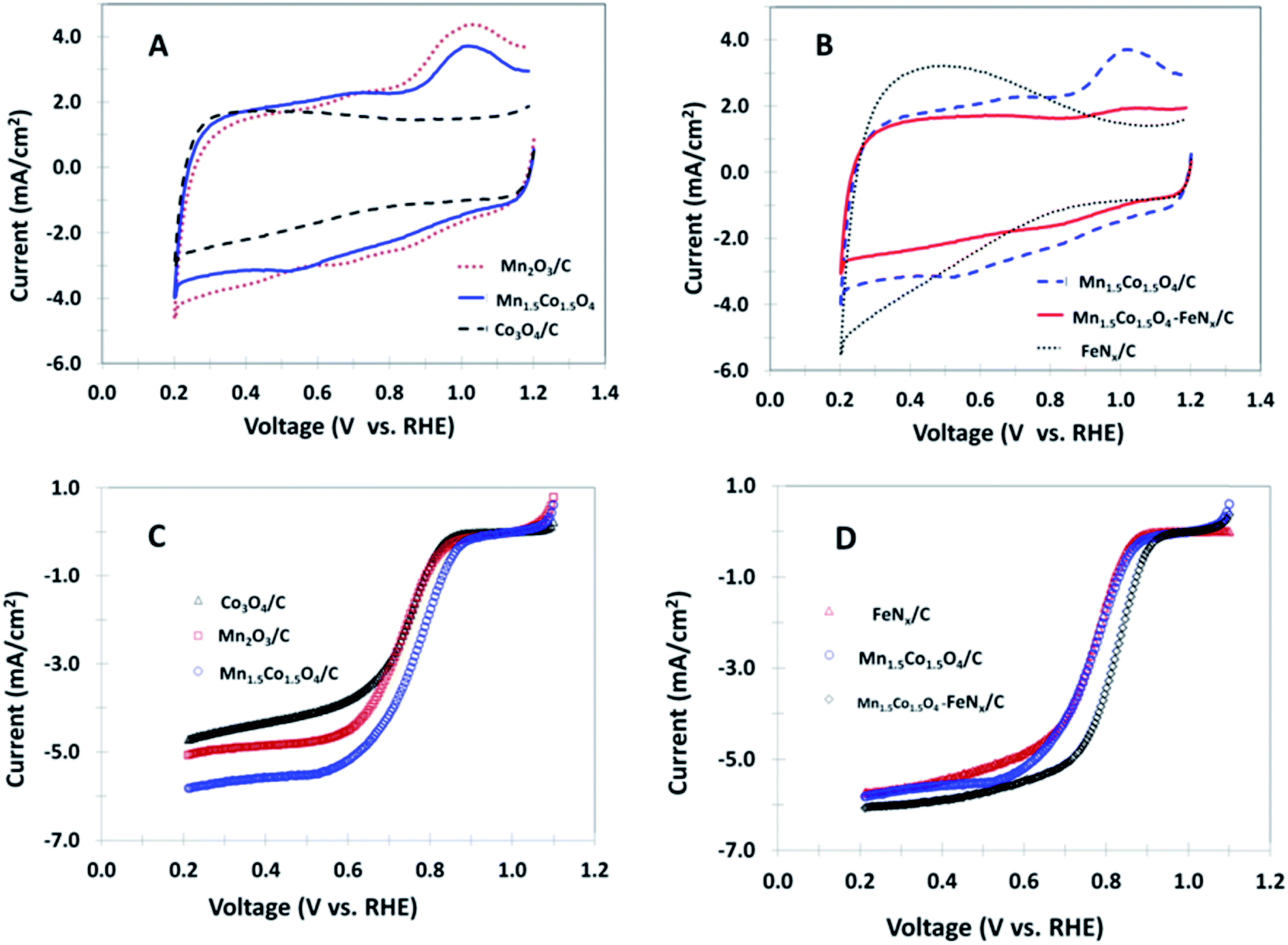

Fig. 3 Cyclic voltammograms of the different nanocomposites coated GC disk electrodes in argon saturated 0.1 M KOH, 50 mV s⁻¹ (A and B); and polarization curves of the same nanocomposites coated disk electrodes in O₂ saturated 0.1 M KOH, 10 mV s⁻¹, rotation rate 1600 rpm (C and D).

The enhancement of catalytic activity at the Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite is attributed to a secondary synergistic effect of ORR at the nano boundaries, where the oxygen molecules are catalyzed by two types of catalytic sites, or the bimetal atoms, Mn–Co, at the Mn_1.5Co_1.5O₄ site, and the Fe atom at FeN_x/C site. The polarization curves of these catalysts coated RDEs are further analyzed with Tafel plots. The half wave potentials and Tafel slopes of ORR at these polarization curves are listed in Table 2. The Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite has the smallest Tafel slope (35 mV dec⁻¹), which indicates an advantage of fast electron transfer between the oxygen molecules and the catalyst coated electrode. The number of electron transfer and the yield of intermediate product, H₂O₂, for ORR are obtained from the RRDE data. Fig. 4A and B shows RRDE polarization curves of ORR at different nanocomposites coated GC disks and Pt-ring electrode in O₂ saturated 0.1 M KOH. The current densities in Fig. 4 are somewhat different from that in Fig. 3. This difference often happens when the RDE and RRDE experiments are carried out with different electrodes that have different electrode areas. In the present research we used different electrodes for RDE (0.196 cm²) and RRDE (0.247 cm²) experiments, respectively. Due to the catalyst loading on the RDE and RRDE was exact the same (0.04 mg of metal oxide), which caused the catalyst dispersion and concentration differences (0.2 mg cm⁻² for RDE and 0.16 mg cm⁻² for RRDE), and the current density a slightly difference. Fortunately, these differences will not affect our comparison of the catalyst performance. The goal of the RDE experiment is used for comparison of the catalyst activity and stability; but the goal of the RRDE experiment is used to compare the H₂O₂ yielding during the process of ORR. The higher ring current indicates the more H₂O₂ generated for ORR at the disk electrode and collected at the ring electrode. The magnitude of ring current is Co₃O₄/C > Mn₂O₃/C > Mn_1.5Co_1.5O₄/C > FeN_x/C > Mn_1.5Co_1.5O₄–FeN_x/C. Plots of the number of electron transfer and the yield of H₂O₂% versus disk potential are shown in Fig. 4C and D, respectively. The yield of H₂O₂ is potential dependent, and a peak yield appears at ∼0.6 V. The electron transfer number and H₂O₂% yield at 0.6 V are also summarized in Table 2. The peak yield of H₂O₂% at the Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite is less than 5%. The very small H₂O₂ production is probably because a small part of electrode is incompletely covered by the catalyst coating. Apparently, the Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite mainly catalyzes 4-electron oxygen reduction. The mechanism of ORR at the nanocomposite Mn_1.5Co_1.5O₄–FeN_x/C has been explained with Scheme 3, where a nano boundary is composed of Mn_1.5Co_1.5O₄ and FeN_x/C. When an oxygen molecule is diffused into a nano boundary, it is catalyzed simultaneously by the bimetal site, Mn–Co, and the FeN_x site. If any intermediate product, H₂O₂, is generated at the Mn–Co surface, it will be continuously reduced at the FeN_x site. In addition, the FeN_x/C is not only able to catalyze 4-electron O₂ reduction to water, but also it is able to catalyze 2-electron H₂O₂ reduction to water with excellent activity.^{8,10,20,41,42} The mechanism is shown below,

2Fe(II)N_x/C + HO⁻₂ + H₂O → 3OH⁻ + 2Fe(III)N_x/C (1)

2Fe(III)N_x/C + 2e⁻ → 2Fe(II)N_x/C (2)

Table 2 Electrochemical parameters of ORR at different nanocomposites coated electrodes in 0.1 M KOH obtained from RDE and RRDE experiments

Parameters	Co3O4/C	Mn2O3/C	Mn1.5Co1.5O4/C	FeNx/C	Mn1.5Co1.5Ox–FeNx/C
E1/2 (V)	0.74	0.73	0.76	0.77	0.82
Tafel slope (mV dec^−1)	49	63	54	52	35
H2O2% yield at 0.6 V	57.4	21.6	16.1	7.3	4.8
Electron transfer number at 0.6 V	2.85	3.57	3.68	3.85	3.90

---

Fig. 4 Polarization curves for the different nanocomposites coated GC disks and Pt-ring electrode in O₂ saturated 0.1 M KOH (A and B). Note: the rotation rate is 1600 rpm, scan rate is 10 mV s⁻¹ and the Pt-ring potential was held at 1.2 V vs. RHE with a ring collection coefficient of 0.37. Plots of the number of electrons transferred per O₂ molecule (C), and the H₂O₂% generation as a function of the disk potential (D).

At the Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite coated electrode, many hetero nano boundaries are evenly dispersed, containing functional groups of Mn_1.5Co_1.5O₄ and FeN_x/C, which promote a coordinative catalysis, realizing 4-electron oxygen reduction.

3.4. Catalytic kinetics of ORR at the Mn_1.5Co_1.5O₄–FeN_x/C nano composite

The catalytic kinetics of ORR at the Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite is investigated by analyzing the variations of the limiting current with rotation rate at the catalyst coated rotating disk electrode. Fig. 5A shows polarization curves of Mn_1.5Co_1.5O₄–FeN_x/C coated GC disk electrode in O₂ saturated 0.1 M KOH at various rotation rates. The limiting current increases with increasing rotation rate. However, the limiting current is not proportional to the rotation rate at higher rotation rates, which gradually deviates from the values calculated by the Levich equation.^7,8 Fig. 5B shows Levich plots at various electrode potentials. The dotted line is the calculated results for 4-electron oxygen reduction by diffusion controlled process. At higher potentials, there are more deviations from that of the calculated dotted line. Fig. 5C shows Kotecky–Levich plots,^7,8 all of which are straight lines, and parallel to that of the calculated line (the dotted) for 4-electron oxygen reduction by diffusion controlled process, which indicates that the catalytic process belongs to a process of 4-electron oxygen reduction at the Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite coated electrode. The kinetic rate constants are calculated from the intercepts of the Koutecky–Levich plots, and listed in Table 3. At 0.7 V, the kinetic rate constant is 7.6 × 10⁻² cm s⁻¹, which is higher than that of silver alloy nano particles (6.8 × 10⁻² cm s⁻¹)²⁰ for catalytic ORR in alkaline media.

Fig. 5 (A) Polarization curves of Mn_1.5Co_1.5O₄–FeN_x/C coated GC disk electrode in O₂ saturated 0.1 M KOH at different rotation rates. Scan rate: 10 mV s⁻¹. (B) Levich plots of i versus ω^1/2. (C) Koutecky–Levich plots of i⁻¹ versus ω^−1/2.

Table 3 Kinetic rates constant at Mn_1.5Co_1.5O_x–FeN_x/C nanocomposite coated electrode in O₂ saturated 0.1 M KOH

Catalyst	Kinetic rate constant (cm s^−1)
	0.8 V	0.7 V	0.6 V	0.5 V
Mn1.5Co1.5O4–FeNx/C	1.4 × 10^−2	7.6 × 10^−2	11.7 × 10^−2	24.9 × 10^−2

---

3.5. Comparison with Pt catalyst

The activity and stability of Mn_1.5Co_1.5O₄–FeN_x/C nanocomposite are compared with commercially available Pt catalyst containing 40% Pt and 60% active carbon (40% Pt/C). The catalyst loadings on the electrode were 0.2 mg cm⁻² on the electrode for the metal oxide and 40% Pt/C samples, respectively. 5% Nafion was added as a binder in all catalyst coatings. Fig. 6A shows polarization curves of Mn_1.5Co_1.5O₄–FeN_x/C and 40% Pt/C coated rotating GC disk electrodes in O₂ saturated 0.1 M KOH, respectively. There is 60 mV half wave potential difference between Mn_1.5Co_1.5O₄–FeN_x/C and 40% Pt/C. The catalytic activities are compared, as shown in Fig. 6B and C by assuming the activity of 40% Pt/C equal to 1. At 0.7 V the activity of Mn_1.5Co_1.5O₄–FeN_x/C reaches 95% that of the 40% Pt/C. The catalytic stability was also examined by chronoamperometric experiment at 0.7 V and 900 rpm rotation rate, during which oxygen gas was bubbled through the electrolyte continuously. Fig. 6D shows chronoamperometric curves of Mn_1.5Co_1.5O₄–FeN_x/C and 40% Pt/C coated GC disk electrodes in 0.1 M KOH solution, respectively. The approximately paralleled curves obtained indicates that the catalytic stability of the Mn_1.5Co_1.5O₄–FeN_x/C is comparable to that of the 40% Pt/C.

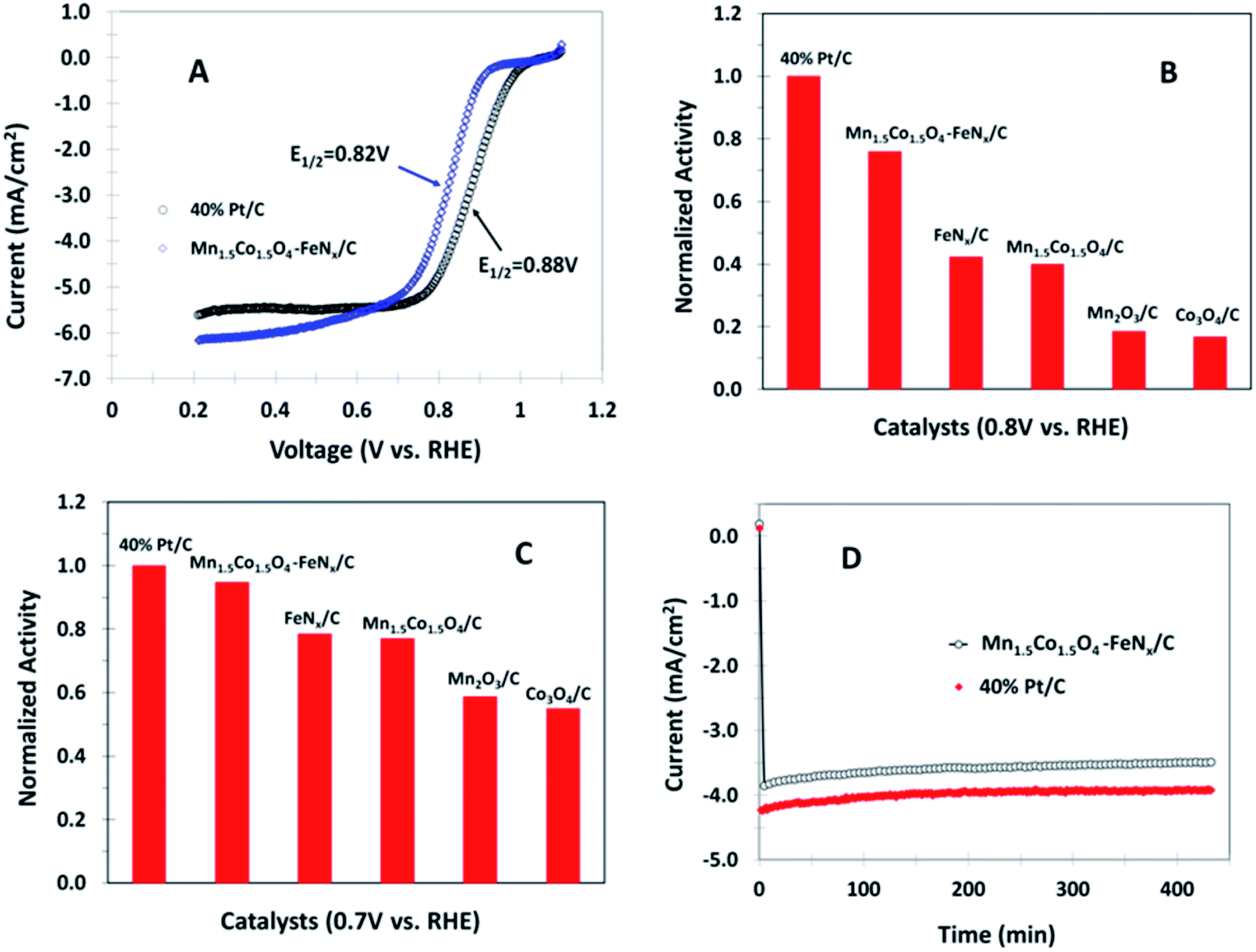

Fig. 6 Polarization curves for (A) Mn_1.5Co_1.5O₄–FeN_x/C and 40% Pt/C coated GC disk electrodes in O₂ saturated 0.1 M KOH with a scan rate of 10 mV s⁻¹ and rotation rate of 1600 rpm. (B and C) Normalized activities at 0.8 and 0.7 V, respectively, where the ORR activity of 40% Pt/C is set equal to 1. (D) Chronoamperometric curves at 0.7 V for Mn_1.5Co_1.5O₄–FeN_x/C and 40% Pt/C coated GC electrode in O₂ saturated 0.1 M KOH with a rotation rate of 900 rpm.

4. Conclusion

In this study we demonstrated a method of making non-precious metal oxide nanocomposite catalysts and achieved double synergistic effects for catalytic oxygen reduction. A precious mono-metal oxide's catalytic activity can be enhanced by incorporating a second non-precious metal element into its crystal structure to generate a nano crystal material with uniform elemental spatial distribution. The addition of the second metal in the crystal structure of a mono-metal oxide results in smaller crystallite size, particle size, and higher active surface area for the bimetal oxide, leading to higher catalytic activity. The catalytic activity of the bimetal oxide can be further enhanced by supporting it on a functional carbon material containing FeN_x functional groups. The bimetal oxide, the functional carbon and the electrolyte form nano boundaries, which are the actives sites for catalytic oxygen reduction. The FeN_x group is functioned as a mediator to remove H₂O₂ intermediate generated in the catalytic process of oxygen reduction, and promoting oxygen to be catalyzed through a complete 4-electron reduction. Our work provides a new pathway in design and synthesis of novel non-precious nanocomposite catalysts.

Acknowledgements

The authors would like to thank Dr Wen-An Chiou and Dr Sz-Chian Liou at University of Maryland for assisting TEM and STEM analyses. Thanks to the U.S. Department of the Army and U.S. Army Materiel Command for supporting this work.
