Yanru Chen*,
Ke Yang,
Hanhai Dong,
Hongyu Niu,
Quanguo Wang and
Qingli Cheng
SINOPEC Research Institute of Safety Engineering Co., Ltd., Qingdao, 266100, People's Republic of China. E-mail: chenyr.qday@sinopec.com; Tel: +86 532 83786462
First published on 15th April 2025
Silicone polyurea typically exhibits inferior mechanical properties due to the microphase separation between the siloxane and polyurea segments. To address this issue, we propose a method to enhance the mechanical properties through interfacial reactions. The mechanical properties and microphase separation of silicone polyurea we synthesized were studied. And poly(isobutene-alt-maleic anhydride) (PBAM) and γ-aminopropyl triethoxysilane (KH550) which are capable of interfacial reactions were respectively introduced into polyurea and siloxane segments to reduce the degree of microphase separation and enhance the mechanical properties of silicone polyurea. The mechanism behind the improvement was elucidated through experimental results. FT-IR spectra confirmed that the maleic anhydride groups in PBAM and the amino groups in KH550 undergo rapid reactions. Additionally, it was observed that the rapid interaction of PBAM and KH550 at the interface made interfacial tension decrease fast through the pendant-drop method. Stability analysis and light microscope observations revealed that PBAM and KH550 can stabilize the two-phase interface, forming stable droplets within the mixture. Scanning electron microscopy (SEM) observations indicated a reduction in the degree of microphase separation in the silicone polyurea. Consequently, the introduction of PBAM and KH550 decreases interfacial tension and the dispersion size of the silicone phase within the carbon phase, thereby reducing the degree of microphase separation and enhancing the mechanical properties of the silicone polyurea.
Adding compatibilizers in polymer materials is a common method to reduce microphase separation and enhance mechanical properties.20–23 Singh has reviewed the research on the compatibilization of polypropylene (PP) and acrylonitrile–butadiene–styrene (ABS) blends.24 PP possesses high tensile strength but is brittle at low temperatures, while ABS has good toughness but lower tensile strength and elongation at break. Compatibilized blends of PP and ABS can simultaneously enhance their tensile strength, impact strength, toughness, and elongation at break. Compatibilizers can improve the adhesion at the polymer interface, thereby increasing the compatibility of the blend. The microstructure of materials affects their overall properties, and the morphology, domain size, and dispersion state of the blend have a significant impact on mechanical strength. Maleic anhydride copolymers (such as styrene-grafted maleic anhydride and polypropylene-grafted maleic anhydride) are commonly used compatibilizers.25,26 Belyamani used a styrene–ethylene–butylene–styrene copolymer grafted with maleic anhydride as a compatibilizer, studying the effects of compatibilizer concentration, reactivity of maleic anhydride groups, and styrene content on compatibilization efficiency.27 Scanning electron microscopy analysis showed that it reduced phase separation, resulting in a more uniform fracture surface. Kameshwari investigated the impact of styrene–maleic anhydride copolymer (SMA) as a compatibilizer on the properties of polycarbonate (PC)/acrylonitrile–butadiene–styrene (ABS) blends.28 PC/ABS blends with SMA as a compatibilizer showed significant improvements in tensile properties, and impact strength was higher than that of pure ABS. SEM images revealed that the dispersion of the compatibilized blend was more uniform, indicating that the SMA compatibilizer played a role in reducing microphase separation between the PC and ABS phases. However, there are few researches on compatibilizers for reducing the microphase separation of silicone polyurea.
In this paper, we incorporated PBAM and KH550 into the synthesis process of silicone polyurea to mitigate microphase separation and enhance the material's mechanical properties. PBAM contains a large amount of maleic anhydride which can react with KH550 at the interface. And the polymer PBAM–KH550 produced after reaction with KH550 has both carbon chain and silicon chain, which can improve the interaction force between the two phases. Our research delves into the mechanical properties and microphase separation of the synthesized silicone polyurea, elucidating the mechanism by which PBAM–KH550 diminishes phase separation and strengthens mechanical attributes. FT-IR confirmed the rapid reaction between the maleic anhydride groups in PBAM and the amino groups in KH550. The pendant-drop method demonstrated a swift decrease in interfacial tension due to the rapid interaction between PBAM and KH550 at the interface. Stability analyses and light microscope observations confirmed that PBAM and KH550 can stabilize the two-phase interface, leading to the formation of stable droplets within the mixture. SEM observations revealed a reduction in microphase separation within the silicone polyurea. Consequently, the integration of PBAM and KH550 reduces interfacial tension and the dispersion size of the silicone phase within the carbon phase, thereby lessening microphase separation and enhancing the mechanical properties of the silicone polyurea. This approach demonstrates a promising strategy for improving the performance of silicone polyurea materials through targeted interfacial interactions.
Sample | IPDI/g | D2000/g | PDMS/g | D230/g | T403/g |
---|---|---|---|---|---|
Polyurea | 2.75 | 7.00 | 0.00 | 1.83 | 0.14 |
PUA–Si 2500 Da-1 | 2.75 | 5.50 | 2.20 | 1.83 | 0.14 |
PUA–Si 2500 Da-2 | 2.75 | 4.00 | 3.75 | 1.83 | 0.14 |
PUA–Si 2500 Da-3 | 2.75 | 3.00 | 5.00 | 1.83 | 0.14 |
PUA–Si 2500 Da-4 | 2.75 | 0.00 | 8.75 | 1.83 | 0.14 |
PUA–Si 5000 Da-1 | 2.75 | 6.12 | 2.20 | 1.83 | 0.14 |
PUA–Si 5000 Da-2 | 2.75 | 5.50 | 3.75 | 1.83 | 0.14 |
PUA–Si 5000 Da-3 | 2.75 | 5.00 | 5.00 | 1.83 | 0.14 |
PUA–Si 5000 Da-4 | 2.75 | 3.50 | 8.75 | 1.83 | 0.14 |
PUA–Si 1000 Da-1 | 2.75 | 2.60 | 2.20 | 1.83 | 0.14 |
PUA–Si 7000 Da | 2.75 | 6.41 | 2.20 | 1.83 | 0.14 |
PUA–Si 10000 Da | 2.75 | 6.56 | 2.20 | 1.83 | 0.14 |
The preparation of silicone polyurea incorporating PBAM–KH550 follows a similar procedure. IPDI and D2000 were measured and placed into a beaker with 20 g of ethyl acetate and 10 g of xylene as solvents. After complete mixing, a solution of PBAM in DMAc was added. Once PDMS and KH550 were uniformly mixed, this mixture was added to the beaker. Subsequently, D230 and T403 were added in order. The reaction solution was poured into a tetrafluoroidal mold after 3 minutes of stirring. The curing and drying process was identical to the one described above.
The synthesis procedure for PBAM–KH550 is detailed as follows: 1.312 g of PBAM is reacted with 0.942 g of KH550 (with a molar ratio of maleic anhydride to amino groups of 1:
1) in DMAc as the solvent. After the solvent evaporates, a solid powder is obtained, which is then subjected to TGA testing.

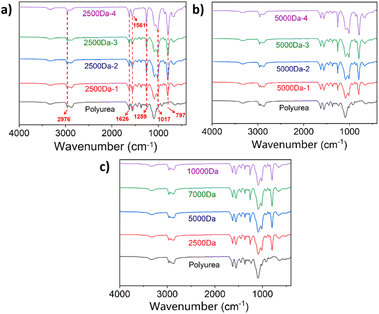

Firstly, the silicone polyurea materials were characterized by FT-IR. As shown in Fig. 2, the peak at 1626 cm−1 corresponds to CO stretching vibration of polyurea. The peak at 3300 cm−1 is attributed to N–H stretching vibration of secondary amine. The peaks observed at 2976 cm−1 and 1259 cm−1 are associated with C–H stretching vibration and bending vibration of the methyl groups in PDMS. The peak at 797 cm−1 and 1017 cm−1 are indicative of the Si–C and Si–O–Si stretching vibration, respectively. As the PDMS content in silicone polyurea materials increased, the intensity of the peaks at 2976 cm−1, 797 cm−1 and 1017 cm−1 correspondingly intensified. These FT-IR results provide confirmatory evidence of the successful synthesis of the silicone polyurea materials.
The thermal decomposition characteristics of silicone polyurea materials were investigated. TGA and DTG curves for both polyurea and silicone polyurea are presented in Fig. 3. Fig. 3a illustrates that the initial thermal decomposition temperature (corresponding to a 5% weight loss) for silicone polyurea synthesized with varying amounts of PDMS (2500 Da) is approximately 300 °C, attributed to the decomposition of carbon chains. The weight loss within the temperature range of 400–600 °C is associated with the decomposition of the silicone segments. An increase in silicone content within the polyurea leads to a slower decomposition rate for the samples in the 400–600 °C range. By 600 °C, the silicone polyurea is completely decomposed. The decomposition behavior of silicone polyurea synthesized with PDMS of 5000 Da molecular weight is analogous, as shown in Fig. 3b. The thermal decomposition performance of silicone polyurea with PDMS of different molecular weights was also examined. As depicted in Fig. 3c, within the temperature range of 400–600 °C, the degree of thermal decomposition decreases with increasing molecular weight of PDMS. This reduction in decomposition is due to the higher molecular weight of PDMS, which enhances the interaction between the silicone segments and the polyurea chains.
![]() | ||
Fig. 3 TGA (a–c) and DTG (a′–c′) curves of polyurea and silicone polyurea with different dosage and molecular weight of silicone. |

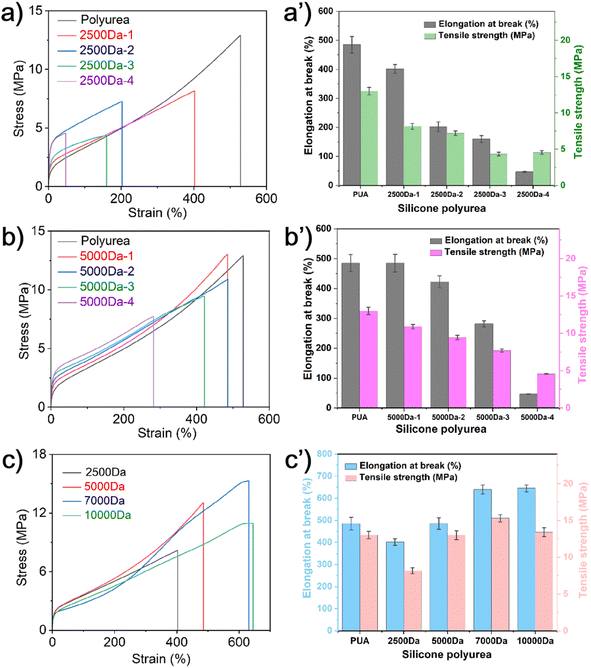

The mechanical properties of the silicone polyureas were depicted in Fig. 4, where it is evident that both the molecular weight and the quantity of PDMS influence these properties. As observed in Fig. 4a, the tensile strength and the elongation at break of silicone polyureas prepared with PDMS of 2500 Da molecular weights tend to decrease as the PDMS content increases. This reduction is attributed to the increased silicone content disrupting the microstructure of the pure polyurea, consequently leading to a decline in the mechanical properties of the silicone polyureas.17 Fig. 4b shows a similar trend for silicone polyureas prepared with PDMS of 5000 Da molecular weight. An increase in molecular weight is associated with improved tensile strength and elongation at break in silicone polyureas. This improvement is attributed to the fact that, with a constant amount of PDMS, the degree of microphase separation remains relatively consistent. Consequently, the increase in molecular weight enhances the mechanical properties of the silicone polyurea.19 And PUA–Si 7000 Da has better mechanical properties than pure polyurea. In this formula of silicone polyurea, when the molecular weight of silicone is greater than 7000 Da, the contribution of molecular weight to mechanical properties can offset the effect of microphase separation on mechanical properties. The tensile strength and elongation at break of PUA–Si 7000 Da are recorded at 15.3 MPa and 640%, respectively. The cross-section of PUA–Si 7000 Da after being frozen in liquid nitrogen was examined using SEM, as depicted in Fig. 5. The sample displays an uneven cross-section (Fig. 5a), and it is evident that microphase separation occurs, as confirmed by element mapping (Fig. 5d).
![]() | ||
Fig. 4 Mechanical properties of silicone polyurea with different dosage and molecular weight of silicone. |
![]() | ||
Fig. 7 Stress–strain curves (a) and mechanical properties of silicone polyurea with PBAM–KH550 (b), PBAM (c) and KH550 (d) added respectively. |
![]() | ||

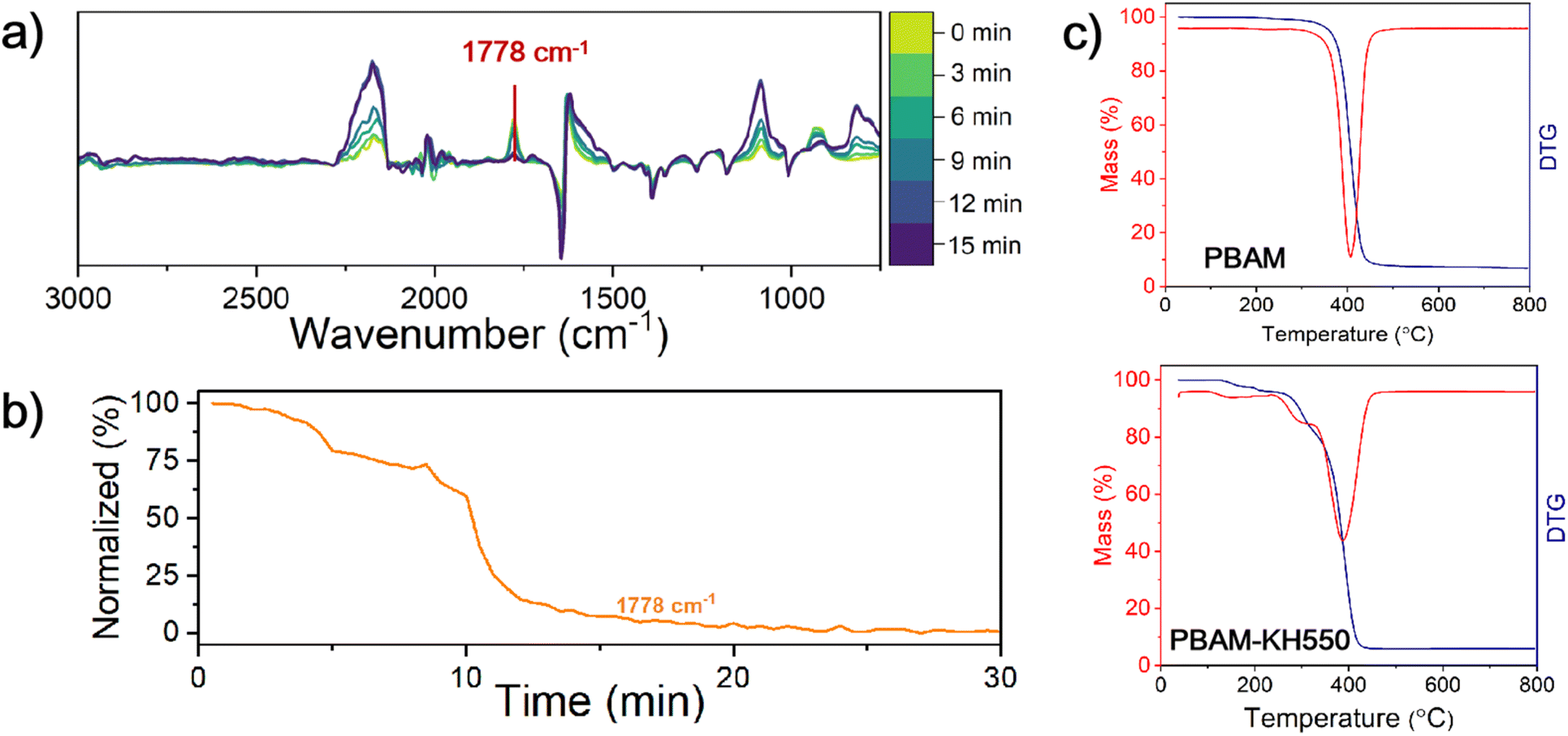

Fig. 9 Online infrared monitoring spectra (a) and trend (b) of PBAM reacting with KH550. (c) TGA curves of PBAM and PBAM–KH550. |
Additionally, TGA tests were conducted on both PBAM and PBAM–KH550 to evaluate their thermal stability. Fig. 9c presents the results, which show that the initial decomposition temperature (corresponding to a 5% weight loss) for PBAM is 390 °C. In the case of PBAM–KH550, there is only a minor weight loss at the boiling point of KH550, which is 217 °C. This observation further confirms the successful reaction between KH550 and PBAM.
The interfacial reaction characteristics of PBAM and KH550 were investigated using the pendant drop method, as depicted in Fig. 10. Two immiscible solvents, DMAc and silicone oil, were chosen to mimic the polyurea and siloxane segments present in silicone polyurea materials, with DMAc serving as the ambient phase and silicone oil as the droplet phase. Initially, it was observed that silicone oil droplets could stably exist within DMAc. Building on this, we analyzed the interfacial behavior between DMAc (as the droplet phase) and KH550 dissolved in silicone oil, as well as between PBAM dissolved in DMAc and silicone oil. In both cases, the droplets remained stable within the ambient medium. Subsequently, we examined the interfacial interaction between PBAM in DMAc and KH550 in silicone oil. As shown in Fig. 10d, silicone oil droplets were observed to rapidly elongate and deform before detaching. This rapid change is attributed to the reaction between KH550 and PBAM at the interface, which significantly reduced the interfacial tension. This phenomenon confirms the rapid reactivity of PBAM and KH550 at the interface, leading to a sharp decrease in interfacial tension and resulting in the quick detachment of the droplets. This not only demonstrates the ability of PBAM and KH550 to reduce interfacial tension but also suggests that they can exert a similar effect within silicone polyurea materials.
The dispersing and stabilizing effects of PBAM and KH550 in the mixture of silicone and carbon phases were further evaluated. The mixtures of silicone oil and DMAc were stirred at 600 rpm for 30 minutes prior to stability assessment. As depicted in Fig. 11a, the mixture of pure silicone oil and DMAc gradually separated into layers, with an increase in transparency for both phases. This indicates that during the testing process, the two phases were unstable, gradually stratified, and failed to form a stable emulsion. When KH550 and PBAM were introduced into silicone oil and DMAc, respectively, the stability of their mixture was examined, as shown in Fig. 11b. Throughout the entire testing process, no significant changes in translucency was observed in the emulsion formed by DMAc and silicone oil. This demonstrates that the two phases formed a stable emulsion with PBAM and KH550 interfacial action. The TSI values for the emulsion containing PBAM–KH550 were lower than those for the blank emulsion of pure silicone oil and DMAc, as seen in Fig. 11c, further confirming the enhanced stability of the emulsion with PBAM–KH550. After allowing the mixtures to stand for 90 minutes, they were examined under an optical microscope. The blank emulsion of pure silicone oil and DMAc showed almost no stable droplets, as indicated in Fig. 11e. In contrast, the addition of PBAM and KH550 resulted in a large number of emulsion droplets visible in the field of view, as shown in Fig. 11f. Experimental results demonstrate that the interfacial interaction between KH550 and PBAM effectively reduces interfacial tension. This mechanism not only minimizes the dispersion size of the silicone phase within the carbon matrix but also significantly enhances the dispersion stability of the composite system through improved phase compatibility.
Based on the study findings regarding the dispersing and stabilizing effects of PBAM and KH550 in the mixture of silicone and carbon phases, we propose the mechanism by which KH550 and PBAM reduce the micro-phase separation and enhance tensile properties of silicone polyureas, as illustrated in Fig. 12. Compared with isocyanate and macro-molecular silanes in polyurea, PBAM has more reaction sites, and KH550 has a smaller molecular weight, which makes it easier to react at interface, thereby reducing interfacial tension. Thus, the incorporation of PBAM and KH550 in silicone polyurea leads to the formation of smaller and more stable microscopic phase domains. In addition to this, the product of these interfacial reactions, PBAM–KH550, has both carbon and silicon chains, which strengthens the interfacial adhesion. Consequently, this enhancement in interfacial interaction results in improved mechanical properties of the silicone polyurea.
