Synthesis of Er³⁺/Yb³⁺ codoped NaMnF₃ nanocubes with single-band red upconversion luminescence

Abstract

We have developed a facile low-temperature synthetic method for the preparation of NaMnF₃ nanocubes with Er³⁺ and Yb³⁺ ions homogeneously incorporated in the host lattice. The effects of the reaction temperature, and the volume ratio between ethanol and DI water on the morphology of NaMnF₃ nanocubes are systematically investigated. The NaMnF₃ nanocubes can be produced in the low temperature range (25–80 °C), and the higher reaction temperature (80 °C) is favorable for the formation of a smooth surface. The formation of NaMnF₃ nanocubes strongly depends on the ethanol solvent. The morphology and single-phase of the obtained samples could be well maintained by controlling the doping concentration (Yb³⁺ ≤ 20 mol%). Single-band red upconversion emission can be generated in Er³⁺/Yb³⁺ codoped NaMnF₃ nanocubes due to the energy transfer between host Mn²⁺ and dopant Er³⁺ ions. It is revealed that our NaMnF₃:Er³⁺/Yb³⁺ nanocubes irradiate the brightest red luminescence at the dopant concentrations of Er³⁺ (2 mol%) and Yb³⁺ (15 mol%), which is stronger than that of the hexagonal-phase NaYF₄:Er³⁺/Yb³⁺ phosphor.

---

1. Introduction

The development of upconversion (UC) phosphors has received considerable attention owing to their applications in solid-state lasers, optical data storage, illumination, color display, and biological labeling.^1–3 Especially as a biological labeling material, UC fluorescent labels show very low background light as a result of their unique fluorescence properties and high detection limits compared with their traditional counterparts, such as organic dyes and quantum dots.^4,5 The most efficient UC phosphor currently known is based on Er³⁺ ion in combination with Yb³⁺ ion as a sensitizer, which exhibits a green emission (∼550 nm) as well as a red emission (∼660 nm).⁶ The red emission is of technological importance since it is located in the “optical transmission window” of biological tissues, which has the minimum absorption of tissues and the maximum penetration depth.⁷ On the other hand, the green emission cannot effectively penetrate the deep tissue and may also cause many unwanted side effects that will reduce the sensitivity of the imaging.⁸ Therefore, avoiding the green emission and achieving strong and single-band red emission from Er³⁺–Yb³⁺ couple is eagerly demanded for the development of high-sensitivity and high-specificity probes for bioimaging.

Recently, Mn²⁺-based nanocrystals have been known as ideal host materials to achieve single-band UC emission from Er³⁺ ions because of the energy transfer between the Er³⁺ and Mn²⁺.^9–11 Up to now, some approaches have been developed for the preparation of various Mn²⁺-based nanocrystals including MnF₂, KMnF₃ and NaMnF₃.^12–14 It is well established that the shape and size of the material strongly affect the properties and the applications of the material.^15–19 Hence, much effort has been dedicated on controlling the size and shape of the particles.^10,20 However, in most cases, the geometry of Mn²⁺-based nanostructures obtained by conventional hydro/solvo-thermal method is spherical, and the synthesis of non-spherical nanostructures still suffers from extra technological difficulties.^11,13,14 In addition, the previously reported approaches still suffer from problems including complicated experimental conditions, tedious procedures, and high reaction temperatures (≥160 °C).^10,12 Hence, from safety and energy-saving viewpoints, it is highly desirable to develop a novel low-temperature solution-phase synthesis protocol to manipulate the morphology of Mn²⁺-based nanostructures.

In the present work, we have developed a straightforward wet-chemical approach to fabricate uniform and monodispersed Er³⁺/Yb³⁺ codoped NaMnF₃ nanocubes. The effects of the reaction temperature, and the volume ratio between ethanol and DI water on the morphology of NaMnF₃ nanocubes are systematically investigated. We examine the structural and UC luminescence properties of the NaMnF₃:Er³⁺/Yb³⁺ nanocubes as a function of dopant concentrations of Er³⁺/Yb³⁺ (1–3 : 5–20 mol%). The UC luminescence properties of as-prepared nanocubes are compared with those of hexagonal-phase NaYF₄ with the same dopant concentrations.

2. Experimental

2.1. Sample preparation

NaF (99%), MnCl₂·4H₂O (99%), YbCl₃·6H₂O (99.9%), ErCl₃·6H₂O (99.9%), and absolute ethanol were purchased from Sigma-Aldrich and were used as starting materials without further purification. DI water is used as solvent for the above chemicals to prepare stock solution. The strategy for synthesizing Er³⁺/Yb³⁺ codoped NaMnF₃ nanocubes is schematically depicted in Scheme 1. In a typical synthesis process, NaMnF₃ doped with 2 mol% Er³⁺ and 20 mol% Yb³⁺ was synthesized as follows: 3.12 mL of 0.2 M MnCl₂·4H₂O, 0.8 mL of 0.2 M YbCl₃·6H₂O and 0.08 mL of 0.2 M ErCl₃·6H₂O, and 4 mL of 0.6 M NaF were sequentially added to a beaker containing 24 mL of absolute ethanol under vigorous stirring. The reaction temperatures were set to be room temperature (25 °C), 50 °C and 80 °C, according to the experiment requirements. The final products were collected by means of centrifugation, washed with DI water for several times.

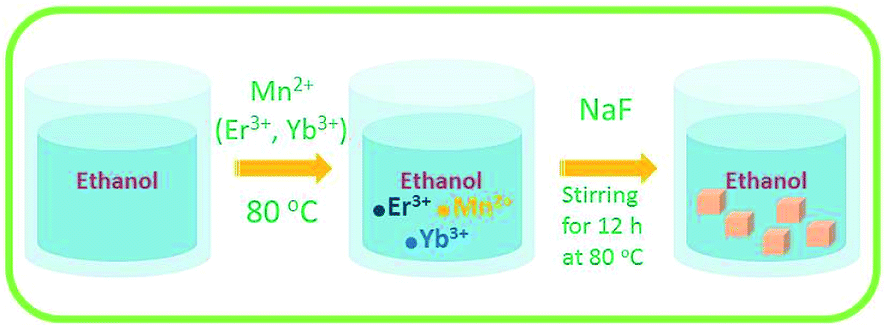

Scheme 1 Schematic illustration of the fabrication strategy for Er³⁺/Yb³⁺ codoped NaMnF₃ nanocubes.

2.2. Characterization

The crystal structure of prepared products was analyzed by an X-ray powder diffractometer (Rigaku-TTR/S2) using CuKα radiation (λ = 1.54056 Å). The size and morphology of the products were examined by using a field emission scanning electron microscope (FE-SEM, JSM-6700F at an acceleration voltage of 5 kV) equipped with an energy dispersive X-ray spectroscope (EDX, Horiba 7593-H model). The UC luminescence spectra were recorded using a fluorescence spectrophotometer (Horiba Jobin Yvon FluoroLog3) in conjunction with a 980 nm laser as the excitation source. All measurements were performed at room temperature.

3. Results and discussion

3.1. Characterizations of structure and morphology

The synthesis of NaMnF₃ materials is performed in various methods to study the effects of the experiment parameters such as reaction temperature, solvent and dopant. Fig. 1a presents the XRD patterns of NaMnF₃ host materials synthesized at various reaction temperatures. It can be seen that all the diffraction peaks of the samples correspond to the NaMnF₃ crystal (JCPDS standard card no. 18-1224). The similar diffraction patterns of all samples reveal that the NaMnF₃ crystal can be formed in the temperature range of 25–80 °C. The sharp and strong peaks of NaMnF₃ crystals suggest high crystallinity of the obtained samples. The XRD patterns of NaMnF₃: 2 mol% Er³⁺, (10–30) mol% Yb³⁺ phosphors are also shown in Fig. 1b. It is evidenced that the crystal structure keeps the same until the Yb³⁺ concentration reaches 20 mol%, indicating that doped elements have been effectively doped into the host lattice. It is notable that an impurity phase is developed for the NaMnF₃: 2 mol% Er³⁺, 30 mol% Yb³⁺ sample, which can be assigned to the Na₅Yb₉F₃₂ crystal (JCPDS standard card no. 27-1426).

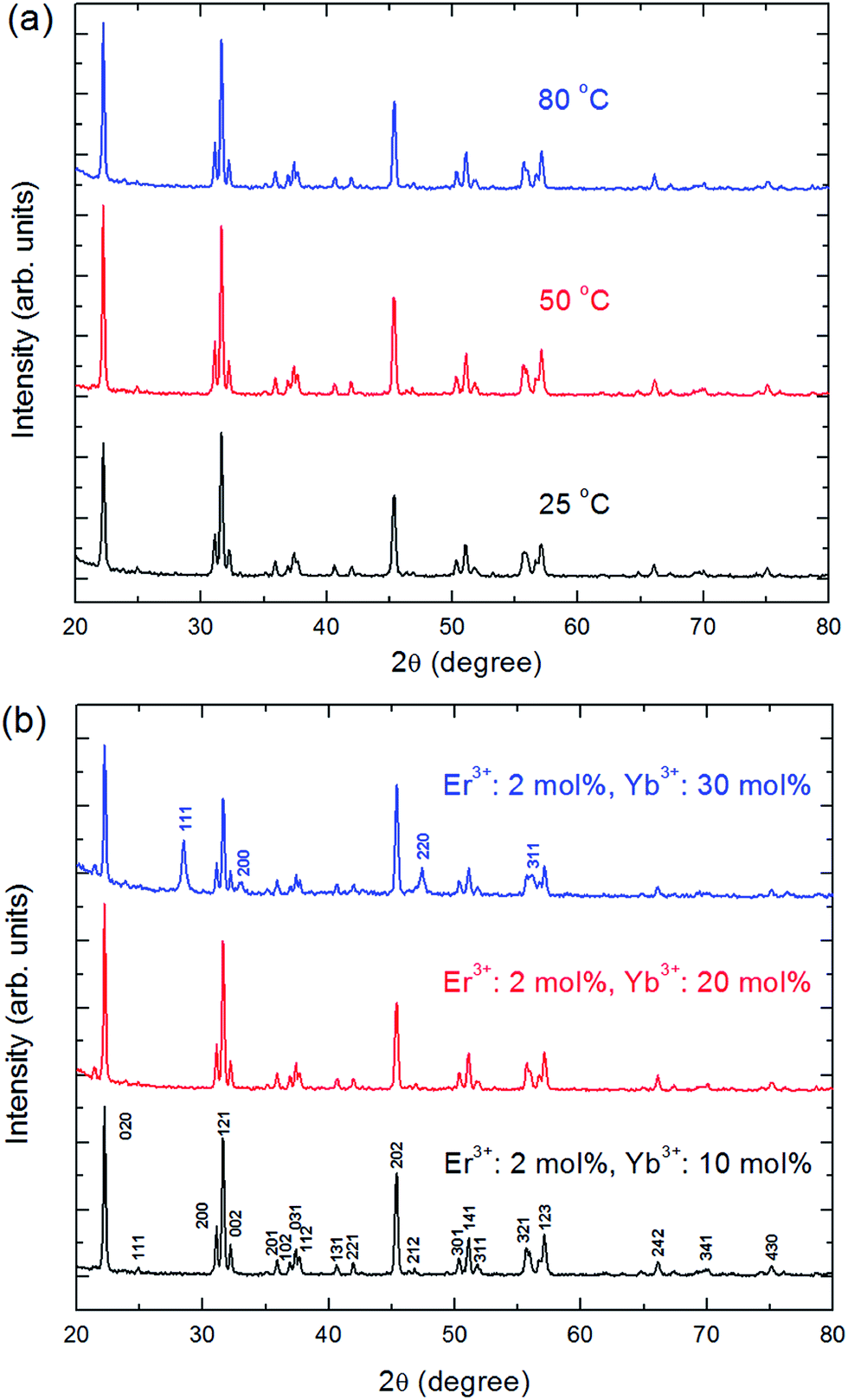

Fig. 1 (a) XRD patterns of NaMnF₃ particles synthesized at the reaction temperature range of 25–80 °C. (b) XRD patterns of NaMnF₃ nanostructures (80 °C) doped with 2 mol% Er³⁺ and (10–30) Yb³⁺ ions.

The morphology of NaMnF₃ host obtained at different reaction temperatures is characterized by SEM. From the low-resolution SEM images (Fig. 2a–c), uniform and monodispersed nanocubes with an average size around 900 nm can be obtained in the reaction temperature range of 25–80 °C. As revealed by the magnified SEM image (Fig. 2d), the surfaces of nanocubes are very rough, and full of cracks are observed when the reaction is carried out at room temperature. With the increase of reaction temperature to 50 °C, the cracks are gradually disappeared (Fig. 2e), and finally, very smooth surface over the whole particle is obtained at 80 °C (Fig. 2f). The morphology of NaMnF₃ host is also investigated by doping various amounts of rare-earth ions. As shown in Fig. 3a and b, the morphologies of Er³⁺/Yb³⁺ codoped NaMnF₃ nanocrystals are kept well until the Yb³⁺ doping concentration reaches 20 mol%. However, for the higher Yb³⁺ doping (30 mol%), besides the nanocubes, the coexistence of nanoparticles with the size of 100 nm is observed (Fig. 3c). It is confirmed that these nanoparticles are responsible for the impurity phase shown in Fig. 1b, which indicates that the excessive Yb³⁺ ions in solution prefer to react with NaF to form Na₅Yb₉F₃₂ crystal, rather than doped into NaMnF₃ host. Based on the both XRD and SEM results, doping Yb³⁺ ion lower than 20 mol% is essential to preserve the single-phase and morphology of obtained samples.

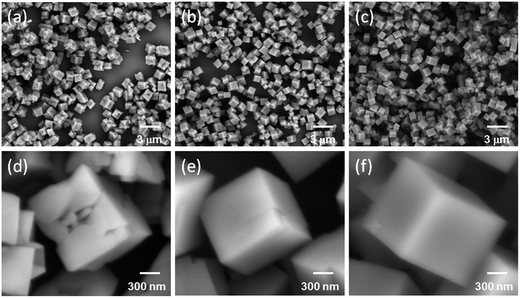

Fig. 2 Low-resolution and high-resolution SEM images of NaMnF₃ nanocrystals synthesized at various reaction temperatures: (a) and (d) 25 °C; (b) and (e) 50 °C; (c) and (f) 80 °C, respectively.

Fig. 3 SEM images of NaMnF₃ nanocubes doped with 2 mol% Er³⁺ and Yb³⁺ of (a) 10 mol%, (b) 20 mol% and (c) 30 mol%.

Reaction solvent is another critical factor for the growth of nanocrystals, which can influence the reaction rate of crystal formation and further determine the phase and morphology of the final products.^21,22 To evaluate the effect of reaction solvent on the formation of obtained samples, a set of NaMnF₃ nanocrystals are fabricated in the mixed solutions of ethanol (ET) and DI water (DW). The sum amount of ethanol and DI water was fixed to 24 mL, and the ET/DW volume ratio was varied to 0 : 24 mL, 8 : 16 mL, 16 : 8 mL, and 24 : 0 mL. As shown in Fig. 4a, with the solvent of DI water, the irregularly-shaped and strongly-aggregated large blocks (several micrometers) as well as nanoparticles (∼100 nm) can be produced. With the addition of ethanol (8 mL) into solvent, the formation of aggregated micro-clusters and micro-hexahedrons with large size distributions are confirmed (Fig. 4b). In the solvent with 16 mL ethanol, the micro-clusters are disappeared, and irregular hexahedrons with the size range of 1–2 μm are observed (Fig. 4c). When the reaction is carried out in absolute ethanol, monodispersed nanocubes with a size of about 900 nm can be obtained (Fig. 4d). The results reveal that the introduction of ethanol in reaction system can effectively prevent agglomeration and stimulate the growth into NaMnY₃ nanocubic assemblies.

Fig. 4 SEM images of NaMnF3 nanostructures synthesized by various volume ratios of ethanol to water: (a) 0 : 24 mL; (b) 8 : 16 mL; (c) 16 : 8 mL; (d) 24 : 0 mL.

The variation of ethanol content has a great influence on the morphology of various nanomaterials, such as SiO₂ and BaSO₄.^23–25 For instance, it was reported that the size of BaSO₄ is reduced from 85 nm to 54 nm with the increase of ethanol percentage in ethanol–water mixed solvent from 30% to 70%.²⁴ The effect of water and ethanol amount on the morphology of NaMnY₃ could be attributed to the solvent interactions with the precursors, manganese chloride and sodium fluoride.²⁶ It is well known that water has higher degree of porosity than ethanol. Increasing the ET/DW ratio will decrease the solvent polarity and the interfacial energy with the particles, which prevents the aggregation of the particles due to water swelling effect and makes the system more homogeneous.^27,28 On the other hand, the reason for the formation of cubic particles may lie in an unusual inherent characteristic of NaMnF₃.²⁹ The ethanol solvent with relatively longer chain than water may change the order of the free energies of different facets through their interactions with the specific facets of NaMnF₃ crystals.³⁰ This alternation may significantly affect the relative growth rates of different facets and lead to the crystals with cubic morphology.

3.2. Upconversion luminescence properties

Fig. 5a and b show the room-temperature UC emission spectra of NaMnF₃ nanocubes doped with various concentrations of Er³⁺ and Yb³⁺ ions. In comparison with Er³⁺/Yb³⁺ codoped routine rare-earth based fluoride nanocrystals which typically exhibit multiple-band emissions in the visible spectral region, a single-band emission in the spectral range of 640–690 nm is detected for all the NaMnF₃ nanocubes doped with different amount of Er³⁺/Yb³⁺ (1–3 : 5–20 mol%) upon excitation at 980 nm, which is assigned to the ⁴F_9/2 → ⁴I_15/2 transition of Er³⁺ ions. It should be noted that though single-band red emission has been realized in several host materials, it is still challenging to obtain red emission with the high chromatic purity in NaMnF₃ host.^31,32 In NaMnF₃ nanocubes, the red-to-green intensity ratios in all samples are larger than 40, which indicate that the present materials are favorable for applications in deep-tissue bioimaging (Fig. S1†). In addition, the full width at half maximum (FWHM) of the red-emitting band is measured to be 27 nm, which is comparable to that for KMnF₃:Yb³⁺/Er³⁺ nanocrystals (20 nm), but is narrower than the red emission bands of ZrO₂:Yb³⁺/Er³⁺ nanocrystals (42 nm) or Y₂O₃:Yb³⁺/Er³⁺ nanocrystals (75 nm).^10,33,34

Fig. 5 (a and b) Normalized upconversion luminescence spectra of NaMnF₃ nanocubes doped with various concentrations of Er³⁺/Yb³⁺ (1–3 : 5–20 mol%). (c) Log–log plots of the red emission intensity versus excitation power in 2 mol% Er³⁺/20 mol% Yb³⁺ codoped NaMnF₃ nanocubes. (d) Simplified energy level diagrams of Er³⁺, Yb³⁺ and Mn²⁺ ions and possible transition pathways in NaMnF₃.

To gain more information on the UC mechanism, the pumping power dependence of UC luminescence intensity is studied. For an unsaturated UC process, the UC emission intensity (I) increases in proportion to the excitation power (P) according to the power law I ∝ P^x, and generally, the measured slope of x is indicative of an upconversion process, which involves at least n photons, where n is the smallest integer greater than x or equal to x if x is an integer.^35,36 Fig. 5c shows the log–log plots of the red luminescence intensity in 2 mol% Er³⁺/20 mol% Yb³⁺ doped NaMnF₃ nanocubes as a function of excitation intensity at 980 nm. The result indicates that, a slope n value of 1.83 is obtained for the red emission band, indicating that two-photon processes are involved for generating the UC emissions in the present sample. It is also noteworthy that, the single-band feature of Er³⁺/Yb³⁺ codoped NaMnF₃ can be remained well in the broad excitation power density range of 7.5–20 mW cm⁻² (Fig. S2†).

According to the energy matching and quadratic dependence on excitation power, the possible UC mechanisms for the single-band red emission are discussed based on the simplified energy levels of Er³⁺, Yb³⁺ and Mn²⁺ ions. As illustrated in Fig. 5d, the Er³⁺ ion can be firstly excited to the ⁴I_11/2 state through an energy transfer process from a Yb³⁺ ion, and then further jumped to the ⁴F_7/2 state by absorbing the energy from another Yb³⁺ ion. Then Er³⁺ ion can be nonradiatively relaxed to two lower levels, ²H_11/2 and ⁴S_3/2, resulting in the green (²H_11/2 → ⁴I_15/2 and ⁴S_3/2 → ⁴I_15/2) UC emissions, and even further relaxed to ⁴F_9/2 level to generate red (⁴F_9/2 → ⁴I_15/2) emission. However, with the presence of large amount of Mn²⁺ ions in NaMnF₃ host, the interaction between Er³⁺ and Mn²⁺ plays an important role on modifying the UC emissions. Due to the close proximity and excellent overlap of energy levels of the Er³⁺ and Mn²⁺ ions in the host lattices, a nonradiative energy transfer from the ²H_11/2 and ⁴S_3/2 levels of Er³⁺ to the ⁴T₁ level of Mn²⁺, which is followed by back-energy transfer to the ⁴F_9/2 level of Er³⁺.^10,31 The large red-to-green intensity ratios in all samples suggests that an extremely efficient exchange-energy transfer process occurs between the Er³⁺ and Mn²⁺ ions.

As is known, the luminescence intensity from rare-earth ions strongly depends on the doping level, and the proper doping is indispensable to achieve maximum intensity.^9,37 The UC luminescence intensities are compared between the NaMnF₃ nanocubes doped with various concentrations of Er³⁺ and Yb³⁺ ions (Fig. S3†). In the condition of 20 mol% Yb³⁺ in NaMnF₃ nanocubes, the sample with Er³⁺: 2 mol% irradiates brightest red luminescence, which indicates that the further increase of Er³⁺ concentration does not benefit luminescence intensity. In the previous publication, Du et al. reported that, the optimum Er³⁺ concentration in Ca_0.65La_0.35F_2.35 host should be 2 mol%, which is consistent with our results.³⁸ On the other hand, with 2 mol% Er³⁺ concentration, the red emission increases with the Yb³⁺ concentration increases from 5 mol% to 15 mol%, and further increase of Yb³⁺ concentration results in the decrease of red emission due to concentration quenching effect.²⁰ The above comparative studies suggest that our NaMnF₃:Er³⁺/Yb³⁺ nanocrystals fabricated by present synthetic procedure own the strongest single-band emission feature at the dopant concentrations of Er³⁺ (2 mol%) and Yb³⁺ (15 mol%).

It should be noted that, in the previously published paper, Zhang et al. synthesized Er³⁺/Yb³⁺ doped NaMnF₃ nanocrystals in the mixed solvents of 1-octadecene and oleic acid at 300 °C, and the strongest emission appears at Er³⁺ (25 mol%) and Yb³⁺ (25 mol%).¹¹ In contrast, in our samples fabricated in ethanol at 80 °C, the dopant ions (Er³⁺ + Yb³⁺) cannot reach very high level (≤22%), since the excessive Yb³⁺ ions in ethanol prefer to react with NaF to form Na₅Yb₉F₃₂ crystal, rather than doped into NaMnF₃ host. The dopant ions can occupy the Mn²⁺ sites in the host crystals. It is reasonable to assume that, some Mn²⁺ sites are favourable for dopant ions when fabricated by our method. With the increase of reaction temperature, the dopants may occupy more Mn²⁺ sites. Therefore, the distance and interaction between dopants are different in samples fabricated by different methods, which results in distinct luminescence properties.

Among the investigated fluorides, hexagonal-phase NaYF₄ is known as one of the most efficient host lattices for both downconversion and UC processes.^39,40 To evaluate the luminescence efficiency of NaMnF₃ host, a reference sample, hexagonal-phase NaYF₄ doped with 2 mol% Er³⁺ and 15 mol% Yb³⁺ has been prepared by a modified version of the procedure described previously (Fig. S4†).^41,42 Fig. 6 shows the comparison of UC luminescence spectra of NaYF₄ and NaMnF₃ doped with 2 mol% Er³⁺ and 15 mol% Yb³⁺ ions, respectively. The same amounts of samples are measured at the same experimental condition. Under the 980 nm excitation, the NaYF₄ sample shows multi-peak emissions in the green and red regions, though pure red emission is detected from NaMnF₃ sample. Despite the emission difference, the red emission intensity of NaMnF₃:Er³⁺/Yb³⁺ is 1.4 times stronger and overall (green-plus-red) emissions are 1.2 times greater than those of NaYF₄:Er³⁺/Yb³⁺ sample, indicating that NaMnF₃ is a promising host material for deep tissue bioimaging. Such a red-emission enhancement should mostly arise from the efficient cross-relaxation of energy between Mn²⁺ and Er³⁺ ions.

Fig. 6 Comparison of upconversion luminescence spectra of hexagonal-phase NaYF₄ and NaMnF₃ host nanocrystals doped with 2 mol% Er³⁺ and 15 mol% Yb³⁺ ions, respectively.

4. Conclusions

In summary, we have demonstrated the fabrication of uniform and monodispersed NaMnF₃ nanocubes by a facile low-temperature solution-based method at ambient conditions. It is revealed that the proper controlling of the reaction temperature and solvent is critical for the formation of NaMnF₃ nanocubes. Though the NaMnF₃ nanocubes can be formed in the temperature range of 25–80 °C, higher temperature is favorable to obtain uniform and smooth products. The ethanol solvent is essential for the formation of NaMnY₃ nanocubic assemblies. Doping Yb³⁺ ion lower than 20 mol% is required to preserve the single-phase and morphology of obtained materials. As a result of efficient energy transfer between the dopant Er³⁺ ion and host Mn²⁺ ion, remarkably pure red UC emissions were generated in the dopant concentration ranges of Er³⁺/Yb³⁺ (1–3 : 5–20 mol%). The strongest red emission in these Er³⁺/Yb³⁺ doped nanocrystals has been realized at the dopant concentrations of Er³⁺ (2 mol%) and Yb³⁺ (15 mol%). The achieved red emission is 1.4 times stronger and overall (green-plus-red) emissions are 1.2 times greater than those of NaYF₄:Er³⁺/Yb³⁺ phosphor.

Acknowledgements

We gratefully acknowledge the William March Scholar program and the Iowa State University Presidential Initiative for Interdisciplinary Research and Health Research Initiative (ISU-HRI) for support of this work.
