Synthesis of high purity Cr₂AlC nanolamellas with improved tribological properties for oil-based additives

Abstract

Herein, a novel simple method is presented to synthesize highly pure Cr₂AlC powder by heating a 2Cr/xAl/C (molar ratio, x = 1, 1.1, 1.2) powder system between 1300 °C and 1400 °C with preliminary magnetic stirring mixing in alcohol. The purity of Cr₂AlC is sensitive to the final temperature and raw material scale, and the excess Al plays a distinct role in improving the purity of the Cr₂AlC. The tribological properties of Cr₂AlC as an additive in 100SN base oil were evaluated by a UMT-2 ball-on-disc friction and wear tester. The results show that under determinate conditions, the base oil containing 0.6 wt% Cr₂AlC sample presented good tribology performance under a load of 10 N. The improved tribological properties of the Cr₂AlC samples could be attributed to the formation of a tribofilm in the friction process.

---

1. Introduction

Chromium aluminum carbides, Cr₂AlC, belong to a special group of the materials known as layered ternary compounds. This new class of materials features a hexagonal crystalline structure and can be represented by a general formula of M_n+1AX_n (MAX), where n = 1, 2, or 3, M is an early transition metal, A is an A-group element, and X is carbon or nitrogen,^1–7 the unique combination of ceramic and metallic properties has attracted considerable interest. Among them, Cr₂AlC, is a member of the novel 211 ternary compounds exhibits outstanding ceramic properties such as a low density,⁸ high melting point and thermal stability,⁹ a low thermal expansion coefficient,^10,11 high strength at high temperatures,¹² and excellent oxidation resistance.^13,14 Meanwhile, Cr₂AlC possesses metallic properties including relatively high electrical and thermal conductivities,^15,16 well resistant to thermal shock,⁴ good damage tolerance,^17,18 and easy machinability.

To date, several methods including mechanically activated hot pressing,¹⁹ hot isostatic pressing,²⁰ hot pressing,^13,21 spark plasma sintering,²² and so on have been adopted to synthesize Cr₂AlC from different mixtures with different mole ratios. These synthesis processes, however, usually require high energy ball milling and certain sintering equipment requirements, which lead to raw material easy being oxidation, energy and time consuming, complicated productive process and low production efficiency.^23–27 Therefore, it is still a great challenge to develop a facile and effective process to fabricate Cr₂AlC with high purity. In addition, it was found that Cr₂AlC has an excellent tribological property, especially at elevated temperatures.^28–30 The relatively low coefficient and wear rate are attributed to the amorphous or nanocrystalline tribofilms form on both contact surfaces. However, to the best of our knowledge, little work focused on the tribological properties of Cr₂AlC as lubrication additive.

In this study, laminate-like Cr₂AlC crystals with high purity were synthesised by pressureless sintering raw powders at 1300–1400 °C in a flowing argon atmosphere, the raw powders were directly mixed by magnetic stirring in alcohol. The tribological properties of Cr₂AlC samples as additives in the 100SN base oil were also investigated.

2. Experimental

2.1 Synthesis of laminated Cr₂AlC

Cr (99.0% pure, −200 mesh), Al (99.0% pure, −200 mesh), and graphite (99% pure, ∼5 μm) (all from Sinopharm Chemical Reagent Co. Ltd., Shanghai China) powders were used in this work. About 5 g raw powders with stoichiometric molar ratio of 2Cr/xAl/C (x = 1, 1.1, 1.2) were mixed by magnetic stirring in absolute alcohol at 70 °C. Alcohol evaporated in heating process, ∼1 h, alcohol evaporated completely. After being dried and sieved with 200-mesh screen, the blended powder was placed in a stainless steel mould with diameter of 25 mm, the pressure was 30 MPa. Then, the cold pressing slices were loaded into corundum crucible and sintered in tube furnace. The samples were heated at a rate of 5 °C min⁻¹ in flowing argon atmosphere until the final temperatures (from 1300 to 1400 °C) were reached, at which the sintering time was 30 min. Finally samples were crushed and grinded into powder.

2.2 Characterisation of Cr₂AlC samples

The raw blended powder was analyzed with differential scanning calorimetry (DSC) in an instruments analyzer (NETZSCH-Ger tebau GmbH Selb/Germany). The runs were performed in an argon atmosphere, with a 10 °C min⁻¹ temperature increase rate from room temperature up to 1300 °C. The phases of prepared Cr₂AlC ceramics powders were analyzed using a D8ADVANCE diffractometer and Cu Kα radiation in the 2θ range between 10°and 80°, operating at 40 kV and 20 mA, λ = 0.1546 nm, respectively, data analysis with Jade software. The morphologies and microstructures of Cr₂AlC ceramics were determined by Scanning Electron Microscopy (SEM) (JEOL JXA-840A).

2.3 Tribological properties of laminated Cr₂AlC crystals as lubrication additive

Different mass fractions of the as-prepared Cr₂AlC powder from 2Cr/1.2Al/C sintered at 1400 °C were dispersed in 100SN base oil via 2 h ultrasonication without any active reagent, and then a series of suspended oil samples were obtained. The tribological properties of the base oil containing Cr₂AlC were evaluated on a UMT-2 ball-on-disc friction and wear tester. The testing of friction reduction and wear resistance was conducted at rotating speeds of 5 m min⁻¹, and loads of 10–30 N for sliding distance 200 m. The material of the upper sample is a 440C stainless steel ball with a diameter of 10 mm, hardness of 62 HRC and the counterpart is a 45 steel disc of Φ 25 mm × 5 mm in size. The friction coefficient was recorded automatically with a strain gauge equipped with the tester. The wear scars widths were measured by a common optical microscope. Morphologies of friction surfaces were examined using a JSM-5600LV scanning electron microscope (SEM). The elements of the friction surface were analyzed using energy-dispersive X-ray spectroscopy (EDS).

3. Results and discussion

3.1 Phase analysis of Cr₂AlC

Fig. 1 shows the XRD patterns for blended powders after magnetic stirred in absolute alcohol, the upper right inset shows the SEM. The main phases of the powders included graphite, aluminum and chrome elementary substance, the blended powders is small sheet with 10 μm.

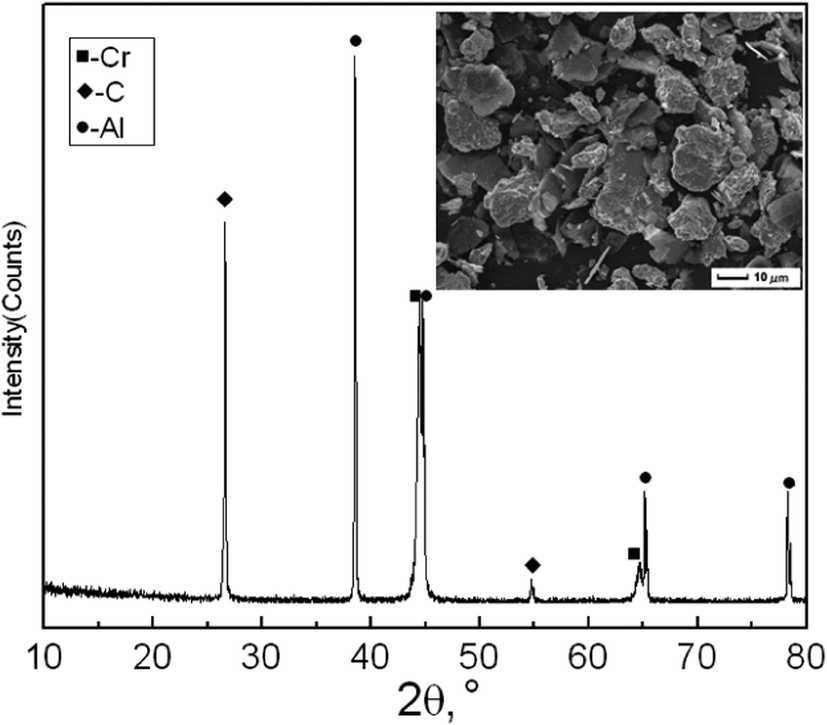

Fig. 1 XRD pattern and SEM morphology of blended powders.

Fig. 2 shows typical XRD patterns of as-synthesized products obtained from 2Cr/xAl/C (x = 1, 1.1, 1.2) powders mixtures after sintered at various temperatures of 1300–1400 °C. It is found that all the samples are contented Cr₂AlC phase, the (103) main peak of Cr₂AlC at 42.1° is obvious. When the powder ratio is 2Cr/1Al/1C (as shown in Fig. 2(a)), for the specimen synthesized at 1300 °C, Cr₂AlC was found to be main crystalline phases, Cr₂Al and Cr₇C₃ were presented as minor phase. As the sintering temperature was increased to 1350 °C, Cr₂Al phase was gradually decreased while the contents of Cr₇C₃ and Cr₂AlC phases were increased. With further increasing the sintering temperature to 1400 °C, the Cr₂Al and Cr₇C₃ second phases were disappeared, major phases were identified as Cr₂AlC. For the specimen synthesized from 2Cr/1.1Al/1C system shown in Fig. 2(b), most of the phases synthesized at the temperatures ranged from 1300 to 1400 °C were similar with those of synthesized from 2Cr/1Al/1C system, however, contents of Cr₂Al and Cr₇C₃ phases were both decreased while the intensity of Cr₂AlC peaks are getting stronger. As shown in Fig. 2(c), with the further addition of Al into the raw materials, that is 2Cr/1.2Al/1C system, Cr₂Al and Cr₇C₃ second phases were further decreased, even disappeared at the sintering temperature 1300 and 1350 °C, so the Cr₂AlC phase was gradually increased, with the specimen synthesized temperature high to 1400 °C, the second phases were disappeared, all phases were identified as Cr₂AlC.

Fig. 2 XRD patterns of 2Cr/xAl/C powders after sintered at different temperature with (a) x = 1, (b) x = 1.1 and (c) x = 1.2.

As shown in Fig. 2, specimen synthesized by pressureless sintering method using Cr, Al and graphite mixed powder as a raw materials at the temperature range of 1300–1400 °C, Cr₂AlC main crystalline phase with small amount of Cr₂Al and Cr₇C₃ were identified, also the contents of Cr₂Al and Cr₇C₃ second phases were gradually decreased while the intensity of Cr₂AlC peaks are getting stronger with sintering temperature increased. For the specimen synthesized at 1400 °C, high purity Cr₂AlC phase can be synthesized.

Fig. 3 shows XRD patterns of the specimen synthesized using the Cr, graphite and different content Al powder mixture by a pressureless sintering at 1400 °C. With the addition of excessive Al into the raw materials, the relative peak intensity of Cr₂AlC obviously increased, which demonstrated that the introduction of excessive Al increased the purity of Cr₂AlC in the products.

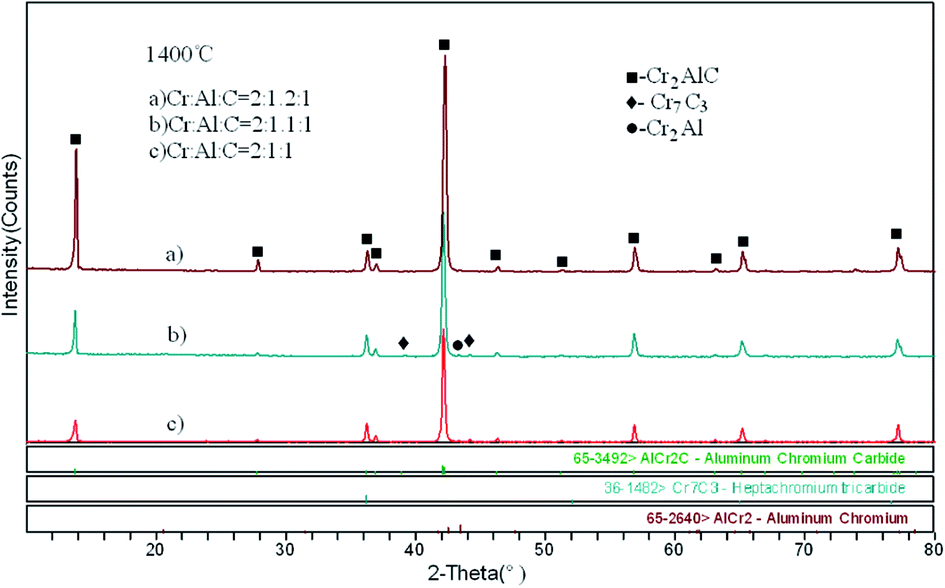

Fig. 3 XRD patterns of samples sintered at 1400 °C with different Al content.

3.2 Microstructure observation of samples by SEM

Fig. 4 shows the SEM images of the synthesized Cr₂AlC powders obtained at 1400 °C. Fig. 4(a) is the micrograph of the sample sintered from powder of 2Cr/1Al/1C, as can be seen from the image, the obtained samples were irregular particles stacked by laminated layers with average size of less than 5 μm. Fig. 4(b) is enlarged micrograph of Fig. 4(a), indicating that the irregular particles are composed of nanoplates with average thickness in the range of 20–30 nm and further confirming the layered nature of the material. Fig. 4(c) and (d) shows the SEM images of the sample sintered from powder of 2Cr/1.1Al/1C. As shown in Fig. 4(c), the sample was composed of a lot of plate-like and block-shaped particles, these particles with different size and smooth surface, further observation shows that the particles have melting imprint, indicating the formation of liquid phase at high temperature. Fig. 4(d) is enlarged SEM image of fractured particles, laminated-like structure of Cr₂AlC is obvious stacked by many uniform nano slices with thickness of about 100 nm, rupture and convolution feature was presented. Fig. 4(e) is SEM images of the sample sintered from powder of 2Cr/1.2Al/1C, in which the particles of this powder are larger, thickness is generally about 50 nm. Fig. 4(f) is enlarged SEM image of Fig. 4(e), the growth pattern of laminated-like structure is obviously.

Fig. 4 SEM images of the samples sintered at 1400 °C with different Al content. (a) Cr : Al : C = 2 : 1 : 1, (b) magnified images of (a), (c) Cr : Al : C = 2 : 1.1 : 1, (d) magnified images of (c), (e) Cr : Al : C = 2 : 1.2 : 1, (f) magnified images of (e).

3.3 Formation process of Cr₂AlC

In order to understand the formation process of Cr₂AlC, the phase of the sample sintered at different temperatures from 700 °C to 1400 °C using mixed powder of 2Cr/1.2Al/C as starting materials were investigated by XRD technique.

Fig. 5 shows XRD patterns of the powders synthesized under different temperatures. According to Fig. 5, C and Cr peaks can be clearly seen in the diffraction profile at 700 °C, peaks at 2θ = 40 to 44° appeared broadening that originated from the formation of Cr–Al phases when sintered at 700 °C. For the sample heated to 850 °C and 1050 °C, it can be seen that except for un-reacted C and Cr phases, Cr₂AlC phase has been formed and Cr₅Al₈, Cr₂Al peaks also can be observed as intermediate phases. With increasing temperature to 1200 °C, C at 2θ = 26.6° and Cr₅Al₈ at 2θ = 24.1° peaks abruptly reduced, Cr₂Al, Cr₇C₃ and Cr₂AlC were detected. Except main crystalline phase Cr₂AlC, only quite weak Cr₂Al and Cr₇C₃ peak were detected in the sample sintered at 1300 °C. When the temperature was 1350 °C, main crystalline phase Cr₂AlC and a few Cr₇C₃ were detected. Further more, when the sintering temperature was as high as 1400 °C, only single-phase Cr₂AlC was detected in the sample. The results indicated that the highly pure Cr₂AlC powder seemed to be easily synthesized by using liquid magnetic stirring and pressureless sintering process from 2Cr/1.2Al/1C powder mixtures.

Fig. 5 XRD patterns of 2Cr/1.2Al/1C powders sintered at various temperatures.

DSC survey was conducted to investigate the formation of products during the sintering process. Typical DSC curve for the blended powders of 2Cr/1.2Al/1C system at a heating rate of 10 °C min⁻¹ is shown in Fig. 6. It can be seen that there is an obvious endothermic peak at 663.4 °C, and there are a lot of endothermic and exothermic peaks at the temperatures range from 886.1 to 1300 °C, it is sure that the peaks correspond to the frequent reaction and form new compounds. Based on the binary phase diagram of the Cr–Al system,³¹ it can be presumed that aluminum melted at 663.4 °C, and reacted with Cr particles to form CrxAly intermetallics. These endothermic and exothermic peaks at temperatures from 886.1 to 1046.6 °C correspond to the reaction of forming Cr₅Al₈ and Cr Cr₂Al. It is considered that the endothermic and exothermic peaks at higher temperatures resulted from the reactions of formation Cr₂AlC and Cr₇C₃ by expense of Cr₅Al₈, Cr₂Al and graphite gradually.

Fig. 6 DSC curve of the 2Cr/1.2Al/1C powder mixture at a heating rate of 10 °C min⁻¹.

Based on the previous work of Cr₂AlC powder synthesis and the results of this study, the synthesis mechanism of pressureless sintering Cr₂AlC powder was presented. Fig. 7 shows the schematic diagram of the synthesized samples obtained by the pressureless sintering process. At the first stage, Al easily melted at 663.4 °C due to its low melting point, and diffusion in the pore of samples, formation molten pool, chromium and graphite was wrapped in the liquid phase of Al. With the sintering temperature increased, chromium and aluminum begins to react in the contact interface, promote formation of chrome aluminum intermetallic. When the sintering temperature increased to 850 °C, the formation of the intermediate phase mainly for the Cr₅Al₈ and a small amount of Cr₂Al, at the same time have a small amount of Cr₂AlC, mainly reaction formation by Cr₅Al₈, chromium and graphite, also unreacted Cr and graphite are detected. At a higher temperature of 1050 °C, Cr₅Al₈ reaction with the raw material of chromium, aluminum to form Cr₂Al, and at the same time Cr₅Al₈, Cr₂Al react with graphite to form Cr₂AlC, leading to the reaction product of Cr₅Al₈ content decreased, Cr₂Al content increased, chromium and graphite continues to drop, Cr₂AlC continued to rise. When the sintering temperature continues to rise to 1200 °C above, the spawning of Cr₂Al reacted with graphite to form Cr₂AlC, part of chromium reacted with graphite to form Cr₇C₃, as the sintering temperature increased to 1400 °C, the high purity Cr₂AlC is finally fabricated.

Fig. 7 Schematic diagram for the synthesis of Cr₂AlC from the elemental powders.

3.4 Friction and wear properties of laminated Cr₂AlC crystals

The tribological behaviors of the as-prepared Cr₂AlC powders as lubrication additive in 100SN base oil were investigated by a UMT-2 ball-on-disc friction and wear tester. Fig. 8(a) shows the friction coefficients vs. sliding distance curves of base oil at 10 N load under 5 m min⁻¹ sliding speed with different Cr₂AlC concentrations (0–5 wt%). It can be observed that the friction coefficient is sensitive to the additive concentration of the laminated Cr₂AlC particles. The friction coefficient of the lubricating system is obviously decreased by adding synthesized laminated Cr₂AlC over a wide concentration range of 0.6–3 wt%, the friction coefficients decreased slightly to a steady value with the sliding distance. When the concentration of synthesized laminated Cr₂AlC is 0.6 wt%, the best friction coefficient-reducing property is obtained. Contrary to the lower concentrations, the base oil with 5 wt% synthesized laminated Cr₂AlC has a relatively higher friction coefficient compared with the base oil. This can be attributed to the fact that the dispersivity of laminated Cr₂AlC is good for 0.6 wt% concentration, together with the micro & nano bearing effect, so as to form a layer of tribofilm, and result in a decrease of the friction coefficient.

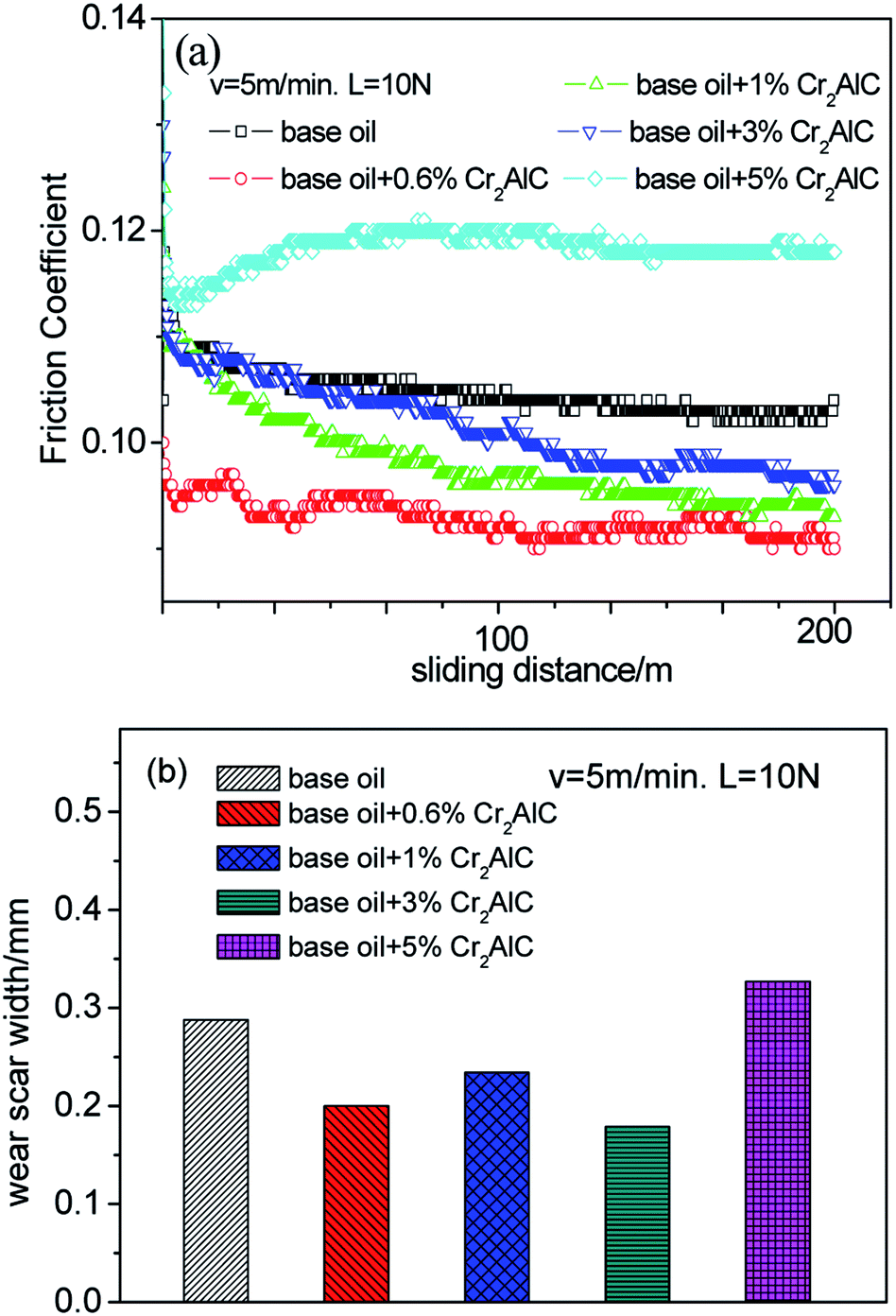

Fig. 8 (a) Friction coefficient as a function of sliding distance, (b) wear scar width on disc specimens lubricated with different concentrations Cr₂AlC in 100SN base oil.

Fig. 8(b) gives the wear scar width (WSW) vs. the different Cr₂AlC concentration. It can be seen that the wear scar width of base oil is slight decreased by adding laminated Cr₂AlC, except for the base oil containing 5 wt% concentration Cr₂AlC is obviously higher than that of other sample oil, which is in good accordance with the friction coefficient value in Fig. 8(a). Therefore, the optimum concentration of the synthesized Cr₂AlC as an additive in base oil is suggested to be 0.6 wt%.

In this work, it has been shown that the base oil with a certain viscosity containing 0.6 wt% Cr₂AlC can form a certain thickness tribofilm, which can decrease shearing stress, therefore, give a low friction coefficient and wear scar width. In the friction process, because of the contact pressure creating traction-compression stressed zones, a thin tribofilm is formed on the metal substrate, the tribofilm could not only withstand the load of the steel ball but also prevent two mating metal surfaces direct contact.

Fig. 9(a) show the variation of friction coefficients with sliding distances for 0.6 wt% concentration Cr₂AlC under different loads, respectively. It can be seen that the friction coefficients of base oil with 0.6 wt% Cr₂AlC is stable at about 0.092 under the load of 10 N, increasing load to 20 N, after an obvious slightly running-in stage, the friction coefficients almost remain constant at about 0.103, the friction coefficient continuously increases along with the sliding distance under the load of 30 N.

Fig. 9 (a) Friction coefficient, (b) wear scar width of base oil mixed with 0.6% Cr₂AlC additive under different loads at 5 m min⁻¹ for 200 m.

Fig. 9(b) shows the wear scar width (WSW) of 100SN base oil containing 0.6 wt% Cr₂AlC at different loads under a speed of 5 m min⁻¹ for 200 m. It can be observed that the WSWs increase gradually with the increase of the applied load. The lubrication of Cr₂AlC as oil additive is mainly dependent on the formation of tribofilm in the friction process. However, a continuous tribofilm only begins to be formed under an optimal load. With further increase of the load, the friction coefficient has increased due to the extrusion of the tribofilm in the contact zone, and result in a high wear scar width.

Fig. 10(a) displays SEM of the tribofilms formed on the friction surface lubricated by the base oil containing 0.6 wt% synthesized laminated Cr₂AlC. The tribofilms were uniform and tenacious on the friction surface, which results in a lower friction and lower wear scar width. In order to confirm the formation of the tribofilm and its composition, the corresponding EDS analysis of the worn surface was carried out. As shown in Fig. 10(b), high intensity peaks from chromium, aluminum, and carbon atoms indicated the formation of an adherent Cr₂AlC tribofilm. It is believed that the smooth and flat surface lubricated by composites results from the deposition of tribofilm on the friction surface.

Fig. 10 (a) SEM images of the tribofilms formed on the surface (15 N, 250 rpm, 200 m), and (b) EDS spectrum at the surface of point in (a).

4. Conclusion

By the liquid magnetic stirring mixing raw powders, high purity Cr₂AlC powder could be pressureless sintering synthesized from Cr, Al and graphite powder at temperature ranged from 1300 to 1400 °C in flowing argon atmosphere. The increase of the Al content in raw materials is helpful to the improvement of Cr₂AlC phase content, Al element here is considered as a promoting factor because it provides a liquid circumstance to speed up the solid reaction among Cr, Al and graphite. The introduction of 0.6 wt% laminated Cr₂AlC as lubrication additives improve the tribological properties of the base oil, especially in terms of friction reduction and wear resistance. The excellent tribological properties indicate that the as-prepared Cr₂AlC will be useful for its further industrial application as oil additive in the future.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (51275213, 51302112), Jiangsu National Nature Science Foundation (BK2011534), Jiangsu National Nature Science Foundation for Colleges and Universities (14KJB460012), and Scientific and Technological Innovation Plan of Jiangsu Province (CXLX12_0636).

Notes and references

1. C. Lange, M. Hopfeld and M. W. Barsoum, Phys. Status Solidi A, 2012, 209, 545.
2. M. W. Barsoum, Prog. Solid State Chem., 2000, 28, 201.
3. Z. M. Sun, Int. Mater. Rev., 2011, 56, 143.
4. S. B. Li, H. L. Li and Y. Zhou, J. Eur. Ceram. Soc., 2014, 34, 1083.
5. M. Xue, H. Tang and C. S. Li, Adv. Appl. Ceram., 2014, 113, 245.
6. D. Li, Y. Liang and X. X. Liu, J. Eur. Ceram. Soc., 2010, 30, 3227.
7. X. H. Wang and Y. C. Zhou, J. Mater. Chem., 2002, 12, 2781.
8. W. B. Tian, P. L. Wang and G. Zhang, Mater. Sci. Eng., A, 2007, 454, 132.
9. L. O. Xiao, S. B. Li and G. M. Song, J. Eur. Ceram. Soc., 2011, 31, 1497.
10. J. D. Hettinger, S. E. Lofland and P. Finkel, Phys. Rev. B: Condens. Matter Mater. Phys., 2005, 72, 115.
11. T. H. Scabarozi, S. Amini and O. Leaffer, J. Appl. Phys., 2009, 105, 013543.
12. J. Wang and Y. Zhou, Annu. Rev. Mater. Res., 2009, 39, 415.
13. W. B. Tian, P. L. Wang and Y. M. Kan, J. Mater. Sci., 2008, 43, 2785.
14. Z. J. Lin, M. S. Li and J. Y. Wang, Acta Mater., 2007, 55, 6182.
15. Y. L. Du, Z. M. Sun and H. Hashimoto, J. Appl. Phys., 2011, 109, 063707.
16. W. B. Tian, P. L. Wang and G. Zhang, Scr. Mater., 2006, 54, 841.
17. W. B. Tian, P. L. Wang and G. Zhang, J. Am. Ceram. Soc., 2007, 90, 1663.
18. C. Hu, L. He and J. Zhang, J. Eur. Ceram. Soc., 2008, 28, 1679.
19. S. B. Li, W. B. Yu and H. X. Zhai, J. Eur. Ceram. Soc., 2011, 31, 217.
20. B. Manoun, R. Rgulve and S. K. Saxena, Phys. Rev. B: Condens. Matter Mater. Phys., 2006, 73, l.
21. D. B. Lee and T. D. Nguyen, J. Alloys Compd., 2008, 464, 434.
22. W. B. Tian, K. Vanmeensel and P. L. Wang, Mater. Lett., 2007, 61, 4442.
23. W. B. Zhou, B. C. Mei and J. Q. Zhu, J. Mater. Sci., 2005, 40, 3559.
24. S. Amini, A. G. Zhou and S. Gupta, J. Mater. Res., 2008, 23, 2157.
25. W. B. Tian, Z. M. Sun and Y. L. Du, Mater. Lett., 2008, 62, 3852.
26. Q. Wu, C. S. Li and H. Tang, Appl. Surf. Sci., 2010, 256, 6986.
27. M. A. Elsaeed, F. A. Deorsola and R. M. Rashad, Int. J. Refract. Met. Hard Mater., 2012, 35, 127.
28. S. Gupta, D. Filimonov and T. Palanisamy, Wear, 2008, 265, 560.
29. D. Filimonov, S. Gupta and T. Palanisamy, Tribol. Lett., 2009, 33, 9.
30. S. Gupta, D. Filimonov and V. Zaitsev, Wear, 2008, 264, 270.
31. W. B. Tian, P. L. Wang and Y. M. Kan, Mater. Sci. Eng., A, 2007, 443, 229.

---
