3D printable, thermo-responsive, self-healing, graphene oxide containing self-assembled hydrogels formed from block copolymer wormlike micelles

Abstract

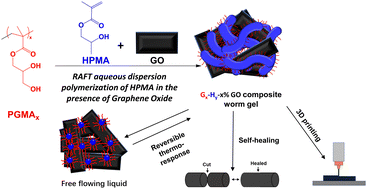

Graphene oxide (GO) containing block copolymer nanocomposite hydrogels formed from poly(glycerol monomethacrylate-block-hydroxypropyl methacrylate) (PGMA-PHPMA) wormlike micelles were prepared by either mixing GO and copolymer at low temperature or via in situ reversible addition-fragmentation chain-transfer (RAFT) polymerisation-induced self-assembly (PISA) of HPMA in the presence of a PGMA macromolecular chain-transfer agent and GO flakes. Hydrogels containing 15–25% w/w copolymer and 0 and 8% w/w GO, based on copolymer, were investigated and the maximum gel strength measured was ∼33 kPa for a 25% w/w copolymer gel prepared by in situ polymerisation and containing 2% w/w GO based on copolymer. This gel strength represents a fifteen-fold increase over the same copolymer gel without the addition of GO. The nanocomposite gels were found to recover efficiently after the application of high shear, with up to 98% healing efficiency within seconds. These gels are also 3D printable, self-healing, adhesive and temperature responsive on cooling and re-heating. The observed properties were both GO and copolymer concentration dependent, and tensile testing demonstrated that the nanocomposite gels had higher moduli, elongation at break and toughness than gels prepared without GO.
