High-performance rechargeable zinc-based dual-ion batteries

Author affiliations

Abstract

Zinc-ion batteries (ZIBs) are promising candidates for large-scale energy storage applications due to the large abundance, low toxicity, and low cost of zinc. In this work, we configured a zinc-based nonaqueous dual-ion battery (ZDIB) for the first time by using an expanded graphite cathode, a zinc foil anode, and an ionic liquid (IL) electrolyte. The adoption of the IL suppressed the dendritic growth of zinc and avoided hydrogen evolution, resulting in satisfactory safety of the battery. Notably, the prepared ZDIB delivered a reversible discharge capacity of 57 mA h g−1 and a capacity retention of ∼86% after 500 cycles. In addition, we developed a nonaqueous battery with a dual-carbon configuration (ZDCB), exhibiting a reversible discharge capacity of 58 mA h g−1 and a capacity retention of ∼88% after 500 cycles. These two kinds of nonaqueous zinc-based battery systems show potential applications for large-scale energy storage with good safety and environmental friendliness.

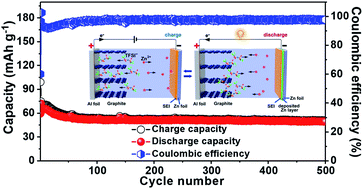

Graphical abstract: High-performance rechargeable zinc-based dual-ion batteries

Back to tab navigation

Supplementary files

Publication details

The article was received on 03 Sep 2019, accepted on 06 Oct 2019 and first published on 15 Oct 2019


Article type: Communication
DOI: 10.1039/C9SE00744J
Sustainable Energy Fuels, 2020, Advance Article

  •   Request permissions

    High-performance rechargeable zinc-based dual-ion batteries

    B. Ji, W. Yao and Y. Tang, Sustainable Energy Fuels, 2020, Advance Article , DOI: 10.1039/C9SE00744J
