Ditch-structured microporous layers fabricated by nanosecond-pulse laser ablation for enhancing water transport in polymer electrolyte membrane fuel cells

Author affiliations

Abstract

Water management becomes a more critical issue as the power performance of polymer electrolyte membrane fuel cells (PEMFC) is progressively improved. Herein, we present a ditch-structured microporous layer (MPL) that can prevent water flooding in PEMFCs. In-plane ditch structures are carved on an MPL using a nanosecond-pulse laser ablation technique while preserving the surface porosity of the MPL. When the direction of the ditches is aligned perpendicular to the flow field direction, the power performance is significantly enhanced due to the facilitated mass transport under the rib area. The iV polarizations and limiting current analysis suggest that not gas transport but water transport is responsible for the power performance enhancement. Compared with a perforated MPL prepared by the same technique, the ditch-structured MPL is more effective in mitigating water flooding. Diagonal and radial ditches exemplify the efficacy in making complex ditch patterns. The delicate structural engineering of the MPL enabled by laser ablation can offer a novel design platform for advanced fuel cells.

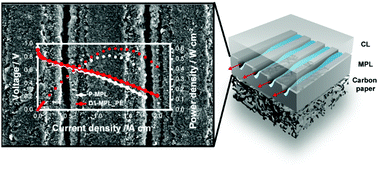

Graphical abstract: Ditch-structured microporous layers fabricated by nanosecond-pulse laser ablation for enhancing water transport in polymer electrolyte membrane fuel cells

Back to tab navigation

Supplementary files

Article information


Submitted
31 Mar 2020
Accepted
20 Apr 2020
First published
20 Apr 2020

This article is Open Access

Mater. Adv., 2020,1, 254-261
Article type
Paper

Ditch-structured microporous layers fabricated by nanosecond-pulse laser ablation for enhancing water transport in polymer electrolyte membrane fuel cells

D. Lee, M. K. Kim, H. Guim, S. Yuk, J. Choi, S. Choi, G. Doo, D. W. Lee, J. Noh and H. Kim, Mater. Adv., 2020, 1, 254
DOI: 10.1039/D0MA00150C
