Synthesis of a tethered dibenzotetramethyltetraaza[14]annulene macrocycle and the di-nickel(II) derivative

Author affiliations

Abstract

Selective reaction of 2,6-isophthaloyl chloride at the methine positions of two dibenzotetramethyltetraaza[14]annulene (tmtaa) units results in tethering of the macrocycles by either one or two 2,6-isophthaloyl bridging groups. The single tethered dibenzotetramethyltetraaza[14]annulene derivative (SIT-tmtaa) was isolated and characterized by X-ray crystallography, ESI-MS, 1H and 13C NMR. The syn conformation of the two tmtaa units observed in the crystal structure, has tetraaza[14]annulene macrocycles that are more distorted from planarity than in the structure of the parent tmtaa. The di-nickel(II) complex was prepared and characterized by ESI-HRMS, 1H and 13C NMR. DFT computations place the LUMO on the 2,6-isophthaloyl bridge rather than on the tethered tmtaa units and suggest that the 2,6-isophthaloyl tether provides a level of flexibility in the inter tmtaa distances that is comparable to the Pacman Effect observed for tethered porphyrins.

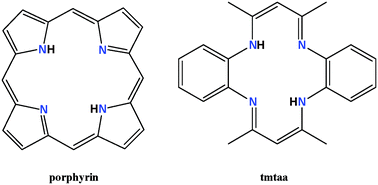

Graphical abstract: Synthesis of a tethered dibenzotetramethyltetraaza[14]annulene macrocycle and the di-nickel(ii) derivative

Back to tab navigation

Supplementary files

Publication details

The article was received on 25 Jun 2018, accepted on 12 Sep 2018 and first published on 20 Sep 2018


Article type: Paper
DOI: 10.1039/C8NJ03154A
Citation: New J. Chem., 2018, Advance Article
  •   Request permissions

    Synthesis of a tethered dibenzotetramethyltetraaza[14]annulene macrocycle and the di-nickel(II) derivative

    S. Dey, J. R. Dewey, B. B. Wayland and M. J. Zdilla, New J. Chem., 2018, Advance Article , DOI: 10.1039/C8NJ03154A
