Chemical vapour deposition of antimony chalcogenides with positional and orientational control: precursor design and substrate selectivity

Author affiliations

Abstract

A series of alkylchalcogenostibines, Me2SbSenBu, MeSb(SenBu)2, Sb(SenBu)3 and MeSb(TenBu)2, have been designed and synthesised as potential precursors for chemical vapour deposition (CVD) by reaction of nBuELi (E = Se, Te) with the appropriate halostibine, Me3−nSbCln (n = 1, 2, 3), and characterised by 1H, 13C{1H} and 77Se{1H} or 125Te{1H} NMR spectroscopy as appropriate. MeSb(SenBu)2 and MeSb(TenBu)2 are very effective single source precursors for the low pressure CVD of high quality crystalline thin films of Sb2Se3 and Sb2Te3, respectively, confirmed by scanning electron microscopy, energy dispersive X-ray spectroscopy, Raman spectroscopy and thin film X-ray diffraction. Hall conductivity, carrier mobility, carrier density and, in the case of Sb2Te3, Seebeck coefficient measurements reveal electronic characteristics comparable with Sb2E3 deposited by atomic layer deposition or molecular beam epitaxy, suggesting materials quality and performance suitable for incorporation into electronic device structures. Choice of substrate and deposition conditions were found to significantly affect the morphology and preferred orientation of Sb2Te3 crystallites, enabling deposition of films with either 〈1 1 0〉 or 〈0 0 1〉 alignment. Use of micro-patterned substrates allowed selective deposition of crystalline 2D micro-arrays of Sb2Te3 onto exposed TiN surfaces only.

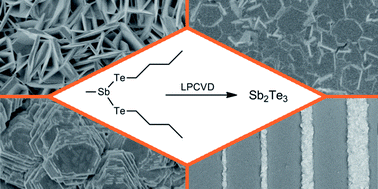

Graphical abstract: Chemical vapour deposition of antimony chalcogenides with positional and orientational control: precursor design and substrate selectivity

Back to tab navigation

Supplementary files

Publication details

The article was received on 15 Oct 2014, accepted on 06 Nov 2014 and first published on 11 Nov 2014


Article type: Paper
DOI: 10.1039/C4TC02327G
Citation: J. Mater. Chem. C, 2015,3, 423-430
  • Open access: Creative Commons BY license
  •   Request permissions

    Chemical vapour deposition of antimony chalcogenides with positional and orientational control: precursor design and substrate selectivity

    S. L. Benjamin, C. H. de Groot, A. L. Hector, R. Huang, E. Koukharenko, W. Levason and G. Reid, J. Mater. Chem. C, 2015, 3, 423
    DOI: 10.1039/C4TC02327G
