The microfluidic puzzle: chip-oriented rapid prototyping

Author affiliations

Abstract

We demonstrate a new concept for reconfigurable microfluidic devices from elementary functional units. Our approach suppresses the need for patterning, soft molding and bonding when details on a chip have to be modified. Our system has two parts, a base-platform used as a scaffold and functional modules which are combined by ‘plug-and-play’. To demonstrate that our system sustains typical pressures in microfluidic experiments, we produce droplets of different sizes using T-junction modules with three different designs assembled successively on a 3 × 3 modular scaffold.

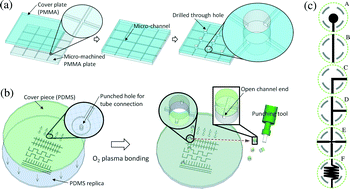

Graphical abstract: The microfluidic puzzle: chip-oriented rapid prototyping

Back to tab navigation

Supplementary files

Article information


Submitted
18 Dec 2013
Accepted
19 Feb 2014
First published
24 Mar 2014

This article is Open Access

Lab Chip, 2014,14, 1669-1672
Article type
Technical Innovation
Author version available

The microfluidic puzzle: chip-oriented rapid prototyping

J. Lim, F. Maes, V. Taly and J. Baret, Lab Chip, 2014, 14, 1669
DOI: 10.1039/C3LC51399H
