Empowering the smart grid: can redox batteries be matched to renewable energy systems for energy storage?

Author affiliations

Abstract

The charging of an undivided cerium–zinc redox battery by various current waveforms some of which mimic the output of renewable energy (solar, wind, tidal, biofuel burning) to electricity transducers is considered in this work, where the battery operates through diffusion-only conditions, and is discharged galvanostatically. Under reasonable assumption, the mathematical model developed enables the observation that the performance characteristic of the cells charged with a constant power input differentiates between the various current–charge waveforms, with cell geometry and electrode kinetics playing subtle, but significant, roles; in particular, high efficiency is observed for sunlight-charged batteries which are thin and suffer no corrosion of the sacrificial electrode, and which have already experienced a charge–discharge cycle. The performance characteristics of the systems are interpreted in the light of consequences for smart grid realisation, and indicate that, for a constant power input, the most matched renewable is biofuel burning with a current output that linearly increases with time.

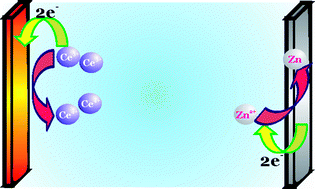

Graphical abstract: Empowering the smart grid: can redox batteries be matched to renewable energy systems for energy storage?

Back to tab navigation

Supplementary files

Publication details

The article was received on 05 Oct 2012, accepted on 10 Jan 2013 and first published on 11 Jan 2013


Article type: Paper
DOI: 10.1039/C3EE23708G
Energy Environ. Sci., 2013,6, 1026-1041

  •   Request permissions

    Empowering the smart grid: can redox batteries be matched to renewable energy systems for energy storage?

    J. E. Halls, A. Hawthornthwaite, R. J. Hepworth, N. A. Roberts, K. J. Wright, Y. Zhou, S. J. Haswell, S. K. Haywood, S. M. Kelly, N. S. Lawrence and J. D. Wadhawan, Energy Environ. Sci., 2013, 6, 1026
    DOI: 10.1039/C3EE23708G
