Voltage breakdown analyses in anion exchange membrane water electrolysis – the contributions of catalyst layer resistance on overall overpotentials

Abstract

Despite many recent advances, overpotentials remain high for anion exchange membrane water electrolyzers (AEMWEs). Voltage breakdown analyses (VBA) can help decouple the origins of overpotentials and facilitate design decisions to improve cell performance, but studies investigating how to adapt and apply VBA to AEMWEs are lacking. Specifically, catalyst layer resistances and their contributions to overpotentials are not consistently quantified in water electrolysis and are rarely quantified for AEMWEs. This work presents a systematic methodology for VBA tailored to AEMWEs, including an approach to Tafel analysis in the absence of a reference electrode and under conditions where both the oxygen evolution reaction and hydrogen evolution reaction exhibit significant overpotentials. Catalyst layer resistance contributions are diagnosed via changes in the catalyst layer thickness, transport layer porosity, ionomer content, and electrolyte concentration. In this study, we explain discrepancies between inherent catalytic kinetics and device level performance and identify catalyst layer design strategies to reduce catalyst layer resistances.

---

Anion exchange membrane water electrolysis (AEMWE) is an emerging technology poised to overcome materials and performance limitations of traditional electrolysis devices, such as proton exchange membrane water electrolyzers (PEMWEs) and liquid alkaline water electrolyzers (LAWE).¹ Recent studies have demonstrated the feasibility of AEMWEs operating over extended periods (up to 10 000 hours) at high current densities.^2–6 Overpotentials for AEMWEs, however, have remained high compared to those for PEMWEs,^1,7 highlighting the need for further development and optimization at the device level to enhance the commercial viability of AEMWEs.

Voltage breakdown analysis (VBA) is an approach to decouple the kinetic, ohmic, and transport contributions to measured cell overpotentials in electrochemical devices.^8–11 This analysis can help identify key areas for future device development and potentially resolve discrepancies between inherent catalytic trends predicted from half-cell, rotating disc electrode (RDE) measurements and the corresponding catalyst performance in single-cell membrane electrode assemblies (MEAs). For example, prior studies have shown that catalyst layer resistance (R_CL), related to resistances to the flow of ions or electrons through the catalyst layer, significantly contributes to overall overpotentials in PEMWEs, impacting catalyst utilization and potentially limiting cell kinetics at the device level.¹² In AEMWEs, however, the contributions of R_CL are yet to be quantified, diagnosed, or decoupled, posing a barrier to optimizing these systems for high device-level performance. Here, we focus on the oxygen evolution reaction (OER) as it provides a well-established system for examining how the catalyst layer composition and structure influence anode performance in AEMWEs. The strategies and insights discussed, however, can be readily extended to study the increasingly critical hydrogen evolution reaction (HER), which is part of our ongoing and future works.¹³

Fig. 1 shows the activities towards the oxygen evolution reaction (OER) for four different representative metal oxides (IrO₂, NiFe₂O₄, Co₃O₄, and Mn₂O₃) measured in RDE and MEA; detailed methods are described in the SI. Activities were overall lower in RDE compared to the MEAs due to the differences in the operating temperature (23 °C for RDE and 80 °C for MEA, respectively). In RDE, the four catalyst materials exhibited significantly different OER activities and kinetic signatures (Tafel slope and exchange current density; Fig. 1a).¹⁴ When the same catalysts were tested in a standard MEA setup, however, their performance became similar (Fig. 1b).¹⁴ This discrepancy, at least in part, can be attributed to differences in test design. In RDE testing, thin, near-monolayer catalyst layers enable high catalyst utilization, while electrode rotation is used to minimize mass transfer limitations of reactants and products,^15–17 though this can be complicated for a gas-evolution reaction. It also allows isolation of a single electrode reaction (i.e., OER at the anode or hydrogen evolution reaction (HER) at the cathode). In contrast, MEA tests inherently include contributions from both half-cell reactions (i.e., OER and HER). Moreover, electrode structures can vary significantly based on the catalyst particle size, catalyst–ionomer interactions, ink properties, and agglomeration behavior, while transport occurs through complex interconnected networks and interfaces of the catalyst layer (CL), membrane, and porous transport layers (PTLs).¹ MEAs are also often operated at a higher temperature, influencing catalytic kinetics and catalyst conductivity in oxides. In this work, we aim to demonstrate how device-level challenges can be isolated by deconstructing the cell voltage to decouple the various sources of overpotentials.

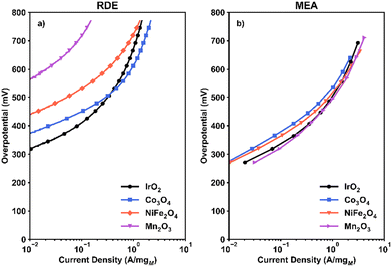

Fig. 1 (a) RDE vs. (b) MEA testing results for IrO₂, Co₃O₄, NiFe₂O₄, and Mn₂O₃. All overpotentials are iR corrected using either the solution resistance (RDE) or high frequency resistance determined from electrochemical impedance spectroscopy (MEA). Current densities are normalized by the mass loading of the catalyst metals on the electrode. This figure is modified and reproduced from our previous work with permission from The Electrochemical Society. Note that Pt/C was used as the cathode for all MEA experiments, and anode versus cathode contributions to overpotential were not separately measured.

Fig. 2 shows the results of applying our proposed VBA for four anode catalysts. First, the thermodynamic potential is calculated under the relevant conditions using the Nernst equation, as shown by grey shaded areas in Fig. 2,

Fig. 2 Results of the VBA for (a) NiFe₂O₄, (b) Co₃O₄, (c) IrO₂, and (d) Mn₂O₃.

Here, T is the temperature, ΔS is the entropy change of the reaction (ΔS = 2S_H2 + S_O2 − 2S_H2O), n is the number of moles of electrons involved in the electrochemical reaction (4 mol e⁻ for the OER), F is Faraday's constant, R is the gas constant, P_O2 and P_H2 are the partial pressures of O₂ and H₂, respectively, and T₀ and P₀ are the standard temperature and atmospheric pressure, respectively.

Next, ohmic losses (η_Ohmic; shown by orange shaded areas in Fig. 2) can be calculated using electrochemical impedance spectroscopy (EIS) measurements (Fig. 3). These losses arise from resistive losses in the cell, including the membrane and interfacial contact resistances. A characteristic Nyquist plot for EIS measurements collected at faradaic potentials (here, 1.6 V) is shown in Fig. 3a. In EIS, an AC voltage is applied at increasing frequencies (designated by the right-to-left arrow in Fig. 3a). It is standard to determine these ohmic losses from the high frequency resistance (HFR; circled in Fig. 3a). For an accurate VBA, the HFR should be measured at each potential in the polarization curve, as it can vary slightly with applied potential. Ohmic losses are then calculated as follows:

η_Ohmic = J × (HFR) (2)

where J is the current density.

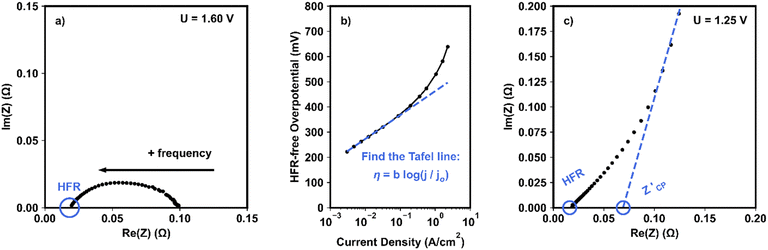

Fig. 3 Examples of how to fit data to determine (a) the high frequency resistance from Nyquist plots, (b) the Tafel slope and exchange current density from Tafel analysis, and (c) the catalyst layer resistance from non-faradaic impedance measurements. All data shown are for an AEMWE with a NiFe₂O₄ anode catalyst.

Kinetic losses (η_kinetic; shown by the green shaded areas in Fig. 2) can be quantified using Tafel analysis of HFR-free overpotentials, as illustrated in Fig. 3b. The polarization curve data used for Tafel analysis should be collected using chronopotentiometry or chronoamperometry methods, holding at each current or potential step for at least 1–2 minutes to minimize errors associated with the cell stabilization time. Polarization curve data should also contain sufficient points in the kinetic region (typically >5 points in a linear region, often between 5 and 50 mA cm⁻²). From these data, the apparent Tafel slope and exchange current density can be extracted from the linear region of the HFR-corrected data, and a Tafel line can be extrapolated across the full current density (as shown in Fig. 3b).

We note that in the AEMWE, both the HER and the OER are expected to have high overpotentials and to follow Tafel kinetics.^18,19 This contrasts with the PEMWE, where the acidic HER is generally assumed to proceed without significant kinetic limitations. Best practices would utilize a reference electrode to separate HER and OER kinetics; most studies, however, utilize a two-electrode MEA configuration in which full cell potentials are measured and reported.¹ This can introduce discrepancies between the potential applied and the actual potential experienced at the electrode. Consequently, the extracted kinetic parameters (Tafel slope and exchange current density) are only “apparent” and not directly comparable to those obtained from half-cell measurements. Nevertheless, in the absence of a reference electrode, an “effective” Tafel analysis can still be reasonably performed, which we demonstrate through the following analysis.

For a two-electrode cell in which both electrodes follow Tafel kinetics, the total overpotential (η_tot) can be approximated as the sum of the individual kinetic contributions from each electrode:

where J is the current density, b₁ and b₂ are the Tafel slopes, and J₁ and J₂ are the exchange current densities for each electrode. This expression can be simplified (see the SI) to

This relationship, which maintains the form of the Tafel equation, shows that a standard Tafel analysis can be employed for the case where both the OER and the HER are significant and yields an “effective” Tafel slope and exchange current density which are defined by b_eff (=b₁ + b₂) and . These parameters can then be used to determine full-cell kinetic overpotentials as discussed above.

Catalyst layer resistances (R_CL) arise from disruptions in the ionic and electronic transport networks within the CL. These contributions can be quantified using non-faradaic EIS, i.e., measurements performed at a potential where no charge transfer reactions occur (1.25 V in this work). CLR contributions can be determined by leveraging the transmission line theory of porous electrodes.^12,20–22 In this approach, the electrode is modeled using a transmission line equivalent circuit in which parallel capacitive and kinetic elements, representing small local sections of the electrochemical surface, are connected by resistive elements that represent the ionically and electronically conductive regions of the electrode. A uniform porous CL behaving as an RC transmission line is expected to exhibit an approximately 45° line in Nyquist plots, although deviation from this behavior can arise when the electrode structure is nonuniform (e.g., in the presence of bottlenecked or tapered pores).^20,23

An illustrative example of non-faradaic impedance spectroscopy for an AEMWE with a NiFe₂O₄ anode CL is shown in Fig. 3c. In this figure, the characteristic 45° region lies between approximately 20 and 80 Ω-cm² on the real axis; this region is directly proportional to the R_CL.^12,21,22 R_CL can then be calculated using a transmission line model, as has been shown previously,^24,25 or approximated using a linear fit of the constant phase region as follows:

where is the x-intercept of the constant phase region with the real axis.

Previous work from our group demonstrated a method to estimate R_CL contributions to overpotential (η_CLR) for PEMWEs from the R_CL and Tafel slope.¹² Here, we apply this approximation to the AEMWE, calculating η_CLR as follows:

η_CLR = −b log₁₀(u) (6)

where b is the Tafel slope in mV/decade and u is the catalyst layer utilization, given by

α (=1.1982) is a scaling parameter determined previously.¹² J_int is the transition current density between the region dominated by the Tafel limit and the region dominated by the semi-infinite pore limit¹² and is given by

These equations demonstrate that catalyst layer utilization decreases as current increases, R_CL increases, and the Tafel slope decreases.

Thus far, we have demonstrated how to decouple ohmic, kinetic, and R_CL contributions to overpotentials by evaluating η_Ohmic, η_Kinetic and η_CLR; together, these contributions account for most of the losses observed in Fig. 2. However, some additional losses remain that are not captured by these terms and are commonly referred to as residual losses (η_residual). These η_residual values are generally attributed, at least in part, to mass transport limitations through the CL.²⁶

Interestingly, the estimated η_kinetic values were found to be very similar for the four catalysts tested, as shown by green shaded areas in Fig. 2. In contrast, the largest differences were observed for η_CLR and η_residual (purple and white areas in Fig. 2). These variable R_CL values may stem from differences in CL structures, influenced by variations in the particle size, agglomeration tendencies, and interactions with anion exchange polymers. These factors also affect the degree of catalyst utilization and the transport of evolved O₂(g), potentially contributing to the observed trends in η_CLR and η_residual. We further hypothesize that poor catalyst utilization contributes to η_kinetic and suggest that diagnosing and reducing R_CL and η_kinetic will also decrease and drive trends closer to those predicted from half-cell, RDE testing (in Fig. 1a).

In the following paragraphs, we outline strategies to improve performance by addressing the key factors contributing to R_CL. We note that in AEMWEs, R_CL can arise from (1) the anode CL, (2) the cathode CL, and (3) the PTL. Specifically, the HER overpotentials are non-negligible in AEMWEs and thus the cathode R_CL may be significant, which is in sharp contrast to PEMWEs and consistent with the above discussions on Tafel kinetics. The PTL, often made of OER-active Ni or stainless steel and flooded with a supporting electrolyte, could also exhibit its own transmission line impedance as we have shown in our previous work.⁴ Here, we focus on the anode CL, as the OER is still expected to be the limiting half-reaction. To isolate the relevant effects, all other variables were held constant while only the anode CL parameters were varied, and the resulting trends were examined with respect to R_CL.

Fig. 4 shows the results of changing key catalyst layer design and operational variables (catalyst loading, PTL porosity, ionomer content, and electrolyte concentration) on R_CL. We note that these variables had a negligible impact on the high frequency resistance (HFR; Fig. S1, SI) and R_CL trends generally followed the electrochemical performance trends (Fig. S2, SI).

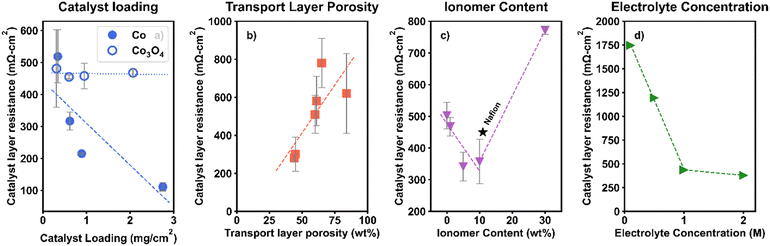

Fig. 4 Impact of (a) Co and Co₃O₄ catalyst loading, (b) PTL porosity, (c) the ionomer content/type, and (d) the KOH supporting electrolyte concentration on R_CL. All results are for changes in the anode catalyst layer only. Dashed lines are guides for the eye. In (a)–(c), the average and standard deviations of three experiments are plotted as the markers and error bars, respectively.

In Fig. 4a, the results of changing Co and Co₃O₄ loading on R_CL are shown, adapted from our previous work.²⁶ A direct relationship between catalyst loading and R_CL would indicate a significant through-plane electronic or ionic R_CL, where a thicker CL induces increased resistance due to the inherent conductivity limitations or contact issues. Neither Co nor Co₃O₄ loading showed this relationship, indicating that CLs with these materials in the loading ranges tested do not have a through-plane limitation. Instead, for Co, there was an inverse relationship between R_CL and catalyst loading and for Co₃O₄, there was no clear trend between R_CL and catalyst loading. The disparities in trends between these two materials are likely related to their different inherent conductivities; as we have shown previously, for catalysts with high conductivity, increased loading leads to improved kinetics and decreased R_CL and for catalysts with low conductivity, there is minimal variance in R_CL with loading (<200 mΩ cm² difference).²⁶

When changing the PTL morphology for Co₃O₄ CLs, shown in Fig. 4b, we found a direct relationship between PTL porosity and R_CL. Low porosity PTLs (smaller gaps between PTL fibers) led to the smallest R_CL and high porosity PTLs (large gaps between fibers) led to the largest R_CL. This trend underscores the importance of optimizing the PTL microstructure to promote effective ionic and electronic transport within the catalyst layer.

These observed trends (i.e., an inverse relationship between R_CL and catalyst loading and a direct relationship between R_CL and PTL porosity) may indicate the presence of a pseudo in-plane electronic resistance, similar to phenomena previously reported for PEMWE CLs.¹² In the PEM case, this was due to the distances electrons must travel along the CL (on the membrane) to reach contact points with the conductive PTL in a catalyst coated membrane (CCM) configuration. While this is not directly analogous to the catalyst coated substrate (CCS) approach commonly used for AEMWE, the mechanism is likely not ionic, due to the high ionic conductivity provided by the 1 M KOH supporting electrolyte (discussed further below). Instead, we propose an explanation related to electronic limitations; at low catalyst loadings and high PTL porosities (shown here to have high R_CL), there are potentially large gaps between catalyst particles and poor coverage of the CL on the PTL, leading to a lower effective area for electron conduction. As loading increases and PTL porosity decreases, the catalyst layer becomes more uniform and there is better coverage across the PTL pores, increasing the effective conduction area and lowering resistance. Furthermore, the catalyst on the membrane-facing surface of the PTL is likely kept in better electronic contact than the catalyst within the PTL pores during MEA compression. The improved PTL coverage at high loading/low PTL porosity may therefore lead to better contact within the CL, contributing to decreasing R_CL.

We assumed the anode-side PTL to be incompressible, such that it did not undergo any mechanical deformation that could affect CL compressibility. Moreover, for PTLs of differing thicknesses, it was not possible to precisely match gasket thicknesses, preventing exact equivalence in compression across all samples. Although not specifically investigated in this study, variations in CL compressibility with different PTL thicknesses or morphologies could potentially influence overall performance and R_CL values, representing a topic for future study.

Ionic contributions to R_CL were probed via changes in the ionomer content and electrolyte concentration. Fig. 4c shows the results of changing the ionomer content on R_CL, adapted from our previous work.²⁷ Here, high R_CL at low ionomer content suggests insufficient ionic transport pathways. This result is consistent with the similar R_CL for a CL constructed with 10 wt% Nafion, a non-anion conducting polymer (i.e., one that provides no anionic conductivity; black star in Fig. 4c). R_CL improved as the ionomer content was increased to 5 and 10 wt%, suggesting that these quantities are sufficient to provide ionic transport networks. At 30 wt%, however, R_CL increased significantly, suggesting segregation of catalyst particles and the ionomer phase, disrupting the catalyst–catalyst contact and electron transport, as has been seen previously.^27,28 This can be seen clearly in SEM images of the catalyst layer at different ionomer contents, as shown in our previous work.²⁷ Note that the ionomer content can also affect the CL structure and porosity,²⁷ which may lead to differences in R_CL caused by electronic resistances. It is therefore important to couple the assessment of R_CL with other diagnostic techniques, such as cross-sectional microscopy, where possible. A comprehensive discussion on the influence of the ionomer content and electrolyte concentration on AEMWE performance is available in the literature.^27,29,30

While the present study focuses on a single ionomer chemistry, we note that the identity of the ionomer can also influence R_CL. For example, CLs prepared with 10 wt% Versogen versus 10 wt% Nafion exhibited differences in apparent porosity and in the homogeneity of the catalyst–ionomer distribution, and these differences were linked to catalyst–ionomer agglomeration tendencies in inks.²⁷ Furthermore, strong binding of certain ionomers to catalytic active sites may also affect CL accessibility, and previous studies have shown that catalyst–ionomer interactions vary significantly with both the catalyst and the ionomer type.³¹

Ionic conductivity limitations were further probed by changing the electrolyte concentration with the fixed ionomer content (10 wt% PiperION), as shown in Fig. 4d. R_CL decreased with increasing electrolyte concentration up to 1 M KOH, but there was a minimal change upon increasing to 2 M. This suggests that there is an ionic conductivity limitation that is benefited by the supporting electrolyte, but 1 M KOH is sufficient to overcome it, likely due to the increased ionic conductivity at higher concentrations.

The trends presented here are based on data collected for CLs in a supporting electrolyte environment. Overall, these trends are expected to persist for AEMWEs operated with pure-water feed; however, such systems require a dedicated study. For example, ion transport through the ionomer phase becomes more critical in a pure-water environment, potentially impacting R_CL. Readers are referred to recent discussions on pure-water AEMWE operation for additional context.^32–34

In summary, our VBA demonstrated that the intrinsic activity of catalyst materials does not solely determine the kinetic losses in device-level testing. Instead, we propose that R_CL may also contribute to non-ideal kinetics at the device level and suggest that by improving CL design, it may be possible to bridge the gaps between intrinsic kinetics measured in half-cell, RDE testing and performance in MEAs. The calculated R_CL values were found to range from 100 to 2000 mΩ cm², emphasizing the importance of quantifying and diagnosing these resistances. We provide a discussion of the likely origins of R_CL in AEMWEs and methods to diagnose and reduce these contributions. Specifically, we find that catalyst loadings must be optimized for each catalyst type based on the composition and inherent conductivity and that CLs should be constructed with low PTL porosities, intermediate ionomer contents (5–10 wt%), and supporting electrolytes (≥1 M KOH) to help decrease R_CL and increase cell performances.
