ZnO/Al₂O₃/CuO ternary nanocomposites: a bandgap-engineered solution for high-efficiency photocatalytic hydrogen generation

Abstract

In photocatalytic systems, the efficient generation, separation, and transport of photoinduced charge carriers are essential to achieving high-performance hydrogen production. Semiconductor composites offer a promising route to enhance these processes by leveraging differences in energy band alignments to facilitate charge separation. In this study, ZnO/Al₂O₃ and ZnO/Al₂O₃/CuO nanocomposites were synthesized via a facile one-step hydrothermal method. Comprehensive structural and surface analyses using X-ray diffraction (XRD), Raman spectroscopy, filed emission scanning electron microscopy (FESEM), high resolution transmission electron microscopy (HRTEM), Brunauer–Emmett–Teller (BET), X-ray photoelectron spectroscopy (XPS), and ultraviolet photoelectron spectroscopy (UPS) confirmed the successful formation and heterojunction interface of the composites. UV-Vis diffuse reflectance spectroscopy revealed a significant bandgap narrowing, with values of ∼2.94 eV for ZnO/Al₂O₃ and ∼2.19 eV for ZnO/Al₂O₃/CuO—both lower than that of pristine ZnO—indicating improved visible-light absorption. Theoretical band structure calculations further supported the experimental findings and confirmed the energetic favorability for interfacial charge transfer. UPS measurements were employed to determine the work function, revealing efficient band alignment among the constituent semiconductors, thereby promoting effective charge separation and transport. Photocatalytic hydrogen evolution experiments demonstrated superior activity for the ternary composite, with hydrogen generation rates of 676.85 µmol h⁻¹ g⁻¹ (ZnO), 1448.62 µmol h⁻¹ g⁻¹ (ZnO/Al₂O₃), and 1888.66 µmol h⁻¹ g⁻¹ (ZnO/Al₂O₃/CuO), highlighting the interfacial charge transfer enhancement driven by heterojunction formation and bandgap engineering. These results indicate that the ZnO/Al₂O₃/CuO nanocomposite is a highly promising photocatalyst for efficient solar-driven hydrogen production.

---

1. Introduction

Hydrogen is recognized as a clean, renewable, and high-energy-density fuel, making it a promising alternative to fossil fuels for sustainable energy applications.¹ Its utilization produces only water as a byproduct, rendering it environmentally benign. The growing global demand for clean energy has intensified research into efficient and economical hydrogen production technologies. Among various methods, photocatalytic water splitting using semiconductor materials has emerged as an environmentally friendly and sustainable route, as it harnesses solar energy to generate hydrogen directly from water without carbon emissions.² The efficiency of this process, however, strongly depends on the properties of the photocatalyst, including its band structure, charge separation efficiency, and light absorption capability. Photocatalysis offers several benefits, such as the direct utilization of abundant solar energy, mild operating conditions, and the capability to integrate energy conversion and storage processes. Nevertheless, single-component photocatalysts often exhibit inherent limitations that restrict their efficiency. Therefore, developing composite photocatalysts that combine materials with complementary properties has become a crucial strategy to overcome these challenges and enhance overall photocatalytic performance.

In this context, the rational design of composite photocatalysts requires careful consideration of several essential parameters, particularly band structure matching, efficient charge transfer pathways, and chemical compatibility among the components. Proper alignment of conduction and valence band edges facilitates effective charge separation and transfer, thereby improving photocatalytic efficiency. By tailoring the electronic structure and interfacial properties of different semiconductors, it is possible to construct heterojunctions that suppress electron–hole recombination and extend the absorption range toward the visible region of the solar spectrum.

Ternary oxide composites with nanoscopic features have recently gained significant attention due to their synergistic properties and multifunctional capabilities, leading to applications in catalysis,³ controlled doping, sensing, and filtration.^4–6 Among these, the combination of copper oxide (CuO), zinc oxide (ZnO), and aluminum oxide (Al₂O₃) has been particularly appealing because of the distinct yet complementary characteristics of the individual components.^7,8 Despite their potential, only a limited number of studies have reported the successful synthesis of ZnO/Al₂O₃/CuO nanocomposites through unified approaches.^9,10 These materials have demonstrated potential in photocatalytic degradation of pollutants,^11,12 CO₂ reduction,^13–16 photoelectrochemical (PEC) water splitting for hydrogen generation,^9,17 and water oxidation,¹⁸ underscoring their versatility and practical significance.¹⁹

Individually, each oxide exhibits unique advantages and inherent limitations. CuO, a p-type semiconductor with a narrow bandgap (1.2–1.9 eV), shows strong visible-light absorption and good catalytic properties but suffers from high electron–hole recombination and stability issues.^20,21 ZnO, an n-type semiconductor with a wide bandgap (∼3.2 eV), offers high quantum yield, environmental benignity, and excellent oxidative capability but is limited by poor visible-light response.^22,23 Al₂O₃, known for its chemical and thermal stability, provides structural robustness but lacks photoactivity and electrical conductivity.²⁴

Integrating these oxides into a ternary ZnO/Al₂O₃/CuO composite combines their complementary attributes.²⁵ ZnO provides a stable photoactive base, CuO enhances visible-light absorption and acts as a charge separation center due to its p-type conductivity, while Al₂O₃ improves surface area, dispersion, and stability. The band alignment between ZnO allows efficient charge transfer, where photogenerated electrons move from CuO to ZnO and holes migrate in the opposite direction, thereby minimizing recombination losses. Al₂O₃ further assists by preventing particle agglomeration and providing additional active sites. Such band structure matching and interfacial synergy make ZnO/Al₂O₃/CuO a suitable composite for photocatalytic hydrogen production.

Various synthesis techniques such as sol–gel,²⁶ hydrothermal,²⁷ sonochemical,²⁸ microwave-assisted combustion,^29,30 and coprecipitation²⁷ have been employed to prepare nanocomposites with tunable physicochemical properties. Among these, the hydrothermal method is particularly advantageous due to its simplicity, cost-effectiveness, and ability to yield highly homogeneous and crystalline materials under mild conditions. The control of temperature, precursor concentration, and reaction time directly influences the crystal structure, morphology, surface area, and optical properties, thereby tuning the photocatalytic efficiency of the final composite.^31–33

In the present study, ZnO, ZnO/Al₂O₃, and ZnO/Al₂O₃/CuO nanocomposites were synthesized via the hydrothermal route and systematically characterized by X-ray diffraction (XRD), ultraviolet-visible (UV-Vis) spectroscopy, field emission scanning electron microscopy (FESEM), high-resolution transmission electron microscopy (HRTEM), energy-dispersive X-ray spectroscopy (EDS), Brunauer–Emmett–Teller (BET) surface area analysis, and X-ray photoelectron spectroscopy (XPS). The electronic structure was examined by ultraviolet photoelectron spectroscopy (UPS) to elucidate band alignment. The photocatalytic activity of the prepared materials was evaluated for hydrogen evolution under UV light irradiation. The enhanced photocatalytic performance of the ternary ZnO/Al₂O₃/CuO nanocomposite is attributed to its optimized band structure, efficient charge separation, and improved surface characteristics. The novelty of this work lies in the strategic design and synthesis of a ternary oxide heterostructure with tailored interfacial properties to achieve superior photocatalytic hydrogen production efficiency.

2. Experimental

2.1 Materials

Aluminium nitrate nonahydrate, (Al(NO₃)₃·9H₂O), zinc chloride (ZnCl₂), copper nitrate trihydrate (Cu(NO₃)₂·3H₂O), urea (CO(NH₂)₂), and oxalic acid (COOH)·2H₂O all are analytical grade chemicals used in the present work. Distilled water and ethanol were used without additional purifications.

2.2 Synthesis of ZnO, ZnO/Al₂O₃ and ZnO/Al₂O₃/CuO nanocomposite

2.2.1 Synthesis of ZnO nanosheets. ZnO nanosheets were synthesized via a facile single-step hydrothermal route. In a typical synthesis, 0.1 M zinc chloride (ZnCl₂), 0.6 M urea (CO(NH₂)₂), and 0.1 M oxalic acid dihydrate (COOH·2H₂O) were dissolved in 100 mL of distilled water under constant magnetic stirring at room temperature for 30 minutes. The resulting homogeneous solution was transferred into a Teflon-lined stainless-steel autoclave and heated at 140 °C for 14 hours. After naturally cooling to room temperature, the precipitate was collected, washed thoroughly with distilled water and ethanol to remove any residual impurities, and dried at 70 °C for 12 hours. The dried powder was then calcined at 450 °C for 4 hours to obtain crystalline ZnO nanosheets.

2.2.2 Synthesis of ZnO/Al₂O₃ nanocomposite. The ZnO/Al₂O₃ nanocomposite was synthesized using the same hydrothermal method described above, with the inclusion of 0.1 M aluminum nitrate nonahydrate (Al(NO₃)₃·9H₂O) into the precursor solution. The mixture was stirred and treated hydrothermally under identical conditions (140 °C for 14 hours), followed by cooling, washing, and drying at 70 °C. The resulting powder was calcined at 450 °C for 4 hours to ensure complete crystallization and oxide phase formation.

2.2.3 Synthesis of ZnO/Al₂O₃/CuO nanocomposite. For the synthesis of the ternary ZnO/Al₂O₃/CuO nanocomposite, 0.1 M of both aluminum nitrate nonahydrate (Al(NO₃)₃·9H₂O) and copper nitrate trihydrate (Cu(NO₃)₂·3H₂O) were simultaneously added to the original ZnO precursor solution. The synthesis procedure including stirring, hydrothermal treatment at 140 °C for 14 hours, and subsequent cooling, washing, and drying was identical to the previous steps. Finally, the dried sample was calcined at 450 °C for 4 hours to yield the ZnO/Al₂O₃/CuO nanocomposite.

2.3 Photocatalytic hydrogen generation by water splitting

Photocatalytic hydrogen evolution experiments were conducted in a closed batch quartz reactor system to evaluate the hydrogen production efficiency of ZnO, ZnO/Al₂O₃, and ZnO/Al₂O₃/CuO nanocomposites under UV light irradiation. A 125 W mercury vapor UV lamp served as the irradiation source, positioned horizontally at a fixed distance of approximately 10 cm from the surface of the reaction mixture to ensure uniform UV exposure while minimizing thermal effects. The entire reactor setup was enclosed within a reflective aluminum housing to enhance light utilization by evenly distributing the incident radiation across the reaction surface. For each experiment, 20 mg of photocatalyst was dispersed in a reaction mixture containing 25 mL of deionized water and 5 mL of methanol, which acted as a sacrificial electron donor. Platinum (0.5 wt%) was preloaded onto the photocatalyst as a co-catalyst to promote hydrogen evolution. The reactor, a 100 mL quartz vessel sealed with a gas-tight septum, was purged with high-purity nitrogen gas for 20 minutes prior to irradiation to eliminate dissolved oxygen and other gaseous impurities. Continuous magnetic stirring was maintained to ensure a homogeneous suspension during the reaction. The system was water-cooled to maintain a constant reaction temperature of 25 ± 2 °C and to prevent overheating of both the reactor and the photocatalyst suspension. The photocatalytic reaction was initiated under UV irradiation, and evolved gases were periodically sampled (0.5 mL) through the septum using a gas-tight syringe. The hydrogen content in the gas phase was quantified using a Shimadzu gas chromatograph equipped with a 5 Å molecular sieve column and a thermal conductivity detector (TCD), with calibration performed using a pre-established standard curve.

2.4 Physico-chemical characterization

UV-visible absorbance spectra for the samples were recorded on JASCO V-670 spectrophotometer. X-Ray diffraction (XRD) technique was used to analyze crystal structure of the samples. The X-ray diffraction pattern was recorded using Bruker D8-Advanced Diffractometer in the 2θ range of 20–80 degrees which were operated at 40 kV and 30 mA. Field emission scanning electron microscopy (FESEM) analysis was carried out on Hitachi S-4800 instrument. Samples were prepared with drop casting on silicon substrate, which was coated with thin platinum layer. Transmission electron microscopy (TEM) analysis was carried out on JEM 2200FS JEOL. Brunauer–Emmett–Teller (BET) technique (Quantachrome Instruments v3.01) was used to find the surface area using N₂ physisorption technique. Molecular vibrations and structural characteristics were studied using Raman spectroscopy model: thermo scientific spectrometer (excitation wavelength = 532 nm). X-ray photoelectron spectroscopy (XPS) and Ultraviolet photoelectron spectroscopy (UPS) analysis was carried out using ESCA-3000, VG Scientific to observe binding energies. Fluorescence spectra were recorded using the photo-luminescence (PL) spectrophotometer (Model: Fluorolog, HORIBAJOBINYVON).

3. Result and discussion

3.1 UV-visible spectra

The optical properties of the synthesized ZnO, ZnO/Al₂O₃, and ZnO/Al₂O₃/CuO nanocomposites were investigated using UV-Visible diffuse reflectance spectroscopy (UV-Vis DRS). As shown in Fig. 1(a), the pure ZnO exhibited a strong absorption peak at 352 nm, characteristic of its band-to-band electronic transition in the UV region. The ZnO/Al₂O₃ nanocomposite showed a slight blue shift, with an absorption peak at 340 nm, indicating possible quantum confinement or interface effects due to Al₂O₃ incorporation. For the ZnO/Al₂O₃/CuO nanocomposite, three distinct absorption peaks were observed at 254 nm, 336 nm, and 452 nm. The peak at 254 nm is attributed to high-energy transitions in the ZnO matrix, while the absorption edge at 452 nm corresponds to CuO incorporation, enabling enhanced visible-light absorption. These shifts in absorption behaviour reflect modifications in the electronic structure and band alignment among the constituent semiconductors.

Fig. 1 (a) UV-Visible spectra and (b) Tauc plot of ZnO, ZnO/Al₂O₃ and ZnO/Al₂O₃/CuO nanocomposite.

The absorption features are directly associated with electronic transitions from the valence band (VB) to the conduction band (CB), which define the material's optical band gap (E_g). The band gap energy was calculated using the Tauc method, which is based on the Wood and Tauc equation:

(αhν)ⁿ = A(hν − E_g) (1)

In this equation, ‘α’ represents the absorption coefficient, ‘h’ is Planck's constant, ‘ν’ is the frequency, ‘E_g’ is the band gap energy, A is constant, and ‘n’ depends on the type of electronic transition: (n = 1/2) for direct allowed transitions and n = 2 for indirect allowed transitions.³²

Fig. 1(b) shows the E_g value for ZnO, ZnO/Al₂O₃ and ZnO/Al₂O₃/CuO nanocomposite is 3.13 eV, 2.94 eV and 2.19 eV respectively. The results suggest a synergistic interaction among ZnO, CuO, and Al₂O₃ metal oxides. The E_g value for all the three synthesized samples lies in the UV-visible region. This means that all three photocatalysts have enhanced photocatalytic activity under UV light.

3.2 X-ray diffraction

The XRD patterns of synthesized ZnO/Al₂O₃/CuO nanocomposite, ZnO/Al₂O₃ nanocomposite and ZnO nanoparticles are shown in Fig. 2(a)–(c). In ZnO X-ray diffraction pattern, the characteristic diffraction appears at 31.74°, 34.35°, 36.25°, 47.48°, 56.60°, 62.81°, 66.42°, 67.92°, 69.13°, 72.43°, 76.94° correspond to the planes (100), (002), (101), (102), (110), (103), (200), (112), (201), (004) and (202) respectively Fig. 2(b), confirm the hexagonal structure of ZnO (JCPDS: 01-076-0704). The X-rays diffraction studies confirmed wurtzite phase and all diffraction peak agreed with the reported JCPDS data. No any other peak observed confirm the purity of sample. The characteristic diffraction peaks appeared at 2θ values 32.3°, 35.35°, 38.16° and 48.5° corresponding to plane (002), (1̄11), (111) or (200) and (2̄02) for the CuO respectively (Fig. 2(b)). As expected, the XRD spectra obtained from ZnO/Al₂O₃/CuO nanocomposite system, Fig. 2(c), is indicating monoclinic crystal structure (JCPDS card no 00–041-0254). In the X-ray diffraction pattern of ZnO/Al₂O₃ and ZnO/Al₂O₃/CuO nanocomposite, peaks indicative for the Al₂O₃ phase are barely visible (weaker diffraction), which suggests that Al₂O₃ crystallites are either highly dispersed or amorphous structure.³¹ Here we have calcined all samples at 450 °C, and up to this temperature, alumina remains in amorphous phase.

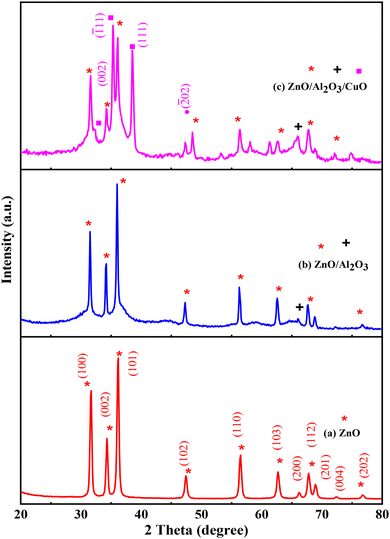

Fig. 2 X-Ray diffraction patterns of (a) ZnO, (b) ZnO/Al₂O₃, and (c) ZnO/Al₂O₃/CuO nanocomposite.

3.3 FESEM

FESEM and energy dispersive X-ray spectroscopy (EDS) were employed to examine the surface morphology and elemental composition of the synthesized nanomaterials. FESEM images of ZnO (Fig. 3(a) and (b)) reveal the formation of multi-layered, ultrathin nanosheets with lateral dimensions ranging from approximately 180 to 450 nm and a thickness of less than 29 nm. These nanosheets exhibit a stacked architecture, contributing to an increased surface area. In the case of the ZnO/Al₂O₃ nanocomposite (Fig. 3(c) and (d)), the morphology displays ZnO nanosheets integrated with distinct spiky flower-like structures characteristic of Al₂O₃. This hybrid structure confirms successful composite formation and suggests a significant enhancement in surface roughness and overall surface area, which is favourable for photocatalytic activity. FESEM images of the ZnO/Al₂O₃/CuO nanocomposite (Fig. 3(e) and (f)) show a heterogeneous microstructure, with visible contrasts in brightness indicating the presence of different phases. The Z-contrast suggests that CuO and ZnO regions appear brighter than Al₂O₃ due to their higher atomic numbers. The CuO nanoparticles are nearly spherical with an average size of ∼50 nm, and the overall composite exhibits porous features and interparticle voids, which further enhance the specific surface area. The ZnO/Al₂O₃ nanocomposite exhibits a multi-layered, ultrathin nanosheet morphology that facilitates enhanced mass transport by reducing diffusion resistance and allowing better penetration of light and reactant molecules into the catalyst matrix. In the ZnO/Al₂O₃/CuO nanocomposite, the uniform dispersion of nanoparticles and well-defined heterojunctions improve charge separation efficiency and increase the density of reactive surface sites. Additionally, the increased surface roughness and curvature enhance the adsorption capacity, promoting stronger interactions between the catalyst surface and target molecules.^34,35 Elemental distribution was analysed using EDS elemental mapping (Fig. 4), which shows a uniform distribution of Zn, Al, Cu, and O elements across the sample surface. The EDS spectrum (Fig. 4(a)) confirms the presence of these elements, validating the successful synthesis of the ZnO/Al₂O₃/CuO ternary nanocomposite.

Fig. 3 FESEM Micrograph for ZnO (a), (b), ZnO/Al₂O₃ (c), (d), and ZnO/Al₂O₃/CuO nanocomposite (e), (f).

Fig. 4 Elemental mapping of the ZnO/Al₂O₃/CuO nanocomposite: (a) FE-SEM with EDS, (b) overlapped elemental map, (c) Al elemental map, (d) O elemental map, (e) Zn elemental map, and (f) Cu elemental map.

3.4 HRTEM

Transmission electron microscope analysis confirming the successful formation of synthesized ZnO/Al₂O₃/CuO nanocomposite. The synthesized sample shows spherical shape of CuO nanoparticles, spike like structure of Al₂O₃ and ultrathin nanosheets-like structure of ZnO confirm the presence of all three nanomaterials in nanocomposite. The TEM image (Fig. 5) shows the partial agglomeration trend of ZnO, Al₂O₃ and CuO nanoparticles owing to overloading of Al₂O₃ and hydrothermal conditions, which indicates the formation of ternary nanocomposite. Every nanoparticle is associated with surrounding nanoparticles and no individual ZnO, Al₂O₃ and/or CuO nanoparticles remain, which also confirmed the effective formation of ternary nanocomposite of ZnO/Al₂O₃/CuO. The HRTEM image shows the interplanar distance are 0.14 nm, 0.24 nm and 0.25 nm corresponding to the diffraction plane (400), (101) and (220) of ZnO, Al₂O₃ and CuO; which is in closed agreement with d spacing obtained from XRD pattern of ZnO, Al₂O₃ and CuO respectively.

Fig. 5 (a), and (b) TEM images for ZnO/Al₂O₃/CuO nanocomposite, (c)–(f) HRTEM image for CuO, ZnO, Al₂O₃ in nanocomposite respectively.

3.5 Raman spectroscopy analysis

Raman spectroscopy was employed to investigate the structural, compositional, and phase characteristics of the synthesized nanostructures, namely pure ZnO, ZnO/Al₂O₃, and ZnO/Al₂O₃/CuO nanocomposites, recorded at room temperature as shown in Fig. 6.

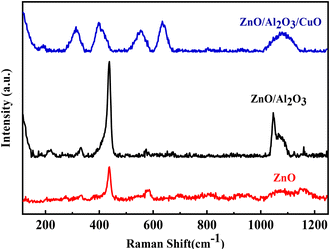

Fig. 6 Raman spectrum of ZnO, ZnO/Al₂O₃ and ZnO/Al₂O₃/CuO nanocomposite.

The Raman spectrum of pure ZnO nanosheets exhibits well-defined peaks at approximately 335 cm⁻¹, 438 cm⁻¹, and 586 cm⁻¹. The peak at 438 cm⁻¹ is attributed to the E₂ (high) phonon mode, a characteristic mode of the wurtzite hexagonal ZnO structure, indicating good crystallinity. The 335 cm⁻¹ peak corresponds to the difference between E₂ (high) and E₂ (low) modes, suggesting lattice vibration interactions typical of ZnO nanostructures. The 586 cm⁻¹ band is commonly associated with the A₁ (LO) or E₁ (LO) mode, often linked to structural defects such as oxygen vacancies or zinc interstitials, indicating slight disorder within the ZnO lattice. Upon incorporation of Al₂O₃ into ZnO (ZnO/Al₂O₃), the spectrum retains the prominent E₂ (high) mode at 436.3 cm⁻¹ and the E₂ high–E₂ low mode at 335 cm⁻¹, demonstrating the persistence of the ZnO wurtzite structure even after the formation of the heterostructure. However, the reduced intensity and broadening of peaks suggest possible strain effects or lattice distortion induced by Al₂O₃ incorporation.

The Raman spectrum of the ternary ZnO/Al₂O₃/CuO nanocomposite reveals a more complex vibrational profile with multiple peaks at 314.01 cm⁻¹, 398.8 cm⁻¹, 555 cm⁻¹, 635.6 cm⁻¹, and a broad band centred around 1095 cm⁻¹. The peak at 314.01 cm⁻¹ corresponds to the A_g mode of monoclinic CuO, while the 398.8 cm⁻¹ peak is attributed to the B_g mode of CuO. The 555 cm⁻¹ and 635.6 cm⁻¹ bands are typically associated with oxygen-related lattice vibrations in CuO or Al–O bond distortions, implying successful integration of CuO and Al₂O₃ phases into the ZnO matrix. The broad peak observed at 1095 cm⁻¹ is assigned to multi-phonon scattering associated with the CuO component. This high-wavenumber region is indicative of overtones and combination bands arising due to strong electron–phonon coupling and the disordered nature of the CuO phase within the composite. The presence of such features suggests complex vibrational dynamics, possibly resulting from interfacial interactions and phonon confinement effects in the nanocomposite.

3.6 BET measurement

The surface area plays an important role in hydrogen generation and photocatalytic activity. BET surface area of the synthesized samples ZnO, ZnO/Al₂O₃, and ZnO/Al₂O₃/CuO nanocomposite were recorded under nitrogen adsorption–desorption isotherm at 77.35 K, and the corresponding isotherms plots are shown in Fig. 7. The BET measurements reveal the surface area of ZnO, ZnO/Al₂O₃, and ZnO/Al₂O₃/CuO nanocomposite are 77.763 m² g⁻¹, 135.056 m² g⁻¹, and 437.075 m² g⁻¹ respectively. As observed in BET measurement, the ZnO nanosheets has low surface area, however the surface area increases after formation of ZnO/Al₂O₃ and ZnO/Al₂O₃/CuO nanocomposite. The isotherm of all samples corresponds to the type IV isotherm (IUPAC), indicating the presence of mesoporous materials.^16,33 Therefore, it can play a significant role in hydrogen generation via water splitting. BET analysis shows the sample ZnO/Al₂O₃/CuO have high surface area and active catalytic sites may produce significant hydrogen production.

Fig. 7 BET curves of ZnO, ZnO/Al₂O₃, and ZnO/Al₂O₃/CuO nanocomposite.

3.6 XPS analysis

Chemical composition of ZnO/Al₂O₃/CuO nanocomposite was determined by XPS analysis. The XPS spectra were calibrated with carbon 1s peak located at 284.6 eV as the reference position. Full survey scan confirmed the existence of Cu, Zn, Al and O elements (Fig. 8(a)). Fig. 8(c) shows peaks assigned to Zn 2p level. Two distinct peaks appeared at 1021.3 eV and 1043.85 eV suggest the presence of Zn². The Al 2p fitted spectra in Fig. 8(d) reveal the presence of an oxide peak at a binding energy of 73.7 eV, along with an aluminium metal peak at 71.75 eV. This alignment closely matches the reported peak separation of 2.45 eV.³⁶ O1s spectra in Fig. 8(b) is deconvoluted into two peaks having binding energy 527 eV and 529.45 eV. The low binding energy is ascribed to O₂⁻ ions enclosed and composite system. The signal serves as an indicator of quantity of oxygen atoms are completely oxidized. High resolution spectra of Cu 2p (Fig. 8(e)) are deconvoluted into Cu 2p_3/2 and Cu 2p_1/2. The spectrum exhibits two additional peaks positioned at 961.22 eV and 940.5 eV which are related to CuO.³⁷ These satellite peaks typically arise from the “shake up” phenomenon, where excess electrons are stimulated into higher energy states Cu 2p_1/2 peak at 952.2 eV and Cu 2p_3/2 peak was attributed at 932.35 eV was attributed to Cu⁺ and Cu.³⁸ The high-resolution XPS spectra of the O 1s, Al 2p, and Zn 2p core levels for the ZnO/Al₂O₃/CuO and ZnO/Al₂O₃ nanocomposites are shown in Fig. S1(a)–(f). A noticeable shift in the binding energies of these elements is observed in the ZnO/Al₂O₃/CuO nanocomposite compared to ZnO/Al₂O₃, indicating a change in the electronic environment and strong interfacial interaction among the constituent phases. The observed binding energy shifts are 0.8 eV for O 1s, 0.7 eV for Al 2p, and 1.5 eV for Zn 2p, confirming charge redistribution and modification in the oxidation states of the elements. These variations in binding energy provide clear evidence for interfacial charge transfer and successful formation of the ZnO/Al₂O₃/CuO heterostructure.

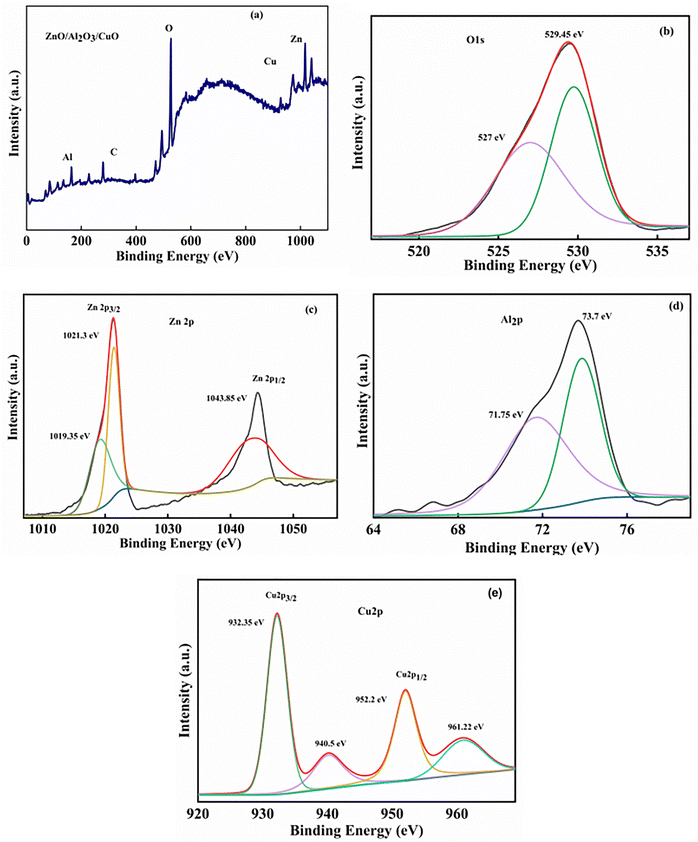

Fig. 8 (a) Survey scan of ZnO/AlO₃/CuO nanocomposite, and high resolution XPS spectra of the core level of (b) O1s, (c) Zn 2p, (d) Al 2p and (e) Cu 2p.

3.7 Energy band and UPS analysis

The conduction band (E_CB) and valence band (E_VB) potentials, for ZnO, Al₂O₃ and CuO in ZnO/Al₂O₃/CuO nanocomposite was calculated using the following known equations:

E_CB = χ − E_e + 0.5 E_g

E_VB = E_CB − E_g

where χ represents the Mulliken electronegativity of the semiconductors (5.75 eV for ZnO, 5.35 eV for Al₂O₃ and 5.80 eV for CuO). E_g is the energy gap of the ZnO, Al₂O₃ and CuO is 3.13, 4.4, and 1.4 respectively. E_e is the energy of the free electrons on the hydrogen scale with fixed value 4.5 eV. Thus, the E_CB values of ZnO, Al₂O₃ and CuO were −0.31, −1.34, and 0.57 eV, respectively. In the same way, the values of E_VB were 2.81, 3.05, and 2.03 eV, respectively. Pure ZnO and ZnO/Al₂O₃ shows low hydrogen evolution (i.e. low photocatalytic activity) with respective to ternary composite, it may be larger band gap as in Al₂O₃ and ZnO or small band gap that resulted in higher electron–hole generation recombination rate as in CuO.³⁹ Fig. 9 shows the schematic illustration of the band gap alignments for ternary composite.

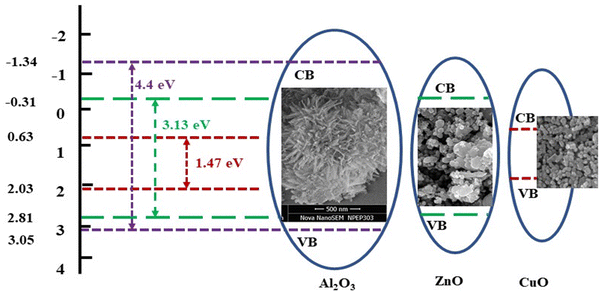

Fig. 9 Schematic diagrams representing energy bands of ZnO/Al₂O₃/CuO nanocomposite.

The ultraviolet photoelectron spectroscopy (UPS) spectra of the ZnO/Al₂O₃/CuO nanocomposite on Si substrates are presented in Fig. 10. The results indicate that the onset energy of secondary electrons for the ZnO/Al₂O₃/CuO nanocomposite was estimated to be 15.02 eV, while the Fermi level was determined to be −1.88 eV. When two semiconductors with distinct energy gaps form a heterojunction structure, the energy gaps align at the interface, influencing both the onset energy of secondary electrons and the Fermi energy level.⁴⁰ Furthermore, the work function (Φ) was calculated using the following equation:

WF (Φ) = hν − (E₀ − E_f)

where Φ represents the work function, h is Planck's constant, v is the frequency of UV light, E₀ denotes the onset energy of secondary electrons, and E_f indicates the Fermi level. Based on this equation, the work function of the ZnO/Al₂O₃/CuO nanocomposite was found to be 4.32 eV, which is lower than that of individual CuO and ZnO nanoparticles.^41,42 A reduced work function implies a higher Fermi level, leading to an increased probability of electron transitions to the conduction band. Additionally, a lower work function also contributes to a higher current density. Consequently, the ZnO/Al₂O₃/CuO nanocomposite system demonstrates enhanced sensitivity compared to ZnO and ZnO/Al₂O₃, supporting the assertion that it exhibits the best H₂ generation performance.

Fig. 10 (a) UPS spectra of the ZnO/Al₂O₃/CuO nanocomposite film showing (b) the secondary edge at high binding energy region related to work function and (c) the low energy region related to valence band maximum.

3.8 Photoluminescence and time-resolved photoluminescence analysis

The photoluminescence (PL) and time-resolved photoluminescence (TRPL) spectra of ZnO, ZnO/Al₂O₃, and ZnO/Al₂O₃/CuO nanocomposites are presented in Fig. 11(a) and (b), respectively. The PL spectra were recorded at room temperature with an excitation wavelength of 352 nm. As shown in Fig. 11(a), all samples exhibit a prominent emission peak centered around 458 nm, corresponding to the near-band-edge emission of ZnO nanoparticles. A gradual decrease in PL intensity is observed from pristine ZnO to the ZnO/Al₂O₃/CuO nanocomposite, accompanied by a slight shift in peak position. This reduction in emission intensity indicates suppressed charge carrier recombination, which can be attributed to efficient charge transfer and band bending effects arising from heterojunction formation. In this configuration, the Al₂O₃ layer functions as an insulating barrier that minimizes surface recombination, while the p-type CuO forms a p–n junction with n-type ZnO. This junction promotes spatial separation of photoinduced electrons and holes, thereby enhancing charge transfer efficiency.

Fig. 11 (a) Photoluminescence (PL) spectra and (b) Time-resolved photoluminescence (TRPL) spectra of ZnO, ZnO/Al₂O₃, and ZnO/Al₂O₃/CuO nanocomposites.

The TRPL spectra, shown in Fig. 11(b), further support these findings. The average carrier lifetimes obtained from TRPL fitting are 13.6 ns for pristine ZnO, 15.10 ns for ZnO/Al₂O₃, and 18.78 ns for the ZnO/Al₂O₃/CuO nanocomposite. The significant increase in lifetime for the ternary composite demonstrates more effective suppression of electron–hole recombination due to the synergistic effects of CuO and Al₂O₃. Specifically, the CuO–ZnO heterojunction facilitates charge separation and prolongs carrier lifetime, while Al₂O₃ serves as a passivation layer that reduces surface defects and traps. These results collectively confirm the improved charge carrier dynamics and reduced recombination in the ZnO/Al₂O₃/CuO nanocomposite, which are beneficial for enhancing photocatalytic activity.

4. Hydrogen generation performance and mechanism

4.1 Photocatalytic hydrogen generation via water splitting

The photocatalytic hydrogen generation efficiency of pure ZnO, ZnO/Al₂O₃, and ZnO/Al₂O₃/CuO nanocomposites was systematically investigated via water splitting under UV light irradiation, as illustrated in Fig. 12. The comparative H₂ evolution rates for these photocatalysts clearly demonstrate the enhanced activity of the ternary nanocomposite.

Fig. 12 H₂ evolution rate via water splitting using ZnO and ZnO/Al₂O₃ and ZnO/Al₂O₃/CuO nanocomposite.

The photocatalytic hydrogen generation performance of the synthesized nanomaterials revealed a clear enhancement trend with composite formation. Pristine ZnO nanosheets exhibited a hydrogen evolution rate of 676.85 µmol h⁻¹ g⁻¹, primarily due to their inherent semiconducting nature and moderate photon absorption capability in the ultraviolet region. Incorporation of Al₂O₃ into the ZnO matrix significantly improved the H₂ production rate to 1448.62 µmol h⁻¹ g⁻¹. This enhancement can be attributed to the role of Al₂O₃ in suppressing charge carrier recombination, thereby improving the overall photocatalytic efficiency. A further and remarkable improvement was achieved with the ternary ZnO/Al₂O₃/CuO nanocomposite, which demonstrated an outstanding hydrogen evolution rate of 1888.66 µmol h⁻¹ g⁻¹. The synergistic interaction among ZnO, Al₂O₃, and CuO components contributed to superior light absorption, efficient charge separation, and extended carrier lifetimes, resulting in the highest hydrogen generation performance among all tested samples.

The structural, optical, and catalytic parameters of ZnO, ZnO/Al₂O₃, and ZnO/Al₂O₃/CuO nanocomposites are summarized in Table 1. The results clearly indicate that composite formation leads to a progressive reduction in optical band gap and a significant increase in surface area, both of which contribute to the enhanced photocatalytic hydrogen evolution activity observed for the ternary ZnO/Al₂O₃/CuO system.

Table 1 Comparison of structural phase, optical band gap, surface area, and photocatalytic hydrogen evolution performance of ZnO, ZnO/Al₂O₃, and ZnO/Al₂O₃/CuO nanocomposites

Sample	Structural	Optical band gap (eV)	BET surface area (m^2 g^−1)	Photocatalytic hydrogen evolution (µmol h^−1 g^−1) under UV irradiation	Photocatalytic hydrogen evolution (µmol h^−1 g^−1) under visible light irradiation
ZnO	Hexagonal	3.13	77.763	676.85	488.96
ZnO/Al2O3	Wurtzite	2.94	135.056	1448.62	962.64
ZnO/Al2O3/CuO	Monoclinic	2.19	437.075	1888.66	1278.43

---

Although the ZnO/Al₂O₃/CuO nanocomposite exhibits extended optical absorption into the visible region (∼2.19 eV), the hydrogen evolution rate under visible-light irradiation was found to be significantly lower compared to UV excitation. This behavior arises because visible-light excitation predominantly involves CuO or defect-related states, which generate charge carriers with lower reduction potential and higher electron–hole recombination probability. Moreover, the presence of Al₂O₃ can further restrict interfacial charge transfer under low-energy visible excitation, limiting the effective participation of photoinduced carriers in the hydrogen evolution process. Although the ZnO/Al₂O₃/CuO catalyst exhibits absorption in the visible-light region (∼2.19 eV), photocatalytic H₂ generation under visible light was found to be significantly lower than under UV irradiation (Table 1 and Fig. S2). This reduced activity is attributed to the low-energy excitation of CuO or defect states, which leads to high electron–hole recombination and unfavourable band alignment for proton reduction.⁴³ Therefore, UV-light-driven experiments are reported to highlight the optimal H₂ generation performance of the catalyst.

4.2 Plausible photocatalytic mechanism

The superior photocatalytic activity of the ZnO/Al₂O₃/CuO nanocomposite can be ascribed to the synergistic interplay between its constituent components and the efficient separation and utilization of photogenerated charge carriers. The proposed mechanism is explained as follows:

1. Photon absorption and charge generation. Upon UV light irradiation, ZnO and CuO components absorb photons with energy equal to or greater than their bandgaps, resulting in the excitation of electrons from the valence band (VB) to the conduction band (CB), thereby creating electron–hole (e⁻/h⁺) pairs:

ZnO + hν → e⁻CB_ZnO + h⁺VB_ZnO

CuO + hν → e⁻CB_CuO + h⁺VB_CuO

2. Charge transfer via Z-scheme pathway. In this ternary system, a direct Z-scheme heterojunction is formed between ZnO and CuO with Al₂O₃ acting as an insulating barrier and charge mediator: the photogenerated electron in the CB of CuO recombines with the hole in the VB of ZnO at the interface. This recombination preserves the strongly reducing electrons in the CB of ZnO and the strongly oxidizing holes in the VB of CuO, which are energetically favourable for redox reactions (Fig. 13).

Fig. 13 Plausible Z-scheme photocatalytic mechanism illustrating charge transfer in the ZnO/Al₂O₃/CuO heterojunction for simultaneous hydrogen and oxygen evolution under solar irradiation.

Recombination step:

e⁻CB_CuO + h⁺VB_ZnO → Heat (non-productive recombination)

As a result, only the electrons in CB of ZnO and holes in VB of CuO participate in surface reactions, achieving efficient spatial charge separation and minimizing recombination losses.

Although Al₂O₃ is not photoactive, it plays a crucial role in the ZnO/Al₂O₃/CuO nanocomposite by regulating interfacial charge dynamics. It physically separates ZnO and CuO, thereby minimizing direct electron–hole recombination at the interface. Its high surface area and thermal stability contribute to the structural integrity and durability of the composite. Additionally, the dielectric nature of Al₂O₃ aids in facilitating interfacial charge transfer by promoting spatial charge separation, ultimately enhancing the overall photocatalytic efficiency.

3. Surface reactions for water splitting. Once the charge carriers reach the surface of the nanocomposite, redox reactions are initiated:

At the conduction band (CB) of ZnO, electrons reduce protons (H⁺) to generate molecular hydrogen:

2H⁺ + 2e⁻ → H₂↑

At the valence band (VB) of CuO, holes oxidize water molecules to form oxygen and release protons:

2H₂O + 4h⁺ → O₂↑ + 4H⁺

The proposed Z-scheme charge transfer is supported by our experimental analyses. XPS shows binding energy shifts of Zn, O, and Al in the composite, indicating interfacial charge transfer. PL and TRPL results demonstrate suppressed recombination and prolonged carrier lifetimes, while theoretical energy band gap calculation and UPS confirms favourable band alignment and reduced work function. Collectively, these observations provide strong evidence that the photogenerated electrons in CuO recombine with holes in ZnO at the interface, leaving highly reducing electrons in ZnO and strongly oxidizing holes in CuO, consistent with a direct Z-scheme pathway. The Z-scheme photocatalytic architecture offers several mechanistic advantages that significantly enhance the overall efficiency of the ZnO/Al₂O₃/CuO nanocomposite system for hydrogen generation. Unlike traditional type-II heterojunctions, which often compromise the redox potential of charge carriers, the Z-scheme preserves the strong reducing power of the electrons in the conduction band (CB) of ZnO and the strong oxidizing ability of the holes in the valence band (VB) of CuO. This is achieved by the strategic recombination of photogenerated electrons in the CB of CuO with holes in the VB of ZnO at the interface, leaving behind the energetically favorable charge carriers at the respective ends of the band structure. This spatial and energetic separation of charges effectively suppresses bulk and surface recombination losses, thus improving charge carrier lifetime. The presence of Al₂O₃ further enhances this effect by acting as an insulating spacer and charge mediator that physically separates the semiconductors, thereby minimizing direct recombination while facilitating interfacial charge mobility. Additionally, Al₂O₃ contributes to increasing the surface area and structural integrity of the nanocomposite, which benefits catalytic activity. The synergistic interaction among ZnO, Al₂O₃, and CuO leads to enhanced light harvesting, more efficient charge separation, and improved reaction kinetics, resulting in a ∼2.8-fold increase in hydrogen evolution rate compared to pristine ZnO.

4.3 Photocatalytic stability and reusability

The long-term stability and reusability of the ZnO/Al₂O₃/CuO nanocomposite photocatalyst were evaluated through three consecutive photocatalytic hydrogen evolution cycles under identical experimental conditions. After each cycle, the photocatalyst was recovered by centrifugation, thoroughly washed with deionized water and ethanol to remove residual reactants, and then dried before reuse. As presented in Fig. 14, the ZnO/Al₂O₃/CuO nanocomposite demonstrated excellent stability with only a slight decrease in hydrogen evolution rate over successive runs. The initial H₂ generation rate of 1888.5 µmol h⁻¹ g⁻¹ in the first cycle decreased marginally to 1837.5 µmol h⁻¹ g⁻¹ and 1781.5 µmol h⁻¹ g⁻¹ in the second and third cycles, respectively. This minor decline (∼5.7% after three cycles) can be attributed to the possible partial surface adsorption of reaction intermediates or minor photo-corrosion of the active sites during prolonged UV exposure.

Fig. 14 Photocatalytic hydrogen evolution stability of the ZnO/Al₂O₃/CuO nanocomposite over three consecutive cycles under identical reaction conditions.

The observed results confirm that the ZnO/Al₂O₃/CuO nanocomposite maintains high photocatalytic durability and structural integrity throughout repeated use. The excellent stability performance highlights the strong interfacial coupling between ZnO, Al₂O₃, and CuO components, which effectively prevents structural degradation and maintains efficient charge transfer pathways during the photocatalytic process.

5. Conclusion

This study demonstrates the successful, cost-effective synthesis of a ZnO/Al₂O₃/CuO nanocomposite and its superior photocatalytic performance for hydrogen generation via water splitting. The ternary composite exhibited a significantly enhanced hydrogen evolution rate of 1888.66 µmol h⁻¹ g⁻¹, compared to 676.85 µmol h⁻¹ g⁻¹ for pure ZnO and 1448.62 µmol h⁻¹ g⁻¹ for the ZnO/Al₂O₃ system. The BET surface area increased markedly from 77.763 m² g⁻¹ (ZnO) to 135.056 m² g⁻¹ (ZnO/Al₂O₃) and 437.075 m² g⁻¹ (ZnO/Al₂O₃/CuO), facilitating greater active site availability for photocatalysis. UV-Vis DRS analysis revealed progressive shifts in absorption peaks, including an extended absorption edge at 452 nm for ZnO/Al₂O₃/CuO nanocomposite, indicating improved visible-light harvesting due to CuO incorporation and modified band alignment. HRTEM images and XRD patterns confirmed the effective formation of the ternary nanocomposite, with interplanar spacings of 0.14 nm (ZnO), 0.24 nm (Al₂O₃), and 0.25 nm (CuO) matching their respective diffraction planes. This work establishes a comprehensive framework for engineering multifunctional photocatalysts, integrating structural stability, enhanced charge separation, and broad-spectrum light absorption, paving the way for scalable, efficient, and economically viable solar-to-hydrogen energy conversion technologies.

Author contributions

The contributions of the authors to this work are as follows: Dr Krishna D. Daware was responsible for the methodology, investigation, data analysis, formal analysis, and writing of the original draft. Ms Mayuri Khade contributed to experimental work, data analysis, and formal analysis. Ms Sonali Mhaske, Dr Yogesh Sethi and Mr Prashant Bankar carried out the investigation and formal analysis. Dr Ratna Chauhan and Dr Suresh Gosavi supported the study through conceptual framework, investigation, supervised the research, data curation, editing of the manuscript and writing – review.

Conflicts of interest

The authors declared that there is no conflict of interest.

Data availability

All data generated or analyzed during this study are included in this published article and its supplementary information.

Supplementary information (SI) is available. See DOI: https://doi.org/10.1039/d5ya00191a.

Acknowledgements

SWG and KDD would like to thank to Department of Science and Technology, Government of India for financial support under the Nano Mission project with project no. DST/NM/NT/2021/02-1C-SPPU.
