Dual-carbon batteries using fluorination and defluorination reactions

Abstract

Dual-carbon batteries (DCBs) employing carbon-based electrodes are promising next-generation systems but suffer from limited capacity due to bulky anions and electrolyte instability during simultaneous (de)intercalation. Here, we demonstrate a new class of fluorination-based DCBs utilizing LiF as an F⁻ source, paired with graphite anodes and Li-based concentrated sulfolane electrolytes for high-voltage operation. The system delivers a large initial reversible capacity of 356 mAh g⁻¹ (per cathode carbon) and exhibits notable capacity retention, outperforming conventional DCB systems. Air-free X-ray diffraction analyses reveal that reversible electrochemical utilization of LiF, suppression of LiF crystallite growth, optimized carbon crystallite size, LiF retention on carbon cathodes, and restrained electrolyte decomposition collectively enable large capacity and stable cycling. These findings establish the first fluorination/defluorination-based DCBs as a feasible next-generation battery technology using the smallest ions (Li⁺ and F⁻) to achieve high energy density and cycling durability.

---

Introduction

The growing demand for rechargeable energy storage systems has accelerated the advancement of battery technologies. Despite their market dominance, lithium-ion batteries (LIBs) face challenges associated with the mining and refinement of critical raw materials, e.g., cobalt and nickel, and electrochemical performance limitations, including energy density and cycle life. These issues raise concerns regarding the long-term sustainability, cost competitiveness, and supply security of LIBs, particularly for large-scale transportation and stationary energy storage.

As a promising alternative for next-generation battery systems, dual-carbon batteries (DCBs) utilize carbonaceous active materials for both cathodes and anodes, respectively, with simultaneous cation and anion (de)insertion into the respective electrodes. High operating potentials for anion uptake (>4.5 V vs. Li⁺/Li), low thermal runaway risk, and abundant carbon materials make them attractive compared to LIBs with transition metal oxide cathodes.^1–5 Since 1994, when Carlin et al. first proposed DCBs using 1-ethyl-3-methylimidazolium (EMI⁺) or 1,2-dimethyl-3-propylimidazolium (DMPI⁺) as cations and AlCl₄⁻, BF₄⁻, PF₆⁻, CF₃SO₃⁻, or C₆H₅CO₂⁻ as anions for graphite anodes/cathodes,⁶ this concept has been expanded to systems utilizing Li⁺ intercalation as the anode reaction.⁷ In particular, Seel et al. demonstrated PF₆⁻ intercalation in a Li/graphite half-cell, where the graphite cathode exhibited a capacity of ∼100 mAh g⁻¹ when charged to 5.45 V (vs. Li⁺/Li).⁸

Meanwhile, conventional DCBs face challenges from their large anions, e.g., PF₆⁻,⁸ BF₄⁻,⁹ ClO₄⁻,¹⁰ bis(trifluoromethanesulfonyl) amide (TFSA⁻),¹¹ and bis(fluorosulfonyl)amide (FSA⁻),¹² as guest anions at the cathode. These large anions inherently restrict the achievable reversible capacities and induce significant volume changes within the electrodes, resulting in severe capacity fading over repeated charge/discharge cycles. Furthermore, the fundamental reaction mechanism of DCBs entails the simultaneous (de)insertion of both cations and anions, which causes pronounced fluctuations in the electrolyte concentration and ionic conductivity during cycling. These fluctuations critically limit the achievable energy density of full-cell DCBs, which require a large electrolyte volume to buffer concentration changes and sustain ionic conductivity during operation (Fig. 1a).^2–4 Therefore, recent studies have used smaller anions, which have substantially improved the capacity of graphite cathodes. Yang et al. reported a BrCl intercalation reaction using LiCl–LiBr–graphite composite cathode, exhibiting a high reversible capacity of ∼620 mAh g⁻¹ within the range of 4.0–4.5 V (vs. Li⁺/Li) to form C_3.5[Br_0.5Cl_0.5].¹³ Similarly, Guo et al. demonstrated an ICl intercalation system achieving a capacity of ∼291 mAh g⁻¹ at 1.4 V (vs. the standard hydrogen electrode).¹⁴ Kim et al. explored LiCl₂ superhalogen species as small anion intercalants to enhance DCB electrochemical performance.¹⁵

Fig. 1 Schematics of (a) conventional DCB and (b) the new proposed class of DCBs.

Our group has used even smaller F⁻ anions to improve performance.^16,17 As the fluorination potential on carbon cathodes is the highest among halogens and the theoretical capacity reaches 2231 mAh g⁻¹ through the formation of C_1.0F_1.0, the fluorination reaction and Li⁺ intercalation are together expected to maximize the energy density of DCBs. Specifically, we demonstrated the reversible insertion/de-insertion of F⁻ anions into/from graphite fluoride (CF_x) cathodes at suitably high potentials (up to 5.3 V vs. Li⁺/Li).¹⁶ LiF and carbon are generated via the electrochemical defluorination of CF_x, serving as the F-source and host material, respectively, at the cathode. Additionally, operando Raman spectroscopy revealed for the first time the electrochemical formation of a F⁻–graphite intercalation compound (GIC), showing that artificial LiF coatings on graphite electrodes enhance F⁻ intercalation.¹⁷ In addition, a recent study demonstrated that graphite-LiF mixed electrodes exhibit large reversible capacities in concentrated LiBF₄/sulfolane electrolytes due to fluorination/defluorination-assisted by inserted BF₄⁻, further highlighting the potential of LiF-based carbon composites as high-performance positive electrodes for DCB systems.¹⁸

Here, we advance DCB concept by employing a graphite anode, a Li-based organic electrolyte, and LiF@carbon cathode electrochemically derived from CF_x. Distinct from both conventional bulky-anion DCBs and rechargeable Li/CF_x systems, our metal-free DCB architecture couples fluorination/defluorination via LiF as a F⁻ source to drive reversible (de)fluorination at the carbon cathode while maintaining Li⁺ (de)intercalation at the graphite anode (Fig. 1b). By utilizing the smallest ionic pair (Li⁺/F⁻) and tuning LiF@carbon nanostructures, this design mitigates the anion size and electrolyte-concentration limitations of conventional DCBs¹⁹ while eliminating the need for Li metal and thereby offering improved sustainability and enhanced safety compared with rechargeable Li/CF_x systems.

Results and discussion

First, composite cathodes consisting of LiF and carbon (xLiF@carbon) were prepared via the electrochemical defluorination of CF_x (eqn (1)).

CF_x + xLi⁺ + xe⁻ → C + xLiF (1)

The electrochemical formation of xLiF@carbon was confirmed by analyzing discharge profiles (Fig. S1) and X-ray diffraction (XRD) measurements (Fig. S2). Notably, increasing the fluorine content from CF_0.52 to CF_1.0 enhanced the defluorination capacity, confirming the electrochemical defluorination reaction described by eqn (1) and the formation of xLiF@carbon composites. Subsequently, DCBs were fabricated using the synthesized xLiF@carbon composites as cathodes and graphite anodes (Fig. S3).

Fig. 2 presents the charge/discharge curves and cycling performance for these DCBs, and the cyclability and initial discharge capacities both depended on the LiF content. Specifically, full cells with the 0.52LiF@carbon or 1.0LiF@carbon composite cathode and graphite anodes in 1 M LiBF₄ in ethylene carbonate and dimethyl carbonate (EC + DMC; 1 : 1 v/v) exhibited initial discharge capacities of 182 mAh per (g-carbon cathode) and 238 mAh per (g-carbon cathode), respectively (Fig. 2a and b). These cells experienced 70% and 39% capacity losses during cycling, respectively.

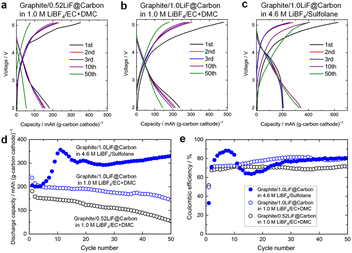

Fig. 2 Charge/discharge profiles of (a) graphite/0.52LiF@carbon and (b) graphite/1.0LiF@carbon full DCB cells in 1 M LiBF₄/EC + DMC at a current density of 200 mA per g (carbon cathode) within a voltage range of 2–5.1 V and charge/discharge profiles of (c) graphite/1.0LiF@carbon full DCB cells in 4.6 M LiBF₄/sulfolane at a current density of 50 mA per g (carbon cathode) within a voltage range of 2–5.1 V. The carbon cathode weights were calculated from the capacities of the electrochemical defluorination of CF_x; the calculation method is detailed in the SI. (d) Discharge capacity retention and (e) coulombic efficiency.

Notably, employing the concentrated sulfolane-based electrolyte dramatically enhanced both the capacity and the cycling stability (Fig. 2c–e): the capacity rapidly increased from 206 to 350 mAh g⁻¹ within the first 10 cycles and was maintained at 330 mAh g⁻¹ with only ∼7.4% decay over 50 cycles. The coulombic efficiency (CE) was approximately 80% after 50 cycles (Fig. 2e), which is consistent with previously reported LiF-carbon conversion systems,^16–18,20 where CE values are generally limited by the intrinsic characteristics of the conversion chemistry.

In the present system, CE loss arises from both electrodes. On the anode side, the concentrated LiBF₄/sulfolane electrolyte forms a comparatively less robust and continuously evolving SEI,²¹ leading to Li⁺ consumption during the early cycles until a sufficiently stable interphase is established. On the cathode side, the limited reversibility of the LiF decomposition/formation reaction^16–18,20 further constrains CE and becomes the dominant factor, which will be discussed later in more details. In addition, minor oxidative reactions at the high cut-off voltage (5.1 V) remain unavoidable, even with the expanded oxidative stability window offered by the concentrated electrolyte.

At the same time, the strong Li⁺–BF₄⁻ interactions in the concentrated sulfolane electrolyte suppress BF₄⁻ intercalation and carbon degradation,²¹ thereby mitigating irreversible LiF loss (to be discussed later). These combined effects enable the significant improvements in capacity and cycling stability, even under the high charging cutoff of 5.1 V. Further optimization of cell components, including the negative-to-positive electrode ratio, electrolyte-to-capacity ratio, electrode fabrication conditions, and separator design, remains a promising route to improving CE without compromising the demonstrated capacity and durability.

To understand the reaction mechanism of the proposed DCBs, cathode structural changes during charge/discharge were investigated by air-free ex situ XRD. The XRD pattern of CF_1.0 before the defluorination pre-treatment (Fig. 3a) exhibits three peaks at 12.7° (d = 0.696 nm), corresponding to (C₂F)_n(002) and (CF)_n(001); 25.7° (d = 0.346 nm) for carbon(002); and 41.0° (d = 0.221 nm) indicating (C₂F)_n(101).¹⁶ CF_1.0 and CF_0.52 show almost identical d values related to the graphite fluoride peak (Fig. S4), but CF_1.0 is more fluorinated than CF_0.52, and CF_1.0 has a less intense carbon (002) peak than CF_0.52, which is related to its large capacity. After defluorination (Fig. 3a), a broad peak appeared at ∼21.5° (d = 0.4171 ± 0.0017 nm), assigned to an intermediate compound, C{S_y·xLi⁺}xF⁻, formed by Li⁺ and solvent (S) co-intercalation into CF_x during discharge.^22–27 Furthermore, an additional broad carbon peak at ∼25.7° and peaks for LiF(111) and (200) appeared, indicating that the intermediate partially decomposed, and the 1.0LiF@carbon composite formed. During the cycling of DCBs in conventional electrolytes, the peak shifts were caused by the expansion and contraction of carbon (002) (25.1–25.7°) due to anion insertion/de-insertion (Fig. 3b). However, because carbon may show low crystallinity or amorphous properties with less sp² content,²¹ the interlayer distance and number of GIC stages could not be determined. Moreover, the relative intensity ratio of LiF(111) and carbon(002) (I_LiF/I_C) decreased after charging and increased after discharge (Fig. 3c), suggesting that fluorination/defluorination and decomposition/reformation of LiF reversibly occur during charge/discharge. Although obtained in 1 M LiPF₆/EC + DMC, charge/discharge behavior in Fig. S5 and change in the C 1s and F 1s signals shown in Fig. S6 indicate the reversible formation and decomposition of C–F bonds, providing additional support for the (de)fluorination mechanism.

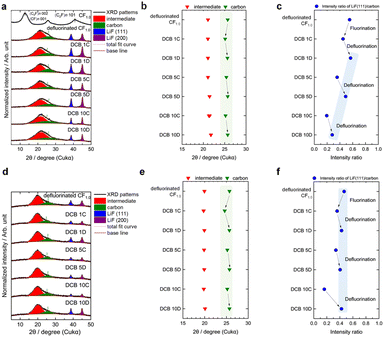

Fig. 3 (a and d) XRD patterns of LiF@carbon composite cathodes in DCBs at various states, (b and e) peak positions (2θ) of the intermediate and carbon, and (c and f) relative intensity ratio of LiF(111) versus carbon for the systems using (a–c) 1.0 M LiBF₄/EC + DMC or (d–f) 4.6 M LiBF₄/sulfolane (“defluorinated CF_1.0”: pristine 1.0LiF@carbon composite cathodes; “DCB 1C–10D”: after 1st charge–10th discharge of DCBs).

Furthermore, the variations in I_LiF/I_C between the first, fifth, and tenth charge/discharge cycles are constant, which may reflect the constant capacity during 10 cycles in the systems; however, the absolute value of I_LiF/I_C decreased from the first to the tenth discharge, indicating LiF loss from the cathode, which may account for the capacity loss during 50 cycles.

In contrast, the ex situ XRD patterns of the 1.0LiF@carbon electrodes tested in concentrated sulfolane-based electrolytes (Fig. 3d) demonstrated a peak for the intermediate at 20° (Fig. 3e). Compared with that of the conventional electrolyte system, the d spacing of the intermediate (d = 0.4461 ± 0.0009 nm) increased because of solvent and concentration differences. Peak shifts caused by the expansion and contraction of carbon (002) (24.6–25.7°) due to anion insertion/de-insertion were similarly confirmed (Fig. 3e). Notably, I_LiF/I_C significantly increased from the 10th charge to the 10th discharge (DCBs 10C → DCBs 10D; Fig. 3f), indicating improved reactivity in fluorination/de-fluorination process. This enhancement corresponds to the increased discharge capacity at low voltages (2–3 V) observed during cycles 5–10 (Fig. 2c), suggesting that the apparent activation behavior may arise from the gradual stabilization of the graphite anode (as discussed later) together with the increased utility of the LiF at the cathode both of which requires several cycles to achieve fully stable intercalation reactions.

Furthermore, I_LiF/I_C did not decrease through cycle 10, indicating that the LiF loss was successfully suppressed during cycling, improving the cycling performance.

Furthermore, Fig. 4a and b show the crystallite sizes of LiF, carbon and intermediate in 1.0LiF@carbon during cycling estimated using the Scherrer eqn (2).

(where D crystallite size (nm), K: Scherrer constant (0.89), λ: X-ray wavelength 0.15418 (nm), B: FWHM (rad), and θ: Bragg angle (rad)). Because of the high lattice energy of LiF, its crystal size may significantly affect the fluorination reactivity.²⁸ In 1 M LiBF₄/EC + DMC (the dilute electrolyte), the LiF crystallite size after the defluorination pre-treatment (1.0LiF@carbon formation) was estimated to be 8.4 nm, consistent with previous findings on the discharge mechanisms of CF_x.^24,29 After 10 cycles, the LiF crystallite size increased from 8.4 to 14 nm (Fig. 4). In contrast, in the 4.6 M LiBF₄/sulfolane electrolyte, the initial LiF crystallites were smaller (6.8 nm), and they grew more moderately during cycling to only 11 nm after 10 cycles (Fig. 4). Thus, the concentrated electrolyte suppressed LiF crystal growth (+58%) more effectively than the dilute one (+72%), indicating the improved reversibility of the fluorination/defluorination reactions. The smaller LiF crystallites in the sulfolane-based electrolyte likely contributed to the higher capacity, and the improved capacity retention may reflect suppressed crystallite growth. Furthermore, the carbon crystallites were on average 1.05 ± 0.07 and 1.50 ± 0.06 nm in the dilute and concentrated systems, respectively (Fig. 4). The intermediate compounds were also larger in the concentrated system on average. Therefore, achieving larger capacities and stable cyclability for fluorination/defluorination reactions may require smaller LiF crystallites and larger carbon crystallites in the cathode, enhancing the utilization of the LiF@carbon composites.

Fig. 4 Variations in Scherrer crystallite size (nm) of (a) LiF (blue: (111); purple: (200)) and (b) intermediate (red) and carbon (green), obtained from the air-free ex situ XRD of cathodes in DCBs using dilute 1.0 M LiBF₄/EC + DMC or concentrated 4.6 M LiBF₄/sulfolane. (c and d) Illustrations of 1.0LiF@carbon cathodes of pristine (after defluorination pre-treatment) and after cycle 10 in DCBs (DCB 10D) using (c) 1.0 M LiBF4/EC + DMC and 4.6 M LiBF₄/sulfolane.

Li⁺ intercalation into the graphite anodes was also investigated by air-excluded ex situ XRD (Fig. S7). As this study focused on evaluating the feasibility of fluorination-based cathode reactions in DCBs and investigating the feasibility of the system, the N/P ratio was set excessively high (1.6–2.3). Using a graphite anode in the concentrated LiBF₄/sulfolane electrolyte requires a large amount of charge for SEI formation, decreasing the initial coulombic efficiency.²¹ Therefore, Li–GIC formation on the anode side could not be confirmed in cycle 1. However, from cycle 5 onward, peaks appeared at 12°, 25.4°, and 54° in subsequent cycles, corresponding to stage-2 Li–GIC with a sandwich distance (d_s) of 0.700 nm.^30,31 These results indicate the feasibility of practically realizing fluorination-reaction-based DCB systems under the investigated conditions. Notably, even after an SEI sufficiently robust to enable reversible Li⁺ intercalation/deintercalation is formed over the first few cycles, the overall CE remains limited to ∼80% because the fluorination/defluorination reaction based on LiF decomposition/formation at the cathode does not proceed with high reversibility. In summary, the combination of LiF@carbon cathodes prepared from Li–CF_1.0 and graphite anodes enables a new DCB system, and the concentrated LiBF₄/sulfolane electrolyte ensures high capacity and cycling durability through enhanced oxidative stability and favorable LiF@carbon nanostructures. A brief comparison of representative DCB systems is summarized in Table 1. Compared with previously reported DCBs using bulky anions allow high-voltage operation yet suffer from restricted capacities,^32–36 and the present fluorination/defluorination architecture employing the smallest ionic pair, Li⁺/F⁻, uniquely enables both high capacity and high-voltage operation.

Table 1 Comparison of dual-carbon battery systems employing bulky anions in organic electrolytes and the Li⁺/F⁻-based fluorination/defluorination dual-carbon battery proposed in this work

Electrolyte	Cathode	Anode	Potential (V)	Capacity [mAh per g (carbon)]	Ref.
4.6 M LiBF4/sulfolane (SL)	LiF@carbon : AB : PVdF = 90 : 10 : 10	Natural graphite : PVdF = 90 : 10	1.5–5.1 V	356@0.05 A g^−1	This work
3.0 M LiPF6/EMC	Al2O3@graphite : super P : CMC = 90 : 5 : 5	Graphite : super P : CMC = 90 : 5 : 5	3.0–5.0 V	80@0.5 A g^−1	32 (Li et al., 2025)
3.0 M LiFSA/FEC + FEMC (3 : 7)	Graphite : AB : PAA = 85 : 5 : 10	Graphite : AB : PAA = 85 : 5 : 10	3.0–5.1 V	95@0.2 A g^−1	33 (Zhao et al., 2023)
4.0 M LiPF6/EMC	DTPMP@natural graphite : super P : PVdF = 80 : 10 : 10	Natural graphite : super P : CMC : SBR = 96 : 2 : 1 : 1	3.0–5.0 V	90@0.1 A g^−1	34 (Zhang et al., 2023)
1 M LiPF6/EMC + SL (1 : 4)	LTO@MCMB : super P : CMC = 90 : 5 : 5	MCMB : super P : CMC = 90 : 5 : 5	3.0–5.4 V	86.9@0.05 A g^−1	35 (Han et al., 2019)
2 M LiPF6/EMC + 3% VC	Graphite : super P : Alg = 80 : 10 : 10	Graphite : super P : Alg = 80 : 10 : 10	3.0–5.2 V	99.4@1 A g^−1	36 (Wang et al., 2018)

---

Conclusions

In conclusion, DCBs using Li⁺ (de)intercalation into graphite anodes and (de)fluorination on cathodes were proposed as a new type of rechargeable battery with low cost, high safety, and superior energy density. This system also provided a promising solution for the problems with conventional DCBs, e.g., changes in the electrolyte concentration and the limited energy densities by using fluorination/defluorination reactions through LiF as the F source in the cathodes. Using the CF_1.0 cathode in 1 M LiBF₄/EC + DMC increased the capacity because it contained more LiF content than CF_0.52, although both systems suffered from capacity fading during cycling. In contrast, employing a concentrated LiBF₄/sulfolane electrolyte effectively suppressed side reactions at the cathode and promoted fluorination reaction, improving the capacity and cycling stability. Structural analysis revealed that the LiF and carbon crystallite sizes play a decisive role in the electrochemical performance, e.g., cyclability and reversible capacities. Particularly, in the concentrated electrolyte for high-voltage operation, smaller LiF and larger carbon crystallites enhanced the capacity, while suppressed LiF crystallite growth correlated with superior cycling stability. These findings highlight the critical role of LiF and carbon nanostructures in achieving reversible fluorination/defluorination reactions. Overall, this study provides a foundation for developing advanced carbon cathodes based on (de)fluorination reactions, paving the way toward practical DCBs and other high-energy-density, long-life energy storage systems. Future work will focus on optimizing fluorination-based DCB configurations, decreasing the overpotential, and designing electrolytes tailored for stability and performance.

Author contributions

Y. I.: methodology; investigation (electrode fabrication, electrochemical measurements, XRD, XPS); data curation; formal analysis; visualization; writing – original draft. C. L.: conceptualization; methodology; data curation; visualization; writing – review & editing; supervision. Y. M.: writing – review & editing; supervision. T. A.: writing – review & editing; supervision. K. M.: conceptualization; methodology; data curation; visualization; writing – review & editing; supervision. All authors discussed the results, contributed to manuscript revision, and approved the final version.

Conflicts of interest

The authors declare no conflicts of interest.

Data availability

Data for this article, including the processed datasets and figures supporting the reported results, are available in the supplementary information (SI). Additional raw data and analysis scripts generated during this study are available from the corresponding author upon reasonable request. Supplementary information: Experimental section, discharge profiles of Li/CF_x cells in LiBF₄-based electrolytes, charge–discharge profiles and ex situ XRD patterns of Li/CF_0.52 half-cells using LiPF₆- and LiBF₄-based electrolytes, schematic procedure for the preparation of the proposed DCBs, cycling performance of the proposed DCBs (graphite/0.52LiF@carbon) in 1 M LiPF₆ electrolytes with different cutoff voltage ranges, XRD and XPS analyses of CF_0.52 before and after Li/CF_0.52 discharge, and of 0.52LiF@carbon cathodes and graphite anodes in assembled DCBs before and after charge. XRD patterns of CF_0.52 and CF_1.0 before electrochemical treatment, and air-free ex situ XRD patterns of graphite anodes in cycled graphite/1.0LiF@carbon DCBs using 4.6 M LiBF₄/sulfolane. See DOI: https://doi.org/10.1039/d5ta10019d.

Acknowledgements

This work was supported by JSPS KAKENHI (grant numbers 24K17777, 24K17772, and 24K01604) and JST FOREST Program (grant number JPMJFR2121). Additional financial support was partially provided by the Noguchi Institute.
