Mitigating structural deterioration via partial substitution with Fe in Mn-based Prussian white cathodes for Na-ion batteries

Abstract

Prussian white (PW) is a promising cathode material for sodium-ion batteries (SIBs), which offers high theoretical capacity at low cost while being composed of abundant elements. However, Fe-based PW suffers from relatively low average voltage, and while substitution of one Fe with Mn can increase the voltage, it introduces structural instabilities supposedly due to the Jahn–Teller distortion of Mn³⁺, resulting in poor capacity retention. In this work, we investigate the effect of partial substitution of Mn by Fe in Mn-based PW on electrochemical and structural stability. Two samples, Na_1.82Mn[Fe(CN)₆]_0.96·2.0H₂O and Na_1.82Mn_0.62Fe_0.38[Fe(CN)₆]_0.96·2.1H₂O, were synthesized by coprecipitation and characterized via a multimodal approach combining laboratory and synchrotron-based techniques. We demonstrate that partial Mn substitution by Fe does not eliminate Jahn–Teller distortion but mitigates its negative effects by suppressing the distorted phase formation occurring near end of charge, thereby significantly enhancing capacity retention without sacrificing overall capacity. These results provide fundamental insight into the interplay between redox activity and structural stability in mixed-metal PW and establish partial Mn substitution by Fe as an effective strategy to improve long-term cyclability of PW cathodes for SIBs.

---

1 Introduction

The increasing demand for energy storage has led to a rise in the use of secondary batteries, raising concerns about the availability of several strategic and critical materials currently used in lithium-ion batteries (LIBs), the technology that dominates the energy storage landscape.¹ For this reason, interest in other M-ion technologies (M = Na, K, Ca, etc.), has increased over the last decade. Among these alternatives, sodium-ion batteries (SIBs) have gained the most interest thanks to their forecasted lower cost, partially due to higher availability of Na compared to Li and the possibility to use cheaper aluminum as the current collector instead of copper, and technological similarity to LIBs.^2–4

Among the different cathode materials available for SIBs, Prussian Blue Analogues (PBAs) are an interesting candidate, due to their comparatively high theoretical capacity (ca. 170 mA h g⁻¹), low cost and high sustainability.^5–7 PBAs for SIBs have a general formula of Na_2−xM₁[M₂(CN)₆]_1−y·zH₂O, with M₁ and M₂ being any transition metal. M₁ is usually in the high spin (HS) state as it is coordinated to the N-end of the CN ligands, while M₂ (mostly Fe) is coordinated to the C-end of the cyanide and usually in the low spin (LS) state. PBAs are historically called differently depending on their alkali ion content, that being Prussian white (PW) if the Na content is close to 2, and Berlin green (BG) if the Na content is close to 0. The most commonly studied PW materials for battery application are Fe-based, meaning M₁ and M₂ are both Fe, due to its low cost and high abundance. However, the energy density of these compounds remains lower than those of cathode materials for LIBs. A strategy to increase their energy density is to raise the average voltage, by replacing Fe with Mn in the M₁ site. Although this strategy was shown to increase the average voltage,⁸ it is obtained at the expense of a reduced capacity retention, which is mainly attributed to Jahn–Teller distortion of Mn³⁺.⁹ To mitigate the poor performance while retaining high average voltage, several teams have studied the partial substitution of Mn by other transition metals. Among the most common alternative transition metals, Ni and Cu disqualify as they are redox inactive within the stability voltage window of the CN network,^8,10 Co ore mining is ethically problematic and expensive, but promising results have been previously obtained when partially substituting Mn by Fe, in Na-ion or other M-ion technologies.^11–16 Despite this research interest, an in-depth analysis of the mechanism of this type of mixed composition PW for SIBs is still missing and, in particular, the impact of partial Mn substitution by Fe on electrochemical behaviour, capacity retention and structural stability remains unclear.

Therefore, this work aims to deepen the knowledge about redox and structural mechanisms of Mn–Fe mixed samples in SIBs. For this purpose, a sample without Mn substitution at the M₁ site (Na_1.82Mn[Fe(CN)₆]_0.96·2.0H₂O) and a sample with partial Mn substitution by Fe at the M₁ site (Na_1.82Mn_0.62Fe_0.38[Fe(CN)₆]_0.96·2.1H₂O) were synthesized by coprecipitation method. Material properties of both pristine materials were thoroughly investigated and differences in electrochemical behaviour and performance were highlighted. Their reaction mechanism was elucidated by combining complementary operando diffraction and spectroscopic techniques to monitor the crystal and electronic structure evolution upon the desodiation/sodiation reaction.

2 Experimental section

2.1. Materials synthesis

A coprecipitation method was used to synthesize the two samples, adapted from previous studies,^17–19 denoted as Mn-PW (no substitution at the M₁ site) and MnFe-PW (partial substitution of Mn by Fe at the M₁ site). Firstly, sodium ferrocyanide salt, Na₄Fe(CN)₆, was obtained by vacuum drying sodium ferrocyanide decahydrate (Na₄Fe(CN)₆.10H₂O, Sigma-Aldrich, 98%) overnight at 120 °C. Two solutions were then prepared: (1) solution A in a two-neck round-bottom flask containing 3 mmol of Na₄Fe(CN)₆ and 14 g of sodium chloride (NaCl, Sigma-Aldrich, 99%) in 25 mL ethanol and 75 mL water and (2) solution B containing 6 mmol of MnSO₄.H₂O (Mn-PW) or 3 mmol of MnSO₄.H₂O and 3 mmol of FeSO₄.H₂O (MnFe-PW), in 100 mL water, with 15 g of sodium citrate dihydrate (Na₃C₆H₅O₇.2H₂O, Sigma-Aldrich, 99%) added as a chelating agent. The use of a water–ethanol mixture as the solvent has previously been shown to decrease the reaction rate.²⁰ A programmable pump was used to slowly transfer the solution (B) at 1 mL min⁻¹ into the round-bottom flask containing solution A where the reaction occurred. The suspension was aged for 20 h without stirring to allow for decantation. The final products were washed and collected through centrifugation, before being dried under vacuum for 20 h at 120 °C.

2.2. Characterization methods

Quasi-simultaneous synchrotron X-ray diffraction (SXRD) at 13 keV photon energy (λ = 0.95372 Å) and X-ray absorption (XAS) measurements (Fe and Mn K-edges) were conducted at the NOTOS beamline²¹ of the ALBA Synchrotron facility. X-ray Absorption Near Edge Structure (XANES) spectra were collected between 6500 and 6600 eV around the Mn K-edge and between 7100 and 7200 eV around the Fe K-edge. Extended X-ray Absorption Fine Structure (EXAFS) spectra for Mn and Fe were acquired up to k = 12 and 16.7 Å⁻¹, respectively. The beam spot was around 0.2 mm² and was monochromatized using a Si (111) double crystal, and harmonic rejection was performed using a collimating silicon mirror at 2.2 mrad. All XAS spectra were collected in transmission mode employing ion chambers filled with the appropriate mixture of inert gases to absorb around 15% of the photons in the ion chamber before the sample, and around 80% in the ion chamber after the sample and after the reference. An iron foil reference was measured at the same time to ensure the energy calibration during the XAS experiments. The EXAFS spectra were treated using Athena and fitted with Artemis software, both part of the DEMETER package.²² The XRD patterns were refined by the Rietveld method using the FullProf software.²³ Ex situ electrodes at various states of charge (SOC), as well as a discharged electrode after 20 cycles, were measured at the NOTOS beamline, enabling quasi-simultaneous measurements of high quality XRD patterns and XAS spectra. The electrodes were sealed in plastic pouch bags, containing up to 16 electrodes each. The measurement of the two XAS edges and an XRD pattern required ca. 15 minutes per electrode. The structural integrity during the ex situ acquisition, most notably against rehydration, was confirmed by superimposing diffraction patterns at the beginning and end of the acquisition protocol, as shown in Fig. S1.

Scanning Electron Microscopy (SEM) images were obtained using a Quanta 200 FEG (FEI). The operating voltage and beam current were 20 kV and 1 nA, respectively. Samples for SEM were prepared by depositing some powder onto a carbon tape substrate glued onto an aluminum pin-holder for the electrons to be conducted and drained.

Transmission ⁵⁷Fe Mössbauer spectra were collected at room temperature with a triangular velocity waveform. A gas-filled counter was used for the detection of γ-rays. A 0.5 GBq ⁵⁷Co:Rh source was used. Velocity calibration was performed with an α-Fe foil standard at room temperature. The Mössbauer spectra were fitted by using the PC-Mos II computer program with appropriate superpositions of Lorentzian lines. To analyze the full operando Mössbauer dataset, a chemometric approach based on principal component analysis (PCA) and multivariate curve resolution-alternating least squares (MCR-ALS) analysis, described in detail elsewhere,²⁴ was used. The MCR-ALS analysis was performed with several constraints: (1) non-negativity of the intensity of the components, (2) closure (the sum of all components always equal to 100% of the intensity) and (3) a single starting component. The pure Mössbauer spectral components obtained from MCR-ALS analysis were then fitted as conventional Mössbauer spectra.

The amount of Na, Mn, Fe, C, H, N, and O in the targeted compositions was determined through inductively coupled plasma atomic emission spectroscopy (ICP-AES) and elemental analysis (EA) measurements, respectively. For the ICP measurements, the sample was digested in nitric acid using an ETHOS Easy (MILESTONE) microwave oven. The digested samples were characterized in a 7900 ICP-MS (Agilent Technologies) spectrometer while the EA was performed on a FlashSmart Elemental Analyser (Thermo Fisher Scientific).

Operando XRD measurements were performed on a lab-scale XRD instrument (Bruker D8 Advance and Malvern Panalytical Empyrean I) equipped with Cu Kα radiation (λ_CuKα1 = 1.54056 Å, λ_CuKα2 = 1.5443 Å), working in the Bragg–Brentano reflection geometry. Operando patterns were refined by the profile matching method using the FullProf App package.²⁵

2.3. Electrochemical testing

For the standard electrochemical testing, electrodes were prepared by tape casting onto an aluminum current collector using a Dr Blade with a thickness of 0.25 mm of a slurry containing the active material (PW), conductive additive (carbon C65) and binder (polyvinylidene difluoride, PVDF) with a mass ratio of 70%:20%:10%, mixed homogeneously in 1-methyl-2-pyrrolidinone (NMP) solvent. The cast foil was then dried under vacuum at 80 °C overnight. Afterwards, disc electrodes of 12 mm diameter were punched and pressed under 2 tons by using a hydraulic press. Prior to cell assembly, the electrodes were dried for 20 h in a Buchi oven at 80 °C and under a vacuum of 20 mbar. This drying temperature has been chosen to only allow the removal of surface water, while interstitial and bound water is expected to still be present in the structure.¹⁷

Electrochemical performance at C/10 was investigated with 3-electrode Swagelok cells, composed of a PW working electrode and metallic sodium both as the counter and reference electrodes, respectively. Electrochemical performance at 1C was investigated in coin cells, composed of a PW working electrode and metallic sodium as the counter electrode. In all cells, 1 M NaPF₆ in 1 : 1 ethylene carbonate (EC): propylene carbonate (PC) electrolyte and Whatman glass-fiber separators were used. All cells were assembled in an Argon-filled glovebox. The cells were galvanostatically cycled at room temperature and a current density of C/10 or 1C between 2.0 V and 4.0 V versus Na⁺/Na, where 1C corresponds to the capacity of 2 Na⁺ exchanged per f.u., corresponding to a theoretical capacity of 171 mA h g⁻¹ for the ideal materials.

For the operando analyses, the electrodes were prepared by mixing PW with C65 carbon and dry PTFE (poly(tetrafluoroethylene)) at a weight ratio of 45% : 45% : 10% to produce a “self-standing” electrode. The operando experiments were carried out using a special electrochemical cell equipped with a Be window.²⁶ A piece of Al foil (thickness 8 micrometers for the XRD to maximize transmission) was placed between the working electrode and the Be window and used as the positive current collector. To obtain a good signal-to-noise ratio, the mass loadings of the active material of the self-standing electrodes were between 8 and 12 mg cm⁻² for the operando XRD experiments and ca. 20 mg cm⁻² for operando Mössbauer spectroscopy.

3 Results and discussion

3.1. Structure and chemical composition

The Rietveld refinements of the synchrotron XRD patterns of the Mn-PW and MnFe-PW samples, as shown in Fig. 1a and c, confirm that both compounds crystallize in the monoclinic system with the P2₁/n space group, as expected for non-dried powder,¹⁷ and exhibit no detectable secondary phases. The unit cell parameters determined from these Rietveld refinements (see Fig. 1a, c, Tables S1 and S2), are in agreement with those in previous studies.¹⁸ The reflections observed between 16 and 19° are correlated with light-scattering atoms such as oxygen, carbon and nitrogen, and hence can be indicative of water content and its positions (see simulations in Fig. S2a). Both Mn-PW and MnFe-PW compounds show similar peak distributions in this area (see Fig. S2b), highlighting that the Mn-substitution does not significantly impact the water content or its distribution within the structure.

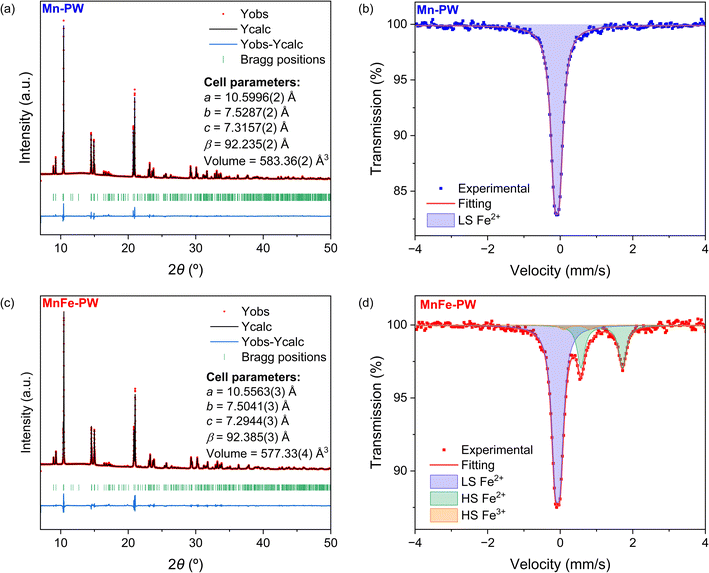

Fig. 1 Rietveld refinements of (a) Mn-PW and (c) MnFe-PW (λ = 0.95373 Å), with red dots showing observed data, the black line showing the calculated pattern, the blue line showing the difference between observed and calculated patterns and the vertical green bars showing the expected positions of Bragg reflections, and ⁵⁷Fe Mössbauer fittings of (b) Mn-PW and (d) MnFe-PW.

Both samples exhibit cuboid morphologies, as observed in the SEM images (see Fig. S3), as expected following a citrate-assisted synthesis protocol.¹⁹ Additionally, to elucidate the oxidation state of iron in the synthesized materials, room temperature ⁵⁷Fe Mössbauer spectra were measured on the pristine samples (Fig. 1b and d). The Mössbauer spectrum of Mn-PW exhibits a sole unresolved doublet corresponding to LS Fe²⁺, with no evidence of any iron oxidation (Table S3). In addition to the doublet of LS Fe²⁺, the spectrum of MnFe-PW reveals the presence of HS Fe, confirming the successful substitution of Mn by Fe at the M₁ (HS) site. The spectrum can be fitted with three quadrupole doublets: an unresolved doublet (LS Fe²⁺) and two resolved ones, corresponding to HS Fe²⁺ and HS Fe³⁺ (See Table S3). Although the HS Fe³⁺ component only represents around 3% of the total spectral area, this small fraction is sufficient to explain the blue color observed for the sample after the washing step (see Fig. S4).^27,28 Combining Mössbauer data, ICP and EA analyses (see Table S4) and refined Na-site occupancies, the approximate compositions of the two samples were determined as Na_1.82Mn[Fe(CN)₆]_0.96·2.0H₂O for Mn-PW and Na_1.82Mn_0.62Fe_0.38[Fe(CN)₆]_0.96·2.1H₂O for MnFe-PW. Notably, the ratio of HS Mn/HS Fe deviates from the stoichiometric ratio used in the precursor solution. This discrepancy may be attributed to (1) an excess of Mn/Fe precursor solution and (2) the difference of binding energy between sodium citrate and different metals, hence releasing the metal ions Mn²⁺ and Fe²⁺ at different rates. Such a phenomenon has been previously reported for Ni-based substitutions.²⁹

3.2. Electrochemical results

The electrochemical profiles of the two studied materials, as well as their corresponding dQ/dV plots are presented in Fig. 2a. First-cycle discharge capacities of 133.8 mA h g⁻¹ for Mn-PW and 120 mA h g⁻¹ for MnFe-PW were obtained, corresponding to 85 and 76% of the maximum theoretical capacity available (ca. 157 mA h g⁻¹ for both samples prior to drying), respectively, in line with the expected capacities for a hydrated phase.^11,18,30 Mn-PW shows the typical two-plateau profile of the hydrated monoclinic phase,¹⁸ with a first plateau at around 3.4 V vs. Na⁺/Na corresponding to the Fe²⁺/Fe³⁺ redox reaction and a second plateau at around 3.8 V vs. Na⁺/Na corresponding to the Mn²⁺/Mn³⁺ redox reaction.^30,31 On the other hand, MnFe-PW shows three plateaus on charge, at 3.0, 3.4 and 3.8 V vs. Na⁺/Na. Mn-PW exhibits an average voltage of 3.62 V vs. Na⁺/Na in charge and of 3.34 V vs. Na+/Na in discharge, while MnFe-PW exhibits averages of 3.55 V vs. Na⁺/Na and 3.26 V vs. Na⁺/Na in charge and discharge, respectively. In comparison, Rudola et al.³² reported an average discharge voltage of 3.03 V for monoclinic Fe-based PBA, cycling between 2 and 3.9 V. Other studies with Fe-based PBA report electrochemical reactions taking place mainly below 3.2 V in discharge.^32,33 Hence, both Mn-PW and MnFe-PW exhibit an increased average voltage compared to Fe-based PBAs.

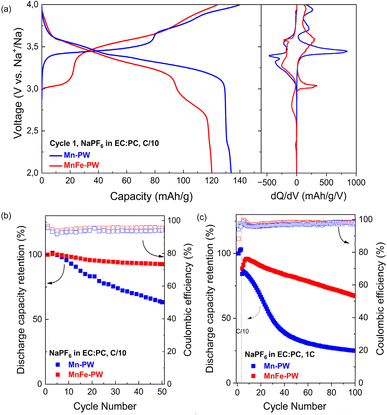

Fig. 2 (a) Electrochemical profile and corresponding dQ/dV plots of Mn-PW and MnFe-PW, (b) percentual discharge capacity retention and coulombic efficiency during the first 50 cycles at C/10 and (c) percentual discharge capacity retention and coulombic efficiency during the first 3 cycles at C/10 and the following cycles at 1C.

The different electrochemical profiles of the two compounds suggest different sodiation reaction mechanisms, which could be related to a different succession of redox processes related to the substitution of Mn by Fe as well as differences in the structural phase transition sequences. In the following cycles, the electrochemical curve evolves for both samples, as shown in Fig. S5. The voltage steps between plateaus become smoother and the plateaus begin to merge, as previously observed in Mn-based PW and attributed to the in situ electrochemical dehydration of the material.^18,34 Hence, this gradual change of the profile could suggest partial dehydration of the sample during cycling.

To elucidate the reversibility and stability of the sodiation mechanism of the two materials, capacity retention tests were carried out and retained discharge capacity in per cent for each cycle, and the coulombic efficiency (CE) are shown in Fig. 2b. A salient difference in cycling stability is observed after 50 cycles at C/10: the partially substituted MnFe-PW shows a much higher capacity retention of about 93% compared to pure Mn-PW, which retains 62% of the initial discharge capacity. MnFe-PW also shows a higher coulombic efficiency compared to Mn-PW. Additional data at 1C (following 3 cycles at C/10) are shown in Fig. 2c, showing that the trends in capacity retention and coulombic efficiency observed at C/10 are also observed at higher C-rates. The low capacity retention of Mn-PW could be linked to the reduced reversibility of the charge/discharge process, and the observed differences in electrochemical cycling behaviour and cycling stability call for deeper mechanistic investigation.

3.3. Structural mechanistic study

The operando XRD patterns collected during cycling using a laboratory diffractometer (see Experimental section) for Mn-PW are shown in Fig. 3. A clear two-phase transition from a monoclinic to a cubic phase can be observed at the beginning of the first plateau, in agreement with recently published results.³⁵ When approaching the end of charge (EOC), two peaks at 17.4° and 24.2° appear while the intensity of the two nearby (200)_C and (220)_C reflections corresponding to the cubic phase decreases, indicating the occurrence of a second two-phase transition toward a new phase, which will be called C′ hereafter. This could be evidence of a tetragonal phase, appearing as a consequence of the Jahn–Teller distortion of Mn³⁺, as reported before for similar compounds.^36–38 However, due to the limited resolution and 2θ range of the XRD patterns, it is not possible to perform quality Rietveld refinements at this stage, and therefore to confirm whether this new phase observed at the end of charge is actually a tetragonal phase. At the completion of the first discharge, the monoclinic phase is recovered, as seen by the splitting of the cubic peak (220)_C at around 24°. However, the initial cell parameters are not fully recovered, as the initial peaks associated with (200)_M and (011)_M around 16.8°, and their second order (400)_M and (022)_M around 34°, appear merged at the end of the first cycle (see Fig. S6a), while they were clearly separated in the initial pattern (Fig. S6a). The capacity obtained at the end of the first discharge (111 mA h g⁻¹) is smaller than what has been observed in the Swagelok cell, which can be explained by differences in the cell configuration and higher loading optimized for XRD pattern acquisition rather than performance.²⁶ This is likely to influence overpotential and capacity but not the reaction pathways.

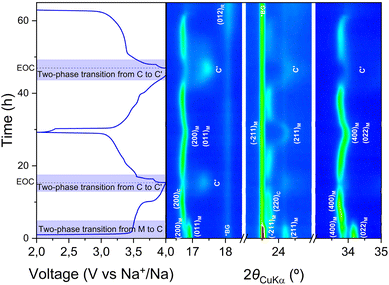

Fig. 3 Operando lab-XRD measurement of Mn-PW in the angular range of 16–35° (2θ_CuKα) (M = monoclinic, C = cubic, C′ = distorted cubic, R = rhombohedral, and *BG = background).

As the second cycle exhibits distinct behaviour compared to the first cycle, vide supra, the cell mechanism was followed during two cycles. It can be observed that at the end of the second discharge, the material undergoes a third transition to the rhombohedral phase, highlighted by the growth of the (012)_R peak at 18.1°, overlapping with the background peak originating from the PTFE binder. The rhombohedral phase is typically obtained in Mn-based hexacyanoferrates by removing the interstitial and crystal water from the material,^17,18,35 hence suggesting that water is released from the structure upon cycling, therefore electrochemically “dewatering” the compound. This is consistent with the changes in the electrochemical profile observed earlier (vide supra).

Similar experiments were performed for MnFe-PW, as shown in Fig. 4. The operando XRD experiment reveals that, as Mn-PW, MnFe-PW undergoes a transition from monoclinic to cubic upon desodiation, however following a single phase transformation route. Moreover, towards the end of the charge reaction, the material remains cubic, and no additional phase is observed. At the end of the first discharge, similar to Mn-PW, the monoclinic phase is recovered, although with a merging of the peaks (011)_M/(200)_M and their second order (see Fig. S6b). During the second cycle, the cubic peaks shift to higher 2θ angles, suggesting a decrease in the unit cell volume. As for the Mn-PW sample, limited capacity is obtained during the first cycle. Due to beam interruption, the last patterns of the second discharge cycle could not be acquired under operando conditions. A final XRD pattern was hence acquired at the end of discharge (See Fig. S6b), which clearly depicts the coexistence of monoclinic and rhombohedral phases as for Mn-PW.

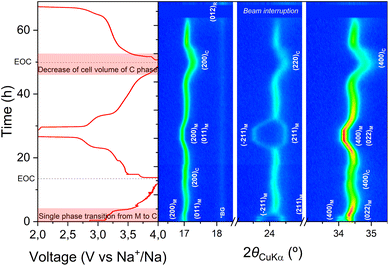

Fig. 4 Operando lab-XRD measurement of MnFe-PW in the angular range of 16–35° (2θ_CuKα) (M = monoclinic, C = cubic, R = rhombohedral, and *BG = background).

To complement the operando XRD analysis of the phase evolution, synchrotron derived ex situ XRD patterns were acquired at selected SOC (see Fig. 5 and 6) to provide deeper structural insights and were refined via the Rietveld method (Fig. S7, S8 and Tables S5–S12). As for the operando XRD experiment, the ex situ XRD patterns confirm that Mn-PW undergoes a transition from monoclinic to cubic to a new phase (C′) near the end of charge. The high-quality data allow us to clearly distinguish three different peaks in the region 10–11°, the main cubic peak (200)_C and two peaks corresponding to the new phase C′, confirming that this new phase is not cubic. A first refinement of the ex situ SXRD pattern of Mn-PW at x = 0.26 using the tetragonal phase was performed, and the cell parameters obtained are a = b = 7.1745(8)Å and c = 10.557(2) Å, similar to previously reported results.³⁶ As reported by two different groups,^36,39 the ratio a/c = 0.680 is lower than the ideal value of 0.707 which would be expected from the transformation of a face centered cubic to a body-centered tetragonal. Due to this deviation from the ideal value, it was previously suggested that this phase is actually not tetragonal but a monoclinic phase with a β angle close to 90°.³⁹ However, the Rietveld refinement of the ex situ SXRD pattern of Mn-PW at x = 0.26 with the monoclinic phase does not definitively confirm whether this distorted phase C′ at EOC is actually a tetragonal or a monoclinic phase, as both provide similar fit quality (see Fig. S7b and S9). In both cases, whether it being a distorted tetragonal phase or a monoclinic phase, this transformation from an ideal cubic structure to a distorted phase at EOC is consistent with the hypothesis of a Jahn–Teller effect. For clarity, this EOC phase will be referred to as a distorted cubic phase throughout the manuscript.

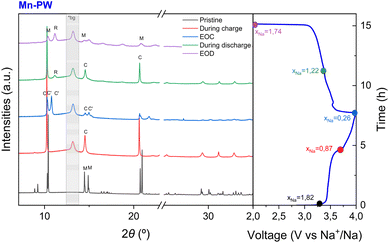

Fig. 5 Ex situ SXRD measurement of Mn-PW and first charge–discharge curve (M = monoclinic, C = cubic, C′ = distorted cubic and R = rhombohedral; *bg within the grey area indicates background peaks).

Fig. 6 Ex situ SXRD measurement of MnFe-PW and the first charge–discharge curve (M = monoclinic, C = cubic, and R = rhombohedral; *bg within the grey area indicates background peaks).

In the case of MnFe-PW, the ex situ SXRD patterns also confirm the observation made from the operando XRD of a transition from monoclinic to cubic at an early stage of charge, and then preserving the cubic phase until the end of the charge process with no transition toward a distorted phase near the end of charge. At the EOD, the ex situ SXRD patterns of both samples exhibit a mixture of monoclinic and rhombohedral phases. This is quite surprising, as in the operando XRD measurement discussed earlier, the rhombohedral phase appeared only during the second discharge. This is most likely due to the difference in the first discharge capacity between the operando and ex situ experiments, although an additional relaxation effect on the ex situ sample cannot be excluded. Interestingly, Mn-PW and MnFe-PW present different rhombohedral phase fractions at EOD, as Mn-PW contains a majority of the rhombohedral phase (53%), while MnFe-PW only contains 30%. This suggests that removal of water is more difficult in MnFe-PW than in Mn-PW, possibly due to the different evolution of the unit cell volume per formula unit during charge, as Mn-PW shows expansion of the lattice, which might facilitate the removal of water, while MnFe-PW shows the opposite trend (see Table S13).

Additionally, after 20 cycles, the discharged electrodes of both samples still exhibit a coexistence of monoclinic and rhombohedral phases, though with a higher relative amount of rhombohedral phase compared to the end of the first cycle (see Fig. S10), which indicates a continuous electrochemical dewatering of the crystal lattice upon cycling.

The refinements of ex situ SXRD measurements were used as a base to calculate the volume changes in both samples during charge from the operando data presented in Fig. 3 and 4, which are shown in Fig. 7. Interestingly, Mn-PW alternates between expansion of the lattice during the transition from monoclinic to cubic and shrinking of the lattice during the transformation from cubic into the distorted cubic phase. In particular, this later transition, near the end of charge, induces the coexistence of two phases with almost a 10% volumetric difference. This likely induces stress to the structure at the interfaces between the phases, which may accelerate the deterioration of the crystalline structure. The fact that this volumetric change, together with the appearance of the distorted cubic phase, occurs near the end of charge suggests that the Mn²⁺ → Mn³⁺ transition occurs only at that point rather than throughout the entire charging process, as this behaviour is likely related to the Jahn–Teller distortion at Mn³⁺. In contrast, MnFe-PW does not undergo significant volume changes during the charging process, which is likely contributing to its improved cyclability. This is possibly related to the lower concentration of Mn³⁺ near the end of charge, as a consequence of the partial substitution of Mn by Fe compared to Mn-PW.

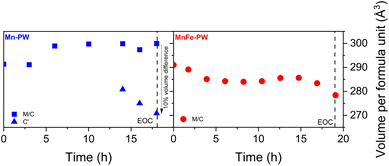

Fig. 7 Evolution of the volume per formula unit observed during the second cycle of the operando experiment for (left) Mn-PW and (right) MnFe-PW (M = monoclinic, C = cubic and C′ = distorted cubic).

The formation of the distorted cubic phase is usually attributed to the collective Jahn–Teller distortion of the Mn³⁺ centres upon charge.⁴⁰ To determine if we observe a Jahn–Teller distortion during charge, the local structure of both samples was studied through EXAFS measurements, acquired quasi-simultaneously with the ex situ SXRD patterns previously described. Fitting details are provided in Table S14 and Fig. S11. The local structure of Mn undergoes severe distortion in both samples upon desodiation, shown mainly by the splitting of the first coordination shell (Mn–N) in two distinct shells, as shown in Fig. 8. This highlights the transition from an octahedral structure with 6 equi-distant Mn–N bonds to a distorted structure with two sets of bond lengths, in agreement with the occurrence of the Jahn–Teller effect. Interestingly, the coordination numbers of the two shells Mn–N(1) and Mn–N(2) are found to be 3 and 3 for both samples, hence deviating from the conventional Jahn–Teller distortion. It should be noted that a classical Jahn–Teller distortion (i.e. 4 compressed equatorial bonds and 2 elongated axial bonds) could only be achieved for MnFe-PW when different Debye–Waller parameters (varying by a factor up to 10) are permitted (see Table S15 and Fig. S12). For Mn-PW, attempts to fit with classical Jahn–Teller were unsuccessful. Such pseudo Jahn–Teller distortion has been previously observed for Li_xMnPO₄ battery materials.⁴¹ In the case of PW materials, the presence of water in the structure and interstitial sites could possibly explain this deviation from the expected configuration. Indeed, it was previously observed that the removal of water strongly impacts the Mn K-edge in Mn-PW, showing that the presence of water plays a major role in the local environment of Mn and could therefore impact the accommodation of the distortion.¹⁷

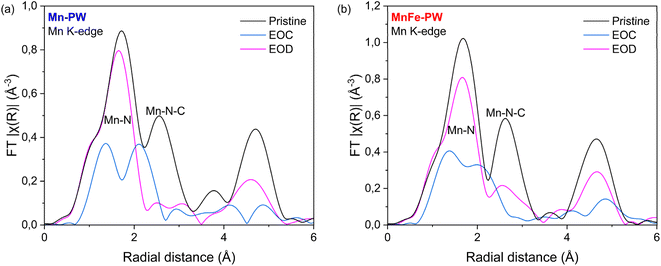

Fig. 8 FT EXAFS of the Mn K-edge for (a) Mn-PW and (b) MnFe-PW. Not phase shift corrected.

Contrary to Mn, the local structure of the Fe absorber shows little variation upon charge for Mn-PW (see Fig. S13a), which is due to the strong π-acceptor properties of the cyanide ligand which lead the LS Fe (bonded to C) to retain its local environment. In detail, the first two shells, attributed to Fe–C and Fe–C–N bonds, remain unchanged during the cycling process. Merely small changes are observed at radial distances higher than 3 Å. For MnFe-PW on the other hand, stronger modifications of the local Fe environment are observed upon desodiation (see Fig. S13b). This is not unexpected since part of the Fe in this sample, bonded to the N-end of the cyanide, is in HS configuration. In this case, changes in the oxidation state strongly impact the local environment of HS Fe, compared to LS Fe,¹¹ and larger average variations are observed compared to Mn-PW.

The combination of long- and short-range structural analysis reveals strong local distortion around the Mn absorber in both samples, independent of the Mn content. However, in Mn-PW it appears that this pseudo Jahn–Teller effect results in stronger structural crystalline distortions than in mixed MnFe-PW, as evidenced by operando and ex situ XRD data. The partial substitution of Mn by Fe does not prevent the Jahn–Teller effect, but it seems to mitigate its detrimental impact on the structure, with the suppression of the transition to the distorted cubic phase in MnFe-PW, enabling enhanced structural stability and thereby improved cycle life.

3.4. Redox mechanistic study

To further investigate the observed difference in the redox reaction mechanism, Mössbauer spectroscopy and XAS were employed in a complementary manner. First, ex situ XAS spectra (Fig. 9) were acquired for both samples, along with the XRD patterns presented in Fig. 5 and 6. The Mn K-edge XANES spectra of Mn-PW remain unchanged along the first plateau and show an oxidative shift of the absorption edge only above 3.8 V. The EOC spectrum exhibits a strong change in edge shape, i.e., a reduction of the white line intensity and the appearance of an additional peak at higher energy. This modification of the absorption edge is in line with the strong modification of the Mn local environment ascribed to the Jahn–Teller effect, as discussed in the previous section. Hence, the change in shape and shift between 3.8 V and EOC highlights the formation of Mn³⁺ Jahn–Teller active species in this voltage range, which is driving the previously observed transformation from the cubic to the distorted cubic phase. At EOC, the content of Mn³⁺ is estimated to be 45%, meaning that nearly one in two HS sites exhibits a Jahn–Teller distortion. The Fe K-edge XANES spectra (Fig. 9b) show a strong shift between OCV and 3.8 V, whereas only a minor shift and increase in the intensity of the white line are observed above this potential. These results are not surprising, as the shift of the absorption edge for LS Fe in hexacyanoferrate on going from Fe²⁺ to Fe³⁺ is known to be comparatively small in magnitude,^42,43 due to the strong π-acceptor properties of the cyanide ligand and the high covalency of the Fe–CN bonds (vide supra). From these results, the previously reported sequence of redox activity (vide supra) is confirmed: (1) the oxidation of Fe²⁺ to Fe³⁺ occurs during the low voltage plateau and (2) the oxidation of Mn²⁺ to Mn³⁺ during the high voltage plateau.

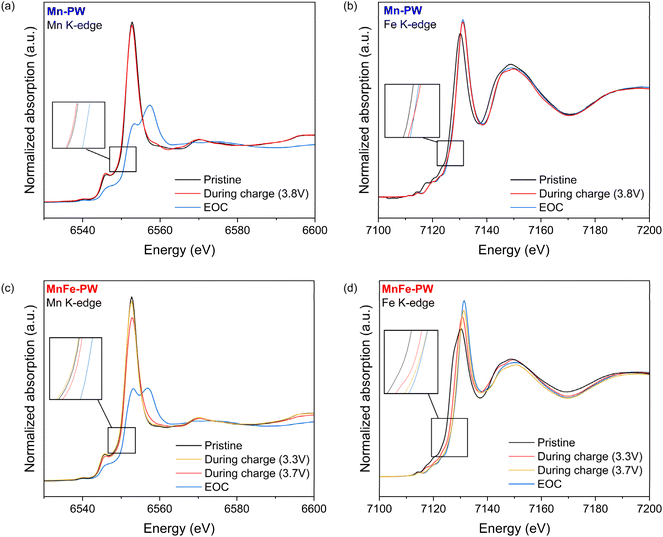

Fig. 9 XANES K-edge of ex situ samples at selected SOC for Mn-PW at (a) Mn and (b) Fe K-edges, and MnFe-PW at (c) Mn and (d) Fe K-edges.

For MnFe-PW, no evident shift is observed in the Mn K-edge XANES spectra (Fig. 9c) before 3.7 V, suggesting that Mn²⁺ is mainly oxidized above 3.7 V, near the end of charge. At the EOC, a distortion of the Mn environment occurs, similar to Mn-PW, confirming the occurrence of the Jahn–Teller effect. The content of Mn³⁺ at EOC is estimated to be 41%, hence slightly less than in the case of Mn-PW. However, in this case, as the sample initially contains about 62% of Mn in the HS site, this means that about one in four HS sites exhibits a Jahn–Teller distortion, therefore close to two times less than in the case of Mn-PW. This is likely to contribute to less perturbation of the long-range structure. On the other hand, the Fe K-edge XANES spectra of MnFe-PW (Fig. 9d) show a salient shift from OCV up to 3.3 V, whereas only a minor shift is observed between 3.3 and 4 V (EOC). This confirms that the main redox activity of the HS Fe is occurring in the low voltage plateau. Moreover, as the edge shift upon oxidation of LS Fe²⁺ to LS Fe³⁺ is expected to be smaller compared to that of the HS configuration, the small shift observed above 3.3 V could correspond to the oxidation of LS Fe. Beyond 3.7 V, no major shift of the Fe is observed.

To further elucidate the contributions of LS and HS Fe in the electrochemical mechanism of MnFe-PW, operando Mössbauer spectra were acquired during two electrochemical cycles (Fig. S14). PCA applied on the full operando Mössbauer spectrum dataset (Fig. S15) indicates that three distinct spectral components are needed to describe the whole set of data. These components, reconstructed using the MCR-ALS algorithm, as well as the evolution of their relative concentration during cycling are shown in Fig. S16. The results of their fittings are shown in Fig. S17 and Table S16. Based on the fitted components and the computed concentrations shown in Fig. S16, the evolution of the LS and HS Fe can be monitored separately, along with the overall mean Fe oxidation state (Fig. 10a, solid and hollow markers, respectively).

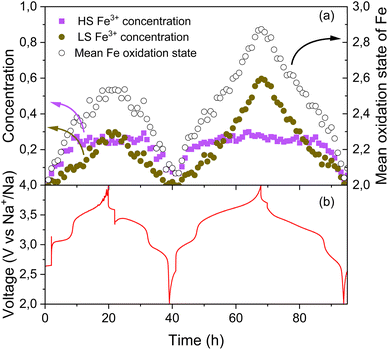

Fig. 10 (a) Evolution of the concentrations of LS and HS Fe³⁺ and of the mean oxidation state of Fe based on operando Mössbauer spectroscopy data and (b) the corresponding cycling curve of MnFe-PW.

This analysis reveals a clear spin state dependence of the iron redox activity. It is salient that HS Fe only reacts during the first plateau upon charge (until ∼3.3 V) while LS Fe shows a continuous evolution during the entire desodiation process. LS iron redox shows a less steep slope implying slower kinetics than HS Fe. Based on these observations, the first plateau can be mainly ascribed to the reaction HS Fe²⁺ → HS Fe³⁺, as previously reported for K-ion batteries.¹¹ Between 3.3 and 4 V, the concentration of LS Fe³⁺ is continuously evolving, while only a small shift of the absorption edge was observed between 3.7 and 4 V in the XANES spectra, owing to the high covalency of LS Fe in both oxidation states.

By combining the complementary insights from operando Mössbauer spectroscopy, ex situ XAS and operando XRD, a comprehensive picture of the sodiation mechanism can be established for Mn-PW and MnFe-PW which is summarized in Fig. 11a and b, respectively. For Mn-PW, the lower voltage plateau is attributed to the oxidation reaction Fe²⁺ → Fe³⁺, during which a two-phase transition from monoclinic to cubic is occurring. The higher voltage plateau is attributed to the oxidation reaction Mn²⁺ → Mn³⁺, inducing pronounced Jahn–Teller effects in nearly half of the HS sites, which drives the two-phase transition from cubic to the distorted cubic C′ phase. For MnFe-PW, the iron redox reaction is clearly subdivided. First, the oxidation of HS Fe²⁺ occurs up to 3.3 V, accompanied by a single-phase transition from monoclinic to cubic, completed after the voltage jump. Beyond this voltage it is overtaken by the oxidation of LS Fe²⁺ which blends into the oxidation of Mn²⁺ taking over the main redox contribution above 3.7 V. The Mn oxidation occurs along with a decrease in the cubic unit cell volume. Analogous to Mn-PW, the formation of Mn³⁺ species during this highest reaction plateau induces a Jahn–Teller distortion. However, unlike Mn-PW, the partial substitution of Mn by Fe in MnFe-PW results in about twice less Jahn–Teller active HS sites, stabilizing the structure and mitigating its detrimental effect.

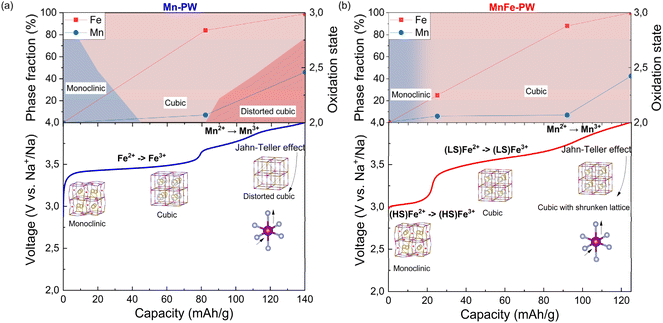

Fig. 11 Synchronized mapping of the different techniques used to unravel the complete sodiation mechanism for (a) Mn-PW and (b) MnFe-PW.

4 Conclusions

In this study, two different PW electrode materials were synthesized and investigated: one containing Mn at the N-coordinated site and another with partial substitution of Mn by Fe. The introduction of Fe at the Mn site was found to markedly improve capacity retention during prolonged cycling, while preserving the initial capacity. A multimodal characterization approach combining lab-scale and synchrotron-based techniques, with operando and ex situ analyses, revealed the occurrence of a Jahn–Teller distortion of Mn³⁺ in both materials. This distortion arises at the final stage of the charge process, in agreement with the established sequence of redox reactions. Although similar local distortions around Mn are observed in both Mn-PW and MnFe-PW, the latter exhibits a less pronounced impact on the long-range crystal structure, as evidenced by the suppression of the transition towards a distorted cubic phase involving detrimental lattice strain. The comprehensive structural and redox analysis clarifies the role of Mn-to-Fe substitution in SIBs, revealing it as an effective strategy to mitigate the Jahn–Teller induced distortions and thereby stabilize electrochemical cycling, while preserving the high initial performance of the material. Given the cycling stability improvement, further optimization of the Mn-to-Fe ratio is of high interest. The sample studied in this work offers a good compromise between high voltage due to Mn, and enhanced stability provided by the Fe. Increasing the Fe content would most likely result in lower average voltage, hence reducing the energy density of the cell and diminishing the advantage of using Mn. A slightly higher Mn content might be interesting, but the effects on cycling stability need further investigation.
