How solvent activity and solute solvation control electrode potentials: quantitative insights from Li+ insertion into TiO2

Ludivine K/Bidi, Tom Rocca, Lucie Chen, Andrea Gutierrez Schindler, Benoît Limoges* and Véronique Balland*
Université Paris Cité, CNRS, ITODYS, Paris F-75013, France. E-mail: limoges@u-paris.fr

Received 14th January 2026 , Accepted 31st March 2026

First published on 1st April 2026


Abstract

Tuning electrolyte salt concentration has emerged as a powerful strategy to enhance the performance of rechargeable batteries by mitigating parasitic side reactions. Here, we introduce a unified and quantitative validation of an electrolyte thermodynamic framework incoporated into a modified Nernst equation that explicitly includes electrolyte-specific parameters—namely, salt and solvent activities, as well as the salt hydration number—to rationalize and predict how electrode potentials vary with electrolyte concentration in reversible ion-insertion systems. We demonstrate this generic methodology for reversible Li+ insertion into anatase TiO2 using aqueous LiCl electrolytes. By combining tabulated water and LiCl activities with concentration-dependent hydration numbers derived from both experimental and theoretical approaches, we achieve quantitative agreement between predicted and measured potential shifts. This work establishes a reliable and broadly applicable framework for deciphering and controlling electrolyte-concentration effects in batteries and, more generally, in electrochemical systems involving concentrated electrolytes.


Introduction

Electrolyte composition is a key determinant of both the performance and lifetime of rechargeable batteries.1 Not only does it govern ion transport, conductivity, but it also fundamentally controls the thermodynamics and kinetics of interfacial electrochemical processes. These interfacial processes include reversible ion insertion into host materials and controlled electrodeposition of metals at current collectors. Electrolyte formulation is also essential for establishing a stable solid-electrolyte interphase (SEI) and suppressing undesirable side reactions such as degradation, dissolution, and corrosion of active materials. Furthermore, appropriate electrolyte selection mitigates dendrite growth during metal electrodeposition and reduces parasitic hydrogen or oxygen evolution reactions in aqueous systems.

Traditionally, electrolyte design has relied on molar salt concentration to balance ionic conductivity and viscosity. However, recent advances have shown that increasing salt concentrations can profoundly alter ion solvation structures and interfacial reactivities,2–4 especially for aqueous electrolytes spanning dilute to “water-in-salt” (WiS) regimes. WiS electrolyte (WiSE) formulations, characterized by a low water-to-cation ratio and an anion-rich environment, have been particularly effective for expanding the electrochemical stability window (up to ∼3 V) by reducing water activity5,6 and thereby suppressing both water reduction and oxidation.7 This enables the reversible cycling of low-potential anodes such as Mo6S8, TiO2 or Li6Ti5O12 (LTO),7–9 thereby opening pathways to high-energy-density aqueous batteries. Concentrated electrolytes also significantly impact the thermodynamics of ion insertion and metal electrodeposition. For instance, high lithium–ion concentrations in non-aqueous systems enable highly reversible lithium plating/stripping10 and graphite intercalation.11–16 This behaviour is attributed to an unusual upshift in the equilibrium potential of metal electrodeposition or ion-insertion, which reduces the driving force for side reactions (such as dendrite formation or graphite exfoliation), and thereby enhances reversibility. Comparable potential shifts have been observed for many insertion compounds (e.g., LiFePO4, LiCoO2, LTO) in both non-aqueous17 and aqueous electrolytes,18–20 as well as for various metal ions insertion21 or deposition processes.22–26 These findings suggest a generic phenomenon fundamentally rooted in the physicochemical properties of the electrolyte, with applications extending well beyond the field of rechargeable batteries, as recently illustrated by electrochemical Li-mediated nitrogen reduction for sustainable ammonia synthesis,27 lithium-ion battery recycling,28 and facilitated electrocatalytic reduction of CO into C2H4.29 All these underscore the need to quantitatively understand how electrolyte nature, composition, and concentration govern the electrode potential.

To address this, Yamada and co-workers proposed a computational framework to determine the total free energy of solvated Li+ ions across concentrations.17,21 This method, based on molecular dynamics simulations that sum short-range coulombic interactions within the Li+ solvation shell, allows to reproduce experimental potential shifts (>0.3 V) for Li+ insertion and Li metal electrodeposition. However, this computational approach is demanding and less intuitive regarding the underlying physicochemical factors driving the potential shifts. A classical physicochemical model that captures electrolyte thermodynamics and links directly to the Nernst equation offers assuredly a more accessible alternative. However, for that purpose, it is necessary to formulate a relevant Nernst expression for the electrochemical process under consideration.

If we consider the case of reversible insertion of Li+ into an active material, the latter can be described by the following cation-insertion coupled electron–transfer reaction at the electrode/electrolyte interface (assuming an ideal host lattice with equivalent, non-interacting insertion sites):


θ + e + Li(S)n+θLi + nS (1)
where θ is the fraction of unoccupied insertion sites (oxidized states) converted to θLi (reduced states) through the coupled insertion of desolvated Li+ from solvated Li(S)n+, with n solvating solvent molecules being released during reduction and re-associated upon oxidation. The Nernst potential E (in V) is then given by:

image file: d6sc00393a-t1.tif(2)
where image file: d6sc00393a-t2.tif is the standard potential of the insertion material (in V vs. a given reference electrode, with the standard state defined for a material at half state of charge and a solute at a 1 mol kg−1 or 1 M under putative infinite dilution conditions), aLi(S)n+ the activity of solvated Li+, and as the activity of solvent. This expression explicitly accounts for the n solvent molecules acting as co-reactants, a contribution that is often neglected.20,30,31 Omitting this term is equivalent to incorrectly assume that, regardless of concentration, as = 1, thereby leading to misinterpretations of potential shifts.

For θLi = 0.5 and using the convention that aLi(S)n+ = aLiX = γLiXCLiX (with γLiX and CLiX, the mean ionic activity coefficient and concentration of the LiX salt),32 eqn (2) then leads to the following half equilibrium potential:


image file: d6sc00393a-t3.tif(3)

Applying these Nernst equations (i.e., eqn (2) or (3)) correctly poses several significant challenges. The first concerns the accurate estimation of salt and solvent activities. It is worth noting that similar Nernst-type expressions have been employed to interpret the potential shifts of Li+ intercalation into graphite from molten glymes-Li salt mixtures16,33 and during Li plating as a function of LiTFSI or LiFSA concentration in non-aqueous solvents.33–35 However, in all these studies, the activities of Li+ and of the free solvent were approximated by their concentrations—a simplification that becomes invalid in concentrated electrolytes. Another difficulty lies in assigning an appropriate value to n, which is expected to vary with the nature of salt and solvent, and with the electrolyte concentration. A further complication arises from the potential shift due to the liquid junction potential (Δϕj) generated across the salt bridge of the reference electrode. Although numerous theoretical approaches exist to estimate this potential, none are fully satisfactory.32 Nevertheless, given that many studies report maximal Δϕj values on the order of a few tens of mV,20,32,36–38 this contribution can be regarded as negligible in the context of the present work.

To demonstrate the applicability of Nernst eqn (3) to a well-defined illustrative system, we considered here the reversible insertion of Li+ into TiO2 (anatase) from dilute to saturated aqueous LiCl electrolytes. An advantage of using aqueous LiCl electrolytes is their well-established thermodynamic properties and the very high solubility of LiCl in water, allowing to easily access WiS regimes. To experimentally determine how the solvation number n (or hydration number h in water) evolves with the electrolyte concentration, we employed a ratiometric Raman analysis of the hydration shell.39 Moreover, to support the validity of our experimental analysis, the thermodynamic properties of LiCl solutions were modeled on the basis of a recently developed speciation-based solution model40–42 capable of relating the solution vapor pressure (solvent activity) to the modeled solute and solvent speciated concentrations. This approach enables accurate prediction of the water activity (aw), solute activity (aLiCl), and hydration number (h) up to saturation.

Results and discussion

Reversible Li+ insertion equilibrium potentials into anatase were obtained from cyclic voltammograms (CVs, Fig. 1a–c) recorded in aqueous LiCl electrolytes (0.5 to 18 mol kg−1) at various anatase-based electrodes, i.e. (i) composite electrodes made of 80 wt% anatase nanoparticles (5 or 25 nm), 10 wt% carbon, and 10 wt% Nafion binder on titanium current collectors, and (ii) 3D nanostructured pure anatase films (1 µm-thick) on Ti-coated glass.43,44 The three-electrode cell included a Ag/AgCl (saturated KCl) reference and a Pt counter electrode.
image file: d6sc00393a-f1.tif
Fig. 1 Potential shifts in CV as a function of LiCl concentration. (a–c) CVs of anatase electrodes recorded at 1 mV s−1 in aqueous LiCl electrolytes with molalities ranging from 0.5 to 18 mol kg−1 (see legends on graphs). The anatase electrodes were (a and b) porous composite electrodes containing 80 wt% of (a) 5 nm or (b) 25 nm anatase nanoparticles, and (c) nanostructured anatase films (1-µm-thick) deposited on Ti-coated glass. (d) Semilogarithmic plots of E1/2 as a function of LiCl concentration. Open dot and star symbols: E1/2 values extracted from the CVs in panels a–c. The dashed and solid curves correspond to plots of Nernst eqn (3) (using image file: d6sc00393a-t4.tif) under different conditions: dashed black line, ideal case with γLiCl = 1 and aw = 1; solid green curve, γLiCl values taken from literature (also reported in Fig. 2) and aw = 1; magenta solid curve, full dependence of γLiCl and aw on LiCl concentration (see Fig. 2), including the solvation number n (or h) adjusted to 4.5.

A slow scan rate of 1 mV s−1 was used to ensure near-thermodynamic control. As shown in Fig. 1d, the extracted half-wave potentials, E1/2 (average anodic/cathodic peaks, which is assumed to be close to the half equilibrium potential governed by eqn (3)), evolved identically with LiCl concentration across all electrodes, regardless of their morphology, reflecting complete dependence on the electrolyte's thermodynamic properties. As a result, one can anticipate that the E1/2 evolution as a function of LiCl concentration can be quantitatively reproduced from Nernst eqn (3) and from the knowledge of γLiCl (and thereby aLiCl), aw, and hydration number h.

Experimental values of aw and γLiCl at 25 °C for LiCl molalities ranging from 0.1 mol kg−1 to saturation are available from compiled literature data (plots shown in Fig. 2).45 Using these data, the E1/2 evolution was calculated with eqn (3). By adjusting the hydration number h (where n = h) to a constant value of 4.5 and using image file: d6sc00393a-t5.tif, the resulting curve (magenta) in Fig. 1d closely matches the experimental E1/2 at low LiCl concentrations (below 7 mol kg−1). This h = 4.5 value aligns with literature reports for dilute lithium salt solutions, where various experimental and theoretical approaches consistently estimate an average of 4–6 water molecules per lithium ion.46–49


image file: d6sc00393a-f2.tif

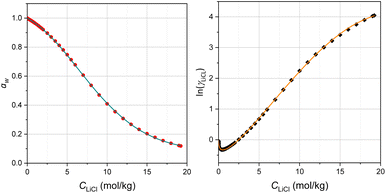

Fig. 2 Water activity and mean ionic activity coefficient of LiCl solutions. Solid dots: experimental (left) water activity and (right) mean ionic activity coefficient of LiCl as a function of concentration (from ref. 45). Solid curves: best fits of the thermodynamic speciation-based solution model to the experimental data using Kh = 5.46, m = 2.21, Kid = 0.45, and ri = 0.53 nm, see text.

It is worth noting that if only the activity of LiCl is considered in the Nernst equation (setting the solvent activity to 1, i.e. aw = 1), it leads to the green curve in Fig. 1d which fails to reproduce the experimental data, except at the lowest concentrations. This result indirectly underscores the importance of accounting for the contribution of water activity raised to the power h in Nernst eqn (3) (with n = h). Finally, the black dashed line in Fig. 1d corresponds to the case where aw = 1 and γLiCl = 1, representing ideal dilute conditions in which only the LiCl concentration contributes.

From the theoretical magenta plot in Fig. 1d, it is evident that at the highest concentrations, the curve diverges from the experimental trend, increasing more rapidly. This behavior is consistent with the progressive depletion of free water molecules available to fully hydrate the solute, specifically Li+ ions.50 Indeed, at high salt concentrations, the number of water molecules becomes insufficient to maintain a constant hydration number of 4.5. A simple calculation shows that at approximately 12 mol kg−1 LiCl, the 55 mol of water present are not enough to ensure fully hydrated ions. This thus highlights the need to determine how the hydration number h evolves with the electrolyte concentration, which we investigated using both experimental and theoretical approaches.

Given the complexity of solvation phenomena in concentrated electrolytes, it is useful to clarify the physical meaning of the hydration number h employed in this work before discussing its evolution with electrolyte concentration. The hydration number h is here defined as an average effective solvation number, representing the mean number of water molecules interacting with the solute species through sufficiently strong ion-dipole or hydrogen-bond interactions to be distinguished from bulk (free) water. This definition therefore extends beyond the strict first coordination shell and accounts for the dynamic exchange between tightly and loosely bound water molecules. The quantity h thus corresponds to an averaged value encompassing all solute-related species present in solution, including free ions and ion pairs, which naturally integrates the effects of ion pairing and aggregation without the need to assign separate hydration parameters to each species. Within this formulation, the decrease of h with increasing electrolyte concentration reflects both the consumption of solvent molecules for solvation and the progressive formation of contact and solvent-shared ion pairs in concentrated and water-in-salt regimes.

Hydration numbers of ions in aqueous media can be evaluated using various spectroscopic methods46,51 such as neutron or X-ray diffraction, Raman spectroscopy, NMR, as well as by measurements of solution compressibility52 or theoretical chemistry computations.53 However, many of these methods have primarily determined hydration numbers under so-called infinite dilute conditions and have rarely assessed the evolution of h with solute concentration.52,54 Among these techniques, solution Raman spectroscopy is particularly attractive due to its accessibility. Therefore, we have used it to experimentally determine h over a range of LiCl electrolyte concentrations, taking advantage of the OH stretching band change at 2800–3700 cm−1 and using the ratiometric methodology proposed by Wang et al.39 to extract hydration-shell Raman spectra, which reflects the structural features of the hydration shell.

Briefly, given that the LiCl salt makes no direct contribution to the O–H streching band, the Raman spectra, in the 2800–3700 cm−1 region (Fig. 3a), only relies on a linear combination of the spectra corresponding to bulk (or free) water molecules (i.e. Ibulk(ν), equivalent to the spectra of pure water) and water molecules in the solute hydration shell (i.e. Ihydration(ν)):


Isolution(ν) = Ibulk(ν) + Ihydration(ν) (4)
Upon increasing the salt concentration, the intensity below 3200 cm−1 progressively decreases (Fig. 3a). This trend reflects a diminution of the number of water molecules involved in double donor-double acceptor hydrogen bonding, which constitute one of the dominant hydrogen-bond motifs in pure water, and is associated to large water clusters.55 It clearly reflects the consumption of solvent molecules by solvation as the salt concentration increases. This spectroscopic evolution provides direct experimental support for the thermodynamic framework developed in the following section, which quantitatively relates the variation of solvent activity and the effective solvation number to the concentration-dependent behaviour of the electrolyte.


image file: d6sc00393a-f3.tif

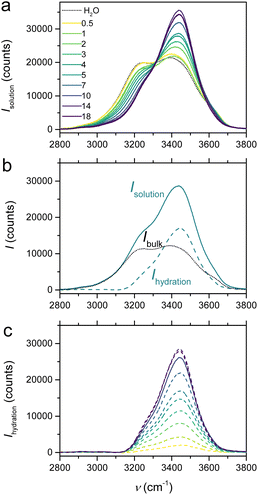

Fig. 3 Raman spectra analysis of the aqueous LiCl electrolytes in the 2800–3100 cm−1 region: (a) solution spectra of pure water (dotted gray line) and LiCl electrolytes with concentrations ranging from 0.5 to 18 mol kg−1 (solid yellow to dark lines); (b) deconvolution of the solution spectra (solid lines) into bulk-like (dotted lines) and hydration-shell (dashed lines) components (at 5 mol kg−1); (c) hydration-shell spectra for all electrolyte concentrations (same code color as in a).

Raman ratio spectra calculated for each salt concentration were used to extract the proportionality coefficient linking Ibulk(ν) to the spectra of pure water (see SI for details and Fig. S1). Next, the Raman spectra of both bulk and hydration-shell water molecules can be determined, as shown in Fig. 3b for the 5 mol kg−1 LiCl electrolyte, and Fig. 3c for the hydration-shell spectra determined at all salt concentrations. These spectra account for any solvent molecules whose vibrational spectra are significantly perturbed by the solute. From their integration, the number of water molecules in the hydration shell (i.e., nhydration) can be estimated, allowing in turn to access the hydration number h, being defined as h = nhydration/nsolute.

The hydration number h is finally given by the following expression:


image file: d6sc00393a-t6.tif(5)
where σhydration and σpure are the Raman scattering cross section corresponding to hydration shell and pure water molecules, determined as described in the SI.

The h values thus extracted (red diamonds in Fig. 4a) show a continuous decline with increasing LiCl molality, starting from an initial value of ∼4.5 at low concentrations to a minimum of about 1.7 near saturation (18 mol kg−1). Injecting these h values along with the corresponding aw and γLiCl values (inferred from Fig. 2) into eqn (3) yields, for each tested LiCl concentration, the red diamonds in Fig. 4b. The excellent overlap of the calculated and experimental E1/2 potentials clearly validates our approach.


image file: d6sc00393a-f4.tif

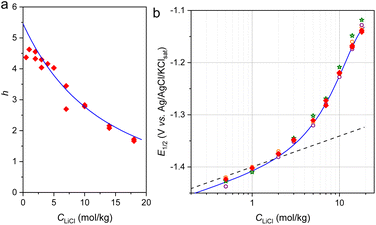

Fig. 4 Estimation of the hydration number h and its impact on E1/2. (a) Average hydration number as a function of LiCl molality. Solid red diamonds: data from solution Raman spectroscopy (see SI for details). Solid blue line: theoretical curve obtained from the speciation-based solution model. (b) Semilogarithmic plots of E1/2 as a function of LiCl concentration. Open dot and star symbols: same experimental data as in Fig. 1d. Dashed black line: theoretical Nernst eqn (3) under ideal conditions (i.e., aw = 1 and γLiCl = 1). Solid red diamonds: Nernst eqn (3) using dependences of aw and γLiCl on LiCl concentration (Fig. 2), plus hydration number h from Raman spectroscopy (panel a). Solid blue line: Nernst eqn (3) plotted using the values of aw, γLiCl, and h modeled from the speciation-based solution model (using Kh = 5.46, m = 2.21, Kid = 0.45, and ri = 0.53 nm, see text).

To advance further, we employed the speciation-based solution model recently proposed by Wilson and coworkers40–42 in order to reproduce the non-ideal variations of water and solute activities as a function of LiCl concentration, and also to provide the associated concentration-dependent hydration number. Moreover, to account not only for short-range ion–solvent interactions (via stepwise hydration equilibria under the law of mass action) and ion pairing, as proposed by Wilson and coworkers,40,42 the model was extended to include long-range electrostatic contributions through Debye-Hückel theory.

Grounded in mechanistic principles, this model requires only a minimal set of 4 adjustable parameters: a composite hydration equilibrium constant Kh, a hydration modifier m, an ion-pair dissociation constant Kid, and the mean ionic radius ri of the solute.

A primary key assumption of the model is that the experimental activity of water aw defined by the solution vapour pressure, p, relative to the pure water at the same temperature, p0, directly correspond to the mole fraction of free-water, xfreew:40


image file: d6sc00393a-t7.tif(6)

Based on this assumption, the mole fraction of a 1[thin space (1/6-em)]:[thin space (1/6-em)]1 MX speciated solute i, i.e. xspei, can be found through the water activity residual:


1 − aw = xspei (7)

The secondary key assumption of the model is that ion hydration proceeds via step-wise hydration equilibria that can be aggregated, simplified, and expressed as the following relationship for the speciated (hydrated) solute concentration, xih (in mole fraction):42


image file: d6sc00393a-t8.tif(8)
where xi and xw are the absolute mole fractions of solute i and water w, respectively, the latter being given for a fully dissociated 1[thin space (1/6-em)]:[thin space (1/6-em)]1 MX salt in water by:

image file: d6sc00393a-t9.tif(9)

image file: d6sc00393a-t10.tif(10)
with Ci the molality of the salt in solution, and 55.509 the number of moles of water contained in 1 kg.

In eqn (8), the hydration number h is a function of the water mole fraction, as follows:42


h = Khxwm (11)
with Kh the composite hydration association constant and m the hydration modifier. This expression defines hydration as being exponentially proportional to the mole fraction of water through the parameter m. A second-order hydration term, i.e. m = 2, is generally sufficient to accurately model the electrolyte behavior from dilute conditions up to saturation.42

To account for the fact that certain salts exhibit a degree of ion pairing, the following hydrated solute equilibrium has to be considered:

Mhyd+ + Xhyd ⇄ MXhyd

This equilibrium is governed by the following dissociation equilibrium constant, Kid (expressed here in terms of activities in the mole fraction scale):


image file: d6sc00393a-t11.tif(12)
where aM, aX, aMX are the activities of the speciated cation M+, anion X, and ion-pair MX.

In this context, the mole fractions of the partially dissociated and hydrated species (i.e., cation M+, anion X, and ion-pair MX species) must be expressed as follows:


image file: d6sc00393a-t12.tif(13)

image file: d6sc00393a-t13.tif(14)

image file: d6sc00393a-t14.tif(15)
where α is the degree of dissociation of the salt.

Assuming in eqn (12) that each activity a is equal to the “true” mole fractions xh,K of the partially dissociated and hydrated species, then the equilibrium constant can be written:


image file: d6sc00393a-t15.tif(16)
with α determined by:

image file: d6sc00393a-t16.tif(17)
and Δ = (55.509Kid)2 −4KidCi(KidhKid − 1)(55.509 − hCi + Ci).

From the determination of α, it becomes thus possible to calculate the mole fractions xMh,K, xXh,K, and xMXh,K, as well as xih,K from:


xih,K = xMh,K + xXh,K + xMXh,K (18)
Using eqn (18), one can thus obtain the mole fraction of free solvent: xwh,K = 1 − xih,K.

At this stage, the long-range electrostatic contribution on the hydrated and partially dissociated solute can be introduced into the model through the following modification of water activity by the Debye-Hückel term, KDHw:41


image file: d6sc00393a-t17.tif(19)
with
image file: d6sc00393a-t18.tif
Here, Ax = 2.917 and Bx = 24.4 are the Debye-Hückel constants (at 298 K) in the mole fraction scale, ri is a parameter related to the average ionic size of the solute, and I is the ionic strength of the electrolyte calculated from the mole fraction of hydrated and partially dissociated solute (wherein MX contribution is null because zMX = 0):

image file: d6sc00393a-t19.tif(20)

The resulting modeled free water activity, i.e. xwh,K,DH (thus equivalent to xfreew in eqn (6)), can then be used to fit either the experimental data of aw or the mean solute activity coefficient γi (by using first eqn (21) for calculating the osmotic coefficient ϕ in the absolute molal scale of Ci and then using eqn (22) to calculate γi knowing ϕ) through iterative adjustments of Kh, m, Kid, and ri.


image file: d6sc00393a-t20.tif(21)

image file: d6sc00393a-t21.tif(22)

From the best fits (see Fig. 2), the following values were obtained: Kh = 5.46, m = 2.21, Kid = 0.45, and ri = 0.53 nm.

The Kid value is in the order of magnitude of that determined experimentally,56 while the values of Kh and m are close to those previously reported by Wilson and coworkers.42 Regarding the value of ri, it aligns with expectations for the average ionic radius of hydrated ions, noting that within Debye-Hückel theory, this parameter is generally treated as flexible and non-physical. Knowing Kh and m, the evolution of h as a function of CLiCl can be plotted from eqn (11) (blue plot in Fig. 4a). The calculated trend almost perfectly matches the experimental Raman data. This remarkable agreement between two independent approaches—solution Raman spectroscopy and water activity modeling—strongly supports our quantitative determination of h evolution with CLiCl. On this basis, the variation of E1/2 was subsequently determined from eqn (3) using the values of aw, γi, and h, directly obtained from the model. This yields the blue curve in Fig. 4b, which nearly overlaps the experimental data. This strong agreement unambiguously validates our approach and, in particular, the proposed Nernst-type equation, which—when combined with an appropriate thermodynamic model—provides a consistent, quantitative prediction of how the insertion potential of a cation evolves with electrolyte concentration. The good overlap of both the Raman-based and model-based plots with the experimental data in Fig. 4b also indirectly confirms that the potential junction contribution to the potential shift can be considered as negligible.

With this improved understanding of the key electrolyte parameters governing the electrode potential associated with ion insertion into a material, we can better rationalize how to mitigate undesirable competing side reactions. This is clearly illustrated by the CVs in Fig. 1c. As the LiCl concentration increases, the reversible Li+ insertion wave into TiO2 progressively shifts toward more positive potentials, whereas the irreversible and undesirable hydrogen evolution reaction remains nearly unaffected, as its reduction potential changes only slightly (thermodynamically) with LiCl concentration (as attested by the electrolyte pH which remains almost constant—see Table S1 in SI). This insight largely explains the superior coulombic efficiencies reported for numerous materials in WiSEs.2,7–9,57,58

Conclusion

In this work, we present a rigorous unification and quantitative validation of electrolyte thermodynamics in insertion systems to rationalize the anomalous evolution of the potential of an insertion material as a function of electrolyte concentration, spanning dilute regimes up to water-in-salt conditions. We demonstrate that the Nernst equation can quantitatively describe the variation of electrode potential, provided that both the salt mean activity and the solvent activity, raised to a power corresponding to the electrolyte hydration number, are properly considered. We further show how a decrease in the hydration number influences the electrode potential in the WiS regime, and how this quantity can be accessed experimentally, through Raman spectroscopy, or theoretically, via electrolyte modelling approaches.

By focusing on a 1[thin space (1/6-em)]:[thin space (1/6-em)]1 electrolyte, this study lays the groundwork for the subsequent interpretation of potential shifts observed in more complex electrolyte systems, including those exhibiting richer solution speciation, bi-salt formulations, or the presence of co-solvents. Developing a comprehensive understanding of how electrolyte composition and concentration govern electrode potential remains a key contemporary challenge, central to the rational design of advanced electrochemical devices for energy storage and beyond.

Experimental section

Chemicals

Anhydrous lithium chloride (free-flowing, Redi Dri™, ACS reagent, ≥99%) was purchased from Sigma-Aldrich/Merck. Nafion D-520 (5 wt% in a mixture of lower aliphatic alcohols and water) was obtained from Sigma-Aldrich/Merck. Ketjenblack EC-600JD was supplied by Nanografi Nano Technology. TiO2 anatase nanopowder (<25 nm diameter) were purchased from Sigma-Aldrich, and TiO2 pure anatase nanoparticles (5 nm diameter) were obtained from NanoAmor (USA). All aqueous solutions were prepared with Milli-Q water (18.2 M Ω cm).

Electrodes

Anatase GLAD-TiO2 electrodes were prepared as previously described.43 Composite electrodes were fabricated from a slurry consisting of 80 wt% active material, 10 wt% Ketjenblack EC-600JD, and 10 wt% Nafion. The active material and carbon were first dispersed in the Nafion suspension. Approximately 100 µL of Milli-Q water was then added to obtain a homogeneous ink. The suspension was stirred for 2 h and cast onto titanium sheets (0.127 nm thickness) using a manual Elcometer 3520 Baker film applicator adjusted to a 200 µm height. The electrodes were dried at ambient temperature and pressure. The mass loading of active material was 1.7 to 2 mg cm−2.

Electrochemical measurements

Cyclic voltammetry was performed in a standard three-electrode cell using a BioLogic VSP potentiostat controlled by EC-Lab software. A platinum wire served as the counter electrode, and an Ag/AgCl (saturated KCl) electrode was used as the reference. Prior to measurements, the electrolyte was degassed for 20 min, and a constant argon flow was maintained above the solution throughout the experiments. Current densities were calculated by normalizing the measured current to the mass of active material in the electrode. All potentials are reported vs. Ag/AgCl (saturated KCl).

Electrolyte characterization

All measurements were performed at 22 °C. Conductivity and pH measurements were measured with an Accumet XL200 benchtop meter (Fisher Scientific) calibrated using standard buffer and KCl solutions before each use. Water activity was determined using an AQUALAB 4 TE chilled-mirror dew-point hygrometer (precision ±0.003). Solution densities were estimated using a 5 mL volumetric flask. All data are reported in Table S1.

Raman spectroscopy was carried out using a LabRAM HR 800 high-resolution Raman microspectrometer operating over 2500–4180 cm−1 spectral range. A He–Ne laser (λ = 633 nm) delivering 8 mW at the sample was used as the excitation source. The spectrometer was coupled to an optical microscope equipped with a 10× objective (N.A. = 0.25) focused on a horizontal optical cuvette with a 2 mm optical path. Measurements were performed under air at 25 °C. Two sets of electrolytes were analyzed, with each spectrum acquired with an integration time of 15 s or 20 s and 20 accumulations to improve the signal-to-noise ratio. Baseline correction of the Raman spectra was performed using Labspec 6 software. Typically, a fourth-order polynomial was fitted to subtract the background. When the automatic baseline algorithm did not provide a satisfactory fit, additional baseline points were manually selected.

Author contributions

The experiments were performed by LKB, TR, LC and AGS. The manuscript was written through contributions of LKB, TR, VB and BL. All authors have given approval to the final version of the manuscript.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data supporting this article have been included as part of the supplementary information (SI). The data and calculations that support the findings of this study are available from the corresponding author upon request. Supplementary information: Raman analysis, Tables S1, S2, Fig. S1 and S2. See DOI: https://doi.org/10.1039/d6sc00393a.

Acknowledgements

This work was partially supported by the Paris Ile-de-France Region in the framework of DIM MaTerRE. The authors thank Stéphanie Lau-Truong and Kenneth Harris for assistance in Raman spectra acquisitions and the preparation of GLAD electrodes, respectively. The authors thank the Agence Nationale pour la Recherche (ANR) for its financial support (RePIB project-ANR-25-CE50-2673-01).
