Open Access Article
Duncan K. Brownsey
ab,
Alexandre A. Schoepfer
abc and
Jerome Waser
*ab
aLaboratory of Catalysis and Organic Synthesis, Institute of Chemical Sciences and Engineering, École Polytechnique Fédérale de Lausanne, CH-1015, Lausanne, Switzerland. E-mail: jerome.waser@epfl.ch; Web: https://lcso.epfl.ch/
bNational Centre for Competence in Research-Catalysis (NCCR-Catalysis), Switzerland
cLaboratory for Computational Molecular Design, Institute of Chemical Sciences and Engineering, École Polytechnique Fédérale de Lausanne, CH-1015, Lausanne, Switzerland
First published on 7th January 2026
Highly functionalized cyclopropanes are often sought after chemical motifs as building blocks in synthetic and medicinal chemistry. However, their stereoselective synthesis using catalytic methods remains a challenge. Herein we report the first carboetherification of cyclopropenes using a palladium-catalyzed tethering strategy. This reaction was compatible with various functional groups, and could be performed using aryl, alkynyl and vinyl coupling partners. The carboetherification proceeded in a stereoselective manner imparted by the trifluoromethylated tether and afforded pentasubstituted spirocyclopropanes as single diastereoisomers, extending significantly the scope of metal-catalyzed difunctionalization of strained alkenes. This process could be easily scaled up to a gram scale, and product modifications were enabled either by acid mediated ring-opening or by accessing free alcohols and amines.

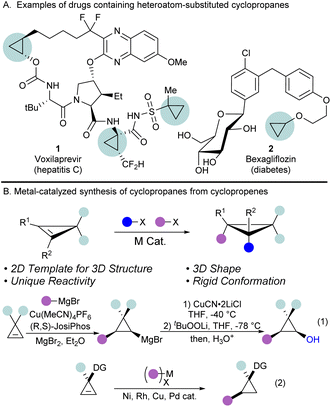

Despite the numerous applications of oxygenated cyclopropanes, accessing them remains difficult.14 Traditional approaches, such as the Kulinkovich reaction, give access to a variety of cyclopropanols, but require the use of organometallic reagents, limiting functional group tolerance, and are limited to specific substitution patterns on the cyclopropane ring.15,16 Another strategy to prepare highly substituted cyclopropanes consists of the stereoselective functionalization of the double bond of cyclopropenes.17 Concerning oxygen-substituted cyclopropanes, directing group strategies have been used to guide the addition of strongly basic oxygen nucleophiles across the cyclopropene double bond.18–21 Another method to achieve the carbooxygenation of cyclopropenes is the use of hetero-Diels-Alder reactions between cyclopropenes and enones for the synthesis of fused bicyclic systems.22,23
To achieve more general double bond difunctionalizations of cyclopropenes under milder conditions, transition metal catalysis has high potential. However, controlling simultaneously regio- and stereoselectivity in difunctionalization reactions is highly challenging. Furthermore, the highly strained nature of cyclopropenes makes them prone to polymerization and ring-opening processes in the presence of transition metal catalysts, thus, methods developed for standard alkenes are often not directly applicable in this case. Seminal reports from the Marek group have demonstrated the utility of the carbometallation of cyclopropenes using Grignard or organozinc reagents with copper catalysts (Scheme 1B, eqn (1)).21,24–28 The formed organometallic intermediates are subsequently reacted with electrophiles, such as lithium tert-butyl peroxide, to access functionalized cyclopropanols. However, this strategy is limited by the compatibility of functional groups with organometallic reagents, which are still formed in stoichiometric amounts. In contrast, many reports on the hydrofunctionalization of cyclopropenes have been documented using transition metal catalysis not involving highly reactive intermediates,29–36 but these processes remain limited to introduction of a single functionality (Scheme 1B, eqn (2)). Therefore, there is an urgent need for further mild transition-metal catalyzed difunctionalizations of cyclopropenes not involving highly reactive intermediates.
To rapidly prepare diverse oxygenated cyclopropanes without the use of organozinc or Grignard reagents, we sought to utilize the palladium-catalyzed tethering strategy that our lab has previously developed for the difunctionalization of alkenes and alkynes (Scheme 2A).37 This catalytic tethering strategy relies on the condensation of hemiacetal or hemiaminal tethers onto nucleophilic handles next to the π-system, followed by nucleopalladation and reductive elimination.38,39 Thus far, this strategy has been limited to terminal alkenes when Pd0/II catalytic systems were used, and functionalization of non-terminal alkenes required the use of PdII/IV catalysis.40 As cyclopropenes display high reactivity, and a partial sp character, we hypothesized that a Pd0/II catalytic system could still be used for their functionalization, analogously to the functionalization of internal alkynes.41–44
![]() | ||
| Scheme 2 Pd-catalyzed tethering strategy for the difunctionalization of π-systems: (A) tethering strategy for the Pd-catalyzed carboetherification of alkenes and alkynes. (B) This work. | ||
Herein, we report the first example of a catalytic carboetherification of cyclopropenes, achieved via a Pd-catalyzed tethering strategy. This method allows the stereoselective preparation of pentasubstituted cyclopropanes bearing a spirocyclic oxazolidine (Scheme 2B). It constitutes the first example of successful C–C bond formation at a secondary position using the Pd-catalyzed tethering strategy. Reaction optimization was guided by multivariate linear regression models for the screened monophosphine ligands. A range of carbon coupling partners could be used, including arenes, alkenes and alkynes. Notably, this carboetherification is stereoselective, and produces polysubstituted spirocyclopropanes as single diastereoisomers. The prepared pentasubstituted cyclopropanes could undergo a variety of modifications, including ring opening, reduction, and benzyl group removal.

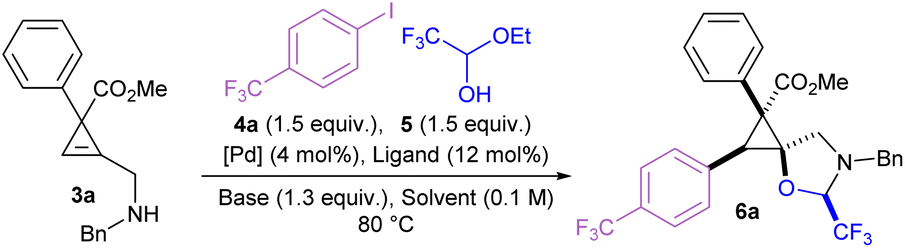

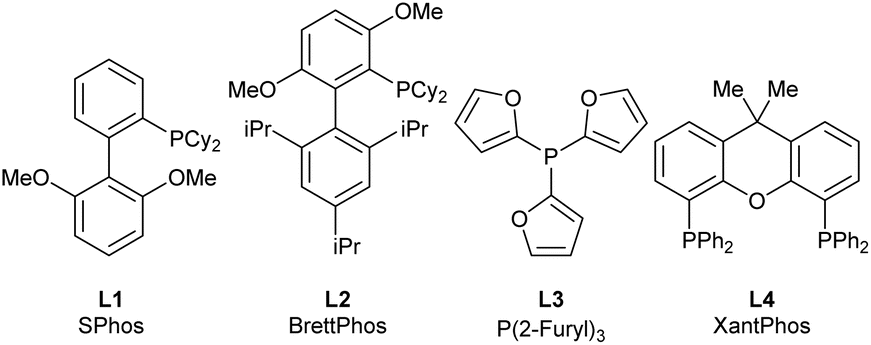

| Entry | [Pd]/ligand | Solvent | Base | Yield of 6ab |
|---|---|---|---|---|
| a Reactions were performed on a 0.07 mmol scale at 0.1 M concentration for 16 h (see SI for the reaction procedure).b Yield of 6a determined by 1H NMR using trichloroethylene as an internal standard.c Reaction run at 50 °C.d Reaction run at 23 °C. | ||||
| 1 | Pd2dba3·CHCl3/L1 | Toluene | Cs2CO3 | 53% |
| 2 | Pd2dba3·CHCl3/L2 | Toluene | Cs2CO3 | 13% |
| 3 | Pd2dba3·CHCl3/L3 | Toluene | Cs2CO3 | 32% |
| 4 | Pd2dba3·CHCl3/L4 | Toluene | Cs2CO3 | 19% |
| 5 | SPhos Pd G3/L1 | Toluene | Cs2CO3 | 69% |
| 6 | SPhos Pd G3/L1 | DCE | K3PO4 | 70% |
| 7c | SPhos Pd G3/L1 | DCE | K3PO4 | 80% |
| 8d | SPhos Pd G3/L1 | DCE | K3PO4 | 67% |
![]() |
||||
Switching the palladium source to the Buchwald precatalyst SPhos Pd G3 improved the yield to 69% (entry 5).47 Using DCE as solvent and tripotassium phosphate as the base resulted in a similar yield of 70% (entry 6). The yield was improved to 80% upon reduction of the reaction temperature to 50 °C (entry 7). However, further cooling to room temperature resulted in a minor loss of yield to 67% (entry 8). The reaction was compatible with more electron rich aryl iodides to afford phenyl, para-methyl, and para-methoxy products (6b, 6c, and 6d) in moderate yields, and para-tert-butyl product 6e in 20% yield. Yields of the electron-rich aryl iodides were likely reduced due to slower rates of oxidative addition.48 Fluoro and chloro groups were well tolerated to afford 6f and 6g in 71% and 72% yield, respectively. However, brominated aryl iodides were unsuccessful as they suffered from low yields and poor selectivity. Several other para-substituted products with electron withdrawing groups such as trifluoromethoxy (6h), cyano (6i), and nitro groups (6j), were prepared in yields ranging from 57 to 70%, and compound 6j provided crystals which were suitable for X-ray analysis, allowing assignment of the relative configuration of these compounds.49 Carbonyl containing products such as an ester (6k), an aldehyde (6l) and a ketone (6m) were well tolerated. Methoxy substituted product 6n was produced in 56%, demonstrating tolerance to substitution at the meta position. The reaction was more sensitive to substitution at the ortho position, as product 6o bearing an ortho-methyl group was produced only in 26% yield, while a smaller and more electron deficient ortho-fluoro group gave 6p in 61%. Bulky ortho-trifluoromethyl substituted 6q was obtained in 27% yield. Trisubstituted aryl iodides were used to prepare 6r, 6s and 6t in moderate yields. Heterocyclic aryl iodides were also tolerated, affording quinoline 6u, pyridine 6v, 2-fluoropyridine 6w, and thiophene 6x in 31–59% yield.
Substituent effects on the cyclopropene starting materials were then examined (Scheme 3), beginning with variations on the aryl group at the 3-position of the cyclopropene ring. Yields were improved when a chloro group was placed at the para-position of the arene ring (7aa–7ac) compared to the unsubstituted arene ring. Conversely, when an electron donating para-methoxy group is placed on the arene ring, the yield for 7b was reduced to 57% compared to 73% yield for the unsubstituted phenyl ring (6a). Generally, other substituents were well tolerated on the arene ring, including an ester (7c), a methyl group (7d), a ortho-fluoro group (7e), a meta-methoxy group (7f) and multiple halogens (7g). The methyl ester at the 3-position of the cyclopropene ring could be replaced with a benzyl ester (7h) or a trifluoromethyl group (7i and 7j). The benzyl amine could also be replaced by a para-methoxybenzyl amine or a methyl amine giving products 7k and 7l in 58 or 66% yield, respectively. The arene at the 3-position of the cyclopropene could be replaced by a methyl group to afford 7m in 58% yield. The reaction proceeded without an electron withdrawing group at the 3-position of the cyclopropene, affording product 7n in 63% yield, however, with an erosion of the d.r. to 5
:
3.
![]() | ||

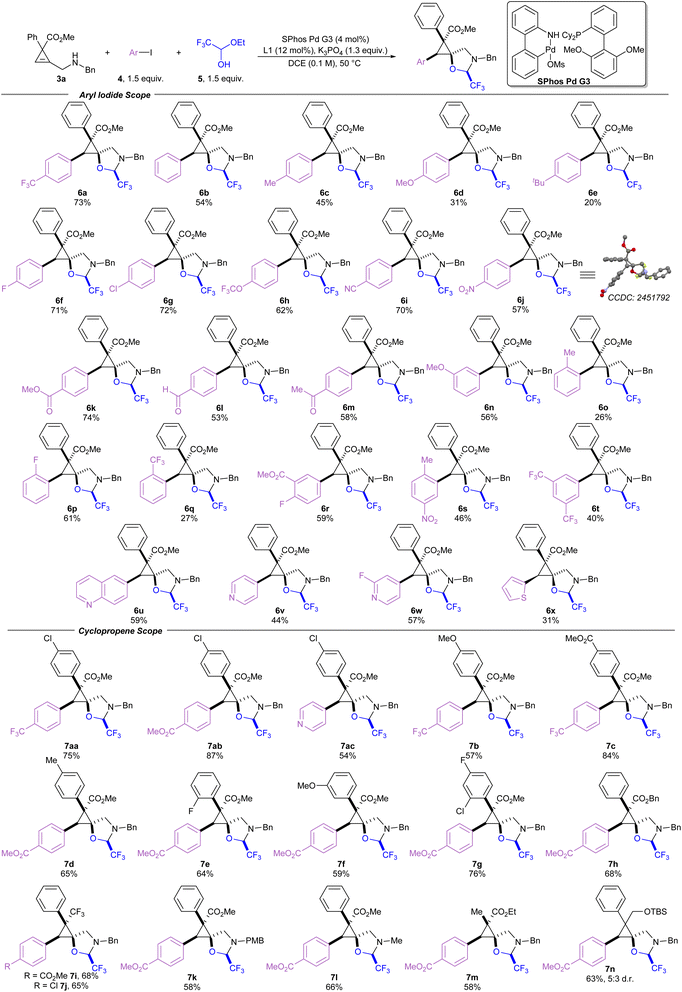

Scheme 3 Cyclopropene carboetherification scope. Reactions were performed at a 0.2 mmol scale. Products were isolated as single (>20 : 1) diastereoisomers unless otherwise stated. | ||

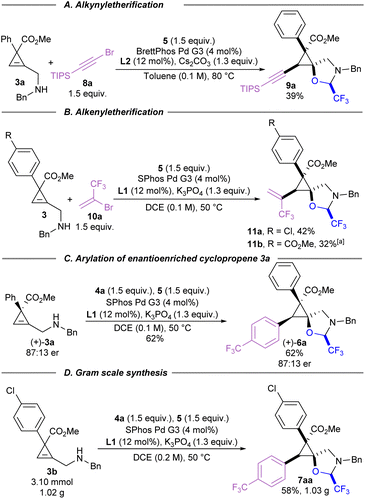

Carbon coupling partners beyond aryl iodides were briefly examined for their efficacy in this carboetherification reaction (Scheme 4). Alkynylation of cyclopropene 3a could be achieved using alkynyl bromide 8a (Scheme 4A). The standard reaction conditions developed for arylation did not lead to significant amounts of the desired product. A short screening of ligands and Pd precursors showed that product 9a could be isolated in 39% yield when BrettPhos Pd G3 was used as a Pd source. When vinyl bromide 10a was used as a coupling partner, the developed conditions for alkynylation did not produce any detectable amounts of desired product 11a (Scheme 4B). However, standard arylation conditions using SPhos Pd G3 afforded vinylcyclopropanes 11a and 11b in 42% and 30% yield, respectively.50
The stereospecificity of this tethered carboetherification was explored by preparing cyclopropene (+)-3a using a chiral rhodium catalyst (Scheme 4C).51 In this case, even without further optimization of the catalytic system, cyclopropane 3a could already be obtained in 87
:
13 er. After subjecting the enantioenriched starting material to the standard arylation conditions, product 6a was isolated with the same enantiomeric ratio, demonstrating the potential to prepare single enantiomers of these polysubstituted spirocyclopropanes. Next, the arylation of 3b was scaled up to gram-scale (3.1 mmol), which delivered over 1 gram of trifluoromethylated product 7aa in 58% yield (Scheme 4D).
A plausible mechanism for the tethered carboetherification of cyclopropenes begins with the oxidative addition of Pd0 complex I to the aryl iodide, to give PdII intermediate II (Scheme 5). Concurrently, reversible tether condensation of the benzyl amine group onto hemiacetal tether 5 gives hemi-acetal III. Next, we hypothesize that the tethered cyclopropane III can coordinate with the activated PdII catalyst II to give complex IV through ligand exchange.44 Then IV undergoes nucleopalladation across the cyclopropene double bond with syn-selectivity, which is frequently observed in intramolecular nucleopalladation reactions.52 To obtain the observed product, this nucleopalladation must also occur with anti-facial selectivity with respect to the electron withdrawing group at the 3-position of the cyclopropene. Where no electron withdrawing group is present, such as for compound 7n, a loss of diastereoselectivity was observed, and when a CF3 is placed at the 3-position (7i and 7j), the same facial selectivity is observed. An anti attack with respect to the electron-withdrawing group has also been reported for the copper-catalyzed functionalization of 1,1-aryl-ester-substituted cyclopropenes.53,54 The resulting complex V then undergoes reductive elimination to afford the spirocyclic product 6 and regenerates the Pd0 catalyst I. We hypothesize that the stereocenter bearing the trifluoromethyl group on the tethered oxazolidine is controlled during the nucleopalladation step. The trifluoromethyl group on the oxazolidine ring can be placed either on the same (Va) or opposite (Vb) face as the palladium. The steric clash between these groups on the same face prevents efficient production of Va, leaving Vb as the dominant intermediate. However, it cannot be currently ruled out that the observed diastereoselectivity arises through different reductive elimination rates for intermediates Va and Vb (see SI).

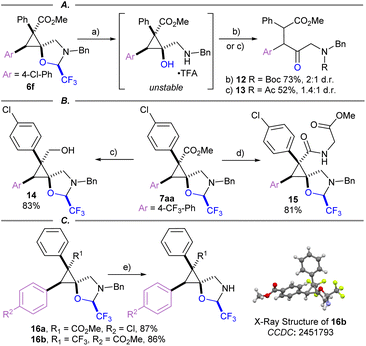

Several product modifications were then performed to highlight the potential of the obtained spirocyclopropanes as building blocks (Scheme 6). The oxazolidine ring of 6f was cleaved successfully with several equivalents of TFA in HFIP. However, the obtained cyclopropanol intermediate was unstable, resulting in the formation of a ring-opened amino ketone. The latter could be isolated after capture with an electrophile such as Boc anhydride or acetyl chloride to afford 1,2-diarylated ketones 12 and 13 (Scheme 6A). Reduction of ester 7aa was achieved using LiAlH4 to give primary alcohol 14, as a single diastereomer in contrast to the direct reaction of protected cyclopropyl alcohols that gave 7n as a mixture of diastereoisomers (Scheme 6B). Unfortunately, attempts to cleave the oxazolidine on 14 resulted either in starting material recovery or full decomposition. Methyl ester 7aa was saponified, then coupled with glycine methyl ester to give amide 15. Benzyl group deprotection was readily achieved under hydrogenative conditions using Pd/C as a catalyst to give free amine 16a and 16b in good yield (Scheme 6C). The structure of 16b was then elucidated via X-ray crystallography, demonstrating the same relative configuration of the electron withdrawing group at the 3-position of the cyclopropane as ester containing products.55 Therefore, the obtained spirocycles constitute highly rigid g-amino acid derivatives, which could be included into peptide therapeutics.56,57
Supplementary information (SI): experimental procedures, supplementary figures, characterization data, computational details, and copies of NMR spectra for new compounds are available as a pdf file. See DOI: https://doi.org/10.1039/d5sc09351a. Raw data for NMR, MS and IR is freely available on the platform zenodo (https://doi.org/10.5281/zenodo.17610761).
