Open Access Article
Shuo
Li
,
Xiangyu
Zhou
,
Lingjie
Xu
,
Chao
Yu
,
Junteng
Liu
*,
Shouke
Yan
and
Zhongjie
Ren
*
State Key Laboratory of Chemical Resource Engineering, Beijing University of Chemical Technology, Beijing 100029, China. E-mail: renzj@mail.buct.edu.cn
First published on 2nd February 2026
Near-infrared (NIR) thermally activated delayed fluorescence (TADF) materials with emission peaks beyond 800 nm have attracted considerable attention owing to their potential applications in bioimaging, optical communication, and night-vision technologies. However, their development remains limited by the energy gap law, which leads to severe non-radiative decay and low external quantum efficiencies. In recent years, researchers have broken through these bottlenecks by employing various molecular design strategies, such as modulating charge-transfer characteristics and reducing the singlet–triplet energy splitting. These efforts have enabled the realization of efficient TADF emission extending into the deep-NIR region. In this review, we summarize recent advances in NIR-TADF emitters with emission maxima beyond 800 nm, focusing on their molecular design principles, photophysical properties, and device performance, and discuss future perspectives for achieving high-efficiency deep-NIR OLEDs.
In recent years, thermally activated delayed fluorescence (TADF) materials have emerged as a promising class of emitters capable of overcoming the exciton utilization limit inherent to traditional fluorescent systems.9–16 By engineering a small singlet–triplet energy splitting (ΔEST), TADF materials enable efficient reverse intersystem crossing (RISC) from triplet to singlet states, allowing for the effective harvesting of both singlet and triplet excitons.17 This metal-free mechanism theoretically affords 100% internal quantum efficiency (IQE) and has revolutionized visible-light OLEDs, achieving record-breaking efficiencies in blue, green, and red devices.18–28 Extending this success into the NIR region, however, introduces new difficulties. The narrower energy gaps required for emission beyond 800 nm significantly enhance vibrational relaxation and suppress radiative transition rates, leading to decreased photoluminescence quantum yields (PLQYs).29,30 Moreover, the strong charge-transfer (CT) character typically employed to reduce ΔEST often results in large reorganization energies and pronounced structural relaxation, further compromising emission efficiency.31,32 Thus, balancing CT strength, molecular rigidity, and exciton dynamics has become essential for designing efficient NIR-TADF materials; however, many reported systems exhibit only spectral tails extending into the NIR region rather than true NIR emission. Consequently, TADF emitters with peak emission beyond 800 nm remain exceedingly rare and represent a highly valuable research target. Emission above 800 nm offers intrinsic advantages, including enhanced tissue penetration, reduced light scattering, and minimal background autofluorescence.33 These advantages are critical for high-contrast bioimaging and also contribute to improved performance in optical communication, information security, and other optoelectronic applications, as shown in Fig. 1a.34–40 Achieving efficient emission in this region, however, is fundamentally challenging due to narrow energy gaps and the constraints imposed by the energy gap law, which increase non-radiative decay.
Although TADF materials hold great promise for OLED applications, the development of NIR TADF OLEDs has progressed slowly, primarily due to the scarcity of efficient NIR emitters. As shown in Fig. 1, a typical NIR TADF OLED shares a layered device architecture similar to that of its visible-light counterpart, in which holes and electrons are injected from opposite electrodes, transported through the respective functional layers, and recombined within the emission layer to generate NIR electroluminescence. To address the intrinsic challenges associated with long-wavelength emission and mitigate efficiency loss, multiple molecular design strategies have been proposed. Nevertheless, NIR-TADF materials still suffer from pronounced efficiency and color-purity deficits compared with visible-light emitters, particularly when the emission wavelength extends beyond 900 nm toward the NIR-II region.
In this review, emission beyond 800 nm is referred to as deep-NIR, while the NIR-II region is defined as the region encompassing wavelengths longer than 1000 nm. We organize deep-NIR TADF emitters within a unified structural framework that correlates chemical structure modulation and condensed state engineering with deep-NIR emission behaviour (Fig. 2). As illustrated, the combined regulation of molecular structures and aggregation effectively narrows the energy gap and modulates excited-state processes, thereby enabling deep-NIR emission. In contrast, the present review specifically targets deep-NIR TADF systems, where EQE efficiency degradation becomes particularly severe and conventional design rules often fail. On this basis, recent progress in deep-NIR TADF materials is critically analyzed, and perspectives are also provided to guide the future development of high-efficiency deep-NIR OLEDs.
![]() | ||

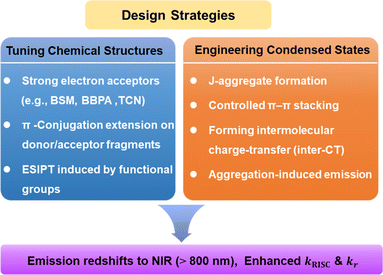

| Fig. 2 Design strategies for deep-NIR TADF emission from the viewpoints of chemical structures and aggregate states. | ||
![]() | ||
| Fig. 3 Donor and acceptor structures, DFT-calculated LUMO energy levels of acceptors, and EL characteristics of representative deep-NIR TADF emitters. | ||
In parallel to established methods, novel photophysical mechanisms have emerged as promising routes to mitigate the impact of the energy gap law. One such mechanism, excited-state intramolecular proton transfer (ESIPT), operates via a quasi-four-level system that concurrently boosts radiative transition rates, narrows emission bands, and induces marked redshifts, positioning it as a compelling approach for high-efficiency NIR emitters.59 In addition, multi-resonance TADF (MR-TADF) designs based on B–N-fused polycyclic aromatic hydrocarbons exploit their alternating HOMO–LUMO profiles to suppress high-frequency vibrational quenching, thereby achieving narrowband and efficient deep-red to NIR TADF emitters.41–43 Moreover, by modulating the CT character within these MR systems—a process enhanced by synergistic electron coupling—further emission redshift is achievable while preserving spectral narrowness. Collectively, although the current EL maxima of TADF molecules derived from these concepts remain below 800 nm, they furnish foundational insights and substantial scope for designing next generation NIR-TADF materials.
Consequently, the molecular design of NIR-TADF emitters requires a careful balance between minimizing ΔEST to enable efficient RISC and retaining fluorescence efficiency and spectral redshift, as summarized in Fig. 2. Here, we summarize representative single- and dual-donor TADF emitters reported in recent studies, some of which exhibit emission peaks beyond 800 nm (Fig. 4 and 5). These examples highlight diverse molecular strategies for extending TADF emission toward the deep-NIR region, while also underscoring the common efficiency challenges at longer wavelengths.
![]() | ||

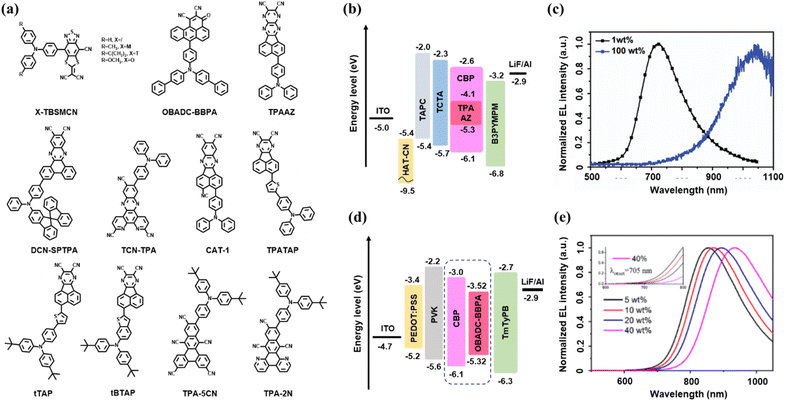

| Fig. 4 Representative examples illustrating molecular design and device performance of single-donor deep-NIR TADF emitters. (a) Molecular structures of single-donor NIR-TADF emitters. (b) Device architecture and (c) EL spectrum of TPAAZ-based OLEDs (ref. 45). Copyright 2020 RSC. (d) Device architecture and (e) EL spectrum of OBADC-BBPA-based OLEDs (ref. 52). Copyright 2025 Elsevier B.V. | ||
![]() | ||
| Fig. 5 Representative examples illustrating molecular structures and device performance of dual-donor deep-NIR TADF emitters. (a) Molecular structures of dual-donor NIR-TADF emitters. (b) Device architecture and (c) EL spectrum of the OPDC-DTPA and OPDC-DBBPA-based OLEDs (ref. 55). Copyright 2023 Wiley-VCH GmbH. (d) Device architecture and (e) EL spectrum of the DTPZ and DtBuTPZ-based OLEDs (ref. 56). Copyright 2023 Wiley-VCH GmbH. | ||
In 2019, Congrave, Bronstein and co-workers introduced a simplified molecular design strategy to achieve record-breaking NIR-TADF materials.44 They developed the emitter CAT-1 (Fig. 4a) by strategically replacing a second electron donor in a reference D–A structure with a strongly electron-withdrawing cyano group, forming a simple D–A dyad. This design dramatically enhanced the intramolecular charge-transfer strength, resulting in a remarkably redshifted PL peak at 950 nm in a drop-cast neat film, which surpassed the previous record for TADF-capable emitters by over 100 nm. The electroluminescence potential of this design was confirmed in a preliminary undoped OLED, which exhibited an emission peak at 904 nm – the deepest red-shifted EL reported for a TADF device at that time. While the maximum EQE remained low at 0.019%, this work established the simple D–A dyad as a highly effective and synthetically accessible strategy for pushing TADF emission deep into the NIR region, opening new pathways for future material development.
In 2020, Liang, Qiao and colleagues pioneered a strategy utilizing intermolecular CT aggregates (CTAs) to achieve TADF in the NIR-II region.45 They designed and synthesized the emitter TPAAZ (Fig. 4a), featuring an enhanced acceptor unit by embedding an additional electron-withdrawing pyrazine ring into the structure of a previously reported molecule. The PL emission exhibited a dramatic bathochromic shift with increasing doping concentration, culminating in a peak at 1009 nm in the neat film, which lies within the NIR-II biological window. Transient PL measurements of doped films confirmed prominent TADF character, with a delayed component ratio reaching up to 86%.
The OLED device structure fabricated using TPAAZ is shown in Fig. 4b. The corresponding non-doped OLED based on a TPAAZ neat film as the emitting layer successfully achieved electroluminescence in the NIR-II region, with a peak at 1010 nm, as shown in Fig. 4c. This device represents the first reported NIR-II TADF-OLED. While the maximum EQE remained low at 0.003%, this seminal work provides a groundbreaking and feasible strategy—leveraging CTAs to realize long-wavelength NIR-II TADF emission from organic materials, opening a new avenue for their application in advanced optoelectronics and bio-imaging.
Based on a newly developed electron-deficient acceptor BSM, Yu et al. introduced a family of D–A-type NIR emitters exhibiting both aggregation-induced emission (AIE) and TADF characteristics in 2022.46 The strong electron-withdrawing ability of the BSM unit, coupled with a twisted molecular conformation, facilitates efficient ICT, minimizes ΔEST, and enables high PLQY in the solid state. The optimal emitter, TBSMCN (Fig. 4a), exhibits a solid-state emission peak at 820 nm with a PLQY of 10.7%. In non-doped, solution-processed OLEDs, TBSMCN achieved an exceptional EQE of 2.2% at 804 nm, representing state-of-the-art performance for metal-free NIR-OLEDs at the time. A further optimized ternary device incorporating a TADF sensitizer dramatically enhanced the EQE to 14.3% with an emission peak at 750 nm, setting a new benchmark in this spectral region.
Additional derivatives, including M-TBSMCN, T-TBSMCN, and O-TBSMCN (Fig. 4a), displayed progressively red-shifted emission at 854 nm, 868 nm, and 880 nm, with EQEs of 1.1%, 0.8%, and 0.3%, respectively. While TBSMCN offers the best balance between efficiency and wavelength, the entire series demonstrates the versatility of the BSMCN acceptor platform for developing efficient OLEDs operating across the deep-NIR range. This work underscores the powerful synergy between AIE and TADF strategies in achieving high-performance, solution-processable NIR electroluminescence.
Liang et al. reported the NIR-TADF emitter TCN-TPA (Fig. 4a) in 2023, which features a planar, multi-cyano acceptor unit combined with a triphenylamine donor.47 This design promoted strong ICT and effective intermolecular through-space electronic coupling in the solid state, significantly redshifting the emission while retaining a high PLQY of up to 30.5% at 730 nm in doped films. The molecule's rigid, linear structure also contributed to a high horizontal dipole ratio of 80%, enhancing optical outcoupling.
In fabricated OLEDs, TCN-TPA achieved widely tunable electroluminescence from 756 nm to 841 nm by varying the doping concentration. The devices delivered record-high EQEs of 2.4% at 802 nm and 1.1% at 841 nm, establishing a new benchmark for TADF-based OLEDs in the spectral region beyond 800 nm. This work successfully demonstrates the value of strong acceptor design and through-space coupling for developing high-performance deep-NIR TADF emitters.
Also in the prolific research year of 2023, Wang et al. demonstrated a distinct yet equally powerful strategy for high-performance NIR-TADF materials: terminal spiro-functionalization.48 In contrast to the preceding approaches that focused on modulating electronic structures, their design centred on steric control of molecular packing. The emitter DCN-SPTPA (Fig. 4a), constructed by integrating a bulky spirobifluorene-based donor into a D–A framework, effectively suppressed concentration quenching by increasing intermolecular distances and steering the formation of favorable J-aggregates. This precise management of solid-state morphology enabled the material to retain near-unity PLQY (∼100%) at 5 wt% doping and a high value of 82.4% even at 20 wt%, all while achieving significant bathochromic shifts.
The superior photophysical properties directly translated into record-breaking electroluminescence across the deep-red to NIR spectrum. Doped OLEDs based on DCN-SPTPA achieved exceptional EQEs of 36.1% at 656 nm, 29.3% at 688 nm, 28.2% at 696 nm, and 24.0% at 716 nm, outperforming the control emitter DCN-PhTPA by a factor of 1.3–1.4. Most notably, the non-doped device delivered efficient emission peaking at 800 nm with a state-of-the-art EQE of 2.61%, setting a new benchmark for NIR TADF OLEDs. This work establishes terminal spiro-functionalization as a highly effective steric-control strategy, complementing existing electronic-design paradigms for achieving both high efficiency and bathochromic emission.
By investigating the D–π–A molecule TPATAP (Fig. 4a), Xu et al. demonstrated in their 2024 study how strategic π-bridge regulation plays a crucial role in achieving highly efficient NIR emission in molecular aggregates.49 They demonstrated that incorporating an electron-donating π-bridge, such as thienyl, is essential not only for inducing inter-CT character—which reduces ΔEST and activates TADF—but also for strongly coupling the inter-CT state with the bright ICT state. This electronic hybridization significantly enhances the radiative decay rate while effectively suppressing non-radiative decay, thereby overcoming the limitations imposed by the energy-gap law in the NIR region.
As a proof of concept, the thienyl-bridged emitter TPATAP achieved an exceptional solid-state PLQY of 18.9% at 788 nm in a doped film. Corresponding solution-processed OLEDs delivered record-high EQE among TADF NIR-TADF emitters, reaching 4.53% at 785 nm and 1.26% at 835 nm. This work establishes π-bridge engineering as a general and effective strategy for developing high-performance NIR-TADF materials via rational control of inter-CT and ICT interactions, opening avenues for advanced organic optoelectronic applications.
Dai and colleagues reported the D–π–A molecules tTAP and tBTAP (Fig. 4a) in their 2025 study, showcasing how strategic rigidification via a benzo[b]thiophene-fused donor design, following the established molecular engineering paradigm, leads to unprecedented performance in the critical beyond-800 nm region.50 Unlike the previously reported π-bridge engineering approach that primarily modulates electronic coupling between inter-CT and ICT states, Dai's ring-fusion strategy created an integrated donor/π-bridge architecture that simultaneously enhances conjugation, minimizes dihedral distortion, and suppresses high-frequency molecular vibrations. This multi-faceted molecular design enabled the optimized emitter tBTAP to achieve exceptional solid-state PLQYs of 17.9% at 795 nm in doped films and 4.6% at 854 nm in neat films.
The resulting OLED performance set new benchmarks for long-wavelength NIR-TADF devices. The doped device achieved a record EQE of 3.64% at 796 nm, while the non-doped device reached 1.20% EQE at 867 nm—significantly advancing the efficiency frontier beyond 800 nm. More remarkably, the tBTAP-based non-doped OLED exhibited exceptional operational stability with a lifetime exceeding 2150 hours at 10 mA cm−2, establishing the first longevity benchmark for practical NIR OLED applications. This work establishes the benzo[b]thiophene-fused donor architecture not merely as an alternative to π-bridge engineering, but as a superior platform for developing efficient and operationally stable NIR TADF materials toward real-world implementation.
Also in 2025, Hu and colleagues developed a novel NIR-TADF emitter, TPA-5CN (Fig. 4a),51 by decorating a molecular framework with five strongly electron-withdrawing cyano groups, achieving an exceptionally low LUMO level of −3.80 eV. The high cyanidation density induced significant steric hindrance, leading to pronounced excited-state structural relaxation. This effect resulted in a record-long PL peak at 822 nm in toluene, though with a low PLQY of 7.7%. In contrast, the analogue TPA-2N, designed with less-hindered N atoms, exhibited a much smaller structural change and a higher solution PLQY of 65.9% at 698 nm.
When doped into a CBP host, the structural relaxation of TPA-5CN was suppressed, boosting the solid-state PLQY to 20% and blue-shifting the emission. The corresponding doped OLEDs delivered impressive electroluminescence in the NIR region, achieving maximum EQE of 4.52% at 766 nm and 2.56% at 796 nm for devices with 6 wt% and 10 wt% doping concentrations, respectively. These results rank among the best for doped NIR TADF OLEDs with emission peaks approaching 800 nm. This work demonstrates the effectiveness of leveraging excited-state structural relaxation for achieving long-wavelength NIR emission and provides valuable insights for molecular engineering in this challenging spectral region.
Zhou et al. developed OBADC-BBPA (Fig. 4a) through a molecular design combining an electron-deficient benzo[de]anthracene-2,3-dicarbonitrile core with a sterically hindered di([1,1′-biphenyl]-4 yl)amino donor in 2025.52 The enlarged conjugated skeleton and integration of multiple electron-deficient units resulted in a substantially lowered LUMO energy level, a consistently small ΔEST of 0.15 eV, and enhanced TADF characteristics. The OLED device structure fabricated with OBADC-BBPA is shown in Fig. 4d. The emitter displayed a PL peak at 1004 nm in the neat film (Fig. 4e), entering the NIR-II region, and achieved an EL peak at 933 nm in solution-processed OLEDs with an EQE of 0.073%—the highest value reported at that time for a NIR-II OLED within this spectral window. This work illustrates a rational molecular evolution from a single-acceptor to a multi-acceptor architecture, successfully extending emission further into the deep-NIR while retaining viable TADF performance.
The pioneering work by Ye, Adachi, and co-workers in 2018 yielded the first solution-processable NIR-TADF emitter—a dimeric borondifluoride curcuminoid derivative that is recognized as a truly prototypical NIR TADF molecule named 1 (Fig. 5a).53 The molecular design, which leveraged excitonic coupling between two curcuminoid-BF2 units and incorporated a strong electron-withdrawing acetylacetonate group at the meso position, was strategically employed to achieve a substantial bathochromic shift in the emission profile. In doped thin films its PL peak exhibited a concentration-dependent redshift from 751 nm to 801 nm as the doping concentration in a CBP host was increased from 2 to 40 wt%, successfully pushing the emission into the deep-NIR region while retaining a measurable PLQY of 4% even at the highest concentration.
Particularly notable were its amplified spontaneous emission (ASE) characteristics in this spectral region. The material exhibited low-threshold ASE, with the peak wavelength tunable from 801 to 860 nm by varying the doping concentration. A remarkably low ASE threshold of 7.5 µJ cm−2 was achieved for the 2 wt% doped film. This work represented the first observation of ASE at wavelengths longer than 800 nm in an organic semiconducting film, marking a significant advancement for the development of NIR organic lasers.
In electroluminescent devices, the optimized OLED incorporating a 2 wt% doped emitting layer achieved a maximum EQE of 5.1% with an emission peak at 758 nm. At a significantly higher doping concentration of 40 wt%, the device exhibited a distinct bathochromic shift, reaching an emission maximum of 796 nm, albeit with a reduced EQE of 0.3%. While the most efficient device operated with an emission maximum situated just below 800 nm, this study successfully demonstrated the capability of the employed molecular engineering strategy to effectively extend the TADF emission—and, crucially, the lasing potential of these materials—well beyond the 800 nm threshold. These findings underscore the promising potential of this material design for high-performance NIR optoelectronic applications.
By integrating strong donor and acceptor units while leveraging through-space electronic coupling, Cheng et al. reported in 2022 a highly efficient NIR-TADF emitter named AQTC-DTPA (Fig. 5a).54 The molecule features a large planar acenaphtho[1,2-b]quinoxaline core functionalized with three cyano groups as a strong electron-accepting unit, combined with twisted triphenylamine donors. This design not only promotes ICT but also enables strong intermolecular π–π interactions with a remarkably short stacking distance of 3.33 Å, as confirmed by single-crystal analysis. These through-space interactions effectively compensate for the interrupted intramolecular donor–acceptor electronic communication, significantly reducing the energy gap and enabling emission deep into the NIR region.
The emitter demonstrated concentration-dependent photophysical properties, with PLQYs ranging from 44.1% in toluene to 1.1% in neat films, while emission wavelengths redshifted from 636 nm to 878 nm. In optimized OLED devices, AQTC-DTPA achieved exceptional performance in the deep-NIR region, with maximum EQEs of 0.51% at 810 nm, 0.41% at 828 nm, 0.30% at 852 nm, and 0.23% at 894 nm – setting new efficiency records for TADF-based OLEDs in this spectral range. Furthermore, non-doped devices reached an emission peak at 910 nm with an EQE of 0.22%, demonstrating the effectiveness of this molecular design strategy for developing high-performance NIR-TADF emitters.
In 2023, Ma et al. reported a molecular design strategy utilizing a planar, strongly electron-deficient phenalenone-derived acceptor core, OPDC, which incorporates both carbonyl and dicyano groups to enhance electron-withdrawing capability and molecular rigidity.55 By coupling this acceptor with diphenylamine (DTPA) and biphenylphenylamine (BBPA) donors, two D–A-type TADF emitters, OPDC-DTPA and OPDC-DBBPA (Fig. 5a), were synthesized. The strengthened acceptor and optimized D–A interaction led to efficient spatial HOMO–LUMO separation and small ΔEST (0.15 eV and 0.09 eV, respectively), facilitating kRISC. As shown in Fig. 5b and c, the doped OLEDs exhibited EL peaks at 834 nm and 906 nm with maximum EQEs of 0.457% and 0.103%, respectively, representing some of the most efficient TADF-based OLEDs in this spectral region at the time.
Also in 2023, Xu et al. reported a novel molecular design strategy that synergistically integrates ICT to achieve highly efficient NIR-TADF beyond 800 nm.56 Based on a phenazine-2,3-dicarbonitrile acceptor with a moderate LUMO level, they developed two emitters, DTPZ and DtBuTPZ (Fig. 5a), which retained appropriate ICT character while exhibiting unusually high oscillator strengths of 0.237 and 0.247, respectively. This design enabled strong ICT in aggregates through J-type packing with extensive van der Waals interactions but negligible π–π stacking. The resulting molecular arrangement significantly reduced the ΔEST to as low as 0.02 eV while retaining high radiative decay rates through effective electronic coupling between inter-CT and ICT states. As shown in Fig. 5d and e, the optimized devices demonstrated exceptional performance with emission widely tunable from 807 nm to 886 nm. DTPZ-based OLEDs achieved record-high maximum EQEs of 2.28% at 817 nm and 0.57% at 877 nm in non-doped devices, along with remarkable radiance values up to 24.18 W Sr−1 m−2. Similarly, DtBuTPZ-based devices reached 2.34% at 807 nm, representing state-of-the-art performance for NIR TADF OLEDs emitting beyond 800 nm. This work establishes the concerted ICT/inter-CT strategy as a promising approach to overcome the efficiency limitations imposed by the energy gap law in deep-NIR regions.
Building on the active research landscape of 2023, Jiang and colleagues introduced a molecular design strategy centered on a rigid, strongly electron-accepting core, 2,7-bis(4-cyanophenyl)dibenzo[a,c]phenazine-11,12-dicarbonitrile (CPDBP), to construct two efficient NIR-TADF emitters, CPDBP-TPA and CPDBP-DBPPA (Fig. 5a).57 The strategic incorporation of cyanophenyl groups extended the π-conjugation, enhanced ICT, and promoted an optimally twisted donor–acceptor conformation. This rational design successfully balanced multiple key photophysical parameters, endowing the emitters with minimal ΔEST (0.01–0.05 eV), high PLQYs (80–85%), large horizontal dipole ratios and a remarkably fast kRISC of 2.3–2.5 × 105 s−1 in doped films.
These outstanding photophysical properties translated into exceptional electroluminescence performance. The doped OLED based on CPDBP-TPA achieved a state-of-the-art maximum EQE of 30.3% at 646 nm, accompanied by notably low efficiency roll-off (EQE remaining at 21.8% at 100 cd m−2). Even at a higher doping concentration that red-shifted the emission to 700 nm, the device retained a high maximum EQE of 19.3%. Furthermore, the non-doped device incorporating a CPDBP-TPA neat film delivered efficient NIR emission with a maximum EQE of 1.14% peaking at 850 nm—ranking among the best performances reported for deep-NIR TADF OLEDs. This work underscores the efficacy of such a molecular design paradigm in achieving high-performance NIR electroluminescence with minimal efficiency roll-off.
Based on the pursuit of efficient NIR-TADF materials, a 2025 study by D'Aléo et al. established a novel donor–acceptor–donor platform based on curcuminoid borondifluoride derivatives (CurcBF2, Fig. 5a).58 The key design innovation lies in a distinct TADF mechanism that relaxes the conventional requirement for minimal spatial HOMO–LUMO overlap. Instead, this system facilitates RISC via strong spin–orbit coupling between the singlet and higher-lying triplet states (e.g., T2), a pathway enabled by its unique electronic structure. Among the reported emitters, compound 6 demonstrated the ability to retain measurable solid-state PLQYs of 2% at 797 nm and 1% at 800 nm (at 15 and 20 wt% doping, respectively), successfully pushing efficient emission into the deep-NIR region. This molecular engineering directly yielded high-performance devices, with optimized OLEDs based on compound 4 (6 wt% in CBP) achieving a maximum EQE of 4.14% at 752 nm, while compound 6 (15 wt% in CBP) reached a NIR emission at 797 nm with an EQE of 0.99%. Despite the typical efficiency roll-off at high currents, these emitters also demonstrated outstanding low-threshold ASE tunable from 725 nm to 892 nm, with a threshold as low as 123 µJ cm−2. This dual capability for efficient electroluminescence and ASE underscores the CurcBF2 platform's significant potential for integrated NIR light-emitting and lasing applications.
Employing an innovative “two-in-one” molecular design, Che et al. successfully integrated TADF and ESIPT characteristics into a single emitter, TPA-DHAQ (Fig. 6a), in 2025.59 As illustrated in Fig. 6a, this D–A–D structured molecule utilizes a 1,5-dihydroxyanthraquinone core that concurrently enables efficient TADF with a small ΔEST of 0.16 eV and introduces robust ESIPT via intramolecular hydrogen bonding. The dual-functional design promotes triplet exciton harvesting through RISC while establishing a four-level energy system conducive to population inversion, resulting in a substantial Stokes shift exceeding 150 nm. The synergistic interplay between TADF and ESIPT offers a novel pathway to suppress triplet accumulation and mitigate non-radiative decay, addressing pivotal challenges in the realization of NIR organic lasing.
![]() | ||

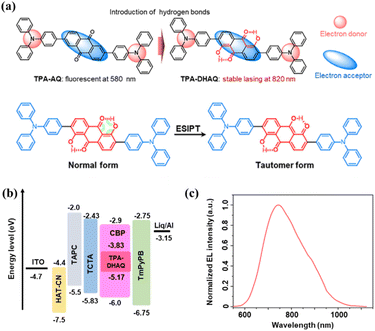

| Fig. 6 Representative example illustrating ESIPT-assisted molecular design and device performance of NIR TADF emitters. (a) Molecular structures of TPA-AQ and TPA-DHAQ with an ESIPT scheme. (b) OLED device architecture of TPA-DHAQ. (c) EL spectrum of TPA-DHAQ. Reproduced from ref. 59. Copyright 2025 Wiley-VCH GmbH. | ||
When doped into polystyrene microsphere resonators, TPA-DHAQ achieves low-threshold NIR lasing at 820 nm with a threshold of 6.3 µJ cm−2—among the best values reported for organic NIR lasers. By controlling resonator size, single-mode lasing at 796 nm was also achieved with a 13.4 µJ cm−2 threshold. The TADF-ESIPT system also provides excellent operational stability, retaining ≈80% of initial intensity after 580 minutes of continuous pumping. In the OLED structure shown in Fig. 6b, TPA-DHAQ delivers an EL peak at 745 nm and an EQE of 0.8% (Fig. 6c), highlighting its potential for future electrically pumped lasers. Although the emission remains below 800 nm, the synergistic TADF-ESIPT mechanism provides a novel design strategy for NIR-TADF materials. This work establishes a groundbreaking paradigm that simultaneously addresses the high threshold and poor stability of NIR organic lasers, opening a promising avenue toward practical organic laser diodes.
The theoretical calculations predicted outstanding performance metrics for the designed emitters. The higher-order nitrogen-substituted (4N) compounds exhibited exceptionally small ΔEST and high kRISC up to 106 s−1, confirming their strong potential for efficient TADF. Specific emitters were projected to achieve delayed fluorescence at distinct wavelengths: the para-linked compound B4 was predicted to emit at 670 nm, while the ortho-linked compounds D4 and D3 were forecasted for emission at 713 nm and 987 nm, respectively. This work establishes symmetric nitrogen doping and ortho-linked D–A architectures as powerful design strategies for developing efficient red and NIR-TADF emitters, providing a valuable theoretical roadmap for future synthetic exploration.
| Emitter | Solid state λPLmaxa/PLQY/τb [nm/%/µs] | Host | Device structure | λ EL (nm) | EQEmax (%) | CE (cd A−1) | PE (lm W−1) | Radiance (mW Sr−1 cm−2) | Luminance (cd m−2) | Ref. |
|---|---|---|---|---|---|---|---|---|---|---|
| a Conditions for photophysical and device measurements are indicated as follows: a, neat film; b, delayed fluorescence lifetime; c, 40 wt% in CBP; d, evaporated neat film; e, 1 wt% in CBP; f, 10 wt% in CBP; g, 9 wt% in CBP; h, 50 wt% in CBP; i, 1 wt% in TBPi; j, mW cm−2; k, 60 wt% in RH; l, 3 wt% in CBP; m, 2 wt% in CBP; n, 40 wt% in CBP; o, 5 wt% in CBP. | ||||||||||
| CAT-1 | 820c/2.0c/8c; 887d/0.18d/—d | Non-doped | ITO/TAPC (40 nm)/CAT-1 (20 nm)/TPBi (40 nm)/LiF (1 nm)/Al (100 nm) | 904 | 0.019 | — | — | 0.1 | — | 44 |
| TPAAZ | 717e/10.7e/167.9e; 810f/4.2f/3.77f | Non-doped | ITO/HATCN (5 nm)/TAPC (60 nm)/TCTA (5 nm)/TPAAZ (30 nm)/B3PVMPM (60 nm)/LiF (1 nm)/Al (150 nm) | 1010 | 0.003 | — | — | — | — | 45 |
| TBSMCN | 820/10.7/0.83 | Non-doped | ITO/m-PEDOT:PSS (70 nm)/TBSMCN (40 nm)/DPEPO (10 nm)/TmPyPB (50 nm)/Liq (1 nm)/Al (100 nm) | 804 | 2.17 | — | — | 0.77 | 46 | |
| M-TBSMCN | 852/4.6/0.99 | Non-doped | ITO/m-PEDOT:PSS (70 nm)/M-TBSMCN (40 nm)/DPEPO (10 nm)/TmPyPB (50 nm)/Liq (1 nm)/Al (100 nm) | 862 | 0.47 | — | — | 0.216 | ||
| T-TBSMCN | 865/4.1/0.95 | Non-doped | ITO/m-PEDOT:PSS (70 nm)/T-TBSMCN (40 nm)/DPEPO (10 nm)/TmPyPB (50 nm)/Liq (1 nm)/Al (100 nm) | 854 | 0.76 | — | — | 0.257 | ||
| O-TBSMCN | 932/1.7/0.52 | Non-doped | ITO/m-PEDOT:PSS (70 nm)/O-TBSMCN (40 nm)/DPEPO (10 nm)/TmPyPB (50 nm)/Liq (1 nm)/Al (100 nm) | 876 | 0.022 | — | — | 0.01159 | ||
| TCN-TPA | 730g/30.5g/50.1g; 803h/5.7h/9.6h | CBP | ITO (115 nm)/MoO3 (1 nm)/TAPC (120 nm)/CBP:30 wt% TCN-TPA (20 nm)/B3PYMPM (80 nm)/LiF (1 nm)/Al | 802 | 2.4 | 0.06 | 0.03 | 3.5 | — | 47 |
| CBP | ITO (115 nm)/MoO3 (1 nm)/TAPC (140 nm)/CBP:30 wt% TCN-TPA (20 nm)/B3PYMPM (80 nm)/LiF (1 nm)/Al | 802 | 2.4 | 0.06 | 0.03 | 3 | — | |||
| CBP | ITO (115 nm)/MoO3 (1 nm)/TAPC (115 nm)/CBP:50 wt% TCN-TPA (20 nm)/B3PYMPM (90 nm)/LiF (1 nm)/Al | 838 | 1.2 | 0.01 | 0.01 | 0.7 | — | |||
| CBP | ITO (115 nm)/MoO3 (1 nm)/TAPC (135 nm)/CBP:50 wt% TCN-TPA (20 nm)/B3PYMPM (90 nm)/LiF (1 nm)/Al | 841 | 1.1 | 0.01 | 0.01 | 0.7 | — | |||
| CBP | ITO (115 nm)/MoO3 (1 nm)/TAPC (155 nm)/CBP:50 wt% TCN-TPA (20 nm)/B3PYMPM (90 nm)/LiF (1 nm)/Al | 841 | 1.1 | 0.01 | 0.01 | 0.4 | — | |||
| DCN-SPTPA | 656e/99e/636e | Non-doped | ITO/HAT-CN (5 nm)/TAPC (45 nm)/TCTA (10 nm)/mCP (10 nm)/DCN-SPTPA (40 nm)/TmPyPB (55 nm)/LiF (1 nm)/Al (120 nm) | 800 | 2.61 | — | — | — | — | 48 |
| TPATAP | 834/4.1/5.1; 677i/67.1i/52.7i | Non-doped | ITO/HATCN (5 nm)/TAPC (30 nm)/mCP (5 nm)/TPATAP (30 nm)/B3PyMPM (60 nm)/LiF/Al | 835 | 1.26 | — | — | 0.47 j | — | 49 |
| tTAP | 865/1.8/5.49; 794k/9.7k/37.2k | Non-doped | ITO/HATCN (5 nm)/TAPC (40 nm)/mCP (5 nm)/tTAP (20 nm)/46DCzPPM (6 nm)/DPPyA (80 nm)/LiF (1 nm)/Al (120 nm) | 857 | 0.37 | — | — | 0.724 | 50 | |
| tBTAP | 854/4.6/5.18; 795k/17.9k/35.7k | Non-doped | ITO/HATCN (5 nm)/TAPC (40 nm)/mCP (5 nm)/tBTAP (20 nm)/46DCzPPM (6 nm)/DPPyA (80 nm)/LiF (1 nm)/Al (120 nm) | 867 | 1.2 | — | — | 0.814 | ||
| TPA-5CN | 751l/20.0l/4.34l | CBP | ITO/HAT-CN (10 nm)/TAPC (50 nm)/TCTA (10 nm)/CBP:10 wt% TPA-5CN (20 nm)/B4PyMPM (65 nm)/Liq (2 nm)/Al (100 nm) | 796 | 2.56 | 0.01 | 0.01 | — | 3.38 | 51 |
| OBADC-BBPA | 871f/3.61f/11.26f | CBP | ITO/PEDOT:PSS (40 nm)/PVK (5 nm)/CBP:5 wt% OBADC-BBPA (20 nm)/TmPyPB (40 nm)/LiF (1.2 nm)/Al (120 nm) | 856 | 0.246 | — | — | 0.03491 | — | 52 |
| CBP | ITO/PEDOT:PSS (40 nm)/PVK (5 nm)/CBP:10 wt% OBADC-BBPA (20 nm)/TmPyPB (40 nm)/LiF (1.2 nm)/Al (120 nm) | 871 | 0.262 | — | — | 0.03862 | — | |||
| CBP | ITO/PEDOT:PSS (40 nm)/PVK (5 nm)/CBP:20 wt% OBADC-BBPA (20 nm)/TmPyPB (40 nm)/LiF (1.2 nm)/Al (120 nm) | 892 | 0.172 | — | — | 0.03906 | — | |||
| CBP | ITO/PEDOT:PSS (40 nm)/PVK (5 nm)/CBP:40 wt% OBADC-BBPA (20 nm)/TmPyPB (40 nm)/LiF (1.2 nm)/Al (120 nm) | 933 | 0.073 | — | — | 0.03606 | — | |||
| Non-doped | ITO/PEDOT:PSS (40 nm)/PVK (5 nm)/OBADC-BBPA (20 nm)/TmPyPB (40 nm)/LiF (1.2 nm)/Al (120 nm) | 984 | 0.008 | — | — | 0.000439 | — | |||
| BF2 (1) | 760m/45.2m/—m; 801n/4.1n/—n | CBP | ITO/PEDOT:PSS (45 nm)/CBP:40 wt% 1 (80 nm)/DPEPO (10 nm)/TPBi (55 nm)/LiF (1 nm)/Al (100 nm) | 796 | 0.3 | — | — | — | — | 53 |
| AQTC-DTPA | 878/1.10/9.70; 718f/19.10f/7.95f | CBP | ITO/HAT-CN (10 nm)/TAPC (40 nm)/TCTA (10 nm)/CBP:60 wt% AQTC-DTPA (20 nm)/PO-T2T (60 nm)/Liq (2 nm)/Al (120 nm) | 810 | 0.51 | — | — | 1.0224 | — | 54 |
| CBP | ITO/HAT-CN (10 nm)/TAPC (40 nm)/TCTA (10 nm)/CBP:70 wt% AQTC-DTPA (20 nm)/PO-T2T (60 nm)/Liq (2 nm)/Al (120 nm) | 828 | 0.41 | — | — | 0.5471 | — | |||
| CBP | ITO/HAT-CN (10 nm)/TAPC (40 nm)/TCTA (10 nm)/CBP:80 wt% AQTC-DTPA (20 nm)/PO-T2T (60 nm)/Liq (2 nm)/Al (120 nm) | 852 | 0.3 | — | — | 0.4328 | — | |||
| CBP | ITO/HAT-CN (10 nm)/TAPC (40 nm)/TCTA (10 nm)/CBP:100 wt% AQTC-DTPA (20 nm)/PO-T2T (60 nm)/Liq (2 nm)/Al (120 nm) | 894 | 0.23 | — | — | 0.31 | — | |||
| Non-doped | ITO/HAT-CN (10 nm)/TAPC (40 nm)/TCTA (10 nm)/AQTC-DTPA (30 nm)/TmPyPB (60 nm)/Liq (2 nm)/Al (120 nm) | 908 | 0.17 | — | — | 0.0915 | — | |||
| Non-doped | ITO/HAT-CN (10 nm)/TAPC (40 nm)/TCTA (10 nm)/AQTC-DTPA (40 nm)/TmPyPB (60 nm)/Liq (2 nm)/Al (120 nm) | 910 | 0.22 | — | — | 0.0961 | — | |||
| OPDC-DTPA | 962/—/—; 814o/4.80o/8.00o | CBP | ITO/PEDOT:PSS (40 nm)/PVK (10 nm)/CBP:5 wt% OPDC-DTPA (30 nm)/DPEPO (20 nm)/TmPyPB (45 nm)/LiF (1.2 nm)/Al (120 nm) | 824 | 0.273 | — | — | 0.04586 | — | 55 |
| CBP | ITO/PEDOT:PSS (40 nm)/PVK (10 nm)/CBP:10 wt% OPDC-DTPA (30 nm)/DPEPO (20 nm)/TmPyPB (45 nm)/LiF (1.2 nm)/Al (120 nm) | 834 | 0.457 | — | — | 0.03794 | — | |||
| CBP | ITO/PEDOT:PSS (40 nm)/PVK (10 nm)/CBP:20 wt% OPDC-DTPA (30 nm)/DPEPO (20 nm)/TmPyPB (45 nm)/LiF (1.2 nm)/Al (120 nm) | 856 | 0.271 | — | — | 0.06761 | — | |||
| CBP | ITO/PEDOT:PSS (40 nm)/PVK (10 nm)/CBP:30 wt% OPDC-DTPA (30 nm)/DPEPO (20 nm)/TmPyPB (45 nm)/LiF (1.2 nm)/Al (120 nm) | 874 | 0.125 | — | — | 0.06994 | — | |||
| CBP | ITO/PEDOT:PSS (40 nm)/PVK (10 nm)/CBP:40 wt% OPDC-DTPA (30 nm)/DPEPO (20 nm)/TmPyPB (45 nm)/LiF (1.2 nm)/Al (120 nm) | 882 | 0.079 | — | — | 0.0597 | — | |||
| OPDC-DBBPA | 1003/—/—; 828o/2.22o/6.00o | CBP | ITO/PEDOT:PSS (40 nm)/PVK (10 nm)/CBP:5 wt% OPDC-DBBPA (30 nm)/DPEPO (20 nm)/TmPyPB (45 nm)/LiF (1.2 nm)/Al (120 nm) | 830 | 0.354 | — | — | 0.03914 | — | |
| CBP | ITO/PEDOT:PSS (40 nm)/PVK (10 nm)/CBP:10 wt% OPDC-DBBPA (30 nm)/DPEPO (20 nm)/TmPyPB (45 nm)/LiF (1.2 nm)/Al (120 nm) | 846 | 0.378 | — | — | 0.04305 | — | |||
| CBP | ITO/PEDOT:PSS (40 nm)/PVK (10 nm)/CBP:20 wt% OPDC-DBBPA (30 nm)/DPEPO (20 nm)/TmPyPB (45 nm)/LiF (1.2 nm)/Al (120 nm) | 866 | 0.164 | — | — | 0.04486 | — | |||
| CBP | ITO/PEDOT:PSS (40 nm)/PVK (10 nm)/CBP:30 wt% OPDC-DBBPA (30 nm)/DPEPO (20 nm)/TmPyPB (45 nm)/LiF (1.2 nm)/Al (120 nm) | 882 | 0.122 | — | — | 0.04815 | — | |||
| CBP | ITO/PEDOT:PSS (40 nm)/PVK (10 nm)/CBP:40 wt% OPDC-DBBPA (30 nm)/DPEPO (20 nm)/TmPyPB (45 nm)/LiF (1.2 nm)/Al (120 nm) | 906 | 0.103 | — | — | 0.04365 | — | |||
| DTPZ | 880/2.1/3.09 | TPBi | ITO/HATCN (5 nm)/TAPC (30 nm)/mCP (5 nm)/TPBi:30 wt% DTPZ (20 nm)/B3PyMPM (70 nm)/LiF (1 nm)/Al (120 nm) | 817 | 2.28 | — | — | 2.418 | — | 56 |
| DTPZ | TPBi | ITO/HATCN (5 nm)/TAPC (30 nm)/mCP (5 nm)/TPBi:60 wt% DTPZ (20 nm)/B3PyMPM (70 nm)/LiF (1 nm)/Al (120 nm) | 846 | 1.29 | — | — | 1.765 | — | 56 | |
| Non-doped | ITO/HATCN (5 nm)/TAPC (30 nm)/mCP (5 nm)/DTPZ (20 nm)/B3PyMPM (70 nm)/LiF (1 nm)/Al (120 nm) | 877 | 0.57 | — | — | 1.438 | — | |||
| DtBuTPZ | 891/1.7/3.67 | TPBi | ITO/HATCN (5 nm)/TAPC (30 nm)/mCP (5 nm)/TPBi:20 wt% DtBuTPZ (20 nm)/B3PyMPM (70 nm)/LiF (1 nm)/Al (120 nm) | 807 | 2.34 | — | — | 2.355 | — | |
| TPBi | ITO/HATCN (5 nm)/TAPC (30 nm)/mCP (5 nm)/TPBi:60 wt% DtBuTPZ (20 nm)/B3PyMPM (70 nm)/LiF (1 nm)/Al (120 nm) | 850 | 1.19 | — | — | 0.901 | — | |||
| Non-doped | ITO/HATCN (5 nm)/TAPC (30 nm)/mCP (5 nm)/DtBuTPZ (20 nm)/B3PyMPM (70 nm)/LiF (1 nm)/Al (120 nm) | 886 | 0.35 | — | — | 0.49 | — | |||
| CPDBP-TPA | 829/—/—; 620l/85l/17.4l | Non-doped | ITO/MoO3 (5 nm)/TAPC (50 nm)/TCTA (5 nm)/CPDBP-TPA (20 nm)/TmPyPB (60 nm)/LiF (1 nm)/Al | 850 | 1.14 | 0.013 | 0.0088 | — | 43 | 57 |
| CPDBP-DBPPA | 842/—/—; 628l/80l/12.0l | Non-doped | ITO/MoO3 (5 nm)/TAPC (50 nm)/TCTA (5 nm)/CPDBP-DBPPA (20 nm)/TmPyPB (60 nm)/LiF (1 nm)/Al | 856 | 0.59 | 0.0063 | 0.003 | — | 13 | |
| CucrcBF2 6 | 748c/11.6c/— | CBP | ITO/PEDOT:PSS/CBP:20 wt% 6/DPEPO/TPBI/LiF/Al | 800 | 0.59 | — | — | — | — | 58 |
| TPA-DHAQ | 800/0.9/0.13; 780c/5.3c/10.2c | CBP | ITO/HAT-CN (10 nm)/TAPC (40 nm)/TCTA (10 nm)/CBP:10 wt% TPA-DHAQ (30 nm)/TmPyPb (45 nm)/Liq (2.5 nm)/Al (100 nm) | 745 | 0.8 | — | — | — | — | 59 |
For vapor-deposited NIR TADF OLEDs, efficient charge injection and transport are typically achieved using strong hole-injection and transport materials such as HATCN and TAPC, which help establish balanced carrier recombination in multilayer architectures. In solution-processed NIR TADF OLEDs, greater emphasis is placed on interfacial engineering and film-forming properties. Conductive polymer layers such as PEDOT:PSS are commonly employed to improve hole injection and smooth the anode interface, while polymeric materials like PVK serve as hole-transporting or host matrices that support uniform film formation and morphological stability. Across both fabrication routes, wide-bandgap host materials (e.g., CBP or TBPi) play a central role in device design. These hosts are widely adopted to ensure favorable energy-level alignment and effective exciton confinement within the emissive layer, which is particularly critical for NIR emitters with small bandgaps that are prone to charge leakage and non-radiative losses.

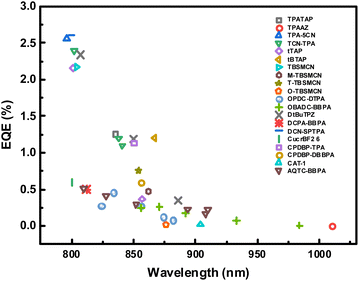

Fig. 7 summarizes the EQEs of representative NIR TADF OLEDs as a function of emission wavelength, clearly illustrating the pronounced efficiency loss accompanying spectral red-shifting into the deep-NIR region. This trend highlights the critical role of rational device design in mitigating EL efficiency degradation and underscores the necessity of jointly optimizing device architecture alongside molecular design for high-performance deep NIR TADF OLEDs.
Recent progress has validated several effective molecular design strategies, including the use of strong, compact acceptors such as pyrazine, benzo[de]anthracene-dicarbonitrile, and B–N multiple-resonance cores; π-conjugation extension and molecular rigidification to lower LUMO levels and suppress vibrational modes; and multi-acceptor or delocalized architectures that push emission further into the deep-NIR or NIR-II region. Nonetheless, the field continues to face fundamental challenges arising from the energy-gap law, enhanced vibronic coupling, large reorganization energies of CT states, and aggregation-induced quenching in solid films and practical device limitations including host–guest compatibility, charge balance, light extraction, and long-term stability.
Future research should focus on expanding donor diversity beyond TPA-type structures, developing compact and rigid donors with stronger electron-donating strength and better energy-level alignment to pair with high-performance acceptors. Simultaneously, introducing hybrid mechanisms such as MR and ESIPT may provide new ways to suppress high-frequency vibrational loss while retaining narrowband emission. Furthermore, improved control of aggregation through steric engineering and host–guest tuning, along with standardized evaluation of solid-state photophysical parameters (film PLQY, λmax/λonset, ΔEST, and kr/kn,r/kRISC), will enable better comparability across studies. On the device level, advances in solution-processable architectures, optimized doping ratios, and microcavity or tandem structures will further improve EQE and operational stability.
Overall, while the chemical feasibility of deep-NIR TADF emission has been clearly demonstrated, its practical realization—particularly in the NIR-II region—still faces pronounced device-level challenges. In addition to the intrinsic efficiency loss imposed by the energy gap law, NIR-II TADF OLEDs suffer from severe charge imbalance, inefficient exciton confinement, enhanced non-radiative decay, and aggravated exciton–polaron and exciton–exciton annihilation under electrical excitation. Moreover, limited optical outcoupling efficiency and accelerated device degradation caused by Joule heating further constrain the operational stability of long-wavelength devices. Addressing these unique challenges requires the synchronized optimization of molecular design, exciton management, and device engineering. Expanding the donor palette beyond TPA derivatives, together with advances in MR/ESIPT integration, aggregation control, and device architecture optimization, is expected to accelerate the development of efficient, stable, and manufacturable deep-NIR and NIR-II TADF OLEDs for next-generation optoelectronic technologies.
