Coupling abundant active sites and an ultra-short ion diffusion path: R–VO₂/carbon nanotube composite microspheres boosted the performance of aqueous ammonium-ion batteries

Abstract

Ammonium (NH₄⁺) ions as charge carriers have exhibited tremendous potential in aqueous batteries because of their abundant resources, ultrafast reaction kinetics, and negligible dendrite risks. However, the choices of cathode materials have resulted in relatively low capacities in aqueous ammonium ion batteries (AAIBs). Herein, double tunnel NH₄⁺ ion insertion behavior with hydrogen bond building-breaking in rutile-phase VO₂ (R–VO₂) microspheres was revealed for the first time, and the capacity contribution was confirmed to be dominated by surface-control according to kinetic analysis and density functional theory (DFT) calculations. Composite microspheres with R–VO₂ and carbon nanotubes (R–VO₂/CNTs) were acquired to comprehensively improve the capacity, rate performance, and cycling stability of R–VO₂ microspheres. In addition, R–VO₂/CNT composite microspheres exhibited excellent capacity (950 mAh g⁻¹) within −1.3–0.8 V at 0.05 A g⁻¹, which was maintained at 170 mAh g⁻¹ at 5 A g⁻¹, and achieved excellent capacity retention of 113% at the 5000th cycle and 0–0.4 V. To explore their practical application, a full cell was constructed by coupling a R–VO₂/CNT composite microsphere cathode with a urea-perylene diimide polymer (UP) anode. Excellent capacity (130 mAh g⁻¹) with imperceptible capacity decay following 2500 cycles at 1 A g⁻¹ was achieved within the 0–0.9 V practical voltage range. In summary, R–VO₂/CNT composite microspheres have been demonstrated for potential application in sustainable energy storage in AAIBs.

---

1. Introduction

Green renewable energy sources such as wind, solar, and tidal power represent popular strategies for alleviating the high burden of global warming resulting from excess carbon emission in the human and ecological environment, and for achieving net-zero carbon emission or carbon neutrality, whereas the extremely unbalanced space-time distribution of renewable energy sources inevitably increases the difficulty of their development and utilization.^1,2 Lithium-ion batteries, devices contributing to sustainable energy storage, are an effective solution to couple intermittent clean energy with intelligent grids because of their high energy density, excellent industrial applicability and technical maturity .^2,3 Nevertheless, the high cost, insufficient resources, and unsatisfactory security caused by thermal runaway and organic electrolytes for lithium-ion batteries are problems, representing urgent issues in the development of a new generation of energy storage devices.^4,5

Aqueous ion batteries have exhibited great benefits and prominent applications in the field of energy storage because of their cost-effectiveness, inherent security, high ionic conductivity, and environmental friendliness.^6,7 Therefore, various metal carriers, such as Li⁺,^8,9 Na⁺,^10,11 K⁺,¹² Mg²⁺,^13,14 Ca²⁺,¹⁵ Zn²⁺,^16,17 and Al³⁺,¹⁸ have been exploited in aqueous energy storage systems. Moreover, non-metal ammonium NH₄⁺ ions are regarded to be charge carriers for aqueous battery chemistry. Like metal ion carriers, NH₄⁺ ions comply with the working principles of the model, commuting back and forth between the cathode and anode within batteries.^19,20 Significantly, NH₄⁺ ions display greater application potential in aqueous batteries than metal ions due to their abundant natural resources (nitrogen element and hydrogen element), lack of dendrite risk, ultrafast reaction kinetics benefiting from their low molar mass (18 g mol⁻¹), and the specific interaction (hydrogen bonding) of NH₄⁺ ions with electrode hosts.^19,21

The cathode materials for AAIBs represent one of the pivotal factors that determine the electrochemical performance and have attracted considerable attention over the past decade. Prussian blue analog (PBA) materials used in K_0.9Cu_1.3Fe(CN)₆ and K_0.6Ni_1.2Fe(CN)₆ were initially researched as the cathode materials for AAIBs and demonstrated higher intercalation potentials for NH₄⁺ ion energy storage compared to Na⁺ or K⁺ ion energy storage, as evidenced by cyclic voltammetry curves.²² Since then, additional PBA series such as (NH₄)_1.47Ni[Fe(CN)₆]_0.88 (62.6 mAh g⁻¹),²³ K_0.72Cu[Fe(CN)₆]_0.78 (58.8 mAh g⁻¹),²⁴ NaFe^III[Fe^II(CN)₆] (62 mAh g⁻¹),²⁵ Na_1.45Fe[Fe(CN)₆]_0.93 (73.6 mAh g⁻¹),²⁶ Fe₄[Fe(CN)₆]₃ (61.7 mAh g⁻¹),²⁷ etc. have been formulated and used as cathode materials to achieve electrochemical storage of aqueous NH₄⁺ ions. Unfortunately, poor capacities of less than 80 mAh g⁻¹ for most reported PBA materials have seriously restricted their practical application in AAIBs.

Metal oxides with a unique layered structure or tunnel structure generally exhibit excellent capacity for aqueous ion energy storage. Consequently, numerous studies have been conducted on the exploratory applications and tentative improvements of metal oxides in aqueous NH₄⁺ ion energy storage systems.²⁸ For example, the capacity of V₂O₅ with a di-layered structure, which provides reasonable density and moderate crystal water through accurate control of the sintering temperature, was as high as 100 mAh g⁻¹ with a 0.5 M (NH₄)₂SO₄ electrolyte at 0.1 A g⁻¹. Meanwhile, density functional theory (DFT) calculations disclosed the hydrogen bond chemistry of NH₄⁺ with V₂O₅, which suggested the climber-swinging model to elaborate the ion migration in V₂O₅.²⁰ Moreover, the NH₄⁺ ion storage capacity of recrystallized MnO_x-40 nanosheets on carbon fibers under the combined effect of Ostwald ripening and Mn³⁺ disproportionation during cycles was 176 mAh g⁻¹ with a 0.5 M NH₄Ac electrolyte at 0.5 A g⁻¹.²⁹ Notably, recent research has confirmed that acetate ions can coordinately interact with manganese on a cathode surface and facilitate NH₄⁺ ion adsorption properties, resulting in reduced capacity improvement and resistance to charge transfer.³⁰ Furthermore, an urchin-like NH₄V₄O₁₀ anchored onto a carbon fiber was matched with a polyaniline anode to form NH₄⁺ ion full cells, and the capacity was as high as 103 mAh g⁻¹ at 0.1 A g⁻¹ because of a rapid diffusion path and excellent accommodation capacity for the electrode material to allow reversible shuttling of NH₄⁺ ions from the polyaniline anode to the NH₄V₄O₁₀ cathode or vice versa.³¹ Although the above efforts on metal oxides have resulted in considerable breakthroughs in the initial capacity and reaction mechanism for AAIBs, the rate capacity, cycling performance, discharge voltage and compatibility between cathodes and anodes are still unsatisfactory.

Herein, we prepared rutile-phase VO₂ (R–VO₂) microspheres through easy ultrasonic atomization deposition and employed them as cathode materials in AAIBs for the first time. Better capacity, higher working potential, lower electrochemical impedance, and a larger proportion of surface-controlled capacity for NH₄⁺ ion energy storage were elucidated through comprehensive electrochemical comparison and analysis with K⁺ and Na⁺ energy storage. Furthermore, R–VO₂/CNT composite microspheres were synthesized by mixing specific proportions of CNTs into precursors to further advance the rate performance, cycling stability, and discharge capacity. Additionally, energy storage in different voltage ranges was systematically analyzed from both theoretical calculation and experimental comparisons. Finally, the practical application of R–VO₂/CNT composite microspheres was proved by constructing a full cell with a UP anode. Our work provides new potential cathode materials for AAIBs, and offers an efficient candidate approach to promote the electrochemical performance of R–VO₂.

2. Experimental

The ultrasonic atomization deposition method was applied in preparing R–VO₂ microspheres. 3.2 g of V₂O₅ and 4.5 g of H₂C₂O₄ were blended within a beaker that contained 60 mL of deionized water. Following 1 h of ultrasonic vibration and 12 h of magnetic stirring at ambient temperature, we obtained the resultant solution and loaded it into ultrasonic atomization equipment for atomization, followed by transport into a tubular furnace under an argon atmosphere. We later deposited solid powders at 600 °C until the solution was exhausted. When the solution was cooled to ambient temperature, we acquired R–VO₂ microspheres. R–VO₂/CNT composite microspheres were achieved, entirely based on the above processes with the additional 1.05 g of CNTs.

3. Results and discussion

Fig. 1a illustrates the ideal crystal model of the R–VO₂, which had a rutile structure and crystallized into the tetragonal P4₂/mnm space group. The V⁴⁺ atom was connected with 6 equal O atoms to form an edge-sharing [VO₆] octahedron with 2 short (1.91 Å) as well as 4 long (1.99 Å) V–O bonds. The [VO₆] octahedra were repeatedly co-edge stacked along the (001) crystal face and alternately co-vertex accumulated with the vertical state along the (110) crystal face. The V and O atoms were arranged in an orderly fashion to form the skeleton, and thus provided two three-dimensional ion transport tunnels along the (110) and (101) crystal faces, respectively. We also carried out DFT calculations to investigate the lowest energy model configurations of R–VO₂ when charge carriers, such as K⁺, Na⁺ and NH₄⁺ ions, were inserted. Notably, the calculated results confirmed that the carriers were preferentially stored in the (110) crystal face with a more appropriate width of 3.20 Å. When ions were diffused in the relatively narrow (101) crystal face, the crystal lattice was severely distorted and caused the calculation program to crash.

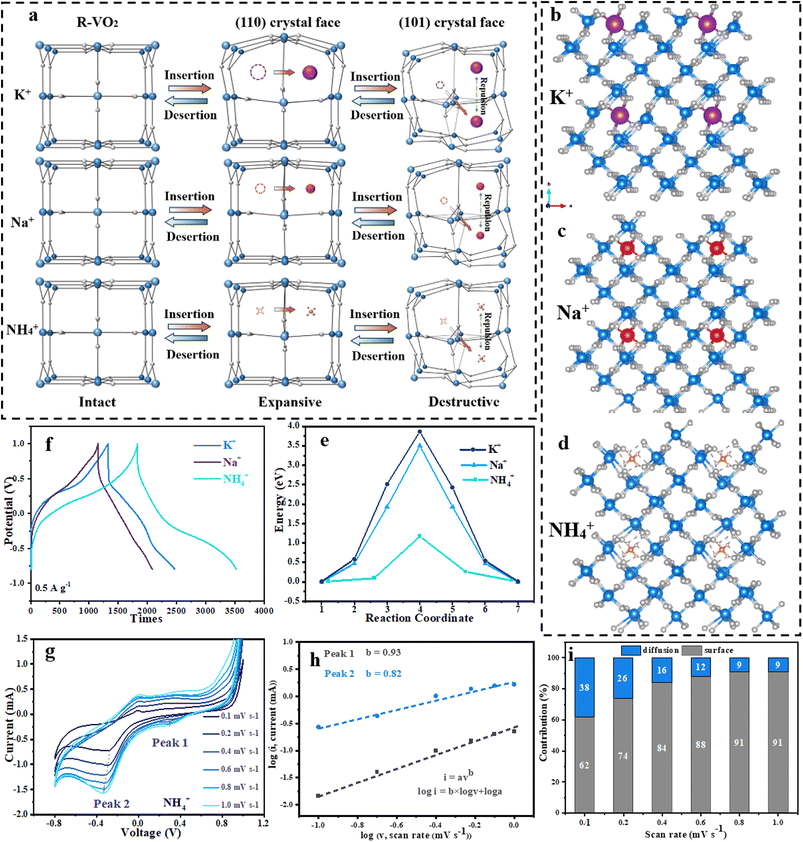

Fig. 1 A diagram of ion diffusion in different tunnels of R–VO₂ (a); diffusion barriers for K⁺ ions, Na⁺ ions, and NH₄⁺ ions in R–VO₂ (e); chronopotentiometry (CP) profiles (f); the R–VO₂ energy storage mechanism for K⁺ ions (b), Na⁺ ions (c), and NH₄⁺ ions (d); cyclic voltammetry (CV) curves at various scan rates of 0.1–1.0 mV s⁻¹ for NH₄⁺ (g); log(i) versus log(v) curves showing cathodic peaks for NH₄⁺ (h); and diffusion- and surface-controlled contributions to the capacity for NH₄⁺ (i).

Fig. 1b–d illustrate the clearly different diffusion processes for K⁺, Na⁺ and NH₄⁺ ions. The spherical K⁺ and Na⁺ ions with non-preferential orientations were entirely dependent on the ionic bond interaction.²⁰ K⁺, Na⁺ and NH₄⁺ ions could insert into the (110) lattice tunnel during the discharge process, while the lattices underwent drastic distortion due to the huge ion size and rigid repulsion force as the K ions diffused (Fig. 1b). Even though the NH₄⁺ ions were of a similar size to the K⁺ ions, the tetrahedral NH₄⁺ diffusion could depend on coordinated hydrogen bonds with oxygen atoms of R–VO₂ along with twisting and rotation for NH₄⁺ ions (Fig. 1d). A trailing hydrogen bond was broken in the NH₄⁺ diffusion process, which moved towards the specific oxygen atom undertaking the NH₄⁺ twist, and this could be imagined as a monkey swinging between trees keeping 3 points still and swinging the body to move forward an arm or leg.¹⁹ The movements were completely different from those of spherical metal ions, and the V–O bonds in the R–VO₂ hosts were not affected throughout the entire migration process, which may be the basis for ultrafast electrochemical kinetics and metastable cycling performance.

As shown in Fig. 1e, the NH₄⁺ diffusion revealed calculated energy barriers of 1.16 eV, which is less than one-third of 3.85 eV for K⁺ ions, and 3.50 eV for Na⁺ ions. The interaction of hydrogen bonds rather than ionic bonds and the lighter molar mass resulted in a lower energy barrier for NH₄⁺ ion diffusion with respect to K⁺ and Na⁺ ions. For the saddle point in the NH₄⁺ ion diffusion pathway, distances from hydrogen to the adjacent oxygen atom were 1.345 Å, 1.429 Å, 1.627 Å, 1.856 Å and 1.958 Å.

To further compare the electrochemical performances for different charge carriers, systematic electrochemical measurements were conducted in various electrolytes (K₂SO₄, Na₂SO₄ and (NH₄)₂SO₄) under the three-electrode test system (Fig. S1). Two evident plateaus could be found for each discharge curve of R–VO₂ microspheres for K⁺, Na⁺ and NH₄⁺ energy storage, corresponding to the reversible insertion/extraction of charge carriers in (110) lattice tunnels and (101) lattice tunnels (Fig. 1f). Significantly, the discharge plateaus for NH₄⁺ ions were situated at relatively high potentials of 0.3/−0.3 V compared to those for K⁺ (0.1/−0.5 V) and Na⁺ (0.3/−0.5 V) ions, and were associated with the decreased Gibbs free energy benefiting from the better fit of large NH₄⁺ ions into R–VO₂ cavities.²² Additionally, NH₄⁺ energy storage achieved a better capacity (222.2 mAh g⁻¹) than K⁺ (173.6 mAh g⁻¹) and Na⁺ (138.9 mAh g⁻¹). Fig. S2 displays the electrochemical impedance spectroscopy (EIS) for the three charge carriers. Note that NH₄⁺ ions delivered a prominent smaller semicircle with a resistance of 5 Ω than K⁺ and Na⁺ ions, indicating smaller bulk resistance and faster charge-transfer processes for NH₄⁺ ions.

The capacity contributions of K⁺, Na⁺ and NH₄⁺ ions in R–VO₂ microspheres were determined by cyclic voltammetry (CV) analysis at a scan rate of 0.1–1.0 mV s⁻¹ (Fig. 1g–i and S3). There were 2 reduction peak pairs observed in every CV curve for the three ions at various scan rates, which was in exact agreement with the discharge plateaus in Fig. 1f. Significantly, all peaks moved to a lower voltage as the scan rate was increased. Using the peak currents at different scan rates, capacity contributions for K⁺, Na⁺ and NH₄⁺ ions could be qualitatively determined using the equation i = av^b.³² The b values for K⁺ ions were calculated to be 0.64 and 0.59 during the discharge process (Fig. S3b), indicating that the capacity was simultaneously contributed to by dominating diffusion control and slight surface control. Na⁺ ions exhibited b-values of 0.52 and 0.54, which were closer to the ideal b-value (0.5) (Fig. S3e), implying that diffusion-controlled behavior occurred. In complete contrast to K⁺ and Na⁺ ions, the high b values of 0.93 and 0.82 for NH₄⁺ ions demonstrated a predominantly surface-controlled process (Fig. 1h), which has been proved to be beneficial for faster diffusion kinetics of NH₄⁺ ions.²⁰ The capacity contribution proportions of the three carriers were quantitatively evaluated using the following equation: i = k₁v + k₂v^1/2. After employing the lowest scan rate (0.1 mV s⁻¹), K⁺ ions presented a higher diffusion-controlled contribution of 77% with a small surface-controlled capacity of 23% (Fig. S3c). After increasing the scan rates to 0.1–1.0 mV s⁻¹, the diffusion-controlled contribution decreased to 58%. Na⁺ ions exhibited almost diffusion-controlled behavior at each scan rate (Fig. S3f). NH₄⁺ ions exhibited a high surface-controlled percentage of 62% at the lowest scan rates (0.1 mV s⁻¹), and this percentage was quickly increased to more than 90% when the scan rates reached 0.8 mV s⁻¹ (Fig. 1i). Overall, NH₄⁺ ions exhibited higher insertion potential and better reaction kinetics than K⁺ and Na⁺ ions. This is mainly attributed to the tetrahedral structure of NH₄⁺, which binds stably to the carrier material via N–H⋯O hydrogen bonds, which mitigates structural damage, increases the low desolvation energy and interfacial charge transfer, and results in a lower lattice compatibility and diffusion barrier. Additionally, the high-rate charge storage dominated by pseudocapacitance results in more significant bulk diffusion limitation at high rates, which further amplifies the interfacial advantages of NH₄⁺.

On the basis of the superior capacity and fast reaction kinetics for NH₄⁺ ions in the R–VO₂ microspheres, we developed R–VO₂/CNT composite microspheres to further advance the electrochemical performance of R–VO₂ microspheres. XRD patterns (Fig. 2a) for R–VO₂ as well as R–VO₂/CNT composite microspheres were precisely indexed to tetragonal R–VO₂ (PDF#74-1642, P4₂/mnm space group), and the lattice parameters were a = 4.53 Å, b = 4.53 Å, c = 2.869 Å, while the R–VO₂/CNT composite microspheres additionally exhibited an obvious characteristic peak corresponding to the (200) crystal face of carbon. In particular, it should be mentioned that the crystallinity of the composite microspheres was lower than that of the R–VO₂ microspheres from the difference between the XRD patterns. The Raman spectrum exhibited three additional peaks at 1341, 1576 and 2685 cm⁻¹ for the R–VO₂/CNT composite microspheres, which provided the most reliable evidence for the successful combination of CNTs and R–VO₂ (Fig. 2b). The peaks at 1341, 1576, and 2685 cm⁻¹ for R–VO₂/CNTs are attributed to the characteristic peaks of carbon nanotubes. The peaks detected at 141 and 275 cm⁻¹ are due to the bending vibrations of the V–O–V bond backbone. The peaks observed at 520 and 695 cm⁻¹ can be attributed to the stretching mode of V–O–V. The peak at 992 cm⁻¹ corresponds to the stretching mode of V=O in distorted octahedral and tetrahedral geometries.

Fig. 2 X-ray diffraction patterns for the 2 microspheres (a), Raman spectra for the 2 microspheres (b), O 1s (c and d) and V2p (e) XPS spectra of the 2 microspheres, adsorption/desorption and pore size distribution curves and relevant pore size distributions of R–VO₂ (f) and R–VO₂/CNT composite microspheres (g), and TG plots of the two microspheres (h). SEM (i), TEM (j), and HRTEM (k and l) images; SAED patterns (m) and EDS mapping (n) for R–VO₂ microspheres. SEM (o), TEM (p), and HRTEM (q and r) images; SAED patterns (s) and EDS mapping (t) for R–VO₂/CNT composite microspheres.

XPS measurements were performed to qualitatively evaluate the element chemical composition for R–VO₂ as well as R–VO₂/CNT composite microspheres. High-resolution V 2p XPS spectra for the two microspheres (Fig. 2e) illustrated 2 separate peaks corresponding to V 2p^3/2 and V 2p^1/2 at 516.5 and 523.7 eV, whose typical spin energy difference of 7.2 eV was in perfect agreement with R–VO₂. Moreover, the two microspheres both exhibited a V–O bond peak at 530.2 eV, while the R–VO₂/CNT composite microspheres exhibited a C–O bond signal at a higher binding energy of 531.5 eV (Fig. 2d), owing to the C–O functional groups on the surface of the CNTs and the combination of C on the CNT surface and O in R–VO₂.

BET measurements presented very different adsorption isotherms for R–VO₂ microspheres (Fig. 2f) and R–VO₂/CNT composite microspheres (Fig. 2g). The R–VO₂ microspheres displayed a concave downward type-III N₂ adsorption–desorption isotherm without an inflection point, suggesting a typical physical adsorption process on the surface for non-porous materials. However, the R–VO₂/CNT composite microspheres exhibited a type-IV N₂ adsorption–desorption isotherm, accompanied by H₁-type hysteresis looping, which is usually characterized by uniformly distributed cylindrical holes. Furthermore, the surface area of the R–VO₂/CNTs composite microspheres was 7.0588 m² g⁻¹, while their pore volume was 0.0416 cm³ g⁻¹, which were about ten-times higher than those for the R–VO₂ microspheres whose surface area and pore volume were 0.7834 m² g⁻¹ and 0.0042 cm³ g⁻¹, respectively. A larger specific surface area can provide more electrode/electrolyte contact interfaces, expose more V active sites, and enable more thorough adsorption and deintercalation reactions of NH₄⁺ on the electrode surface, thereby enhancing the actual specific capacity of the battery. In addition, the uniform cylindrical pores corresponding to the H₁-type hysteresis loop match the one-dimensional tubular structure of CNTs, forming continuous ion transport paths inside the electrode. On the one hand, the mesoporous structure significantly shortens the solid-phase diffusion distance of NH₄⁺ and reduces the ion diffusion resistance; on the other hand, the connectivity of the pores avoids the “dead zones” in ion transport caused by the pore-free structure of pure R–VO₂, especially during high-rate charging and discharging, effectively alleviating concentration polarization and enhancing the rate performance of the battery. Based on the Barrett–Joyner–Halenda (BJH) model, the pore size distribution was centered at ∼30 nm (inset in Fig. 2g), which is in accordance with the diameter of the CNTs. The abundant mesopores in R–VO₂/CNT composite microspheres could evidently enhance the contact area of R–VO₂ with the electrolyte, while significantly shortening the NH₄⁺ ion diffusion path. Meanwhile, the large specific surface area could dramatically increase the number of active sites of energy storage in AAIBs.

The CNT contents in the R–VO₂/CNT composite microspheres were ascertained from the TGA difference from the R–VO₂ microspheres. In the temperature range of 20 to 150 °C, the R–VO₂/CNT composite microspheres exhibited more serious weight loss of 9.0% than that of the R–VO₂ microspheres of 3.5%. The greater amount of adsorbed water for the R–VO₂/CNT composite microspheres was ascribed to the mesoporous composite microspheres providing more abundant storage sites for free water molecules. When the temperature was gradually increased to 300 °C, the two microspheres exhibited similar weight losses of 3.5% and 3%, indicating the release of crystal water. More importantly, the R–VO₂/CNT composite microspheres achieved a weight loss of 6% between 400 and 500 °C, demonstrating CNT oxidation.

We conducted SEM and TEM observations to intuitively investigate morphological differences between the R–VO₂ microspheres and R–VO₂/CNT composite microspheres. The R–VO₂ microspheres displayed uniform particles about 500 nm in diameter and extremely smooth surfaces (Fig. 2i and j). The lattice distance of 3.31 Å could be indexed to the (110) plane of R–VO₂ (Fig. 2k and l). In particular, it was difficult to distinguish between nano-sheet units and boundaries due to the extremely dense R–VO₂ microspheres. The SAED pattern for R–VO₂ microspheres (Fig. 2m) exhibited three different diffraction rings for (110), (101) and (211) crystal planes indexed to rutile phase VO₂. As demonstrated by EDS mappings (Fig. 2n), V and O showed homogenous distribution within the microspheres. The R–VO₂/CNT composite microspheres (Fig. 2o and p) exhibited a larger diameter than the R–VO₂ microspheres of about 700 nm, and numerous CNTs were dispersed in the R–VO₂/CNT composite microspheres. In particular, it should be mentioned that CNTs with catalytic effects of surface active functional groups accelerated the nucleation processes, resulting in a severe accumulation of structural units in R–VO₂/CNT composite microspheres compared to R–VO₂ microspheres (Fig. 2q). The lattice spacing of 3.26 Å was assigned to the (110) crystal face of R–VO₂ (Fig. 2r) and three diffraction rings in the SAED pattern (Fig. 2s) were perfectly assigned to the (110), (101) and (211) crystal faces for R–VO₂. The EDS mappings (Fig. 2t) showed entirely overlapping O and V on the R–VO₂/CNT composite microspheres, while the C distribution extended out of the V and O circles. It was suggested that the CNTs perfectly spread through the microspheres, which could be electrolyte reservoirs, reducing ion diffusion distances while promoting charge storage reactions.

CR2016-type AAIBs were assembled to systematically investigate electrochemical performances of R–VO₂ microspheres and R–VO₂/CNT composite microspheres. Fig. 3a and d show initial 3 CV profiles of R–VO₂ as well as R–VO₂/CNT composite microspheres at the 0.1 mV s⁻¹ scan rate and −1.5–0.8 V voltage range. There were 2 redox peak pairs detected at 0.1/0.3 V and −0.5/−0.1 V, associated with NH₄⁺ ion diffusion along the (110) crystal face and the (101) crystal face, respectively. The overlapping redox peaks of the first three cycles at higher voltage (0.1/0.3 V) were indicative of highly reversible electrochemical behavior corresponding to (110) crystal face diffusion. Meanwhile, the obviously reduced redox peaks at a lower voltage (−0.5/−0.1 V) signified irreversible electrochemical behavior corresponding to (101) crystal face diffusion, which conformed with DFT analysis. R–VO₂ undergoes more irreversible changes under high voltage, with a greater shift in peaks and more capacity degradation, which corresponds to the electrochemical performance of the material. Furthermore, the degree of peak overlap is lower after modification, which is also attributed to the irreversible dissolution of VO₂.

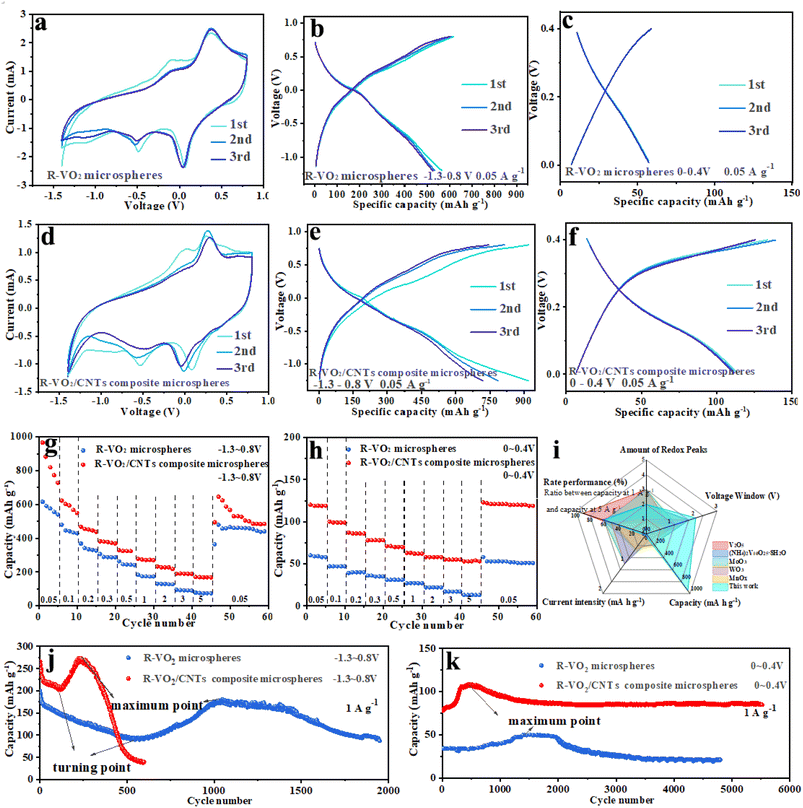

Fig. 3 CV curves for R–VO₂ (a) as well as R–VO₂/CNT composite microspheres (d) at 0.1 mV s⁻¹, GCD curves for R–VO₂ (b) as well as R–VO₂/CNT composite microspheres (e) during the first 3 cycles at 0.05 A g⁻¹ between −1.3 V and 0.8 V, GCD curves for R–VO₂ (c) and R–VO₂/CNT composite microspheres (f) during the first 3 cycles at 0.05 A g⁻¹ between 0 V and 0.4 V, and rate performance together with long-term cycling performance for both microspheres at −1.3–0.8 V (g and j) and at 0–0.4 V (h and k). Comparison of the electrochemical performance of numerous metallic oxides (i).

Galvanostatic charge and discharge (GCD) measurements of R–VO₂ as well as R–VO₂/CNT composite microspheres were performed in the −1.3–0.8 V range at the 0.05 A g⁻¹ current density (Fig. 3b and e). There were 2 voltage plateau pairs detected at 0.1/0.3 V and −0.5/−0.1 V on each GCD curve, which were associated with redox peaks in the CV curves. The oxidation peak at 0.3 V and reduction peak at 0.1 V correspond to reversible electrochemical reaction processes of NH₄⁺ along the (110) crystal plane of VO₂, while the oxidation peak at −0.1 V and reduction peak at −0.3 V correspond to irreversible electrochemical reactions of NH₄⁺ along the (101) crystal plane of VO₂.

Impressively, R–VO₂/CNT composite microspheres reached an excellent capacity (950 mAh g⁻¹) in cycle 1, far exceeding R–VO₂ microspheres (560 mAh g⁻¹). The capacity of R–VO₂/CNT composite microspheres remained high (715 mAh g⁻¹) after three cycles, while R–VO₂ microspheres retained only 520 mAh g⁻¹. The introduction of carbon nanotubes, on the one hand, allows the composite microspheres to exhibit a rich mesoporous structure and a larger specific surface area, thereby exposing more energy storage sites and significantly enhancing capacity. On the other hand, due to the perfect penetration of carbon nanotubes, the shortened ion diffusion path and improved conductivity can significantly promote reaction kinetics, resulting in considerable rate performance. However, ultrafast reaction kinetics exacerbate the lattice structure damage of the tunnel at lower voltages (101), leading to the dissolution of VO₂ and subsequent capacity decay. The observations in Fig. 3b and d reveal that the discharge capacity fade for the two microspheres in the initial three cycles mainly occurred at voltage ranges below 0 V, while when the voltage exceeded 0 V there was very little variation. Therefore, we employed a voltage of 0–0.4 V to further determine the correspondence between voltage and capacity. As depicted in Fig. 3c and f, no capacity fading could be detected for R–VO₂ or R–VO₂/CNT composite microspheres during the first three cycles. This perfectly validated the DFT results indicating that (110) crystal faces were more suitable for the reversible NH₄⁺ insertion and extraction than (101) crystal faces. Additionally, the R–VO₂/CNT composite microspheres delivered a surprisingly exceptional initial capacity (120 mAh g⁻¹), twice that of R–VO₂ microspheres at 60 mAh g⁻¹.

Rate capabilities for the two microspheres at a voltage of −1.3–0.8 V are evaluated in Fig. 3g. R–VO₂/CNT composite microspheres revealed a markedly increased capacity relative to R–VO₂ microspheres under different current densities. As the current density increased between 0.05 and 5 A g⁻¹, the 2 microspheres both displayed slightly reduced capacity. At the greatest current density at 5 A g⁻¹, the R–VO₂/CNT composite microspheres maintained a significant capacity (170 mAh g⁻¹), more than two times that of the R–VO₂ microspheres of 75 mAh g⁻¹. Furthermore, we compared the rate capabilities at 0–0.4 V for different microspheres (Fig. 3h). When the current densities increased between 0.05 and 5 A g⁻¹, the R–VO₂/CNT composite microsphere series had capacities of 120, 99, 86, 78, 70, 62, 58, 55, and 53 mAh g⁻¹, surpassing the values for the R–VO₂ microsphere series of 59, 47, 39, 35, 31, 27, 22, 17, and 13 mAh g⁻¹ under the equivalent current densities. With the reduction of the current density to 50 mA g⁻¹, the R–VO₂/CNT composite microspheres recovered increased capacity (123 mAh g⁻¹), whereas the capacity of the R–VO₂ microspheres remained at 58 mAh g⁻¹. In general, at any voltage range and current density, R–VO₂/CNT composite microspheres exhibited a higher absolute capacity than R–VO₂ microspheres, which signified that fabrication of the composite microsphere structure with CNTs was an effective strategy to increase the R–VO₂ capacity. Compared with various reported oxides, R–VO₂/CNT composite microspheres displayed unparalleled capacity and excellent rate performance (Fig. 3i).

Unfortunately, poor capacity retention was delivered by R–VO₂/CNT composite microspheres during long-cycling performance testing at −1.3–0.8 V at 1 A g⁻¹ (Fig. 3j). The two microspheres both displayed significant fluctuation of the cycling capacity, attributed to the combination of the two opposite forces of material activation and material dissolution. An abrupt capacity fade for the two microspheres was evidenced in the first cycles, resulting from a few microspheres with poor crystallinity being rapidly destroyed and dissolved with continuous volume changes. Thereafter, the capacity fading became gradually slower, and even stopped at a turning point. This was owing to the material activation which could offer obvious capacity increase and offset the capacity decrease due to the lattice structure destruction. With the increasing material activation, the capacity was increased significantly and reached a maximum value after numerous cycles. The emergence of the maximum point meant that the material activation for R–VO₂ was generally completed, and then the capacity dropped drastically due to the material breakdown and dissolution. Significantly, the R–VO₂/CNT composite microspheres acquired increased initial capacity (275 mAh g⁻¹) compared with the R–VO₂ microspheres (200 mAh g⁻¹). In particular, the R–VO₂/CNT composite microspheres exhibited better capacities (200 and 280 mAh g⁻¹) at the turning point and maximum point, almost twice those of the R–VO₂ microspheres (100 and 175 mAh g⁻¹). Additionally, the turning point and maximum point for the R–VO₂/CNT composite microspheres were located at 100 cycles and 200 cycles, much earlier than those for the R–VO₂ microspheres at 500 cycles and 1000 cycles. Nevertheless, the R–VO₂/CNT composite microspheres deliver much worse capacity retention than the R–VO₂ microspheres, and the capacity decays by more than 90% after only 600 cycles. The above results indicate that fabricating composite microspheres obviously affected R–VO₂^'s electrochemical properties. First, the abundant mesopores and large specific surface area of the composite microspheres could expose more energy storage sites to greatly enhance the capacity; second, the ion diffusion pathway reduction and electrical conductivity improvement benefiting from perfect CNT penetration could be observed to promote the reaction kinetics, leading to the considerable rate performance. However, the ultra-fast reaction kinetics exacerbated the lattice structure destruction for the (101) tunnels at lower voltage.

Durability and long-term cycling stability for the two microspheres were studied at 0–0.4 V (Fig. 3k). During the initial cycles, the capacity for the R–VO₂/CNT composite microspheres gradually increased between 75 mAh g⁻¹ and 115 mAh g⁻¹ and was maintained for 200 cycles. During the 5000th cycle, the R–VO₂/CNT composite microspheres could still retain considerable capacity (85 mAh g⁻¹), 113% of the initial capacity and 78% of the maximum capacity. Meanwhile, the capacity of the R–VO₂ microspheres increased from 31 mAh g⁻¹ to 50 mAh g⁻¹ in the first 1300 cycles, and was only 20 mAh g⁻¹ in the 5500th cycle (65% of the initial capacity and 40% of the maximum capacity).

The cycling tolerances of R–VO₂ microspheres and R–VO₂/CNT composite microspheres under different voltage ranges were elaborated by SEM and TEM observations (Fig. 4). When R–VO₂ microsphere and R–VO₂/CNT composite microsphere electrodes were employed at −1.3–0.8 V, the two electrodes both exhibited obvious and severe damage during the repetitive charge and discharge processes, but exhibited very different cycling durability. Compared with the smooth surface for the initial R–VO₂ microspheres (Fig. 4a and f), R–VO₂ microspheres displayed a rougher surface (Fig. 4b), and loose and slightly damaged microspheres (Fig. 4g) after 1000 cycles. After 3000 cycles (Fig. 4c and h), the R–VO₂ microspheres have been completely destroyed except for some tablets formed by binders. Nevertheless, R–VO₂/CNT composite microspheres encountered more serious and faster destruction. The R–VO₂/CNT composite microspheres exhibited critical fractures (Fig. 4l and q) after only the 200th cycle (turning point), even up to the 1000th cycle, and nothing else was discovered except for intertwined CNTs (Fig. 4m and r). This was closely related to the ultra-high surface activity and extremely low crystallinity of the carbon nanotube composite microspheres.

Fig. 4 SEM images showing electrodes of R–VO₂ microspheres in selected states: initial (a), after 1000 (maximum point) (b) and 3000 (c) cycles at −1.3–0.8 V, and after 1000 (d) and 3000 (e) cycles at 0–0.4 V. TEM images showing electrodes of R–VO₂ microspheres in selected states: initial (f), after 1000 (g) and 3000 (h) cycles at −1.3–0.8 V, and after 1000 (i) and 3000 (j) cycles at 0–0.4 V. SEM images showing electrodes of R–VO₂/CNT composite microspheres in selected states: initial (k), after 200 (maximum point) (l) and 1000 (m) cycles at −1.3–0.8 V, and after 1000 (n) and 3000 (o) cycles at 0–0.4 V. TEM images showing electrodes of R–VO₂/CNT composite microspheres in selected states: initial (p), after 200 (q) and 1000 (r) cycles at −1.3–0.8 V, and after 1000 (s) and 3000 (t) cycles at 0–0.4 V.

At 0–0.4 V, the cycling stability for R–VO₂ and R–VO₂/CNT composite microspheres was significantly improved. For cycled R–VO₂ microspheres, the pristine structure was perfectly maintained and the surface of the microspheres was smooth without any pulverization after 1000 cycles (Fig. 4d). Even upon cycling to 3000 cycles, only slight cracks occurred on the microsphere surface (Fig. 4e), while the interior of the R–VO₂ microspheres maintained a prominent close-packing architecture (Fig. 4i). Meanwhile, the R–VO₂/CNT composite microspheres retained high integrity after 3000 cycles. The excellent stability of the R–VO₂ microspheres (Fig. 4j) and R–VO₂/CNT composite microspheres (Fig. 4t) was clearly confirmed by the TEM images, in which the structures remained consistent with the initial structure after long-term cycling. The electrodes exhibited distinct structure stability within different voltage ranges, which was related to the sequential NH₄⁺ insertion into the (110) and (101) crystal faces. Adjusting the charging and discharging voltage range, abandoning unrealistic capacities below 0 V, and avoiding structural collapse caused by ion insertion into the (101) crystal plane can effectively promote the practical application process of the batteries.

The reaction kinetics for the two microspheres were evaluated through electrochemical impedance spectroscopy (EIS) (Fig. 5a, Table S1). The ohmic resistance (R1) and charge transfer resistance (R2) for the R–VO₂/CNT composite microspheres were smaller than those of the R–VO₂ microspheres. This was attributed to the construction of the CNT conductive networks in the R–VO₂ microspheres. Moreover, the R–VO₂/CNT composite microspheres exhibited lower Warburg impedance (Z_w), suggesting that the CNT introduction efficiently decreased the NH₄⁺ diffusion resistance and shortened the NH₄⁺ diffusion distance. The diffusion coefficients for the R–VO₂ microspheres and R–VO₂/CNT composite microspheres were confirmed using GITT technology (Fig. 5b and c). The diffusion coefficients for the two microspheres gradually decreased in the discharge process and increasingly grew in the charge process. Additionally, the NH₄⁺ diffusion coefficients for R–VO₂/CNT composite microspheres were between 10^−5.0 and 10^−5.8 cm² s⁻¹ during discharge, and were markedly increased relative to R–VO₂ microspheres (between 10^−5.5 and 10^−6.8 cm² s⁻¹). In the charge process, the R–VO₂/CNT composite microspheres exhibited increased NH₄⁺ diffusion coefficients (between 10^−6.3 and 10^−4.9 cm² s⁻¹) compared with the R–VO₂ microspheres (between 10^−6.5 and 10^−5.1 cm² s⁻¹). These results demonstrated that the NH₄⁺ transportation was successfully improved by fabricating the composite microspheres.

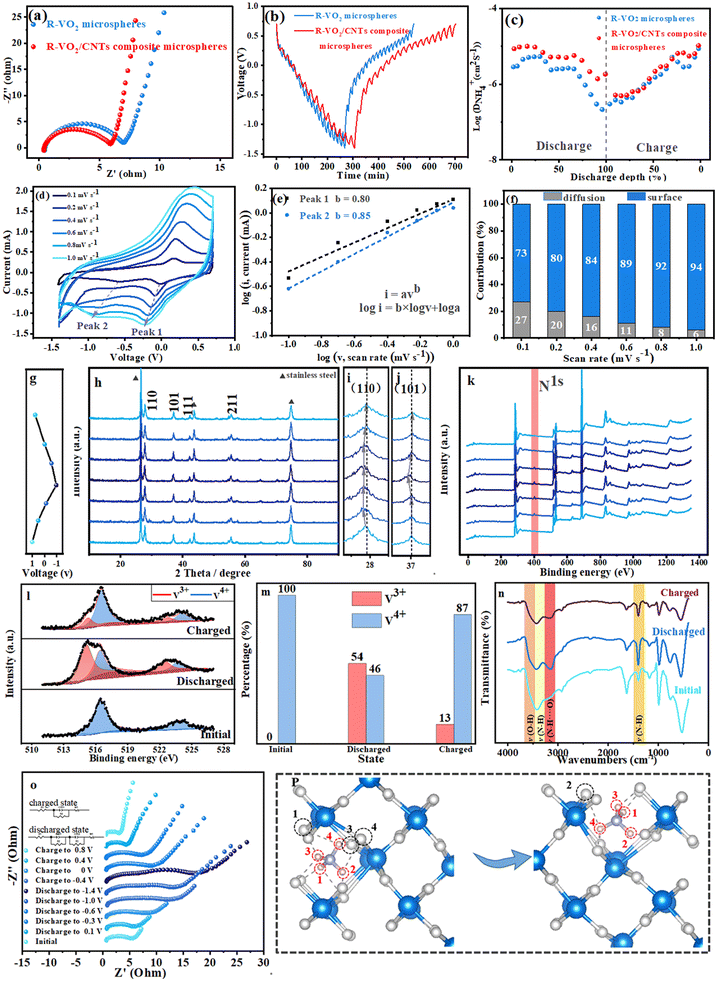

Fig. 5 Electrochemical impedance spectra (a), galvanostatic intermittent titration technique (GITT) curves at 0.05 A g⁻¹ (b), NH₄⁺ diffusion coefficients at different discharge depths (c), CV curves of R–VO₂/CNT composite microspheres at 0.1–1.0 mV s⁻¹ (d), log(i) versus log(v) curves showing cathodic peaks of R–VO₂/CNT composite microspheres (e), surface-controlled and diffusion-controlled contributions to the capacity of R–VO₂/CNT composite microspheres (f), ex situ XRD patterns (g–j), ex situ XPS spectra (k–m) and ex situ FTIR spectra (n) of R–VO₂/CNT composite microspheres in cycle 1 in different discharge/charge states, in situ electrochemical impedance of R–VO₂/CNT composite microspheres in cycle 1 (o), and bond evolution stages during the NH₄⁺ diffusion process in R–VO₂ (p).

The capacity contributions of the R–VO₂ microspheres (Fig. S4a) and R–VO₂/CNT composite microspheres (Fig. 5d) were also analyzed through CV analysis as scan rates increased between 0.1 and 1.0 mV s⁻¹. This was based on the empirical equation i = av^b.³² b-values for R–VO₂ as well as R–VO₂/CNT composite microspheres were 0.73/0.84 (Fig. S4b) and 0.80/0.85 (Fig. 5e), respectively. Then, the capacitive contribution was quantitatively evaluated using the equation i = k₁v + k₂v^1/2. As the scan rate increased between 0.1 and 1.0 mV s⁻¹, the proportion of the surface-controlled process of the R–VO₂ microspheres gradually increased from 64% to 91% (Fig. S4c), whereas the R–VO₂/CNT composite microspheres also revealed an increasing proportion from 71% to 94% (Fig. 5f). Note that the R–VO₂/CNT composite microspheres presented an evidently more surface-controlled process than the R–VO₂ microspheres at any scan rate, which was caused by the CNT introduction contributing more surface pseudo-capacitance for the R–VO₂/CNT composite microspheres.

The structure conversions in the R–VO₂ and R–VO₂/CNT composite microspheres were investigated through in situ XRD technology during the NH₄⁺ insertion/extraction processes. The two microspheres exhibited similar conversion regulation in the charge/discharge processes. As shown in Fig. 5h and S5a, no new diffraction peak was found in the XRD patterns for the R–VO₂ microspheres and R–VO₂/CNT composite microspheres. However, some minor changes could be observed in the local amplified XRD patterns for the (110) and (101) diffraction peaks (Fig. 5i and S5b). With the increase of the discharge process, the (110) peaks gradually moved to lower angles until discharge at −0.5 V, but no deviation was noticed until the discharge end (−1.3 V), indicating lattice expansion due to the insertion of NH₄⁺ ions into R–VO₂. During the charge process, the (110) diffraction peaks exhibited no variations from −1.3 V to −0.5 V, and subsequent recovery of the initial states was observed, suggesting lattice shrinkage caused by the extraction of NH₄⁺ ions from R–VO₂. The (101) diffraction peaks exhibited distinct changes compared to the (110) diffraction peaks (Fig. 5j and S5c). The (101) diffraction peaks exhibited some major changes only below −0.5 V. The (101) diffraction peaks exhibited obvious deviations towards lower angles from −0.5 V to −1.3 V but could be rapidly recovered upon charging to −0.5 V, suggesting NH₄⁺ ion insertion/extraction alone on the (101) crystal lattice. These conclusions perfectly evidence the above-mentioned DFT results.

NH₄⁺ ion insertion/extraction in R–VO₂ microspheres (Fig. S6) and R–VO₂/CNT composite microspheres (Fig. 5k–m) were demonstrated by ex situ XPS techniques. The evident N^1s signal peaks from the survey XPS spectra appeared and disappeared at 400 eV in the discharge and charge processes, indicating highly reversible NH₄⁺ insertion/extraction in the R–VO₂ microspheres and R–VO₂/CNT composite microspheres, which was in exact agreement with the in situ XRD results. The transformation of V oxidation valence states which were obtained from the high-resolution XPS spectra further demonstrated the NH₄⁺ insertion/extraction processes in the R–VO₂/CNT composite microspheres (Fig. 5l and m). Just the V⁴⁺ signal (V 2p^3/2, 516.4 eV; V 2p^1/2, 524.0 eV) could be observed on the pristine cathodes for the R–VO₂/CNT composite microspheres. In the fully discharged state, substantial V (54%) was reduced to the +3 valence state (V 2p^3/2, 515.0 eV; V 2p^1/2, 522.5 eV), which was attributed to the NH₄⁺ insertion. A partial amount of +4 V (46%) was not transferred into lower states, which could be shown in previously reported aqueous batteries.^33,34 In the fully charged state, the reduced V (+3) was converted to a higher valence state (+4) due to the NH₄⁺ extraction from R–VO₂ crystal lattices. In particular, it should be mentioned that a minor amount of +3 V (13%) was not completely oxidized. It was concluded that the strongly irreversible electrochemical insertion/extraction processes below −0.5 V brought about the difficult conversion for the partial amount of low valence state V. The residual V³⁺ is not directly related to the complete removal of NH₄⁺, but rather represents an independent and irreversible process within the system. It originates from abnormal charge compensation pathways and local structural defects, which prevent some V³⁺ from being oxidized to V⁴⁺. During charging, the increase in the positive electrode potential preferentially initiates oxygen evolution or NH₄⁺ oxidation side reactions, consuming electrons and preventing the oxidation of some V³⁺. The evolution of O₂, a product of these side reactions, does not affect the removal of NH₄⁺, resulting in the absence of N in the XPS spectra but the residual presence of V³⁺. On the other hand, the evolution of O₂ creates oxygen vacancies in VO₂, forming local electron traps. The trapped electrons stabilize V³⁺, preventing its oxidation during charging. These defects do not alter the hydrogen bonding and removal pathways of NH₄⁺, which remain independent.

Hydrogen bond building and breaking in NH₄⁺ with R–VO₂ were shown by FT-IR analysis (Fig. 5n). The IR region of 3100–3600 cm⁻¹ was associated with overlapping OH and NH bands,³⁵ that of 3300–3400 cm⁻¹ was associated with unperturbed N–H groups, and that of 3100–3300 cm⁻¹ was associated with bonded N–H. After the full discharge, an obvious signal at 3170 cm⁻¹ stood out relative to the pristine electrode of the R–VO₂/CNT composite microspheres, suggesting that hydrogen bonds (N–H⋯O) were formed between NH₄⁺ and the R–VO₂ host. Upon fully charging, the broad peak at 3170 cm⁻¹ was difficult to observe, suggesting that the NH₄⁺ insertion/extraction in the R–VO₂ host were entirely reversible processes. These results indicated that the NH₄⁺ insertion/extraction were related to hydrogen bonding/debonding in the R–VO₂ host. For the reduced R–VO₂ cathode, a small part of the charge was shifted from V (yellow lobes on vanadium) to the H…O=V bond (blue cloud) via the O=V bond, thereby leading to oxidization of the attached V ion (yellow core under the outer blue lobes of the V ion) (Fig. S6).³⁶

Charge transfer and ion diffusion for the R–VO₂/CNT composite microspheres during the charge/discharge processes were resolved through in situ EIS methods (Fig. 5o, Table S2 and SI). In the initial state, the Nyquist plots for the R–VO₂/CNT composite microspheres included one high-frequency semicircle and one low-frequency straight line. Upon discharging, the Nyquist plot became a semicircle of gradually increasing size and a straight line with a smaller slope, demonstrating the more difficult ion diffusion and charge transfer due to greater electrochemical polarization. Upon discharge to −0.5 V, a new semicircle emerged within the middle-frequency region, which gradually expanded during subsequent discharge processes, suggesting that the generation of the new semicircle was closely related to the NH₄⁺ insertion into the (101) crystal plane. Upon charging, the semicircle within the middle-frequency region preferentially disappeared. Subsequently, the semicircle within the high-frequency region became smaller, while the slope of the straight line within the low-frequency region successively increased, indicating highly reversible extraction of the R–VO₂ host.

Fig. 5p illustrates the evolution of bonding when NH₄⁺ ions migrated in R–VO₂ driven by the electric field force, the H⋯O bonds for H₁, H₂ and H₃ with the adjacent O atoms were successively disconnected, and meanwhile they rotated forward with a central axis of H₄ to form new H⋯O bonds. H₄ invariably maintained a coupling relationship with O₃ and O₄, but the new H⋯O bond with O₁ replaced the H⋯O bond to O₂.

Full cells with a typical “rocking chair” working principle were assembled using a R–VO₂/CNT composite microsphere cathode coupled with a UP anode to exploit the practical applications (Fig. 6a). Fig. 6b shows the initial 3 consecutive CV curves for full cells at −0.25 to 1.1 V. Numerous redox peaks were observed in charge and discharge processes, in which 2 peak pairs detected at −0.1/0.45 V and 0.5/0.75 V were associated with NH₄⁺ ion insertion into the R–VO₂/CNT composite microsphere cathode, while others were attributed to UP anode energy storage. Predictably, all reduced peaks displayed extreme instability in voltage position and peak intensity upon cycling. Thus, the selected voltage range of 0–0.9 V was further employed in CV tests (Fig. 6c). There were 2 obvious redox peak pairs situated at 0.3/0.6 V and 0.5/0.75 V, associated with NH₄⁺ ion energy storage for the UP anode and R–VO₂/CNT composite microsphere cathode, respectively. More importantly, the nearly overlapping CV curves for the initial 3 cycles indicated the highly reversible NH₄⁺ ion energy storage at this voltage range.

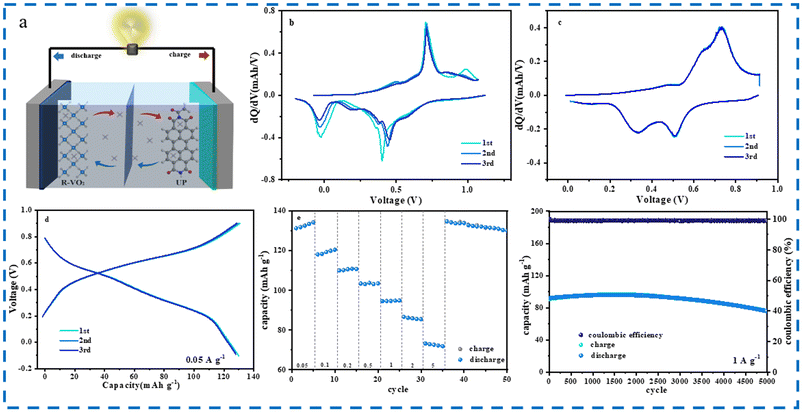

Fig. 6 A schematic diagram showing the aqueous NH₄⁺ ion full cell (a), CV curves showing the aqueous NH₄⁺ ion full cell from −0.25 V to 1.1 V (b), CV curves showing the aqueous NH₄⁺ ion full cell from 0 V to 0.9 V (c), GCD curves for the full cell in the first 3 cycles (d), rate (e) and cycle (f) performances of the full cell.

GCD analyses of full cells were conducted at the 0–0.9 V voltage and 0.05 A g⁻¹ current density (Fig. 6d). The capacity of the full cell was 130 mAh g⁻¹ without any visible capacity decay during the first three cycles. As the current density increased within 0.05–5 A g⁻¹ (Fig. 6e), the capacity for the full cell gradually decreased. In particular, the 70 mAh g⁻¹ capacity was retained at a high current density of 5 A g⁻¹. After reducing the current density to 0.05 A g⁻¹, the full cell could perfectly recover the initial capacity of 130 mAh g⁻¹. Fig. 6f shows the cycling capacity, and associated coulombic efficiency versus cycle number at 1 A g⁻¹. After 2500 cycles, the full cell exhibited a significant capacity of 90 mAh g⁻¹ with a high coulombic efficiency reaching almost 100%. Subsequently, this battery exhibited slight capacity decay to 80 mAh g⁻¹ after 5000 cycles. These results confirmed excellent rate and cycle performances, which indicated that NH₄⁺ ion full cells have potential and are practical for future industrialization.

4. Conclusions

In summary, DFT theoretical calculations revealed that R–VO₂ could provide two ion storage tunnels along the (110) and (101) crystal planes to allow ammonium ions to undergo ultrafast diffusion through unique hydrogen bonds. Furthermore, we successfully prepared R–VO₂/CNT composite microspheres through ultrasonic atomization deposition, and they exhibited increased numbers of active sites and shortened ion diffusion pathways compared to R–VO₂ microspheres. Consequently, R–VO₂/CNT composite microspheres delivered a significant initial capacity (950 mAh g⁻¹) at 0.05 A g⁻¹ and an outstanding rate capacity (170 mAh g⁻¹) at 5 A g⁻¹ at −1.3–0.8 V. Moreover, a more reasonable voltage range located at 0–0.4 V could be used by combining DFT theoretical calculations and intuitive electron microscopy observations, which could further maintain the cycling stability of R–VO₂/CNT composite microspheres, fully reflecting the practical value of AAIBs. Finally, a groundbreaking full cell with a R–VO₂/CNT composite microsphere cathode and UP anode was proposed and exhibited considerable capacity (130 mAh g⁻¹) at 0.05 A g⁻¹ as well as impeccable capacity retention (100%) following 2500 cycles within the 0–0.9 V voltage range. Our investigations offer a reliable strategy for improving R–VO₂ electrode materials and will hopefully stimulate future designs of an advanced novel generation of AAIBs.

Author contributions

Lin-bo Tang and Xian-kai Fan were responsible for the original draft. Wei Zhou and Wei-na Deng were responsible for data curation. Hai Zhu was responsible for validation. Liang Chen was responsible for formal analysis. Jun-chao Zheng and Han Chen were responsible for review and editing.

Conflicts of interest

The authors declare that they have no conflicts of interest.

Data availability

Data are available on request from the authors. The data that support the findings of this study are available from the corresponding author [Junchao Zheng, E-mail: jczheng@csu.edu.cn] upon reasonable request.

Supplementary information (SI): experimental instruments, testing methods, charts, tables, and further analyses to ensure the reproducibility of the data and the accuracy of interpretation. See DOI: https://doi.org/10.1039/d5sc08747c.

Acknowledgements

This work is supported by the National Natural Science Foundation of China (Grant No. 52171200, 52371211 and 52404331) and the Shandong Provincial Natural Science Foundation of China (Grant No. ZR2024QE305).
