Highly-destabilized ligand field excited states of iron carbene complexes and their relation to charge transfer state lifetimes

Reagan X. Hoopera, Benjamin I. Poultera, Jesper Schwarzb, Mariam Barakatc, Kristjan Kunnusd, Kacie J. Nelsona, Aleksandra Ilicb, Clara García-Mateosb, Rajdip Chowdhuryb, Jens Uhlige, Kenneth Wärnmarkb, Elena Jakubikovac, Amy A. Cordonesa and Kelly J. Gaffney*a
aStanford PULSE Institute, SLAC National Accelerator Laboratory, Menlo Park, CA 94025, USA. E-mail: kgaffney@slac.stanford.edu
bCentre for Analysis and Synthesis, Department of Chemistry, Lund University, Box 124, SE-22100 Lund, Sweden
cDepartment of Chemistry, North Carolina State University, Raleigh, NC 27695, USA
dLinac Coherent Light Source, SLAC National Accelerator Laboratory, Menlo Park, CA 94025, USA
eDivision of Chemical Physics, Department of Chemistry, Lund University, Box 124, SE-22100 Lund, Sweden

Received 10th October 2025 , Accepted 14th December 2025

First published on 12th January 2026


Abstract

Lifetimes of photoexcited charge transfer (CT) states in transition metal chromophores are influenced by low-lying ligand field (LF) excited states, especially for 3d metal complexes. To manipulate interactions between LF and CT states, it is important to be able to control LF excited state energies using tunable synthetic variables. In this report, we use Fe 2p3d L3-edge resonant inelastic X-ray scattering (RIXS) to measure LF excited state energies of three homoleptic iron chromophores coordinated by strong-field N-heterocyclic carbenes (NHCs). We investigate the effect of oxidation state and ligand scaffold on LF energies and covalency parameters. A cyclometalated bis(NHC) ligand affords both high LF excited state energies (and thus high 10 Dq) as well as high metal–ligand covalency compared to other iron complexes with very strong-field ligands. However, for the set of complexes investigated, we do not observe meaningful correlation between the LF excited state energies and the CT excited state lifetimes. These results illustrate that targeting long-lived CT excited states necessitates control of multiple molecular excited state properties, with destabilization of the LF excited state energies proving necessary, but insufficient, to control the CT excited state lifetime in Fe carbene complexes.


Introduction

Chemical potential derived from photoexcitation of molecular transition metal complexes has proven useful in areas such as solar energy harvesting,5 pharmaceutical and natural product synthesis,6,7 and laboratory-scale organic reactions.9 Transition metal-based chromophores present the potential advantage of possessing a large number of structural variables, including metal identity and a multitude of ligand design choices. Understanding how this diversity affects electronic excited state properties is essential to utilizing all variables for synthetic benefit.

Many synthetic strategies for tuning excited state behavior have been explored in recent years.10,11 Classically, long-lived charge transfer (CT) excited states of 4d and 5d metal complexes have been targeted due to their utility in photoredox catalysts.12 For the more abundant and inexpensive 3d metals, reaching long CT excited state lifetimes proves more difficult. Compared to their 4d and 5d counterparts, 3d metal complexes have inherently weaker ligand fields (LF). These low-lying LF (equivalently metal-centered or d–d) excited states often act as efficient channels for non-radiative decay of CT excited states to the electronic ground state.13 For this reason, many investigations have targeted ligands with strong σ-donation to generate larger LF splitting that impedes CT excited state relaxation through the manifold of LF excited states. The Wärnmark group has spearheaded the use of some of the strongest σ-donors available, N-heterocyclic carbenes (NHCs), in photoredox catalyst design.1,14 In the decade since their original report, NHC ligands have been pivotal in achieving up to 190 nanosecond metal-to-ligand charge transfer (MLCT) lifetimes in third row transition metal complexes.15–18 While a variety of ligand design approaches have been pursued to extend the CT lifetime of iron complexes, including increasing ligand steric strain19 and inner coordination sphere symmetry,20–22 increasing the LF strength has proven to be the most effective means of increasing CT excited state lifetimes. Systematic investigation of the correlation between CT lifetime and LF strength has never been reported due to the difficulty in measuring LF excited state energies (see below). Iron–NHC complexes are a good model platform for examining this correlation between LF excited state energies and CT excited state lifetimes, since varying the strength of strong field ligands is a key facet in their design.

The successful implementation of NHCs in 3d metal photocatalysts warrants a more complete understanding of how they control CT excited state relaxation. Quantitative assessment of the degree of LF excited state destabilization by NHCs is needed to assess the relationship between the molecular complex structure and LF strength. Ideally, this information comes from direct measurement, as theoretical techniques are not yet able to reliably predict LF excited state energies for any arbitrary 3d metal complex.23 Ultraviolet-visible absorption spectroscopy is the most accessible relevant technique, but LF transitions have weak molar absorptivity and often overlap with CT bands that have orders of magnitude higher absorption cross sections. These factors render the isolated observation of LF states impossible in the UV-visible absorption spectra of many systems, including Fe carbene complexes, though significant blue shifting of CT bands may enable some LF transitions to be resolved.24 Transient absorption spectroscopy can sometimes observe differential changes that are attributed to changes to the LF states, but again struggle to identify their natures unambiguously.

Metal 2p3d L-edge resonant inelastic X-ray scattering (RIXS) spectroscopy measures the same LF states accessed by UV-visible absorption spectroscopy, also reporting them in the ground state geometry.25 In contrast to the forbidden d–d transitions in the UV-visible range, resonant inelastic X-ray photon radiation scattering follows the selection rules of Raman scattering and takes advantage of allowed transitions between metal 2p and 3d orbitals, resulting in strong amplification of LF excited states relative to CT transitions in the final spectrum.26 RIXS has therefore been an increasingly utilized technique for measuring LF excited state energies in photochemically interesting third-row metal complexes, where these energies may be inaccessible in the UV-visible absorption spectra.2,27 In analogy to resonance Raman spectroscopy, RIXS first involves a metal 2p to 3d electronic excitation to a real core-hole excited state (comparable to the electronic excited state in the resonance Raman technique). Then this intermediate state decays via photon emission from a 3d electron re-filling the 2p hole, generating a final d–d excited state, analogous to the process in which an excited vibrational state in UV-visible resonance Raman scattering is formed. The difference in the X-ray absorption and emission energy is termed energy transfer, and in the case of effectively centrosymmetric complexes, energy transfer values map directly onto a Tanabe–Sugano diagram (Fig. 1). In addition to the strong intensities of LF excited states, the strong spin–orbit coupling in the 2p core hole state relaxes the spin selection rule for 2p3d RIXS, enabling LF excited states with ΔS ≠ 0 relative to the GS to be more intense than in a single-photon absorption spectrum.28 Of note, since there is no 2p hole in the RIXS final state, the final state LF excited state energies are not affected by the core hole. This is in contrast to final states measured in metal L-edge XAS spectra, where simulation to derive parameters such as the ground state 10 Dq must assume that the observed excited state 10 Dq is reduced relative to the ground state, usually on the order of 10–20% for Fe–NHC complexes.2,4 Thus, RIXS more directly measures the valence electronic structure of metal complexes than XAS.


image file: d5sc07843a-f1.tif
Fig. 1 Illustration of how metal L-edge RIXS features of a centrosymmetric complex can be mapped onto a Tanabe–Sugano diagram for a given 10 Dq and B (blue vertical line). The diagram shown is for an arbitrary octahedral d6 complex and is not scaled in either axis by B−1. The feature at zero energy transfer is the elastic line, and light grey lines represent additional low-lying LF excited states that are not typically resolved in RIXS experiments due to weak intensity and/or overlap with stronger features.

Iron–NHC complexes 1a,3 1b,3,29 2,17 and 3 (ref. 1) (Fig. 2) have been the subject of numerous previous studies for their potential as 3d metal photoredox catalysts, mainly using UV-visible transient absorption spectroscopy to understand their excited state behavior. In addition, 3 has already been studied using steady-state Fe L-edge RIXS as well as femtosecond-resolution X-ray emission and scattering to investigate the role of LF excited states in the excited state decay of low-lying metal-to-ligand (MLCT) states.2,30 Complexes 1a and 1b are the ferrous3 and ferric3,29 cyclometalated versions of the first generation of Fe–NHC photosensitizers, namely the ferrous bis(NHC) complex (3)1 with a central pyridine moiety instead of the cyclometalating central benzene ring. Cyclometalation of the NHC ligand is expected to raise LF excited state energies because the anionic arene moiety is a stronger σ-donor than pyridine.31 In spite of the predicted increase in LF induced by the arene donor, both of the iron(II) complexes (1a and 3) have 3MLCT excited state lifetimes of 9 ps.1,3 Ferric complex 2 is structurally distinct, having two phenyl[tris(3-methylimidazol-2-ylidene)]borate (phtmeimb) ligands with low deviation of the inner coordination sphere from Oh symmetry (near 90 °C–Fe–C bond angles).17 The iron(III) complexes (1b and 2) have 2LMCT lifetimes of 240 ps and 2 ns,3,17,29 respectively, demonstrating how, within the class of NHC ligands, varying the backbone structure can have large effects on the CT excited state lifetimes.


image file: d5sc07843a-f2.tif

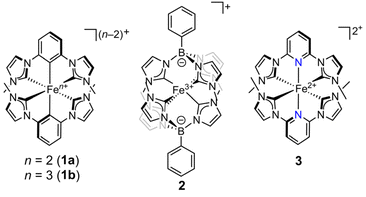

Fig. 2 Complexes with new RIXS analysis in this work (1a, 1b, and 2) and a closely-related complex (3) analyzed previously by Kunnus et al.2 The counterion for complexes 1b and 2 in our measurements was BPh4, and it was PF6 for RIXS measurements of 3.

Herein, we sought to quantify the LF excited state energies of 1a, 1b, and 2 to determine the extent to which variations in the LF excited state energies can be correlated with the 3MLCT lifetimes of ferrous complexes 1a and 3 and the 2LMCT lifetimes of complexes 1b and 2. Additionally, from these LF excited state energies, we also extract 10 Dq and ground state covalency parameters. Overall, our study presents a comprehensive LF analysis of three Fe–NHC complexes on the cutting edge of iron CT excited state functionality, and we show how the isolated variables of oxidation state and ligand scaffold impact their ligand fields.

Results and discussion

Resonant absorption energies from Fe L3-edge XAS

The first component of the RIXS process is a resonant X-ray excitation event, so understanding the structures of the L-edge XAS spectra is necessary for judicious selection of energies for RIXS measurements. The Fe L3-edge XAS spectra for 1a, 1b, and 2 are plotted in Fig. 3. Experimental details can be found in SI Section II. The spectrum of 2 was already reported, and the energies and line shapes in our spectrum are consistent with literature for low-spin ferrous and ferric complexes.4 Within this region, all complexes demonstrate a high-energy absorption with a maximum at 709.7 eV (1a and 1b) and around 710 eV (2) (vertical dashed lines in Fig. 3). This absorption feature corresponds to transitions into states formed by image file: d5sc07843a-t1.tif absorption.32 For ferric complexes 1b and 2, the t2g orbital set also includes a single hole, and the lower-energy absorptions at 705.4 eV (1b) and 705.6 eV (2) represent states formed by Fe 2p → 3d(t2g) absorption. This feature is well separated from the image file: d5sc07843a-t2.tif absorption line due to the strong ligand fields present in our complexes. Notably, the low-energy absorption is absent in the XAS spectrum of 1a, suggesting minimal X-ray-induced photooxidation.33
image file: d5sc07843a-f3.tif

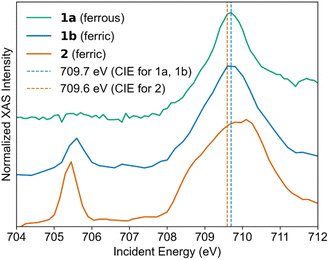

Fig. 3 Total electron yield Fe L3-edge XAS spectra with vertical lines showing energies where constant incident energy RIXS spectra were fit.

States accessed by Fe 2p3d L3-edge RIXS

Excitation energies that induce image file: d5sc07843a-t3.tif transitions result in intermediate RIXS states that can then form final states with LF excited state character: (t2g)5(image file: d5sc07843a-t4.tif)1 for iron(II) and (t2g)4(image file: d5sc07843a-t5.tif)1 for iron(III). For complexes 1a and 1b, the XAS spectra show a clear image file: d5sc07843a-t6.tif absorption maximum, while 2 has a more complex spectral shape, including a broad low-energy shoulder. In general, the image file: d5sc07843a-t7.tif absorption envelope is broader for iron(III) complexes because of an increased number of microstates formed from the (t2g)5(image file: d5sc07843a-t8.tif)1 valence intermediate state configurations relative to the (t2g)6(image file: d5sc07843a-t9.tif)1 valence intermediate state configurations for L-edge absorption for low-spin iron(II).

We sought to better understand why the shape of the image file: d5sc07843a-t10.tif resonance visibly differs between ferric complexes 1b and 2 in order to better explain which intermediate states may be accessed by the L-edge absorption process. To do this, ligand field multiplet simulations were performed (SI Section III). These demonstrated that the splitting of the image file: d5sc07843a-t11.tif peak is a function of Slater integral Fddk scaling (where lower Fddk is associated with increased covalency) when only the 3d–3d electron exchange and coulombic repulsion energies are considered (Fig. 4). This result suggests that the shape of the image file: d5sc07843a-t12.tif XAS resonance is a consequence of covalency in this set of complexes. A more compact signal (as in 1a) as opposed to a broad, unresolved, multi-peak structure (as in 2) is a marker of increased metal–ligand covalency modeled as a reduction of 3d–3d electron repulsion (SI Section III). Below, we show how the X-ray absorption model guided the selection of incident energies and interpretation of RIXS spectra.


image file: d5sc07843a-f4.tif

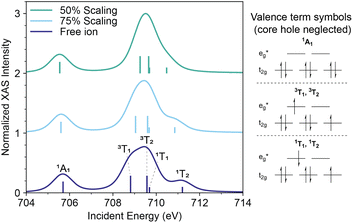

Fig. 4 Iron L3-edge XAS simulations for a d5 ground state (term symbols are for the d6 final states, which are schematically represented on the right). A 10 Dq of 4.3 eV was used for all plots, and the intensity was normalized to the maximum value of the plot showing 50% scaling of the Fddk parameter.

The XAS spectra above provided a guide for the energy window to acquire two-dimensional RIXS maps across the Fe L3-edge absorption envelope. Collection of full RIXS maps is generally not required to pick resonant absorption energies, as these can be designated based on the XAS spectra. However, we chose to report and discuss the 2D RIXS maps to demonstrate the additional information that can be gained from their analysis and to thoroughly illustrate the concept of constant incident energy (CIE) RIXS spectra, from which LF excited state energies were extracted.

In our 2D RIXS maps, the x-axis shows the incident energy used to excite an L-edge XAS transition, and the y-axis shows energy transfer (the Raman shift determined by subtracting the energy of the inelastically scattered photon energy from the incident photon energy to provide the energy of the electronic excited state created by RIXS, often referred to as the final state). We indicate intensities of RIXS final states as a color map. The 2D RIXS map of complex 2 is shown in Fig. 5. By summing the RIXS intensities along the energy transfer axis, an L-edge-like spectrum is obtained (PFY trace in Fig. 5). Vertical cuts at a constant incident energy more clearly show LF excited state energies. All of our RIXS maps have intense LF excited state resonances and variable degrees of intensity for the weaker elastic bands and high energy transfer features which result from a complex combination of CT and high-energy LF excited states.2,28 Fig. S3 shows a labeled description of the RIXS map of 2. Focusing on the lower energy t2g resonance, the primarily inelastic scattering channel creates CT final states of LMCT character, whose intensities reflect the amount of metal character in the occupied ligand-based orbitals from which the electron that fills the Fe 2p core hole originates.26 An example of such a state is the ∼4 eV transfer peak at a ∼705.5 eV incident energy in the RIXS map of 2 (Fig. 5). Moving to the intense higher-energy image file: d5sc07843a-t13.tif region of this RIXS map centered around 709.5 eV, it is also notable that multiple maxima are observable in the low-lying LF excited state region (3 to 6 eV), whereas the XAS spectrum of 2 does not resolve any fine structure. This result demonstrates the ability of 2D maps to resolve XAS resonances by extending an incident energy vs. intensity plot (XAS) to one with a third dimension of energy transfer.


image file: d5sc07843a-f5.tif
Fig. 5 Maximum-intensity-normalized 2D RIXS map of ferric complex 2 at the L3 absorption edge. PFY = partial fluorescence yield spectrum from integrated RIXS map. TEY = total electron yield spectrum from XAS. The vertical lines in the 709 to 710 eV area show the energies where CIE RIXS spectra were measured and averaged.

Derivation of ligand field energies from RIXS spectra

Constant incident energy (CIE) RIXS spectra were analyzed for the purpose of obtaining LF excited state energies. Briefly, energies were chosen to be resonant with 2p3d absorptions involving an excitation into an image file: d5sc07843a-t14.tif orbital, giving final states of LF character. A full description of how the energies were chosen is given in SI Section II.

Many methods for assigning LF excited states to transition metal L-edge RIXS features have been reported in the literature. These include high-level ab initio calculations,2,28,34–36 charge transfer multiplet (CTM) calculations that fit both LF (10 Dq and Racah C and B) and charge transfer parameters,2,25,27,35 and several variations of fitting that use only LF parameters.25,27,28,37 There are advantages and disadvantages to each approach, and for different systems it may be appropriate to use different methods. While ab initio calculations are not affected by experimental constraints such as resolution, accuracy may be an issue, and a potential need for very large active spaces can render their cost prohibitively high. CTM calculations are semi-empirical in nature and parameterize both the crystal field and its mixing with MLCT and LMCT states, providing a comprehensive model.38 They are particularly useful when CT mixing effects are significant, such as in iron hexacyanide complexes.35,39 Given the large number of parameters, challenges of using CTM theory include overparameterization and the consideration that the parameter space combined with spectral resolution generally does not allow for a unique fit. The third listed method, in which RIXS spectra are interpreted through only the lens of LF theory, typically uses fewer parameter inputs and is a time-tested tool on UV-visible absorption spectra. This aspect gives it the advantage of direct comparison to literature published prior to the development of quantum chemical and CTM methods. A major limitation of the LF theory approach is the restricted symmetries to which existing full models can be applied, but our complexes are satisfactorily approximated by a point group (Oh) which can be rigorously treated (see SI Section IV).

Consequently, we have chosen to interpret our RIXS spectra using LF theory. The single primary peak of the ferrous L3-edge XAS spectrum of 1a along with absence of obvious satellite features (Fig. 3) suggests that mixing of CT and LF states is negligible, and thus CTM treatment offers little additional advantage with the risk of overparameterization. The shapes of the ferric L-edge XAS spectra are adequately described using only LF multiplet simulations (Fig. 4), and are again lacking in strong satellite features arising from highly-covalent CT transitions. The foundation of the LF theory fitting procedure is matrices describing total valence d electron–electron repulsion, in terms of the octahedral LF splitting 10 Dq, and Racah parameters B and C, reported by Tanabe and Sugano, from which the eponymous diagrams are derived.8,40

Modeling method and uncertainty

To obtain LF parameters from CIE RIXS spectra fitting, we adapted a fitting code from previous reports by Kunnus et al. and Larsen et al.,27,41 which performs least-squares fitting of LF energies by varying the LF parameters 10 Dq, C and B that are embedded within the Tanabe–Sugano matrices. SI Section IV discusses the justification of this choice compared to direct selection of LF state energies from the RIXS spectra. Parameters C and B are derived directly from the more fundamental Slater integrals F2 and F4, whose changes represent the degree of isotropic radial d electron expansion that occurs at a metal site upon formation of a metal–ligand bond.42 One notable difference between the fit code used by Larsen et al.27 and the one used herein is that the scaling of both F2 and F4 was uniform in the former, while we allowed them to scale independently. Uniform Fddk scaling results in the ratio C/B being fixed to the free ion constant value of 3.73 (eqn (S1) and (S2)). A C/B ratio fixed to the free ion value is commonly adopted, though there is physical justification for the ratio C/B to be variable across systems (SI Section IV);42 therefore, we favored a variable C/B ratio, though we also compare to fits where we enforce a C/B value of 3.73.

The spectral resolution is not sufficient to manually distinguish individual peaks in our systems that have high densities of energetically-close LF excited states. Peak fitting methods therefore do not give unique results, adding uncertainty to the LF state energies. In the most extreme case, the inaccuracy of an individual LF state energy is estimated to be maximally 0.5 eV relative to its true value, based on differences using fixed vs. free C/B values for the RIXS spectrum of 1a, which both gave acceptable fits (Table S3). To investigate the precision of our fit-derived LF parameters, we sampled the parameter space for the floated C/B model using bootstrap methods (SI Section IV and Table S5). The major conclusions from bootstrapping are that differences in 10 Dq are statistically significant but that values of B and C are less precise. The latter observation is likely because both varied C/B and fixed C/B give reasonable fits to our data (Fig. 6), though we prefer the physical model of varied C/B. Several aspects increase confidence in both the fits and the conclusions drawn on them: (1) the LF energies are constrained to a physical model; (2) the LF strengths and energies have a large distribution between complexes such that firmly assigning order is possible; and (3) the most intense states in each fit have the same multiplicity as the ground state (ΔS = 0), which is consistent with previous RIXS studies and physical expectations.25,36


image file: d5sc07843a-f6.tif

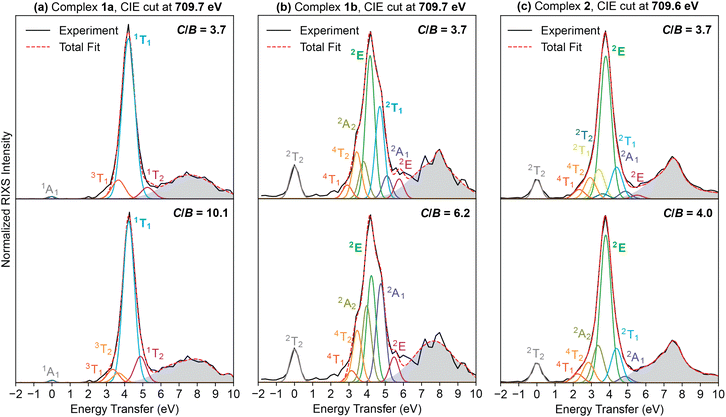

Fig. 6 Ligand field excited state energy fitting of RIXS cuts at CIE energy of 709.7 eV for complexes 1a and 1b and at 709.6 eV for 2. The fitted peak at zero energy transfer represents elastic scattering and is labeled as the ground state term symbol. Elastic scattering linewidths: 0.9 eV (1a), 0.6 eV (1b), 0.6 eV (2); inelastic scattering linewidths: 0.4 eV (1a), 0.6 eV (1b), 0.7 eV (2). The grey region represents CT or higher-lying LF states and is modeled in the least squares fitting by up to four Gaussian-shaped bands. The C/B ratio was fixed at 3.73 in the top panels and was floated in the lower panels. Some states have negligible fit intensity in certain fits (see Tables S3 and S4).

Ligand field excited state energies of 1a and 1b

The fits for 1a and 1b CIE RIXS spectra at 709.7 eV (Fe 2p → 3d(t2g) absorption) are shown in Fig. 6a and b and their state energies in Table S4. For 1a, the main contributor to the RIXS spectrum is assigned to a 1T1 final state, in agreement with previous RIXS studies of six-coordinate iron(II) with similarly strong-field ligand environments (Fig. 6a).2,35 The 1T1 state resonance of 1a appears at 4.2 eV, which is about 1 eV higher than the analogous state in its pyridine analogue (complex 3),2 showing that the central arene induces a much stronger LF than the central pyridine donor of 3. The lowest-energy LF excited state, 3T1, is observed as a weak low-energy (3.35 eV) shoulder of 1T1. Intensity at the weak shoulder could only be accounted for by variable C/B, as a fixed value of 3.73 gave a 3T1 energy of 3.65 eV (Fig. 6a). Fitting a lower energy to the 3T1 state not only better reproduces the experimental spectra but is also in closer alignment with previously-calculated theoretical vertical transition energies, which shows a 3T1 energy of ∼2.9 eV for 1a.3 Comparison between computed and measured 3T1 energies for 3 also reveals a discrepancy of similar magnitude (∼0.5 eV, where the calculated value is lower).2,43

The RIXS spectrum of 1b has a more complicated structure, with major contributions from formally spin-allowed doublet states, specifically the lowest-lying 2E state around 4.3 eV (Fig. 6b). In the RIXS experiments, excitation into the image file: d5sc07843a-t15.tif orbitals produces final states of image file: d5sc07843a-t16.tif for ferrous 1a and image file: d5sc07843a-t17.tif for ferric 1b. Within the strong field Oh framework and ignoring spin–orbit coupling, there are 24 microstates possible for the iron(II) image file: d5sc07843a-t18.tif configuration and 60 for the iron(III) image file: d5sc07843a-t19.tif configuration, leading to more possible terms in the ferric RIXS spectra fits.44 As pointed out above, the experimental resolution does not permit parameter-free fitting of well-defined peaks. Although it may be possible to manually fit the spectra with fewer Gaussians, the number of states are defined by LF theory, and previous RIXS studies indicate that all may contribute to the experimental spectra with incident energy intensity dependence.28 For 1b, DFT-calculated values of the lowest LF excited state (4T1, 3.14 eV) range from about 2 eV to 2.6 eV depending on the method used, and this is about 0.5–1.0 eV lower than what is observed experimentally.3,29

Ligand field excited state energies of 2

The fit of the RIXS spectrum of 2 at a CIE of 709.6 eV is shown in Fig. 6c and state energies in Table S4. Similar to the other ferric complex 1b, these fits indicate that the major contribution to the spectrum at the image file: d5sc07843a-t20.tif absorption resonance is the lowest-energy 2E state. Compared to 1b, the intensities of other states in complex 2 are diminished at a 709.6 eV CIE spectrum. After fitting the RIXS spectrum of 2 at 709.6 eV, the positions of the LF energies from this fit were then used to fit RIXS spectra at additional CIEs (marked in Fig. 5 as vertical lines), keeping LF energies constant and only changing their intensities (Fig. S8). At these additional cuts, RIXS states other than 2E gain relative intensity. The adequate fits of RIXS spectra at different CIEs spanning the image file: d5sc07843a-t21.tif absorption region using fixed final state energies show the robustness of the LF excited state energies from the initial fit in Fig. 6c. The lowest LF excited state, 4T1, fit to an energy of 2.33 eV, is in decent agreement with the DFT-calculated value of 2.19 eV.17
Ligand field parameters. The LF parameters 10 Dq, B, and C represent the condensed sum of many distinct physical effects, but they provide a set of readily comparable values by which LF strength (10 Dq) and covalency (C and B) can be compared between compounds to help rationalize differences in their excited state properties. The importance of the LF strength in promoting long-lived CT excited states is well known, and in recent years, tuning metal–ligand covalency has been explored as an avenue to alter excited state properties.27,45,46 Since the floated C/B fit is considered to be more physically accurate, the LF parameters discussed next include variable C/B ratio fits, unless otherwise specified.
Ligand field strength. Relevant parameters both with and without floated C/B are listed in Table 1. The 10 Dq value of 1a was found to be 4.6 eV. This is markedly increased relative to other iron complexes with strong field ligands such as its pyridine analogue 3 (2.7 eV), other ferric and ferrous homoleptic iron carbene complexes (3.2–3.8 eV), [Fe(CN)6]4− (4.2 eV), and [Fe(CN)6]3− (4.3 eV).4,47 The large 10 Dq of 1a suggests that the M–L σ orbitals of the of 1a are highly destabilized due to the two anionic arene donors. The ferric complex 1b has a 10 Dq value of 4.3 eV, which is comparable to ferricyanide.47 While LF strength usually increases with increasing oxidation state, the opposite effect is observed for 1a and 1b in both fitting models.44 This trend opposing the norm is attributed to a bond length expansion for the Fe–C(carbene) bonds upon oxidation state change from iron(II) in 1a to iron(III) in 1b.29 The Fe–C(arene) bond lengths between the two compounds show no statistical difference. Comparisons of density functional theory (DFT) generated molecular orbitals (MOs) of 1a and 1b (Fig. S10) indicate that the electron hole formed upon oxidation of ferrous 1a resides in a MO that has some weak Fe–C π bonding interaction, and thus ferric 1b might have a decreased Fe–C(carbene) bond order relative to 1a.
Table 1 Summary of photochemically-relevant LF energies and parameters. The first three lines of data are from fits where C/B was allowed to float, and the three lower lines are from fixed C/B
Complex GS Lowest LF excited state (energy, eV) 10 Dq (eV) B (cm−1, eV) C (cm−1, eV) C/B β C/Cfree ion
a Values are consistent with prior literature.4b These ‘β’ values are not directly comparable. β = Bcomplex/Bfree ion (for C/B = 3.73, these are comparable). Bfree ion values used: 917 cm−1 (iron(II)), 1015 cm−1 (iron(III)).8 Cfree ion values used: 4040 cm−1 (iron(II)), 4800 cm−1 (iron(III)).8
1a 1A1 3T1 (3.35) 4.6 346, 0.0429 3490, 0.4327 10.1 0.38b 0.86
1b 2T2 4T1 (3.14) 4.3 325, 0.0403 2023, 0.2509 6.2 0.32b 0.42
2 2T2 4T1 (2.33) 3.8a 643, 0.0797 2600, 0.3224 4.0 0.63b 0.54
1a 1A1 3T1 (3.67) 4.4 579, 0.0718 2138, 0.2650 3.7 0.63 0.53
1b 2T2 4T1 (2.91) 4.2 436, 0.0541 1626, 0.2016 3.7 0.43 0.34
2 2T2 4T1 (2.23) 3.8a 512, 0.0634 1908, 0.2366 3.7 0.50 0.40


The 10 Dq value of 2 is 3.8 eV in both fit models. This is consistent with the ground state 10 Dq parameter obtained from fitting the Fe L-edge XAS spectrum of 2 with charge transfer multiplet calculations in a previous report from Uhlig et al.4 The smaller LF of 2 versus 1b is surprising given its near 90 °C–Fe–C bond angles that would be expected to raise 10 Dq.48,49 A potential contributor to the smaller LF of 2 is that its Fe t2g orbitals do not appear to engage in as much π bonding with carbene π* orbitals (Fig. S11) as in 1b, which has clearer Fe–C π back bonding that may lower its t2g orbital energies (Fig. S10).

Covalency

The ability of metal–ligand covalency to affect LF excited state energies is illustrated in commonly-known Tanabe–Sugano diagrams, where both the energy and 10 Dq axes are scaled by B−1.8 In Fig. S7, plots of LF excited state energies as a function of covalency (represented by uniform scaling of the Fddk parameters) clearly convey that for a given 10 Dq, Fddk scaling may have considerable effects on LF state energies. It is this dependence that makes covalency a viable tuning point for LF excited state energetics, independent of the LF strength that is most commonly considered. Covalency is most often compared using the nephelauxetic parameter β which is equivalent to Bcomplex/Bfree ion, where a lower value is assumed to indicate greater covalency. This parameter should be used with caution, however, as eqn (S3) shows that when C/B is not fixed between complexes, Bcomplex is a function of C/B. Thus, β should only be compared when C/B is fixed across samples. The β parameters (for C/B = 3.73) and B values (for floated C/B) for complexes 1a and 1b are significantly reduced compared to relevant ferrous and ferric comparisons, including 2.2,27,28,50 In general, these results show that the covalency imparted by the cyclometalated NHC ligand is substantial.

Although a complete physical interpretation of covalency is complicated by anisotropic metal–ligand interactions as well as the dual effects of electrostatic screening (central field covalency) and delocalization of metal d orbitals in the formation of molecular orbitals,51,52 we were able to assess delocalization due to bonding using DFT-generated orbital pictures in Fig. S10 and S11. These show that 1b generally has less than about 50 percent iron character (and conversely a high percent of ligand character) in the valence orbitals possessing metal-derived d-orbital symmetry, indicating highly-covalent bonding that disperses iron d electrons across the ligands.53 While 2 also features some molecular orbitals with close to 50 percent or lower Fe d-orbital parentage, its occupied t2g orbital set is markedly more ionic than that of 1b, due to fewer metal–ligand π interactions as mentioned above (Fig. 7). These DFT findings are complimentary to the experimental ratios of F2/F4 for 1b and 2, which are consistent with 1b having an extended π system and 2 having π orbitals but no large conjugated π network (SI Section V).54 Within this set of complexes, covalency appears to be mainly governed by metal–ligand π bonding, where the large degree of π conjugation in 1b correlates with enhanced covalency compared to 2.


image file: d5sc07843a-f7.tif

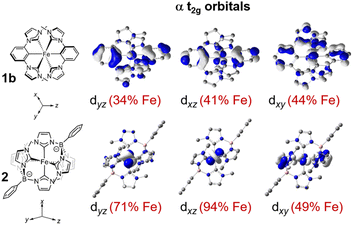

Fig. 7 Comparison of DFT-derived t2g orbital makeup of ferric 1b and 2, showing increased covalency for 1b compared to 2. The full orbital diagrams are shown in Fig. S10 and S11.

Ligand field excited state energies and CT lifetimes

Understanding the interactions of LF and CT excited states is essential to fully harnessing 3d metal complexes for photochemical applications, and so we examined the potential connections between LF energies measured by RIXS and previously-reported CT excited state kinetics studies on the iron complexes herein. The lowest-energy LF excited state (3T1) for ferrous cyclometalated bis(NHC) complex 1a was found to be 3.35 eV in this study, while its pyridine bis(NHC) counterpart 3 has a 3T1 energy of 2.45 eV (Fig. 8).2 Despite the much stronger LF of 1a, both have a dark 3MLCT state with a 9 ps lifetime, suggesting different mechanisms for decay of the 3MLCT state.1,55 For 3, ultrafast X-ray emission spectroscopy experiments demonstrated that the 9 ps time constant corresponds with 3MLCT → 3LF internal conversion,23 while for 1a, the 9 ps time constant is proposed from calculations to originate from direct ground state recovery via the 3MLCT state.3 Our RIXS measurements show that the 3T1 energy is above the rather high 3MLCT energy of ∼2.5 eV in the ground state geometry of 1a, but previous calculations suggest that the relaxed 3T1 geometry could have a lower energy than the 3MLCT state, adding internal conversion to 3LF as another potential decay route.3 Achieving long-lived MLCT states in iron(II) species has largely proven a formidable goal, with the first reported major advancement toward ns lifetimes being accomplished using a homoleptic bis(1,2,3-triazol-5-ylidene) complex.56 Three iron(II) complexes have a reported MLCT lifetime of at least 1 ns at room temperature, with one featuring a cyclometalated phenanthroline ligand (noting that some long-lived excited states of iron(II) species initially assigned as MLCT were later evidenced to be 5LF in nature).57–60 Calculations on the cyclometalated complex showed that the 3LF state energy was above the lowest 3MLCT state after nuclear relaxation, due to the combination of its strong LF and very low 3MLCT energy (∼1.1 eV).61 Clearly, a challenge in the design of next generation iron(II) MLCT catalysts is to achieve a balance between both high-energy LF excited states and high-energy, long-lived MLCT states. For iron(II) complexes, perhaps targeting long-lived MC excited states is a worthwhile endeavor.
image file: d5sc07843a-f8.tif

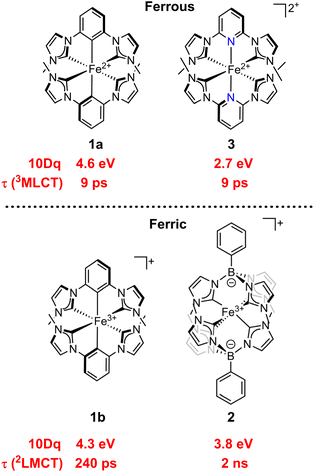

Fig. 8 Chart of 10 Dq, CT excited state lifetimes, and CT excited state energies for the complexes with RIXS reported here (1a, 1b, and 2) as well as a highly comparable complex (3) with LF excited state energies known from previous RIXS studies.1,2

In contrast to the 3MLCT states of iron(II) NHC complexes, iron(III) NHC complexes have low-energy 2LMCT states with a stronger record of favorable photoredox properties, including longer-lived and higher-energy CT states.16,17,62,63 We measured the LF excited state energies of two ferric complexes with significantly different 2LMCT lifetimes: 1b (τ = 240 ps)3,29 and 2 (τ = 2 ns)17 (Fig. 8) but comparable LMCT energies. Interestingly, we found that 1b has a stronger LF than 2, with the lowest measured LF excited state energy (2T2) of 1b being about 0.8 eV higher than that of 2. While an explanation of this finding is outside the scope of this article, it illustrates that, once a complex is well into the strong LF regime, additional factors, like the magnitude of the intramolecular reorganization energy and the strength of the non-adiabatic coupling between the LMCT and ground electronic states, may dictate the LMCT lifetimes of ferric species. A recent example from Wenger et al. amplifies the notion that aspects other than LF energies mainly control 2LMCT lifetimes in very strong-field cases. They reported an iron(III) NHC complex with the same structural backbone as the ligand in 1a/1b but with an attached organic chromophore.16 Those changes should not greatly affect the already very large 10 Dq afforded by the cyclometalated NHC, yet the 2LMCT lifetime of their iron(III) complex is 100 ns, compared to 240 ps for 1b, as the attached organic chromophore acts as a triplet reservoir.16 Evidence for pure distal substituent effects on the LMCT lifetimes of 1b derivatives has also been recently disclosed, citing differences between decay mechanisms tuned by the LMCT energy as the major contributor.64

The CT energies for all of the complexes in Fig. 8 lie within a narrow range of ca. 1.9–2.1 eV.3,17,65 For 1a and 3, identical 3MLCT lifetimes combined with large energy differences between their lowest LF excited states and 3MLCT states might result from different mechanisms for 3MLCT decay. While it is known that the 9 ps lifetime 3MLCT state of 3 is deactivated partially through population of a lower-lying 3MC state,30 it is possible that the 3MLCT state of 1a primarily decays directly to the ground state.

Assuming that the geometrically-relaxed 4T1 state for 1b and 2 is lower in energy than their ∼2 eV 2LMCT state (corroborated through previous calculations),3,17 a larger driving force and thus larger rate constant for 2LMCT → 4T1 should be present for 2 in the Marcus normal region.66 We therefore speculate that the long lifetime of 2 could be due to unmeasured effects such as 2LMCT and ground state wavefunction overlap that influences the non-adiabatic coupling between these electronic states.

Conclusions

Iron 2p3d L-edge RIXS was used to measure the low-lying ligand field excited state energies of three Fe–carbene complexes, and the effects of oxidation state and ligand structure on LF splitting and covalency parameters were evaluated. Our extensive analysis of LF parameters contributes to a growing interest in controlling 3d transition metal excited state behavior by tuning covalency, showcasing the remarkable LF properties of highly-covalent, strongly-donating NHC complexes. Several conclusions relating ground state molecular structure and excited state electronic structure of Fe–NHC complexes can be drawn from our findings.

First, the cyclometalated NHC ligand in 1a and 1b imparts some of the strongest ligand fields known for ferrous and ferric complexes, while the phtmeimb ligand in 2 is comparably weaker despite forming complexes with less deviation from Oh symmetry about the metal. An unusual reversal of the trend of higher oxidation state leading to larger 10 Dq is observed for the 1a/1b redox pair. Secondly, comparison of both ferrous (1a compared to 3) and ferric (1b compared to 2) Fe–carbene complexes supports the conclusion that increasing the LF excited state energies above the low-lying CT excited states presents a necessary but insufficient pathway to increasing CT lifetimes. Incorporating this important finding into the design of next generation iron photosensitizers will be a challenging task, requiring careful consideration of all factors governing electron transfer rates. Based on the highly-speculative factors driving the relationships between LF energies and CT lifetimes in this study, it may be particularly important to control rates of direct CT to ground state deactivation through modification of CT excited state energy, as well as the degree of ground and excited state electronic coupling.

Overall, our study highlights the current potential for steady-state metal L-edge RIXS to characterize the ground state ligand fields of photochemically-important systems. These descriptions are essential for understanding how to modulate fundamental yet experimentally difficult-to-quantify aspects of metal–ligand interactions such as their strength and covalency. Some tentative inferences regarding excited state dynamics could be made from our data, which may stimulate further studies. Going forward, we expect that steady-state and time-resolved RIXS spectroscopy will continue to provide unique insights, facilitating discovery of thus far unrecognized factors that control the interaction of molecular transition metal complexes with light.
