Reversible polarization-enabled hydrogen evolution reaction on two-dimensional ferroelectric Cu_n(CrSe₂)_n+1 monolayers

Abstract

The scalable production of hydrogen through electrochemical water splitting demands earth-abundant catalysts with both high activity and dynamic tunability, yet achieving these attributes simultaneously remains a major challenge. Two-dimensional (2D) ferroelectric materials offer a unique opportunity, as their reversible polarization can modulate surface electronic states, though their potential in electrocatalysis has scarcely been explored. Here, we employ first-principles calculations to investigate the electronic structure and hydrogen evolution reaction (HER) activity of recently synthesized Cu_n(CrSe₂)_n+1 (n = 1–3) monolayers with tunable thickness and robust multiferroic behavior at room temperature. We identify surface Se top sites as the optimal catalytic centers, with the down-polarized state exhibiting HER activity comparable to that of benchmark Pt(111). A strong inverse correlation between hydrogen adsorption free energy and the p-band center of surface Se atoms is further established, providing a predictive descriptor for catalyst design. Crucially, reversible polarization dynamically modulates hydrogen adsorption energetics through charge redistribution, enabling efficient transitions between H adsorption and H₂ desorption and thereby maximizing HER efficiency. These insights position Cu_n(CrSe₂)_n+1 as a promising polarization-switchable platform for high-performance and controllable electrocatalysis, offering general design principles for next-generation ferroelectric catalysts.

---

1 Introduction

The global energy crisis and environmental pollution pose significant challenges to sustainable development.^1–3 Hydrogen, as a clean and renewable energy carrier, has garnered tremendous interest due to its abundance, high gravimetric energy density, and zero carbon emissions.^4–6 Electrochemical water splitting has emerged as a promising and scalable technology for sustainable hydrogen production, owing to its inherent safety, modularity, and environmental compatibility.^7–9 However, the efficiency of this process is fundamentally limited by the sluggish kinetics of the hydrogen evolution reaction (HER), which necessitates the use of highly active and durable electrocatalysts.^10,11 Platinum (Pt) remains the state-of-the-art catalyst for the HER, thanks to its near-optimal hydrogen adsorption energy, which provides crucial support for its exceptional catalytic activity.^12–14 Yet, the scarcity and exorbitant cost of Pt severely restrict its widespread application,^15,16 representing a critical bottleneck for the large-scale deployment of water electrolysis in a future hydrogen economy.^17,18

Addressing this challenge requires a paradigm shift from simply replacing Pt with cheaper alternatives to fundamentally rethinking catalyst design. Emerging strategies, including electronic structure modulation,^19–21 interfacial engineering,^22–24 and defect manipulation,^25–27 have shown great promise in tuning adsorption energetics, accelerating charge transfer, and enhancing catalytic stability under operational conditions. In particular, the exploration of unconventional active sites,²⁸ such as low-coordination metal centers,²⁹ heteroatom-doped frameworks,³⁰ and atomically dispersed catalysts,³¹ has expanded the design landscape, breaking traditional activity–stability trade-offs. Despite these advances, realizing practical, scalable electrocatalysts that combine intrinsic activity, robustness, and manufacturability remains a formidable challenge, underscoring the need for predictive, theory-guided frameworks that seamlessly integrate atomic-scale design with experimental validation.

Two-dimensional (2D) materials have attracted considerable attention as versatile electrocatalytic platforms due to their high surface-to-volume ratio, abundant active sites, and tunable electronic properties.^32,33 Among them, 2D ferroelectric materials offer unique mechanistic advantages for catalysis because their switchable polarization can dynamically modulate the local electronic environment at surface sites.^34–37 This polarization-induced charge redistribution directly affects the binding strength of reaction intermediates, enabling the breaking of conventional linear scaling relationships and precise control over reaction energetics.^37–39 Experimental and theoretical studies have demonstrated that polarization reversal can systematically tune intermediate binding energies, break linear scaling relationships, and enhance HER activity in diverse systems such as BaTiO₃,⁴⁰ CuInP₂S₆,³⁶ L-Bi₂O₂Se,⁴¹ CuCrS₂ (ref. 42) and TMN₃/In₂Se₃ heterostructures.⁴³ These observations establish ferroelectric polarization as a mechanistic lever for achieving controllable and tunable catalytic performance beyond the limitations of conventional electrocatalysts.

Motivated by these insights, it is essential to identify intrinsically stable 2D ferroelectrics capable of delivering polarization-tunable HER performance. Recently, 2D ferroelectric CuCrSe₂ monolayers have been synthesized through chemical exfoliation under redox control as well as through chemical vapor deposition.^44–46 To avoid confusion, we refer to the exfoliated layered materials as Cu_n(CrSe₂)_n+1 (n = 1–3), where n denotes the number of layers. Experimental and theoretical studies have reported high phase-transition temperatures and multiferroic behavior in these systems.^44,46,47 Their adjustable thickness and inherent ferroelectricity make them attractive candidates for electrocatalytic hydrogen evolution. Here, we employ density functional theory to systematically explore the dynamical stability, electronic structure, and HER activity of Cu_n(CrSe₂)_n+1 (n = 1–3). We identify the top Se site as the optimal active center and find that all structures in the down-polarized state show superior HER activity. A strong inverse correlation between hydrogen adsorption free energy and the Se p-band center is revealed, establishing it as a reliable descriptor. Crucially, polarization reversal dynamically adjusts hydrogen adsorption energetics through charge redistribution, enabling hydrogen adsorption and desorption to proceed via distinct electronic states and thereby markedly accelerating the entire HER process. These results position Cu_n(CrSe₂)_n+1 (n = 1–3) as a promising platform for polarization-tunable HER electrocatalysis.

2 Calculation methods

All spin-polarized first-principles calculations are performed based on the density functional theory (DFT) using the Vienna ab initio Simulation Package (VASP).^48–50 The exchange–correlation interactions are treated using the Perdew–Burke–Ernzerhof (PBE) functional within the framework of the Generalized Gradient Approximation (GGA),^49,51 and DFT-D3 dispersion correction is applied to account for van der Waals interactions. The DFT + U method (U_Cr = 3 eV)⁵² is employed to account for the strong correlation of the 3d electrons of Cr.⁵³ The plane wave cutoff energy is set to 520 eV. A vacuum layer of 15 Å is added in the z-direction to prevent interactions between adjacent layers, and dipole corrections are included to eliminate artifacts from periodic boundary conditions. A 2 × 2 × 1 supercell is used to investigate the hydrogen evolution catalytic performance of Cu_n(CrSe₂)_n+1 (n = 1–3). The Brillouin zone is sampled using 2π × 0.03 Å⁻¹. All models undergo structural relaxation until the force convergence and energy convergence are within 0.03 eV Å⁻¹ and 10⁻⁵ eV, respectively. The PBE functional is employed to analyze the band structure and density of states. The lattice dynamical stability and phonon dispersion curves are computed using the supercell method implemented in the Phonopy code.⁵⁴ The thermal stability is achieved through ab initio molecular dynamics simulations (AIMD) using the Nosé-Hoover heat bath method under an NVT ensemble at 400 K for 5 ps.⁵⁵ The hydrogen evolution reaction barrier is calculated using the climbing image nudged elastic band (CI-NEB) method implemented in the VASP.

The formulas for calculating the in-plane Young's modulus and Poisson's ratio at any angle are as follows:⁵⁶

andHerein, C₁₁, C₁₂, C₂₂, C₆₆, and θ represent the independent elastic constants and the angle, respectively.

The hydrogen evolution reaction performance of Cu_n(CrSe₂)_n+1 (n = 1–3) is evaluated by calculating ΔG_H*, which can be computed using the following formula:

ΔG_H* = ΔE_H + ΔE_ZPE − TΔS_H (3)

In this context, ΔE_H, ΔE_ZPE and ΔS_H represent the adsorption energy of H atom, the zero-point energy difference between adsorbed hydrogen and gaseous hydrogen, and the entropy difference, respectively. T denotes room temperature, and the value of ΔE_ZPE − TΔS_H is 0.24 eV.^43,57 The adsorption energy of hydrogen can be calculated using the following equation:

Among them, E_{Cun(CrSe2)n+1}, E_{Cun(CrSe2)n+1+H} and E_H2 are the energies of Cu_n(CrSe₂)_n+1 (n = 1–3) before and after H atom adsorption and the total energy of the isolated H₂ gas molecule, respectively. Additionally, the exchange current density can be calculated using the following equation:^58,59

where k₀ is the rate constant equal to 1, and k_b is the Boltzmann constant.

3 Results and discussion

3.1 Structural stability, electronic properties, and ferroelectric behavior

The optimized atomic configurations of Cu_n(CrSe₂)_n+1 (n = 1–3, space group P3m1) are illustrated in Fig. 1a, b and S1. They consist of alternating layers of 1T-CrSe₂ and Cu, with a lattice constant of 3.58 Å, close to the experimental value⁴⁶ and previous theoretical ones.⁵³ The stability and polarization of catalysts are crucial for electrocatalytic hydrogen evolution. Building on the experimental synthesis of CuCrSe₂-based ferroelectrics, we further investigated the microscopic stability and origin of ferroelectricity in Cu_n(CrSe₂)_n+1. Our phonon dispersion calculations (Fig. S2) show no significant imaginary frequencies, indicating dynamical stability. Furthermore, AIMD simulations performed at 400 K, a temperature relevant to practical water electrolysis, reveal only minor energy fluctuations with preserved structural integrity throughout the 5 ps trajectory (Fig. S3), confirming robust thermal stability under operating conditions. To assess mechanical stability, we calculated elastic constants using the energy-strain method (Table S1). All systems satisfy the Born–Huang criteria⁶⁰ (C₁₁ > 0, C₆₆ > 0, and C₁₁ > |C₁₂|), confirming their mechanical stability. The in-plane Young's modulus and Poisson's ratio (Fig. 1c, d, and S4) are isotropic and the values of both parameters increase with layer number. The minimum Young's modulus of Cu(CrSe₂)₂ (57.75 N m⁻¹) is comparable to that of α-In₂Se₃ (53.98 N m⁻¹),⁶¹ while the maximum value for Cu₃(CrSe₂)₄ (172.07 N m⁻¹) approaches that of MoS₂ (180 N m⁻¹).⁶² The Poisson's ratios of Cu(CrSe₂)₂, Cu₂(CrSe₂)₃, and Cu₃(CrSe₂)₄ are 0.23, 0.25, and 0.27, respectively, comparable to those of CrS₂ (0.24)⁶³ and CrSO (0.28).⁶⁴ These results indicate that Cu_n(CrSe₂)_n+1 (n = 1–3) possesses tunable mechanical flexibility, controlled by the number of layers.

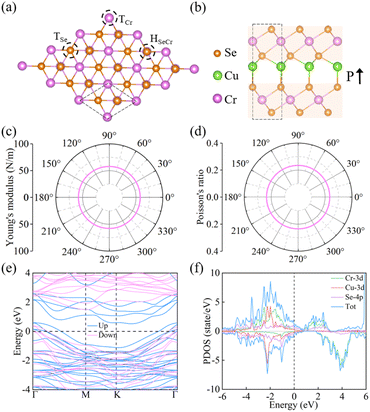

Fig. 1 (a and b) Top and side views of the Cu(CrSe₂)₂ structure, with dashed lines outlining its unit cell. (c) Polar plots showing (c) the Young's modulus and (d) the Poisson's ratio for the Cu(CrSe₂)₂ structure. (e) Electronic band structure of Cu(CrSe₂)₂. (f) Projected density of states (PDOS) of Cu(CrSe₂)₂.

For high-performance electrochemical catalysts, excellent electrical conductivity is essential, and intrinsic metallicity is particularly desirable. The electronic band structure and PDOS of Cu_n(CrSe₂)_n+1 (n = 1–3) are shown in Fig. 1e, f, and S5. All three structures exhibit multiple bands crossing the Fermi level, confirming metallic behavior, which primarily arises from Se 4p orbitals. Below the Fermi level, pronounced overlap between Cu/Cr d orbitals and Se p orbitals indicates strong interactions between Cu, Cr, and Se that are responsible for structural stability. As shown in Fig. 1b, the asymmetric vertical distances between Cu and the adjacent Se atoms above and below generate an upward ferroelectric polarization (P↑), denoted as U-state. Under an applied external electric field, Cu atoms undergo both longitudinal and lateral displacements, reversing the polarization to a downward state (P↓), denoted as D-state. This polarization reversal substantially redistributes charge density, offering a dynamic route to tune the electrocatalytic activity of Cu_n(CrSe₂)_n+1 for hydrogen evolution.

3.2 Ferroelectric hydrogen evolution activity

According to previous studies, the Gibbs free energy of hydrogen adsorption (ΔG_H*) is a widely accepted descriptor for evaluating catalytic performance.^65,66 Following the Sabatier principle, the closer ΔG_H* is to 0 eV, the more favorable the electrocatalytic activity.^46,67–69 This means that an ideal HER electrocatalyst should bind hydrogen neither too strongly nor too weakly, ensuring efficient adsorption and desorption. Specifically, |ΔG_H*| ≤ 0.20 eV is generally regarded as a criterion for high-performance HER catalysts.⁶⁵ To identify the active sites, we employed a 2 × 2 × 1 supercell for Cu(CrSe₂)₂, Cu₂(CrSe₂)₃, and Cu₃(CrSe₂)₄, considering high-symmetry adsorption sites based on geometric symmetry (Fig. 1a). These sites include the top sites of Se atoms and Cr atoms (T_Se and T_Cr) and the hollow sites of the wrinkled hexagonal rings formed by Se and Cr atoms (H_SeCr). Using eqn (3), we calculated ΔG_H* at these sites under different polarization states (Table S2) and constructed HER free-energy diagrams (Fig. 2a–c).

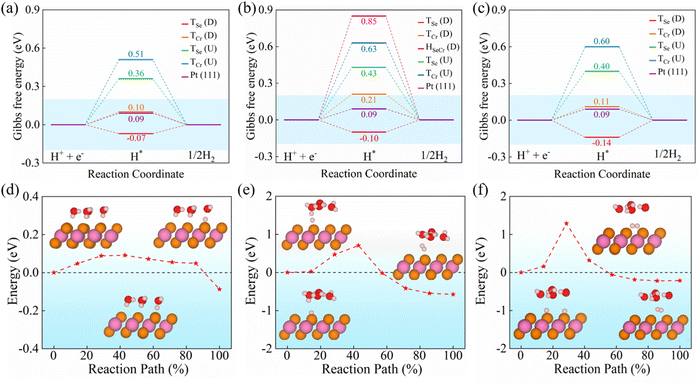

Fig. 2 (a–c) Gibbs free energy profile of the hydrogen evolution reaction for Cu_n(CrSe₂)_n+1 (n = 1–3). The hydrogen evolution reaction mechanism on the top surface of Cu(CrSe₂)₂ in the downward polarization (D) state: (d) Volmer process, (e) Heyrovsky process, and (f) Tafel process, along with schematic diagrams of the corresponding reaction structures.

The results demonstrate that in the D-state, the top-layer Se site (T_Se) consistently provides the most favorable hydrogen adsorption in all Cu_n(CrSe₂)_n+1 (n = 1–3) systems. The ΔG_H*values at T_Se(D) are −0.07 eV, −0.10 eV, and −0.14 eV for Cu(CrSe₂)₂, Cu₂(CrSe₂)₃, and Cu₃(CrSe₂)₄ respectively, meeting the high-performance criterion. T_Cr(D) sites in Cu(CrSe₂)₂ and Cu₃(CrSe₂)₄ also exhibit reasonable activity (|ΔG_H*| = 0.10 eV and 0.11 eV), while Cu₂(CrSe₂)₃ shows weaker performance (ΔG_H* = 0.21 eV). Hollow sites support H adsorption only in Cu₂(CrSe₂)₃ in the D-state, but with a large ΔG_H* of 0.91 eV, indicating HER inertness. In contrast, all sites in the U-state display poor HER performance. Interestingly, electronic-structure analysis confirms that Cu_n(CrSe₂)_n+1 (n = 1–3) preserve metallicity after hydrogen adsorption (Fig. S6a), with Cr and Cu d states contributing to the metallic character and ensuring efficient electron transfer during the HER process.

Building on dispersion and dipole corrections, we incorporated implicit solvent effects using VASPsol (ε = 78.4)⁷⁰ to recalculate ΔG_H* at the T_Se(D) site of Cu(CrSe₂)₂. As shown in Fig. S7, solvation has a minimal effect on the energetics and structure: ΔG_H* shifts by only 0.09 eV (from −0.07 to 0.02 eV), while the Se–H bond length changes negligibly from 1.484 to 1.485 Å. These results indicate that solvation effects are minor, justifying their omission in subsequent calculations and discussions to reduce computational cost.

Focusing on Cu(CrSe₂)₂, the HER proceeds via two fundamental steps: hydrogen adsorption (Volmer step), followed by hydrogen desorption through either the Heyrovsky or the Tafel pathway. In acidic aqueous electrolytes, protons exist predominantly in the form of hydronium ions (H₃O⁺), which diffuse to the electrode surface and participate in interfacial charge-transfer processes.⁷¹ The Volmer reaction (H₃O⁺ + e⁻ → H* + H₂O) involves the reduction of hydronium and the formation of adsorbed hydrogen species (H*) on the catalyst surface. Subsequent hydrogen desorption can occur via the Heyrovsky reaction (H* + e⁻ + H₃O⁺ → H₂ + H₂O), where an adsorbed hydrogen atom reacts with a solvated proton–electron pair, or via the Tafel reaction (H* + H* → H₂), where two adjacent H* species recombine directly to form molecular hydrogen. Among these elementary steps, the one associated with the highest energy barrier governs the overall reaction kinetics. To more realistically describe proton transfer in an aqueous electrochemical environment, we constructed an explicit hydrated proton model based on the Eigen cation (H₉O₄⁺), consisting of a central H₃O⁺ core coordinately stabilized by three surrounding H₂O molecules.^72,73 Bader charge analysis indicates that the H₉O₄⁺ cluster carries a net positive charge of +0.62,⁷⁴ implying partial electron transfer from the hydrated proton complex to the catalyst surface during the Volmer process. As shown in the calculated reaction profile for Cu(CrSe₂)₂ (Fig. 2d), hydrogen adsorption via the Volmer step is thermodynamically favorable, exhibiting a mildly exothermic adsorption energy of −0.09 eV and an ultra-low activation barrier of ∼0.09 eV. This value is comparable to reported Volmer barriers for representative transition-metal dichalcogenide catalysts, such as the Volmer step on 1T-MoS₂ modeled with an explicit solvent model,⁷⁵ and is significantly lower than the 0.67 eV barrier on the Zn surface under similar theoretical treatments.⁷⁶ In comparison, the subsequent hydrogen evolution steps are associated with appreciable kinetic barriers (Fig. 2e and f). The activation energy of the Heyrovsky step is calculated to be 0.71 eV, slightly higher than the reported value of 0.57 eV for Pt,⁷⁷ while the Tafel step exhibits a substantially larger barrier of 1.29 eV. The prohibitively high barrier of the Tafel reaction renders this pathway kinetically unfavorable, suggesting that the HER on Cu(CrSe₂)₂ predominantly proceeds through a Volmer–Heyrovsky mechanism.

The reversal of ferroelectric polarization markedly alters the charge distribution within the structure, thereby modulating hydrogen adsorption. Fig. 3a–c present the PDOS for the Se-4p and H-1s orbitals in three representative compounds under opposite polarization states. For Cu₂(CrSe₂)₃ in the U-state, the overlap between Se-4p and H-1s orbitals below the Fermi level is relatively small, indicating weak Se–H interactions. Upon reversing the D-state, this orbital overlap increases markedly, reflecting stronger Se–H coupling. Consistently, the electrostatic potential of the surface Se atom is higher in the D-state than in the U-state (Fig. S6b), favoring electron transfer from H and thus strengthening hydrogen adsorption. Bader charge analysis further supports this trend, showing a larger charge transfer from H to Se in the D state (0.009 e) compared with the U state (0.008 e). Thus, ΔE_H* = −0.31 eV in the D state is more favorable for hydrogen adsorption than 0.12 eV in the U state. Similar polarization-dependent behavior is observed in Cu₂(CrSe₂)₃ and Cu₃(CrSe₂)₄, demonstrating that switching ferroelectric polarization enables reversible and tunable control of catalytic hydrogen adsorption.

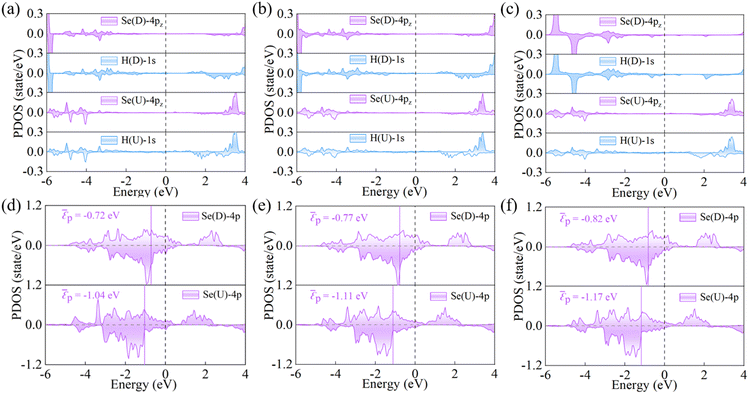

Fig. 3 Projected density of states (PDOS) of Se and H on the upper surface of Cu_n(CrSe₂)_n+1 (n = 1–3) in both (D) and (U) spin-polarized states (a–c), together with the average p-band center (ε_p) of the corresponding surface Se atoms (d–f). For clarity, ε_p is indicated by a solid line, and the Fermi energy level by a dashed line.

The electronic structure of catalyst surfaces plays a pivotal role in regulating catalytic activity.⁷⁸ The d-band center theory has been widely used to correlate the binding strength of adsorbates with the electronic states of metal sites.^79–82 By analogy, the p-band center theory provides a descriptor for the catalytic activity of nonmetal atoms.^83,84 Based on this framework, we computed the average p-band center (ε_p) of surface Se atoms in Cu(CrSe₂)₂, Cu₂(CrSe₂)₃, and Cu₃(CrSe₂)₄ under different polarization states. As shown in Fig. 3d–f, the ε_p values in the D state are −0.72 eV, −0.77 eV, and −0.82 eV, respectively, whereas in the U state they shift to −1.04 eV, −1.11 eV, and −1.17 eV, respectively. These shifts highlight the strong dependence of ε_p on polarization reversal. According to the p-band center theory, Se atoms with ε_p closer to the Fermi level exhibit stronger HER activity, consistent with our calculated |ΔG_H*| values. To quantify this correlation, we fitted |ΔG_H*| against ε_p for Cu_n(CrSe₂)_n+1 (n = 1–3), as shown in Fig. 4a. A clear linear relationship (R² = 0.97) was obtained, revealing a negative correlation: as ε_p approaches the Fermi level, |ΔG_H*| tends toward zero. This establishes ε_p of surface Se atoms as a reliable descriptor for the HER activity of these compounds. Finally, the exchange current density (i₀) was calculated (eqn (5)) and plotted in a volcano diagram (Fig. 4b). Remarkably, the T_Se sites of Cu(CrSe₂)₂, Cu₂(CrSe₂)₃, and Cu₃(CrSe₂)₄ in the D-state all lie at the apex of the volcano plot, comparable to the benchmark Pt(111), while in the U-state, they all deviate from the top of the volcano diagram. These findings underscore that ferroelectric polarization switching affords effective and reversible regulation of HER performance in Cu_n(CrSe₂)_n+1 catalysts.

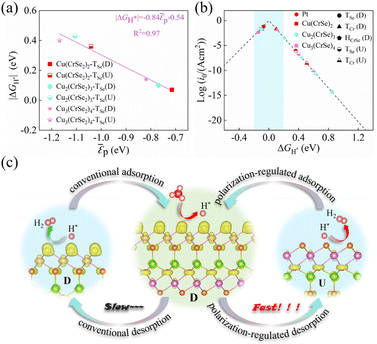

Fig. 4 Relationship between the hydrogen evolution reaction |ΔG_H*| and ε_p in downward (D) and upward (U) polarization states for Cu_n(CrSe₂)_n+1 (n = 1–3) (a), along with the corresponding volcano plot of the i₀ (b). Illustration of the potential mechanism by which alternating polarization regulates and accelerates the hydrogen evolution reaction of Cu(CrSe₂)₂ during electrocatalysis (c).

3.3 Polarization-driven mechanism for the HER

To elucidate the intrinsic mechanism of the polarization-tunable electrocatalytic HER in the Cu_n(CrSe₂)_n+1 (n = 1–3) series, Cu(CrSe₂)₂ is selected as a representative model for detailed analysis. Ferroelectric polarization serves as an effective switch that regulates surface catalytic activity by modulating the surface charge distribution, thereby directly governing the hydrogen adsorption–desorption process. As illustrated Fig. 4c, in the D-state, electronic charge mainly accumulates in the p orbitals of the surface Se active sites. This localized charge enrichment favors hydrogen adsorption, yielding an adsorption energy of −0.31 eV and a corresponding ΔG_H* of −0.07 eV. Upon polarization switching to the U-state, a directional interlayer charge redistribution occurs, with electrons transferring from the top CrSe₂ layer to the bottom CrSe₂ layer and becoming concentrated in the p orbitals of the bottom Se atoms. Consequently, the surface Se sites experience a pronounced depletion of charge density, which weakens hydrogen binding, resulting in a positive adsorption energy of 0.12 eV and thereby facilitating hydrogen desorption. By reversing the polarization direction through an external electric field, the adsorption and desorption steps can be selectively optimized. In contrast to conventional HER catalysts that operate with a fixed surface electronic structure, this polarization-tuning strategy dynamically decouples the optimal electronic states for hydrogen adsorption and desorption, effectively lowering the H₂ desorption barrier and accelerating the overall reaction kinetics. Such polarization-driven control provides an efficient route to enhance HER performance.

We further assess the ferroelectric integrity and structural stability of Cu(CrSe₂)₂ under polarization-driven catalytic conditions. Intrinsic ferroelectric polarization in Cu(CrSe₂)₂ has been experimentally established, with reported coercive fields in the range of 0.25–0.32 V Å⁻¹.⁴⁴ Consistent with these experimental observations, our calculations yield an intrinsic polarization switching barrier of 0.43 eV, comparable to the previously reported value of 0.33 eV.⁴⁷ Upon hydrogen adsorption, the switching barrier is moderately reduced to 0.32 eV, indicating that ferroelectric polarization reversal remains energetically accessible under catalytic conditions (Fig. S8). To further examine field-driven switching, external electric fields ranging from −0.5 to +0.5 V Å⁻¹, exceeding the experimentally measured coercive field, are applied in our simulations. Notably, both the lattice parameters and key bonding distances exhibit only negligible variations, irrespective of hydrogen adsorption (Tables S3 and S4), demonstrating robust structural stability under polarization switching. Moreover, when the adsorbed hydrogen atoms are removed and ab initio molecular dynamics simulations are repeated (Fig. S9), the slightly distorted Cu(CrSe₂)₂ structure rapidly relaxes back to its initial configuration. Collectively, these results suggest that Cu(CrSe₂)₂ could retain ferroelectric polarization switching while preserving structural integrity under polarization-driven HER conditions, highlighting its potential as a ferroelectrically tunable electrocatalyst.

From a broader perspective, dynamic modulation strategies, such as cyclic polarization switching,^38,39,85,86 have been explored to temporally decouple adsorption and desorption processes in the HER, thereby tuning the surface intermediate energetics.^40,87,88 In this framework, ferroelectric polarization provides a physically transparent handle to reversibly reshape the surface electronic structure and intermediate binding energetics. For Cu(CrSe₂)₂, switching from the D-state to the U-state leads to a pronounced reduction in hydrogen desorption barriers (Fig. S10): the Heyrovsky barrier decreases from 0.71 eV to 0.36 eV, while the Tafel barrier decreases from 1.29 eV to 0.72 eV. The corresponding barrier reductions (0.35 eV for Heyrovsky and 0.57 eV for Tafel) both exceed the calculated ferroelectric switching barrier of Cu(CrSe₂)₂ (0.32 eV). At the elementary-step level, these barrier reductions indicate that the kinetic gain from polarization switching could offset the energetic cost, and its benefit is expected to dominate under moderate switching frequencies.

4 Conclusion

In conclusion, our density functional theory study reveals that two-dimensional ferroelectric Cu_n(CrSe₂)_n+1 (n = 1–3) monolayers combine excellent structural stability with outstanding HER activity. Surface Se atoms are identified as optimal active sites, with all structures in the down-polarized state exhibiting hydrogen adsorption energetics comparable to those of benchmark Pt(111). A robust inverse correlation between the hydrogen adsorption free energy and the p-band center of surface Se atoms is established, providing a reliable and physically transparent descriptor for catalytic performance. Importantly, these materials possess reversible ferroelectric polarization, enabling polarization-defined redistribution of surface charge density and access to distinct electronic states that separately favor hydrogen adsorption or desorption. Such state-selective tunability distinguishes ferroelectric catalysts from conventional static electrocatalysts and offers a new perspective on regulating reaction energetics at the atomic scale. The combination of high intrinsic activity, metallic conductivity, and field-addressable polarization responsiveness highlights Cu_n(CrSe₂)_n+1 as a promising platform for polarization-tunable electrocatalysis. While the present study focuses on this specific system, the results suggest that ferroelectric polarization may generally provide a means to modulate surface electronic states and influence adsorption–desorption energetics in other catalytic materials, offering guidance for the exploration of polarization-responsive electrocatalysts in future studies.

Author contributions

Wenyuan Zhang: conceptualization, writing – original draft, visualization, data curation. Jingguo Wang: conceptualization, writing – original draft, visualization, data curation. Qi Wang: validation, visualization, investigation. Yanling Si: writing – review and editing, project administration, supervision. Guochun Yang: writing – review and editing, conceptualization, funding acquisition, project administration, supervision, formal analysis.

Conflicts of interest

The authors declare no competing interests.

Data availability

The data supporting this article have been included as part of the supplementary information (SI). Additional data are available from the authors upon reasonable request. Supplementary information: the adsorption energy (ΔE_H) and Gibbs free energy (ΔG_H*) of hydrogen at the adsorption sites on Cu_n(CrSe₂)_n+1 (n = 1–3) surfaces; mechanical property parameters; lattice parameters, phonon spectra of the Cu_n(CrSe₂)_n+1 monolayer, and the AIMD simulation at 300 K; structural diagrams, Young's modulus and Poisson's ratio, band structure and density of states of Cu₂(CrSe₂)₃ and Cu₃(CrSe₂)₄; ferroelectric polarization inversion barrier of Cu(CrSe₂)₂. See DOI: https://doi.org/10.1039/d5sc07802d.

Acknowledgements

This work was supported by the National Natural Science Foundation of China under grant no. 22372142, the Foreign Expert Introduction Program (G2023003004L), the Central Guiding Local Science and Technology Development Fund Projects (236Z7605 G), the Natural Science Foundation of Hebei Province (grant no. B2024203051, A2024203023, and A2024203002), the Science and Technology Project of Hebei Education Department (grant no. JZX2023020), Innovation Capability Improvement Project of Hebei province (22567605H), and the Hebei Province Yan Zhao Huang Jin Tai Talent Program (Postdoctoral Platform, B2024003003).

References

1. M. Elimelech and W. A. Phillip, Science, 2011, 333, 712–717.
2. Y. Guan, J. Yan, Y. Shan, Y. Zhou, Y. Hang, R. Li, Y. Liu, B. Liu, Q. Nie, B. Bruckner, K. Feng and K. Hubacek, Nat. Energy, 2023, 8, 304.
3. Z. Yu, Y. Su, R. Gu, W. Wu, Y. Li and S. Cheng, Nano-Micro Lett., 2023, 15, 214.
4. H.-M. Zhang, S.-F. Zhang, L.-H. Zuo, J.-K. Li, J.-X. Guo, P. Wang, J.-F. Sun and L. Dai, Rare Met., 2024, 43, 2371.
5. J. Yang, T. Y. Lam, Z. Luo, Q. Cheng, G. Wang and H. Yao, Renewable Sustainable Energy Rev., 2025, 218, 115804.
6. Z.-Y. Yu, Y. Duan, X.-Y. Feng, X. Yu, M.-R. Gao and S.-H. Yu, Adv. Mater., 2021, 33, 2007100.
7. B. You, M. T. Tang, C. Tsai, F. Abild-Pedersen, X. Zheng and H. Li, Adv. Mater., 2019, 31, 1807001.
8. X. Zou and Y. Zhang, Chem. Soc. Rev., 2015, 44, 5148.
9. L. Quan, H. Jiang, G. Mei, Y. Sun and B. You, Chem. Rev., 2024, 124, 3694.
10. R. Subbaraman, D. Tripkovic, D. Strmcnik, K.-C. Chang, M. Uchimura, A. P. Paulikas, V. Stamenkovic and N. M. Markovic, Science, 2011, 334, 1256.
11. R. Subbaraman, D. Tripkovic, K.-C. Chang, D. Strmcnik, A. P. Paulikas, P. Hirunsit, M. Chan, J. Greeley, V. Stamenkovic and N. M. Markovic, Nat. Mater., 2012, 11, 550.
12. Y. Yan, J. Lin, T. Xu, B. Liu, K. Huang, L. Qiao, S. Liu, J. Cao, S. C. Jun, Y. Yamauchi and J. Qi, Adv. Energy Mater., 2022, 12, 2200434.
13. P. Wang, X. Zhang, J. Zhang, S. Wan, S. Guo, G. Lu, J. Yao and X. Huang, Nat. Commun., 2017, 8, 14580.
14. J. N. Hansen, H. Prats, K. K. Toudahl, N. Mørch Secher, K. Chan, J. Kibsgaard and I. Chorkendorff, ACS Energy Lett., 2021, 6, 1175.
15. J. Cui, X. Yu, X. Li, J. Yu, L. Peng and Z. Wei, Chin. J. Catal., 2025, 69, 17–34.
16. Y. Song, Y. Zhang, W. Gao, C. Yu, J. Xing, K. Liu and D. Ma, Chem. Sci., 2024, 15, 9851–9857.
17. S. Wu, Z. Wang, H. Zhang, J. Cai and J. Li, Energy Environ. Mater., 2023, 6, e12259.
18. X. Tian, X. Zhao, Y.-Q. Su, L. Wang, H. Wang, D. Dang, B. Chi, H. Liu, E. J. M. Hensen, X. W. Lou and B. Y. Xia, Science, 2019, 366, 850.
19. X. Sun, P. Zhang, B. Zhang and C. Xu, Small, 2024, 20, 2405624.
20. R. Cheng, Y. Min, H. Li and C. Fu, Nano Energy, 2023, 115, 108718.
21. H. Li, H. Li, M. Du, E. Zhou, W. R. Leow and M. Liu, Chem. Sci., 2025, 16, 1506–1527.
22. B. Xu, J. Liang, X. Sun and X. Xiong, Green Chem., 2023, 25, 3767.
23. Y. Zhang, Y. Lin, T. Duan and L. Song, Mater. Today, 2021, 48, 115.
24. J. Liu, P. Li, S. Jia, Y. Wang, L. Jing, Z. Liu, J. Zhang, Q. Qian, X. Kang, X. Sun, Q. Zhu and B. Han, Nat. Synth., 2025, 4, 730–743.
25. Y. Lu, L. Zhou, S. Wang and Y. Zou, Nano Res., 2023, 16, 1890.
26. H.-J. Niu, N. Ran, W. Zhou, W. An, C. Huang, W. Chen, M. Zhou, W.-F. Lin, J. Liu and L. Guo, J. Am. Chem. Soc., 2025, 147, 2607.
27. W. Ma, J. Yao, F. Xie, X. Wang, H. Wan, X. Shen, L. Zhang, M. Jiao and Z. Zhou, Green Energy Environ., 2025, 10, 109.
28. T. Tang, X. Bai, Z. Wang and J. Guan, Chem. Sci., 2024, 15, 5082–5112.
29. L. Yuan, S. Zeng, G. Li, Y. Wang, K. Peng, J. Feng, X. Zhang and S. Zhang, Adv. Funct. Mater., 2023, 33, 2306994.
30. J. Wang, Y. Zhu, N. Wu, Y. Kan and Y. Hu, Composites, Part B, 2022, 233, 109644.
31. X. Cai, X. Chen, Z. Ying, S. Wang, Y. Chen, Y. Cai, G. Long, H. Liu and N. Wang, Mater. Des., 2021, 210, 110080.
32. X. Hu, S. Zhang, J. Sun, L. Yu, X. Qian, R. Hu, Y. Wang, H. Zhao and J. Zhu, Nano Energy, 2019, 56, 109.
33. Z. Cui, R. Sa, W. Du, C. Xiao, Q. Li and Z. Ma, Appl. Surf. Sci., 2021, 542, 148535.
34. M. Li and J. Young, J. Mater. Chem. A, 2024, 12, 10252–10259.
35. X. Li, Y. Du, L. Ge, C. Hao, Y. Bai, Z. Fu, Y. Lu and Z. Cheng, Adv. Funct. Mater., 2023, 33, 2210194.
36. F. Wang, L. Ju, B. Wu, S. Li, J. Peng, Y. Chen, M. Getaye Sendeku, K. Wang, Y. Cai, J. Yi, Y. Yang, Z. Wang and X. Sun, Angew. Chem., Int. Ed., 2024, 63, e202402033.
37. H. S. Kim, J. Mater. Chem. A, 2021, 9, 11553–11562.
38. A. Kakekhani and S. Ismail-Beigi, ACS Catal., 2015, 5, 4537.
39. L. Ju, X. Tan, X. Mao, Y. Gu, S. Smith, A. Du, Z. Chen, C. Chen and L. Kou, Nat. Commun., 2021, 12, 5128.
40. P. Abbasi, M. R. Barone, M. de la Paz Cruz-Jáuregui, D. Valdespino-Padilla, H. Paik, T. Kim, L. Kornblum, D. G. Schlom, T. A. Pascal and D. P. Fenning, Nano Lett., 2022, 22, 4276.
41. C.-H. Chiang, C.-H. Yu, Y.-S. Lu, Y.-C. Yang, Y.-C. Lin, H.-A. Chen, S.-Z. Ho, Y.-C. Chen, A. Kumatani, C. Chang, P.-C. Kuo, J. Shiue, S.-S. Li, P.-W. Chiu and C.-W. Chen, Nano Lett., 2024, 24, 11012–11019.
42. Y. Wang, C. Lu and M. Wu, Comput. Mater. Today, 2025, 6, 100029.
43. T. L. Wan, J. Liu, X. Tan, T. Liao, Y. Gu, A. Du, S. Smith and L. Kou, J. Mater. Chem. A, 2022, 10, 22228.
44. Z. Sun, Y. Su, A. Zhi, Z. Gao, X. Han, K. Wu, L. Bao, Y. Huang, Y. Shi, X. Bai, P. Cheng, L. Chen, K. Wu, X. Tian, C. Wu and B. Feng, Nat. Commun., 2024, 15, 4252.
45. J. Peng, Y. Su, H. Lv, J. Wu, Y. Liu, M. Wang, J. Zhao, Y. Guo, X. Wu, C. Wu and Y. Xie, Adv. Mater., 2023, 35, 2209365.
46. P. Wang, Y. Zhao, R. Na, W. Dong, J. Duan, Y. Cheng, B. Xu, D. Kong, J. Liu, S. Du, C. Zhao, Y. Yang, L. Lv, Q. Hu, H. Ai, Y. Xiong, V. S. Stolyarov, S. Zheng, Y. Zhou, F. Deng and J. Zhou, Adv. Mater., 2024, 36, 2400655.
47. K. Yang, Y. Zhou, Y. Ma and H. Wu, J. Mater. Chem. C, 2025, 13, 4549–4556.
48. G. Kresse and J. Hafner, Phys. Rev. B: Condens. Matter Mater. Phys., 1993, 47, 558.
49. G. Kresse and J. Furthmüller, Phys. Rev. B: Condens. Matter Mater. Phys., 1996, 54, 11169.
50. G. Kresse, J. Hafner and G. Kern, Phys. Rev. B: Condens. Matter Mater. Phys., 1999, 59, 8551.
51. K. Burke, M. Ernzerhof and J. P. Perdew, Phys. Rev. Lett., 1997, 78, 1396.
52. S. L. Dudarev, G. A. Botton, S. Y. Savrasov, C. J. Humphreys and A. P. Sutton, Phys. Rev. B: Condens. Matter Mater. Phys., 1998, 57, 1505.
53. S. Li, X. Bo, L. Fu, C. Liu, F. Li and Y. Pu, Appl. Phys. Lett., 2024, 124, 172407.
54. A. Togo, F. Oba and I. Tanaka, Phys. Rev. B: Condens. Matter Mater. Phys., 2008, 78, 134106.
55. G. J. Martyna, M. L. Klein and M. Tuckerman, J. Chem. Phys., 1992, 97, 2635.
56. X. Xu, Y. Ma, T. Zhang, C. Lei, B. Huang and Y. Dai, Nanoscale Horiz., 2020, 5, 1386–1393.
57. H. Lou and G. Yang, J. Mater. Chem. A, 2023, 11, 6394.
58. B. Zhang, X. Fu, L. Song and X. Wu, Carbon, 2021, 172, 122.
59. W. Zhang, H. Lou and G. Yang, J. Phys. Chem. Lett., 2023, 14, 11036.
60. F. Mouhat and F.-X. Coudert, Phys. Rev. B: Condens. Matter Mater. Phys., 2014, 90, 224104.
61. T. Nian, Z. Wang and B. Dong, Appl. Phys. Lett., 2021, 118, 033103.
62. S. Bertolazzi, J. Brivio and A. Kis, ACS Nano, 2011, 5, 9703.
63. S.-B. Chen, S.-D. Guo, W.-J. Yan, X.-R. Chen and H.-Y. Geng, Phys. Chem. Chem. Phys., 2024, 26, 3159.
64. T. P. T. Linh, N. N. Hieu, H. V. Phuc, C. Q. Nguyen, P. T. Vinh, N. Q. Thai and N. V. Hieu, RSC Adv., 2021, 11, 39672.
65. X. Yang, L. Lin, X. Guo and S. Zhang, Small, 2024, 20, 2404000.
66. Y. Jiao, Y. Zheng, K. Davey and S.-Z. Qiao, Nat. Energy, 2016, 1, 16130.
67. J. Li, Nano-Micro Lett., 2022, 14, 112.
68. Y. Pi, Z. Qiu, Y. Sun, H. Ishii, Y.-F. Liao, X. Zhang, H.-Y. Chen and H. Pang, Adv. Sci., 2023, 10, 2206096.
69. Z. Wang, J. Li, S. Yuan, J. Yang, Z. Jin, X. Tan, J. Dang, W. Mu, G. Li and Q. Wang, Chem. Eng. J., 2024, 497, 154650.
70. J.-C. Liu, F. Luo and J. Li, J. Am. Chem. Soc., 2023, 145, 25264–25273.
71. X. Yao, J. Guo, Z. Wang, G. Qian, X. Wang, D. Wang and X. Gong, JACS Au, 2025, 5, 3926.
72. P. B. Calio, C. Li and G. A. Voth, J. Am. Chem. Soc., 2021, 143, 18672–18683.
73. Q. Zhao, J. M. P. Martirez and E. A. Carter, J. Am. Chem. Soc., 2021, 143, 6152–6164.
74. J. Rossmeisl, E. Skúlason, M. E. Björketun, V. Tripkovic and J. K. Nørskov, Chem. Phys. Lett., 2008, 466, 68–71.
75. Q. Tang and D.-e. Jiang, ACS Catal., 2016, 6, 4953–4961.
76. X. Liu, Y. Guo, F. Ning, Y. Liu, S. Shi, Q. Li, J. Zhang, S. Lu and J. Yi, Nano-Micro Lett., 2024, 16, 111.
77. Y. Luo, Y. Guan, G. Liu, Y. Wang, J. Li and L. Ricardez-Sandoval, ACS Catal., 2024, 14, 2696–2708.
78. X. Du, J. Huang, J. Zhang, Y. Yan, C. Wu, Y. Hu, C. Yan, T. Lei, W. Chen, C. Fan and J. Xiong, Angew. Chem., Int. Ed., 2019, 58, 4484.
79. B. Hammer and J. K. Nørskov, Adv. Catal., 2000, 45, 71.
80. Z. Feng, W. T. Hong, D. D. Fong, Y.-L. Lee, Y. Yacoby, D. Morgan and Y. Shao-Horn, Acc. Chem. Res., 2016, 49, 966.
81. F. Ando, T. Gunji, T. Tanabe, I. Fukano, H. D. Abruña, J. Wu, T. Ohsaka and F. Matsumoto, ACS Catal., 2021, 11, 9317.
82. Z. Fang, S. Li, Y. Zhang, Y. Wang, K. Meng, C. Huang and S. Sun, J. Phys. Chem. Lett., 2024, 15, 281.
83. Y.-L. Lee, J. Kleis, J. Rossmeisl, Y. Shao-Horn and D. Morgan, Energy Environ. Sci., 2011, 4, 3966.
84. Y.-L. Lee, D. Lee, X. R. Wang, H. N. Lee, D. Morgan and Y. Shao-Horn, J. Phys. Chem. Lett., 2016, 7, 244.
85. N. Mu, T. Bo, Y. Hu, R. Xu, Y. Liu and W. Zhou, Chin. J. Catal., 2024, 63, 244–257.
86. K. An, Z. Yu, H. Bai, D. Liu, L. Qiao, X. Lv, L. Shao, J. Feng, Y. Cao, L. Li, Z. Wen, S. Chen, Z. Pan, S. Wang and H. Pan, J. Mater. Chem. A, 2024, 12, 9672–9680.
87. H. Qiu, T. Yang, J. Zhou, K. Yang, Y. Ying, K. Ding, M. Yang and H. Huang, J. Mater. Chem. A, 2023, 11, 7034–7042.
88. J. Wang, J. Lu, X. Zhao, G. Hu, X. Yuan, J. Ren and S. Qi, J. Catal., 2026, 454, 116664.

---

Footnote

† These authors contributed equally.

---
