Peptide ligand isomerism drives divergent stability and guest binding in Pd₃L₄ metal-peptidic cages

Abstract

The self-assembly of metal–organic cages enables the rapid creation of atomically defined, three-dimensional, nanoscale architectures from easily accessible building blocks. Rigid and flat aromatic panels are typically used as ligands, but limit the diversity and aqueous solubility of cages thus formed. Building on our recent success using oligoprolines to create defined metal-peptidic Pd₂L₄ cages with emergent head-to-tail isomer control, we now show that installation of an additional metal-binding motif enables formation of a new family of Pd₃L₄ dual-cavity anisotropic ‘peanut’ cages. Using automated solid-phase peptide synthesis enables generation of a ligand series by varying sequence isomer and/or the stereochemistry of the 4R/S-hydroxyproline. Small differences in ligand isomerism generate four distinct self-assembly outcomes, forming: the Pd₃L₄ cis CCNN cage isomer, the Pd₃L₄ ‘All Up’ CCCC cage isomer, a mixture of all possible isomers of Pd₃L₄ cages, or an interpenetrated Pd₆L₈ cage. Finally, these subtle alterations in cage structure led to differing host–guest interactions and strikingly divergent stability profiles for the metal-peptidic cages when exposed to a range of stimuli. Certain isomers remain stable to base for more than six days, while others fully degrade within an hour. This work underscores the advantages of using biological building blocks in supramolecular chemistry to create systems with tuneable properties.

---

Introduction

Metal–organic cages are discrete, three-dimensional species formed from the self-assembly of metal ions with rigid, organic ligands.^1–3 A variety of polyhedra with defined internal cavities can be readily formed, and the function of these systems often stems from the dramatically different properties of the internal cavity from the surrounding solution.^4,5 Metal–organic cages have been shown to perform challenging separations,⁶ catalyse reactions at rates comparable to enzymes,^7–9 act as contrast agents or transport cargoes in vivo,^10–12 and sequester contaminants.^13,14 Flat, aromatic panels are often used to provide the structural rigidity required to favour the self-assembly of defined, discrete species.¹⁵ This leads to two key problems; firstly, water solubility can be challenging and stability limited, due to the fundamental propensity of building blocks to precipitate from solution.¹⁶ Secondly, functionalisation of the internal cavity, where the most interesting properties of the cages lie, is challenging and few examples have been reported.^17–19

Creating anisotropic cavities has been an area of increasing interest, as researchers seek to move away from the pseudospherical cavities of the current generation of metal–organic cages, towards systems better able to mimic the selectivity and potency of biological systems.²⁰ The use of less symmetric ligands, and heteroleptic systems, have provided routes to lower symmetry cages with augmented properties.²¹ However, they are still bounded by the limitations of aromatic and conjugated building blocks. Creating functionalised, and particularly chiral, cage cavities remains challenging.^22,23

One way to functionalise the interior of metal–organic cages is to use tritopic, linear, ligands to create differentiated cavities in a single assembly in ‘peanut’ cages.^24,25 However, the assembly of ‘peanut’ cages from low symmetry ligands is rare, limiting their anisotropy. Lewis and co-workers have reported a pseudo-heteroleptic Pd₃L₄ cage formed from a single asymmetric ligand, with geometric complementarity leading to self-assembly of a single cage isomer.²⁶ The anisotropy of such cages is limited, however, by the planarity and lack of chirality of the planar building blocks.

To address these challenges with solubility, biocompatibility, and anisotropy, we recently reported a new class of metal–organic cages with a defined and open structure – metal-peptidic cages – formed from oligoproline ligands, whose defined folding in solution provides the requisite rigidity for the formation of discrete species.²⁷ Oligoprolines reliably form a left-handed polyproline II (PPII) helix in aqueous solutions, which contains all trans-amide bonds.^28,29 This secondary structure has a rigid helical structure with a repeat length of 9 Å, with every third residue aligned on the same face of the helix, and tolerates substitution.^30–33 This creates a platform for the design of intrinsically water-soluble cages whose interior can be functionalised.³⁴ We have previously demonstrated that a family of Pd₂L₄ cages of different sizes could be readily formed, and that the richly chiral and helical surfaces of these cages led to unusual host–guest behaviour. More recently, Palma and co-workers have reported a modified system using alternative pyridine linkers – highlighting the robustness of the oligoproline platform.³⁵ Others have investigated the use of metallo-peptidic systems in discrete multi-nuclear complexes and knots, and extended frameworks, achieving high levels of stereocontrol.^36–44

Oligoproline ligands are intrinsically directional (the C-terminus is distinct from the N-terminus), and so there are four different head-to-tail cage isomers that can form, even though our cages are homoleptic (Fig. 1B).^45–47 The C-termini can all be aligned at one end and bind one palladium(II) ion of the cage (the ‘All Up’ CCCC); three C-termini and one N-terminus can lie at one end (the CCCN); or there are two cases where two C-termini and two N-termini are at each end, either with C termini cis or trans to each other across the palladium(II) centre (cis CCNN and trans CNCN, respectively). Our previous research found the use of complex, chiral, and helical building blocks led to the unexpected emergence of isomer control, with the cis CCNN head-to-tail isomer of cage formed exclusively (Fig. 1A).²⁷

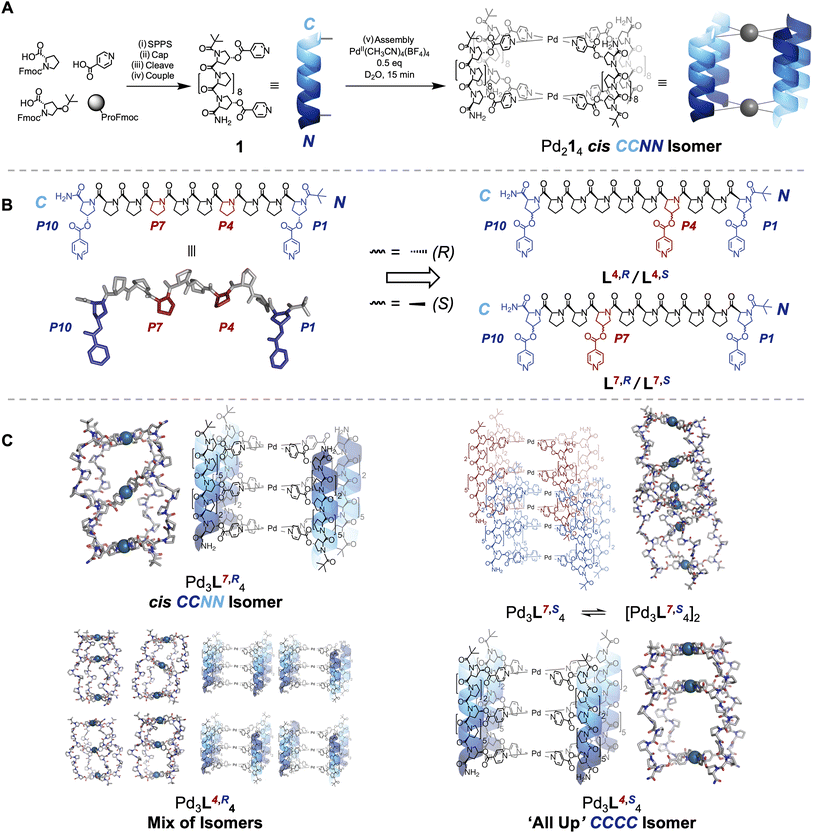

Fig. 1 (A) Synthesis of 10mer oligoproline ligand 1 and its self-assembly into Pd₂1₄ metal-peptide cage in our previous work.²⁷ (i) Solid-phase peptide synthesis (see SI for protocol). (ii) Pivalic anhydride : CH₂Cl₂ : DMF 1 : 4.5 : 4.5, r.t., 45 min. (iii) Trifluoroacetic acid : triisopropyl silane : H₂O 38 : 1:1, r.t, 2 h (iv) EDCI (6 equiv.), DMAP (3 equiv.), isonicotinic acid (6 equiv.), CH₂Cl₂, r.t., 16 h. (v) Pd(CH₃CN)₄(BF₄)₂ (0.5 equiv)., D₂O, r.t., 15 min. (B) Chemical structure and molecular model of 1, with internally-aligned proline sidechains highlighted in red (left). Additional metal coordinating residues were installed at these positions to give oligoproline ligands L^7,R, L^4,R, L^7,S and L^4,S used in this paper (right, see SI for synthesis). (C) Self-assembly outcomes. (i) Pd(CH₃CN)₄(BF₄)₂ (0.75 equiv.), D₂O, r.t., 4 days.

Herein, the helical nature and modular synthesis of oligoprolines enables the design of cages with multiple internal cavities, and controlled head-to-tail isomerism, by installing additional metal coordinating residues. Using intrinsically tuneable subcomponents, and automated peptide synthesis, provides a unique platform for the synthesis of tritopic building blocks for Pd₃L₄ cages.⁴⁸ Fine adjustments to the structure can be made by changing the peptide sequence and/or the point chirality of amino acid building blocks. This allows us to precisely adjust the relative location and geometry of metal-binding motifs along the peptidic backbone. We hypothesised that such adjustments would enable us to control the outcome, and head-to-tail isomerism, of metal-peptidic cage assembly. Differentiated, highly anisotropic, cavities form and highly complex behaviour can be generated from simple changes to peptide sequence isomers and/or point stereochemistry (Fig. 1). Four isomers of a single ligand deliver four unique outcomes – a cis CCNN Pd₃L₄ cage, an ‘All Up’ CCCC Pd₃L₄ cage, a mixture of all possible Pd₃L₄ cage isomers, and an interpenetrated Pd₆L₈ cage – demonstrating the flexibility and power of using complex chiral building blocks in supramolecular chemistry. Furthermore, each outcome of cage self-assembly shows significant differences in stability to a range of stimuli, and differentiated host–guest chemistry, informing future applications.

Results and discussion

We initially targeted the installation of an additional metal binding site within the cavity in an attempt to override the intrinsic preference of our Pd₂L₄ systems to form cis CCNN cages (Fig. 1A),²⁷ reasoning that an asymmetrically aligned additional binding site would favour the ‘All Up’ CCCC isomer, as the only way to achieve coordinative saturation. The alignment of every third residue on the same face of the helix in an idealised PPII structure provides a direct route to Pd₃L₄ cages (Fig. 1B).²⁸ Ligands L^7,R, L^4,R, L^7,S and L^4,S were synthesised, consisting of seven proline and three hydroxyproline residues, with isonicotinic acids coupled to the Hyp positions, by solid phase peptide synthesis (SPPS), and purified by high performance liquid chromatography (HPLC). Due to the directionality of the PPII helix, in a 10mer helix the additional metal binding site can be closer to the N-terminus (L^4,R, L^4,S) or the C-terminus (L^7,R, L^7,S). The stereochemistry of the C–O bond was also varied, as this might further perturb isomer preference. L^4,R and L^7,R contained 4R stereocentres on Hyp sidechains, which occur naturally in biology, whilst L^4,S and L^7,S contained the unnatural 4S stereocentre. A tert-butyl carbonyl group was installed to provide additional PPII stability and a distinct NMR handle for cage assembly and assignment of isomer formation.⁴⁹ Folding to a PPII conformation in all ligands (L^7,R, L^4,R, L^4,S and L^7,S) in H₂O was confirmed by CD spectroscopy, showing characteristic minima and maxima at c. 205 and 225 nm (Fig. 2E and 3D, SI Section 9).⁵⁰

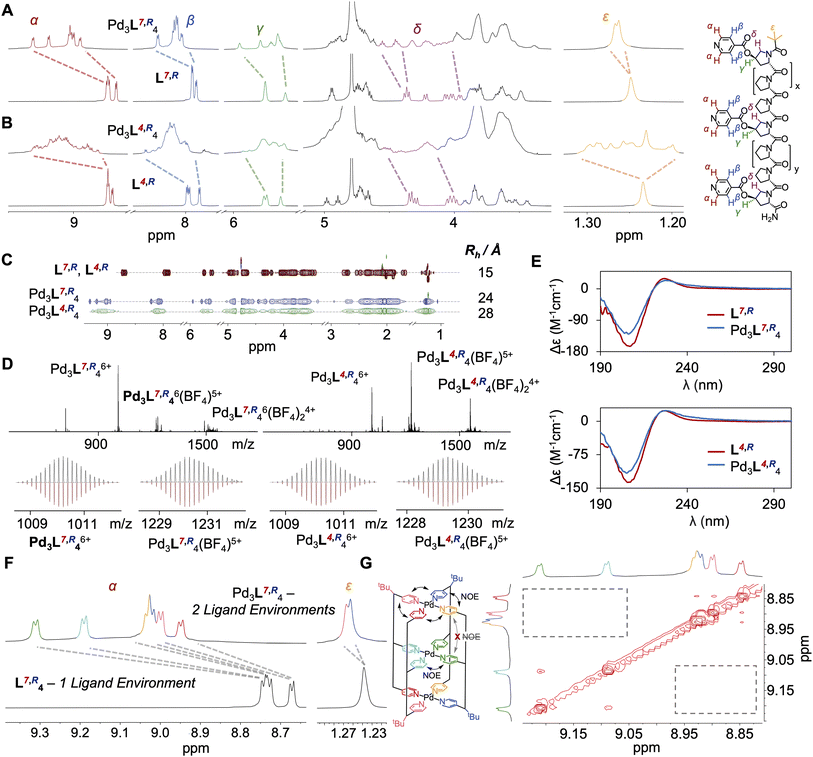

Fig. 2 (A) ¹H NMR (600 MHz, D₂O, 298 K) of cage Pd₃L^7,R₄ (top) and ligand L^7,R (bottom). (B) ¹H NMR (600 MHz, D₂O, 298 K) of cage Pd₃L^4,R₄ (top) and ligand L^4,R (bottom). (C) ¹H DOSY NMR (600 MHz, D₂O, 298 K) of ligands L^7,R, L^4,R (red) and cages Pd₃L^7,R₄ (blue) and Pd₃L^4,R₄ (green) with hydrodynamic radii shown. (D) ESI-HRMS data of cages Pd₃L^7,R₄ (left) and Pd₃L^4,R₄ (right) and their isotopic distributions (recorded top, simulated bottom). (E) Circular dichroism of ligands L^7,R, L^4,R (red) and cages Pd₃L^7,R₄ and Pd₃L^4,R₄ (blue). (F) ¹H NMR (600 MHz, D₂O, 298 K) of cage Pd₃L^7,R₄ (top) and ligand L^7,R (bottom), highlighting the doubling of ¹H environments upon cage formation, consistent with cis CCNN isomer formation. (G) Partial NOESY NMR (800 MHz, D₂O, 298 K) of Pd₃L^7,R₄. H_α pyridine environments corresponding to the internal co-ordinating motifs are isolated from the N- and C- terminal H_α pyridine environments, and the lack of NOEs is highlighted, confirming formation of cis CCNN cage isomer.

Fig. 3 (A) ¹H NMR (600 MHz, D₂O, 298 K) of cage Pd₃L^4,S₄ (top) and ligand L^4,S (bottom). (B) ESI-HRMS data of Pd₃L^4,S₄ with isotopic distributions (recorded top, simulated bottom). (C) Circular dichroism of ligand L^4,S (red) and cage Pd₃L^4,S₄ (blue) showing retention of general PPII structure, but with deviations at c. 240 nm. (D) Molecular model of Pd₃L^4,S₄ ‘All Up’ CCCC isomer. (E) ¹H NMR (600 MHz, D₂O, 298 K) showing downfield shifted proline backbone peaks. (F) ¹H NOESY NMR (950 MHz, D₂O, 298 K) showing correlations between downfield shifted proline backbone peaks and two of three H_α and H_β environments, confirming ‘All Up’ CCCC isomer assembly.

With the ligands in hand, L^7,R and L^4,R, both containing natural 4R Hyp stereocentres, were assembled to cages by addition of Pd(CH₃CN)₄(BF₄)₂ in a precisely 4 : 3 ligand : metal ratio. Discrete species Pd₃L^7,R₄ and Pd₃L^4,R₄ were formed in each case (Fig. 2A and B), with downfield shifts in the pyridyl protons indicative of palladium(II) co-ordination, and desymmetrisation of ligand signals along the oligoproline backbone, indicative of cage assembly. The ¹H NMR of both assemblies showed changes over time, with initially broad signals sharpening gradually over 24 hours (Fig. S107–S110). This indicates that the self-assembly process faces a higher energetic barrier to equilibration than our Pd₂L₄ cages, which were equilibrated within five minutes. We attribute this to the costs of breaking additional coordination bonds (vide infra).

¹H NMR, ¹³C NMR, Correlated Spectroscopy (COSY), Heteronuclear Single Quantum Coherence Spectroscopy (HSQC), Heteronuclear Multiple Bond Correlation Spectroscopy (HMBC), Diffusion-Ordered Spectroscopy (DOSY), High Resolution Electrospray Mass Spectroscopy (ESI-HRMS), Ion Mobility Mass Spectrometry (IMMS) and Circular Dichroism (CD) data were all consistent with the formation of metal-peptidic cages (Fig. 2, S41–S63, S163 and S164). DOSY spectra showed a single diffusion band for Pd₃L^7,R₄ and Pd₃L^4,R₄, with a hydrodynamic radius approximately twice that of the free ligand (Fig. 2C), consistent with cage assembly.⁵¹ ESI-HRMS showed clean formation of cage, and isotopic distributions matching simulations (Fig. 2D). IMMS showed peaks at a collision cross-section of 1046 Ų and 1076 Ų for Pd₃L^7,R₄ and Pd₃L^4,R₄, consistent with previous results for the Pd₂1₄ species (Fig. S163 and S164).^27,52 CD confirmed retention of the PPII structure of ligands L^7,R and L^4,R on cage assembly (Fig. 2E, S166 and S167).

Interestingly, whilst HRMS, CD and DOSY suggested formation of identical species, interrogation of the ¹H NMR told a different story. Ligand L^7,R, where the additional binding site is close to the C-terminus, assembled into a sharply resolved single species Pd₃L^7,R₄, with two-fold desymmetrisation throughout the ligand strand. Further analysis showed unexpected formation of cis CCNN, rather than the expected ‘All Up’.²⁷ The assignment of a single isomer, rather than an equal mixture of ‘All Up’ CCCC and trans CNCN isomers, is further supported by NOESY analysis, with H_α pyridine environments corresponding to the internal co-ordinating motifs isolated from the N- and C-terminal H_α pyridine environments (Fig. 2G, S182 and S183, see SI Section 10 for detailed reasoning).

The ¹H NMR spectrum for Pd₃L^4,R₄ is more complex (Fig. 2B), but clearly resolves eight major tert-butyl signals, indicative of eight different ligand environments (Fig. S184). This is further supported by analysis of the aromatic pyridine H_α and H_β protons (Fig. S181) showing a similar increase in identifiable environments. As no other major species were observed by ESI-HRMS (Fig. S60), and a single species was shown by DOSY, these ligand environments likely correspond to multiple cage isomers being present in solution. To observe eight different environments, all four cage isomers must be present, thus demonstrating a total lack of isomer selectivity, which was consistent across assembly temperatures (Fig. S64–S66). Our original Pd₂L₄ cages display an inherent energetic preference for the cis CCNN isomer, and our additional modifications are fighting this intrinsic bias (SI Section 12 for further discussion).

We sought to obtain crystallographic data to better understand the difference in cage isomer selectivity between Pd₃L^7,R₄ and Pd₃L^4,R₄. However, despite extensive attempts (>200 per sample), no crystals suitable for X-ray diffraction formed, consistent with previously reported difficulties in crystallising PPII structures.^27,28 Molecular modelling studies were therefore undertaken. Our previous studies of Pd₂L₄ systems indicated that the cis CCNN cage isomer adopted a tilt, where the helical axis of the oligoproline rods was not perpendicular to the pyridine co-ordination vector (Fig. S197), which significantly decreased the energy of the cis CCNN relative to the other isomers.

Modelling of Pd₃L^7,R₄ shows that the lowest energy isomer of the cage is likewise the tilted cis CCNN, with a distortion of the internal palladium co-ordination plane resulting in the formation of two symmetric cavities (Fig. 1C, S229 and S230). Computational models of Pd₃L^4,R₄ gave the cis CCNN isomer as the highest energy structure (SI Section 12), suggesting it is strongly disfavoured. This supports the difference in behaviour between the two systems seen by ¹H NMR.

Having noted the striking effect of moving the internal binding site between N- and C-terminal proximity, we next investigated the effect of epimerising the C–O bond in Hyp, hypothesising that this would enable further control. Ligands L^7,S₄ and L^4,S₄ (Fig. 1) are diastereoisomers of L^7,R₄ and L^4,R₄ respectively, with 4S-hydroxyprolines in place of 4R. Additional peaks were observed in the ¹H NMR spectra of both ligands (Fig. S185 and S186). As both L^7,S₄ and L^4,S₄ were >98% pure by liquid chromatography mass spectrometry (Fig. S28 and S38), these peaks likely correspond to a subpopulation of ligand containing cis amide bonds, estimated by NMR to be <10%. This was confirmed by CD spectroscopy, with a reduction in the characteristic PPII peaks for both L^7,S₄ and L^4,S₄ relative to L^7,R₄ and L^4,R₄ (Fig. 3D, S171, S173 and S175). 4S-Hyp electron withdrawing substituents are known to destabilise PPII helices,^53–55 inducing an endo-ring pucker that destabilises trans amide bonds relative to 4R-Hyp explaining this reduction.³⁰

Ligands L^7,S₄ and L^4,S₄ were assembled with Pd(CH₃CN)₄(BF₄)₂ in a precisely 4 : 3 ligand : metal ratio, and fully characterised (Fig. 3, S67–S92, S165 and S166). Results were consistent with metal-peptidic cage assembly. For L^4,S₄ the ¹H NMR yielded a sharp and discrete major species Pd₃L^4,S₄ (c. 70% of the ligand converts to major isomer) after 48 h, in contrast to the mixture of cage isomers observed for Pd₃L^4,R₄ (Fig. 3A and S113). DOSY showed a single diffusion band, indicating formation of a single species with a hydrodynamic radius of 28 Å (Fig. S85). ESI-HRMS confirmed successful self-assembly of cage Pd₃L^4,S₄, and isotopic distributions matching simulations (Fig. 3B and S90–S92). IMMS showed a peak for Pd₃L^4,S₄ at a collision cross-section of 1023 Ų, consistent with previous results (Fig. S166).

The major species of Pd₃L^4,S₄ has a single ligand environment, which is not consistent with a cis CCNN metal-peptidic cage. The absence of desymmetrisation indicates formation of either an ‘All Up’ CCCC or trans CNCN arrangement as the major isomer (see SI Section 10). Geometric considerations, and molecular modelling, suggest the formation of the trans CNCN isomer would be unfavourable (see SI Section 12) without complete loss of PPII folding, which is not observed by CD. We therefore assign Pd₃L^4,S₄ as the ‘All Up’ CCCC isomer.

Analysis of the NOESY correlations further supports this assignment (Fig. 3E and F). The NOESY spectrum of Pd₃L^4,S₄ shows strong correlations and shielding between protons of two of the three pyridines on each ligand and proline sidechains (Fig. 3F and S190), which we have not observed in other systems. Significant upfield shifts of the α, β and γ protons of Pro2/Pro3 are consistent with close proximity to the pyridine's aromatic ring current (Fig. 3E and S191). The most likely mechanism involves compression of the smaller cavity of the ‘All Up’ CCCC Pd₃L^4,S₄ cage. This hypothesis is supported by CD changes of Pd₃L^4,S₄ with respect to free ligand L^4,S (Fig. 3D and S170), and the appearance of new absorbances (the characteristic PPII peak at 230 nm shifts and broadens to 238 nm) which do not correlate with PPII, PPI, or unstructured peptide,^53,56 and could be due to a twisting and compression of the smaller cavity of Pd₃L^4,S₄. Given the decrease in PPII helical character (¹H NMR + CD; Fig. S175 and S186) in ligand L^4,S compared to ligand L^4,R, this process is likely mediated by trans to cis isomerism of some amide bonds in the smaller cavity of the cage, which contains a higher local concentration of PPII-destabilising 4S-Hyp. Minor species in the ¹H NMR likely correspond to small amounts of the three other cage isomers, as no other major species were observed by ESI-HRMS (Fig. S90).

Whilst the change in isomer selectivity surprised us, flipping the 4R-Hyp stereocentres of L^4,R to 4S-Hyp does indeed lead to self-assembly of a single Pd₃L₄ cage isomer. This novel ‘All Up’ CCCC isomer has two separate and highly distinctive cavities, achieving one the initial aims of this project.

Self-assembly of L^7,S with Pd(CH₃CN)₄(BF₄)₂ gave a broad species in the ¹H NMR spectra which did not resolve over seven days (Fig. S111). ESI-HRMS showed the unexpected formation of both Pd₃L₄ and Pd₆L₈ species (Fig. S75–S81 and S187). DOSY NMR showed a single diffusion band with a hydrodynamic radius of 33.3 Å (Fig. S187), larger than the hydrodynamic radii seen for the three Pd₃L₄ cages Pd₃L^7,R₄, Pd₃L^4,R₄ and Pd₃L^4,S₄ (24.0–28.3 Å), consistent with the presence of a larger metal-peptidic structure.

We assigned this to an interpenetrated Pd₆L₈ cage (Pd₃L^7,S₄)₂ formed in equilibrium by the interlocking of two Pd₃L^7,S₄ cage complexes. Such structures have been reported in the literature, often driven by exclusion of solvent from cavities.^57–59 The broadness in the ¹H NMR is due to increased molecular weight leading to decreased tumbling, but also to the presence of isomers, along with the equilibrium between Pd₃L^7,S₄ and (Pd₃L^7,S₄)₂. Dilution of the Pd₆L₈ cage (Pd₃L^7,S₄)₂ led to the disappearance of peaks corresponding to the interpenetrated species, leaving the Pd₃L₄⁶⁺ peaks unchanged, supporting this assignment (Fig. S75, S76 and S187).^59,60 This was supported by DOSY studies, in which a decrease in hydrodynamic radii was observed upon dilution (Fig. S121). Assembly studies (see SI Section 5) showed that an intermediate Pd₂L₄ species first forms, before assembly of (Pd₃L^7,S₄)₂. CD showed significant loss of PPII character, consistent with distortion on formation of the assembled cage. As such, the cavity compression seen in Pd₃L^4,S₄ and the partial catenation seen in (Pd₃L^7,S₄)₂ are different responses to the same stressor – increasing disruption of PPII by incorporation of 4S-Hyp.

Finally, we sought to probe whether the different cage structures formed had distinct chemical properties. In the longer term, these cages hold promise for applications in biological systems, which requires tolerance to different stimuli. Firstly, the assemblies were diluted, and monitored by ¹H NMR (Fig. 4, SI Section 7). Cages Pd₃L^7,R₄ and Pd₃L^4,S₄, the single isomer cages, were stable to a concentration of 50 µM in D₂O (Fig. S115, S116, S122 and S123). This represents a fourfold increase from the stability of previously reported Pd₂1₄, likely due to the additional co-ordination bonds within Pd₃L^7,R₄ and Pd₃L^4,S₄.²⁷ In contrast, cages Pd₃L^4,R₄ and (Pd₃L^7,S₄)₂ only showed stability to concentrations of 500 µM in D₂O (Fig. S117–S120). The most stable cages were then challenged with base, acid, and competitive metal binding ligands – glutathione and pyridine (Fig. 4). Pyridine was chosen due to the ubiquity of nitrogen heterocycles in drug molecules, and glutathione due to its high concentrations in cells and plasma.

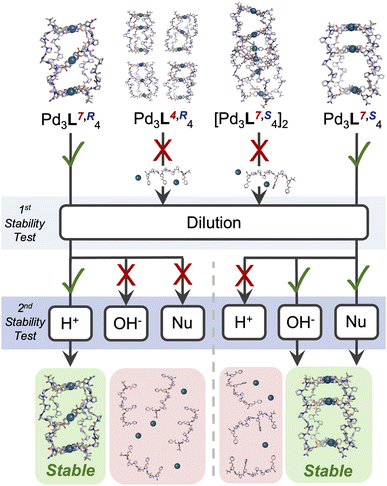

Fig. 4 Summary of the results of stability studies showing differential stabilities to dilution; then to acid, base, competitive glutathione/pyridine (Nu) coordination. In each case, the more stable cage is highlighted – Pd₃L^7,R₄ for acid stability and Pd₃L^4,S₄ for base and nucleophile stability.

Cages Pd₃L^7,R₄ and Pd₃L^4,S₄ were first tested for base stability by addition of 4 eq. NaOD, and showed distinct differences in behaviour. Whilst cage Pd₃L^7,R₄ was almost immediately (<1 h) disassembled and its ester bonds hydrolysed (Fig. S133 and S134), cage Pd₃L^4,S₄ was only partially disassembled after 120 h (<25% by ¹H NMR; Fig. S140 and S141).

A similar trend in resilience was observed when Pd₃L^7,R₄ and Pd₃L^4,S₄ were challenged with competing ligands – glutathione and pyridine. Addition of 4 eq. of glutathione caused complete disassembly of Pd₃L^7,R₄ within 5 min, but Pd₃L^4,S₄ was not completely disassembled until 48 h post addition (Fig. S155, S156, S161 and S162). Both Pd₃L^7,R₄ and Pd₃L^4,S₄ showed significantly enhanced stability to pyridine addition, with 4 eq. failing to cause full disassembly even after 48 h (Fig. S143, S144, S151 and S152). However, after addition of 12 eq. pyridine, Pd₃L^4,S₄ remained detectable in solution for c. 1 h, whilst Pd₃L^7,R₄ was almost immediately (<10 min) disassembled (Fig. S145, S146, S153 and S154). The partially collapsed smaller cavity of the ‘All Up’ CCCC Pd₃L^4,S₄ cage may provide a more condensed cage structure, in which Pd metal centres and ester bonds are sterically protected from external attack, explaining this difference. The cis CCNN cage Pd₃L^7,R₄ has two symmetric cavities with a more open structure, and could be rapidly attacked by ⁻OD, glutathione, and pyridine. This is supported by the observation of complete hydrolysis of ligand esters upon treatment of cage Pd₃L^7,R₄ with ⁻OD, whilst Pd₃L^4,S₄ showed significant residual cage (Fig. S135 and S142).

Remarkably, when cages Pd₃L^7,R₄ and Pd₃L^4,S₄ were challenged by addition of 4 eq. DCl, a reversal in the stability trend was seen. The ‘All Up’ Pd₃L^4,S₄ cage was >80% disassembled after 48 h, whereas only c. 35% of the cis CCNN Pd₃L^7,R₄ cage had been disassembled (Fig. S124, S125, S131 and S132). The difference observed between acid and base addition is likely due to the differing mechanisms of cage destruction, with accessibility of the ester (base hydrolysis) and the pyridine nitrogen (protonation) varying between cages.

Having shown differential stability, varying host–guest properties between the differentially sized cavities were then explored (SI Section 11). Exemplar ¹H NMR titrations of the cis CCNN Pd₃L^7,R₄ and ‘All Up’ CCCC Pd₃L^4,S₄ cages with negatively charged aromatic anions benzenesulfonate and pyrene-1-sulfonate were performed. Pleasingly, substantial differences in binding constants for sodium benzenesulfonate with Pd₃L^7,R₄ and Pd₃L^4,S₄ were found, with the cis CCNN Pd₃L^7,R₄ binding almost an order of magnitude more strongly than the ‘All Up’ CCCC Pd₃L^4,S₄ cage (K_a = 911 M⁻¹ ± 6% for Pd₃L^7,R₄ vs. K_a = 120 M⁻¹ ± 4% for Pd₃L^4,S₄, Fig. S192–S204). A similar, but less pronounced, trend of interaction was found with sodium pyrene-1-sulfonate between the two cages (K_a = 1557 M⁻¹ ± 7% for Pd₃L^7,R₄ vs. K_a = 2192 M⁻¹ ± 6% for Pd₃L^4,S₄, Fig. S205–S210). Further, evidence of differing binding modes between the two cages was seen by ¹H NMR (Fig. 5). For Pd₃L^7,R₄, ¹H resonances of external and internal pyridine H_α residues (Fig. S206) showed significant Δppm shifts (up to c. 0.25 ppm), suggesting a cavity bound species interacting with the central pyridines. In Pd₃L^4,S₄, only the external Hyp H_γ and pyridine residues showed significant Δppm shifts (up to 0.35 ppm for Hyp, Fig. S209), suggesting guest binding on the external aromatic Pd-pyridine panels of the cage, and so evidencing differential binding modes in cages with different cavities (Fig. 5).

Fig. 5 ¹H NMR indicating differential binding modes of cages Pd₃L^7,R₄, and Pd₃L^4,S₄ with sodium pyrene-1-sulfonate. Pd₃L^7,R₄ (top) shows H_α Δppm shifts in all (external and internal) pyridines residues, suggesting a cavity bound species whereas Pd₃L^4,S₄ (bottom) shows significant shifts in only external pyridine residues suggesting guest binding on the external aromatic Pd-pyridine panels of the cage.

Finally, guest binding with Irinotecan, an anticancer agent, was investigated. As Irinotecan is administered clinically as the HCl salt, this provides a bridge between the differential acid stabilities seen and guest binding. Binding constants were similar (K_a = 2188 M⁻¹ ± 6% for Pd₃L^7,R₄ vs. K_a = 2629 M⁻¹ ± 9% for Pd₃L^4,S₄, Fig. S211–S216), but Pd₃L^4,S₄, and not Pd₃L^7,R₄, disassembled at higher Irinotecan. HCl equivalencies (>2 eq.) (Fig. S212 and S215). The interplay of differential guest binding and cage stability, therefore, provides a novel route to control guest binding.

Conclusions

Herein, we have shown that a series of four isomeric oligoproline ligands can be used to synthesise Pd₃L₄ metal-peptidic ‘peanut’ cages. Small changes in ligands, varying structural isomers and point chiral centres, can lead to dramatic changes in self-assembly and stability. Each of the four tritopic ligands produced a different cage upon addition of Pd(II): L^7,R formed the cis CCNN Pd₃L₄ isomer, L^4,R formed all possible Pd₃L₄ isomers simultaneously, L^7,S formed an interpenetrated Pd₆L₈ cage, and L^4,S formed the ‘All Up’ CCCC Pd₃L₄ isomer, generating a diverse range of anisotropic cavities. The cis and ‘All Up’ cages were significantly more stable, and showed contrasting differences in stability to various stimuli. They showed differences in host–guest behaviour, and binding site. Future work will explore how the asymmetric cavities generated can be leveraged for drug delivery and release, catalysis and sensing.

Author contributions

Authorship is alphabetical between B. E. B., E. M. G. J., and L. E. M. W. Conceptualisation, B. E. B., E. M. G. J., L. E. M. W., and C. T. M.; formal analysis, B. E. B., E. M. G. J., and L. E. M. W.; investigation, B. E. B., E. M. G. J., and L. E. M. W.; resources, C. T. M.; writing – original draft, B. E. B., E. M. G. J., L. E. M. W.; writing – review & editing; B. E. B., E. M. G. J., L. E. M. W., and C. T. M.; visualisation, B. E. B., E. M. G. J., L. E. M. W., and C. T. M; supervision; C. T. M.; project administration, C. T. M.; funding acquisition, C. T. M.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data supporting this article have been included as part of the supplementary information (SI). Supplementary information is available. See DOI: https://doi.org/10.1039/d5sc06441d.

Acknowledgements

We thank Dr Meng Li, Warwick University, for recording IMMS data, Dr Peter Simpson, Dr Alain Oregioni, and Dr Geoff Kelly for their advice and support with NMR spectroscopy and Dr Laura Masino for assistance with CD spectroscopy. This work was supported by the Francis Crick Institute, which receives its core funding from Cancer Research UK (CC2213), the UK Medical Research Council (CC2213), and the Wellcome Trust (CC2213) and by the UKRI under Future Leaders Fellowship MR/W00657X/1. This work was supported by the Francis Crick Institute through provision of access to the MRC Biomedical NMR Centre and the Structural Biology Science and Technology Platform. The Francis Crick Institute receives its core funding from Cancer Research UK (CC1078), the UK Medical Research Council (CC1078), and the Wellcome Trust (CC1078).
