Open Access Article
Huihui
Li†
a,
Jiayi
Qin†
b,
Taotao
Ma
a,
Jiajie
Zeng
b,
Ziwei
Chen
b,
Yan
Fu
b,
Hua
Lu
*a,
Zujin
Zhao
*b and
Xin Jiang
Feng
*a
aKey Laboratory of Organosilicon Chemistry and Material Technology, Ministry of Education, Zhejiang Key Laboratory of Organosilicon Material Technology, College of Material, Chemistry and Chemical Engineering, Hangzhou Normal University, Hangzhou, 311121, Zhejiang, China. E-mail: hualu@hznu.edu.cn; xjfeng@hznu.edu.cn
bState Key Laboratory of Luminescent Materials and Devices, Guangdong Provincial Key Laboratory of Luminescence from Molecular Aggregates, South China University of Technology, Guangzhou, 510640, Guangdong, China. E-mail: mszjzhao@scut.edu.cn
First published on 28th November 2025
Designing multi-resonant (MR) materials that integrate narrowband emission and efficient exciton utilization remains challenging, especially for indolocarbazole (ICz) cores. To address this, two novel ICz-derived MR emitters, 4CzmICz and 4CzpICz, were developed by strategically extending π-conjugation via peripheral carbazole units. This modulates charge-transfer (CT) states while retaining MR character, endowing both molecules with hybridized local and charge transfer (HLCT) properties. The meta-isomer 4CzmICz exhibits exceptional deep-blue emission (430 nm, FWHM = 14 nm in hexane). The para-isomer 4CzpICz achieves record HLCT-OLED performance: a narrowband device (FWHM = 29 nm) with 19.5% external quantum efficiency (EQE). In an exciplex-sensitized configuration, EQE reaches 25.0% without emission broadening. This work pioneers MR-HLCT integration and establishes a roadmap for next-generation OLED materials.
An alternative breakthrough was pioneered by Lee et al., who demonstrated that fusing indolo[3,2,1-jk]carbazole (ICz) units, a nitrogen-centered tripodal structure surrounded by aromatic rings, could induce an MR effect through the contrast electronegativity between carbon and nitrogen.38,39,43–48 This design spatially separates HOMO and LUMO distributions on distinct carbon atoms, yielding an unprecedentedly narrow EL spectrum (FWHM = 14 nm, the smallest reported to date). While these systems show compelling advantages, their current EQEs remain limited to 3.3% and 15.1%, underscoring the necessity for further exploration into molecular engineering to enhance performance.
Herein, we developed two novel MR emitters (4CzmICz and 4CzpICz) by functionalizing the ICz core with four carbazolyl groups exhibiting exceptional thermal stability (Td = 530−540 °C). The 4CzmICz-based OLED achieved deep-blue emission at 424 nm with CIE (0.167, 0.045) and 27 nm FWHM, while 4CzpICz delivered a record high 19.5% EQE in pure-blue device (29 nm FWHM) – the first HLCT system approaching 20% EQE. This work advances HLCT design principles for high-performance blue emitters.
![]() | ||

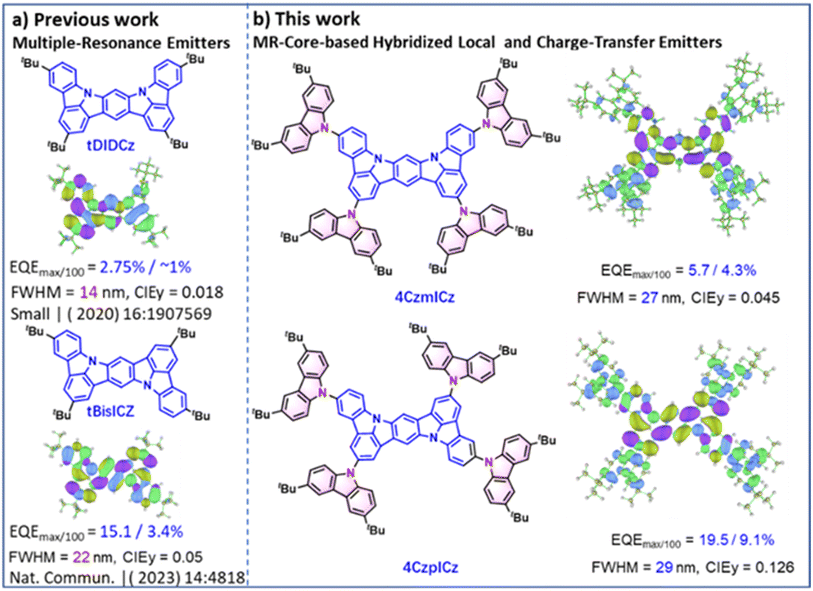

| Fig. 1 Design strategy. Molecular structures and HOMO(green/blue)–LUMO(purple/yellowish green) distributions calculated by M062X/6-31G(d) for (a) the previous work and (b) the current work. | ||
The synthetic routes for the molecules are outlined in Scheme S1. Starting from 3,6-di-tertbutylcabazole, compound 4 was synthesized by amino-protection, Buckwald–Hartwig reaction for amination and debenzylation. The subsequent nucleophilic aromatic substitution reaction of compound 4 with 1,4-dibromo-2,5-difluorobenzene and 1,5-dibromo-2,4-difluorobenzene gave the key intermediates compound 5 and 6, respectively. Finally, the target molecules, 4CzmICz and 4CzpICz, were obtained efficiently via the ring–closing reaction with palladium catalysis. Both target molecules were characterized by 1H NMR, 13C NMR spectroscopy, and high-resolution mass spectrometry.
![]() | ||

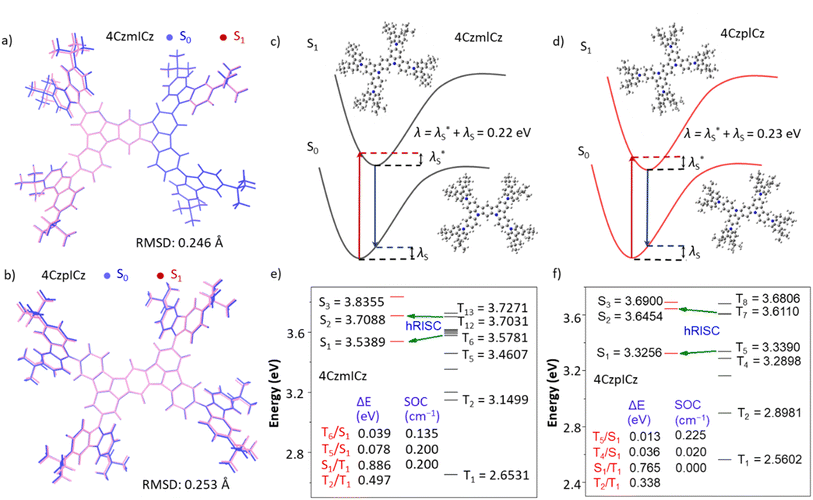

| Fig. 2 (a and b) RMSD between the S0 and S1 geometries. (c and d) reorganization energy. (e and f) Singlet and triplet excited states calculated by TD-M062X/6-31G(d) for 4CzmICz and 4CzpICz. | ||
To study the excited transitions in these molecules, time-dependant (TD) DFT calculations were made by M062X functional with 6-31G(d) basis sets (Tables S1 and S2). Apart from the strong transition from HOMO to LUMO with large oscillator strength, HOMO−1 and LUMO+1 participate in the lowest transitions significantly, infering their strong fluorescence of both molecules. To explore deep into the excited-state characteristics, natural transition orbital (NTO) calculations was performed (Fig. S4 and S5). For both molecules, the NTO “holes” and “particles” of the singlet states and triplet states are partially overlaped or seperated, showing the HLCT character of the elecronic structures. The LE components are beneficial to improve the fluorescence quantum efficiency (ΦF) and reduce red-shift in fluorescence. While the CT states help to reverse intersystem crossing from triplet states to singlet states. The NTO calculations show that the appending donor groups on the ICz cores can fine tune the LE and CT states of the molecules.
For further understanding the exciton utility, the energy levels of the singlet and triplet states are studied (Fig. 2e and f). Usually, a small energy splitting of less than 0.1 eV between S1 and T1 (ΔES1–T1) is need to conduct an efficient themally activated delayed fluorescence (TADF) process in electroluminescence device. The ΔES1–T1 are as wide as 0.886 and 0.765 eV for 4CzmICz and 4CzpICz, respectively, which dosen't favour a TADF process in RISC. In addition, large energy gaps are also found between the highlying triplet states and T1, and thus such transitons are confined to show reduced nonradiative decay. Nevertheless, very small splitting energies are found between the high-lying triplet transitions and the singlet transitions. For example, the splitting energies are as small as 0.078 and 0.013 eV of T5/S1 for 4CzmICz and 4CzpICz, respectively. In contrast, significant spin–orbit coupling (SOC) between T5 and S1 are found of 0.200 cm−1 (4CzmICz) and 0.225 cm−1 (4CzpICz). These results indicate the effective coupling between the high lying triplet excited states (Tn, n ≥ 2) and singlet states (Sm, m ≥ 1), which makes the RISC from triplet state to singlet state possible.

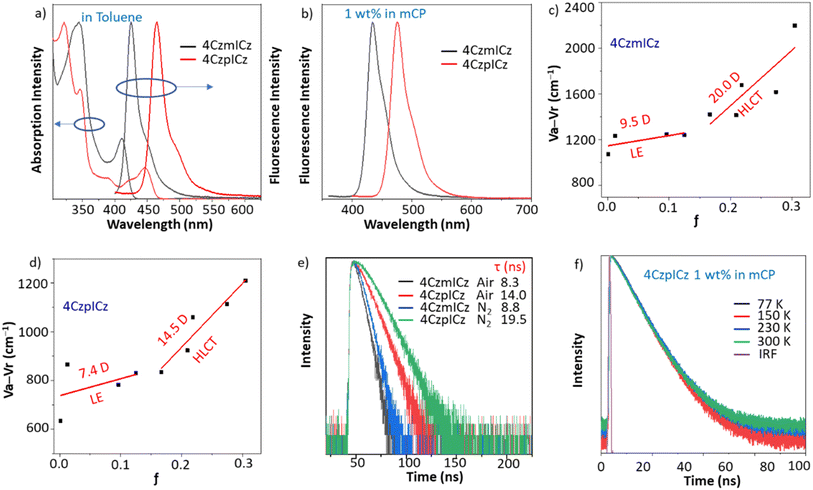

The photophysical properties of 4CzmICz and 4CzpICz were measured in solution and thin films (Fig. 3a, S7, Tables 1, and S3). In toluene solution, the maximum absorption peaks around 345 nm for 4CzmICz and 346 nm for 4CzpICz can be ascribe to the π–π* transitions in the carbazole units and the ICz cores, while the absorptions peaking at 411 and 447 nm belong to the CT transitions in the molecules. The absorption spectra show minimal solvent dependence, suggesting small ground-state dipole moments in both emitters. 4CzmICz and 4CzpICz exhibit medium to high fluorescence quantum efficiencies in the deep-blue to pure-blue region with narrowband emissions (FWHM
:
4CzmICz = 14–40 nm, 4CzpICz = 20–45 nm). Owing to the medium φPLs of the emitters under 320 nm excitation, the calculated radiative constants are as large as 5.7 × 107 and 4.1 × 107 s−1. The emission spectra of 4CzmICz displays a 17 nm red-shift from hexane to acetonitrile, while 4CzpICz shows only 8 nm shift, indicating weaker CT character. The para-substituted 4CzpICz exhibits particularly suppressed CT effects due to its symmetric structure. Additionally, the small Stokes shifts observed consistent with minor geometric relaxation in the emissive state, further support the dominance of LE states over CT contributions.52
| Compd | λ abs a (nm) | λ em a (nm) | Δνem–absb (cm−1) | FWHM c (nm) | Φ F d (%) | τ F e (ns) | k r/knrf (107 s−1) | E onset g (V) | HOMO/LUMO/Egh (eV) |
|---|---|---|---|---|---|---|---|---|---|
| a Main absorption and emission peaks. b Stokes' shifts. c Full width at half maximum. d Fluorescence quantum yields under air/nitrogen. e The fluorescence lifetime under air/nitrogen excited at 365 nm. f Radiative and nonradiative constant. g Oxidation (dichloromethane as solvent)/reduction (N,N-dimethylformamide as solvent) potentials from cyclic voltammetry, Ag/AgNO3 was used as a reference. h HOMO, LUMO, and Eg (energy gap) obtained from CV measurement. | |||||||||
| 4CzmICz | 345/411 | 433 | 1236 | 20 | 0.37/0.50 | 8.3/8.8 | 5.7/5.7 | 0.79/−2.47 | −5.49/−2.32/3.17 |
| 4CzpICz | 346/447 | 465 | 866 | 24 | 0.40/0.58 | 14.0/19.5 | 4.1/3.0 | 0.70/−2.10 | −5.40/−2.69/2.71 |
The Lippert–Mataga plots (Fig. 3c and d) reveal the electronic properties of the emitters by correlating Stokes shifts with solvent polarizability. Both molecules exhibit two distinct linear regions, indicating hybridized local and charge-transfer (HLCT) character—LE-like states dominate in nonpolar solvents (small µe), while CT-like states prevail in polar solvents (large µe).53 In 1 wt% doped films, both emitters maintain intense, narrowband emission (FWHM = 33 nm). Compared to the high doping films, the 1 wt% doped film has a smaller effect of concentration quenching. While compared to the solutions, the emitter has a confined environment with less vibration and rotation, which reduces the nonradiative emission and helps to achieve a high quantum yield. Notably, 4CzpICz achieves near-unity photoluminescence quantum yield (98.6%) at this concentration, demonstrating exceptional potential as a terminal emitter in hyperfluorescence devices.
To investigate the triplet utility, the absolute fluorescence quantum yields and fluorescence lifetimes in toluene solutions were measured. Under nitrogen, the fluorescence lifetimes enhanced slightly and kept at nanosecond levels for both molecules (Fig. 3e, S8 and Table S4). As listed in Table S4, obvious increases in fluorescence were observed at −78 °C, and the variations of quantum yields are comparatively small at other temperatures. At a low temperature of −78 °C, the rotation and vibration motions in the molecules are significantly reduced, thus leading to the reduction of nonradiative decay and the in the increase of fluorescence. For the same reason, the emission spectra are narrowed to 12 and 15 nm for 4CzmICz and 4CzpICz, respectively. However, significant enhancements of quantum yields were detected in solutions under nitrogen as compared to those under air, which clearly indicates the triplet participation during the fluorescent process. To get further information about the mechanism of triplet utility, transient PL spectra depending on temperature were measured in toluene solution and in thin films with 1 wt% emitters in mCP (Fig. 3f and S9). On one hand, single exponential decay curves and nanosecond-scale lifetime of the solutions and doped films were detected, indicating no significantly long-time delayed fluorescence in the emission (Table 1). On the other hand, no positive response of fluorescence to increase of temperature was observed at ns-scales and µs-scales in the transient PL, which indicates no TADF in the emission process.
The electrochemical property of 4CzmICz and 4CzpICz was investigated by cyclic voltammetry (CV) performed in 0.1 M Bu4NPF6 dichloromethane or dimethylformamide (Table 1 and Fig. S10). The onset potentials are 0.79/−2.47 and 0.70/−2.10 eV for 4CzmICz and 4CzpICz, respectively. The onset potentials of Fc/Fc+ were measured as 0.10 V for oxidation and 0.01 V for reduction. By EHOMO/LUMO = −(4.8 eV + Eonset − Eonset/Fc/Fc+), the HOMOs/LUMOs are calculated to be −5.49/−2.32 (4CzmICz) and −5.40/−2.69 eV (4CzpICz). The HOMO/LUMO energy levels of these dyes change obviously with the different conjugation and the para molecules has a lower energy gap for the comparatively strong conjugation. According to Eg = EHOMO − ELUMO, the energy gaps (Eg) are calculated to be 3.17 eV (4CzmICz) and 2.71 eV (4CzpICz), which show the near potential with optical Eg estimated from the absorbing spectra in toluene solutions to be 2.90 and 2.67 eV for 4CzmICz and 4CzpICz, respectively. The large Egs indicate that the dyes are suitable for blue emission.

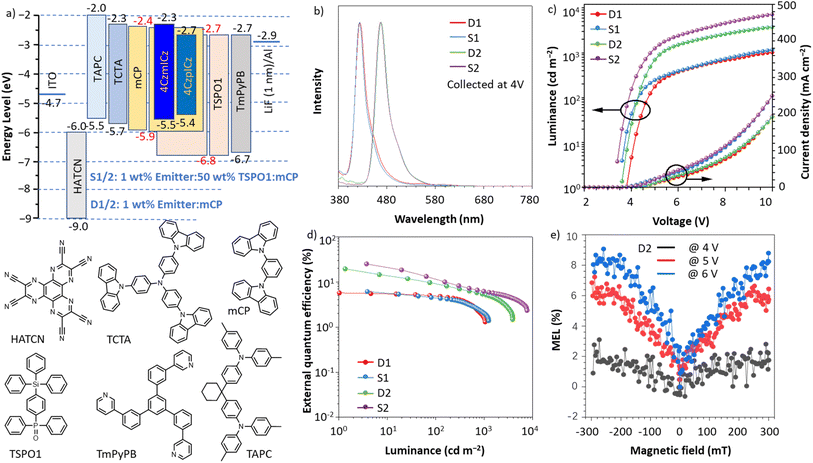

As shown in Table 2 and Fig. 4b–d, the device D1 incorporating 1 wt% 4CzmICz emitter, demonstrates exceptional deep-blue emission at 424 nm with outstanding color purity (FWHM = 27 nm, CIEy = 0.045), meeting the stringent BT.2020 blue standard. This device achieves peak performance metrics of 1051 cd m−2 luminance, 2.0 cd A−1 current efficiency, 1.7 lm W−1 power efficiency, and 5.7% EQE. Remarkably, the D2 device with 1 wt% 4CzpICz emitter delivers pure-blue emission at 468 nm while maintaining narrowband characteristics (FWHM = 29 nm), achieving record-breaking performance: 3866 cd m−2 luminance, 19.4 cd A−1 current efficiency, 16.9 lm W−1 power efficiency, and 19.5% EQE. This represents the highest reported efficiency for HLCT-based OLEDs to date, preserving the MR character (Table S5). Considering the high EQEs of both devices, the exciton utility efficiency (EUE) are calculated by eqn (1), in which γ is a balance factor of carriers (100%), ηPL is the fluorescent efficiencies (0.649 for 4CzmICz and 0.986 for 4CzpICz) of the films with 1 wt% doping concentration, and ηout stands for the light out-coupling factor (≈0.25 for ITO substrate), we calculated EUE values of 35% (D1) and 79% (D2). These results confirm efficient triplet exciton harvesting in both devices. As discussed in theoretical calculations, the energy difference between T1 and S1 are large both molecules, which hinders the reverse conversion from T1 state to S1 state. Combined with their nanosecond-scale fluorescence lifetimes, this rules out TADF as the primary exciton harvesting mechanism. Furthermore, the absence of nonlinear luminance-current density dependence at low currents (Fig. S11) excludes triplet–triplet annihilation (TTA) as a dominant process. At the meanwhile, small energy differences and strong SOC are found in the excited states, such as T5–6/S1 for 4CzmICz and T5/S1 for 4CzpICz, facilitating the high-lying RISC process. Therefore, the triplet exciton utility can be ascribed to an HLCT process.
| ηext = γ × ηPL × ηr × ηout | (1) |
| Device | V on (V) | L max (cd m−2) | η C (cd A−1) | η P (lm W−1) | η ext (%) | λ EL (nm) | CIE (x, y) | FWHM (nm) | Blue index (cd A−1) |
|---|---|---|---|---|---|---|---|---|---|
| a The maximum luminance (Lmax), current efficiency (ηc), power efficiency (ηP) and external quantum efficiency (ηext) of the devices: maximum values. Von = turn-on voltage at 1 cd m−2. CIE coordinates at 4 V. | |||||||||
| D1 | 3.8 | 1051 | 2.0 | 1.7 | 5.7 | 424 | (0.167, 0.045) | 27 | 44 |
| S1 | 3.6 | 1242 | 1.7 | 1.4 | 6.1 | 424 | (0.165, 0.036) | 24 | 47 |
| D2 | 3.6 | 3866 | 19.4 | 16.9 | 19.5 | 468 | (0.133, 0.126) | 29 | 154 |
| S2 | 3.4 | 7679 | 25.0 | 23.1 | 25.0 | 468 | (0.137, 0.123) | 29 | 203 |
Transient EL test (Fig. S12) detected microsecond-scale lifetimes of 14.8 µs for 4CzmICz-based OLED, indicating the triplet utility via spin flipping. At the same time, this lifetime matches the high-lying reverse intersystem crossing (hRISC) time scale of HLCT.54 Magneto-electroluminescence (MEL) measurements were performed to further validate the existence of hRISC in the EL process. For the 4CzpICz-based device, the high-quality MEL traces were obtained to show saturation values at the higher magnetic field, excluding the occurrence of TTA process (Fig. S12).55,56
Using exciplex hosts confining high energy triplet excitons in the sensitizing system is an effective approach to optimize the EL efficiencies of the deep blue emitters, so the sensitized hyperfluorescence devices using triplet exciton harvesting host materials comprises a mixture of mCP and TSPO1 are constructed. S1 and S2 show slightly decreased driving voltages without shift of emission maxima, due to the triplet exciton harvesting host materials are also used as the charge transport materials. The color purity of S1 exhibits significant increase with FWHM of 24 nm and CIEy of 0.036. With the improvement of carrier mobility and exciton utility, the efficiencies of S2 increase significantly with maximal luminance, current efficiency, power efficiency and external quantum yield of 7679 cd m−2, 25.0 cd A−1, 23.1 lm W−1, and 25.0%, respectively, while keeping color purity well with narrowband characteristics. Besides, the blue index (a key property for blue OLED defined as the ratio of current efficiency over y value of the Commission Internationale d'Éclairage) of S2 also increases significantly from 154 to 203 cd per A CIEy−1.
To evaluate the practical application potential of the emitters. The device lifetime was tested for 4CzpICz-based OLED (device configuration: ITO/MoO3 (6 nm)/NPB (50 nm)/TcTa (5 nm)/mCBP (5 nm)/1 wt% 4CzpICz: mCBP (20 nm)/TSPO1 (5 nm)/TPBi (30 nm)/LiF (1 nm)/Al) at an initial luminance of 1000 cd m−2. The device exhibits a T90 (time to 90% initial luminance) of 5.8 hours and the lifetime curve is included in Fig. 4e of the SI. This lifetime performance is comparable to or better than many reported narrowband blue HLCT OLEDs (typically LT50 < 20 h under the same initial luminance), confirming the structural stability of 4CzpICz and its compatibility with the device architecture.
Footnote |
| † H. L. and J. Q. contributed equally to this work. |
| This journal is © The Royal Society of Chemistry 2026 |
