Self-supported Co₃O₄@Zn–CoNi₂S₄/NF core–shell nanoarrays as an efficient bifunctional electrode for overall water splitting

Abstract

It is a crucial matter to develop bifunctional transition metal catalysts for water electrolysis. In this study, we fabricate a Co₃O₄@Zn–CoNi₂S₄ core–shell heterostructure supported on nickel foam (Co₃O₄@Zn–CoNi₂S₄/NF). The compound structure can generate more active centers and exhibit some unique characteristics. Moreover, the doping of Zn further enhances the catalytic performance. It can optimize the lattice structure of the Co₃O₄@CoNi₂S₄/NF heterostructure and reduce the reaction energy barrier effectively, which can meet the relatively strict requirements of high-performance electrocatalysts. This material can be used as an efficient bifunctional electrocatalyst. In 1 M KOH electrolyte, the material shows excellent electrocatalytic performance for OER and HER. It possesses a low overpotential of 190 mV at 10 mA cm⁻² for OER and 120 mV at 10 mA cm⁻² for HER. Also, it maintains long-term stability. The Co₃O₄@Zn–CoNi₂S₄/NF electrolytic cell acts as a two-electrode system for overall water splitting. It needs a battery voltage of 1.45 V to drive the current density to 10 mA cm⁻². This research has proved that combining metal doping with heterogeneous interface design is a feasible strategy for developing high-performance bifunctional electrocatalysts.

---

1 Introduction

Addressing the severe global energy shortage and environmental deterioration necessitates the pursuit of highly efficient hydrogen production strategies.^1,2 Hydrogen is a highly promising energy carrier because of its large storage capacity, wide – ranging applicability, and natural sustainability. Among the available hydrogen production techniques, electrochemical water splitting has become a focal point of research. This is mainly because it is technologically well – developed, easy to operate, and highly efficient.^3,4 Electrochemical water splitting is based on two fundamental half – reactions. At the cathode, the hydrogen evolution reaction (HER) occurs, while at the anode, the oxygen evolution reaction (OER) takes place. These two reactions are the core of the water electrolysis process for hydrogen production. During the HER at the cathode, breaking down H₂O to obtain H demands overcoming a relatively high energy threshold.^5–8 Meanwhile, the OER at the anode involves a complex four – electron transfer mechanism with slow reaction kinetics. This slow kinetics acts as a limiting factor, reducing the overall efficiency of water splitting. Moreover, conventional electrode materials typically have low catalytic capabilities. In severe alkaline conditions, they are susceptible to corrosion and the detachment of active substances, which causes a rapid decline in performance.^9,10 These problems lead to the degradation of catalytic performance. Therefore, developing catalysts with three key capabilities has become a current research focus.¹¹

Among various potential materials, cobalt oxide (Co₃O₄) has distinguished itself as a superior candidate for designing stable and bifunctional electrocatalysts.^12–14 Co₃O₄ is a multi-valence source. The Co²⁺ sites offer abundant active sites for electron transfer and reactant adsorption. Its mixed-valences source offers a rich range of active sites to transfer electrons. In OER Co ions interact stably with oxygenate species and have good reaction kinetics. However, the electrocatalytic performance of Co₃O₄ is severely degraded by poor electrical conductivity and low catalytic activity.¹⁵ During the HER, Co³⁺ sites in Co₃O₄ strongly bind hydrogen intermediates (H), impeding H₂ formation. Furthermore, their reduction to Co²⁺ under cathodic potential stabilizes OH⁻ adsorption, generating Co–OH species that block the remaining active sites, thus further poisoning the HER activity.^16–19 To solve these difficulties and improve the electrochemical performance of Co₃O₄ materials, researchers have fabricated a composite material using complementary substances such as metals, semiconductors, other oxides and sulfides.^20–22 Transition metal sulfides like CoNi₂S₄ are particularly attractive as they provide metallic conductivity, a rich number of redox couples (Co²⁺/Co³⁺, Ni²⁺/Ni³⁺) of charge transport. The incorporation of sulfides introduces sulfur vacancies, which not only increase carrier concentration but also expand the electrochemically active surface area.^23–25 Zheng et al. demonstrated that a Ni(OH)₂@NiCo₂S₄ composite exhibiting a low overpotential of 230 mV at 20 mA cm⁻² under alkaline conditions. This superior performance was ascribed to the improved charge transport facilitated by the conductive sulfide scaffold.²⁶

However, Relying merely on the simple composite of two materials, the interface regulation methods are relatively singular, making it difficult to achieve precise control over the interfacial electronic structure and active sites.^27,28 In order to realize improved control over intrinsic activity, heteroatom doping is adopted. For example, zinc (Zn), possessing a stable fully filled configuration, serves as an ideal dopant to regulate the electron density of the host lattice without introducing competing redox active sites.^29,30 These characteristics enable effective regulation of the electron distribution in the support or host material. Additionally, Zn²⁺ possesses a large ionic radius. When doped into the lattice, it readily induces significant lattice distortion.³¹ Consequently, these combined characteristics offer a novel strategy for engineering highly efficient bifunctional electrocatalysts.

Herein, we systematically investigate the impact of Zn doping on Co₃O₄@ CoNi₂S₄/NF by constructing a core–shell heterostructure Co₃O₄@Zn–CoNi₂S₄/NF electrocatalyst via a facile hydrothermal strategy followed by thermal annealing. With the introduction of the CoNi₂S₄ precursor, CoNi₂S₄ nanosheets were in situ grown on Co₃O₄ nanowires. This structural design provides more free electrons and a larger specific surface area for the catalytic reaction process. Meanwhile, Zn doping induces structural evolution and lattice modulation of the Co₃O₄@CoNi₂S₄ composite, which helps expose additional active sites. Electrochemical tests were conducted in an electrolyte of 1 M KOH. For the OER, the overpotential of the prepared catalyst at a current density of 10 mA cm⁻² was 190 mV, which was 113 mV lower than that of the Co₃O₄/NF catalyst. In the HER test, the overpotential of this catalyst corresponding to a current density of 10 mA cm⁻² was 119 mV. In addition, when used as both the cathode and anode for bifunctional water electrolysis, Co₃O₄@Zn–CoNi₂S₄/NF exhibited excellent performance. It only required a cell voltage of 1.45 V to reach a current density of 10 mA cm⁻².

2 Experimental

2.1 Materials preparation

2.1.1. Preparation of Co₃O₄/NF. The Co₃O₄/NF sample was prepared by a one-step hydrothermal method. Firstly, 0.582 g of Co(NO₃)₂·6H₂O, 0.07 g of NH₄F, 0.6 g of CO(NH₂)₂, and 60 mL of deionized water (DI) were mixed and stirred thoroughly until completely dissolved, followed by immersing nickel foam (NF) in the solution. The prepared solution was transferred into a 100 mL Teflon-lined autoclave and heated at 120 °C for 8 h. The Co₃O₄/NF precursor was obtained, which was repeatedly washed with C₂H₅OH and DI water, then dried at 60 °C for 7 h. Subsequently, the precursor was calcined in a muffle furnace at a heating rate of 2 °C min⁻¹, raised to 350 °C, and held at that temperature for 2 h. Finally, Co₃O₄/NF was obtained.

2.1.2. Preparation of Co₃O₄@CoNi₂S₄/NF. To fabricate the Co₃O₄@CoNi₂S₄/NF heterostructure, a secondary hydrothermal treatment was employed. Specifically, 0.582 g of Co(NO₃)₂·6H₂O, 0.2908 g Ni(NO₃)₂·6H₂O and 0.2 g of Na₂S were dissolved in 60 mL of DI water under vigorous magnetic stirring. The previously calcined Co₃O₄/NF substrate was immersed in this solution within a Teflon-lined autoclave. The system was heated at 120 °C for 8 h and then allowed to cool naturally. The final product, denoted as Co₃O₄@CoNi₂S₄/NF, was washed and dried in an oven for 7 h.

2.1.3. Preparation of Co₃O₄@Zn–CoNi₂S₄/NF. The synthesis protocol for Co₃O₄@Zn–CoNi₂S₄/NF mirrors that of Co₃O₄@CoNi₂S₄/NF, with the modification of introducing an additional 0.06 g of Zn(NO₃)₂·6H₂O during the precursor solution preparation. The subsequent hydrothermal and drying procedures remained identical to those described above.

Specifically, to investigate the effect of sulfide loading, precursor solutions with total metal ion concentrations of 0.025 M, 0.100 M, and 0.150 M were employed, maintaining a constant Co/Ni molar ratio of 1 : 2. These samples were labeled as C-25, C-100, and C-150, respectively. Additionally, to evaluate the impact of Zn incorporation, samples with varying Zn doping contents (nominal concentrations of 1, 5, and 6 at%) were prepared under otherwise identical conditions.

2.2 Material characterizations

The morphology of the catalysts was characterized using a scanning electron microscope (SEM, Model Quanta 450 FEG), a transmission electron microscope (TEM, Model JEM-2020 F), and an X-ray energy dispersive spectrometer (EDS, Model SUPER-X EDX). The Brunauer–Emmett–Teller (BET) surface area was determined using N₂ adsorption at 77 K. Electron paramagnetic resonance (EPR) spectroscopy was performed on a Bruker EMX-10/12 spectrometer at room temperature to detect unpaired electrons associated with oxygen vacancies. Meanwhile, the microstructure, crystallographic orientation, and elemental composition of the as-prepared nanoparticles were analyzed. The crystallographic structures of the catalysts were determined via an X-ray powder diffractometer (XRD, Model D8 Discovery). The surface chemical states and elemental valences of the catalysts were investigated using an X-ray photoelectron spectrometer (XPS, Model ESCALAB 250 Xi).

2.3 Electrochemical measurements

The electrochemical performance was evaluated in a standard three-electrode configuration using a CHI 760E workstation, with a 1.0 mol L⁻¹ aqueous potassium hydroxide (KOH) solution as the electrolyte. The sample was used as the working electrode, the Pt sheet was used as the counter electrode (surface area 1 cm²), and Hg/HgO was used as the reference electrode respectively. Linear Sweep Voltammetry (LSV) curves were recorded at a scan rate of 5 mV s⁻¹ with 90% iR (ohmic) compensation. For the Oxygen Evolution Reaction (OER), a reverse scan was employed to minimize interference from the oxidation peak of nickel species. The Tafel slope, a core parameter describing the relationship between the kinetic rate of the electrocatalytic reaction and the overpotential, was calculated from the polarization curves using the following equation:

η = a log j + b

where η is the overpotential, b is the Tafel slope, j is the current density, and a is a constant.²⁷ Electrochemical Impedance Spectroscopy (EIS) measurements were conducted over a frequency range of 100 kHz to 0.1 Hz. The stability of the electrode was assessed via chronopotentiometry (CP). Additionally, the electrochemical double-layer capacitance (C_dl) was determined as follows: cyclic voltammetry tests were performed in the non-faradaic region at different scan rates ranging from 10 to 50 mV s⁻¹, and the C_dl value is represented by the slope of the plot of current density versus scan rate.

3 Results and discussion

3.1 Characterization analyses

The Co₃O₄@Zn–CoNi₂S₄/NF sample is fabricated via a two-step hydrothermal synthesis combined with heat treatment. The flow chart of the sample preparation mechanism is shown in Fig. 1. The synthesis begins with growing Co₃O₄ nanowires on the NF support via a hydrothermal method and calcination. These nanowires serve as a skeleton for the secondary growth of CoNi₂S₄ nanosheets. The resulting Co₃O₄@CoNi₂S₄/NF structure provides a larger specific surface area for subsequent doping. During the second hydrothermal synthesis, Zn²⁺ is introduced into the solution, leading to the successful preparation of the Co₃O₄@Zn–CoNi₂S₄/NF sample. The surface morphologies of the as-prepared Co₃O₄/NF, Co₃O₄@CoNi₂S₄/NF, and Co₃O₄@Zn–CoNi₂S₄/NF are examined by SEM. The corresponding SEM images are shown in Fig. 2a–c. In Fig. 2a, Co₃O₄/NF forms a nanowire array structure where the nanowires grow regularly on the NF substrate with a smooth surface. Fig. 2b displays the microstructure of Co₃O₄@CoNi₂S₄/NF. When CoNi₂S₄ is composited onto the surface of Co₃O₄/NF, a nanosheet structure is in situ grown on the surface of the pristine Co₃O₄ nanowires. This unique structure provides a significantly larger surface area, which facilitates the following doping process. As shown in Fig. 2c, the Co₃O₄@Zn–CoNi₂S₄ sample maintains this morphology after Zn²⁺ doping. It exhibits a typical core–shell structure, where the inner nanowires are tightly wrapped by the outer nanosheets. As shown in Fig. S2, the isotherm is of typical Type IV with an H₃ hysteresis loop at P/P₀ > 0.4, indicative of a mesoporous structure formed by slit-like pores. The BET specific surface area is determined to be 43.34 m² g⁻¹, and the mesoporous nature is further verified by the pore size distribution. This large surface area and porous architecture not only expose abundant active sites but also promote electrolyte infiltration and ion diffusion, which are crucial for improving electrocatalytic activity. As illustrated in Fig. 2d, the TEM characterization results confirm that Co₃O₄@Zn–CoNi₂S₄/NF exhibits a micro-heterostructure, where nanosheets are tightly wrapped around the nanowire core, and this structural feature is clearly observable. HRTEM is used to further verify the heterostructure. As illustrated in Fig. 2e, well-defined lattice fringes are visualized. The interplanar distances of 0.47 nm and 0.24 nm are in excellent agreement with the (111) and (311) crystal planes of Co₃O₄, respectively. In contrast, the interplanar spacing of 0.27 nm is consistent with the (222) plane of CoNi₂S₄. Moreover, a clear heterophasic interface is detected between the lattice structures of Co₃O₄ and CoNi₂S₄. Such heterogeneous interfaces are capable of triggering spontaneous electron transfer across the interfacial regions, which in turn facilitates the optimization of electron transportation dynamics during the catalytic reactions occurring on the surface of Co₃O₄@Zn–CoNi₂S₄/NF.^32,33 Additionally, active sites situated near heterogeneous interfaces exhibit enhanced efficiency in adsorbing reactants, activating reaction intermediates, and reducing the energy barrier for chemical reactions.³⁴ The SAED pattern and corresponding EDS results are displayed in Fig. 2f and g. The SAED pattern shows typical polycrystalline diffraction ring characteristics. This further confirms that the sample has a composite crystalline structure. The phase composition matches the TEM data, confirming the formation of the Co₃O₄@CoNi₂S₄ heterostructure. In addition, EDS analysis reveals that all constituent elements in the composite are uniformly distributed, including Co, Ni, O, S, and Zn.

Fig. 1 Schematic diagram of the synthesis of Co₃O₄@Zn–CoNi₂S₄/NF.

Fig. 2 (a) SEM images of Co₃O₄/NF; (b) SEM images of Co₃O₄@CoNi₂S₄/NF; (c) SEM images of Co₃O₄@Zn–CoNi₂S₄/NF; (d) TEM images of Co₃O₄@Zn–CoNi₂S₄; (e) HRTEM of Co₃O₄@Zn–CoNi₂S₄; (f) SAED of Co₃O₄@Zn–CoNi₂S₄; (g) EDS of Co₃O₄@Zn–CoNi₂S₄.

The XRD patterns of the as-fabricated samples are presented in Fig. 3a. First, the strong peaks located at 44.1°, 51.4°, and 75.6° are detected in all samples, which are assigned to the NF substrate (JCPDS no. 65-2865). For the final Co₃O₄@CoNi₂S₄/NF catalyst, distinct diffraction peaks at 31.1°, 36.8°, 38.8°, and 65.2° are indexed to the cubic Co₃O₄ phase (JCPDS no. 00-009-0418). Moreover, the additional peaks appearing at 16.2°, 33.2°, 38.12°, and 54.9° match well with the (111), (220), (311), (440), and (551) planes of CoNi₂S₄ (JCPDS no. 04-010-2269), confirming the successful formation of the sulfide phase. The above XRD results are consistent with the TEM-SAED and EDS analyses, collectively verifying the coexistence of the dual phases in the Co₃O₄@CoNi₂S₄/NF composite. Notably, a distinct shift in the XRD peaks can be clearly observed from the patterns, indicating that Zn²⁺ has been incorporated into the lattice via substitutional doping, with the lattice undergoing modulation.

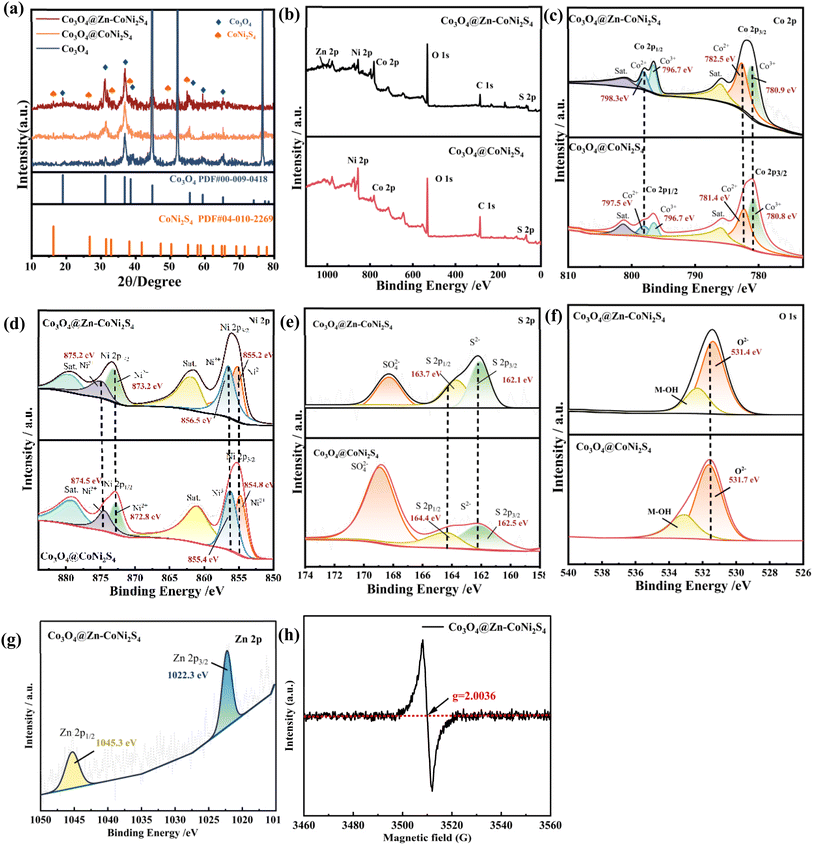

Fig. 3 (a) XRD pattern of the Co₃O₄, Co₃O₄@CoNi₂S₄ and Co₃O₄@Zn–CoNi₂S₄; (b) wide scan XPS spectrum; (c–g) high-resolution XPS spectra of Co 2p, Ni 2p, S 2p, O 1s and Zn 2p for Co₃O₄@CoNi₂S₄ and Co₃O₄@Zn–CoNi₂S₄. (h) EPR spectra of the samples Co₃O₄@Zn–CoNi₂S₄.

To investigate the surface chemical states, XPS measurements are performed. As displayed in Fig. 3b, the survey spectrum of Co₃O₄@Zn–CoNi₄S₂/NF exhibits distinct peaks corresponding to Ni, Co, O, S, and Zn. This result confirms the coexistence of all expected elements in the final catalyst. The distinct Zn 2p signal confirms that Zn is effectively the lattice of Co₃O₄@CoNi₂S₄/NF at the atomic scale. High-resolution XPS spectra are analyzed to investigate how Zn incorporation affects the surface electronic structure. By comparing the Co 2p spectra before and after doping (Fig. 3c), distinct changes can be observed. The Co₃O₄@CoNi₂S₄/NF sample displays typical spin–orbit doublets, corresponding to the 2p_3/2 and 2p_1/2 states. The peak pairs with binding energies of 780.8 eV and 796.7 eV indicate the presence of the Co³⁺ oxidation state in the sample. Meanwhile, the peak pairs at 781.4 eV and 797.5 eV matches the typical characteristic of Co²⁺, revealing the coexistence of mixed valence states.³⁵ The satellite peak of 2p_3/2 is located at 800.0 eV, reflecting the presence of unsaturated coordination or defect structures on the material surface. After Zn doping into Co₃O₄@CoNi₂S₄/NF, the introduction of Zn²⁺ the local coordination environment of Co. To maintain charge balance, partial Co²⁺ is induced to convert to Co³⁺, leading to an increase in the oxidation state of Co. The abundant presence of Co³⁺, which has stronger oxidizing ability, promotes charge transfer and optimizes reaction pathways.³⁶ In Fig. 3d, the peaks at 854.8 eV and 872.8 eV confirm that Ni in the sample mainly exists in the divalent state. Associated with the Ni³⁺ state are the binding energies located at 856.4 eV and 874.5 eV. In the meantime, high-intensity satellite peaks are found at 879.3 eV and 861 eV. Zn doping leads to a slight positive shift in the binding energies of Ni²⁺, which move from 854.8 eV and 872.8 eV to 855.2 eV and 873.2 eV. Additionally, Zn doping triggers the oxidation of Ni²⁺ to Ni³⁺, resulting in a positive shift of the Ni³⁺ main peaks from 856.4 eV and 874.5 eV to 856.5 eV and 875.2 eV; the satellite peaks also exhibit a positive shift, changing from 879.3 eV to 879.6 eV. Since the electronegativity of Zn is lower than that of Co and Ni, Zn substitution for Co/Ni sites after doping requires the oxidation of adjacent Ni²⁺ to Ni³⁺ to maintain charge balance, leading to an increase in the binding energy of Ni main peaks.^37,38 in Fig. 3e, the S 2p binding energies of Co₃O₄@Zn–CoNi₂S₄/NF are slightly lower than Co₃O₄@CoNi₂S₄/NF. the characteristic peaks shift from 162.5 eV and 164.4 eV to 162.1 eV and 163.7 eV, respectively. After Zn²⁺ doping, charge transfer occurs from the 3d orbital of Zn to the 3p orbital of S.^39,40 This transfer increases the valence electron density of S. It also weakens the adsorption of *OH. As a result, OER performance is enhanced. For Fig. 3f, the O 1s peaks of Co₃O₄@CoNi₂S₄/NF are located at 531.7 eV and 533.1 eV. In contrast, those of Co₃O₄@Zn–CoNi₂S₄/NF are at 531.4 eV and 532.4 eV. Compared with the undoped sample, there are notable changes in surface-adsorbed species and subtle modifications to the overall electronic structure. Meanwhile, this observation indicates that the material itself maintains a stable oxidation state. In the O 1s spectrum, the peak located at 531.4 eV is correlated with oxygen vacancies. For the Zn-doped sample, this peak exhibits a higher intensity and a negative shift of 0.3 eV. The generation of abundant surface oxygen vacancies is indicated by this result, and these vacancies can facilitate the adsorption of *OH intermediates.⁴¹ As shown in the Fig. 3g, a clear doublet corresponding to Zn 2p_3/2 and Zn 2p_1/2 can now be observed at binding energies of approximately 1022.3 eV and 1045.3 eV, respectively. These values are confirming the successful incorporation of Zn into the CoNi₂S₄ lattice. As shown in Fig. 3h, a distinct EPR signal with a g-value of 2.0036 is observed at room temperature. This g-value is close to that of a free electron (2.0023), which is a typical characteristic of unpaired electrons associated with oxygen vacancies in metal oxides. The slight deviation may originate from spin–orbit coupling and the local electronic environment surrounding the defect sites. The emergence of this strong EPR signal confirms that a large number of oxygen vacancies are successfully introduced into the Co₃O₄@Zn–CoNi₂S₄/NF structure.

3.2 Electrochemical measurements

As can be seen from the figure, with the increase of CoNi₂S₄ loading, the electrocatalytic activity of the samples first increased and then decreased in Fig. S3a and b. When the total concentration of Co²⁺ and Ni²⁺was 50 mmol L⁻¹ (corresponding to the C-50 sample), the electrocatalytic performance reached the optimal level; when the total concentration of metal ions further increased, excessive CoNi₂S₄ loading led to the collapse of the pore structure, which in turn reduced the contact area between the electrode and the electrolyte as well as the electron transfer efficiency, resulting in a significant attenuation of electrocatalytic performance.

To further investigate the regulatory role of Zn introduction, a series of Co₃O₄@Zn–CoNi₂S₄/NF composites were synthesized with varying Zn²⁺doping levels (x = 1, 3, 5, and 6 at%) in Fig. S3c and d. Electrochemical evaluations revealed that the catalytic activity followed a trend dependent on the doping concentration, with the optimal performance achieved at 3 at% Zn. This enhancement is attributed to the synergistic effects of Zn-induced lattice defects, the modulation of the electronic structure, and optimized interfacial interactions. With the optimal synthesis parameters established, the electrochemical activity of the resultant Co₃O₄@Zn–CoNi₂S₄/NF was systematically evaluated in a three-electrode system.

The OER performance is evaluated in a three-electrode system. As shown in the LSV curves (Fig. 4a), Co₃O₄@Zn–CoNi₂S₄/NF exhibits the lowest overpotential among all samples. Specifically, the catalyst delivers 10 and 100 mA cm⁻² at overpotentials of merely 190 and 313 mV in Fig. 4b. This result underscores the superior activity of the Zn-doped core–shell architecture, which can be traced back to the favorable synergistic interactions. The highly conductive outer shell serves as a conduit for rapid interfacial electron transfer, effectively mitigating the redox overpotential. Concurrently, lattice expansion triggered by Zn doping further amplifies the intrinsic electrocatalytic activity. Reaction kinetics are elucidated via Tafel plots (Fig. 4c), where a lower slope typically serves as a hallmark of reduced charge transfer resistance. Notably, Co₃O₄@Zn–CoNi₂S₄/NF demonstrates a superior Tafel slope of 47.2 mV dec⁻¹, significantly outperforming both Co₃O₄@CoNi₂S₄/NF (46.94 mV dec⁻¹) and pristine Co₃O₄/NF (116.4 mV dec⁻¹). This result confirms that Co₃O₄@Zn–CoNi₂S₄/NF shows the optimal electrochemical reaction kinetics. The incorporation of Zn adjusts the electronic structure of Ni³⁺and creates abundant oxygen vacancies. These factors work together to lower the energy barrier, leading to faster charge transfer. The fitting of EIS tests is performed under open-circuit potential in Fig. 4d, the Co₃O₄@Zn–CoNi₂S₄/NF sample possesses the smallest charge transfer resistance (R_ct) of 2.7 Ω, offering direct proof of its enhanced conductivity. To determine the electrochemical active surface area, C_dl is calculated from the non-faradaic region (Fig. 4e). The Co₃O₄@Zn–CoNi₂S₄/NF sample records the high C_dl, signifying a larger active surface area and a greater number of exposed active sites for OER. Stability is equally crucial as catalytic activity. As shown in Fig. 4f, the durability was tested using chronopotentiometry at l0 mA cm⁻², the potential remained stable at roughly l90 mV for 20 h without significant fluctuation, proving its excellent long-term stability.

Fig. 4 Electrocatalytic performance evaluation for OER. (a) LSV curve in 1.0 M KOH. (b) Comparison of overpotential. (c) Tafel plots. (d) EIS spectra. (e) C_dl calculations. (f) Chronopotentiometry curves at 10 mA cm⁻².

After the cyclic stability test, comprehensive characterization by HRTEM, Raman and XPS spectroscopy, and revealed a significant surface reconstruction of the material, elucidating the structural and chemical evolution underlying its electrocatalytic activity. The HRTEM image of the post-OER sample in Fig. S8 reveals a well-defined core–shell heterostructure. The crystalline core retains distinct lattice fringes corresponding to the CoNi₂S₄ and Co₃O₄ phases, confirming the preservation of long-range order and structural robustness. In contrast, the surface is encapsulated by an outer layer, consistent with the characteristics of oxyhydroxide formation. This reconstructed shell provides abundant coordinatively unsaturated sites favorable for OER catalysis, while the intact crystalline core ensures efficient electron transport. In Fig. S9, Raman spectroscopy results further corroborate these findings. Before cycling, the characteristic peaks located at 300 cm⁻¹ and 350 cm⁻¹ are attributed to the lattice vibrations of metal–sulfur (M–S) bonds, while the peaks at 526 cm⁻¹ and 669 cm⁻¹ correspond to Co₃O₄, verifying the composite nature of the pristine material. After electrocatalytic cycling, the vibrational modes of M–S bonds nearly vanish, indicating the complete oxidation of surface sulfur species. Concomitantly, a new broad and intense peak appears at 552 cm⁻¹, which is assigned to the metal oxyhydroxide (M–OOH) phase, further confirming the formation of a surface oxyhydroxide layer.

The XPS analysis reveals significant alterations in the electronic structure and chemical valence states of surface elements. As shown in Fig. 7b and c, the Co 2p and Ni 2p spectral peaks shift toward higher binding energies, accompanied by a significant increase in the relative proportions of trivalent cobalt (Co³⁺) and trivalent nickel (Ni³⁺). The generation of these high-valence metal states indicates the formation of more electrophilic active centers during the electrochemical reconstruction. Such electron-deficient sites are theoretically favorable for facilitating the adsorption and deprotonation of oxygenated intermediates, which substantially lowers the kinetic energy barrier and boosts the overall OER performance. Concurrently, as depicted in Fig. 5d, the S 2p signal intensity decreases drastically. This surface desulfurization process exposes more accessible metal active centers, representing a critical activation step. In the O 1s spectrum (Fig. 5e), the intensity of the metal–hydroxyl (M–OH) characteristic peak at 531.5 eV increases significantly after cycling, while the intensities of lattice oxygen (M–O) and adsorbed water remain relatively stable, providing strong evidence for the formation of a hydroxyl-rich oxyhydroxide layer. Furthermore, the decrease in Zn content post-cycling indicates partial zinc leaching, a process that likely induces the generation of surface vacancies, thereby further enhancing the accessibility of active sites; if zinc is retained, its role in stabilizing the bulk framework structure should be emphasized (Fig. 5f).

Fig. 5 The post-OER XPS spectra (a) wide scan XPS spectrum; (b–f) high-resolution XPS spectra of Co 2p, Ni 2p, S 2p, O 1s and Zn 2p for Co₃O₄@Zn–CoNi₂S₄.

In summary, the post-characterization results confirm that Co₃O₄@Zn–CoNi₂S₄ acts as a pre-catalyst. Under OER conditions, it undergoes surface reconstruction to form a CoOOH/NiOOH active shell supported on a conductive Co₃O₄/CoNi₂S₄ core. This unique architecture combines abundant active sites with efficient electron transport channels, leading to superior electrocatalytic performance.

In the HER tests, LSV performances of three samples (Co₃O₄@Zn–CoNi₂S₄/NF, Co₃O₄@CoNi₂S₄/NF, and Co₃O₄/NF) are compared. As presented in Fig. 6a, the overpotentials required to reach a current density of 10 mA cm⁻² are 120 mV, 159 mV, and 168 mV for Co₃O₄@Zn–CoNi₂S₄/NF, Co₃O₄@CoNi₂S₄/NF, and Co₃O₄/NF, respectively. The Pt/C catalyst is only 42.4 mV under the same conditions. This confirms that Pt/C possesses outstanding activity as a benchmark catalyst for HER. Although there is a performance gap between our sample and Pt/C, the performance of our sample is superior to that of many other non-noble metal materials compared, which highlights its potential application value. This indicates that the electrocatalytic performances of the Co₃O₄@Zn–CoNi₂S₄/NF sample are significantly enhanced. Fig. 6b illustrates the overpotentials of the catalysts at current densities of 10 mA cm⁻², 100 mA cm⁻², and 200 mA cm⁻². The enhanced HER activity of Co₃O₄@Zn–CoNi₂S₄/NF originates from the synergistic effect between the constructed core–shell heterostructure and Zn doping. To gain insights into HER kinetics, Tafel slope analysis was performed to further elucidate the reaction mechanism on the catalyst surface. As presented in Fig. 6c, the Tafel slopes of Co₃O₄@Zn–CoNi₂S₄/NF, Co₃O₄@CoNi₂S₄/NF, and Co₃O₄/NF are 46.3, 51.2, and 68.54 mV dec⁻¹. Mechanistically, the interfacial structure of Co₃O₄@CoNi₂S₄/NF appears to drive electron transfer primarily through the Heyrovsky pathway. However, the incorporation of Zn introduces a pivotal kinetic modulation, accelerating the recombination and desorption processes characteristic of the Tafel step. Since the Tafel mechanism typically offers a more energetically favorable route for molecular evolution compared to electrochemical desorption, this Zn-induced shift plays a decisive role in maximizing the overall efficiency of hydrogen production. Fig. 6d shows the open-circuit voltage fitting plot obtained during the HER electrocatalytic test. Co₃O₄@Zn–CoNi₂S₄/NF exhibits a smaller R_ct (2.55 Ω) compared to Co₃O₄@CoNi₂S₄/NF (2.56 Ω) and Co₃O₄/NF (2.78 Ω). This indicates that the introduction of the CoNi₂S₄ shell constructs a high-speed electron transport channel at the heterogeneous interface, reducing the interfacial electric field gradient, while Zn doping further fine-tunes the surface electronic structure. Meanwhile, the expansion of the specific surface area synchronously increases the number of intrinsic active sites per unit geometric area, thereby enhancing the HER kinetics. Analysis of Fig. 6e shows the C_dl values,20.9 mF cm⁻² for Co₃O₄@Zn–CoNi₂S₄/NF, 15.3 mF cm⁻² for Co₃O₄@CoNi₂S₄/NF and 3.45 mF cm⁻² for Co₃O₄/NF. Co₃O₄@Zn–CoNi₂S₄/NF outperforms the other two samples mainly because the heterostructure in Co₃O₄@CoNi₂S₄/NF forms a porous network, which increases the specific surface area and exposes more active sites. Cycling stability tests of Co₃O₄@Zn–CoNi₂S₄/NF are performed at a constant current density of −10 mA cm⁻² for 20 h (Fig. 6f). The voltage fluctuation is less than 5%, indicating excellent long-term stability. Furthermore, the influence of electrolyte pH on the catalytic activity is investigated, and the results confirm that the as-prepared catalyst delivers superior performance specifically in alkaline environments, validating its suitability for alkaline water splitting applications as shown in Fig. S4.

Fig. 6 Electrocatalytic performance evaluation for HER. (a) LSV curve in 1.0 M KOH. (b) Comparison of overpotential. (c) Tafel plots. (d) EIS spectra. (e) C_dl calculations. (f) Chronopotentiometry curves at 10 mA cm⁻².

Motivated by its outstanding performance in both OER and HER, a two-electrode electrolyzer was constructed employing Co₃O₄@Zn–CoNi₂S₄/NF as the bifunctional catalyst for both the anode and cathode (Fig. 7a). As shown in Fig. 7b, this system requires a cell voltage of only 1.45 V to drive a current density of 10 mA cm⁻². To verify its durability, the LSV curve is recorded again after 20 hours of continuous operation. As displayed in Fig. 7c, the curve overlaps well with the initial one, indicating negligible degradation. Furthermore, this performance is superior to the most reported catalysts listed in Fig. 7d.^42–48 To evaluate the catalytic efficiency, FE measurements are performed in a two-electrode system using Co₃O₄@Zn–CoNi₂S₄/NF as both anode and cathode, with H₂ and O₂ collected separately through water displacement. The molar ratio of H₂ to O₂ is found to be nearly 2 : 1, confirming the high FE and authenticity of the overall water splitting performance in the Fig. S7.

Fig. 7 Overall water splitting performance in a two-electrode electrolyzer. (a) Photograph of gas evolution. (b) Chronoamperometry stability test. (c) LSV curves before and after stability test; (d) performance compared to other non-precious metal-based electrocatalysts (the cell voltage at 10 mA cm⁻²).

4 Conclusion

This study presents a low-cost, self-supported Co₃O₄@Zn–CoNi₂S₄/NF electrode with a core–shell heterostructure. The synergistic effect of Zn doping and heterointerfaces effectively modulates the electronic structure, creates abundant active sites, and thereby endows the material with remarkable bifunctional catalytic activity in alkaline media. The electrode requires low overpotentials of only 190 mV for OER and 120 mV for HER to achieve 10 mA cm⁻², alongside excellent stability. An electrolyzer assembled with this electrode delivers the same current density at a low cell voltage of 1.45 V for overall water splitting. This work provides a viable strategy for designing efficient electrocatalysts through interfacial engineering.

Author contributions

Xuan Zhao: writing original draft; methodology. Yu Dong: validation; data curation. Zhijie Wang and Yusheng Qiu: investigation visualization and resources. Ende Wang: supervision; project administration. Naikun Sun: conceptualization; funding acquisition. Yongli Tong: supervision; funding acquisition.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Supplementary information (SI): detailed experimental procedures, additional characterization data, and electrochemical performance curves. See DOI: https://doi.org/10.1039/d5ra09427e.

Acknowledgements

This work was supported by the Special Fund of Basic scientific Research Business expenses of undergraduate universities in Liaoning Province (LJ212410144004) from Liaoning Provincial Department of Education.
