Harnessing oligonucleotide architecture for potent multivalent inhibition of human carbonic anhydrases

Abstract

This study presents the design and synthesis of a novel class of carbonic anhydrase inhibitors (CAIs) using oligonucleotides as an original multivalent platform. Single-stranded oligonucleotides bearing one to four terminal alkyne moieties were prepared by solid-phase synthesis using the commercially available 2′-O-propargyl uridine phosphoramidite. In parallel, four different azide-functionalized CA inhibitor derivatives were generated from established coumarin and benzenesulfonamide pharmacophores. The resulting components were introduced into the oligonucleotides through Cu-catalyzed azide–alkyne cycloaddition (CuAAC), yielding a library of 17 oligonucleotide-based CA inhibitors with defined mono- to tetravalent architectures. This modular approach highlights the versatility of oligonucleotides as programmable platforms for the spatially controlled presentation of pharmacophores, opening new avenues for the development of potent and selective multivalent enzyme inhibitors. Among the resulting constructs, the divalent benzenesulfonamide conjugate 19 exhibited the most pronounced multivalency effect, showing a 3.5-fold increase in potency (r_p = 3.5) against the tumor-associated isoform hCA IX, with a K_i of 69 nM compared to its monovalent analogue 12 (K_i = 245 nM).

---

Introduction

Carbonic anhydrases (CAs, EC 4.2.1.1) are a superfamily of ubiquitous zinc metalloenzymes that catalyze the reversible hydration of carbon dioxide into bicarbonate and protons, thereby playing central roles in acid–base homeostasis, respiration, electrolyte secretion, and biosynthetic pathways in both prokaryotic and eukaryotic organisms.^1,2 In humans, 15 catalytically active isoforms have been identified, each with distinct tissue distribution, subcellular localization, and physiological roles.^1–3 Several isoforms are druggable targets: for example, hCA II is implicated in glaucoma, epilepsy, and idiopathic intracranial hypertension, while the tumor-associated isoforms hCA IX and hCA XII are upregulated during hypoxia and contribute to the acidification of the tumor microenvironment, promoting invasion, metastasis, and therapeutic resistance.^1–5

Consequently, small-molecule CA inhibitors (CAIs) have advanced into clinical use for conditions such as glaucoma, altitude sickness, and epilepsy, with sulfonamide derivatives representing the most clinically successful class.^4–6 The sulfonamide SLC-0111 is a pioneering compound designed to selectively inhibit carbonic anhydrase isoforms IX and XII, which are commonly overexpressed in hypoxic tumor environments.^5–7 It is currently being tested in a phase 1b/2 clinical trial for metastatic pancreatic cancer that expresses CA IX, in combination with gemcitabine (ClinicalTrials.gov ID: NCT03450018). Additional phase 2 studies are planned, including trials evaluating its use alongside chemotherapy in patients with glioblastoma.

Other chemotypes, especially heterocycles such as coumarins and boron-containing inhibitors, have also been developed to expand chemical diversity and improve pharmacological profiles.^4,8 Despite this progress, achieving high isoform selectivity remains an enduring challenge due to the strong conservation of the CA active-site architecture.¹ Isoform-selective inhibition is particularly critical when targeting tumor-associated isoforms hCA IX and hCA XII to avoid systemic side effects linked to inhibition of ubiquitous isoforms such as hCA I and hCA II.^5–7

To address these challenges, multivalent inhibition strategies have gained increasing attention. By presenting multiple ligands on a single scaffold, multivalency can enhance binding avidity, promote cooperative interactions with target surfaces, and provide improved isoform discrimination through geometric complementarity.⁹ These strategies have been successfully applied in enzyme inhibition, protein–ligand recognition, and drug delivery.¹⁰ In the field of carbonic anhydrases, engineered multivalent platforms have been designed to present multiple functional groups on a single scaffold, enabling enhanced binding affinity and selectivity toward specific CA isoforms.¹¹ Such platforms often incorporate sulfonamide or coumarin-based ligands, arranged on cyclopeptide,¹² dendrimers,¹³ porphyrin¹⁴ or silica or gold nanoparticle surfaces.^15–17 By exploiting multivalency, researchers achieve cooperative interactions that significantly improve inhibition compared to monovalent counterparts.

Among available molecular scaffolds, synthetic oligonucleotides represent a particularly versatile and programmable platform. Their predictable secondary structures, sequence-defined spatial addressability, and facile chemical modification enable nanometer-scale positioning of functional groups.¹⁸ Solid-phase synthesis allows incorporation of modified nucleotides, such as alkyne-functionalized residues, which can be coupled with orthogonal conjugation strategies.¹⁹ In particular, the Cu(I)-catalyzed azide–alkyne cycloaddition (CuAAC) enables efficient and modular attachment of small-molecule to oligonucleotides under mild conditions.^19–22

Multivalent strategies have previously been explored to enhance carbonic anhydrase inhibition using a variety of molecular scaffolds, including cyclopeptides, dendrimers, porphyrins, and inorganic or hybrid nanoparticle-based platforms.^10–17 In these systems, multivalency was shown to improve binding affinity and, in some cases, isoform selectivity through cooperative or avidity-driven effects.^9–11 However, such scaffolds often rely on less defined architectures, limited control over ligand spacing, or reduced modularity.

In contrast, the oligonucleotide-based approach described herein offers a sequence-defined and programmable scaffold that enables precise control over valency and spatial arrangement of pharmacophores at the nanometer scale.^18–22 This level of architectural control allows systematic evaluation of spacing-dependent multivalency effects and facilitates rapid diversification through post-synthetic modification.^19–22 As such, oligonucleotides represent a complementary and highly adaptable platform for the design of multivalent carbonic anhydrase inhibitors, distinct from previously reported systems.

Here, we describe the rational design and synthesis of a library of oligonucleotide-based multivalent CA inhibitors assembled via click chemistry. Using 2′-O-propargyl uridine phosphoramidite building blocks, we prepared alkyne-modified oligonucleotides of differing architectures and conjugated them with azide-derivatized sulfonamide and coumarin inhibitors. This modular strategy afforded 17 distinct constructs, enabling systematic exploration of mono- to tetravalent assemblies. These results highlight the value of oligonucleotide-based platforms as programmable scaffolds for engineering next-generation multivalent inhibitors with the potential to achieve isoform-selective targeting of carbonic anhydrases.

Results and discussion

Chemistry

The synthetic strategy employed for the preparation of multivalent carbonic anhydrase (CA) inhibitors can be conceptually likened to a modular assembly, composed of three key components. The first involves the synthesis of oligonucleotide sequences incorporating one or more alkyne functionalities. The second consists of the design and synthesis of azide derivatives based on known potent CA inhibitors. The final step is the copper(I)-catalyzed azide–alkyne cycloaddition (CuAAC), which enable the site-specific conjugation of the azide-functionalized inhibitors into the oligonucleotides 19.

In the first stage of this strategy, five different 12-mer oligonucleotide sequences were synthesized using the standard phosphoramidite chemistry. The 12-mer sequences used in this study were selected to avoid stable secondary structures, providing flexible and solvent-exposed presentation of the attached inhibitors. While short sequences of this length may show coincidental matches in genome-wide BLAST analyses, these sequences were designed purely as proof-of-concept models, and any apparent complementarity does not imply biologically relevant interactions. Commercially available phosphoramidite building blocks dA, dG, dC, and 2′-O-propargyl uridine phosphoramidite were employed to introduce the CA inhibitors via post-synthetic click chemistry (Scheme 1). The 2′-O-propargyl modification was chosen to enable conjugation at the sugar moiety while avoiding direct modification of the nucleobase, which could more strongly perturb the local nucleobase environment. In single-stranded oligonucleotides, where canonical major and minor grooves are not defined, this attachment mode allows a flexible and solvent-exposed presentation of the inhibitor. The first sequence (5′-GCC AGC UGA CCG-3′) 1 was designed as a reference to assess the impact of multivalency in subsequent modified sequences. To investigate divalent presentation, two oligonucleotides were prepared, each featuring two alkyne-bearing uridine residues. In the first construct, the modified nucleotides were positioned three bases apart (5′-GCU AGC UGA CCG-3′) 2, while in the second they were separated by six bases (5′-GCU AGC TGA UCG-3′) 3. For higher-valency architectures, tri- (5′-GCU AGC UGA UCG-3′) 4 and tetravalent (5′-GCU AUC UGA UCG-3′) 5 sequences were also prepared. These single-stranded oligonucleotides were designed to avoid stable secondary structures and the attached inhibitors are expected to be largely solvent-exposed. All sequences have comparable overall lengths, ensuring that observed differences in inhibition arise from the number and distribution of modified uridines rather than from strand length. The spacing and progressive introduction of uridines, together with the relatively high A/U content, are intended to provide a flexible presentation of the inhibitors and to increase the statistical probability of productive interactions with the carbonic anhydrase active site and how increasing valency and spatial arrangement influence carbonic anhydrase inhibition. The structural integrity and purity of all synthesized oligonucleotides was confirmed by MALDI-TOF mass spectrometry and RP high-performance liquid chromatography (Table S1).

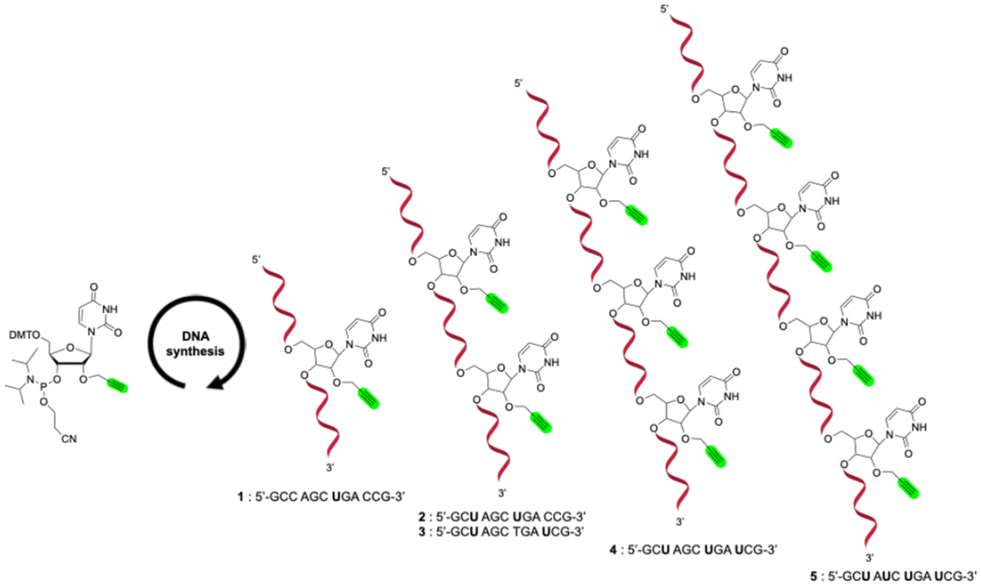

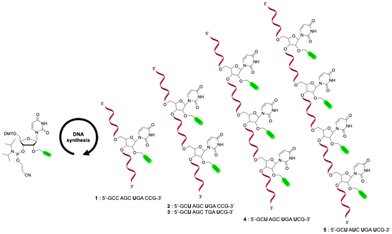

Scheme 1 Synthesis of modified oligonucleotide sequences.

In the next stage, azide functionalities were introduced onto well-established carbonic anhydrase inhibitor scaffolds selected for their documented binding affinities and inhibition profiles across various CA isoforms. Specifically, coumarin and benzenesulfonamide cores were chosen due to their well-characterized and distinct mechanisms of action. Coumarins act as suicide inhibitors: they undergo hydrolysis within the CA active site to generate 2-hydroxycinnamic acids, which subsequently occupy the enzyme's catalytic pocket, conferring isoform selectivity. In contrast, benzenesulfonamides are classical zinc-binding inhibitors that coordinate directly with the active-site zinc ion, resulting in strong and broad-spectrum inhibition. Based on these two structural classes, four azide-functionalized derivatives were synthesized as outlined in (Scheme 2).²³ Compound 6 was derived from a coumarin core, whereas 7, 8 and 9 originated from benzenesulfonamide structures.

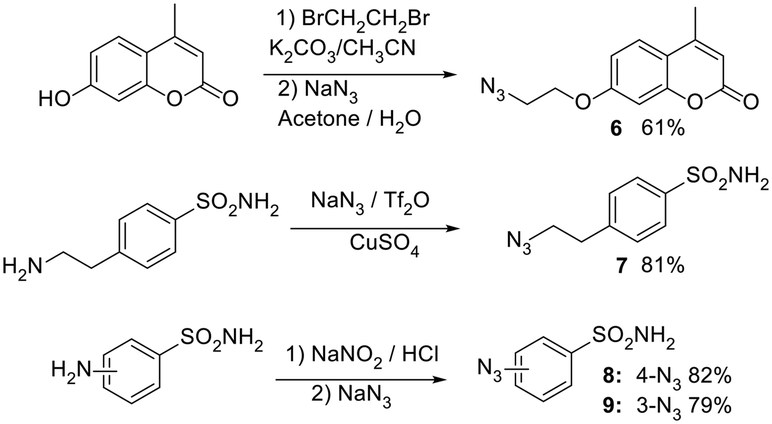

Scheme 2 Synthesis of azide derivatives 6–9 based on CA inhibitors.

Subsequently, a copper-mediated azide–alkyne cycloaddition (CuAAC) was used to conjugate the synthesized azide derivatives 6–9 to the alkyne-modified oligonucleotide platforms 1–5, generating a library of 17 mono- to tetravalent carbonic anhydrase inhibitor (CAI) constructs (Scheme 3). The post-synthetic functionalization was chosen because it is straightforward, efficient, and routinely mastered in our laboratory,²⁴ whereas pre-synthesized phosphoramidites bearing the CA inhibitors would require more complex synthetic steps. All conjugations were performed in solution using an ascorbate-free Cu(0) nanoparticle-mediated protocol, in which the oligonucleotide scaffolds were combined with the appropriate azide partners in a water/methanol/TEAAc buffer pH 7 (v/v) in the presence of THPTA as a stabilizing tris(triazolylmethyl)amine ligand. Under these conditions, the Cu(0) surface gradually generates catalytically active Cu(I) at the solvent interface, enabling formation of the characteristic 1,4-disubstituted triazole linkage that couples each CAI unit to the nucleic acid framework under mild conditions. All constructs were purified by RP HPLC and structurally confirmed by MALDI-TOF mass spectrometry, with observed m/z values in excellent agreement with theoretical masses (Table S2).

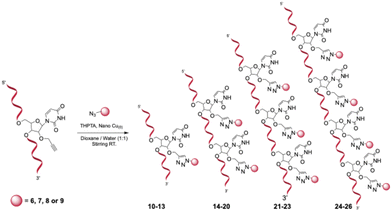

Scheme 3 CuAAC click ligation between the modified sequences and the azides of CAs inhibitors.

Inhibitory activity

The inhibitory activities of the synthesized oligonucleotide sequences were systematically evaluated in vitro using a stopped-flow carbon dioxide hydration assay, targeting several human carbonic anhydrase (hCA) isoforms. Their selectivity profiles were established by quantifying inhibitory effects against five specific hCA isoforms: the ubiquitous cytosolic forms hCA I and II, the membrane-associated isoform hCA IV, and the tumor-associated transmembrane isoforms hCA IX and XII. The potency of these novel compounds was assessed relative to acetazolamide AAZ, a classical sulfonamide-based carbonic anhydrase inhibitor (Table 1).

Table 1 Inhibitory activity of modified oligonucleotide sequences 10–26 against hCA I, II, IV, IX and XII in comparison with AAZ, evaluated using a stopped-flow CO₂ hydrase assay

Cmpd	Clicked sequence	Ki^a (nM)
		hCA I	hCA II	hCA IV	hCA IX	hCA XII
a Errors were in the range of ±10% of the reported values (data not shown). rp: relative potency. rp/n: relative potency per sulfonamide/coumarin inhibitor; U^x: uridine ligated with inhibitor x.
12	5′-GCC AGC U^8GA CCG-3′	1552	643.2	502.1	245.0	101.7
19	5′-GCU^8 AGC TGA U^8CG-3′	1913	434.4	423.9	69.2	85.6
rp		0.81	1.48	1.18	3.54	1.19
rp/n		0.40	0.74	0.59	1.7	0.59
16	5′-GCU^8 AGC U^8GA CCG-3′	1589	469.8	404.1	358.9	170.8
rp		0.98	1.36	1.24	0.68	0.60
rp/n		0.49	0.68	0.62	0.34	0.30
23	5′-GCU^8 AGC U^8GA U^8CG-3′	2101	339.5	370.4	192.3	280.1
rp		0.74	1.89	1.36	1.28	0.36
rp/n		0.24	0.36	0.45	0.43	0.12
26	5′-GCU^8 AU^8C U^8GA U^8CG-3′	2719	286.5	618.7	218.6	70.9
rp		0.57	2.24	0.81	1.12	1.43
rp/n		0.14	0.56	0.20	0.28	0.36
13	5′-GCC AGC U^9GA CCG-3′	3907	1373	1654	531.4	367.4
20	5′-GCU^9 AGC TGA U^9CG-3′	3117	1738	1116	388.7	463.6
rp		1.25	0.79	1.48	1.37	0.79
rp/n		0.63	0.39	0.74	0.68	0.40
10	5′-GCC AGC U^6GA CCG-3′	>10 μM	>10 μM	>10 μM	682	3420
14	5′-GCU^6 AGC U^6GA CCG-3′	>10 μM	>10 μM	>10 μM	731	2230
rp		—	—	—	0.93	1.53
rp/n					0.47	0.77
17	5′-GCU^6 AGC TGA U^6CG-3′	>100 μM	>100 μM	>100 μM	554	1093
rp		—	—	—	1.23	3.12
rp/n					0.62	1.56
21	5′-GCU^6 AGC U^6GA U^6CG-3′	>10 μM	>10 μM	>10 μM	1450	1880
rp		—	—	—	0.47	1.82
rp/n					0.16	0.61
24	5′-GCU^6 AU^6C U^6GA U^6CG-3′	>10 μM	>10 μM	>10 μM	2210	1300
rp		—	—	—	0.31	2.63
rp/n					0.10	0.88
11	5′-GCC AGC U^7GA CCG-3′	762	386	894	99.7	129
15	5′-GCU^7 AGC U^7GA CCG-3′	554	243	1650	124	78.2
rp		1.38	1.56	0.54	0.80	1.65
rp/n		0.69	0.80	0.27	0.40	0.83
18	5′-GCU^7 AGC TGA U^7CG-3′	775	201	1283	78.0	55.2
rp		0.98	1.92	0.70	1.28	1.34
rp/n		0.49	0.96	0.35	0.64	1.17
22	5′-GCU^7 AGC U^7GA U^7CG-3′	1560	498	1980	84.0	141
rp		0.49	0.78	0.45	1.19	0.91
rp/n		0.16	0.26	0.15	0.40	0.46
25	5′-GCU^7 AU^7C U^7GA U^7CG-3′	1740	310	1430	148	103
rp		0.44	1.25	0.63	0.67	1.25
rp/n		0.11	0.31	0.16	0.17	0.31
AAZ		250	12	74	25	5.7

---

To quantitatively assess multivalency effects, we calculated the relative potency (r_p) and the relative potency per pharmacophore (r_p/n) for each multivalent construct. The r_p value represents the fold improvement in inhibitory activity of a multivalent conjugate compared to its monovalent analogue bearing the same inhibitor chemotype. It is defined as: r_p = K_i,mono/K_i,multi, where K_i,mono is the inhibition constant of the corresponding monovalent conjugate, and K_i,multi is the inhibition constant of the multivalent construct. Because absolute potency increases with the number of attached inhibitor units, we additionally report r_p/n, which normalizes r_p by the valency (n) of the conjugate.

This parameter reflects the per-pharmacophore efficiency and enables discrimination between true cooperative multivalency (r_p/n > 1), additive effects (r_p/n ≈ 1), and steric or conformational penalties (r_p/n < 1). Reporting r_p and r_p/n together provides a rigorous framework for interpreting how scaffold architecture and inhibitor spacing contribute to enhanced or diminished binding interactions.

Previous studies demonstrated that 4-azidobenzenesulfonamide 8 is a more effective carbonic anhydrase inhibitor than 3-azidobenzenesulfonamide 9.²¹ As shown in Table 1, the monovalent conjugate 12 exhibited superior inhibitory activity against hCA I, II, IV, IX, and XII, with K_i values (nM) of 1552, 643.2, 502.1, 245.0, and 101.7, respectively. In contrast, conjugate 13 displayed K_i values of 3907, 1373, 1654, 531.4, and 367.4 nM.

Conjugate 19 showed enhanced activity compared to monovalent 12, particularly against hCA IX (K_i = 69.2 nM to 245 nM), corresponding to a multivalency factor (r_p/n) of 1.7. Construct 20 exhibited slight improvements over monovalent 13 for hCA I, IV, and IX, but no significant multivalency effect (r_p/n = 0.39–0.74), with K_i values of 3117, 1738, 1116, 388.7, and 463.6 nM.

These results confirm that conjugates based on 8 outperform those based on 9, likely due to reduced steric hindrance in the 4-substituted derivative, which facilitates CA binding. Consequently, additional multivalent inhibitors derived from compound 8 were synthesized.

Divalent construct 16 exhibited lower activity than construct 19 and showed no measurable multivalency effect. This reduced potency is likely due to steric constraints: in 16, the two benzenesulfonamide moieties are separated by three bases, whereas in 19 they are spaced six bases apart, reducing crowding and improving affinity for hCA II, IX, and XII.

The trivalent inhibitor 23 displayed moderate-to-low activity (K_i = 2101, 339.5, 370.4, 192.3, and 280.1 nM), while the tetravalent inhibitor 26 was most potent against hCA XII (K_i = 70.9 nM) and moderately active against hCA I, II, IV, and IX (K_i = 2719, 286.5, 618.7, and 218.6 nM). For inhibitors based on 7-(2-azidoethoxy)-4-methyl-2H-chromen-2-one 6, mono-, di-, tri-, and tetravalent sequences were synthesized. All showed negligible activity against hCA I, II, and IV, and only moderate-to-weak activity against hCA IX and XII. Steric hindrance strongly influenced potency: the less hindered divalent sequence 17 (six-base spacing) was most active (K_i = 554 nM, r_p/n = 1.56), whereas the more hindered divalent sequence 14 (three-base spacing) showed reduced activity (K_i = 731 nM) with no multivalency effect. Activity further decreased in trivalent (21, K_i = 1450 nM) and tetravalent (24, K_i = 2210 nM) conjugates. Finally, sequences based on 4-(2-azidoethyl)benzene sulfonamide 7 exhibited moderate activity against hCA I, II, and IV, and good activity against hCA IX and XII. Steric effects were again evident: the least hindered divalent sequence 18 was most potent, with K_i values of 78 and 55 nM for hCA IX and XII, respectively, and a multivalency effect on hCA XII (r_p/n = 1.17).

Compared with acetazolamide (AAZ), a potent yet non-selective inhibitor of multiple hCA isoforms, the oligonucleotide-based inhibitors exhibit lower overall potency but a more distinct inhibition profile, displaying enhanced selectivity towards hCA IX and hCA XII.

Conclusion

The systematic evaluation of oligonucleotide–benzenesulfonamide conjugates demonstrates that both substitution pattern and multivalency critically influence carbonic anhydrase inhibition. Conjugates based on ligation with 4-azidobenzenesulfonamide consistently outperform those derived from 3-substituted analogues, underscoring the role of reduced steric hindrance in enhancing target engagement. Multivalent architectures further amplify potency, particularly against hCA IX and XII, with optimal spacing between inhibitor moieties being essential to minimize steric interference and maximize cooperative binding. While higher valency constructs do not uniformly improve activity, strategic design, balancing valency, and spatial arrangement, enables significant gains in selectivity and affinity. These findings establish oligonucleotide scaffolds as versatile platforms for engineering potent, isoform-selective CA inhibitors and highlight structural parameters that should guide future development of nucleic acid-based multivalent therapeutics.

Experimental

Materials and methods

Chemistry. Thin layer chromatography's were performed on silica plate 60 F254 Merck and the different spots were revealed under illumination at 254 nm. Silica gel purifications were carried out with 0.040–0.063 mm silica from Merck. NMR experiments were accomplished on a Bruker DRX 600, 400 or 300 spectrometers at 20 °C in CDCl₃.

The syntheses of the oligonucleotides were performed on solid support using an automated DNA synthesizer (Applied Biosystems 394). Crude oligonucleotides were analyzed by RP-HPLC (Macherey Nagel Nucleodur C18 ec, 3 μm, 100 Å, 4.6 × 75 mm, buffer A: 50 mM TEAAc pH 7 in 1% CH₃CN, buffer B: 50 mM TEEAc in 80% CH₃CN, 1 mL min⁻¹ flow rate, detection at 260 nm) and purified by RP-HPLC (Macherey Nagel Nucleodur C18 ec, 7 μm, 100 Å, 8 × 125 mm, same buffer A and B, 4 ml min⁻¹ flow rate, detection at 260 nm). Oligonucleotides fractions pure were desalted by co-evaporation with mix water/acetonitrile (2 : 1, v/v) and transferred to a 2 mL Eppendorf-vial and lyophilized from water. MALDI-TOF mass spectra were recorded on a AXIMA Assurance (Shimadzu) using 2,4,6-trihydroxyacetophenone as a saturated solution in a mixture of acetonitrile/0.1 M ammonium citrate solution (1 : 1, v/v) for the matrix. Analytical samples were mixed with the matrix in a 1 : 5 (v/v) ratio, crystallized on a 100-well stainless-steel plate and analyzed.

Synthesis of oligonucleotides

General procedure for oligonucleotide supported synthesis. Oligonucleotide synthesis was performed on solid support (CPG beads 1000 Å). Commercially available phosphoramidite synthons (from Chemgenes) dA, dG, dC, were incorporated with a 30 s-time coupling (0.075 M in anhydrous acetonitrile) and 2′-O-propargyl uridine CED phosphoramidite were incorporated with a 180 s time coupling (0.1 M in anhydrous acetonitrile), to afford the corresponding desired 12-mer sequences 1–5. After the supported synthesis, CPG beads were washed with anhydrous acetonitrile and then dried under flushing with argon and vacuum.

General procedure for oligonucleotide support cleavage and deprotection. Ammonia (30% in H₂O, 1 mL μmol⁻¹ oligonucleotide) was added to the solid-supported oligonucleotide to cleave the support and all basolabiles protection (cyanoethyl and base protection) at 40 °C overnight, followed by a filtration of the beads. The solution containing oligonucleotide and ammonia was evaporated using a SpeedVac and purified by reverse phase HPLC chromatography or used without purification for the CuAAC reactions. All sequences were characterized by chromatography HPLC-C18 (Retention time) and mass spectrometry MALDI-TOF.

Synthesis of azide derivatives

Synthesis of 7-(2-azidoethoxy)-4-methyl-2H-chromen-2-one [6].
First step: synthesis of 7-(2-bromoethoxy)-4-methyl-2H-chromen-2-one. In a solution of 7-hydroxy-4-methyl-2H-chromen-2-one (2 g, 11.35 mmol) and K₂CO₃ (9.4 g, 204.34 mmol) in acetonitrile, (100 mL), 1,2-dibromoethane (6.4 g, 51.08 mmol) was added dropwise, and the solution was stirred for 2 h at reflux. Subsequently, the mixture was filtered, and the solvent evaporated. The solid obtained was solubilized in DCM, and the organic phase was washed with brine and dried with anhydrous Na₂SO₄, filtered, and evaporated to get a white solid that was purified with flash chromatography (CH₃Cl/ethyl acetate 9 : 1), affording the product in 43% yield. ¹H NMR and ¹³C NMR spectra matched those reported in the literature.²⁴
Second step: synthesis of 7-(2-azidoethoxy)-4-methyl-2H-chromen-2-one. In a solution of 7-(2-bromoethoxy)-4-methyl-2H-chromen-2-one (0.5 g, 1.77 mmol) in acetone (20 mL), NaN₃ (0.230 g, 3.53 mmol, 2 eq.) in water (5 mL) was added dropwise and the solution was stirred for 8 h at reflux. The mixture was reduced under pressure, solubilized in ethyl acetate, and washed with water and brine. The organic phase was dried over anhydrous Na₂SO₄, filtered, and evaporated to obtain a white solid that was purified with flash chromatography (CH₃Cl/ethyl acetate 7 : 3), affording the product in 61% yield. ¹H NMR and ¹³C NMR spectra matched those reported in the literature.²⁵

Synthesis of 4-(2-azidoethyl)benzenesulfonamide [7]. Solution A: NaN₃ (0.83 g, 12.75 mmol, 10.2 eq.) was solubilized in 50/50 water–toluene (4 mL), and Tf₂O (0.74 g, 2.63 mmol, 2.1 eq.) was added dropwise in 5 minutes at 0 °C and stirred at that temperature for 1 h.

Solution B: 4-(2-aminoethyl)benzenesulfonamide (0.250 g, 1.25 mmol) was solubilized in water (4 mL) and methanol (8 mL) and CuSO₄ (0.028 g, 0.175 mmol, 0.14 eq.) was added. Solution A was added dropwise to solution B at 0 °C, let warm to rt, and stirred overnight. The solvent was evaporated, and the solid solubilized in ethyl acetate, washed with water and brine, dried over anhydrous Na₂SO₄, and reduced to obtain a white solid that was purified with flash chromatography (CH₂Cl₂/MeOH 9.5 : 0.5), affording the product in 81% yield. ¹H NMR and ¹³C NMR spectra matched those reported in the literature.²³

Synthesis of 3-azidobenzenesulfonamide [9] and 4-azidobenzenesulfonamide [8]. To a solution of sulfanilamide (11 mmol) in dilute hydrochloric acid (15%, 30 mL) was added sodium nitrite (13.2 mmol, 1.2 eq.) in water (10 mL) at 0–5 °C. After the reaction was stirred for 30 min, sodium azide (33 mmol, 3 eq.) in water (7 mL) was added and continued to stir for 30 min at 0 °C. Filtered and dried to get azidobenzenesulfonamide as a pale-yellow solid that was purified with flash chromatography (DCM/MeOH 9 : 1). The isolated yields were 82% for compound 8 and 79% for compound 9 respectively. ¹H NMR and ¹³C NMR spectra matched those reported in the literature.²³

Ascorbate-free Cu(0)–mediated CuAAC between azide-functionalized CA inhibitors [6–9] and oligonucleotides [1–5] in solution. In a 2 mL Eppendorf tube under magnetic stirring, the oligonucleotide precursor (0.342 μmol)—compound 1 for one site, 2 or 3 for two sites, 4 for three sites and 5 for four sites—was dissolved in degassed Milli-Q H₂O (200 μL). A solution of the corresponding azide 6–9 in dioxane (200 μL, 0.1 M) was added in the appropriate amount depending on the number of clickable sites (3.0 equiv. for one site, 4.0 equiv. for two sites, 8.0 equiv. for three sites, or 10.0 equiv. for four sites), followed by THPTA (3.0 equiv., of a 0.1 M solution in H₂O) and a catalytic amount of Cu(0) nanoparticles. The vial was sonicated to disperse the nanoparticles, and the reaction mixture was stirred at 25 °C for 90 min, with progress monitored by MALDI-TOF MS. Upon completion, the mixture was clarified by centrifugation to remove CuNPs, the supernatant was transferred to a fresh tube, and a saturated EDTA solution was added before incubating for 30 min. The crude product was purified by preparative RP-HPLC, and the purified clicked oligonucleotide solution was evaporated, lyophilized, quantified by UV spectroscopy at 260 nm, and fully characterized.

After reverse-phase HPLC purification, samples were analyzed by MALDI-TOF mass spectrometry. Residual copper is readily detected through the presence of copper adducts. When observed, samples were treated with QuadraPure™ beads in aqueous solution and re-analyzed by mass spectrometry until no copper adducts were detected, prior to lyophilization.

Carbonic anhydrases inhibition. A stopped-flow spectrophotometer (Applied Photophysics) was employed to measure the carbonic anhydrase (CA)-catalyzed hydration of CO₂.²⁶ The reaction was monitored using phenol red (0.2 mM) as a pH indicator at its absorption maximum of 557 nm. Experiments were carried out in 20 mM HEPES buffer (pH 7.5) supplemented with 20 mM Na₂SO₄ to maintain constant ionic strength. Initial reaction rates were recorded over a period of 10–100 s. For kinetic and inhibition studies, the CO₂ concentration was varied between 1.7 and 17 mM.

For each inhibitor, at least six independent stopped-flow traces were collected, focusing on the initial 5–10% of the reaction to calculate initial velocities. Uncatalyzed reaction rates were determined under identical conditions and subtracted from the observed total rates. Inhibitor stock solutions (0.1 mM) were prepared in deionized water and diluted with assay buffer to working concentrations as low as 0.01 nM. Prior to measurements, enzyme and inhibitor solutions were preincubated for 15 min at room temperature to allow formation of the enzyme–inhibitor complex.

Inhibition constants (K_i) were calculated using nonlinear regression analysis (GraphPad Prism 3) and the Cheng–Prusoff equation, with values reported as means from at least three independent determinations.^27,28 Enzyme concentrations ranged between 6 and 14 nM. All hCA isoforms were recombinant proteins produced in-house as previously described.²⁸

Conflicts of interest

There are no conflicts to declare.

Data availability

The data supporting this article have been included into the supplementary information (SI).

Supplementary information: HPLC chromatograms and MALDI-TOF mass spectra of synthesized compounds 1–5 and 10–26. See DOI: https://doi.org/10.1039/d5md01167a.

Acknowledgements

This work was financed by a fellowship awarded under Call 10 STDF-IFE, funded through a partnership between the French Embassy in Egypt – French Institute of Egypt (IFE) and the Science and Technology Development Fund (STDF), granted to EMA. The Agence Nationale de la Recherche is gratefully acknowledged for funding (D-CYSIV, ANR-2015-CE29-0021-01). M. Sechi was supported by AIRC (IG 2021 – ID 26211).
