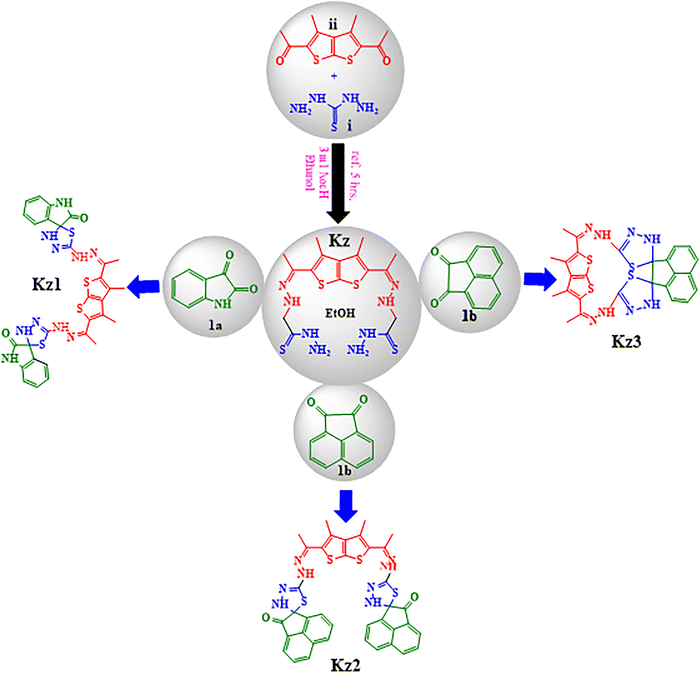

This work describes the synthesis of some novel organic compounds, along with the evaluation of their optoelectronic characteristics and potential for thermoelectric applications. The newly synthesized spirothiadiazole–thienothiophene-based macroheterocyclic compounds were termed as Kz1–Kz3. The synthesis of compounds followed a green approach: the one-pot condensation of thienothiophene thiohydrazide with different ketones afforded macrocyclic spiroheterocycles in good yields. Using FT-IR and NMR spectroscopies and elemental analysis, the compounds’ structures were confirmed. Thin-film optical studies revealed strong absorption and high transparency in UV-vis and NIR spectral ranges, respectively. Depending on the degree of conjugation, the energy gaps ranged from 2.99 to 3.26 eV with indirect allowed transitions. Dielectric and dispersion studies provided evidence of high refractive index and high polarizability, confirming their potential as optoelectronic devices. Thermoelectric studies demonstrated that the samples are n-type semiconductors with negative Seebeck coefficients and temperature-dependent conductivities. Among the synthesized compounds, the Kz2 compound showed the best thermoelectric performance with a power factor (PF) of 366 µW m−1 K−2 and a zT of 0.78 at 493 K after annealing at 200 °C for 5 minutes. The preliminary outcomes of this work clearly demonstrated the potential of spirothiadiazole–thienothiophene frameworks for use in next-generation flexible, eco-friendly thermoelectric and optoelectronic applications.
Organic semiconductors have captivated researchers over the past few decades due to their extraordinary optical and electronic properties, solution processability, significant structural versatility, and use as low-cost electronic devices capable of bending.1–5 Among the numerous classes of conjugated organic molecules, heterocyclic compounds with fused thiophene units are notable for their tunability and high charge carrier mobility. Organic semiconductors are quite promising materials with a wide range of applications in organic light-emitting diodes (OLEDs),6 organic photovoltaic cells (OPVs)7 and organic field-effect transistors (OFETs).8 In the family of conjugated organic molecules, thienothiophene derivatives are particularly attractive building blocks owing to their extended conjugation and desirable electronic characteristics.
Fused-ring compounds condensed by two thiophene units are referred to as thienothiophenes. The two thiophene rings are connected via a shared bond within a fused framework, enabling partial planarity and limited π-conjugation. Planarity enables the compounds to exhibit efficient intermolecular stacking and charge carrier transport.9,10 The rigid and planar backbone of thienothiophenes will minimize the torsional disorder while allowing improved thin-film crystallinity and providing forces for efficient π–π interactions–properties that are preferable for optoelectronic devices.11–13 The excellent application of substituted functional groups at various positions is attractive for attaining tailored material properties that tune electronic conditions.
In recent years, attention has been paid to the synthesis of new derivatives of thienothiophenes with multiple substituents to modify the energy levels, band gaps and solubility of thienothiophenes.10,13,14 These substituents comprise electron-donating groups (EDGs) and electron-withdrawing groups (EWGs) to modify the electron-donating ability of thienothiophenes at the frontier molecular orbitals for fine-controlling absorption and emission properties as well as the ionization potentials and electron affinities.14–17 This degree of molecular engineering can be important after the synthesis of thienothiophenes to consider compatibility with the device architecture or simply the other functional layers.
In addition to their optical properties, the electrical properties of thienothiophene-based materials are equally important for the incorporation of these materials into electronic devices. Charge carrier mobilities, conductivities, and stabilities indicate the usefulness of these materials as the active layers in OFETs and other devices.18–20 There are excess design choices to enhance the charge transport properties by increasing the ordered molecular arrangements and decreasing the trap densities, such as increasing backbone planarity and side-chain engineering to promote molecular alignment or utilizing donor–acceptor systems to enhance interactions between ordered molecules.21 Moreover, the thieno[3,2-b] thiophene motif has often been touted as the one on account of its high level of conjugation and natural planeness, and the thieno[2,3-b] thiophene motif provides an anti-delocalized electronic topology, wherein the spatial arrangement of sulfur atoms and the fusion of rings explicitly put a limit on delocalization. This controllable conjugation has been shown to be central in the control of optical band gaps, carrier densities and thermoelectric responsiveness in small-molecule organic semiconductors.
Thermoelectric power in organic materials has emerged as a new area of research, mainly because of attractive characteristics, such as low thermal conductivity, mechanical flexibility, potential low cost, and large-area fabrication. In organic semiconductors and conductive polymers, the thermoelectric effect arises from the diffusion of charge carriers driven by a temperature gradient, analogous to that observed in inorganic materials. However, the charge transport mechanism is often localized, and unlike inorganic materials, the inherent disorder in molecular structure and arrangement leads to different behaviors, typically resulting in a higher Seebeck coefficient even though the electrical conductivity is usually less than that of inorganic substances. Optimization of the Seebeck coefficient, electrical conductivity, and thermal conductivity can be achieved by manipulating the molecular structure, doping levels, and processing methods towards a high thermoelectric figure of merit (zT).
This study attempts to investigate the role of limited conjugation, spiro connectivity, and molecular conformations in optoelectronic and thermoelectric thin films in the solid state. The addition of the spirothiadiazole moiety forms a three-dimensional, non-planar structure capable of inhibiting excessive intermolecular aggregation and, possibly, reduces lattice thermal conductivity, which is a desirable feature for thermoelectric materials. Three new spirothiadiazole–thieno[2,3-b]thiophene-based macro-heterocyclic compounds (Kz1–Kz3) were synthesized via an environmentally friendly process and used as model systems, and their optical, electrical, and thermoelectric characteristics were investigated. The potential of these compounds to be applied for thermoelectric generation was verified, and the related parameters were optimized.
The absorbance, transmission, and reflection spectra were measured at normal incidence in the 200–2500 nm wavelength range using a computer-programmed double-beam spectrophotometer model Jasco 570 with a reflectivity attachment model ISN 470 (Japan). VTC-50A spin coating was employed to deposit thin coatings. Iodine doping was conducted at room temperature in a closed glass chamber, where the thin films were sealed under saturated iodine vapor at a constant distance of approximately 5 cm over 5 min. The D.C. electrical resistance of the present films was determined using a two-probe approach. These measurements were taken using a multimeter (model number HP HEWLTTPACKARD 34401). A silver paste electrode with a part spacing of 3 mm for the film was used. To regulate the sample temperature throughout the 430–520 K range, the films were put in a software tube centre. The annealing process was performed using a LINDBERG digital furnace.
Seebeck coefficient measurements were carried out in a conventional manner at a constant temperature difference (ΔT ∼ 4 degree) between the two ends of the film. The temperature difference was determined by measuring separately the thermovoltages at the film ends using a Keithley 191 digital multimeter. The generated thermopower was measured using a Keithley 614 digital electrometer.
Oamide, st), and 1615 ((–HC
N–, st). 1H-NMR (DMSOd6), δ ppm: 14.19 (s, 1H, NHhydrazone), 11.49 (s, 1H, NHthiadiazole) 8.44–7.82 (m, 7H, CH arom.); 3.44 (s, 3H, CH3hydrazone) 2.65 (s, 3H, CH3thiophene); 13C-NMR (DMSO-d6), δ ppm: 182.45(C
O), 168.01(C
N), 159.00(C
N), 140.80, 140.54, 140.12, 135.03, 133.55, 132.62, 129.39, 129.57, 128.26, 127.23, 127.67, 126.05, 120.47(13Carom.), 82.43(Cspiro), 20.64(CH3hydrazone) and 10.45(CH3thiophene). C.F.: C38H28N8O2S4, M.W.: 756.94. Elemental analysis: calc. C, C, 60.30; H, 3.73; N, 14.80; O, 4.23; S, 16.94; found, C, 60.63; H, 3.92; N, 14.57; S, 16.60.
Oisatin, st), 1697 (C
Oamide, st), and 1619 ((–HC
N–, st). 1H-NMR (DMSOd6), δ ppm: 14.23 (s, 1H, NHhydrazone), 11.51 (s, 1H, NHthiadiazole) 7.60–7.40 (m, 5H, CHarom.); 3.44 (s, 3H, CH3hydrazone) 2.68 (s, 3H, CH3thiophene); 13C-NMR (DMSO-d6), δ ppm: 175.63(C
O), 163.71(C
N), 158.47(C
N), 141.58, 139.36, 137.43, 131.53, 129.30, 162.97, 123.34, 120.35, 110.78(9Carom.), 80.67(Cspiro), 20.49 (CH3hydrazone) and 10.94 (CH3thiophene). C.F.: C30H26N10O2S4, M.W.: 686.85. Elemental analysis: calc. C, C, 52.46; H, 3.82; N, 20.39; O, 4.66; S, 18.67; found, C, 52.23; H,3.70; N, 20.68; O, 4.33, S, 18.91.
N–, st). 1H-NMR (DMSOd6), δ ppm: 14.21 (s, 1H, NHhydrazone), 11.51 (s, 1H, NHthiadiazole) 8.33–7.82 (m, 6H, CHarom.); 3.40 (s, 3H, CH3hydrazone) 2.72 (s, 3H, CH3thiophene); 13C-NMR (DMSO-d6), δ ppm: 158.47(C
N), 151.64(C
N), 141.68, 139.36, 137.43, 131.53, 129.30, 126.97, 126.39, 123.34, 120.35, 110.78(13Carom.), 80.67(C spiro), 21.74(CH3hydrazone) and 10.77. (CH3thiophene); C.F.: C26H22N8S4, M.W.: 574.09. Elemental analysis: calc. C, C, 54.33; H, 3.86; N, 19.50; S, 22.31; found, C, 54.00; H,4.01; N, 19.20; S, 21.95.Measured transmission and reflection spectra were utilized to compute optical parameters including absorption coefficient α, refractive index n, and extinction coefficient k. When numerous reflections are neglected in a perfectly flat film and the substrate, the optical transmission T and subsequent α, n, and K can be obtained using the following equations:30,31
T = (1 − R)2 exp(−A)
| (1) |
![]() | (2) |
![]() | (3) |
| K = αλ/4π, | (4) |
The spectral variations of refractive index (n) and extinction coefficient are important in various areas. The refractive index controls light refraction and transmission, while the coefficient of extinction determines light absorption. These optical constants are essential for design and adaptation in understanding optical devices, photonic components and even physical properties at a fundamental level.32,33 Table 1 shows the average values of the absorption coefficient (α500) and refractive index (n500) in the solar maximum wavelength (λ = 500 nm) in comparison with the corresponding reported values of some organic materials.
| α500 (cm−1) × 105 | n500 | Eg (eV) | Eu (eV) | Ref. | |
|---|---|---|---|---|---|
| Compound Kz1 | 0.95 | 1.47 | 3.26 | 3.12 | Present work |
| Compound Kz2 | 2.18 | 1.85 | 3.17 | 2.27 | |
| Compound Kz3 | 2.5 | 1.97 | 2.99 | 0.96 | |
| TT amino cyano + 1-naphthyl amine | 3.4 | 1.55 | 2.79 | 1.04 | 13 |
| 3,4-Diamino-N′2,N′5-bis(2-oxoindolin-3-ylidene)thieno[2,3-b]thiophene-2,5-dicarbohydrazide | 5.6 | 1.92 | 2.7 | 1.45 | 10 |
| 3′-Acetyl-5′-amino-2′-methyl-2-oxo-7′-(thiophen-2-yl)spiro[indoline-3,4′-pyrano[2,3-b]pyridine]-6′-carbonitrile | 0.7 | 2.06 | 3.56 | — | 12 |
| p-tert-Butylthiacalix[4]arene derivatives | 4.2 | 2.9 | 1.23 | 44 |
The compound thin films (Kz1, Kz2, and Kz3) exhibit a high refractive index (n) around the UV region (Fig. 3a). A prominent peak appears at 473 to 605 nm, which may be due to considerable absorption generated by electronic transitions around the band gap energy. The elevated refractive index over that area suggests that the material is significantly polarized. In addition, the refractive index in general shows normal dispersion behavior. Fig. 3b depicts the extinction coefficient of thin films of compounds Kz1, Kz2, and Kz3, revealing that the extinction coefficient is high in the UV region, drops sharply near the fundamental absorption edge, and finally, increases once again in the wavelength range of 500 to 2500 nm. Such behavior looks like and reflects the corresponding absorption spectrum (Fig. 2b).
![]() | ||
| Fig. 3 Refractive index n (a) and extinction coefficient k (b) spectra of the thin films of Kz1, Kz2 and Kz3. | ||
In the range of 1 < α (cm−1) < 104, α varies exponentially with photon energy (hν), based on the density and tail width (Eu) of the localized states, which generally occur in the band gap region of the amorphous non-metallic semiconductors, verifying the following Urbach relation:34
![]() | (5) |
In this equation, α0 is a constant and Eu is the energy width of localized states. The Eu values were computed using the slopes of the ln
α vs. hν plots (Fig. 4) and documented in Table 1. The Eu values of thin films of compounds Kz3 > Kz2 > Kz1 can correspond to the microstructure and/or π-conjugation number.4,35,36
The penetration depth δ is a vital optical characteristic that indicates how far incident light could penetrate a substance before its intensity is noticeably reduced. It is also related to the absorption coefficient, and heavily relies on the wavelength and physical structure of the substance. The penetration depth could be determined using the following equation:
Fig. 5 demonstrates that the compound Kz3 has a high penetration depth in the wavelength region of 1500 to 2500 nm, which can be attributed to its low extinction coefficient, making it a potential material for IR sensors. Compound Kz1 exhibits a high extinction coefficient; therefore, its penetration depth is high in the 300–1500 nm wavelength range, making it appropriate for surface-sensitive device uses.
The Moss criterion37 can be used to estimate absorption transitions and band gap energies. The band gap value Eg is calculated by determining the value of λ that occurs when the slope of the absorption coefficient is maximum near the absorption edge.38–41 The absorption coefficient of a thin layer might be expressed as follows:12,31,42
| (αhν) = β(hν − Eg)r | (6) |
ln(αhν) = r ln(hν − Eg) + ln β
| (7) |
The transition exponent (r) in eqn (6) was determined from eqn (7), as described elsewhere.43 The value of (r) was found to be equal to ∼2 for all the present compounds, indicating indirect allowed transition. Using
plots (Fig. 6), the values for the energy of the band gap (Eg) of thin films of compounds Kz1, Kz2 and Kz3 were determined from extrapolations to hν = 0. The UV vis absorption spectra of the Kz1–Kz3 thin films show absorption onsets, which are placed in the near UV range and give optical band gaps covering the 2.99 to 3.26 eV. These relatively broad band intervals are supported by the decimated π-conjugated and the non-planar molecular structures imposed by the spiro conjunction and by the thieno[2,3-b]thiophene core.
As noted in Table 1, these values were found to be equivalent to those published for numerous conjugated organic materials.
The optical conductivity is a key measurement that tells how well a material works to carry electric charges when an electromagnetic field is moving. It gives us an improved understanding of how photons that strike the material interact with free carriers or localized states. We used the measured refractive index (n) and absorption coefficient (α) to find the optical conductivity (σopt) using the following equation:45
Fig. 7 exhibits that strong interband electronic transitions close to the fundamental absorption edge cause all samples to have the highest optical conductivity in the ultraviolet wavelength range (about 400 nm). The optical conductivity gradually decreased as the wavelength increased through the visible and near-IR range, which is consistent with lower photon energy and decreasing absorption. Furthermore, compared to Kz1 and Kz3, Kz2 exhibits larger optical conductivity in the area of longer wavelength region. This suggests that there are more free carriers or defect states present, which improve sub-bandgap absorption. However, Kz1's lower Urbach energy and higher refractive index are consistent with its lower optical conductivity at higher wavelengths, suggesting enhanced crystallinity and less structural disorder. The obtained results show that modifying the film's composition and quality of structure may enhance its optical conductivity for optoelectronic applications including photodetectors and transistors, as well as absorber layers, where controlling the way light interacts with the material and the way carriers move is significant for device performance.
| = εL + 4πχc | (8) |
![]() | (9) |
![]() | (10) |
| Eo (eV) | Ed (eV) | εL | N/m* (1017 cm−3 g−1) | |χc| | ωp, s−1 × 1014 | Ref. | |
|---|---|---|---|---|---|---|---|
| Compound Kz1 | 1.74 | 3.17 | 3.86 | 2.74 | 0.74 | 12.0 | Present work |
| Compound Kz2 | 1.75 | 3.57 | 4.14 | 3.06 | 0.75 | 12.5 | |
| Compound Kz3 | 1.77 | 3.94 | 4.49 | 3.47 | 0.77 | 12.8 | |
| PPY film | 2.37 | — | 2.94 | 0.95 | 0.32 | 5.52 | 38 |
| TT amino ester | 2.15 | 2.95 | 3.29 | 0.034 | 0.16 | 3.31 | 51 |
| Diethyl3,4-bis(((E)-2-xoindolin-3-ylidene)amino)thieno[2,3-b]thiophene | 2.16 | 3.86 | 4.47 | 0.057 | 0.27 | 1.35 | 5 |
| 3,4-Diamino-N′2,N′5-bis(2-oxoindolin-3-ylidene)thieno[2,3-b]thiophene-2,5-dicarbohydrazide | 4.5 | 2.7 | 4.51 | 0.86 | 0.034 | 5.25 | 10 |
| TT amino cyano + 1-naphthyl amine | 2.29 | 5.45 | 5.61 | — | 0.44 | — | 13 |
Di Domenico and Wemple50 proposed a single oscillator model to explain the relationship between the refractive index and the photon energy in the normal dispersion region. The equation is as follows:
![]() | (11) |
Fig. 8b depicts the (n2 − 1)−1 vs. (hν)2 plots of thin films of compounds Kz1, Kz2 and Kz3. The oscillator energy (Eo) and dispersion energy (Ed) can be derived from the slope (EoEd)−1 of the linear component of the plot and the intercept (Eo/Ed) with the ordinate axis, where
and Ed = (slope × intercept)−1/2.
The dielectric and dispersion properties were documented and compared with those of several conjugated organic compounds, as presented in Table 2.
![]() | ||
| Fig. 9 Plots of DC-electrical resistance R vs. T (a) and ln(σDC) vs. (1000/T) (b) of the thin films of Kz1, Kz2, and Kz3. | ||
This may demonstrate that the adsorbed oxygen can be thermally liberated over the film surface, leading to an increase in sample conductivity.
The following Arrhenius relationship52–54 may calculate the conduction activation energy in the visible resistance ranges, where
![]() | (12) |
σ vs. 1000/T are straight. The activation energy for electrical conduction represents energy barriers, which charge carriers must overcome in order to flow. Thin-film Kz1, Kz2, and Kz3 compounds have ΔEσ1, ΔEσ2 values of (0.76, 0.40), (0.72, 0.36) and (0.57, 0.16), in the lower and higher temperature ranges, respectively. Compound Kz1 has the highest activation energy value, suggesting that charge carriers need higher amounts of energy to become mobile. However, the thin-film compound Kz3 has the lowest activation energy, which could be ascribed to the continuous conjugation effect, which increases the hopping conduction. The values of ΔEσ are similar to computed values for various organic semiconductor materials.55,56
The Seebeck coefficient is an extremely important thermoelectric material property. It is the voltage generated by a material when a temperature differential exists. The Seebeck coefficient (µV K−1–mV K−1) indicates the charge carrier (either holes or electrons) flow from the hot side to the cold side of the sample that causes the potential (voltage) decrease. The Seebeck coefficient also dictates the charge carrier type (positive charge carriers-holes; negative charge carriers-electrons) as well as if the material is having degenerate or non-degenerate transport properties.
The electrical and thermal properties of a thermoelectric material can be correlated through the figure of merit z, K−1 or the dimensionless zT, where:
![]() | (13) |
![]() | (14) |
are the Seebeck coefficient, electrical resistivity and thermal conductivity, respectively. T = [Th + Tc]/2 is the average temperature between the temperatures of the hot and cold sides (Th and Tc, respectively). n and p refer to n- and p-type semiconductors. zT typically indicates the thermoelectric performance.
The ideal thermoelectric materials are characterized by low values of both
and ρ to increase the temperature gradient and decrease Joule heat, respectively. This leads to maximizing the participation of the obtainable charge carriers in the thermoelectric effect. Besides, the Seebeck coefficient S depends on the Fermi-level energy position and material structure that is affected mainly by the charge carrier density and temperature. Moreover, the thermal conductivity
of a material results from lattice vibrations (phonons)
and charge carrier (electron)
components:
![]() | (15) |
in this research, and the electronic thermal conductivity
is generally proportional to the electrical conductivity σ. For organic materials, this law is often represented as follows:
![]() | (16) |
In accordance with the decrease in both S and ρ, while
increases with the increasing charge carrier concentration, the metals reveal small values of zT unlike insulators that possess relatively high values of zT due to their small
and high ρ and S values. This encourages us to expect that the optimal carrier concentration values could be almost close to 1017–1019 cm−3 characterizing the range of the critical case between the degenerate and non-degenerate semiconductors. Due to the fact that
was not determined experimentally, the values of zT are not the real values but the approximated upper limits. However, since the similar estimation technique was implemented across all the samples, the comparative trends among Kz1–Kz3 and under different treatment conditions remain valid. The heat conductivity of organic semiconductors is normally dominated by the lattice thermal conductivity; thus, the values of the zT are reported as upper-bound values but not as absolute values.
As shown in Fig. 9 and 10, the simultaneous increase and decrease in σ and S, respectively, with the increase in temperature could be attributed to the mixed conduction (by both electrons and holes) and their behaviors to the same factors. These results can be described by the following two unlike carrier's mechanisms,40 where
![]() | (17) |
![]() | (18) |
![]() | ||
| Fig. 10 Seebeck coefficient vs temperature plots (a) and versus 1000/T (K−1) plots (b) for compound kz1, kz2, and kz3 thin films. | ||
The S–T plots given in Fig. 10a show that the Seebeck coefficient values of Kz1, Kz2 and Kz3 thin films are relatively high (mV K−1 units), which are comparable to the S values for some inorganic materials.59–61 Besides, the negative sign of S is indicative of n-type thermoelectric materials. If large, the Seebeck coefficient also indicates that the Fermi level is very low below the conduction band edge, generally related to lower carrier densities or more energy-dependent scattering. The different values obtained for the Seebeck coefficient by the present compounds may mainly depend on the different conjugation numbers in the compounds’ structures. As shown in Table 3, the Kz2 compound thin film has the largest negative Seebeck coefficient values of −0.71 mV K−1 and −0.85 mV K−1, indicating extensive thermoelectric voltage generation. The high thermoelectric performance observed for compound Kz2, compared to Kz1 and Kz3, is consistent with expectations. Unlike the other two compounds, Kz2 contains a larger conjugation number with a linearly expanded coil conformation (Scheme 1). This extended conformation has been known to increase the mobility of charge carriers, and thus, enhance the thermoelectric performance of organic material.62–65
| Sample | T (K) | σ (Ω cm)−1 × 10−5 | −S (mV K−1) | eEf/kT | N, cm−3 | zT |
|---|---|---|---|---|---|---|
| Kz1 | 453 | 2.90 | 0.097 | 0.01 | 5.34 × 1017 | 0.18 |
| 463 | 3.70 | 0.127 | 0.04 | 2.11 × 1018 | 0.19 | |
| 473 | 6.30 | 0.15 | 0.06 | 3.60 × 1018 | 0.19 | |
| 483 | 9.20 | 0.193 | 0.08 | 4.84 × 1018 | 0.21 | |
| 493 | 15.1 | 0.31 | 0.12 | 7.09 × 1018 | 0.24 | |
| Kz2 | 453 | 3.40 | 0.71 | 1.92 × 10−5 | 1.00 × 1017 | 0.57 |
| 463 | 5.38 | 0.72 | 2.56 × 10−5 | 1.38 × 1017 | 0.59 | |
| 473 | 9.15 | 0.75 | 6.11 × 10−5 | 3.41 × 1017 | 0.59 | |
| 483 | 12.1 | 0.83 | 8.66 × 10−5 | 4.99 × 1017 | 0.62 | |
| 493 | 17.2 | 0.85 | 9.73 × 10−5 | 5.78 × 1017 | 0.67 | |
| Kz3 | 453 | 3.45 | 0.31 | 0.001 | 5.82 × 1016 | 0.10 |
| 463 | 4.21 | 0.33 | 0.002 | 1.20 × 1017 | 0.12 | |
| 473 | 6.52 | 0.35 | 0.006 | 3.35 × 1017 | 0.14 | |
| 483 | 8.81 | 0.44 | 0.007 | 4.60 × 1017 | 0.18 | |
| 493 | 10.3 | 0.50 | 0.008 | 5.99 × 1017 | 0.20 |
Besides, the temperature dependence shows that there is a moderate to very large increase in the Seebeck coefficient size during temperature increase, specifically for Kz1, Kz2, and Kz3, which is indicative of a non-degenerate semiconductor's behavior.66 This illustrates that the heating of the carriers is a significant factor in the transport process.
To confirm whether the charge carrier system in the organic compounds, which are physically regarded as often amorphous semiconductors, is degenerate or non-degenerate, the concept of the Fermi level could be utilized. It is represented by the chemical potential of electrons in the system at 0 K, and separated from the conduction band minimum value Ec (LUMO) by the energy value Ef that can be termed the carrier activation energy.67,68
The degeneracy of the electron gas is the case in which the number of carrier particles is comparable to the number of allowed states, i.e., when the probability Fermi function f(E) approaches unity:
![]() | (19) |
This means that eEf/kT ≫ 1 and Ef has a positive value. The electron gas is non-degenerate when f(E) ≪ 1 and eEf/kT ≪ 1 or Ef has a negative value.
Besides, the Fermi-level energy (Ef) can be correlated with the Seebeck coefficient according to Benco and Koffyberg:69
![]() | (20) |
![]() | (21) |
Fig. 10b gives the |S| versus 1000/T (K−1) plots. As shown, the slope
is negative characterizing the non-degenerate n-type semiconductor.59 The calculated values of eEf/kT using eqn (21) are given in Table 3 for compounds Kz1, Kz2, and Kz3 at different temperatures corresponding to the lower and higher temperature ranges, respectively.
The majority carrier (electrons) concentration N for each compound was determined using the following relation:70
![]() | (22) |
The calculated values of N at different temperatures in the relatively low and high temperature ranges for Kz1, Kz2, and Kz3 are given in Table 3. As shown, the results of S and eEf/kT for the present compounds are characteristics of non-degenerate n-type semiconductors. Table 3 and Fig. 11 summarize and compare the TE results of the present three compounds. As shown, the TE-figure of merit (zT) attained by the Kz2 compound is the best among the other present compounds. This is due to the optimum interaction of carrier concentration, carrier mobility and molecular conformation and not only to a long π-conjugation length.
![]() | ||
| Fig. 11 zT vs. T plots (a), and zT and PF at optimal carrier concentrations (at T = 493 K, ΔT ∼ 4 °C) (b) of the thin films of Kz1, Kz2, and Kz3. | ||
Attempts were made to improve the thermoelectric performance of the Kz2 thin film by optimizing the carrier concentration. Annealing or exposure to an oxidizing gas (iodine doping) can respectively increase or decrease the concentration of the carrier (electrons). Annealing facilitates electron excitation (increasing carrier concentration) whereas iodine doping traps electrons (decreasing carrier concentration).
Fig. 12a shows that the carrier density, in general, increases with the increase in temperature. However, the film treatments by iodine exposure and annealing at 150 °C for 5 min have led to strong and slight declines in N values compared to its values for the pristine film, which could be mainly attributed to the trapping of electrons by iodine and the scattering increase with temperature, respectively. This change in N has similarly affected the values of all TE parameters, as seen in Fig. 12(b)–(e). Besides, elevating the annealing temperature to 200 °C has resulted in evident improvements in all TE parameters. This enhancement in PF and zT values can be attributed to the Kz2 compound crystallinity improvement by annealing. Fig. 13 shows the X-ray diffractograms of as-deposited and annealed (200 ° C, 10 min) Kz2 thin films, which shows the appearance of many sharp peaks after annealing. These peaks form a structural fingerprint of the compound, which implies better crystallinity. This may indicate that the thienothiophene-based compound becomes crystalline after annealing, where the C, H, and O atoms contained in the compound can be arranged together in the crystal lattice.
![]() | ||
| Fig. 12 Variations in N, cm−3 (a), σ, (Ω cm)−1 (b), S, mV K−1 (c), PF (µW m−1 K−2) (d) and zT (e) of the thin-film of Kz2 under different conditions. | ||
![]() | ||
| Fig. 13 X-ray diffractograms of (a) as-deposited and (b) annealed (200 °C, 10 min) Kz2 compound thin films. | ||
Besides, the relatively small value of zT of the film annealed at 200 °C for 10 min compared with its value after annealing for the shorter time of 5 min is due to the higher value of thermal conductivity caused by the longer time of annealing (Fig. 11e). This annealing effect implies that annealing is an important process in the balancing of the thermoelectric parameters (electrical conductivity, Seebeck coefficient, and thermal conductivity). The significance of the annealing is further corroborated by the summative thermoelectric outcomes in various circumstances, as given in Table 4 and Fig. 14.
| Sample | T (K) | σ (Ω cm)−1 × 10−4 | −S (mV K−1) | eEf/kT | N, cm−3 | zT | PF |
|---|---|---|---|---|---|---|---|
| Kz2 (as-deposited) | 493 | 17.2 | 0.85 | 9.73 × 10−5 | 5.78 × 1017 | 0.67 | 124 |
| Kz2 (exposure to I2 gas for 5 min) | 493 | 0.92 | 0.43 | 2.56 × 10−5 | 1.38 × 1015 | 0.14 | 18 |
| Kz2 (annealing at 150 °C for 5 min) | 493 | 14.4 | 0.835 | 8.66 × 10−5 | 4.63 × 1017 | 0.65 | 100 |
| Kz2 (annealing at 200 °C for 5 min) | 493 | 31.7 | 3.4 | 0.11 | 3.41 × 1018 | 0.78 | 366 |
| Kz2 (annealing at 200 °C for 10 min) | 493 | 36.9 | 3.38 | 0.087 | 2.70 × 1018 | 0.77 | 421 |
![]() | ||
| Fig. 14 Comparison of the optimal values of thermoelectric zT and PF parameters at different conditions for the thin film of Kz2. | ||
Thermoelectric figure of merit (zT) was determined by using the experimentally determined electrical conductivity and Seebeck coefficient, and the thermal conductivity was determined by the Wiedemann Franz relation. It should be mentioned that in organic semiconductors, lattice vibrations are the main heat carriers, and the overall thermal conductivity is usually between 0.1 and 0.5 W m−1 K−1. In the current research, the lattice thermal conductivity was not measured experimentally because of the limitations of the experiment, and thus, the reported zT numbers should be treated as estimated upper limits but not the exact ones. However, as the same assumptions and calculating process had been used in all samples, the comparative tendencies of thermoelectricity are still viable. The improved value of zT in Kz2 following thermal annealing in this case is an indication of its desirable balance between electrical conductivity and Seebeck coefficient and not an exaggeration due to thermal conductivity approximation. Moreover, it is notable that the environmental stability of the synthesized compounds during ambient conditions in the long run was not investigated in the current study. That is why, they are not device ready thermoelectric materials and these materials are proof-of-concept systems that are intended to shed light on the structure–property relations that conform to thermoelectric performance. The lattice thermal conductivity would be directly determined by the systematic evaluation of shelf-life, humidity tolerance, and thermal cycling stability, and the rational evaluation of lattice thermal conductivity would be systematically assessed.
A comparison of the optimized TE–PF and zT parameters of the Kz2 compound with others reported for some materials is given in Table 5. It is pronounced that either PF and/or zT values of the present Kz2 compound are better than the corresponding ones of most of the tabulated materials. However, more or less, the values of zT of the present Kz2 organic compound can be competitive in thermoelectric applications due to its cost and scalability advantages over inorganic ones.
| T (K) | zT | P.F. = S2σ (µW m−1 K−2) | Ref. | |
|---|---|---|---|---|
| Kz2 (as-deposited) | 493 | 0.67 | 124 | Present work |
| Kz2 (annealed at 200 °C for 5 min) | 493 | 0.78 | 366 | |
| Kz2 (annealed at 200 °C for 10 min) | 493 | 0.77 | 421 | |
| Type (I)-p (Bi0.5Sb1.5Te3) | 373 | 1.3 | 34 | 70 |
| Type (II)-p (Bi0.4Sb1.6Te3) | 373 | 1.25 | 47 | 70 |
| p-PbTe(Mg,Na) | 800 | 1.67 | 24.1 | 71 |
| Tetrakis(dimethylamino)ethylene | 400 | 0.5 | 1040 | 72 |
| Ethylene glycol-mixed PEDOT:PSS | 300 | 0.28 | 350 | 73 |
| Poly[Nax(Ni-1,1,2,2-ethenetetrathiolate)s] | 440 | 0.1 | 27.62 | 74 |
| PEDOT:PSS/SWCNT TE thin films | 350 | 0.43 | 501.31 ± 19.23 | 75 |
| PEDOT:PSS TE fibers | 300 | 0.27 | 147.8 | 76 |
| Mixing of RN120-SWCNTs with P1. RN120-SWCNT (G2) | 300 | — | 96.8 | 77 |
| Polymer poly(benzodifurandione) benzodipyrandione (BPDO) (PBFDO) | 400 | 0.25 | 142 | 78 |
