Structure–property relationships in chalcones with extended π-conjugation: ICT perturbation and red fluorescence

Abstract

4-Dimethylamino-2′-hydroxychalcone (DHC) derivatives are known to exhibit distinctive photophysical properties for various applications, including highly fluorescent crystals and molecular imaging. In a continuous effort to establish the structure–property correlation of this class of materials, a series of methoxy-substituted chalcone derivatives with extended π-conjugation have been synthesized to understand the effect of methoxy substituents on the intramolecular charge transfer (ICT) along the backbone. These derivatives displayed low fluorescence in protic solvents (e.g. ϕ_fl ≈ 0.003–0.009 in H₂O), but high fluorescence in a polar aprotic solvent (ϕ_fl ≈ 0.2–0.35 in DMSO), with emission maxima up to 658 nm. Fluorescence lifetime measurements revealed that the major emissive species could be attributed to locally excited (LE) and ICT states, while their emissive composition was heavily dependent on the methoxy-substitution pattern. The proposed predominant ICT mechanism was confirmed by low temperature fluorescence spectroscopy and supported by TDDFT calculations. Single crystal X-ray crystallography provided structural evidence for the chalcone derives, showing that the methoxy substituents could induce different tortional angles between the aromatic A-ring and the electron donor–acceptor backbone. The degree of the torsional angles was consistent with the number of the methoxy substituents present on the A-ring. These chalcone crystals were also highly fluorescent, with red-shifted emission (up to 703 nm) and quantum yield as high as Φ_fl = 0.363. This study explores a new class of chalcones that exhibit high fluorescence in both solution and solid states, and emission in the desirable red region.

---

Introduction

Chalcones, or 1,3-diphenyl-2-propen-1-ones, are a class of naturally occurring bioactive compounds belonging to the flavonoid family and serve as synthetic precursors to flavonoids. Structurally, chalcones consist of two aryl rings (A and B) connected by an α,β-unsaturated carbonyl moiety (Fig. 1). Chalcones are naturally nontoxic and are found in a variety of fruits, vegetables, roots, and seeds.¹ Naturally occurring chalcones exhibit a broad range of biological activities, including antioxidant, anticancer, anti-inflammatory, antidiabetic, and antibacterial properties.^2–8 The low toxicity and therapeutic benefits of many natural chalcones have made them promising candidates for use as therapeutic sensing applications.

Fig. 1 Absorbance (dotted lines) and emission (solid lines) of chalcone 1a in various organic solvents. Dye concentration of 10 µM.

In addition to their favorable biological activities, chalcones also display attractive optical properties. For instance, crystals of 4-dimethylamino-2′-hydroxychalcone (DHC) are among the most fluorescent organic crystals reported.⁹ Another interesting chalcone derivative is 2DHC, in which the vinylene linkage is extended to include the –(CH=CH–CH=CH)– linkage. Although 2DHC exhibits desirable red emission (λ_em at 676 nm in MeOH), it remains weakly fluorescent in solution.¹⁰ Both hydroxychalcones, DHC and 2DHC, display large Stokes shifts, an attractive feature for sensing applications. This characteristic is attributed to the presence of a 2′-hydroxy group capable of undergoing excited-state intramolecular proton transfer (ESIPT). To advance the use of chalcones in optoelectronic materials and molecular imaging, it is critical to elucidate the structure–property relationships that govern their fluorescence, with the aim of enhancing their emission properties.

Few molecular probes incorporating DHC scaffolds have been reported, in part due to their inherently low fluorescence in solution. Notable examples include DHC derivatives developed for albumin detection,^11,12 Al³⁺ sensing in live cells,¹³ and a fluoro-PEG-substituted DHC employed for in vivo imaging of Aβ aggregates and plaques associated with Alzheimer's disease.¹⁴ In contrast, even fewer sensors have been developed using the 2DHC framework, despite its ability to emit in the red to near-infrared (NIR) region—a desirable property for therapeutic sensing due to reduced background autofluorescence and improved tissue penetration, which together enable clearer imaging of thick biological samples.^15,16 For example, 2DHC displays absorption and emission maxima at 455 and 676 nm, respectively, in methanol. However, the parent 2DHC scaffold exhibits poor fluorescence quantum yields in solution, which limits its broader application in the development of fluorescent sensors for molecular imaging.^17,18

Fluorophores exhibiting large Stokes shifts are particularly desirable for optical sensing and imaging applications, as they minimize self-absorption and excitation–emission crosstalk while suppressing background interference from scattered excitation light.^19–21 These attributes lead to improved signal-to-noise ratios and more reliable detection, especially in complex or highly scattering environments such as biological media and solid-state matrices.²² In addition, large Stokes shifts provide greater flexibility in optical filter selection and facilitate multiplexed detection by reducing spectral overlap among different emitters. From a molecular design perspective, large Stokes shifts often originate from substantial excited-state reorganization, including intramolecular charge transfer (ICT), making them a useful photophysical signature for evaluating donor–acceptor coupling and excited-state relaxation pathways.^23,24 Accordingly, fluorophores that combine red emission with large Stokes shifts represent attractive platforms for the development of advanced optical probes.

In our previous report, low-temperature fluorescence measurements revealed that the long-wavelength emission of 2DHC arises from a combination of intramolecular charge transfer (ICT) and ESIPT processes.¹⁰ To further elucidate the photophysical behavior of this class of compounds, we synthesized a series of chalcone derivatives, 1a–f, in which the ESIPT pathway is eliminated to isolate and examine the influence of ICT on fluorescence. Although 1a has previously been reported to exhibit low fluorescence quantum yields in various solvents,^25,26 our study focuses on tuning ICT efficiency through strategic alkoxy substitution at different positions on the aromatic ring. This investigation includes solvent-dependent emission analysis, low-temperature (77 K) fluorescence spectroscopy, solid-state emission studies, single-crystal X-ray diffraction, and computational analysis to compare theoretical and experimental results. Notably, several derivatives within this series exhibited markedly enhanced fluorescence in comparison with 2DHC; for instance, 1c displays a quantum yield of Φ_fl ≈ 0.3 in DMSO and Φ_fl ≈ 0.04 in MeOH. Furthermore, despite the absence of ESIPT, the emission of 1a derivatives remains in the desirable red/far-red region (600–700 nm), highlighting their potential utility in biological imaging and optoelectronic applications (Scheme 1).

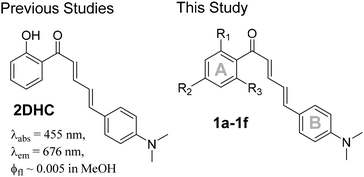

Scheme 1 Chemical structures of chalcones 2DHC and 1a.

Materials and methods

General synthesis

Chalcones 1a–1f were synthesized via a pyrrolidine catalyzed Knoevenagel condensation between the appropriate acetophenone derivatives 2a–2f and 4-(dimethylamino)cinnamaldehyde. In general, the acetophenone derivative (1.1 mmol) and 4-(dimethylamino)cinnamaldehyde (1.0 mmol) were combined in ethanol (5 mL) in a 50 mL round-bottom flask and stirred for 5 min to ensure complete dissolution. Pyrrolidine (0.10 mL) was then added dropwise, and the reaction mixture was stirred at room temperature for 18 h. Upon completion, the reaction mixture was poured into ice-water (120 mL) and adjusted to pH ∼ 6. The resulting mixture was extracted with dichloromethane (3 × 30 mL), and the combined organic layers were concentrated under reduced pressure. The crude products were purified by column chromatography on silica gel using dichloromethane as the eluent to afford chalcones 1a–1f in good yields. Detailed experimental procedures and characterization data for each derivative are provided in the SI.

Compounds 2a–2f and 3 for synthesis were purchased from Sigma Aldrich or Fischer Scientific and were used without further purification. UV-vis spectroscopy was performed using a Hewlett Packard-8453 diode array spectrophotometer at 25 °C. Excitation and fluorescence spectra were measured using a HORIBA Fluoromax-4 spectrofluorometer. ¹H NMR spectra were obtained on a Varian 500 MHz spectrometer in deuterated chloroform (CDCl₃).

Mass spectrometry analysis was performed using a Bruker timsTOF Pro 2 Q/ToF, equipped with an electrospray ionization (ESI) source. Mass calibration was conducted by using ESI-L low concentration tuning mix (Tune Mix) from Agilent Technologies (Santa Clara, CA). All mass spectral data were collected using timsControl (Billerica, MA) and analyzed using Compass DataAnalysis (Billerica, MA) software.

Single crystal X-ray diffraction studies were performed using a Bruker PHOTON II CPAD-based diffractometer with dual Cu/Mo ImuS microfocus optics. The detector was placed at 5.00 cm from the crystal, and the data were corrected for absorption with the SADABS program. The structures were refined using the Bruker SHELXTL Software Package (Version 6.1) and were solved using direct methods until the final anisotropic full-matrix, least squares refinement of F2 converged. Single crystals suitable for X-ray diffraction were obtained by vapor diffusion (chloroform/pentane) or slow evaporation from ethyl acetate.

Absolute fluorescence quantum yields were collected on a Jobin Yvon Horiba Fluoromax-4 using a calibrated Horiba integrating sphere #5570830005. Absorbance intensity was maintained below 0.1.

Low temperature fluorescence spectra were recorded by dissolving the probe in ethanol (10 µM). The ethanolic solution was transferred to a quartz tube and then quickly submerged into a quartz dewar filled with liquid nitrogen. Once frozen, the dewar was placed into the instrument and optical properties were measured.

Results and discussion

Photophysical properties in solution

In the study, 1a was used as a reference compound, whose structure involves donor–acceptor (D–A) interaction. It was noticed that the absorption remained relatively unchanged in a wide range of solvents used, with λ_abs ≈ 420–445 nm (Fig. 1). However, the fluorescence of 1a revealed a significant positive solvatochromic effect, with emission peaks at 518 nm (in toluene) and 658 nm (in EtOH), which is characteristic of ICT fluorophores. This sensitivity arises from the large excited-state dipole moment, which is stabilized by polar solvents, resulting in enhanced fluorescence and red-shifted emission.

After establishing the optical properties for model chalcone 1a, our attention turned to examination of derivatives 1b–1f, to establish a structure–property relationship between substituent positioning and the corresponding optical response. We hypothesized that the fluorescence properties of 1a could be affected by placing a methoxy substituent on the ortho- and/or para-positions of the A-ring, since these positions could exert an electronic effect directly influencing the existing intramolecular charge transfer (ICT) that involves the carbonyl group in 1a. Thus, derivatives 1b and 1c were synthesized by introducing a single –OMe group on the A-ring. As shown in Table 1, the methoxy group caused a slight hypsochromic shift in both absorption λ_abs (by ∼6–13 nm) and fluorescence λ_em (9–15 nm from 1a) in DMSO. A plot of fluorescence λ_em versus solvent dielectric constant (Fig. 2a) revealed a significant positive solvatochromic effect.

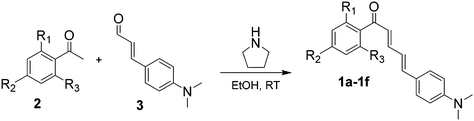

Table 1 The synthesis and optical properties of 1a–1f

Compound	R1	R2	R3	λabs (nm)^a	λem (nm)^a	Δλ (cm^−1)^a	ε (M^−1 cm^−1)^a	Φfl^a
a Optical properties recorded in DMSO.
1a	H	H	H	446	630	6549	38 200	0.350
1b	OMe	H	H	433	621	6992	44 000	0.283
1c	H	OMe	H	440	615	6467	53 800	0.301
1d	OMe	OMe	H	433	607	6620	45 100	0.245
1e	OMe	H	OMe	421	570	6209	39 900	0.053
1f	OMe	OMe	OMe	420	568	6204	41 000	0.048

---

Fig. 2 (a) Plot of fluorescence λ_em versus solvent dielectric constant for 1a–1f. (b) The inset shows the electronic perturbation of the ICT interaction.

These results indicated that the –OMe substituent perturbed the major ICT interaction between the –NMe₂ and C=O groups (Fig. 2b). A detailed analysis of the electron density redistribution upon excitation, obtained from computational modelling, is presented in the Theory section. In Fig. 2a, the solvents are listed in order of increasing dielectric constant: toluene (Tol) < EtOAc < CH₂Cl₂ (DCM) < EtOH < MeOH < acetonitrile (CH₃CN) < dimethyl sulfoxide (DMSO) < H₂O.

In derivatives 1d and 1e, two –OMe groups were present on the A-ring at the respective 2′,4′- and 2′,6′-positions. Compound 1d showed a λ_abs (e.g., 433 nm in DMSO) nearly identical to that of mono substituted 1b (Table 1 and S13, SI). In contrast, 1e exhibited an additional hypsochromic shift in λ_abs (e.g., 421 nm in DMSO), suggesting that the para-substituent plays a less significant role. Interestingly, the spectral difference between 1d and 1e became more pronounced in their fluorescence (Δλ_em ≈ 37 nm; Fig. 2a). It appears that two –OMe groups at the ortho-positions introduce a synergistic effect—likely via steric hindrance—causing a substantial blue-shift in emission. This was further confirmed by observing similar emission from the tri-substituted derivative 1f (Fig. 2a). The emission wavelength λ_em followed the trend 1a > 1b > 1c > 1d > 1e > 1f, consistent with increasing steric hindrance on the A-ring.

The chalcone molecule 1 in its ground state is expected to exist in a neutral form. Based on ¹H NMR and X-ray structural analysis, both vinyl bonds adopt the trans-configuration. Upon photon absorption, the electron density shifts from the donor (D) to the acceptor (A) group via ICT, producing a zwitterionic form (Fig. 3a). Since 1a supports a greater extent of ICT, its emission occurs at a longer wavelength. When one –OMe group is present on the A-ring, as in 1b, the lone-pair of electrons on the methoxy group can interact with the carbonyl group, perturbing or weakening the ICT process (Fig. 2b) and causing a hypsochromic shift in emission. Two –OMe groups are expected to further increase electronic perturbation, producing an additional hypsochromic shift. Because steric interaction alone cannot explain why 1b exhibits a longer-wavelength emission than 1c (which has lower steric demand), an electronic contribution must be invoked. Notably, the para-substituted –OMe group in 1c exhibits minimal steric interaction with the carbonyl group, allowing the aromatic A-ring to achieve better conjugation with the C=O group, thereby enabling a stronger perturbation and a larger hypsochromic shift.

Fig. 3 (a) Chalcones 1 in its neutral (D–A) and zwitterionic (D⁺–A⁻) forms. The polymethine chain connecting donor (D) and acceptor (A) is expressed in darker lines for clarity. (b) The molecular structure of 1a with 35% thermal ellipsoids from X-ray crystallography analysis, showing the bond lengths (in Å) along the polymethine chain.

In addition to the impact on wavelengths, the fluorescence quantum yields (Φ_fl) of 1a–1f were also evaluated in various solvents (Fig. 4). Derivatives 1e and 1f displayed lower Φ_fl values than 1a–1d, especially in polar aprotic solvents such as DMSO, showing the influence of substitution pattern on quantum yield.

Fig. 4 Dependence of the experimental fluorescence quantum yield (Φ_fl) on the dielectric constant of the solvent.

Overall, the number and position of –OMe groups in 1b–1f caused hypsochromic shifts in both absorbance and emission, and reduced the quantum yields. When the A-ring exhibits greater rotational freedom, the optical performance improves—for example, 1d displays better properties than 1e, as the 6′-methoxy group in 1e imposes greater steric hindrance than the 4′-methoxy group in 1d. The steric interactions of 2′- and 6′-methoxy groups in 1e and 1f may promote cis–trans isomerization in the excited state, accounting for their sharp decreases in quantum yield and pronounced hypsochromic shifts relative to monosubstituted derivatives. The sterically hindered 1f, bearing methoxy groups at the 2′, 4′, and 6′ positions, produced the largest hypsochromic shifts and a nearly 7.3-fold reduction in quantum yield, from 0.35 for 1a to 0.048 in DMSO. These observations agree with literature reports that sterically induced TICT geometries in donor–acceptor chromophores lead to diminished radiative efficiency and large emission blue-shifts under polar solvent conditions.^27–30

To directly probe the role of intramolecular motion in excited-state deactivation, viscosity-dependent fluorescence measurements were performed in methanol/glycerol mixtures (Fig. S20). Increasing viscosity led to systematic fluorescence enhancement for all derivatives, while absorption profiles remained largely unchanged, consistent with suppression of motion-induced nonradiative decay. In 90% glycerol/MeOH, the fluorescence quantum yields of the methoxy-substituted derivatives converge to similar values (Φ_fl = 0.202–0.235), slightly exceeding that of the unsubstituted reference 1a (Φ_fl = 0.146) (Table S2). Notably, the sterically congested ortho-substituted derivatives 1e and 1f, which exhibit low Φ_fl in low-viscosity solvents, now display quantum yields comparable to those of 1b–1d. This behavior is consistent with the viscous environment suppressing sterically facilitated torsional relaxation and excited-state cis–trans isomerization along the enone/diene backbone, processes that dominate nonradiative decay for these derivatives in fluid solution. These results indicate that viscosity restricts A-ring-backbone motion and limits structural relaxation pathways that are readily accessible under low-viscosity conditions.

Low temperature spectroscopy

To further probe the excited-state relaxation behavior of the synthesized chalcone derivatives, low-temperature excitation and fluorescence measurements were performed by freezing the molecules in ethanol. Solutions were frozen in liquid nitrogen (−189 °C), effectively immobilizing the molecular framework and suppressing large-amplitude motions such as torsional relaxation, cis–trans isomerization, and solvent reorganization that normally accompany intramolecular charge-transfer relaxation at room temperature.

Compounds 1a and 1e have low and high rotational barriers along the bond between the A-ring and carbonyl group, which lead to their large difference in λ_em (Table 1). Upon cooling to −189 °C, the fluorescence spectra of chalcone 1a were shifted drastically by ∼90 nm to λ_em = 555 nm, from λ_em = 645 nm at 20 °C (Fig. 5a). Under the same conditions, fluorescence of 1e at −189 °C also revealed a similar pattern, showing a large spectral blue shift by ∼54 nm to λ_em = 541 nm, from λ_em = 595 nm at 20 °C (Fig. 5b). In the frozen matrix, the fluorophores were unable to adopt the fully relaxed ICT geometry that led to emission from a higher-energy excited-state configuration, giving rise to the blue-shifted emission and enhanced fluorescence due to the reduction of nonradiative decay pathways.

Fig. 5 Low temperature excitation (dotted lines) and emission spectra (solid lines) of chalcones 1a (a) and 1e (b) in EtOH.

It was assumed that the molecular structure observed at −189 °C would resemble that of the locally excited (LE) state, as torsional motions are frozen under these conditions. In other words, the fluorescence detected at −189 °C came from an excited state that had not undergone ICT. By contrast, fluorescence observed at room temperature reflected states that had relaxed through ICT. Based on the large spectral shift between room- and low-temperature fluorescence, it was assumed that 1a permitted a greater extent of ICT than 1e. This conclusion is consistent with the experimental observation that 1a emits at a longer wavelength than 1e at room temperature, reflecting stronger ICT stabilization. The result was consistent with the assumption that substantial geometry changed during the LE → ICT relaxation pathway.

The spectra of the frozen 1a also revealed partially resolved structures, showing vibronic bands in both excitation and emission spectra (Fig. 5a). The structured emission peaks at 508 and 555 nm corresponded to 19 685 cm⁻¹ and 18 018 cm⁻¹, respectively. Based on the spectral overlap with excitation, the emission peak at 508 nm was assumed to be a 0–0 transition, and 555 nm to be a 0–1 transition. Similarly, the low temperature emission peaks of 1e at 489 nm (= 20 449 cm⁻¹) and 541 nm (= 18 484 cm⁻¹) could be assigned to 0–0 and 0–1 transitions, respectively.

Fluorescent lifetime

Time-resolved fluorescence measurements in acetonitrile (Table 2) and other solvents (Table S3, SI) revealed biexponential decay kinetics for all chalcone derivatives, comprising a short-lived component (τ₁) assigned to emission from the locally excited (LE) state and a longer-lived component (τ₂) attributed to the emissive intramolecular charge transfer (ICT) state. Amplitude-weighted lifetimes ([small tau, Greek, macron]) were calculated according to:
where α_i and τ_i represent the fractional amplitudes and lifetimes of each component, respectively. In acetonitrile, the high-fluorescence derivatives 1a–1d exhibit [small tau, Greek, macron] values in the range of ∼0.75–1.23 ns (Table 2), with the decay dominated (≈85–93%) by the ICT component (τ₂ ≈ 0.80–1.29 ns). In contrast, the sterically congested ortho-methoxy derivatives 1e and 1f show substantially reduced [small tau, Greek, macron] values (∼0.18–0.19 ns), with the LE component comprising 80–95% of the decay. This inversion in amplitude weighting directly indicates suppression of ICT in these systems, consistent with sterically induced twisting due to the dual ortho substitution that electronically decouples the donor and acceptor segments. Similar lifetimes and amplitude distributions have been reported in related donor–acceptor systems.^18,31,32 In summary, the majority of the emission from 1a–1d was from the ICT state. In contrast, the emission from 1e and 1f was mainly from the LE state (Table 2). The assumption could be explained by considering the stability of the excited ICT state, as the steric interaction between the vinyl proton and –OMe group destabilizes the ICT state for 1e and 1f (structure in Table 1).

Table 2 Fluorescent lifetimes of synthesized chalcone derivatives in acetonitrile

Compound	τ1 (ns)	α1 (%)	τ2 (ns)	α2 (%)	X^2	[small tau, Greek, macron] (ns)	Φfl	kr (ns^−1)	knr (ns^−1)
1a	0.69	10	1.285	90	1.21	1.23	0.301	0.245	0.53
1b	0.207	7	1.091	93	1.04	1.03	0.16	0.155	0.845
1c	0.504	9	0.913	91	1.11	0.879	0.205	0.233	0.795
1d	0.438	15	0.801	85	1.22	0.752	0.13	0.173	1.155
1e	0.17	95	0.6	5	0.89	0.191	0.029	0.152	5.026
1f	0.15	83	0.32	17	1.07	0.18	0.026	0.144	5.023

---

Radiative (k_r) and nonradiative (k_nr) rate constants were determined directly from the ACN lifetimes and quantum yields (Φ_fl) according to:

Radiative rates were similar across the series (∼0.14–0.34 ns⁻¹), indicating that intrinsic emission probability is largely insensitive to substitution pattern. In contrast, k_nr increased from 0.53–1.15 ns⁻¹ for 1a–1d to ∼5 ns⁻¹ for 1e–1f, representing a ∼5–10-fold acceleration of nonradiative decay in the ortho-substituted derivatives. This dramatic increase in k_nr is consistent with ultrafast intramolecular torsion or excited-state cis–trans isomerization as the dominant deactivation pathway. The strong enhancement in fluorescence quantum yield observed earlier for 1e and 1f upon freezing in ethanol at −189 °C further supports the role of large-amplitude motions in driving the observed quenching.

Crystal structures and solid-state optical properties

Solid-state excitation and emission properties were recorded (Fig. 6) and are summarized in Table 3. The series of compounds exhibited red/far-red emission with large Stokes shifts, and their emission maxima were in the order: 1f → 1e → 1b → 1c → 1d → 1a.

Fig. 6 Normalized solid-state excitation (dotted) and emission (solid) spectra of 1a–1f.

Table 3 Solid state optical properties of 1a–1f

Compound	λex (nm)	λem (nm)	Δλ	Φfl
1a	575	703	128	0.332
1b	490	660	170	0.073
1c	522	673	151	0.212
1d	580	680	100	0.155
1e	545	650	105	0.030
1f	535	618	83	0.363

---

Single-crystal X-ray diffraction studies revealed distinct packing motifs across the chalcone series (Fig. 7), which strongly influence their solid-state photophysical properties. The most planar derivative, 1a (A-ring torsion ≈ 21°, Fig. S22 and Table S4, SI), adopts a slip-stacked herringbone arrangement of the B-rings in a J-aggregate-like configuration (Fig. 8 and Fig. S23), with centroid distances of ∼3.72 Å. This geometry enhances donor–π–acceptor conjugation and stabilizes the lowest exciton, accounting for the NIR crystalline emission (λ_em = 703 nm, Table 3). Consistently, the solid-state excitation spectrum of 1a retains partially resolved vibronic peaks (Fig. 6), reflecting strong Franck–Condon coupling to a dominant stretching mode. This behavior parallels the low-temperature spectra (Fig. 5a), where distinct 0–0 and 0–1 bands were observed, confirming that rigid slip-stacked packing suppresses torsional relaxation and preserves vibronic structure in the crystalline state.

Fig. 7 Structures of chalcone derivatives 1a–1f with 35% thermal ellipsoids.

Fig. 8 Crystal packing of 1a, showing the tendency to form a J-type interaction.

In contrast, derivatives with larger torsional angles show progressive hypsochromic emission and less defined excitation features. 1b–1d (torsional angle ∼21–44°) emit in the 660–680 nm range, intermediate between 1a and sterically hindered 1f. For example, 1b crystallizes in an ordered yet loosely coupled lattice with minimal face-to-face π-stacking of either ring system; adjacent A rings are twisted and laterally offset within extended lamellar domains (Fig. S24). This arrangement suppresses J-type coupling and leaves the 0–0 transition oscillator weak while failing to rigidify torsional motion, thereby facilitating nonradiative decay (k_nr) consistent with its low Φ_fl.

Interestingly, 1c exhibits red-shifted absorption (Δλ_abs = 32 nm), red-shifted emission (Δλ_em = 13 nm), and a solid-state quantum yield (Φ_fl = 0.212) nearly three times higher than that of 1b, despite both derivatives bearing a single methoxy substituent on the A-ring. This distinction is not observed in solution, where the two isomers display very similar photophysical properties, indicating that the divergence arises from differences in solid-state organization rather than intrinsic electronic effects. Structurally, 1c adopts a substantially smaller A-ring–enone torsional angle (22.14°) than 1b (43.52°), closely matching that of the planar reference compound 1a (∼21°). This reduced torsion preserves effective conjugation and promotes well-defined molecular planes in the crystal lattice, despite a modest curvature of the chromophore backbone introduced by the extended diene bridge (Fig. S24 and S25). In contrast, the larger twist in 1b disrupts planarity and limits intermolecular coherence in the solid state.

In the crystal, 1c assembles into an edge-to-face, herringbone-like packing arrangement rather than forming extended cofacial π-stacked assemblies. A well-organized, co-crystallized chloroform molecule inserts between adjacent chromophores and engages in a directional C–H⋯O interaction with the carbonyl unit (≈2.18 Å), influencing lattice organization and suppressing the formation of J-aggregate-like stacks (Fig. S24 and S25). This packing motif limits strong intermolecular π–π interactions and moderates excitonic coupling while maintaining lattice rigidity. The combined effects of reduced torsional distortion, controlled backbone curvature, and suppressed cofacial π-stacking provide a structural basis for the enhanced solid-state fluorescence efficiency observed for 1c relative to 1b.

Among this subset, 1d (torsion ∼21°) provides an interesting contrast to 1a: despite similar planarity, its excitation spectrum is broad and featureless, lacking the vibronic resolution seen for 1a, suggesting weaker 0–0 oscillator strength and increased inhomogeneous broadening from lattice disorder. Although both 1b and 1d lack strong cofacial π–π stacking interactions, their solid-state packing motifs differ substantially. In compound 1b, the A-ring is almost perpendicular to the B-ring (Fig. S24, SI), which exhibits a larger A-ring–enone torsional angle and adopts a loosely packed lamellar arrangement. Such packing provides only limited restriction on intramolecular motions, facilitating nonradiative decay and resulting in a low solid-state quantum yield. In contrast, 1d packs into laterally offset, sheet-like assemblies that restrict intramolecular motion while avoiding close cofacial π–π overlap, resulting in partial rigidification of the chromophore and a higher fluorescence quantum yield than observed for 1b (Fig. S27, SI). This packing motif partially rigidifies the molecular framework while avoiding strong excitonic coupling, despite its broader excitation features.

The most sterically hindered derivatives, 1e and 1f, exhibit the largest A-ring-backbone torsional distortions (∼78° and ∼65°, respectively), which reduce effective conjugation and yield blue-shifted crystalline emission (λ_em = 650 and 618 nm). In 1e, this distortion is coupled with inefficient packing (Fig. S28), producing a broad excitation profile and nearly quenched emission (Φ_fl = 0.03). By contrast, 1f, despite similar torsion, displays the highest crystalline quantum yield of the series (Φ_fl = 0.363). Structural analysis (Fig. 9 and Fig. S29) shows that 1f assembles into donor–acceptor–donor (D–A–D) dimers stabilized by short methoxy-methoxy contacts (∼3.62 Å), with dimers packing orthogonally relative to one another. This geometry rigidifies the chromophore, suppressing torsional and isomerization motions that dominate in solution, while simultaneously minimizing exciton migration and self-quenching. Consequently, the excitation profile of 1f is broad, yet lattice-enforced rigidity channels relaxation into radiative decay, affording the highest solid-state Φ_fl in the series.

Fig. 9 Crystal packing of 1f illustrating the D–A–D dimer complex and orthogonal packing of neighbouring molecules.

Computational studies

Time-dependent density functional theory (TDDFT) calculations were performed to compare the theoretical electronic structure with the experimentally observed absorption and emission properties of chalcones 1a–1f. Ground-state geometries were optimized at the B3LYP/6-311G(d) level using the polarizable continuum model (PCM) in dichloromethane (Fig. S30).

Kohn–Sham HOMO–LUMO gap energies were calculated and span a relatively narrow range of 2.94–3.24 eV across chalcones 1a–1f (Table S5), consistent with the strong intramolecular charge-transfer (ICT) characteristic.^33–35 The modest variation in KS gap energies indicates that the donor–acceptor framework remains electronically well coupled across the series, and that substituent effects do not substantially alter the intrinsic Frontier orbital energy separation. Instead, these effects primarily influence the spatial distribution and overlap of the Frontier orbitals, which governs the efficiency and extent of charge redistribution upon excitation.

The calculated KS gap values establish a ground-state electronic baseline for comparison of both experimental photophysics and the TDDFT excitation energies. Conversion of the experimental absorption maxima to transition energies (∼2.84–2.99 eV) yields values slightly lower than the corresponding KS gaps, as expected due to excitonic stabilization and orbital relaxation in the excited state (Table S5). The proximity of these energy scales is consistent with efficient donor–acceptor communication and supports assignment of the lowest-energy absorption bands to ICT-dominated transitions. Importantly, because the KS gaps remain comparable across the series, differences in absorption and emission behavior are more reasonably attributed to substituent-induced conformational and orbital redistribution effects rather than large changes in intrinsic electronic coupling.

TDDFT-predicted absorption maxima (λ_abs, Table 4) reproduce the experimental trends reasonably well, exhibiting modest red shifts of 9–16 nm for chalcones 1a–1d and larger deviations of 39–41 nm for the dual ortho-methoxy derivatives 1e and 1f (Table S5). The larger discrepancies observed for 1e and 1f are attributed to the increased steric demand imposed by ortho-methoxy substitution, which promotes conformational distortion and attenuated conjugation that are not fully captured at this level of theory.

Table 4 Calculated absorbance and emission values for chalcones 1a–1f in CH₂Cl₂

Compound	λabs (nm)	λem (nm)
1a	446	510
1b	440	501
1c	443	505
1d	435	495
1e	456	516
1f	456	478

---

In contrast, the calculated emission maxima are systematically blue-shifted relative to experimental values (Table S6). TDDFT-predicted emission energies (E_em ≈ 2.40–2.60 eV; λ_em = 478–516 nm) significantly overestimate the experimentally observed values in DCM (E_em ≈ 2.12–2.29 eV; λ_em = 542–586 nm) by ∼0.3–0.6 eV across the series (Table S5). This discrepancy is substantially larger than that observed for absorption energies and reflects extensive excited-state relaxation prior to emission. These results suggest that the fluorescence occurs from a strongly stabilized intramolecular charge-transfer (ICT) minimum that involves pronounced geometric reorganization and charge redistribution in the S₁ state, which is not fully captured by single-reference TDDFT at this level of theory. The magnitude and consistency of the emission energy lowering therefore provide direct evidence for a dominant ICT-driven relaxation pathway in the emissive state, consistent with the large Stokes shifts, pronounced solvatochromism, and low-temperature blue-shifted emission observed experimentally.

Analysis of the optimized ground-state geometries reveals interplanar dihedral angles between the A-ring and the enone backbone ranging from approximately 51 to 63° across the series (Fig. S30). For chalcones 1a–1d, these moderate torsions preserve sufficient conjugation between donor and acceptor segments to support efficient ICT upon photoexcitation, consistent with their red-shifted emission and higher fluorescence efficiencies. In contrast, the ortho-methoxy-substituted derivatives 1e and 1f adopt more sterically distorted conformations due to the positioning of the methoxy group, predisposing these molecules toward additional torsional relaxation in the excited state. This enhanced twisting reduces orbital overlap, destabilizes the ICT state, and may promote access to twisted intramolecular charge-transfer (TICT) configurations, rationalizing their hypsochromically shifted emission and reduced quantum yields.

Frontier orbital analyses further support this interpretation. As illustrated in the HOMO–LUMO plots (Fig. 10 and Fig. S30), the HOMOs of all chalcones are primarily localized on the donor and carbonyl moieties, with minimal contribution from the A-ring. The LUMO of 1a exhibits significant electron density delocalized onto the A-ring, indicating that the ICT process extends beyond the carbonyl unit to incorporate the aryl acceptor fragment. This A-ring participation is progressively diminished in the LUMOs of 1b and 1c, consistent with perturbation of ICT by methoxy substitution at the para or ortho positions. The effect is further amplified in 1e and 1f, where steric congestion leads to markedly reduced A-ring contribution in the LUMO, in agreement with the experimentally observed attenuation of ICT and diminished emissive performance.

Fig. 10 HOMO–LUMO diagrams of selected chalcones calculated using B3LYP/6-311G(d) in DCM.

Conclusion

A series of methoxy-substituted chalcone derivatives with extended π-conjugation were synthesized to examine the structure–property correlation for methoxy-substituted chalcone derivatives. These chalcones exhibit a diene bridge (–CH=CH–CH=CH–) in the center of the molecular backbone, which should increase the probability of cis–trans isomerization of vinyl bonds that promote nonradiative decay. Spectroscopic studies showed that these chalcones retained the desirable emission in the red region (λ_em ≈ 640–660 nm, Fig. 2), while exhibiting higher fluorescence quantum yields by about 4–8 fold in comparison with 2DHC (a 2′-hydroxychalcone derivative with the same backbone). In a polar aprotic solvent (e.g. DMSO or CH₃CN), some chalcone derivatives exhibited fluorescence quantum yields as high as Φ_fl ≈ 0.3, indicating that the presence of a diene bridge is not a limiting factor in developing highly fluorescent materials.

Systematic spectroscopic studies and computational analyses further revealed that emission properties could be governed mainly by the fragments that are in the path of intramolecular charge transfer (ICT). Although the aromatic A-ring is not in the path of ICT, an e-donating group on the A-ring could increase the electron on the C=O group, thereby weakening the ICT and modulating the fluorescence properties. In solution, when the A-ring was less bulky (e.g. in 1a–1c with R₁ = H– or CH₃O–, R₃ = H), the ICT was only slightly affected, which has little impact on the fluorescence λ_em and Φ_fl (Fig. 2 and 4), and lifetime (Table 2). This was further confirmed by using chalcones 1e and 1f with a bulkier A-ring (with both R₁ and R₃ are CH₃O–). Due to the steric interaction between R₃ and the diene bridge, the D–π–A fragment will no longer adopt a planar conformation desirable for an efficient ICT process. Such steric interaction can lead to emission at a shorter wavelength (Fig. 2) and lower fluorescence Φ_fl (Fig. 4). Fluorescence lifetime data of 1e and 1f showed that the ICT was no longer the predominant emissive species. The assumption of substitution-assisted perturbation on ICT was also supported by the computational study. The study provides a useful blueprint for controlling the ICT process in chalcones and designing the of next-generation donor–acceptor fluorophores with tailored excited-state behavior.

Studies in their solid states provided additional knowledge about these fluorescent materials. Fluorescence studies showed that chalcones 1a–1f were highly fluorescent in their crystalline solid states, producing red-shifted emission compared to the solution (e.g. 703 nm for 1a). X-ray crystallography of these chalcones revealed their torsional and packing geometry in the solid state. Orthogonally packed donor–acceptor–donor dimers (1f) yielded the highest solid-state quantum yield (Φ_fl = 0.363), in sharp contrast to its weak Φ_fl in solution (Fig. 4). The enhanced fluorescence in the solid could be attributed to the tight packing in a rigid crystal lattice due to the bulky A-ring.

Author contributions

B. C. and Y. P. conceived the study and designed the experiments. B. C. and P. H. synthesized all compounds and performed photophysical studies. W.-Y. C. performed the X-ray crystallographic study under the supervision of C. Z. Finally, B. C. and Y. P. wrote the manuscript with contributions from all co-authors. All authors contributed to the editing of the manuscript.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data supporting this manuscript have been included as part of the supplementary information (SI), including NMR spectra, fluorescence lifetimes and crystal packings.

Supplementary information is available. See DOI: https://doi.org/10.1039/d5ma01288k.

CCDC 2497318–2497323 contain the supplementary crystallographic data for this paper.^36a–f

Acknowledgements

The study is supported by NIH Grant 1R15GM148965-01 (to Y. P.). We would like to thank Chad Studvick for his help in procuring the computational results.
