Open Access Article
Yaowei Zhu
ac,
Tongtong Mana,
Jiayi Chena,
Xiaonong Zhangb,
Mingming Zhaob,
Li Chen
*a and
Chunsheng Xiao
*b
aDepartment of Chemistry, Northeast Normal University, Changchun 130024, P. R. China. E-mail: chenl686@nenu.edu.cn
bState Key Laboratory of Polymer Science and Technology, Key Laboratory of Polymer Ecomaterials, Changchun Institute of Applied Chemistry, Chinese Academy of Sciences, Changchun 130022, P. R. China. E-mail: xiaocs@ciac.ac.cn
cCollege of Chemistry and Chemical Engineering, Taishan University, Tai'an 271000, PR China
First published on 3rd December 2025
The extensive utilization of thermosetting polymers has prompted growing environmental concerns due to their non-recyclability and resource depletion. To address these challenges, the development of eco-friendly synthetic strategies for creating recyclable thermosetting polymers is imperative. Herein, we developed a solvent-free and catalyst-free synthesis approach to prepare recyclable biomass-derived thermosetting polymers using the dynamic Knoevenagel condensation (KC) reaction. We demonstrated that the dynamic exchange of C
C bonds could occur via the KC reaction at 110 °C without the need for solvents or catalysts. The thermosetting polymer BFMD-PCLT was then synthesized via the solvent-free and catalyst-free KC reaction. The resulting BFMD-PCLT exhibited an elongation at break of 184%, a tensile strength of 3.6 MPa, and exceptional fatigue resistance (withstanding ≥500 stretching cycles). Furthermore, BFMD-PCLT demonstrated high thermal stability (up to 275 °C) alongside excellent reprocessability and chemical recyclability. Overall, this research provides an eco-friendly, facile, and sustainable approach for creating recyclable biomass-derived thermosetting polymers.
Green foundation1. Our work provides an eco-friendly and sustainable approach for creating recyclable biomass-based thermosetting polymers via a solvent-free and catalyst-free Knoevenagel condensation (KC) reaction.2. We demonstrate that the biomass-based thermosetting polymer BFMD-PCLT could be facilely synthesized without solvents/catalysts at 110 °C. The resulting BFMD-PCLT exhibits chemical recyclability, reprocessability, and exceptional fatigue resistance (withstanding ≥500 stretching cycles). 3. Further research should focus on developing greener monomers derived from biomass sources to prepare various sustainable polymer materials. |
Recently, the incorporation of dynamic covalent bonds (DCBs) into cross-linking networks has proven to be an effective method for fabricating thermosetting polymers that can be reprocessed and recycled.14–26 Therefore, the use of biomass materials combined with DCBs for creating recyclable thermoset polymer materials has garnered considerable attention. In our previous work, the C
C bonds formed through the Knoevenagel condensation (KC) reaction have been employed for constructing dynamic hydrogels in aqueous media and thermosetting polymers in organic solvents under catalysis of 4-dimethylaminopyridine (DMAP).27–31 These studies demonstrate the significant potential of KC reactions in creating recyclable biomass thermosetting polymers. However, most KC products still require an additional catalyst to facilitate the dynamic exchange of C
C bonds.32,33 The utilization of catalysts in the synthesis of thermosetting polymers can present challenges such as compatibility issues and potential toxicity concerns. In specific applications like coatings, excessive catalyst concentrations can potentially cause substrate corrosion.34–39 Moreover, the properties of thermosetting polymers can also be influenced by residual solvents. Consequently, the development of solvent-free and catalyst-free thermosetting polymers has garnered significant attention in recent years. Our previous research has demonstrated that the Knoevenagel condensation reaction using cyanoacetate can proceed without a catalyst.27 Furthermore, it has been reported that the solvent-free KC reaction can be successfully conducted.40–43 Thus, it is feasible to synthesize recyclable thermosetting polymers derived from biomass materials via the KC reaction without a solvent and catalyst.
In this work, we developed a solvent-free and catalyst-free KC reaction-based strategy to create the biomass-derived thermosetting polymer BFMD-PCLT through the successful crosslinking of bis((5-formylfuran-2-yl)methyl)decanedioate (BFMD) and tri-functionalized monomers (PCL-TCA) (Scheme 1). Two biomass-derived monomers, 5-hydroxymethylfurfural (HMF) and sebacic acid, can be produced from glucose (via dehydration)44 and castor oil (via pyrolysis),45 respectively. Through this novel KC reaction, it is possible to produce a thermosetting polymer with a high molecular weight and successfully enable dynamic exchange of C
C bonds within the polymers. The obtained BFMD-PCLT exhibits excellent mechanical properties, fatigue resistance, reprocessing and chemical recycling capabilities. Additionally, it can be used to prepare weldable polymer wires. Overall, the present work demonstrates that the KC reaction can proceed without a solvent and catalyst, which thereby provides a powerful tool for preparing sustainable materials.
![]() | ||

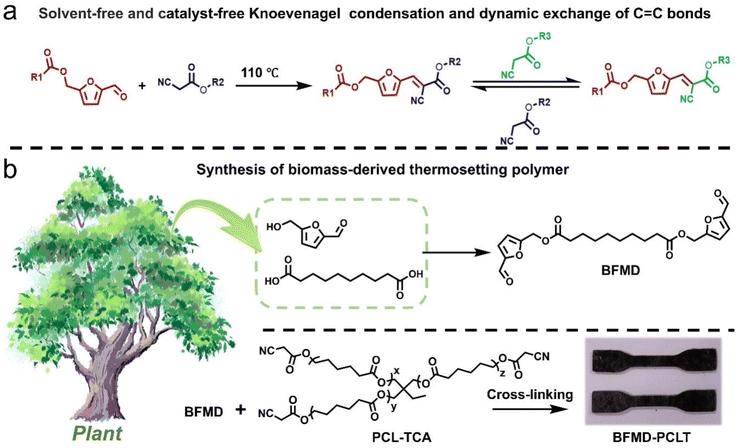

Scheme 1 (a) Solvent-free and catalyst-free KC reaction and the dynamic exchange of C C bonds. (b) Synthesis route to a biomass-derived thermosetting polymer. | ||
Then, we simply mixed FFMH and HCA through heating to facilitate the reaction. The process of the model reaction was monitored by 1H NMR spectroscopy at room temperature, 70, 90, and 110 °C. At room temperature, there is no significant change observed in the 1H NMR spectra of FFMH and HCA mixtures within 120 min (Fig. S4), indicating that the solvent-free and catalyst-free KC reaction cannot occur at room temperature.

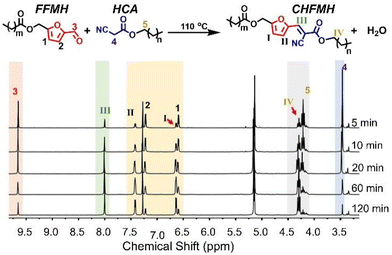

In contrast, this solvent-free and catalyst-free KC reaction can be effectively conducted upon increasing the temperature. For example, the process of the model reaction at 110 °C was analyzed using 1H NMR spectra. As shown in Fig. 1, the intensities of proton resonance peaks 3 (–C
O on FFMH, at 9.65 ppm) and 4 (CN–C
2– on HCA, at 3.47 ppm) gradually decreased with the reaction time prolonging, while the proton resonance peak III (–C
C
– on CHFMH, at 8.01 ppm) increased over time, demonstrating the consumption of FFMH and HCA and the formation of CHFMH. Meanwhile, proton resonance peaks 1 (–CH
C
–, on FFMH, at 6.60 ppm) and 2 (–C![[H with combining low line]](https://www.rsc.org/images/entities/char_0048_0332.gif)
CH–, on FFMH, at 7.22 ppm) moved to peaks I (–CH
C
– on CHFMH, at 6.65 ppm) and II (–CH
C
– on CHFMH, at 7.43 ppm), respectively. The proton resonance peak 5 (–C
2–O–C
O on HCA, at 4.22 ppm) moved to peak IV (–C
2–O–C
O on CHFMH, at 4.30 ppm). The observed chemical shift of the proton peaks I, II, and IV towards the lower field can be attributed to the electron-withdrawing effect induced by the newly formed C
C bond in CHFMH. As shown in Fig. S5 and S6, similar changes can also be observed at both 70 and 90 °C. And the KC reaction rate increases with rising temperature (Fig. S7). And the corresponding quantitative conversion data are listed in Table S1. These results demonstrate that solvent-free and catalyst-free KC reaction can be successfully performed through heating.

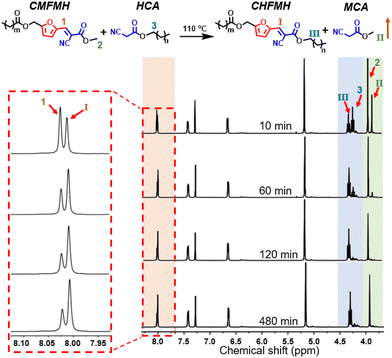

To verify the dynamic KC reaction under solvent-free and catalyst-free conditions, the dynamic exchange reaction of (E)-(5-(2-cyano-3-methoxy-3-oxoprop-1-en-1-yl)furan-2-yl)methyl hexanoate (CMFMH) and HCA was investigated by 1H NMR spectroscopy. CMFMH was synthesized by a solvent-free and catalyst-free KC reaction, and its structure was characterized by 1H NMR and 13C NMR spectroscopy (Fig. S8 and S9). As shown in Fig. 2, there were obvious changes in the proton resonance peak after only 10 min of reaction. The proton resonance peak was shifted from peak 1 (CN–C
C
– on CMFMH, at 8.02 ppm) to peak I (CN–C
C
– on CHFMH, at 8.01 ppm), and the proton resonance peak 3 (–C
2–O– on HCA, at 4.22 ppm) was moved to peak III (–C
2–O– on CHFMH, at 4.30 ppm). These results demonstrate that CMFMH was transformed into CHFMH. In addition, the intensity of peak 2 (–O–C
3 on CHFMH, at 3.93 ppm) gradually decreased, which proved that the content of CMFMH in the reaction system decreased gradually. The appearance of the proton resonance peak II (–O–C
3 on methyl cyanoacetate, at 3.85 ppm) confirmed the presence of free methyl cyanoacetate (MCA) in the reaction system, thereby indicating the successful dynamic exchange between hexyl cyanoacetate and CHFMH through the exchange of C
C bonds. The disappearance of peak II at 120 min was attributed to the evaporation of MCA with a low boiling point. Upon heating the model reaction mixture for 480 min, negligible changes were observed in the 1H NMR spectra, thereby confirming the good thermal stability of CMFMH and CHFMH, and the formation of MCA can be attributed to the dynamic exchange of C
C bonds rather than potential thermal decomposition of CMFMH. These results demonstrate the efficient dynamic exchange of C
C bonds based on the KC reaction, even under solvent-free and catalyst-free conditions.
:
1 and then reacted without a solvent and catalyst.
The molecular weight (Mn) of BFMD-PCL was monitored by gel permeation chromatography (GPC). The Knoevenagel polycondensation proceeded quickly, with Mn reaching 43 kDa after 90 min (Fig. 3b). This result demonstrates the feasibility of achieving a high molecular-weight polymer through solvent-free and catalyst-free Knoevenagel polycondensation. Subsequently, PCL-BCA (0.5 equiv.) was added to the reaction system (Fig. 3a(II)), and the Mn of BFMD-PCLT first decreased sharply to 7 kDa and then increased slightly to 12 kDa (Fig. 3c). The significant decrease in Mn can be attributed to the formation of oligomers resulting from C
C bond exchange between PCL-BCA and BFMD-PCLT. After that, PCL-BCA continued to react with potential functional groups within the oligomers, leading to a slight increase in Mn and reaching an “equilibrium” state after 40 min. Next, when BFMD (0.5 equiv.) was added to the reaction system (Fig. 3a(III)), Mn could recover to 42 kDa after 90 min (Fig. 3d), which was close to the Mn of initial BFMD-PCL (Fig. 3b). This phenomenon is attributed to the continuous polycondensation of the 2-cyanoacetate end-functionalized oligomers with BFMD, and in this case, the molar ratio of BFMD and PCL-BCA (1
:
1) was the same as that in the initial state. Finally, when HCA (0.5 equiv.) was added to the reaction system, Mn remarkably decreased to 4.6 kDa after 20 min (Fig. 3a(IV) and e). All the molecular weight data from GPC-THF analysis are listed in Table S2. Taken together, these results demonstrate that it is feasible to create dynamic polymers through solvent-free and catalyst-free Knoevenagel polycondensation.
O) can be clearly observed. The strong absorption at ∼1730 cm−1 is assigned to the ester carbonyl group. The strong absorption at ∼1670 cm−1 is assigned to the aldehyde carbonyl group. The significant redshift of the aldehyde peak from the typical range (∼1730 cm−1) is a direct consequence of the strong conjugation between the formyl group and the electron-rich furan ring. After the polymerization reaction, the spectrum of BFMD-PCLT shows significant changes: the characteristic peak of the aldehyde carbonyl at ∼1670 cm−1 has virtually disappeared and a new peak emerges at ∼1610 cm−1. This is assigned to the newly formed C
C bond generated by the condensation. The ester carbonyl peak remains and appears as a broadened signal, confirming the integrity of the ester linkages in the resulting polymer. These spectral changes conclusively demonstrate the successful progression of the Knoevenagel condensation reaction.27–30 The thermal properties of BFMD-PCLT were characterized by differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA). The Tg of BFMD-PCLT under a nitrogen atmosphere was 0 °C (Fig. S15). The Td (5%) of 275.5 °C indicates good initial thermal stability for the materials. The higher Td (10%) of 345.5 °C suggests that after the initial weight loss the main polymer backbone remains stable until a substantially higher temperature before undergoing major decomposition. The residual mass of approximately 6% at 600 °C demonstrates a certain char-forming ability of the material (Fig. S16).
The degree of crosslinking was further determined by a swelling test of BFMD-PCLT. Common solvents, i.e., dimethyl sulfoxide (DMSO), dichloromethane (DCM), n-hexane (C6H14), tetrahydrofuran (THF), water, and toluene (Tol), were used for these experiments (Fig. S17 and Table S3). The fragments of BFMD-PCLT exhibited varying degrees of swelling across different solvents without dissolution (Fig. S17 and S18), proving the successful construction of a cross-linking network in BFMD-PCLT.46 BFMD-PCLT exhibited significant swelling ratios in DMSO, DCM, and THF, which can be attributed to the good solubility of the PCL chains in these solvents.46,47 Moreover, the gel fractions of BFMD-PCLT in different solvents are above 87% (Fig. S19). Overall, these findings indicate a substantial extent of cross-linking within BFMD-PCLT. The 1H NMR analysis of the soluble fractions attributes the solvent discoloration to trace impurities, such as unreacted monomers and oligomers, rather than polymer degradation. This conclusion is supported by the detection of the corresponding residual functional groups in organic solvents and, critically, by the absence of any detectable signals in D2O, which confirms the material's excellent hydrolytic stability (Fig. S20).

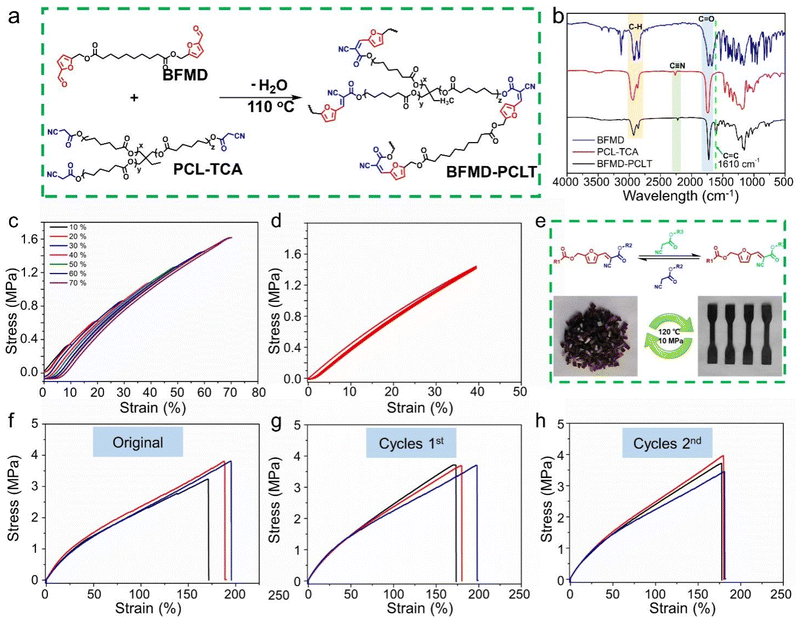

The mechanical properties of BFMD-PCLT were tested by a uniaxial tensile test. The as-synthesized BFMD-PCLT material initially had an irregular morphology, which made it unsuitable for direct mechanical testing. To obtain standardized specimens for reliable and comparable tensile tests, the material was subjected to a hot-pressing process (110 °C, 10 MPa, 20 min). This hot-pressed sample was defined as the original sample for all subsequent testing and recycling cycles. At different strains ranging from 10% to 70%, BFMD-PCLT exhibited an insignificant hysteresis loop in each cycle (Fig. 4c), indicating the good resilience of BFMD-PCLT. To characterize the cycling stability of BFMD-PCLT, 500 uninterrupted cyclic tensile tests with strains of 40% without any rest time between cycles were further performed. These results show that the hysteretic loop of each cycle of BFMD-PCLT basically coincides with the first cycle (Fig. 4d), which proves that BFMD-PCLT exhibits a good anti-fatigue ability.
Subsequently, the original BFMD-PCLT was shredded and then reprocessed by compression molding (110 °C, 10 MPa, 20 min) (Fig. 4e). This process was repeated two times. A comparison of the FTIR spectra from the original BFMD-PCLT and those subjected to a hot-pressing cycle demonstrates the consistency of the chemical structure (Fig. S21). The mechanical properties of the materials were evaluated under identical conditions before and after reprocessing. The results show that the mechanical properties after two hot-pressing cycles are similar to those of the original material (Fig. 4f–h, and S22), indicating that BFMD-PCLT has a good reprocessing ability. The relevant data are summarized in Table S4.
BFMD-PCLT can be chemically recycled though dynamic C
C bond exchange (Fig. 5a). The thermosetting polymers were first soaked in PCLTCA, and then, the mixture was heated to 110 °C and formed dark red viscous oil. These phenomena can be attributed to the transformation of the polymer network into low-molecular-weight oligomers via the dynamic exchange of C
C bonds between PCLTCA and BFMD-PCL.30 Subsequently, BFMD was incorporated into the mixture at a molar ratio of 1
:
1 with PCLTCA. After heating for 4 h, the solidified mixture was compressed and restructured at 110 °C (Fig. 5b). The recycled polymer exhibited an identical FT-IR spectrum to the original BFMD-PCLT (Fig. 5c), which proved that its chemical structure did not change significantly. The tensile curves of the restructured BFMD-PCLT are shown in Fig. 5d. The reformed BFMD-PCLT show similar properties to the original BFMD-PCLT. Taken together, these results demonstrate that BFMD-PCLT exhibits excellent chemical recyclability. The relevant data are summarized in Table S5.
C bond successfully proceeded without a solvent and catalyst at 110 °C. Through this solvent-free and catalyst-free KC reaction, the thermosetting polymer BFMD-PCLT was obtained by the KC reaction of BFMD and PCLTCA. The obtained BFMD-PCLT showed good mechanical properties and fatigue resistance and could be reprocessed and chemically recycled though dynamic C

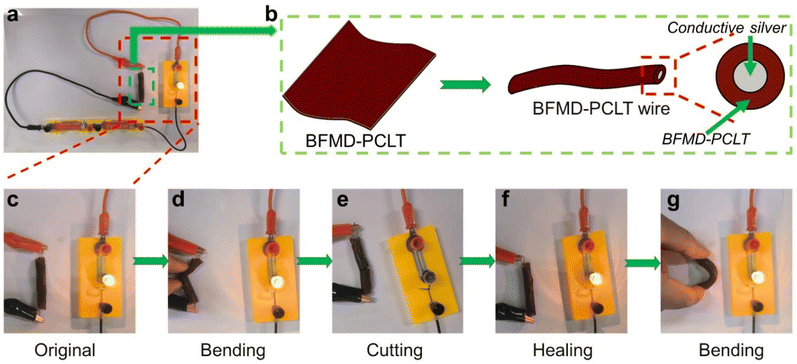

C bond exchange. The intrinsic reprocessability makes BFMD-PCLT suitable for use as the outer casing of weldable polymer wires. This work highlights the potential of the solvent-free and catalyst-free KC reaction for developing sustainable biomass-derived materials.
Supplementary information (SI) is available. See DOI: https://doi.org/10.1039/d5gc04302f.
