IR nanospectroscopy mapping of facet-dependent sulfur poisoning and thermal regeneration on platinum nanocrystals

Abstract

Sulfur poisoning critically limits the activity and durability of Pt catalysts, yet the nanoscale structure–reactivity relationships that govern sulfate adsorption and its thermal desorption remain poorly resolved. Using infrared nanospectroscopy, we directly map the spatial distribution, adsorption geometry, and temperature-dependent evolution of sulfate species on individual Pt nanocrystals (NCs) with well-defined facets. At room temperature, SO_x species preferentially accumulate at defect-rich inter-facet regions, edges, and open Pt(100)-like facets, in which bidentate adsorption dominates. Flat Pt(111) terraces exhibit lower SO_x coverage and a larger contribution from tridentate species. Mild annealing (50–200 °C) induces selective desorption from undercoordinated sites and drives a structural transition from bidentate to tridentate coordination as species migrate toward highly coordinated terrace regions. At 300 °C, most sulfate species desorb from edges and side facets, whereas thermally robust tridentate species persist at the NC interior. These results provide a facet-resolved picture of sulfur adsorption and regeneration pathways, revealing how local surface structure dictates the stability and thermal evolution of poisoning species on Pt catalysts.

---

Introduction

Catalyst poisoning results in deactivation caused by the strong and often irreversible adsorption of molecular or atomic species to active metal sites.¹ Sulfur-containing compounds (e.g., sulfuric acid and its derivatives), carbon monoxide, and halide ions are among the most potent poisoning agents.^2,3 The consequences of surface poisoning include reduced catalytic efficiency, lower product yields, and, ultimately, the need for catalyst replacement or regeneration.^3–5

Poisons such as sulfur form strong bonds with Pt surface atoms, saturating active sites and preventing reactant adsorption. Chemical reactions between the poisoning species and the catalyst can also generate new surface compounds that may either desorb from the surface or further block catalytic sites.³ Strongly bound poisons, such as SO_x–Pt species, often require harsh treatments for removal and restoration of catalytic activity.^3,6–8 Therefore, analyzing the adsorption and desorption patterns of SO_x species on Pt nanoparticles is essential for understanding the mechanisms of catalyst poisoning and guiding regeneration strategies.

The interaction between sulfuric acid and Pt depends strongly on the arrangement and coordination of the surface atoms and on the chemical properties of the SO_x species.⁹ Sulfate is mainly adsorbed in bidentate or tridentate coordination modes and the adsorption geometry directly influences the adsorption strength and thermal stability of the poisoning species.^10–12 On Pt(111), sulfate predominantly adopts a well-ordered, bidentate or tridentate geometry stabilized by the close-packed terrace arrangement.¹³ On Pt(100), which is characterized by a higher density of bridge sites, sulfate binds more weakly and often in a tilted bidentate configuration.^14,15

The natural inter- and intra-particle structural heterogeneity of catalytic nanoparticles^16–20 makes it challenging to directly probe how different surface sites influence SO_x poisoning and its removal. Resolving these site-dependent effects requires both experimental techniques capable of providing nanoscale chemical information and model catalysts with well-defined surface structures. Recent advances in high-spatial-resolution spectroscopy have enabled nanoscale investigations of catalytic nanoparticles,^20–35 and were also utilized for analysis of SO_x distributions on catalytic nanoparticles.^7,36 In particular, infrared nanospectroscopy measurements^37,38 have shown that the types and adsorption geometries of SO_x species vary significantly due to morphological and structural heterogeneity among individual nanoparticles.^7,36 Using a similar approach, we have mapped the distribution and adsorption strength of surface ligands on Au nanocrystals with well-defined facets.³⁹

In this work, we employ atomic force microscopy infrared (AFM-IR) measurements to map the distribution of SO_x species on Pt nanocrystals (NCs) with well-defined facets. We find that the majority of SO_x species adopt a bidentate adsorption mode and reside on the more open facets and at inter-facet regions, whereas only a minority of SO_x occupies the flat (111) facets. Annealing to 200 °C led to desorption from edge sites, accompanied by a transition from a bidentate adsorption mode to a tridentate adsorption mode. Further annealing to 300 °C led to desorption of most of the SO_x species, leaving residues near the center part of the nanocrystals, in which the SO_x is strongly adsorbed in a bidentate mode.

Experimental

Pt NCs preparation

A 15 nm-thick Pt film was e-beam evaporated onto a sapphire crystal (c-plane oriented, Gavish) using a glove-box evaporator (VST). Quartz crystal microbalance (QCM) measurements were used to assess the thickness of the evaporated film. NCs were prepared by annealing the Pt-coated sapphire at 1000 °C for 2 minutes under a nitrogen (N₂) atmosphere. The sample was then immersed in 10 mM solution of H₂SO₄ for 1 h at room temperature. Afterward, the sample was transferred to a vial on a hot plate pre-heated to 100 °C for 10 minutes in air in order to remove physisorbed residues. Annealing of the sample was performed under a N₂ atmosphere for 2 hours at the designated temperature.

Nano-IR measurements

AFM-IR measurements were performed in tapping mode using a nanoIR-3 (Bruker) setup equipped with a Bruker Hyperspectral QCL laser source (790–1950 cm⁻¹), gold-coated Si probes with a nominal diameter of ∼25 nm, resonance frequencies of 75 ± 15 kHz, and spring constants of 1–7 N m⁻¹. Averaged spectral acquisition time was 5 seconds per spectrum with a spectral resolution of 2 cm⁻¹. The acquisition time was limited to 5 seconds to precisely define the measurement location and to prevent uncertainties caused by thermal drift.

Focused ion beam (FIB) measurements

A dual-beam FIB instrument (FEI Helios) was employed for lamella extraction, and the resulting lamella was analyzed by high-resolution scanning-transmission electron microscopy (STEM) operated at 300 kV.

X-ray photoelectron spectroscopy (XPS) measurements

Measurements were performed using a Kratos AXIS Supra spectrometer (Kratos Analytical) with an Al Kα monochromatic X-ray source (1486.6 eV). The XPS spectra were acquired with a takeoff angle of 90° (normal to the analyzer), a pass energy of 20 eV and a step size of 0.1 eV; the vacuum condition in the chamber was 2 × 10⁻⁹ Torr. The binding energies were calibrated according to the C1s XPS peak position.

Results and discussion

To identify the sensitivity of different atomic facets in Pt particles to sulfur poisoning, we focused our study on analyzing the adsorption and desorption of SO_x species on Pt nanocrystals (NCs) with well-defined Wulff-like structures. The NCs were prepared by annealing and then exposed to H₂SO₄ to induce surface poisoning (see Experimental section for details), following recently published procedures.^7,36

AFM topography images reveal NCs with lateral dimensions of 200–400 nm and heights of up to 100 nm (Fig. 1a). Exposure to H₂SO₄ did not lead to noticeable morphological changes. Two main NC morphologies were observed: elongated, hexagon-like NCs with distinctly longer opposing sides, yielding a more rectangular appearance (highlighted with a yellow oval in Fig. 1a); and equilateral-like NCs resembling a rhombic structure (highlighted with a red oval in Fig. 1a).⁴⁰

Fig. 1 Characterization of Pt NCs. (a) AFM topography image of Pt NCs following sulfur poisoning. Representative hexagon- and rhombic-like NCs are circled in yellow and red, respectively. (b) AFM-IR map at 1100 cm⁻¹, acquired from the same area that was imaged by AFM. HR-TEM imaging of a cross-section of a hexagonal NC (c) and a rhombic NC (d), with their corresponding diffraction patterns (insets).

To identify the crystallographic facets of the NCs, a lamella was extracted from the sample using focused ion beam (FIB) milling, and transmission electron microscopy (TEM) images of both the hexagonal- and rhombic-like NCs were acquired (Fig. 1c and d, respectively), along with their corresponding electron diffraction patterns (insets, Fig. 1c and d). The hexagonal Pt nanocrystal exhibited a dominant (111) plane with adjacent (110) facets (Fig. 1c). The smaller rhombic NC displayed multiple crystallographic orientations, including prominent (111), (001), and (113) planes (Fig. 1d). The formation of these two distinct NC types is attributed to variations in local growth rates along different crystallographic directions, likely driven by subtle differences in the local defect density that influence facet stability. It is expected that these structural changes will impact the adsorption pattern of SO_x.^41–46

AFM-IR mapping was performed at 1100 cm⁻¹ (Fig. 1b), which corresponds to the S–O vibration of the sulfate anion,⁴⁷ on the same area imaged by AFM (Fig. 1a). The IR signal intensity varied across the NCs, with higher signals detected at edges, steps, and the more open facets, while weaker signals appeared on the inner, flat (111) facets. These variations provide evidence for facet-dependent adsorption behavior and show the dominant role of nanocrystal structure in governing the local surface density of SO_x species.

Single NC analyses, including localized IR spectral measurements and AFM-IR mapping, were conducted to obtain high-resolution, sub-particle information on SO_x adsorption, distribution, and desorption (Fig. 2). An AFM topography image of a hexagon-like NC is shown in Fig. 2a(i). IR spectra were acquired at the edge and the center of the NC (the measurement positions are indicated by red and black dots in Fig. 2a(i)), and are presented as red and black spectra, respectively, in Fig. 2a(ii). The spectra exhibit a broad feature spanning 1000–1280 cm⁻¹. The spectrum acquired at the center of the NC shows a stronger contribution in the 1000–1100 cm⁻¹ region.

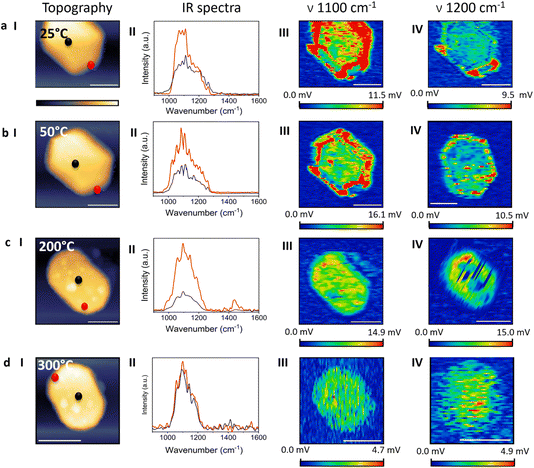

Fig. 2 AFM-IR analysis of hexagonal NC. AFM topography (i), localized IR spectra (ii), and AFM-IR mapping at 1100 cm⁻¹ (iii) and 1200 cm⁻¹ (iv), following surface poisoning by H₂SO₄. Measurements were conducted at room temperature (a(i)–a(iv)), after annealing to 50 °C (b(i)–b(iv)), 200 °C (c(i)–c(iv)) and 300 °C (d(i)–d(iv)). AFM topography images are shown in a(i), b(i), c(i) and d(i). IR spectra were acquired from the center (black spectrum) and edge (red spectrum) of a Pt NC and are shown in a(ii), b(ii), c(ii) and d(ii). The locations from which the IR measurements were acquired are indicated by black and red circles in the AFM topography images. The ratio between the red and black spectra reflects differences in signal intensities at different surface sites. Spectra shown in the different panels were normalized according to the amplitude of the red spectra. The AFM images following annealing were acquired in different areas of the sample, and therefore different NCs were analyzed following each thermal treatment. Scale bar represents 200 nm.

Sulfuric acid adsorbs on Pt primarily through bidentate and tridentate binding modes.^7,48,49 The bidentate (2-fold) adsorption mode is energetically favored at undercoordinated sites such as edges, steps, and defects.^44,50–53 Tridentate (3-fold) adsorption occurs when the sulfate species coordinates with three adjacent Pt atoms, a geometry that is mostly realized on atomically flat, close-packed terraces.^7,11,36 It was demonstrated that sulfate adsorbs on Pt(100) and Pt(110) in a 2-fold geometry (C_2v symmetry) and induces two IR bands around 1100 and 1200 cm⁻¹, assigned to the stretching vibration of the S–O bond in SO₄²⁻ coordinated to Pt atoms and that of the uncoordinated S–O bond, respectively. Sulfate adsorption on Pt(111) gives a single IR band at around 1200 cm⁻¹, which is assigned to the S–O stretching vibration of a 3-fold adsorption geometry.⁴⁷

The spectrum measured at the edge of the NC showed a higher signal at ∼1100 cm⁻¹, which correlated to a dominant presence of sulfuric acid with a bidentate adsorption geometry on this site (red spectrum, Fig. 2a(ii)). The IR signal that was acquired at the center of the NC showed a similar amplitude at the 1000–1250 cm⁻¹ range, indicative that both bidentate and tridentate binding modes of sulfuric acid coexist on these sites (black spectrum, Fig. 2a(ii)).

AFM-IR maps were acquired at 1100 and 1200 cm⁻¹ (Fig. 2a(iii) and (iv), respectively) to identify the spatial distribution of bidentate and tridentate adsorption modes across the facets of the NCs. The IR map at 1100 cm⁻¹ (Fig. 2a(iii)) shows strong signal intensities at the nanocrystal edges and on the side Pt(110) facets, with reduced intensity at the NC center. AFM-IR mapping at 1200 cm⁻¹ (Fig. 2a(iv)) exhibits weaker signals that are primarily localized at inter-facet regions and edge sites. The IR mapping supports the results shown in the localized IR spectra and shows that there is a preference toward a 2-fold adsorption geometry at sites with low-coordinated surface atoms.

Integration of the IR mapping and spectroscopy data reveals that the surface structure of Pt NCs governs the surface distribution of SO_x. The spectral signature associated with the 2-fold (bidentate) adsorption mode of sulfate (∼1100 cm⁻¹) was detected across most regions of the NCs, with high signal variability across the NC. Higher signal intensity was observed on the side facets and at inter-facet regions, whereas lower intensity appeared on the flat Pt(111) terraces. The spectral signature corresponding to the 3-fold (tridentate) adsorption mode (∼1200 cm⁻¹) was weaker, and was characterized by local enhancement at inter-facet regions and the more open (110) facets.

To obtain a quantitative measure of the spatial distribution of SO_x species, the NC was segmented into concentric rings at increasing radial distances from its center. The IR signal amplitude within each ring was averaged and the averaged IR intensities—analyzed from the IR maps at 1100 and 1200 cm⁻¹—were plotted as a function of the radial distance of each concentric ring from the NC center (Fig. 3a and b, respectively). This analysis revealed a detectable spectral contribution at the NC center for the IR signal at 1100 cm⁻¹ (black curve, Fig. 3a) and a pronounced ∼50% enhancement in the IR intensity at a radial distance of approximately 75 nm, corresponding to inter-facet regions where SO_x species preferentially accumulate. Quantitative analysis of the IR mapping at 1200 cm⁻¹ (black curve, Fig. 3b) showed a lower and much more homogeneous signal, with a relatively small increase at the particle's rim. These results show that the distribution of SO_x species in the tridentate binding mode is more consistent on the NC surface, in comparison to the dominant bidentate mode that was mainly observed at inter-facets and side facets.

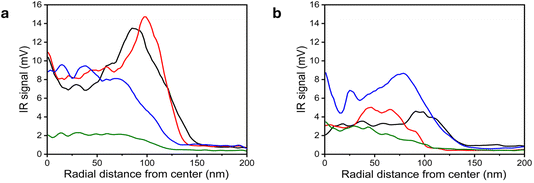

Fig. 3 Quantitative analysis of AFM-IR maps. The AFM-IR maps shown in Fig. 2 were analyzed by dividing each nanocrystal into concentric rings originating from its center. The AFM-IR signal within each ring was extracted and averaged to obtain the mean intensities at 1100 cm⁻¹ (a) and 1200 cm⁻¹ (b) as a function of the radial distance of the ring from the nanocrystal center. This analysis was performed for IR maps that were acquired at room temperature (black curves), and after annealing at 50 °C (red curves), 200 °C (blue curves) and 300 °C (green curves).

Analysis of the IR signal at room temperature reveals a clear preference for SO_x adsorption in a bidentate adsorption mode on edge sites and on more open facets. The bidentate mode was consistently more prominent than the tridentate mode, and more heterogeneous in its dispersion on the NC surface. This indicates competitive adsorption at identical surface sites, with the energetically less demanding bidentate configuration dominating under ambient conditions.

IR maps and localized IR spectra were acquired following annealing at 50 °C (Fig. 2b). The localized IR spectra showed lower intensity in the high-wavenumber contribution, resulting in a more pronounced peak near 1100 cm⁻¹ (Fig. 2b(ii)). The IR map at 1100 cm⁻¹ (Fig. 2b(iii)) showed a decrease in the overall signal intensity and a stronger localization at inter-facet regions. Averaged analysis of the IR signal revealed enhanced localization of the 1100 cm⁻¹ signal at inter-facet regions (Fig. 3a, red curve). The IR map at 1200 cm⁻¹ (Fig. 2b(iv)) exhibited a more spatially dispersed signal after annealing, with some preference for inter-facet sites, as also identified in the quantitative analysis (Fig. 3b, red curve). These results indicate that mild annealing promotes localization of bidentate species on inter-facet sites, which contain higher densities of surface defects, whereas tridentate species diffuse inward toward flatter regions, which facilitates the 3-fold binding geometry.

This trend was enhanced following annealing at 200 °C (Fig. 2c). After annealing, the IR spectrum exhibited a dominant peak at 1100 cm⁻¹ with a substantially diminished 1200 cm⁻¹ contribution (Fig. 2c(ii)). The peak at 1420 cm⁻¹, which was detected in the IR spectra acquired at edge sites, is attributed to carboxylate species that were formed on the NC surface following exposure of organic residues to high temperature. IR mapping at 1100 cm⁻¹ showed a lower signal intensity at inter-facet sites, and the signal amplitude at the NC center became comparable to the one measured at the edges, as also indicated in the quantitative analysis (Fig. 3a, blue curve). In contrast, AFM-IR mapping at 1200 cm⁻¹ showed an overall increase in signal intensity and specifically at edge sites (Fig. 2c(iv)), consistent with the averaged IR analysis (Fig. 3b, blue curve). These findings suggest that annealing at 200 °C promotes a transition from a bidentate adsorption mode to a tridentate adsorption mode, enabled by the added thermal energy required to activate this transition.

Further annealing at 300 °C led to sharpening and localization of the IR peak to the 1020–1220 cm⁻¹ region at both the center and the edge of the NC (Fig. 2d(ii)), and the spectral amplitudes at these locations became comparable, indicative of desorption from edge sites. IR mapping at 1100 cm⁻¹ (Fig. 2d(iii)) showed a pronounced decrease in signal intensity across the NC (Fig. 3a, green curve), with the averaged value in the interior region lower by ∼80% compared to the signal measured at room temperature.

IR mapping at 1200 cm⁻¹ showed a reduced signal at the outer regions of the NC, yet significant intensity persisted at the NC interior even after annealing at 300 °C (Fig. 2d(iv) and Fig. 3b, green curve). These results indicate that after annealing at 300 °C, SO_x species are no longer detected at inter-facet sites, whereas tridentate is the favored configuration on the interior part of the NC. This highlights the higher thermal stability of SO_x species bound in a tridentate mode to flat, highly coordinated regions compared to the more reactive edge sites.

A similar temperature-dependent analysis was conducted for a more symmetric NC (Fig. 4a(i)). IR spectra were acquired at the edge and center of the NC and displayed a broad IR band spanning 1000–1300 cm⁻¹, with a stronger signal at the edge of the NC (Fig. 4a(ii)). IR mapping at 1100 cm⁻¹ revealed a pronounced signal on the side facets and inter-facet regions (Fig. 4a(iii)), whereas the 1200 cm⁻¹ feature appeared weaker and spatially confined (Fig. 4a(iv)). In both cases, the IR intensity was highest on the side facets and lower on the flat (111) facet, consistent with the quantitative IR mapping analysis (Fig. 5, black curves). The dominant signal at 1100 cm⁻¹ indicates the preference toward a bidentate adsorption geometry, which is further enhanced on side facets.

Fig. 4 AFM-IR mapping of a single NC. AFM topography (i), localized IR spectra (ii), and AFM-IR mapping at 1100 cm⁻¹ (iii) and 1200 cm⁻¹ (iv), following surface poisoning by H₂SO₄. Measurements were conducted at room temperature (a(i)–a(iv)), after annealing at 50 °C (b(i)–b(iv)), 200 °C (c(i)–c(iv)) and 300 °C (d(i)–d(iv)). AFM topography images are shown in a(i), b(i), c(i) and d(i). IR spectra were acquired from the center (black spectrum) and edge (red spectrum) of a Pt NC and are shown in a(ii), b(ii), c(ii) and d(ii). The locations in which the IR measurements were acquired are indicated by black and red circles in the AFM topography images. The ratio between the red and black spectra reflects differences in the signal intensities at different surface sites. All spectra shown in the different panels were normalized according to the amplitude of the red spectra. The AFM images following annealing were acquired from different areas of the sample, and therefore different NCs were analyzed following each thermal treatment. Scale bar represents 200 nm.

Fig. 5 Quantitative analysis of AFM-IR. The AFM-IR maps shown in Fig. 4 were analyzed by dividing each nanocrystal into concentric rings originating from its center. The AFM-IR signal within each ring was extracted and averaged to obtain the mean intensities at 1100 cm⁻¹ (a) and 1200 cm⁻¹ (b) as a function of the radial distance of the ring from the nanocrystal center. This analysis was performed for IR maps that were acquired at room temperature (black curves), and after annealing at 50 °C (red curves), 200 °C (blue curves) and 300 °C (green curves).

Annealing at 50 °C led to a lower amplitude in the 1200–1300 cm⁻¹ range for the spectra measured at the side of the NC (red spectrum, Fig. 4b(ii)), while sharper and more distinct contributions in the 1200–1300 cm⁻¹ region were probed in the spectra measured at the center of the NC (black spectrum, Fig. 4b(ii)). Correspondingly, the IR maps showed lower overall signal intensities and more localized features (Fig. 4b(iii) and (iv)), consistent with desorption from edge sites, as also validated by the quantitative IR analysis (Fig. 5, red curves).

Further annealing at 200 °C resulted in an additional decrease in the 1200–1300 cm⁻¹ range (Fig. 4c(ii)). The improved signal-to-noise ratio observed in the black spectrum in panel c(ii) is attributed to a local increase in the surface density of the adsorbed species, which also results in a relatively higher signal compared to other spectra that were acquired at the center of the NCs. The IR map at 1100 cm⁻¹ showed a substantial reduction in signal intensity across the NC (Fig. 4c(iii)), and the quantitative analysis (Fig. 5a, blue curve) confirmed a major overall decrease. The IR map at 1200 cm⁻¹ revealed a lower overall signal amplitude (Fig. 4c(iv)), verified by quantitative analysis (Fig. 5b, blue curve). Thus, annealing at 200 °C promoted desorption, and specifically desorption from edge sites.

Local IR spectra were measured after annealing at 300 °C and showed a stronger signal at the edges of the NC (Fig. 4d(ii)). IR maps (Fig. 4d(iii) and (iv)) and their quantitative analysis (Fig. 5a, green curve) revealed that annealing at 300 °C led to a minor decrease in the averaged 1100 cm⁻¹ intensity. The 1200 cm⁻¹ signal at the center of the NC increased following annealing (Fig. 5b, green curve), indicating diffusion of the tridentate species to the central region of the NC and transformation from a bidentate adsorption mode to a tridentate adsorption mode.

Integration of the nanoscale measurements demonstrates clear temperature-dependent changes in both the surface density and adsorption mode of SO_x species. At room temperature, SO_x adsorption is nonuniform, with higher coverage at defect-rich inter-facet and side-facet regions, and a preference for the bidentate adsorption mode. Annealing at 200 °C results in selective desorption from edge sites and a shift from bidentate to tridentate adsorption at the NC interior. This trend becomes more pronounced after annealing at 300 °C, where SO_x species persist primarily at the NC center and show a preference toward the tridentate adsorption mode.

Temperature-dependent S2p X-ray photoelectron spectra (XPS) were acquired to complement the nanospectroscopy analysis (Fig. 6). At room temperature, the XP spectrum (red spectrum, Fig. 6) showed a strong peak at 169.0 eV, characteristic of S⁶⁺ in sulfate species, along with contributions from S⁴⁺ in SO₂-related species. Following annealing at 50 °C (blue spectrum, Fig. 6), the 169.0 eV peak showed a decrease in intensity, consistent with partial desorption, along with a broader peak profile, indicating the coexistence of various SO_x species adsorbed in different adsorption geometries.

Fig. 6 S2p XP spectra of Pt NCs before (black spectrum) and after their exposure H₂SO₄. XPS measurements of the poisoned NCs were acquired at room temperature (red spectrum), and after annealing at 50 °C (blue spectrum), 200 °C (green spectrum) and 300 °C (orange spectrum).

Following annealing at 200 °C (green spectrum, Fig. 6), the peak centered at 169.0 eV was narrowed and a new signal was detected at 163.0 eV, which correlated to sulfur in lower oxidation states (S⁰, S¹⁻, or S²⁻). This likely follows a sequence of surface-mediated reduction steps, consistent with previous studies,^54–56 and marks the onset of thermal reduction, followed by desorption. Further annealing at 300 °C (orange spectrum, Fig. 6) leads to a substantial decrease in signal amplitude. This result highlights the thermal desorption of SO_x species from the surface of Pt NCs at relatively moderate temperatures.^57,58 The fact that these transformations occur under an N₂ environment further confirms that Pt NCs catalyze the selective reduction and removal of surface-bound SO_x through thermal activation, which is facilitated on sites that are characterized by a high density of surface defects.

Conclusions

AFM-IR nanospectroscopy measurements reveal that sulfate adsorption on Pt NCs is strongly governed by local coordination and facet structure. Defect-rich edges, steps, and inter-facet regions serve as high-affinity sites that predominantly stabilize bidentate sulfate, whereas flat Pt(111)-like terraces exhibit lower overall coverage and a stronger tendency toward tridentate coordination. Temperature-dependent measurements show that annealing triggers selective desorption from undercoordinated sites and promotes diffusion of sulfate species into terrace regions, where the transition from bidentate to tridentate adsorption becomes thermodynamically favored. Upon annealing at 300 °C, most SO_x species detach from edge sites, leaving behind a small population of thermally persistent tridentate species bound to terrace atoms. These findings, which were supported by XPS measurements, establish a direct correlation between facet geometry, adsorption mode, and thermal stability of SO_x species, offering fundamental insights into site-dependent poisoning and regeneration processes in Pt-based catalysts.

Author contributions

The manuscript was written through contributions of all authors. All authors have given approval to the final version of the manuscript. Conceptualization, methodology and data curation: LR and EG; formal analysis: YH and EG; writing–original draft: LR; writing–review & editing: EG; supervision: EG.

Conflicts of interest

There are no conflicts to declare.

Data availability

The datasets supporting this article, titled “IR nanospectroscopy mapping of facet-dependent sulfur poisoning and thermal regeneration on platinum nanocrystals”, are openly available on Zenodo and can be accessed via https://doi.org/10.5281/zenodo.17778202.

Acknowledgements

This research was supported by the Israel Science Foundation grant (Grant Agreement No. 2118/22). The authors acknowledge Dr Sergei Remennik (Hebrew University Center for Nanoscience and Nanotechnology) for conducting HR-TEM and diffraction measurements.
