Molecular dynamics simulations of pH-dependent ciprofloxacin adsorption to Na-montmorillonite

Abstract

Ciprofloxacin (CIP) is one of the most widely used and environmentally persistent antibiotic compounds, which is increasingly being found in soils, sediments, and natural waters. Because CIP strongly associates with clay minerals, understanding its molecular-scale adsorption energetics, dynamics, and configurations is essential for predicting environmental retention and mobility. For this purpose, a combination of unbiased molecular dynamics simulations, biased umbrella sampling and alchemical free-energy perturbation simulations were used in this study to obtain the free energy of adsorption, orientational and clustering configurations and interlayer density mapping across controlled hydration states. These simulations were applied to the three pH-dependent environmentally relevant CIP species (CIP⁺, CIP^+/−, CIP⁻) interacting with montmorillonite (MMT) in its Na⁺ form, at basal surfaces and within variably hydrated interlayers. All CIP species approached similar center-of-mass separations from the MMT surface but adopt distinct orientational preferences: CIP⁺ binds predominantly flat, CIP^+/− partitions between flat and side-on, and CIP⁻ samples multiple poses. The potential of mean force profiles revealed that all species adsorb favourably, but with adsorption strengths steeply increasing in the order CIP⁻ < CIP^+/− < CIP⁺, having standard adsorption free energies of −2.1, −11.8 and −30.0 kJ mol⁻¹, with corresponding sorption K_d values of 6.4, 520, and 1.0 × 10⁶ cm³ g⁻¹, respectively. Unbiased open systems simulations further showed that CIP⁺ and CIP^+/− could be intercalated into 2 W and 3 W hydration states, whereas CIP⁻ failed to intercalate below 4 W. The free energy perturbation simulations revealed the largest hydration free energy for CIP⁻ across bulk, mesopore, and surface environments, while CIP^+/− and especially CIP⁺ experience increasingly favourable hydration near the clay surface due to enhanced water structuring and electrostatic potential. Overall, this study reconciles flat versus tilted pose hypotheses and links pH-driven speciation to MMT retention and mobility. The results explain, on the molecular scale, why clay-rich soils act as strong sinks and how montmorillonite colloids can promote colloid-facilitated transport of antibiotics in real soil-aquifer systems.

---

1 Introduction

Ciprofloxacin (CIP) is among the most popularly prescribed antibiotics for treating bacterial infections in the world, and for many years it has been included in the World Health Organisation's (WHO) list of essential medicines.¹ It is a member of the second-generation quinoline antibiotics containing a fluorine atom, and exhibits a broad spectrum of Gram-negative and Gram-positive inhibitory effects.^2–4 Since its discovery in the mid-1960 s, CIP has been increasingly used globally in human and veterinary medicinal applications.⁵ However, its extensive global use has led to growing environmental concerns, as it does not readily degrade via natural pathways, such as by sunlight (UV-visible)^6,7 and biodegradation,⁸ causing it to accumulate and become pseudo-persistent in the environment.^9–12 Similar to many organic contaminants, CIP transport in natural systems is governed not only by its aqueous solubility but also by its strong affinity for mineral and organic colloids. When sorption affinity is high, particularly clay-rich colloids can mobilise antibiotics over aquifer-relevant distances, especially at low ionic strength.^13,14 In fact, samples taken from aquatic environments (rivers, lakes, and estuaries) and soils have been shown to contain CIP residues.^{2,7,9,15–17} Continuous CIP release into the environment poses a severe public health risk, as long-term exposure to the drug via polluted food produce or drinking water can lead to antibiotic resistance.^15,18 Thus, to protect public health, most countries impose regulations requiring waste treatment to remove harmful and toxic substances before they are released into the environment. Among the many technologies,^2,18–23 adsorption techniques actually involving clay minerals have also been widely applied and sought after, thanks to a good balance between cost and technical implications.⁴

Clays are ubiquitously abundant across the globe,^24,25 forming ∼40% of the sedimentary rocks, and ∼16% of the total volume of the Earth's surface.²⁶ Thus, understanding the surface chemistry and reactivity of clay minerals^26–29 can provide valuable insight into the fate of organic contaminants in the environment, since clay minerals possess intrinsic properties that enable them to adsorb and retain organic contaminants to a high degree.^30–35 Montmorillonite (MMT), which was investigated in this study, is a swelling smectite clay mineral and a common secondary mineral component of topsoil in temperate weathering environments.^36,37 Due to its high specific surface area, strong capacity for ion exchange, and the relative ease with which the surface reactivity can be modified,^38–41 MMT have been recognised as suitable adsorbent materials for removing organic contaminants from aqueous environments.^34,42,43 Several experimental studies have reported good CIP adsorption on MMT across varying pH ranges. At high initial CIP concentrations (1500 and 3000 mg L⁻¹) for Ca and Na-rich MMT, adsorption levels of ∼290–300 mg g⁻¹ at pH 2–8 and ∼200–240 mg g⁻¹ at pH 11 have been reported.^44,45 However, at lower initial CIP concentrations (180 and 360 mg L⁻¹), studies reported much lower adsorption capacity for Na–MMT, particularly at higher pH with adsorption levels falling to ∼60–100 mg g⁻¹ at pH 10.^18,46

Many factors influence CIP adsorption on MMT, as reflected by the variability of adsorption amounts. A key factor is pH-dependent molecular speciation, which strongly affects how an organic contaminant interacts with mineral surfaces.⁴⁷ Depending on the solution pH, such compounds may exist in cationic, zwitterionic, or anionic forms, each exhibiting distinct adsorption behaviour. In addition, depending on the origin of the isomorphic substitution (tetrahedra or octahedra), the MMT surface has either diffuse or localised charge sites available for adsorption. Thus, variations in the surface charge of organic contaminants affect their ability to compete with other charged species for adsorption sites. Previous static sorption studies have reported that CIP adsorption capacity on MMT is high when it is cationic (CIP⁺) at pH < 6. At pH between 6 and 8, for a zwitterion (CIP^+/−), adsorption is relatively low. For anionic (CIP⁻) at pH > 8, adsorption is lower.^18,44–46 Additionally, protonation and deprotonation of the functional groups affect the interaction behaviour of the CIP molecule. The CIP⁺ protonated amine group (NH₂) or carboxylic acid (COOH) interacts with the MMT surface mainly via electrostatic interactions. Regarding the transport of organic contaminants, several breakthrough column experiments have shown that MMT colloids are efficient carriers of CIP.^14,48 Compared with quartz or kaolinite, Na⁺-MMT sorbs CIP two orders of magnitude more strongly and mobilises nearly all pre-sorbed CIP within a few pore volumes via co-transport.^48,49 Furthermore, while MMT-bound CIP interaction with sand is limited, it remains microbiologically active after transport.¹³ Using natural soil colloids, the presence of colloids raised CIP breakthrough from ∼4% to 30–40%, with stronger facilitation at lower ionic strength (∼2 mM), conditions that favour colloid stability and transport.¹⁴ Mechanistically, desorption hysteresis from MMT (likely due to interlayer fixation/partial intercalation) and the high cation exchange capacity (CEC) of smectites explain why MMT ≫ kaolinite as a carrier; raising NaCl or Ca²⁺ concentration generally dampens colloidal facilitated transport by aggregating colloids and reducing their mobility.⁴⁸

Although MMT is known to adsorb a wide range of organic contaminants,^{18,31,32,50–57} the molecular-scale mechanisms governing CIP adsorption, including the influence of ionic species, hydration, and interlayer diffusion, remain insufficiently understood. Hence, in this study, we employed both unbiased MD simulations, as well as biased simulations using umbrella sampling (US) and free energy perturbation (FEP) simulations, to investigate the adsorption dynamics and energetics, as well as surface configurations of the different CIP species with Na–MMT.

2 Methods

2.1 Modelled clay systems

Two main types of clay systems were used in this study. One single-layered and closed periodic system and one three-layered open system with hexagonal clay layers being periodic in the layers’ normal direction, but open in the xy-plane with terminated edges. Both types of systems and components were built with the atom MATLAB library.⁵⁸ The closed single-layered system was constructed by replicating a single Pyrophyllite unit cell 11 × 6 times along the a and b unit cell vectors. The layer was subjected to isomorphic substitution in 2/3 of all unit cells in the octahedral sheet, resulting in an average unit cell stoichiometry of Na_0.66[Si₈(Al_3.34Mg_0.66)O₂₀(OH)₄], with Na⁺ being the counter-cation balancing the negative layer charge.³⁷ Substitutions of Al³⁺ for Mg²⁺ sites were performed semi-randomly while ensuring no adjacent substitution sites, obeying Lowenstein's rule.⁵⁹ A separation of 60 Å was introduced above the layer, creating an orthogonal box with initial dimensions of 56.76 Å × 53.79 Å × 60.00 Å. This closed system was used in both unbiased and biased umbrella sampling simulations, as well as in alchemical FEP simulations.

To investigate CIP intercalation into the interlayers of MMT for different basal spacings d₀₀₁, open-type systems containing three hexagonal layers having the dimensions 120 × 120 × 3d₀₀₁ Å was used. The layers were obtained by cleaving MMT slabs along edges parallel to the (110), (0–10), and (010) lattice planes, resulting in a diameter of 7 nm.^60–63 In order to minimize the number of oxygen edge atomtypes, which are not defined in CLAYFF, isomorphic substitution was performed as previously described albeit avoiding octahedral edge sites. Edge models representing acidic, neutral, or basic conditions in accordance with the systems involving CIP⁺, CIP^+/−, and CIP⁻, respectively, were obtained by protonating or deprotonating terminating Al(Si)–O sites. Overall, CLAYFF had to be augmented with four additional oxygen atomtypes, whose partial charges were obtained using the charge smearing equation from Lammers et al., 2017⁶⁴ and the existing cationic partial charges in CLAYFF. More in-depth and detailed smectite clay edge models also including SiO(H) and substituted groups have previously been reported by Liu and Tournassat et al., 2023.⁶⁵ Details on the atom types and example hexagonal MMT layers used in this study can be found in the SI.

2.2 CIP–MMT system setup

2.2.1 Closed system simulations. To investigate CIP adsorption to the MMT surface using unbiased MD simulations, three closed systems having the same MMT layer but with three different CIP⁺, CIP^+/−, and CIP⁻ molecules were used (Fig. 1). The CIP molecules were placed in the centre of the simulation box, with the MMT layer centred at the xy-plane (Fig. S4a). Single Cl⁻ and Na⁺ ions were added to the respective CIP⁺ and CIP⁻ systems to balance the system charge, respectively, and 5000 water molecules were added to the mesopores.

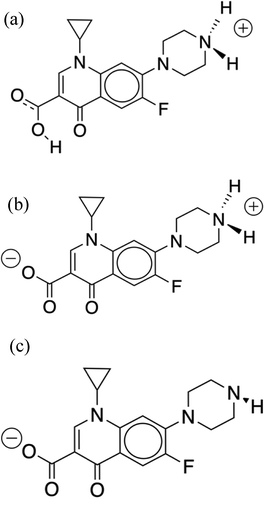

Fig. 1 Structures of the CIP molecules considered in the simulations. CIP⁺ (a), CIP^+/− (b), and CIP⁻ (c).

In the biased umbrella sampling simulations in the corresponding closed systems, and to improve sampling, two identical CIP species were placed diagonally from each other in the middle of the simulation box (Fig. S5a and b).

To compare the free energy of hydration for the different CIP species subjected to clay surface adsorption, alchemical FEP simulations of the different CIP species were performed in three different regions of interest, (i) in bulk water (5000 water molecules, without clay), (ii) in the middle of the clay system mesopore, as well (iii) next to the clay surface (Fig. S6). For the system (iv) CIP was placed near the MMT surface at a distance corresponding to the position of the lowest point on the CIP–MMT potential of mean force (PMF) surface obtained from the umbrella sampling simulations.

2.2.2 Open system simulations. To investigate the CIP ability for intercalation and overall mesopore/clay interlayer partitioning, 6 CIP molecules were placed in the mesopores of the 120 × 120 × 3d₀₀₁ Å open-type clay systems on each side outside the hexagonal layers (Fig. S4b). The hexagonal layers were separated by d₀₀₁ of 12.5, 15.5, 18.7, and 21.7 Å, corresponding to experimentally reported values for the 1 W, 2 W, 3 W, and 4 W hydration states,⁶⁶ where nW denotes the number of pseudo-monolayers of interlayer water. The corresponding systems contained 13 000, 18 000, 23 000, and 28 000 water molecules, respectively. In addition to accounting for the CIP charge balance, extra Na⁺ or Cl⁻ were added to maintain electrical neutrality from edge termination.

2.3 MD simulations

All MMT–water–ion interactions were modelled with ClayFF using the SPC water model.^67–69 Partial charges for the new atom types in MMT (resulting from the cleaving) not included in the original ClayFF were calculated following the work of Lammers et al. 2017.⁷⁰ In addition to the non-bonded interatomic potential parameters of ClayFF, additional angle terms from the Interface force field (IFF) were used in the MMT hexagonal layers, as it improved the overall stability of the modelled unit cells and layer edges in particular.^58,71

The geometries of the different CIP molecules were optimised by DFT at the B3LYP/6-31G(d) level based on initial CIP structures obtained from the ZINC 15 database.⁷² They were modelled with forcefield parameters from the General Amber Force Field (GAFF) as obtained from the Bio2byte Acpype server,^31,73 with atomic partial charges derived via the RESP-A1 protocol using the PyRED server.^74,75

All MD simulations were performed using GROMACS, with a 12 Å cutoff distance for van der Waals (VdW) and Coulombic (Coul) short-range interactions. Long-range electrostatics was handled by the Particle–Mesh Ewald (PME) summation method. The Verlet cutoff scheme was employed to update the short-range neighbour list of 12 Å and a tolerance accuracy of 0.005 kJ mol⁻¹ ps⁻¹, All MD simulations used the velocity-rescaling (V-rescale) thermostat maintained at a temperature of 298 K, using the linear constraint solver (lincs) algorithm to constrain all H-bonded interactions in the simulations. An initial energy minimization step in each simulation system was initiated using the steepest descent algorithm with a convergence criterion of 500 kJ mol⁻¹ nm⁻¹ and a step size of 0.001 Å. Subsequently, a 0.5 ns equilibration run was performed in the canonical NVT ensemble with a 0.1 fs time step. Both the CIP and MMT layers were position-restrained during the energy minimization, while only CIP was restrained during system density equilibration in an isobaric–isothermal (NPT) ensemble for 2.5 ns with a time step of 0.5 fs, using the C-rescale barostat set to 1 bar.

2.3.1 Unbiased MD simulations. Productions run for each system containing different CIP molecules were simulated in the NVT ensemble with a 1 fs timestep for 200 ns. Using the generated trajectories, clustering of CIP molecular configurations was performed on pairwise 2D root-mean-square displacements (RMSD) projections relative to distinct reference structures representing flat, side, and cross orientations. The centre of density clusters were then identified by applying a local maximum filter (window size = 20 bins) to the 2D density map, with peaks exceeding 30% of the maximum density designated as centres. Cluster-to-frame assignment combined spatial proximity and density compatibility approach, where: (1) only frames with local density ρ_frame ≥ 0.15 × ρ_max were eligible for assignment (frames below classified as transient and un-clustered configurations). (2) A cluster was deemed compatible only if the local density of the frame met the criterion ρ_frame ≥ 0.50 × ρ_cluster, where ρ_cluster is the peak density at the centre of the cluster. Among density-compatible clusters, the frame was assigned to the spatially nearest cluster centre.

2.3.2 Biased umbrella sampling simulations. The free energy of adsorption of CIP to MMT was obtained as potential of mean force (PMF) profiles by umbrella sampling simulations. Configurations for the different umbrella sampling simulations were obtained from centre-of-mass (COM) pulling simulations using equilibrated systems, by applying a constant rate of change of positive or negative 0.5 nm ns⁻¹ along the z-direction starting from the centre of the simulation box. Given a timestep of 1 fs and a simulation box of ∼60 Å in the z-direction, a total simulation time of 6 ns was used to pull the two CIP molecules halfway across the box z-dimension. The molecules were allowed to rotate to assume any thermodynamically preferred configuration. Even though the CIP molecules were placed such that they could not influence each other, a cylindrical flat-bottom potential with a force constant of 1000 kJ mol⁻¹ nm⁻² and a radius of 5 Å was introduced at the beginning of the simulations (in the middle of the mesopore) to prevent CIP molecules from approaching and becoming entangled. Unique tethering locations were selected using an umbrella window with a separation of ∼1.0 Å.

To speed up the umbrella sampling simulations while accurately capturing the most probable adsorption configurations, the umbrella window simulations were extended in four steps (5, 10, 20, 50 ns) based on the distance to the MMT surface (Fig. S5c). Each umbrella window simulation used a 2 fs time step and a biased harmonic potential with a force constant of 1000 kJ mol⁻¹ nm⁻².

The free energy profiles from all windows were combined using the Weighted Histogram Analysis Method (WHAM), with an iterative convergence tolerance of 10⁻⁶. The first 1 ns of each umbrella window simulation was discarded from the WHAM analysis to ensure equilibration and eliminate transient effects.^76,77

For each PMF profile, the standard adsorption free energy for the different CIP species binding to the MMT was computed, using the equilibrium constant for association (K_A in units of length) to the unit cell of surface area A_uc along the z-direction, as:

From K_A the corresponding free energy of adsorption at a 1 M standard state per unit cell area becomes , where the term in brackets is K° and where C° = 1 M = 1/1660 Å⁻³ and A_uc = 0.466 nm².^78,79 To further relate the PMF to the sorption coefficient K_d we also computed the interfacial adsorption coefficient K_i, being in principle a Henry surface–excess length (under dilute conditions) as (units of length).⁸⁰ K_i is related to the Gibbs surface excess as Γ = CK_i mol m⁻², where C is the molar concentration. From the specific MMT surface area S_m of ∼750 m² g⁻¹, this Henry surface–excess length then also gives the distribution coefficient by multiplication with the specific surface area (S_m) as K_d = S_mK_i, (in cm³ g⁻¹). A similar derivation can be found in previous works.^62,80

2.3.3 Alchemical FEP simulations. The free energy of hydration for the different CIP ionic species in three molecular environments was computed using FEP simulations. The CIP species hydration energies were obtained by scaling the potential energy functions across 15 lambda steps. In the first ten windows, the coulombic interactions were kept at a non-interacting state (λ = 0) while turning VdW from a non-interacting to a fully interacting state (λ = 1) by perturbing the Lennard-Jones parameter at 0.1 (δλ = 0.1) steps. From steps 10–15, the CIP VdW interaction was maintained at the λ = 1 state while perturbing the coulombic interaction by varying the partial atomic charge at δλ = 0.2 from the λ = 0 to the λ = 1 state. Reverse coupling steps were performed from windows 15–30, which correspond to the inverse of the free energy of hydration. A Bennett acceptance ratio (BAR) method was employed to estimate the hydration-free energy over the last 4 ns of simulation time.^77,81

3 Results and discussions

3.1 CIP interlayer density profiles and configurations

3.1.1 CIP–MMT density profiles. Density profiles of the different CIP species along the z-direction and their preferred binding configurations from the unbiased 200 ns NVT simulations were analysed. The symmetrised interlayer distribution of the CIP molecules, relative to the entire COM of the molecules, revealed no significant difference in the preferred adsorption distance. CIP⁺ exhibited the sharpest peak with the highest density distribution close to the surface, indicating its strong electrostatic interaction. The CIP^+/− showed a slightly broader peak and a density distribution extending slightly further away compared to the CIP⁺ peak. CIP⁻ displayed the broadest peak, which could be attributed to geometry configuration changes of CIP⁻ near the surface that shifted the molecules’ COM (Fig. 2).

Fig. 2 Shows the density profiles of CIP species normal to the MMT surface along the z direction. CIP⁺ exhibits the sharpest and highest adsorption peak, indicative of a well-defined adsorption configuration at the MMT surface. CIP^+/− and CIP⁻ both display broader distributions, reflecting similar adsorption behaviour consistent with the overall negative charge character existing on CIP⁻ and about half of CIP^+/−, most of it on its carboxylate end. The corresponding density profile for Na⁺ is shown in Fig. S7.

Surprisingly, despite its net negative charge, CIP⁻ showed significant interactions with the MMT surface. Most of the negative charge of CIP⁻ originates from the O atoms in the carboxylate and ketone groups that interact favourably with surface-associated Na⁺.

3.1.2 CIP functional group spatial distributions. To elucidate the dynamic behaviour and interactions of the different CIP molecules with the MMT surface, the spatial distribution of individual functional groups was analysed as a function of time. Fig. 3 shows the preferred residence plot centred at the middle of the mesopore along the z-direction for the different CIP species during 200 ns. For CIP⁻, migration to the MMT surface occurred ∼14 ns and changed its orientation just before surface adsorption, from the carboxylate group initially pointing to the surface to the piperazinyl group (Fig. 3a).

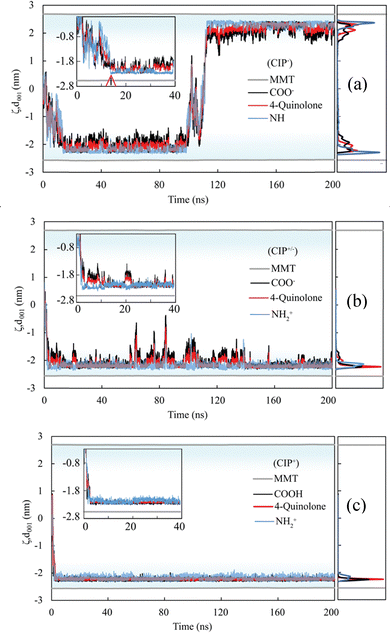

Fig. 3 Spatial distributions of key functional groups along the z-direction during unbiased MD simulations for (a) CIP⁻, (b) CIP^+/−, and (c) CIP⁺ moieties in the interlayer normal to MMT surface. MMT, 4-quinolone, COO⁻, COOH (carboxylate and carboxyl, respectively), NH, and NH₂⁺ (piperazinyl secondary and primary amines, respectively). The corresponding densities are shown on the right side of each figure. An expanded view is shown in Fig. S8.

Away from the surface, the negative carboxylate group of CIP⁻ interacted with the Na⁺ counter-ions closer to the surface, however, upon adsorption, the surface's electrostatic repulsion caused the negative carboxylate group to rotate, pointing to the bulk (the spatial density in Fig. 3a and b). Overall, the spatial distributions normal to the MMT surface showed that the secondary amine, 4-quinolone, and carboxylate groups were reasonably separated (Fig. 3a). Thus, at the surface, the piperazinyl group stayed relatively near the MMT surface, with the 4-quinolone in the middle, whereas the negatively charged ketone and carboxylate ends were repelled and stayed further away. Given that CIP⁻ piperazinyl group is deprotonated, attractive electrostatic interactions can not account for the close proximity of NH. Instead, short-range VdW forces and likely hydrogen bonds come into play.

The spatial distribution analysis also showed that in some instances, CIP⁻ completely desorbs from the MMT surface, as observed at 100 ns in Fig. 3a. On the contrary, CIP^+/− and CIP⁺ interact strongly with the MMT surface since both the 4-quinolone and the piperazinyl with a primary amine (NH₂⁺) are attracted to the surface (Fig. 3b and c). For CIP^+/− the spatial distribution of the end groups (Fig. 3b) showed that they are all very close to the surface compared to the CIP⁻. CIP^+/− did, however, partially detach from the MMT surface on a few occasions, as observed from 60 ns to 140 ns. Despite the change in configuration, CIP^+/− was not completely desorbed due to the significant attraction of the 4-quinolone and piperazinyl moieties to the surface. For CIP⁺ the primary amine, 4-quinolone, and carboxyl (COOH) strongly adsorb to the MMT surface. All monitored functional groups lie flat at nearly the same horizontal plane above the surface due to attractive interactions between the MMT surface and the CIP⁺ functional groups. Furthermore, because CIP⁺ has more positively charged atoms, it immediately migrated to the surface from the middle of the mesopore upon starting the simulations, where the strong attraction of CIP⁺ to the negative MMT surface makes spontaneous desorption highly unlikely.

3.1.3 CIP intercalation in the interlayer of Na–MMT. To qualitatively assess the partitioning of the different CIP species between clay interlayers and the bulk reservoir, simulations with open-type systems were also performed. At the 1 W hydration state, CIP⁺ predominately avoided the MMT edges attributed to the electrostatic repulsion by the protonated edge sites (Fig. 4a). Upon increasing the water content from 2 W to 4 W, CIP⁺ progressively intercalated into the interlayer where it experienced strong MMT surface adsorption near the clay edges, seemingly avoiding the central regions of the interlayers (Fig. 4d, g and j). The zwitterionic CIP^+/− exhibited behaviour similar to CIP⁺, with only a notable difference at the 1 W hydration state, where it was more likely to adsorb at the edge than CIP⁺ (Fig. 4b and Fig. S9b). This difference likely arises from the distinctive charge separation between the carboxylate and piperazinyl ends, resulting in the negative carboxylate group interacting favourably with the edge H atoms. For the same reason, CIP^+/− more readily migrated into the interlayer than CIP⁺ at higher water contents (Fig. 4e, h and k).

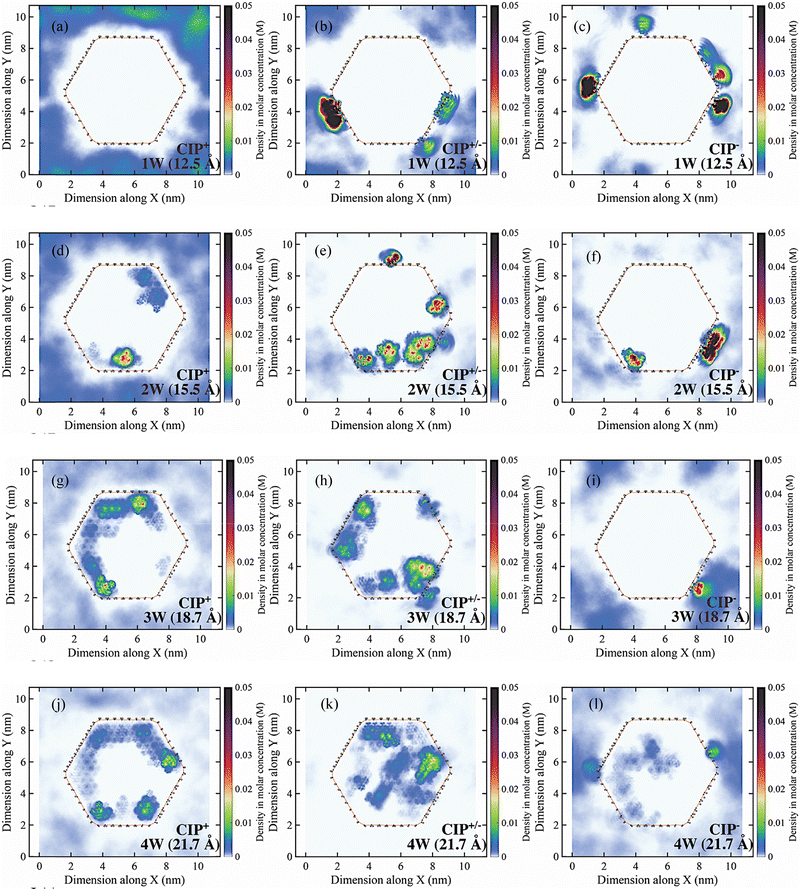

Fig. 4 2D Concentration maps of 6 CIP molecules at varying water content. The top to bottom rows show the corresponding 1 W, 2 W, 3 W, and 4 W states, and the left to right columns the corresponding CIP⁺, CIP^+/−, CIP⁻ species, respectively.

Moreover, because the surface adsorption energy was lower than that of CIP⁺, CIP^+/− exhibited greater configurational flexibility and mobility upon adsorption. Experimental studies have in fact reported that maximum adsorption occurs at pK_a1 (∼6.1–6.4), where the solution contains nearly equal proportions of CIP⁺ and CIP^+/− species.^{18,44–46,82,83} This indicates that CIP can adsorb to MMT to a slightly higher amount than the corresponding CEC, suggesting that CIP⁺ and CIP^+/− can synergistically be co-adsorbed.⁸³ In contrast, the negative CIP⁻ molecule showed a greater tendency to adsorb to one or two adjacent MMT layers edges via its ketone and carboxylate groups, interacting with the protonated edge sites. This dominant mode of interaction was greatly facilitated by the strong charge asymmetry on CIP⁻, evident from the electrostatic surface potential (ESP) of the carboxylate–ketone end of CIP⁻, which is ∼7 times more negative than at the piperazinyl end (Fig. S29c).

As a consequence of the strong edge interactions, CIP⁻ exhibited limited ability to intercalate the MMT, even at high water content compared to CIP⁺ and CIP^+/− (Fig. 4f, i and l). At 1 W edge adsorption contributed significantly to the total adsorption for CIP⁻. On the other hand, for CIP⁺ and CIP^+/− at 2 W–4 W, most of the adsorption occurs on the basal planes, edge contribution therefore becomes insignificant as the edges only account for ∼2–5% of the total external surface area.⁸⁴

3.1.4 Adsorption configurations and energetic characterisation of CIP at the MMT surface. To investigate the energetics of the different adsorption configurations of CIP interacting with the MMT surface, we first performed root mean squared displacement (RMSD) correlation analysis based on three reference configurations, having cross, side, and flat orientations (Fig. S2). The simulation was based on 10 000 configurations sampled from unbiased NVT closed system simulations. The RMSD correlation analysis showed that CIP⁻ fluctuated the most, followed by CIP^+/−, while CIP⁺ showed the highest structural stability upon adsorption. Fig. 5 presents the pairwise RMSD results projected onto a 2D plane, where each point represents an individual simulation configuration. High-density regions of the scattered population identify the dominant, recurrently visited adsorption configurations, while sparse regions correspond to transient or rarely visited geometries.

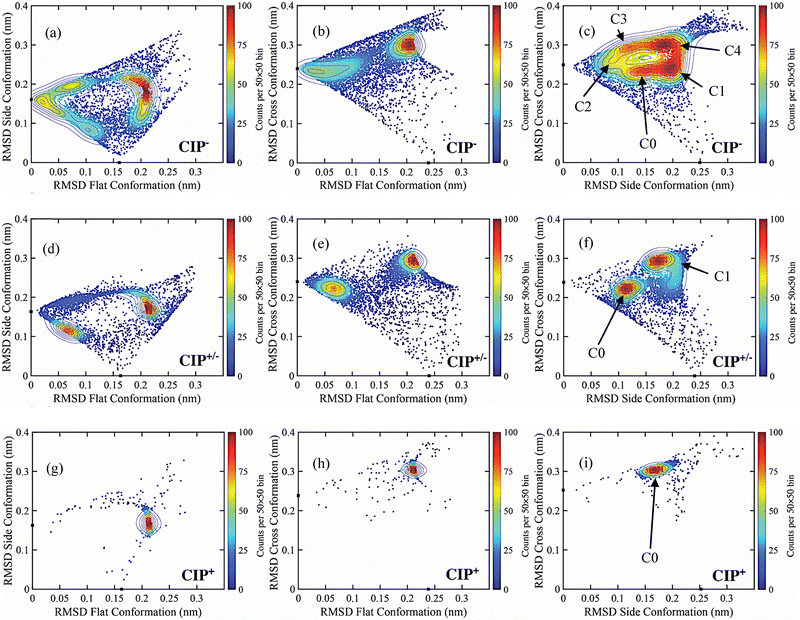

Fig. 5 Correlation density maps of equilibrated CIP structures core (4-quinolone) RMSD to the reference cross, side, and flat configurations. CIP⁻ (a)–(c), CIP^+/− (d)–(f), and CIP⁺ (g)–(i). The square marks at the axes represent the fit between the reference structures themselves. Selected clusters discussed in the text are indicated by numbered arrows prefixed with a C.

From the configurational correlation density analysis, CIP⁻ displayed the highest orientational heterogeneity with five identifiable clustered densities (Fig. 5c), compared to the CIP^+/− and CIP⁺, which displayed two and one density clusters, respectively (Fig. 5f and i). Overall, representative CIP configurations extracted from frames in the density cluster analysis showed that all CIP molecules preferred to stay near the MMT surface (<5 Å) in a mainly side or flat (or in between side and flat) configuration (Fig. S10). In order to further investigate the interaction energies of the different configurations from the correlation density maps, pairwise potential energies between the different CIP molecules and MMT, water, and Na⁺, were decomposed into short-range electrostatic (Coulombic) and Lennard-Jones (LJ) contributions (Table 1). For CIP⁻ in particular, a variation of both favourable and unfavourable interactions with the MMT surface was found. Density cluster C0 and C4 exhibited the more favourable Lennard-Jones interactions but unfavourable intramolecular Coulombic repulsive energies, compared to density clusters C1, C2, and C3, which demonstrated attractive Coulombic interactions (Fig. 5c). Despite the repulsive interaction between the deprotonated carboxylate group of CIP⁻ and the negatively charged MMT surface, a net favourable interaction between MMT–CIP⁻ was found, driven by solvation and Na⁺-mediated charge screening. However, aside from the possible screening effect, no apparent clear trend of the independent roles of water and Na⁺ in MMT–CIP⁻ adsorption, involving the Coulombic and Lennard-Jones interactions was found.

Table 1 Pair-wise potential energy decomposition of CIP interactions with Na⁺, MMT and water, from RMSD side versus cross reference fitted 2D projected clusters in Fig. 5

Pair	Density cluster	MMT (kJ mol^−1)		Water (kJ mol^−1)		Na^+ (kJ mol^−1)
		Coul-SR	LJ-SR	Coul-SR	LJ-SR	Coul-SR	LJ-SR
CIP^−	C0	26.91	−64.92	−191.91	−47.41	−369.76	290.57
	C1	−21.33	−40.81	−221.94	−55.76	−331.91	235.88
	C2	−23.45	−36.77	−245.95	−58.76	−311.05	224.28
	C3	−21.40	−38.71	−226.73	−59.03	−332.52	238.87
	C4	9.76	−53.02	−229.51	−49.78	−332.20	249.35
CIP^+/−	C0	−16.84	−67.97	−257.30	−42.28	−303.36	241.81
	C1	−12.01	−69.42	−222.83	−44.25	−341.34	275.57
CIP^+	C0	−63.67	−75.18	−216.26	−51.71	−20.91	25.64

---

CIP^+/− had similar energetics across its two density clusters (Fig. 5f), suggesting energetically equivalent but geometrically distinct adsorption modes. This can be attributed to its distinct charge polarity, having both negatively and positively charged ends. However, both density clusters displayed weaker Coulombic energy contributions but stronger Lennard-Jones contributions than the favourable energies for the CIP⁻ (C1, C2, and C3). This observation shows that CIP⁻ could favourably interact with the MMT surface in specific configurational and adsorption modes. CIP⁺ exhibited the strongest Coulombic and Lennard-Jones interactions to MMT, but the least Na⁺ interaction. CIP⁺ also had the most restricted configurational landscape, with a single density cluster (Fig. 5i) exhibiting the highest electrostatic interaction energy. These results show that CIP adsorption on the MMT surface was governed by electrostatic interactions.

The corresponding relative free energy differences between the different density clusters for each CIP molecule are shown in Fig. 6. The free energy differences were obtained from the inverted Boltzmann distributions relative to the un-clustered population configurations for each CIP molecule. Overall, the single density cluster of CIP⁺ had the highest negative free energy, representing 89.1% of the total configurations. The two configurational density clusters of CIP^+/− comprised in total 58.1%, and had both higher energy than the un-clustered reference population. The nearly equal distributions suggest an equilibrium among the structured configurations of C0 and C1 and the transient configurations. For CIP⁻ the corresponding energy landscape spanned 2.16 kJ mol⁻¹ (from −0.28 to 1.88 kJ mol⁻¹) with 20.5% of the configurations in un-clustered transient states. This analysis demonstrate the heterogeneous nature of the adsorbed configurations of both CIP^+/− and CIP⁻, compared with that of adsorbed CIP⁺.

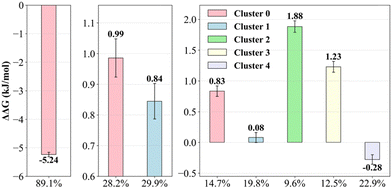

Fig. 6 CIP free energy differences (ΔΔG) for cationic (CIP⁺, left), zwitterionic (CIP^+/−, middle), and anionic (CIP⁻, right) from the correlation density clusters from Fig. 5, right column.

3.1.5 CIP configurations implication to adsorption, coordination, and density distribution. Fig. 7a shows CIP⁻ and water oxygen RDFs first shell peak increasing in the order of clusters C0, C4, C1, C3, and C2, aligning with the electrostatic water–CIP⁻ interaction energy in Table 1. However, the Na⁺–CIP⁻ Coulombic energy followed a somewhat reverse pattern, cluster C2 had the lowest coordination while cluster C0 had the highest, this Na⁺–CIP⁻ coordination trend behaviour was predominantly reflected by the carboxylate group (Fig. 7c(II)).

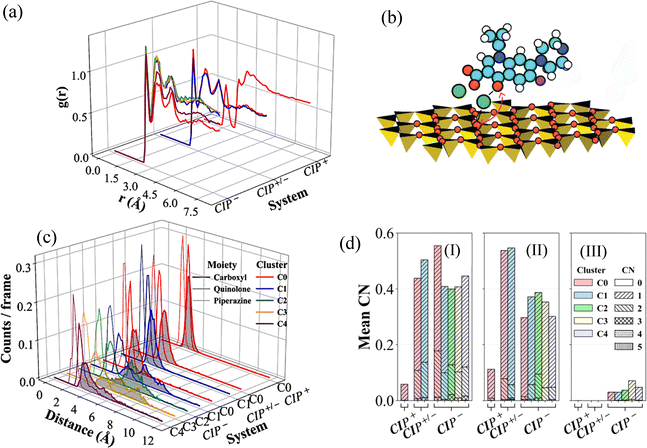

Fig. 7 Structural and coordination characteristics of CIP adsorption at the MMT surface. (a) CIP–water oxygen RDF. (b) Representative Na⁺-mediated adsorption geometry between CIP and the MMT surface, showing Na⁺ (green) bridging the carboxylate and the surface oxygens (red) (c) functional group density distributions along the surface normal and, (d) mean CIP–Na⁺ coordination numbers for: carboxyl (I), quinolone (II), and piperazinyl (III), for the determined cluster populations identified in Fig. 5, right column.

No direct perpendicular bridging was observed when the ∠CIP⁻(carboxylate oxygen)–Na⁺–MMT arrangement approached collinearity (∼180°), as in this geometry the Na⁺ lie along the shortest MMT–CIP⁻ axis without lateral displacement. A moderate bridging was observed at intermediate angles (120°–140°), where the three-point geometry begins to adopt a bent configuration. The most frequent Na⁺–CIP⁻ interactions occurred at 90°–120° angles (Fig. 7b), indicating existence of only suboptimal Na⁺-mediated association between CIP⁻ and the MMT surface. The CIP⁻ piperazinyl group showed less frequent Na⁺ coordination than the quinolone and carboxylate groups (Fig. 7d(III)). This coordination environment explained why the proximity of CIP⁻ to the MMT surface is the closest in cluster C0, followed by cluster C4, as shown in spatial distributions (Fig. 7c). CIP⁻ configurational implications to its coordination behaviour and distribution remained persistent regardless of the choice of reference structure RMSD fitting projections (Fig. S17–S19).

CIP^+/− followed a similar water and Na⁺ interaction trend, with cluster C0 populations showing higher water oxygen RDF peaks but less Na⁺ coordination (Fig. 7). Cluster C1, exhibiting higher Na⁺ interaction energies, suggests a geometry where the negative end of CIP^+/− is near the MMT surface. CIP⁺ was dominated by a single stable density cluster, stronger Coulombic and Lennard-Jones interactions with the MMT. Overall, CIP⁺ had the lowest and demonstrated unfavourable interaction with Na⁺. This is reflected in the lowest mean coordination of Na⁺ across all functional groups (Fig. 7d), indicating that CIP⁺ species will compete with Na⁺ for adsorption sites on the MMT surface. Moreover, CIP⁺ showed the lowest hydration peak intensity (Fig. 7a), along with the presence of an NH₂ group, resulting in much more stable surface adsorption via a combination of inner-sphere complexation and H-bonding. The rest of the reference structures RMSD fitted projection results are provided in Fig. S17–S27.

3.2 Free energy calculation

3.2.1 PMF adsorption profile. To quantify the adsorption energetics of the different CIP species to MMT, the potential of mean force (PMF) profiles was obtained from umbrella sampling simulations. Fig. 8 presents the symmetrised PMF profiles for each CIP molecule along the z-direction normal to the MMT surface (z = 0). For CIP⁻, the global energy minimum of −9.98 kJ mol⁻¹ occurred at ∼0.48 nm (position 3 in Fig. 8) from the MMT surface; with secondary minima at 0.34 nm (−5.54 kJ mol⁻¹) and 0.98 nm (−2.14 kJ mol⁻¹) corresponding to weaker metastable adsorption states (position 5). In addition, Fig. 8 shows that CIP did not exhibit any favourable interaction with the MMT surface until within ∼1 nm from the surface (Fig. 8, position 1). This is due to the MMT hydrophilicity, its permanent surface charge, and its tetrahedral–octahedral nature, which begin to influence the organization of water and Na⁺ into distinct accumulation zones at ∼8–9 Å from its surface (Fig. S7).

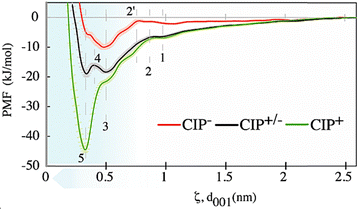

Fig. 8 Potential of mean force (PMF) profiles for CIP⁻ (red), CIP^+/− (black) and CIP⁺ (green) adsorption to the MMT along the surface normal. Error bars represent a 95% confidence interval from 10 independent simulations. Labelled positions are discussed in the text.

Between positions 1 and 2 (Fig. 8), the PMF profiles for all CIP molecules exhibited a potential barrier characterised by a pronounced peak. For CIP⁺ and CIP^+/−, this barrier feature was ∼0.88 nm from the surface, attributed to the increased repulsion between the increasing density of Na⁺ counter-ions and approaching positive CIP atoms. The barrier was slightly shifted towards the surface (∼0.78 nm at position 2′) for the CIP⁻ as the proximity to the octahedral negative charge was further increased. Moreover, the sharp decrease following this barrier indicates a rapid reorientation of CIP⁻, where the positively charged piperazinyl group aligned toward the surface while the negatively charged carboxylate group points away. This orientation minimised electrostatic repulsion and enhanced attraction, aided by the shielding effect of nearby Na⁺ counter-ions. CIP^+/− PMF demonstrated a characteristic double minimum with distinctive energy minima at ∼0.34 nm (−18.88 kJ mol⁻¹) and 0.51 nm (−18.29 kJ mol⁻¹) from the surface (positions 5 and 3 in Fig. 8, respectively). The computed CIP^+/− ESP distribution showed a distinctive surface charge separation, with the negative and positive surfaces covering nearly equal surface areas, with ratios 50.41% and 49.59% (Table S2 and Fig. S29b). Thus, the barrier in PMF profiles observed at position 4 (Fig. 8) originated from the repulsive interactions between the MMT surface and the CIP^+/− negative carboxylate end. For CIP⁺ the global energy minimum was −44.43 kJ mol⁻¹ at ∼0.34 nm (Fig. 8, position 5) from the surface. This higher adsorption energy of CIP⁺ was primarily attributed to stronger Coulombic attraction to the negatively charged MMT surface. Additional open systems simulations, performed by starting with a CIP in the interlayer region and spanning a total simulation time of over 250 ns, showed that all CIPs remained in the interlayer, even for the CIP⁻, which demonstrated, indeed, CIP⁻ favourable interaction with the surface.

To obtain K_A and the free energy of adsorption per-site and 1 M standard state , each PMF profile was integrated from the middle of the mesopore to the distance of closest approach, arbitrarily defined as F < 0 since beyond this point the PMF do not contribute much to the adsorption free energy. To compare with sorption coefficients K_d used in environmental contexts, we also evaluated the interfacial adsorption coefficient as a Henry surface–excess length (K_i) from the same PMFs and reported K_d. Together, the obtained and K_d. derived here quantify (i) the intrinsic per-site binding strength and (ii) the macroscopic partitioning expected for MMT, assuming access to its full surface area of ∼750 m² g⁻¹. Table 2 shows that the species tendency to adsorb to the MMT surface increases in the order CIP⁺ > CIP^+/− > CIP⁻. Values in Table 2 show that CIP⁺ has several orders of magnitude higher affinity for the MMT surface than CIP^+/− and CIP⁻.

Table 2 Standard adsorption free energy results (95% confidence interval) and the corresponding sorption coefficients for the different CIP species

Molecule	Ads. free energy ΔG° (kJ mol^−1)	Sorption coefficient Kd (cm^3 g^−1)
CIP^−	−2.1 ± 1.0	6.43 ± 3.80
CIP^+/−	−11.8 ± 1.1	518 ± 212
CIP^+	−30.0 ± 0.8	1.04 × 10^6 ± 0.35 × 10^6

---

3.2.2 CIP hydration free energy. The FEP hydration energies were performed to evaluate the hydration free energies of the different CIP molecules at different regions of interest. During the simulations, each CIP molecule was confined to a defined region of interest, namely, a bulk water box, the middle of the mesopore, or the region near the MMT surface, by a harmonic restraining potential. In the homogeneous water box, the electrostatic potential was uniform, however in the middle of the MMT mesopore (bulk-like) and near the MMT surface region (adsorbed), the electrostatic potential varies across the z-direction, increasing towards the MMT surface. The resulting hydration energies are presented in Fig. 9, which shows that CIP⁻ had the largest hydration energy in all the regions, attributed to the highly polar double-bonded oxygen (C=O) in the carboxylate and ketone groups and its high negative partial charge, increasing its water affinity (Fig. 8). CIP^+/− exhibited very similar hydration behaviour to CIP⁻, with slightly lower hydration energy due to having a less negative partial charge on the C=O. On the other hand, CIP⁺ had the smallest hydration energy, which can be attributed to the protonation of the carboxylate group, thereby decreasing its affinity for water. The hydration energies of CIP⁻ showed no clear deterministic trend. However, the CIP⁺ and CIP^+/− hydration energies steadily increased from the homogeneous water box to the Na–MMT mesopore and at the surface, due to increased water density and organisation near the surface (Fig. S7). Moreover, the increase in negative electrostatic potential near the surface increases the polarisation of water molecules, which favours an increase in hydration of the zwitterionic and positively charged species.⁸⁵

Fig. 9 Hydration free energy for the CIP molecules obtained via alchemical free-energy perturbation in three environments: bulk water, mesopore (bulk-like), and near the MMT surface (adsorbed region). Error bars represent a 95% confidence interval obtained from 3 repeated simulations in both forward and backward directions.

4. Conclusion

This work provides a molecular-level description of the adsorption energetics and configurations of CIP species to Na⁺-exchanged MMT clay surfaces, across environmentally relevant pH conditions. The preferred configuration analyses show that, regardless of the CIP ionic charge, the dominant adsorption configuration is primarily entirely or nearly flat. This contradicts postulates in previous literature that tilt and cross orientations are the main configurations.^44,82,84 Additionally, the configurations from 200 ns simulation revealed that the significance of the bridging effect of the interlayer cation on CIP⁻ adsorption to MMT has been slightly exaggerated in the literature. Our results show that the impact of negative surface charge screening by counter-ions was evident only during the initial CIP surface migration. On the surface, Na⁺–carboxylate contacts are present in multiple configurations, but the Na⁺ does not adopt a collinear MMT–Na⁺–CIP⁻ perpendicular bridging geometry; instead, the bridging angles are consistently below 140°, reflecting a suboptimal screening effect. Once adsorbed to the surface, CIP⁻ interacts mainly from its 4-quinolone core and the H atoms in the cyclopropyl and the piperazinyl groups. However, the net Coulombic contribution is configuration-dependent: some adsorption configurations exhibit favourable pair-wise Coulombic interactions, indicating that direct electrostatic stabilisation is not universally unfavourable for CIP⁻. The density profiles of the different CIP⁺, CIP^+/− and CIP⁻ molecules corroborated these results, as all species display similar preferred distances from the surface. Under basic conditions, when speciation is dominated by CIP⁻, adsorption occurs by interacting with the protonated edge groups on MMT and, to a not insignificant extent, the negative MMT basal surface. However, CIP⁻ interaction with the basal surface depends on the hydration state (interlayer separation) and concentration, as seen in the concentration maps generated from the open system simulations. Moreover, given the layered structure of MMT, the contribution of edge adsorption alone cannot account for the high adsorption capacities reported in experiments,⁴⁴ suggesting that the reported amounts of adsorption may have originated from basal surface adsorption.

Cluster-derived dominant configurations analysis from the RMSD-derived fitting correlations to the reference structures confirms that all three CIP species preferentially adsorb in flat or near-flat configurations at the MMT surface. However, adsorption stability is strongly dependent on speciation. CIP⁺ is locked into a single dominant electrostatically stabilised configuration state, whereas CIP^+/− samples two energetically accessible geometries, and CIP⁻ remains the most heterogeneous with adsorption driven by a combination of Na⁺-mediated Coulombic interactions and VdW dispersion.

The adsorption free energy profiles show that CIP⁺ exhibits strong electrostatic attraction to the surface, supporting cation exchange as the primary driver of CIP⁺ adsorption.⁸² Notably, CIP⁻ also exhibited favourable adsorption energies comparable to those reported for MMT–Na⁺ interactions (Fig. S28).⁸⁶ Thus, while it may not be due to cation-exchange effects, we cannot completely disregard the possibility that the CIP⁻ can intercalate the MMT interlayer at hydration states higher than 1 W. Further exploration of factors, such as the layer charge and charge origin characteristics (octahedral/tetrahedral) of the MMT TOT layers, specific edge sites pK_a^65,87,88 as well as the type of counter-ion, may prove crucial in shedding light on the cation exchange role in CIP species adsorption.

Overall, the standard adsorption free energies follow the sequence CIP⁻ (ΔG° ≈ −2.1 kJ mol⁻¹) < CIP^+/− (−11.8 kJ mol⁻¹) < CIP⁺ (−30.0 kJ mol⁻¹). Because the adsorption free energy enters exponentially in the calculation of the sorption coefficients, modest differences in ΔG° result in orders-of-magnitude variation in K_d. Indeed, the corresponding sorption coefficients span six orders of magnitude (K_d values of 6.4, 520, and 1.0 × 10⁶ cm³ g⁻¹), demonstrating how sensitive macroscopic retention is to small differences in the PMF profiles.

The FEP simulations revealed that CIP⁻ possesses higher hydration energy compared to CIP⁺ and CIP^+/−. In addition to the Na⁺ screening effects, this strong hydration potentially mitigated electrostatic repulsion during approach, explaining why CIP⁻ despite its net negative charge could still access the basal surface under certain hydration conditions.

These results further suggest that counter-ion identity and MMT layer charge origin (octahedral versus tetrahedral isomorphic substitution) may significantly influence CIP–surface interactions, which should be explored in future work.

Overall, this study unifies molecular configurations, hydration energetics, and free-energy landscapes into a coherent mechanistic picture of CIP sorption to smectite clay particles, and provide a quantitative foundation for understanding sorption, intercalation, and colloid-facilitated transport of CIP in clay-rich soils and aquifer systems.
