Polymorphism-dependent room-temperature phosphorescence of a persulfurated benzene

Abstract

Persulfurated benzenes are efficient room-temperature phosphorescent materials whose emission strongly depends on solid-state organization. We report two polymorphs (I and II) of A6-iPr exhibiting distinct RTP colors arising from different molecular conformations in the crystal lattice. Quantum chemical calculations reveal how conformation and intermolecular interactions govern the nature of the emissive triplet state.

---

Room-temperature phosphorescence (RTP) from metal-free, purely organic crystalline materials is a rare but highly desirable photophysical phenomenon.^1–4 Such materials are attractive for a plethora of potential applications in optoelectronics, sensing, and bioimaging because of their structural versatility, environmental compatibility, and potential for low-cost processing.^5–10 This is unlike costly, rare and metal-containing complexes, where strong spin–orbit coupling (SOC) enables efficient intersystem crossing. However, all-organic systems face intrinsic challenges due to the weakness of SOC in lighter elements.¹¹

To overcome the typical limitations of organic crystalline RTP materials, one strategy involves the formation of co-crystals with heavy-atom-containing co-formers, such as perhalogenated species, which enhance spin–orbit coupling through the external heavy-atom effect.^12–17 An alternative strategy relies on the exploitation of the so-called Aggregation-Induced Emission (AIE)^18–21 as a mean to induce phosphorescence in in all-organic crystals, since slight differences in molecular packing with diverse supramolecular π–π interactions or hydrogen bonding networks can profoundly alter intersystem crossing efficiency and triplet exciton stabilization.^22–25

Among crystalline molecular materials that exhibit luminescence, arylthio-substituted persulfurated benzenes represent a promising family of solid-state room temperature phosphorescent (RTP) emitters.^26–29 Recently, we disclosed that a persulfurated derivative bearing six extended biphenyl arms act as a chemosensor by modulating its RTP behavior depending on the reversible uptake and release of solvent molecules,³⁰ which induces conformational and crystal packing changes.³¹

As part of our ongoing research in this area, we report here our findings about the polymorphic behavior of a member of this class of compounds, namely 1,2,3,4,5,6-hexakis((4-isopropyl-phenyl)thio)benzene, referred hereafter as A6-iPr (Scheme 1). The characteristic feature of A6-iPr is the presence of six bulky 4-isopropylphenyl groups, which were introduced because they potentially allow variable molecular conformations,^32,33 thereby promoting crystal polymorphism. In this context, we demonstrate that A6-iPr exists in two polymorphic forms, with distinct emissive behaviors. The crystals were analysed by combining several methods: powder and single-crystal X-ray diffraction (SC-XRD), microcalorimetric analysis, combined with luminescence spectroscopy and computational methods.

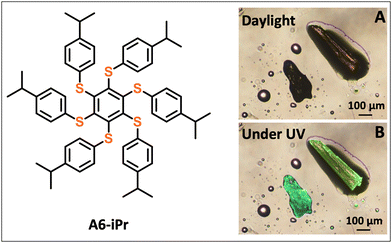

Scheme 1 Molecular structure of 1,2,3,4,5,6-hexakis((4-isopropyl-phenyl)thio)benzene (A6-iPr) and optical images of single-crystal specimens of its two polymorphic forms with different emissions, photographed under daylight (A) and under 365 nm LED illumination (B).

Compound A6-iPr (Scheme 1) was prepared via an established protocol that allows complete nucleophilic aromatic substitutions onto perhalogenobenzene molecule, in the presence of an excess of arylthiol and a base (e.g., K₂CO₃, t-BuOK, or NaH) in polar aprotic solvents, such as DMF (see SI for details).^34,35 Recrystallization of A6-iPr from the slow evaporation of a toluene solution afforded two distinct yellow crystals that upon UV excitation exhibited different emission colors, namely green or yellow emission, as depicted in Scheme 1. This prompted us to elucidate their respective crystal structures via SC-XRD and other methods.

Structural analysis of the bright-green emissive crystals revealed that the compound crystallizes in the trigonal R3̄ space group (see Table S1 for details). As shown in Fig. 1, the six peripheral (4-isopropyl)phenylthio groups are arranged in an ababab pattern, where a and b denote substituents positioned above and below the plane of the central benzene ring, respectively. In contrast, structural analysis of the yellow emissive A6-iPr crystals revealed that the compound crystallises in the monoclinic P2₁/c space group (see Table S1 for details). In this case, six (4-isopropyl)phenylthio substituents on the benzene core adopt an aaabbb arrangement, giving rise to a chair-like conformation (Fig. 2B and movie in the SI). Since no solvent is present in either case, the two crystals represent a true conformational polymorphic system. Therefore, we designate as Form I and Form II the green or yellow emissive crystals, respectively.

Fig. 1 Molecular structures of A6-iPr Form I (A) and II (B), as determined from SC-XRD. Letters in lowercase indicate the orientations of the peripheral (4-isopropyl)phenylthio substituents with respect to the central benzene unit (a: above; b: below). (C) Overlay diagram showing the conformational differences between the two forms (H_CH omitted for clarity).

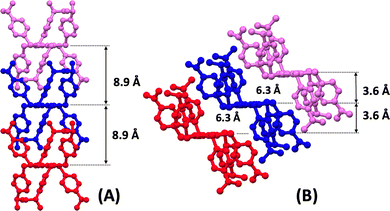

Fig. 2 Molecular stacking arrangements within crystalline A6-iPr Form I (A) and Form II (B). The distances represent the interplanar and centroid-to-centroid distances between the persulfurated benzene cores as detected in crystalline A6-iPr Forms I and II (H_CH atoms not shown for clarity).

The polymorphs show subtle conformational differences in the persulfurated benzene core, which is essentially planar in Form I and slightly distorted in Form II, as indicated by small SC–CS torsion angles (3.7° and 2.1–8.2°, respectively). These conformational differences therefore primarily affect the crystal packing and intermolecular contacts rather than the intrinsic geometry of the central cores (see Fig. S4). In Form I, the molecules stack into perfectly aligned columns, whereas in Form II, they adopt a slipped columnar arrangement (see Fig. 2). It is worth noting that in A6-iPr Form I, the alternating ababab conformation of the substituents around the central benzene core prevents intermolecular π–π interactions by keeping the central cores at 8.9 Å from each other. On the contrary, in Form II the chair-like aaabbb conformation leaves the central cores partly free to interact with each other and, as a result, they are located at closer distances (6.3 Å). Additionally, Hirshfeld surface and fingerprint plot analyses using Crystal Explorer^36,37 reveals a weak C–H⋯S interaction [H_CH⋯S = 2.83(3) Å] between stacked molecules in Form II. In contrast, no significant intermolecular interactions are observed in Form I (see Fig. S5 and S6). To evaluate the magnitude of intermolecular interactions in the two polymorphs, intermolecular interaction energies (IIEs)³⁸ analyses. In both cases, IIEs calculations (see supporting information) indicate that the strongest interactions occur within the columnar stackings shown in Fig. 2, with total energies of −137.6 and −122.4 kJ mol⁻¹ for Form I and Form II, respectively. As expected, the IIEs are dominated by the dispersion component of the total energy (Fig. S9 and Table S2). Consequently, cohesion within both polymorphs arises primarily from dispersion forces, and molecular packing is mainly governed by shape complementarity.³⁹ Powder XRD analyses were performed to verify the correspondence between the crystalline structures and the phases present in the polycrystalline samples. As expected, the sample obtained from toluene contained both polymorphic forms, whereas the one produced directly from synthesis (using DMF as solvent), or from recrystallization from acetone and chloroform contained exclusively Form I (see Fig. S7). In contrast, pure polycrystalline Form II could be isolated by a thermal method.

Thermogravimetric analysis (TGA) of a polycrystalline sample of A6-iPr Form I showed no weight loss up to approximately 270 °C, indicating good thermal stability (Fig. S10). Differential scanning calorimetry (DSC) was employed to investigate possible phase transitions and to establish a relationship between the two forms. A6-iPr Form I exhibited an endothermic peak at approximately 180 °C (ΔH_f = 28.5 kJ mol⁻¹) on heating, consistent with melting, while no thermal events were detected during cooling. In the subsequent heating cycle, an exothermic peak appeared at around 88 °C (ΔH_c = −18.3 kJ mol⁻¹), corresponding to a recrystallization process, followed by an endothermic peak at approximately 155 °C (ΔH_f = 18.7 kJ mol⁻¹), consistent with a melting process (see Fig. S11). These results suggest that upon melting and cooling, A6-iPr Form I can be converted into an amorphous material which, upon further heating, recrystallizes into a different polymorph, likely A6-iPr Form II, melting at lower temperature.

To gain further insight, these structural transformations associated with such transitions were monitored by variable-temperature powder XRD (see Fig. S8). The results showed a good agreement with the DSC analyses, i.e., Form I melts at about 180 °C and, when cooled to RT, remains in an amorphous state which upon further heating recrystallizes into Form II. Moreover, this process enabled the bulk preparation of a polycrystalline sample for the second polymorph (see Fig. S7 and S8). The differences in melting points and ΔH_f support the assignment of Form II as a metastable phase, while Form I corresponds to the more stable one. In a non-polar solvent (e.g. toluene) multiple conformers may coexist and become kinetically trapped during nucleation, leading to the formation of distinct crystal nuclei and concomitant polymorphs. In contrast, crystallization from polar solvents yields the stable polymorph, likely suppressing the formation of conformers required for nucleation of the metastable form.

The photophysical properties were first evaluated in solution at RT and key data are reported in Table 1. The absorption spectrum of A6-iPr in CH₂Cl₂ is similar to those observed for other hexakis-(arylthio)benzenes analogues,²⁷ with a broad lower-energy lying absorption band showing a maximum at 326 nm (ε = 19 200 M⁻¹ cm⁻¹; see Fig. S10). In analogy, the emission properties of A6-iPr in diluted solutions match those displayed by its congeners,²⁹ with negligible emission at RT (either in air-equilibrated or degassed solutions) and an intense green phosphorescence in rigid matrices at 77 K (CH₂Cl₂ : CH₃OH, 1 : 1, v/v), with emission quantum yield around 0.5 and a lifetime in the order of 10⁻³ s. No fluorescence has been observed from the solids at RT, nor in diluted conditions at 77 K.

Table 1 Photophysical data for A6-iPr in solution and in the solid state

	Solution				Solid state emission, RT
	Absorption	Emission, 77 K
	CH2Cl2, RT	CH2Cl2 : CH3OH (1 : 1, v/v)
a Biexponential fitting.
Entry	λ (nm)/ε (M^−1 cm^−1)	λmax (nm)	τ (ms)	Φ	λmax (nm)	τ (µs)	Φ
A6-iPr	326/19 200	502	3.3–8.7^a	0.5	—	—	—
A6-iPr Form I	—	—	—	—	518	46–98^a	0.4
A6-iPr Form II	—	—	—	—	554	1.6–4.3^a	<0.1

---

As anticipated, the photophysical behavior is peculiar for each polymorph of A6-iPr in the solid-state (see Fig. 1, 3 and Table 1): conversion from Form I to II leads to a red-shift of the emission spectrum, to a decrease in the emission lifetime, and to a significant quenching of the luminescence quantum yield (see computational discussion below). This behavior is consistent with that observed for other persulfurated derivatives exhibiting conformational flexibility.^28,30

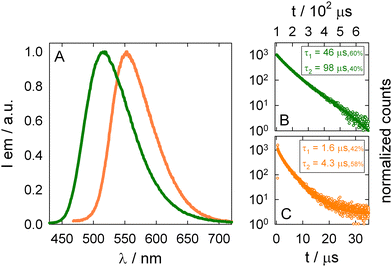

Fig. 3 (A) emission spectra recorded for solid state A6-iPr at RT (green line: Form I; orange line: Form II; λ_ex = 360 nm). (B) and (C) Emission decays recorded from the two polymorphs under the same experimental conditions are also shown for Form I and Form II with green and orange dots, respectively, together with biexponential fitting functions. λ_ex = 405 nm; λ_em = 510 nm for Form I; λ_em = 560 nm for Form II.

Luminescence analysis of the polymorphs at low temperatures substantially shows unchanged emission spectra for both forms in the solid state, whereas the lifetime increases up to 6.4 ms in the case of Form II (see Table S3), likely as a consequence of the decrease of the non-radiative constant. In addition, as highlighted for similar compounds,²⁹ amorphous phases of A6-iPr are showing intense emission only at low temperature, while it is negligible at RT: this observation indicates that the crystallinity of the material in both Form I and II is required in order to achieve significant emission at RT. The emission properties of the two forms were computationally investigated by DFT and TDDFT calculations. Ground-state geometry optimizations in the gas phase and in the crystal, reveal pronounced differences for the ababab conformer. In the gas phase, this conformer relaxes to a folded structure, whereas such folding is hindered in the crystalline environment (see Fig. S16 and S17). In contrast, the aaabbb conformer does not adopt a folded geometry in the gas phase, resulting in similar structures in both gas and crystalline phases (see Fig. S20 and S21). The orbital character of the T₁ state is also influenced by the folded or unfolded geometry of the ababab conformer in Form I. Despite a pronounced quinoidal distortion for both situations, (Fig. S18 and S19), in the gas phase the dominant ππ* character of the T₁ state induces a substantial out-of-plane distortion of the central benzene core. Such distortions are commonly associated with low-energy emission and reduced quantum yield due to enhanced intersystem crossing with the S₀ state.²⁹ Consistent with this interpretation, the calculated gas-phase emission energy is as low as 1.70 eV (Table S5). By contrast, in the crystal the optimized T₁ geometry displays predominantly nπ* character (Fig. 4A and Fig. S26). As established in previous studies,²⁹ such nπ* states are typically associated with higher emission energies and enhanced luminescence efficiency due to reduced spin–orbit coupling, both of which are consistent with the experimental observations. Accordingly, the computed emission energy in the crystalline phase is 2.68 eV (Table S5). The calculations indicate less pronounced differences between the gas phase and crystalline environments for the lowest triplet state of the aaabbb conformer (Fig. S22 and S23). In both phases, the T₁ state retains a mixed nπ*/ππ* character (see Fig. 4B and Fig. S26) and features a quinoidal central benzene ring that remains essentially planar in the excited state). The computed emission energy amounts to 2.35 eV in the gas phase and decreases to 2.28 eV in the crystal, yielding a value in close agreement with the experimental data.

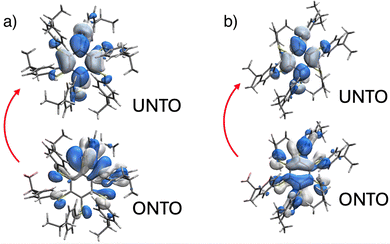

Fig. 4 Natural Transition Orbital (NTO) analysis (QM/MM calculations) showing the excitation from the occupied (ONTO) to the unoccupied (UNTO) of A6-iPr Form I (a) and Form II (b).

Although enhanced excitonic interactions could, in principle, account for the experimentally observed red shift in Form II, TDDFT calculations on dimer and trimer aggregates of the aaabbb conformer do not support this hypothesis, revealing only a modest change in the S₀ → T₁ excitation energy (2.97 eV versus 2.96 eV; Table S6). In short, the crystal packing constraints in Form I play a crucial role in favoring unfolded ababab conformations with a lowest nπ* triplet state. The mixed nπ*/ππ* character of the lowest triplet state in Form II is responsible for the reduced emission energy.

Our investigations revealed the existence and interconversion of two distinct crystalline forms of A6-iPr. Although they exhibit similar appearances, the photophysical properties displayed by Forms I and II are markedly different, reflecting the conformations adopted in the solid state: phosphorescence emission switches from green to yellow, respectively. Experimental data are corroborated by quantum-chemical calculations. Overall, this work highlights the crucial influence of polymorphism on the emissive behavior of fully organic phosphorescent materials.

Conflicts of interest

There are no conflicts to declare.

Data availability

Raw data including emission spectra and decays of the analyzed compounds are available at AMSActa Institutional Research Repository (https://doi.org/10.6092/unibo/amsacta/8820).

The datasets supporting this article have been uploaded as part of the supplementary information (SI). Details of the synthesis, NMR and MS spectra, single-crystal and powder XRD, intermolecular interaction analysis, microcalorimetry, photophysical measurements, and computational methods are provided in the supplementary information. See DOI: https://doi.org/10.1039/d6cc00320f.

CCDC 2522427–2522430 contain the supplementary crystallographic data for this paper.^40a–d

Acknowledgements

Dr Jean-Louis Schmitt from ISIS Institute, CNRS UMR 7006, Univ. of Strasbourg (France) is thanked for his contribution to mass spectrometry and scientific discussions. MG is grateful to the French Agence Nationale de la Recherche (ANR, program PRC) for the grant ANR-20-CE07-0031 Acronym: “SulfurDance” and financial support from the Excellence Initiative of Aix-Marseille University – A*Midex, a French “Investissements d’Avenir” programme, and an internship funding to YK. MG is also thankful to AMUTECH, CINAM, CNRS and Aix-Marseille Université. AF is grateful to the European Union – Next Generation EU under the National Recovery and Resilience Plan (PNRR M4 C2 Investment1.1, Notice Prin 2022 – DD N. 1409 14/09/2022, title “ENgineering LIGHT-activated materials for the abatement of ENvironmentally hazardous and pollutiNG substances” (ENLIGHTENING), sector PE4, proposal code P2022PZ2MM – CUP J53D23014600001. FN acknowledges the European Union – Resilience Plan (PNRR M4C2, Investment 1.4 – Call for tender n. 3138 dated 16/12/2021 – CN00000013 National Centre for HPC, Big Data and Quantum Computing (HPC) – CUP J33C22001170001).

Notes and references

1. S. d’Agostino, F. Spinelli, P. Taddei, B. Ventura and F. Grepioni, Cryst. Growth Des., 2019, 19, 336–346.
2. A. A. Dar and A. A. Malik, J. Mater. Chem. C, 2024, 12, 9888–9913.
3. X. Shen, W. Wu and C. Yang, Molecules, 2024, 29, 3236.
4. M. Stanitska, D. Volyniuk, B. Minaev, H. Agren and J. V. Grazulevicius, J. Mater. Chem. C, 2024, 12, 2662–2698.
5. H. Xiang, J. Cheng, X. Ma, X. Zhou and J. J. Chruma, Chem. Soc. Rev., 2013, 42, 6128.
6. S. Ito, CrystEngComm, 2022, 24, 1112–1126.
7. M. Ji and X. Ma, Ind. Chem. Mater., 2023, 1, 582–594.
8. S. Ito, Advances in Organic Crystal Chemistry, Springer Nature Singapore, Singapore, 2025, pp. 121–142.
9. L. Yang, L.-H. Xiong and X. He, Chem. Biomed. Imaging, 2025, 3, 499–521.
10. X. Yang, M. Zhang, B. Tang, L. Wang, B. Yang, L. Li, P. Naumov and H. Zhang, J. Am. Chem. Soc., 2025, 147, 22961–22971.
11. J. Li, Q. Yao, L. Wu, Z. Hu, B. Gao, X. Wan and Q. Liu, Nat. Commun., 2022, 13, 919.
12. H. Y. Gao, Q. J. Shen, X. R. Zhao, X. Q. Yan, X. Pang and W. J. Jin, J. Mater. Chem., 2012, 22, 5336.
13. S. d’Agostino, F. Grepioni, D. Braga and B. Ventura, Cryst. Growth Des., 2015, 15, 2039–2045.
14. L. Li, W. X. Wu, Z. F. Liu and W. J. Jin, New J. Chem., 2018, 42, 10633–10641.
15. Y. Xia, Y. Du, Q. Xiang and M. G. Humphrey, New J. Chem., 2021, 45, 4930–4933.
16. A. Azzali, S. d’Agostino, M. Capacci, F. Spinelli, B. Ventura and F. Grepioni, CrystEngComm, 2022, 24, 5748–5756.
17. C. Zhang, X. Jiang, C. Wang, Z. Liu, B. Xu and W. Tian, Smart Mol., 2025, 3, e20240054.
18. M. Baroncini, G. Bergamini and P. Ceroni, Chem. Commun., 2017, 53, 2081–2093.
19. J. Yang, M. Fang and Z. Li, Aggregate, 2020, 1, 6–18.
20. D. Galicia-Badillo, J. L. Belmonte-Vázquez, M. Rodríguez, B. Rodríguez-Molina and M. C. García-González, ACS Omega, 2024, 9, 38015–38022.
21. Y. Zhang, B. Bai, G. A. Alfani, Z. Zhao and B. Z. Tang, J. Mater. Chem. C, 2025, 13, 20806–20824.
22. M. Hayduk, S. Riebe and J. Voskuhl, Chem. – Eur. J., 2018, 24, 12221–12230.
23. J. You, X. Zhang, Q. Nan, K. Jin, J. Zhang, Y. Wang, C. Yin, Z. Yang and J. Zhang, Nat. Commun., 2023, 14, 4163.
24. D. Zhong, S. Liu, L. Yue, Z. Feng, H. Wang, P. Yang, B. Su, X. Yang, Y. Sun and G. Zhou, Chem. Sci., 2024, 15, 9112–9119.
25. A. Fermi, ChemPhotoChem, 2025, 9, e202400404.
26. G. Bergamini, A. Fermi, C. Botta, U. Giovanella, S. Di Motta, F. Negri, R. Peresutti, M. Gingras and P. Ceroni, J. Mater. Chem. C, 2013, 1, 2717–2724.
27. A. Fermi, G. Bergamini, R. Peresutti, E. Marchi, M. Roy, P. Ceroni and M. Gingras, Dyes Pigm., 2014, 110, 113–122.
28. H. Wu, G. V. Baryshnikov, A. Kuklin, B. F. Minaev, B. Wu, L. Gu, L. Zhu, H. Ågren and Y. Zhao, ACS Appl. Mater. Interfaces, 2021, 13, 1314–1322.
29. A. Fermi, S. d’Agostino, Y. Dai, F. Brunetti, F. Negri, M. Gingras and P. Ceroni, Chem. – Eur. J., 2024, 30, e202401768.
30. A. Fermi, S. Gahlot, E. Jorand, S. d’Agostino, Y. Dai, F. Negri, C. Moustrou, M. Gingras and P. Ceroni, J. Am. Chem. Soc., 2025, 147, 32309–32314.
31. S. E. Wright, J. C. Cole and A. J. Cruz-Cabeza, Cryst. Growth Des., 2021, 21, 6924–6936.
32. D. D. MacNicol and D. R. Wilson, J. Chem. Soc., Chem. Commun., 1976, 494–495.
33. A. D. U. Hardy, D. D. MacNicol, S. Swanson and D. R. Wilson, J. Chem. Soc., Perkin Trans. 2, 1980, 999.
34. L. Testaferri, M. Tingoli and M. Tiecco, J. Org. Chem., 1980, 45, 4376–4380.
35. M. Gingras, J. Raimundo and Y. M. Chabre, Angew. Chem. Int. Ed., 2006, 45, 1686–1712.
36. M. A. Spackman and D. Jayatilaka, CrystEngComm, 2009, 11, 19–32.
37. P. R. Spackman, M. J. Turner, J. J. McKinnon, S. K. Wolff, D. J. Grimwood, D. Jayatilaka and M. A. Spackman, J. Appl. Crystallogr., 2021, 54, 1006–1011.
38. C. F. Mackenzie, P. R. Spackman, D. Jayatilaka and M. A. Spackman, IUCrJ, 2017, 4, 575–587.
39. D. Braga, S. d’Agostino and F. Grepioni, Organometallics, 2012, 31, 1688–1695.
40. (a) CCDC 2522427: Experimental Crystal Structure Determination, 2026 DOI:10.5517/ccdc.csd.cc2qnsmt; (b) CCDC 2522428: Experimental Crystal Structure Determination, 2026 DOI:10.5517/ccdc.csd.cc2qnsnv; (c) CCDC 2522429: Experimental Crystal Structure Determination, 2026 DOI:10.5517/ccdc.csd.cc2qnspw; (d) CCDC 2522430: Experimental Crystal Structure Determination, 2026 DOI:10.5517/ccdc.csd.cc2qnsqx.

---
