The rational design of new liquid crystal materials relies on an understanding of the relationship between molecular structure and the formation of liquid crystalline phases. The development of new materials can benefit from the use of a wide range of functional groups, but some groups prove challenging to combine with liquid crystallinity. Tertiary benzanilide groups are a clear example of this, as their strong conformational preferences disrupt liquid crystallinity when included in typical liquid crystalline structures. This means that it has not been possible to harness the molecular design possibilities offered by amide N-substitution. However, designing flexible structures to accommodate the conformation of tertiary benzanilides has allowed us to synthesise a variety of liquid crystal trimers forming nematic and smectic phases, and investigate the effect of lateral and N-substitution on their phase behaviour. Trimers with large (benzyl and decyl) N-substituents favour the formation of an orthogonal smectic (SmA) phase and demonstrate unusual and highly pronounced contraction of the smectic layer spacing on cooling, illustrating the non-conventional properties enabled by the unusual structures of these amide-based liquid crystals.
![]() | ||
Fig. 1 Sketches of different mesogenic architectures: conventional low molar mass calamitic and bent core7 mesogens (centre). (a) linearly-linked bent dimer,8 (b) H-shaped dimer,9 (c) hydrogen-bonded LC,10 (d) bent-core trimer,11 (e) λ-shaped trimer,12 (f) tripodal trimer,13 (g) linearly-linked trimer.14 |
One such new and underexplored fragment is the benzanilide moiety, which consists of an amide group linking two benzene rings. In principle this can be used in a similar manner to phenyl benzoate or benzylidineaniline groups which have been used extensively in the design of new mesogens. However, the benzanilide group has been only sparingly used in the development of low molar mass LCs. The hydrogen bonding present between secondary benzanilides has been harnessed to promote the formation of lamellar phases,15–17 whereas tertiary benzanilides (with an additional functionality at the amide nitrogen) have frequently proved to be non-mesogenic. We have recently shown that this is due to the unconventional shape of mesogens containing tertiary benzanilides, driven by the strong preference for the E amide conformation seen in these materials (Fig. 2).18 Earlier attempts to incorporate tertiary benzanilides into LC architectures, such as rigid bent cores or in flexible dimers, were not designed to accommodate this conformation and as a result, tertiary benzanilide-based materials have shown very limited liquid crystalline behaviour compared to their secondary benzanilide counterparts. We proposed that the increased flexibility of a trimeric LC structure (Fig. 1) could more readily accommodate the E amide conformation of tertiary benzanilides and allow for the development of a new class of mesogenic materials based on the benzanilide group.

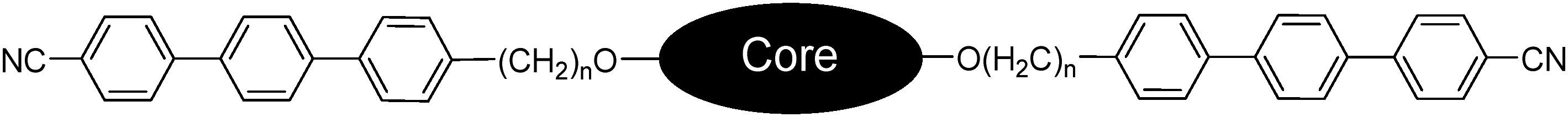

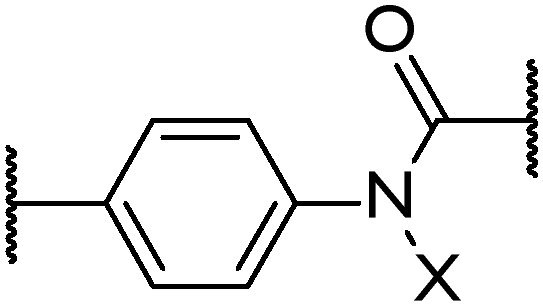

In the first part of this work, we investigated the phase behaviour and the effect of structural modifications in a series of six tertiary benzanilides with N-methyl substituents. In the second part, we examine the effect of introducing larger substituents on the amide nitrogen, to demonstrate the use of this group as an additional tool for the structural modification of LC materials. The structures of the trimers are given in Table 1, and the general structure consists of two terminal mesogenic units linked to the central benzanilide unit by flexible spacers. To investigate the effects of structural modification on phase behaviour in these trimers, changes were made to the length of the spacers, the number and position of lateral methyl substituents, and the nature of the substituent on the amide nitrogen.

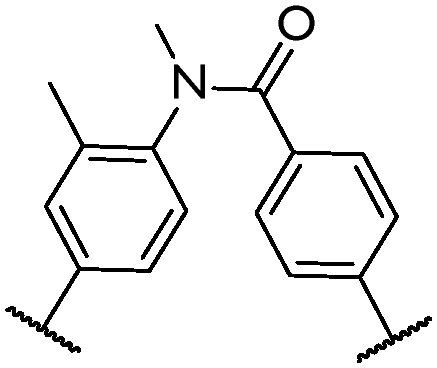

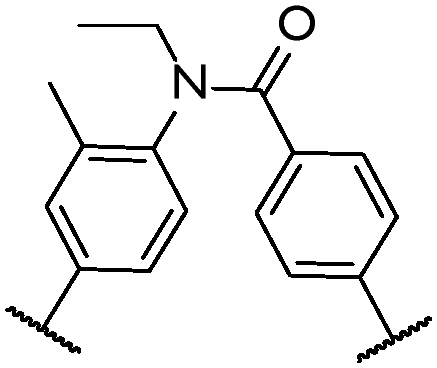

Core | n | Melt | SmA-N | N-I | ||
---|---|---|---|---|---|---|
a Denotes values taken from POM. b The entropy changes could not be determined due to peak overlap in the DSC trace. | ||||||
1 |
![]() |
6 | T/°C | 102 | 132a | 182 |
ΔS/R | 2.58 | 0.10 | ||||
2 |
![]() |
8 | T/°C | 106 | 148 | 178 |
ΔS/R | 2.70 | 0.04 | 0.17 | |||
3 |
![]() |
10 | T/°C | 100 | 148 | 178 |
ΔS/R | 2.35 | 0.02 | 0.13 | |||
4 |
![]() |
6 | T/°C | 92 | 201 | |
ΔS/R | 2.83 | 0.16 | ||||
5 |
![]() |
6 | T/°C | 98 | 130 | 175 |
ΔS/R | 1.68 | 0.06 | 0.11 | |||
6 |
![]() |
6 | T/°C | 97 | 123a | 180 |
ΔS/R | 3.01 | 0.14 | ||||
7 |
![]() |
6 | T/°C | 100 | 123 | 154 |
ΔS/R | 2.81 | 0.03 | 0.08 | |||
8 |
![]() |
6 | T/°C | 108 | 131 | 143 |
ΔS/R | 2.91 | 0.08 | 0.09 | |||

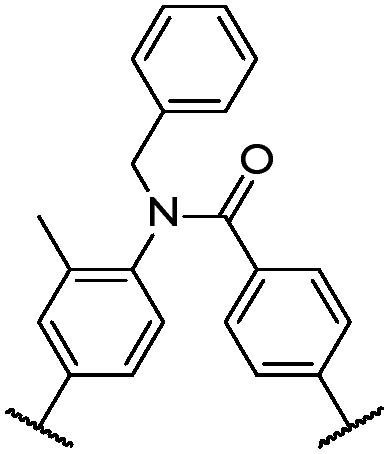

9 |
![]() |
6 | T/°C | 111 | 133 | 147 |
ΔS/R | 3.62 | 0.11 | 0.08 | |||
10 |
![]() |
8 | T/°C | 117 | 143 | 148 |
ΔS/R | 3.27 | 0.24 | 0.08 | |||
11 |
![]() |
10 | T/°C | 118 | 144b | 147b |
ΔS/R | 2.87 |
The phase behaviour of the materials was studied using differential scanning calorimetry (DSC) with a Mettler Toledo DSC3 differential scanning calorimeter equipped with a TSO 801RO sample robot and calibrated with indium and zinc standards. The heating and cooling rates were 10 K min−1 and the transition temperatures and their associated enthalpy changes were extracted from heating traces unless otherwise noted.
Optical textures were used to identify the liquid crystal phases, and these were observed using an Olympus BH2 polarising optical microscope equipped with a Linkam TMS 92 heating stage.
Optical birefringence was measured with a setup based on a photoelastic modulator (PEM-90, Hinds) working at a modulation frequency f = 50 kHz; a halogen lamp (Hamamatsu LC8) equipped with narrow bandpass filters was used as a light source. The signal from a photodiode (FLC Electronics PIN-20) was deconvoluted with a lock-in amplifier (EG&G 7265) into 1f and 2
f components to yield a retardation induced by the sample. Knowing the sample thickness, the retardation was recalculated into optical birefringence. Samples were prepared in 3-micron-thick cells with planar anchoring. The alignment quality was checked prior to measurement by inspection under the polarised optical microscope. AFM measurements were performed using a Bruker Dimension Icon Microscope working in tapping or scan assist mode and cantilevers with elastic constant of 0.4 N m−1 were applied. X-ray diffraction measurements were carried out using a Bruker D8 GADDS system with CuKα radiation, Goebel mirror monochromator, point beam collimator, and VANTEC2000 area detector. SAXS measurements were performed on a Bruker Nanostar system using CuKα radiation and patterns were collected with an area detector VANTEC2000.

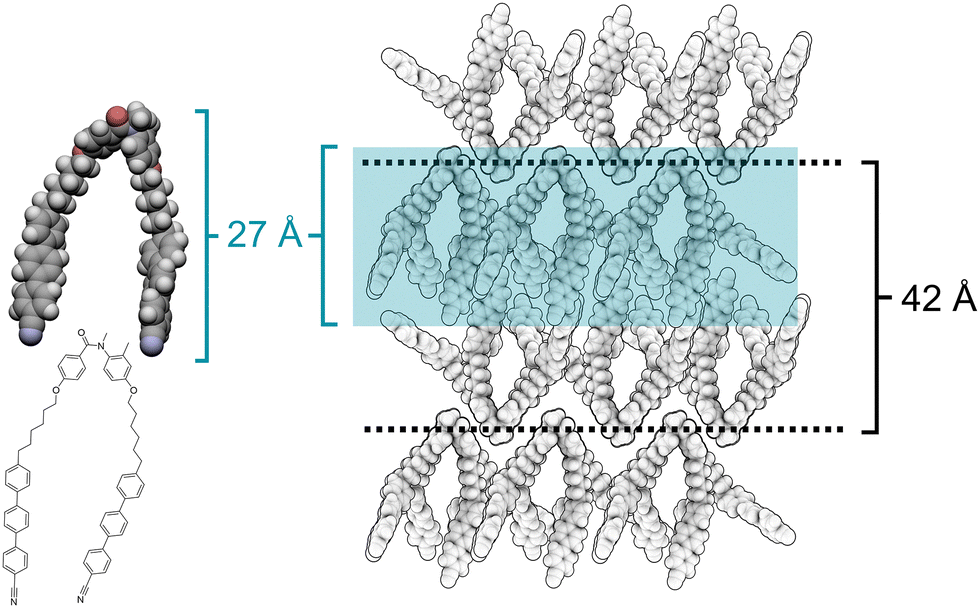

To understand this unusual behaviour, it is necessary to consider the arrangement of the molecules within the SmA phase. Based on the X-ray diffraction patterns recorded in the SmA phase for compound 1, a proposed packing arrangement is given in Fig. 4. The sharp signal seen in the small angle region corresponds to the bilayer arrangement of the bent-shaped molecules, while the weaker, diffuse small angle signal is believed to arise from local short-range ordering of the cyanoterphenyl units and can also be seen in the diffraction pattern recorded in the nematic phase. In such an arrangement, the overall bent structure of the molecules counteracts, to some degree, the increase in the length of the spacers, leading to an increase in the layer spacing without a dramatic change in the transition temperatures or phase behaviour. X-ray measurements do show a shift in the layer spacing (Table 2) from 42 Å for 1, to 46 Å and 47 Å for 2 and 3, respectively. This trend is consistent with the proposed packing arrangement in Fig. 4, as the increase in layer spacing is less than the increase in length expected from the additional methylene units if the molecules were in an elongated linear conformation. In addition, the very small changes in ΔS/R (Table 1) seen for the N-SmA transition are consistent with the highly bent trimer structure arising from the E-amide conformation.

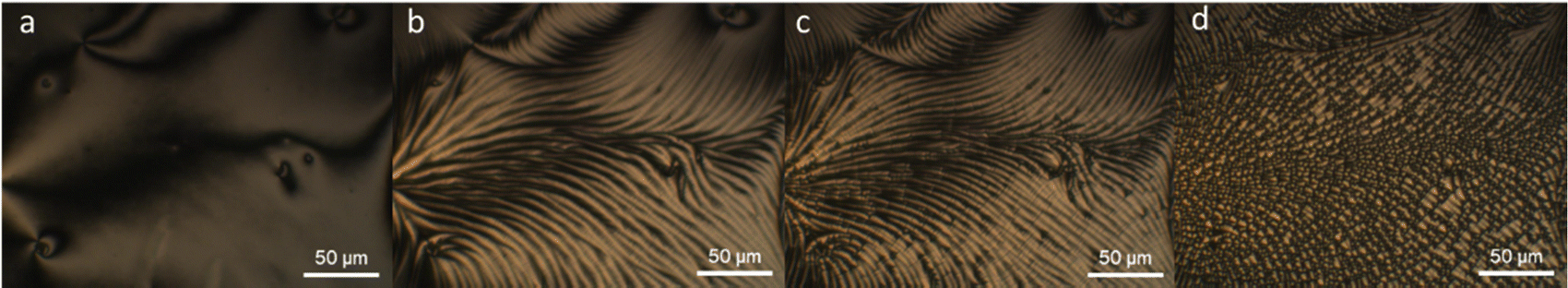

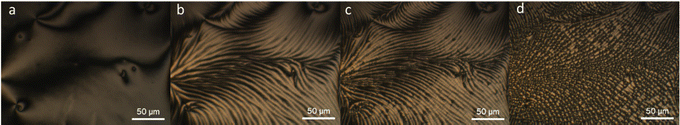

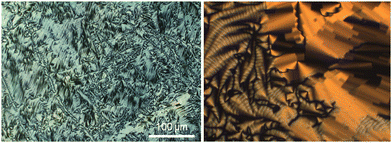

An unexpected textural change was observed for samples sandwiched between untreated glass slides at temperatures slightly above the N-SmA transition for compounds 1–3. A striped texture was seen to develop in thin regions of the sample (Fig. 5), and its evolution over the transition from the N to SmA phase is shown in Fig. 6. The texture in the N phase contains two- and four-brush defects confirming the assignment. On cooling filaments appear to develop that are crossed by fine lines, which become more apparent on cooling. These appear not to be perfectly periodic and thus not associated with a helical structure but instead presumably are indicative of an increase in order at the approach to the SmA phase, perhaps reflecting the strongly biaxial structure of these molecules. The precise physical significance of these stripes is not clear, but they appear to resemble textures reported for samples of 8CB or 8OCB prepared under hybrid alignment conditions,20–22 although the samples reported here were simply prepared between two untreated glasses. The observation of such stripes, or undulations, has been interpreted in terms of diverging elastic constants at the N-SmA transition, and that may also apply to the materials reported here, although further study is required to fully understand these observations.
![]() | ||
Fig. 7 (a) The schlieren texture of 4 in the nematic phase at 115 °C, (b) the fan-like texture of 5 in the SmA phase at 120 °C, and (c) the homeotropic texture of 6 in the SmA phase at 102 °C. |
![]() | ||

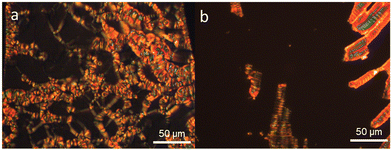

Fig. 8 POM textures observed in the SmA phase on untreated glass for (a) 7 (109 °C) and (b) 8 (128 °C). |
The final three compounds, 9, 10, and 11, are the N-benzyl analogues of 1, 2, and 3, with six-, eight- and ten-carbon spacers, respectively. Again, these materials all formed enantiotropic nematic and SmA phases. Compared to their N-methylated counterparts, the introduction of the larger benzyl substituent again destabilised the nematic phase, with decreases in TNI of ∼30 K. As was seen for trimers 1–3, increasing the spacer lengths in 9–11 had no appreciable effect on TNI. In contrast to their clearing temperatures, TSmAN for the N-benzylated materials were very similar to those of their N-methylated counterparts. This, somewhat counterintuitively, indicates that the larger N-benzyl group is more easily accommodated in the SmA phase than in the nematic phase. However, as was discussed for trimers 4–6, it may be that additional substitution around the amide group helps to fill space within the bilayer packing of the SmA phase, and substitution at the nitrogen (the apex of the molecule) may be reasonably easily accommodated within the bilayer structure. Interestingly, measurements of the temperature dependence of the layer spacing showed a marked contraction across the SmA phase on cooling for the materials with larger (decyl or benzyl) N-substituents, and this is shown in Fig. 9 for compound 11 and Fig. S2 (ESI†) for 2, 8–11. In general, smectic A phases would be expected to exhibit negative thermal expansion, such that their layer spacing increases on cooling.23–25 Decreasing layer spacing, as reported here, would typically be associated with the formation of a tilted smectic phase, e.g. SmC. However, this is not the case for SmA phases with partial bilayer structure (interdigitation), such as that formed by the widely-studied smectogen 8CB,26 and this observation supports our suggested packing arrangement sketched in Fig. 4. While this may explain the trends we report in the layer spacing changes on cooling, the magnitude of the decreases measured for the N-benzyl trimers, ca. 3 Å, are an order of magnitude larger than those reported in the nCB series, ca. 0.3 Å.27

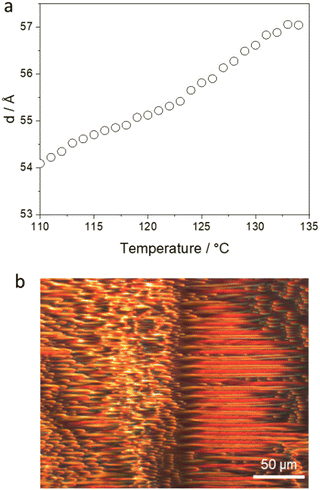

It was also observed that materials with larger N-substituents (7–11) had a pronounced tendency to produce a mix of focal conic defects and apparent striped textures in planar aligned cells studied using POM (Fig. 9b). The appearance of striped textures appears to result from the decrease in layer thickness on cooling these trimers, and the accompanying distortion of the smectic layers. The observation of such striped textures in an SmA phase has been reported previously.28 The materials studied, II/6 and 9ZBL, had thermal expansion coefficients of Kt = −0.8 × 10−3nm K−1 and Kt = −1.8 × 10−3 nm K−1, respectively. These negative coefficients correspond to an increase in the layer spacing on cooling as is considered typical for smectic A phases. From the X-ray measurements of layer spacing for the trimers reported here, we have calculated the thermal expansion coefficients for the compounds with the largest N-substituents; 8–11, and the N-methylated trimer 2 for comparison, and these are listed in Table 3. Trimer 2, with the smallest, N-methyl, substituent, has Kt of very similar magnitude to that reported for 9ZBL, but of the opposite sign. This is due to the different packing arrangements present in the SmA phases of the two materials, as discussed previously, with the positive Kt of trimer 2 relating to the bilayer packing arrangement in the SmA phase. However, increasing the size of the N-substituent in trimer 8 led to a tripling of kt, and introducing an N-benzyl substituent in 9, 10, and 11, produced an even greater increase. These unusually large values of Kt correspond to very pronounced layer contraction on cooling the SmA phase, on a scale that would normally be expected in tilted, SmC phases. This highlights the unusual properties of these highly bent trimers, introduced through the central tertiary amide unit.
Trimer | N-Substituent | k t/×10−3 nm K−1 |
---|---|---|
2 | Methyl | 1.8 |
8 | Decyl | 5.6 |
9 | Benzyl | 11 |
10 | Benzyl | 10 |
11 | Benzyl | 12 |
AFM studies of trimers 9 and 11 in split cells with planar alignment layer showed clear focal conic structures, (Fig. 10), which arise from the interplay of molecular ordering and the layered nature of the smectic A phase. The confocal ellipses observed in the AFM pictures are a direct result of the SmA phase requirement for equidistant layers.
Core | n | N–X | SmX | SmCA | SmAC | SmAbi | NTB | N | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NTB – twist bend nematic, SmAbi – smectic A with bilayer packing, SmAC – smectic A with intercalated packing, SmCA – smectic C with anticlinic intercalated structure, SmX – unknown smectic phase.a Temperatures taken from ref. 19. | ||||||||||||||
![]() |
6 | Ha | • | 168 | • | 298 | ||||||||
CH3 | • | 132 | • | 182 | ||||||||||
Bn | • | 147 | • | 111 | ||||||||||
![]() |
8 | Ha | • | 152 | • | 186 | • | 283 | ||||||
CH3 | • | 148 | • | 178 | ||||||||||
Bn | • | 143 | • | 148 | ||||||||||
![]() |
10 | Ha | • | 145 | • | 267 | ||||||||
CH3 | • | 148 | • | 178 | ||||||||||
Bn | • | 144a | • | 147a | ||||||||||
![]() |
6 | Ha | • | 199 | • | 298 | ||||||||
CH3 | • | 201 | ||||||||||||
![]() |
6 | Ha | • | 254 | ||||||||||
CH3 | • | 130 | • | 175 | ||||||||||
![]() |
6 | Ha | • | 199 | • | 296 | ||||||||
CH3 | • | 123 | • | 180 |
The secondary amides also show phase sequences typical for linearly linked trimers with odd-membered spacers; the C10 homologue forms the twist-bend nematic phase, and the C6 and C8 homologues form triply intercalated smectic phases, with layer spacings corresponding to approximately one third of their molecular length. All three trimers with C8 spacers formed a smectic A phase, and this allows the layer spacings to be directly compared: in the secondary amide trimer, this was 19 Å, corresponding to one-third of the molecular length of the trimer in an extended, linear conformation with the Z-amide conformer. This represents a triply intercalated packing arrangement. In contrast, the tertiary amide analogues reported here had a layer spacing of 46 Å (N–CH3) and 50 Å (N–Bn), which suggests a bilayer structure of the SmA phase, as sketched in Fig. 4. This change in the way the trimers pack within the SmA phase highlights the very different molecular shapes of the secondary and tertiary amide trimers.
