Octavio Mirandaa,
Paola Mantegazzab,
Vikki N. Shindea,
Zhiqiang Caoc,
Steve Sheltond,
Stefania Morob,
Caden Devertera,
Yi Liud,
Xiaodan Gu
*c,
Giovanni Costantini
*b and
Lei Fang
*a
aDepartment of Chemistry, Texas A&M University, 3255 TAMU, College Station, Texas 77843, USA. E-mail: fang@chem.tamu.edu
bSchool of Chemistry, University of Birmingham, Birmingham B15 2TT, UK. E-mail: g.costantini@bham.ac.uk
cSchool of Polymer Science and Engineering, The University of Southern Mississippi, Hattiesburg, Mississippi 39406, USA. E-mail: xiaodan.gu@usm.edu
dThe Molecular Foundry, Lawrence Berkeley National Laboratory, One Cyclotron Road, Berkeley, California 94720, USA
First published on 7th July 2025
The conformational coplanarity and local rigidity of π-conjugated backbones are critical for the semiconducting performance of organic electronic materials. While fusing the aromatic system into a ladder-type structure effectively enhances these properties, it also often results in poor solution processability and hence limits their transition to device application. To address this challenge, an intramolecularly hydrogen-bonded pseudoladder polymer (HPLP) system based on alternating hydrogen bond donating benzobisimidazole (BBI) and hydrogen bond accepting benzodifuran (BDF) units, is designed and synthesized. A Boc-protected precursor of HPLP allows for feasible solution processing of the polymer into thin films. Subsequently, in situ thermal Boc-deprotection generates the HPLP polymer, in which intramolecular hydrogen bonds form between each pair of neighboring repeating units, inducing coplanarity and rigidity throughout the entire backbone. This process is accompanied by a significant red-shift of the absorption spectrum, reduced bandgap, and enhanced rigidity, as confirmed by NMR, UV-Vis, and density functional theory analyses. HPLP films exhibit a three-order-of-magnitude enhancement in charge carrier mobility compared to the Boc-protected precursor and demonstrate excellent solvent resistance in organic thin-film transistors.
![]() | ||
Fig. 1 Structural formulas of semiconducting polymers with coplanarity induced by (a) covalent ring-fusing, (b) hydrogen-bonds, and (c) weak non-covalent interactions. |
A widely used approach to address the aforementioned challenge involves the incorporation of weak intramolecular interactions in conjugated polymers to produce high performance semiconductors,14 such as DPPTT-TVTOEt, PTTz, and F-P3HT (Fig. 1(c)).15 These weak interactions include non-classical hydrogen bonds (CH–N, CH–O, CH–F) that are in the range of 1–2 kcal mol−1 and heteroatom interactions (S–S, S–O, S–N, S–F) falling below 1 kcal mol−1.16,17 This strategy induces a coplanar conformation without forming an overly rigid, poorly soluble ladder-type backbone, and has enabled the development of high-performance, solution-processable polymers for electronic and photovoltaic applications.18–21 Meanwhile, conventional hydrogen bonds have been proposed as an ideal way to achieve stronger noncovalent interactions (2–10 kcal mol−1) in the pursuit of a pseudoladder polymer structure that possesses a more well-defined coplanar conformation.22–25 In addition, hydrogen bonds can be manipulated through masking and unmasking by simple chemical transformations, such as protection with a tert-butyloxycarbonyl (Boc) group and corresponding high-temperature deprotection.26,27 These features make it possible to achieve highly rigid, coplanar, and solvent-resistant pseudoladder polymers without sacrificing solution processability, achieved through a precursor in which hydrogen bonds are masked. Meijer and coworkers pioneered the incorporation of intramolecular hydrogen bonds in conjugated macromolecules by constructing pseudoladder structures consisting of alternating 1,4-phenylenediamide and 1,4-pyrazine repeating units,22 as well as oligomers consisting of benzothiadiazole and pyrrole repeating units (Fig. 1(b), BTP).23 More recently, the Zhao28 and Fang29 groups have each explored this approach on acetylene-linked conjugated backbones (Fig. 1(b), ImA). It has been observed that fusing hydrogen bond-donating and accepting units into the backbone is essential for establishing robust intramolecular hydrogen bonding, due to the more favorable entropy contribution in such systems. Although the semiconducting performance of these materials has not been reported, the early work of Meijer notably shows a high conductivity of 1 S cm−1 achieved in the iodine-doped thin films of BTP oligomers.23 Recent efforts to implement this molecular design strategy into semiconducting systems have demonstrated promising performance in small molecules30 and non-ladder conjugated polymers.24,25 However, a semiconducting pseudoladder polymer featuring its backbone entirely locked by intramolecular hydrogen bonds has yet to be reported. Herein, we present such a hydrogen-bonded pseudoladder polymer (HPLP) system, which is solution-processable through the manipulation of latent intramolecular hydrogen bonds. This system exhibits desired semiconducting electronic properties and solvent resistance in device tests, owing to the rigid and coplanar backbone induced by these intramolecular hydrogen bonds.
![]() | ||
Scheme 1 Synthesis of benzobisimidazole-derived monomers 3a and 3b, small molecular models 4 and 5, polymer precursors BocP-a and BocP-b, and pseudoladder polymers HPLP-a and HPLP-b. |
In order to optimize the synthetic conditions and to instruct the characterization of the desired polymeric product, a small molecular model compound 5 was designed and synthesized prior to the synthesis of HPLP (Scheme 1). First, benzobisimidazole 1a and 1b are prepared in over 94% yields through simple condensation reactions of 1,2,4,5-tetraminobenzene hydrochloride salt with a carboxylic acid of choice (2-butylhexanoic acid for 1a and 3-octyltridecanoic acid for 1b). Bromination of 1a and 1b afforded the corresponding intermediates 2a and 2b. A mixed solvent of chloroform and acetic acid is needed here to fully dissolve 1a and 1b due to their poor solubility in most organic solvents. Although 2a and 2b seem suitable for cross-coupling, their poor solubility and the presence of N–H hydrogens prevented efficient conversion during our initial attempts of direct cross-coupling reactions. Therefore, 2a and 2b were subjected to Boc-protection, which proceeds quickly at 50 °C and converts the insoluble starting material suspended in tetrahydrofuran into a homogenous solution of the desired product. Note that two isomers are possible as the result of syn- and anti-protection of the two imidazole moieties. The more favorable anti-protected product 3a or 3b was isolated in good yields (55% and 51%, respectively).
Subsequently, trimethyltin-functionalized benzofuran was used as the coupling partner to react with 3a via palladium catalyzed Stille reaction to afford small molecule model 4, in which the hydrogen bonds are masked by Boc groups. In parallel, to synthesize the target polymer, Stille coupling reactions of 3a or 3b with a benzodifuran comonomer functionalized with two trimethylstannyl groups was conducted to give polymer BocP-a or BocP-b, respectively, in high efficiency. It is noteworthy that the Boc groups were partially removed during the Stille reaction, although both the resulting products BocP-a and BocP-b remained soluble in common organic solvents. The number average molar mass (Mn) and polydispersity (Đ) of both polymers were measured on an analytical gel permeation chromatography that was calibrated by polystyrene standards (Fig. S17 and Table S1, ESI†). BocP-a showed a measured Mn of 11.5 kg mol−1 and Đ = 2.15; while BocP-b had a higher Mn of 28.6 kg mol−1 and Đ = 1.98. Note that BocP-a is decorated with much smaller 1-butylpentyl side chains compared to the 2-octyldodecyl side chains of BocP-b, resulting in the molar mass obtained for BocP-a being considerably lower than that of BocP-b due to solubility limitations for longer polymer chains during the reaction. BocP polymers were purified and separated into fractions of different molar masses (Table S1, ESI†) on a preparative gel permeation chromatography to be used for various analyses such as nuclear magnetic resonance (NMR) and UV-Vis spectroscopy, cyclic voltammetry (CV), and scanning tunneling microscopy (STM). This was done to ensure lower polydispersity, and to accommodate the different solubility requirements for each mode of analysis.
Thermogravimetric analysis of compound 4 and BocP are marked by a significant loss in weight percent between 180–200 °C corresponding to Boc cleavage with no more significant decomposition occurring until the temperature exceeded 350 °C (Fig. S18 and S19, ESI†). These observations assure that thermal treatment at 180 °C under an inert atmosphere does not result in significant decomposition of the molecular backbone other than Boc cleavage. Indeed, synthetically, the Boc groups in 4 can be removed simply by heating at 180 °C for 1 h under a nitrogen atmosphere to afford the unmasked product 5 in quantitative yield. Quantitative conversion of BocP to the desired hydrogen-bonded pseudo ladder polymer HPLP was also achieved under the same conditions. The 1H NMR (Fig. 2(a)) and IR (Fig. S15 and S16, ESI†) spectra clearly illustrate the presence of Boc groups in 4 and BocP-a, and the cleavage of Boc groups in 5 and HPLP-a. Due to the partial cleavage of Boc groups in BocP-a during Stille polymerization, there is a weak peak at ∼10.7 ppm in the 1H NMR spectrum and a weak peak at 3417 cm−1 in the IR spectrum, respectively, which correspond to the unmasked N–H group. After thermal Boc cleavage, a higher intensity peak of the unmasked intramolecular hydrogen-bonded N–H group is observed in both 1H NMR and IR spectra.
Overall, Boc-protected polymers BocP-a and BocP-b exhibited good solubility in common organic solvents such as toluene, chlorobenzene, chloroform, and tetrahydrofuran. Upon Boc-deprotection, however, the solubility of HPLP polymers was greatly decreased (Table S2, ESI†). It should be noted that the well resolved 1H NMR peaks observed for HPLP-a in Fig. 2(a) were obtained using a sample of low molar mass (BocP-a: Mn = 7.3 kg mol−1, Đ = 1.83) due to the poorer solubility of higher polymer chains. For HPLP-a and -b, this low solubility was taken as an advantage to fabricate solvent-resistant thin films, by solution-processing the soluble precursor BocP-a or -b followed by in situ thermal Boc-cleavage, yielding thin films of HPLP exhibiting excellent resistance against a variety of organic solvents (Table S2 and Fig. S21, ESI†). This unique property renders this system highly promising for fabricating solvent-resistant functional polymer thin films for devices that are durable under strong organic solvents and suitable for multi-layer solution processing techniques.

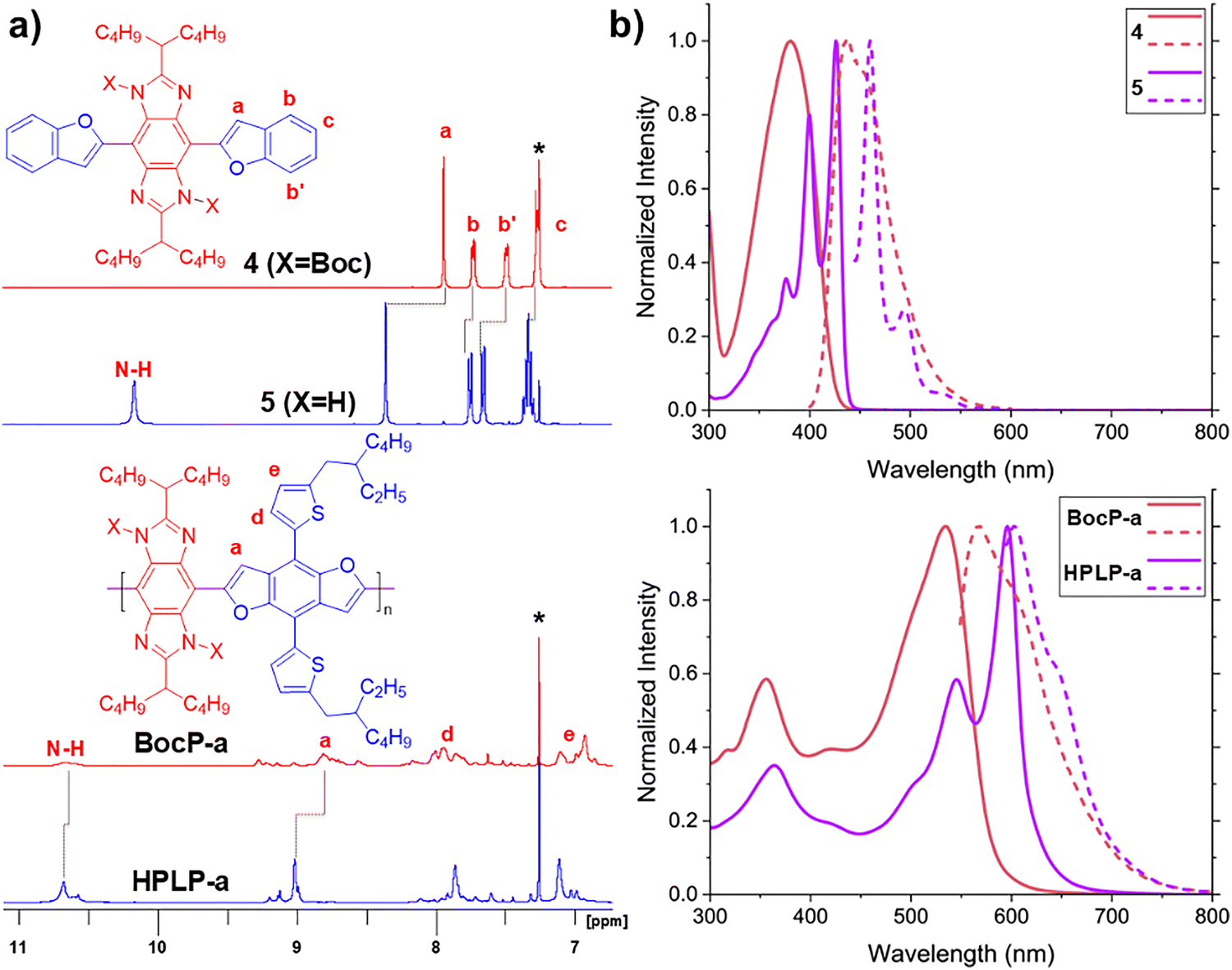

Boc-cleavage also results in significant changes to the optical properties and electronic structures of the designed conjugated systems (Table 1). Conversion of 4 to 5 resulted in a 45 nm redshift in λmax accompanied by an astounding change in absorption features from one broad peak in 4 to well-defined vibrational peaks for 5 (Fig. 2(b)). The redshift, i.e. decrease of optical bandgap, indicates better π-conjugation between the repeating units due to the more coplanar conformation, while the narrowed vibrational peak indicates the local rigidity of the π-system has increased drastically. Similar changes in the UV-Vis and fluorescence spectra peak patterns between BocP-a and HPLP-a were also observed along with an increased redshift of 62 nm and a decreasing stoke shift (Δ) from 35 to 6 nm, respectively (Fig. 2(b) and Table 1). Although boc-protected precursors show similar absorption onsets to their hydrogen-bonded counterparts indicating similar band gaps, cyclic voltammetry showed significant changes to HOMO energy levels and small changes to LUMO levels. The similar absorption onset is likely a result of relatively coplanar conformations in boc-protected precursors bring present in low concentrations, whereas their hydrogen bonded counterparts exist in mostly coplanar conformations as indicated by their sharp vibration peak pattern and λmax lying nearer to their respective onset absorptions. To obtain accurate CV measurements in solution, a lower molar mass sample of 2-octyldodecyl-decorated BocP-b (Mn = 13.5 kg mol−1, Đ = 1.30) and HPLP-b were investigated as the model polymers due to the improved solubility of HPLP-b in tetrahydrofuran compared to that of HPLP-a. CV measurements (Fig. S29 and S30, ESI†) demonstrate a significantly decreased bandgap of 5 (1.59 eV) and HPLP-b (1.38 eV) compared to 4 (1.82 eV) and BocP-b (2.17 eV), respectively (Table 1). The decreased bandgaps in both 5 and HPLP is primarily attributed to the increase of the HOMO level after removal of the electron-withdrawing Boc groups and the coplanar conformation induced by the intramolecular hydrogen bonds, with little change to the LUMO being observed.
To gauge the strength of these intramolecular hydrogen bonds and the coplanarity of the designed conjugated system, torsional analysis was performed using density functional theory (DFT) on a BBI-benzofuran model molecule by rotating about the bridging single bond in 15° intervals and recording free energy at B3LYP/6-31G(d) level of theory (Fig. 3(a)). Results showed rotational barriers of 9.6 kcal mol−1 and a calculated coplanarity parameter45 of 〈cos2(φ)〉 = 0.93. This result suggested that intramolecular hydrogen bonding interactions lead to energetically favorable coplanar conformations in the gas phase. Single crystals of compounds 4 and 5 were grown for X-ray diffraction analysis (Fig. 3(b) and (c)). Despite its sterically demanding Boc groups, 4 demonstrates a fairly small dihedral angle of 21° between the BBI unit and the benzofuran unit (Fig. 3(a), bottom). This dihedral angle is likely decreased by the weak C–H⋯N hydrogen bonding interactions between 2-position of the furan ring and the basic nitrogen center on the BBI unit, evidenced by the short C⋯N distance of 3.15 Å falling within traditional hydrogen bonding distance. In the unmasked molecule 5, a smaller dihedral angle of 13° was observed between the BBI unit and the benzofuran. The short distances of O–N (2.85 Å) and C–N (3.04 Å) confirm the formation of two hydrogen bonds N–H⋯O and C–H⋯N on both sides of the covalent C–C bond. It is interesting to observe that 5 exhibits a non-zero dihedral angle in the solid-state structure, while gas-phase DFT calculations suggest that the dihedral angle should be zero. This discrepancy is likely due to strain induced by intermolecular interactions in the solid state, primarily the intermolecular interaction between the furan oxygen and the BBI's N–H unit that competes against intramolecular hydrogen bonding. This interaction is evident from the relatively short intermolecular O–N distance of 3.3 Å in the crystal structure (Fig. 3(d)). Further evidence for this interaction is provided by an endothermic peak observed at ∼200 °C during differential scanning calorimetry (DSC) of single crystals of 5 (Fig. S19b, ESI†). This peak does not appear in the second scan of the same sample following a melt-solidify cycle or in a powder sample of 5 (Fig. S19a, ESI†). Considering the solution-phase conformation of 5 and the polymers HPLP, it is believed that such intermolecular interactions are not dominant, allowing the intramolecularly hydrogen-bonded molecule to adopt a near-zero dihedral angle in solution as suggested by DFT calculations.
Supporting the DFT calculations, variable temperature-NMR spectra of HPLP-a show little change from 20 to 100 °C (Fig. 4(a)), and variable temperature UV-Vis spectra of its thin films show only a slight blue shift when taken to 250 °C (Fig. 4(b)). Similar behavior was observed in the solution-phase UV-Vis analyses of HPLP-a and HPLP-b (Fig. S27 and S28, ESI†), as well as NMR and UV-vis spectra of small molecule analog 5a (Fig. S13 and S26, ESI†). The high-temperature robustness of intramolecular hydrogen bonds in 5 and HPLP-a can be attributed to the unfavorable entropy change for breaking these hydrogen bonds, due to the additional solvation of the hydrogen-bond donor and acceptor sites once they are dissociated. These results suggest that, although not as strong as the covalent bonds used in traditional ladder polymers, these intramolecular hydrogen bonds can still be used for the same purpose of locking conjugated polymers into a highly robust coplanar rigid conformation.
Both BocP-b (Mn = 12.8, Đ = 1.5) and HPLP-b polymers were analyzed by ultrahigh vacuum STM after having been deposited as monolayer films in vacuum by electrospray deposition onto an atomically clean, flat Au(111) surface (Fig. S32 and S33, ESI†).46–48 In both cases, the polymers appear as extended linear structures with few bends. No substantial difference could be observed between BocP-b and HPLP-b, likely due to the planarizing effect of face-on surface adsorption on the backbone conformation. In areas of higher coverage (Fig. 5), the polymers tend to self-assemble into locally compact arrangements by aligning their backbones parallel to each other. The average distance between polymers, d = 3.5 ± 0.5 nm, is compatible with a packing model in which the side chains of adjacent polymers interlock with a minimal interdigitation (Fig. S33, ESI†), similar to what has been observed in other conjugated polymers with a high density of side chains attached to the backbones.46 Polymer crossings are occasionally observed at near-perpendicular angles (Fig. 5 and Fig. S32a, ESI†), a feature that was recently highlighted as beneficial for promoting a highly interconnected charge carrier transport network, thereby enabling high charge transport mobility.47,48 In addition, the molar mass of the BocP-b sample was evaluated by measuring the lengths of 607 individual chains identified in the STM images. The statistical average molar mass and its distribution closely align with the results obtained from GPC (Fig. S34, ESI†). This finding demonstrates the powerful capability of STM in accurately measuring and calibrating the molar mass of rigid conjugated polymers.
To test the effect of hydrogen bond-induced coplanarity on electronic performance, organic thin-film transistors composed of BocP-a (Mn = 16.1 kg mol−1, Đ = 1.42) and HPLP-a generated in situ from BocP-a are tested (Fig. 6). A bottom-gate/top-contact device architecture is employed. To fabricate the devices, BocP-a polymers were spin-coated onto n-octadecyltrichlorosilane (OTS)-treated SiO2/Si substrates, while gold was deposited as the source and drain electrodes, detailed in the ESI.† The as fabricated device of BocP-a shows a low hole mobility of 5.2 × 10−5 cm2 V−1 s−1. Such device was directly heated in N2 atmosphere at 180 °C for 1 h to convert BocP-a in the active layer into HPLP-a in situ. The resulting devices show a hole mobility of 4.6 × 10−2 cm2 V−1 s−1, marking a significant increase for three orders of magnitude. An improvement was also observed when comparing BocP-b to HPLP-b with films exhibiting hole mobilities of 8.5 × 10−9 cm2 V−1 s−1 and 3.4 × 10−6 cm2 V−1 s−1, respectively (Fig. S36, ESI†). The drastic enhancement in charge carrier mobility can be attributed to change in electronic band gap, lower reorganization energies, and improved packing of the pseudoladder polymer chains containing intramolecular hydrogen-bonding interactions. To investigate this, atomic force microscopy (AFM) was performed on hydrogen-bonded polymers and their Boc-protected precursors (Fig. S37, ESI†). AFM revealed a reduction in film thickness from BocP-a (40 nm) to HPLP-a (26 nm), while the root-mean-square (rms) roughness remained similar (0.5 nm). A less pronounced thickness change was observed between BocP-b (42 nm) and HPLP-b (35 nm), with the rms roughness again unchanged (1.7 nm). The decreased film thickness in the hydrogen-bonded polymers correlates with their enhanced charge transport, while the higher rms roughness of HPLP-b compared to HPLP-a may contribute to its lower charge-carrier mobilities.
Along with the extraordinary improvement in electronic performance upon hydrogen bond-induced coplanarity, HPLP-a lies among some of the highest mobilities achieved for benzodifuran based conjugated polymers.49–55 As benzobisimidazole is unexplored in the field of organic semiconducting materials, its effect on coplanarity and rigidity of polymer chains may serve to maximize performance of other high-performing monomers as it has done with benzodifuran.
