Enhancing the NO₂ detection ability of surface acoustic wave sensors with ZnO-decorated N-doped porous carbon nanosheets

Abstract

Effective detection of nitrogen dioxide (NO₂) is crucial for environmental safety and human health. Gas sensors utilizing surface acoustic wave (SAW) technology hold significant promise for detecting hazardous gases, but their performance heavily depends on the intrinsic properties of the sensing layer materials. In this study, we elaborate on using ZnO nanoparticle-dispersed N-doped porous carbon nanosheets (ZnO@N-PCNs) for SAW sensors aimed at achieving rapid NO₂ detection at room temperature. The resultant ZnO@N-PCNs SAW gas sensor exhibits a significant frequency shift of approximately −4.4 kHz, which is much higher than that of the pristine N-PCNs SAW sensor at a NO₂ concentration of 20 ppm. It responds quickly when exposed to NO₂ gas, and demonstrates specific selectivity and good reproducibility over both short and long terms. This work reveals the sensing properties of ZnO-optimized SAW sensors and provides valuable guidance for the development of high-sensitivity SAW sensors.

---

1. Introduction

Nitrogen dioxide (NO₂), as one of the typical harmful gases polluting the air, has a negative impact on human health and environmental safety. Long-term exposure to high concentrations (ppm) of NO₂ gas can readily lead to respiratory diseases such as asthma and lung cancer, and in some cases, even result in death.^1,2 Even at low concentrations, NO₂ gas contaminants can damage hemoglobin in the blood over time, leading to health crises such as respiratory irritation, headaches, and oxygen deficiency.^3,4 Additionally, the emission of NO₂ into the atmosphere contributes to air pollution, acid rain, and other environmental problems, including vegetation withering and land degradation, which cause irreversible damage to the environment. Hence, the development of advanced gas sensors for real-time monitoring of NO₂ is urgently needed. These gas sensors should be simple to use, and have low detection limits, high sensitivity, precise selectivity, and high reproducibility.

A variety of gas sensors, such as electrochemical sensors,⁵ quartz crystal sensors,⁶ semiconductor sensors,⁷ optics sensors,⁸ and surface acoustic wave (SAW) sensors,^9,10 have been extensively utilized to detect NO₂ gas. Most of these sensors are characterized by being relatively expensive, having low sensitivity and poor selectivity, and requiring harsh testing environments.^10,11 In contrast, SAW sensors are considered a promising alternative for NO₂ gas detection due to their affordability, portability, low detection limits, excellent sensitivity, and rapid response/recovery time at room temperature.¹² As an acoustic wave resonator, the acoustic energy of a SAW device is concentrated on the surface area between the double interdigital transducers (IDTs). Disturbances from external stimuli can cause changes in the quality, resistance, and elasticity of the sensitive layer as shown in Fig. S1 (ESI†). These factors can influence the speed of acoustic wave propagation, typically resulting in changes in frequency and amplitude.^12,13 Therefore, selecting appropriate sensing materials with optimal structures and compositions is crucial for engineering high-sensitivity SAW sensors.

In recent years, two-dimensional (2D) nanomaterials featuring various fine nanostructures, such as graphene and its derivative, g-C₃N₄, and MXene, have emerged as key players in enhancing the sensitivity of SAW sensors and significantly accelerating gas adsorption kinetics. Their multiple advantages,¹⁴ including excellent electrical conductivity, large specific surface areas, and fine pore structures, contribute to these improvments.^15,16 However, recent studies have indicated that the lack of active adsorption sites is a major issue limiting the sensing performance of SAW sensors, often resulting in low sensitivity and poor selectivity to gases.

To address this, various modification methods, including doping with heteroatoms,¹⁷ decorating with metal oxide nanoparticles,¹⁸ constructing heterostructures,¹⁹ and more, have been proposed to optimize these 2D nanomaterials, further enhancing the sensing properties of the corresponding SAW sensors. Among these methods, decorating 2D materials with nanosized transition metal oxide particles such as TiO₂, WO₃, SnO₂, and CuO is particularly advantageous due to their adjustable structures, small size and dimensions, and high electron transfer capabilities.²⁰

These polar materials can also provide abundant adsorption sites, enhance the chemical affinity of 2D surfaces for harmful gas molecules, and thereby further improve sensing capabilities. For example, Sun et al. reported that immobilizing SnO₂ nanocrystals on the GO surface with a porous structure resulted in a very low detection limit, outstanding sensitivity, and a rapid response time compared to the original materials.²¹ Kedharesara et al. reported a TiO₂ nanoplate decorated 2D g-C₃N₄ composite, which has a large surface area, numerous oxygen vacancies, and functional groups that provide abundant active sites for the adsorption and diffusion of NO₂ molecules.²² Similarly, Zhang et al. prepared a GO-MoS₂/SnO₂ ternary composite that achieved excellent sensing performance, primarily due to its large surface area, increased adsorption and reaction sites, and enhanced conductivity through the heterojunctions.²³ ZnO offers numerous advantages, including chemical and thermal stability, high electron mobility, nontoxicity, a large exciton binding energy, and low cost. These merits are expected to enhance electron transport kinetics and provide abundant active sites, making ZnO an excellent candidate for 2D sensing materials in SAW sensors for NO₂ detection.^24–26 However, ZnO nanoparticles have not yet been adopted as a candidate to decorate 2D sensing materials, and their behavior in SAW sensors for NO₂ detection has not been investigated.

In this study, ZnO nanoparticle decorated N-doped porous carbon nanosheets (ZnO@N-PCNs) are designed for the first time as sensing layer materials for NO₂ detection using SAW sensors at room temperature. Experimental and theoretical results show that ZnO provides N-doped porous carbon nanosheets with abundant adsorption sites, significantly enhancing the NO₂ detection capability of SAW sensors. The improved NO₂ detection ability of ZnO@N-PCNs in SAW sensors is demonstrated by their high sensitivity, precise selectivity, and good reproducibility at room temperature. Additionally, we investigate the impact of various relative humidities on the sensing performance and elucidate the microscopic sensing mechanism of SAW sensors with ZnO@N-PCN sensing layers. Impressively, the theoretical calculations based on density functional theory (DFT) simulate the structure of different prepared samples from the atomic/electronic scale through the establishment of computational models. It simulated the complex reaction processes and calculated the adsorption energies of the sensing materials. This work not only elucidates the key properties of ZnO-decorated N-doped porous carbons in SAW sensors but also provides a new approach for designing highly efficient sensing materials for SAW sensors.

2. Results and discussion

2.1 Material design and characterization

ZnO@N-PCNs were derived through the impregnation method and high-temperature calcination, and are schematically depicted in Fig. 1a (see the ESI† for testing and preparative details). Fig. 1b shows the XRD patterns of N-PCNs and ZnO@N-PCNs. The N-PCNs display a broad diffraction peak at around 23°, corresponding to the lattice plane (002) of graphitic carbon, indicating a layered structure of carbon materials.²⁷Fig. 1c indicates the fluffy morphology of the N-PCNs, which are composed of thin carbon nanosheets. They exhibit graphene-like microscopic morphology with wrinkles. In the XRD pattern of the ZnO@N-PCNs, strong characteristic peaks appear at 31.7°, 34.4°, and 36.2°, in addition to the peaks attributed to carbon. These emerging peaks correspond to (100), (002), and (101) lattice planes of ZnO (JCPDS NO. 36-1451), respectively. Fig. 1d clearly shows the distribution of ZnO nanoparticles, with an average size of 32.38 nm (Fig. S2, ESI†), on the surfaces of N-PCNs, resembling scattered pearls on plates. It can be observed that the growth of ZnO does not disrupt the overall morphology of N-PCNs. The TEM image in Fig. 1e further confirms that ZnO nanoparticles are uniformly distributed across the carbon nanosheets. Energy-dispersive X-ray (EDX) analysis was performed to identify the elements present in the ZnO@N-PCN composite (Fig. S3, ESI†). The EDX elemental mappings (Fig. 1f-i) clearly show the distribution of all elements in the ZnO@N-PCN composite, including C, N, O, and Zn.

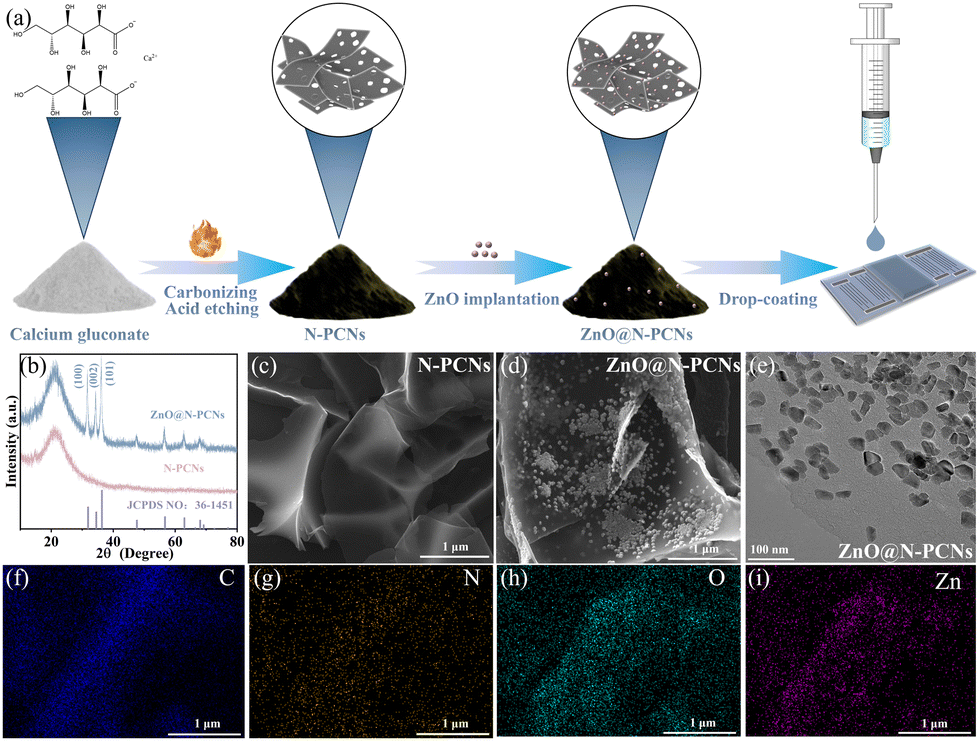

Fig. 1 (a)–(d) Synthesis process, XRD patterns, and SEM images of N-PCNs and ZnO@N-PCNs; (e) TEM and HRTEM images of the ZnO@N-PCNs; (f)–(i) EDX elemental mapping of ZnO@N-PCNs, including C, N, O, and Zn, respectively.

The chemical valence and orbital states of the synthesized sensing materials were further examined by XPS analysis. The distinct peaks in the survey spectrum (Fig. 2a) correspond to the elements of Zn, O, N, and C. In the XPS spectra of Zn 2p (Fig. 2b), two peaks attributed to Zn 2p_3/2 and 2p_1/2 are clearly visible, located at approximately 1022.7 and 1045.9 eV, respectively.²⁸ This suggests the fully oxidized states of Zn species.²⁸ The O 1s spectra show two peaks at 531.5 and 532.7 eV, respectively (Fig. 2c). The peak at 531.5 eV is attributed to oxygen vacancies or defects on the sample surface,^21,22 while the peak at 532.7 eV is associated with absorbed active oxygens,²⁸ and the peak at 530.2 eV is attributed to surface lattice oxygen combined with Zn²⁺. The high-resolution N 1s spectra of the sample in Fig. 2d show three distinct peaks corresponding to N (398.8 eV), pyrrolic N (399.7 eV), and graphitic N (400.6 eV).^26,29 This result suggests that nitrogen has been successfully introduced into the sample, which is also supported by the EDX results. The presence of elemental N is beneficial for enhancing the electronic conductivity of carbon nanosheets. Fig. 2e depicts the XPS spectra of C 1s resolved into three distinct peaks at 284.8, 285.7, and 288.9 eV, respectively. These peaks are assigned to the C–C (epoxy and hydroxyl groups), C–N, and O–C=O bonds (carboxyl groups), respectively.^23,27 FTIR analysis was conducted to further analyze the chemical structure and the surface functional groups of the ZnO@N-PCNs (Fig. S4, ESI†). The characteristic band located at 1646 cm⁻¹ can be attributed to the stretching modes of C=C/C=O, indicating that the deoxidation and hydroxylation reaction dominated the process of carbonation.³⁰ The slight peak at 1054 cm⁻¹ corresponds to C–O–C vibration.³¹

Fig. 2 (a) The XPS spectrum of the ZnO@N-PCNs; (b)–(e) XPS spectra of Zn 2p, O 1s, N 1s, and C 1s; (f) Raman spectra of the ZnO@N-PCNs and N-PCNs.

There are two dominant Raman peaks positioned at 1352.9 and 1554.8 cm⁻¹ in the spectra (Fig. 2f), both of which correspond to D and G bands of carbon materials, respectively.³² The D band usually represents the disordered structure of amorphous carbon and the G band suggests the sp²-hybridized graphitic structure of ones. The intensity ratio of the D band and G band (I_D/I_G) is a direct indicator of the graphitization degree of carbon. The calculated I_D/I_G value of N-PCNs is about 0.998, suggesting the partially graphitized carbon structure and further verifying the XRD results.³³ Despite post-treatments via impregnation of ZnO, the I_D/I_G value of the sample material remains almost unchanged, demonstrating the structure/chemical stability of the N-PCNs. Meanwhile, the slight peaks around 379 and 575 cm⁻¹ reflect the A₁(TO) and A₁(LO) phonon modes, which are usually represented by the oxygen vacancy and zinc interstitial defects of the ZnO sample.³⁴ This phenomenon exactly validates the aforementioned-XPS analysis results.

The N-PCNs and ZnO@N-PCNs exhibit absorption in the UV-vis DRS spectra (Fig. S4a, ESI†), caused by the generation of electrons from the valence to the conduction band within the sensing material.³⁵ At the same time, the ZnO@N-PCNs display a slight shift in the absorption edge (∼372 nm) in comparison with the N-PCNs (∼362 nm), which is attributed to the prominent light harvesting ability of the ZnO nanoparticles to enhance the periodic reflections of light (Fig. S5a, ESI†).³⁵ Furthermore, the PL measurement explored the charge separation and recombination behaviors of the two samples. The ZnO@N-PCN composite clearly exhibits a lower intensity than the N-PCNs (Fig. S5b, ESI†), indicating the weaker recombination ability and excellent separation of photoinduced charge carriers in the ZnO@N-PCN composite, which is beneficial for light-assisted gas sensing reactions.^35–37 Moreover, electrochemical impedance spectroscopy (EIS) was carried out on the two samples (Fig. S6, ESI†). The ZnO@N-PCN composite shows a smaller arc radius compared with the N-PCNs, demonstrating the smaller charge transfer resistance of the ZnO@N-PCNs. This implies faster interfacial charge transport of the change carriers and can assist in augmenting gas sensing fidelity.³⁸ The N₂ adsorption–desorption method was employed to analyze the specific surface area and porous structure of the as-prepared sensing materials. The ZnO@N-PCNs are characterized by a large BET-specific surface area of 541.24 m² g⁻¹ and an extensive pore size of 3.29 nm (Fig. S7a and b, ESI†). It may facilitate the adsorption of NO₂ on the surface of the sensing layer and promote NO₂ gas molecules to diffuse into the interior of the sensing film, further enhancing the large-area contact between the ZnO@N-PCNs and the target gas, thereby improving the sensing performance. To assess the intrinsic characteristic of the SAW sensor, the working frequency (WF) and the insertion loss (IL) of both samples were also measured, as shown in Fig. S8 (ESI†). The ZnO@N-PCNs-based SAW sensor possesses a WF of 201.16 MHz and an IL of −22.51 dB, the N-PCNs-based SAW sensor possesses a WF of 201.17 MHz and an IL of −20.49 dB, and the bare SAW sensor possesses a WF of 201.18 MHz and an IL of −16.88 dB. The discrepancy of WF results from the increased mass loading, causing a frequency shift of SAW devices to a lower level. The difference in the IL is attributed to the decrease in the SAW energy at the different interface sensing layers.^22,39

2.2 DFT calculations

To further investigate the adsorption mechanism of NO₂ molecules on the ZnO@N-PCN surface, the adsorption of optimal energy models of NO₂ molecules on the ZnO, N-PCN, and ZnO@N-PCN surfaces was calculated using the first principles of density functional theory (DFT).^40,41 Computational details are described in the ESI.† The adsorption energies of the optimal O₂ adsorption configuration are shown in Fig. S9 (ESI†). The adsorption energies of O₂ on the ZnO and N-PCN surfaces are 0.92 eV and 0.54 eV, respectively. The large adsorption energy indicates that ZnO can readily absorb more oxygen molecules to form additional O₂⁻, which subsequently reacts with NO₂ molecules to form NO₃⁻. Additionally, the preparation of ZnO nanoparticles generates numerous oxygen vacancies, enabling the absorption of oxygen molecules from the air. These molecules then combine with electrons on the composite surface to form various oxygen species, thereby enhancing the adsorption of more target gases. Fig. 3a–c show the adsorption configurations and corresponding adsorption energies of NO₂ molecules on the N-PCNs, ZnO, and ZnO@N-PCNs. The interaction between NO₂ and carbon is sustained via strong covalent N–O bonds with a binding energy of 0.80 eV. ZnO also interacts with NO₂ molecules via N–O bonds with a binding energy of dual bonding of 2.13 eV. Differently, a dual binding mechanism based on N–O and Zn–O bonds is observed between NO₂ molecules and ZnO@N-PCNs, with a binding energy of 2.75 eV. Particularly, ZnO with adsorptive sites can provide more active sites to adsorb NO₂ molecules, while N-PCNs provide a large specific area to support the attachment of more adsorptive sites to it. In short, the synergetic effect promotes the composite (ZnO@N-PCNs) to adsorb more NO₂ on the composite (Fig. 3d). It is noteworthy that the adsorption energy of NO₂ on the surface of ZnO@N-PCNs is greater than that of O₂, indicating that the adsorption is exothermic.

Fig. 3 The favorable configurations of NO₂ adsorption on (a) N-PCNs, (b) ZnO, and (c) ZnO@N-PCNs. (d) The adsorption energies of NO₂ on different sensing materials.

2.3 Sensing performance

The frequency shifts of different NO₂ concentrations, ranging from 1 ppm to 100 ppm, were measured at room temperature (Fig. 4a and b). Clearly, the frequency shift of both types of SAW sensors gradually increases with the concentrations of the NO₂ gas. Notably, a larger negative frequency shift of ∼9.14 kHz (nearly ∼1.88-fold increase) compared to that of the N-PCN SAW sensor (∼4.86 kHz) at a concentration of 100 ppm NO₂ (Fig. 4c) is observed in the ZnO@N-PCNs based-SAW sensor. This can be attributed to the abundant adsorption sites dispersed onto carbon nanosheets with a large specific surface area and heterostructure-induced fast electron transport for NO₂-associated surface reactions. Fig. 4d shows little change over 7 cycles towards a concentration of 10 ppm NO₂, indicating the excellent short-time repeatability of the ZnO@N-PCN SAW sensor. The selectivity of ZnO@N-PCN and N-PCN SAW sensors was evaluated by exposing them to 20 ppm of interfering gases, including CH₂Cl₂, NH₃, H₂S, H₂, C₆H₁₄ and NO₂ (Fig. 4e). Notably, the frequency shift of the ZnO@N-PCN-based SAW sensor exhibits a higher negative shift at a concentration of 20 ppm NO₂ gas. This result indicates that the ZnO@N-PCNs SAW sensor possesses excellent selectivity for NO₂ gas. The enhanced selectivity of the ZnO@N-PCNs SAW sensor towards NO₂ gas can be attributed to the abundant adsorption sites dispersed onto N-doped carbon nanosheets with a large specific surface area and fast electron transport. Meanwhile, NO₂ has the highest affinity for electrons and the strongest ability to capture electrons compared with the aforementioned-gases, which favors promoting surface reactions with semiconductor oxides through O and N atoms.²² The ZnO@N-PCNs SAW sensor also exhibits long-term stability for every 7 days consecutively up to 63 days, as shown in Fig. 4f, with only slight fluctuations observed. Table S1 (ESI†) summarizes the sensing performance of various SAW sensors with different sensing layers for NO₂ detection, covering sensitive materials, operating temperature, sensitivity, and response/recovery time. It clearly shows the advantages of the ZnO@N-PCNs SAW sensor in NO₂ detection at room temperature.

Fig. 4 (a) and (b) The frequency shift of two kinds of prepared sensors; (c) the intuitive comparison of frequency shifts between both types of SAW sensors; (d) short cycling stability test of the ZnO@N-PCNs SAW sensor; (e) selectivity evaluation of the as-prepared SAW sensors; (f) long cycling stability of the ZnO@N-PCNs SAW sensor.

The effect of different humidity levels, including 20%, 32%, 66%, and 88%, on the frequency shifts was further measured at a concentration of 20 ppm NO₂ (Fig. S10a, ESI†). The response shift of the ZnO@N-PCNs SAW sensor tends to increase with the humidity. This experimental phenomenon indicates that adsorbing NO₂ plays a dominant role in the negative frequency shift when exposed to low humidity. As the humidity increases, the dominant factor affecting the sensor's response becomes the adsorption of H₂O molecules, as the physically adsorbed water molecules add weight to the sensing layer.^21,42 The high tolerance of the ZnO@N-PCNs SAW sensor was further demonstrated by repeated testing under high humidity conditions, as shown in Fig. S10b (ESI†).

2.4 Sensing mechanism

The speed of acoustic wave propagation over the sensing layer in the SAW gas sensor is mainly influenced by three factors: mass, conductivity, and elasticity, which manifests as changes in frequency.^43,44 The relationship between the frequency shift and these parameters can be defined using the following equation (eqn (1))⁴⁵Here, the first term represents the elastic loading, which results in a positive shift. The second term represents the mass loading, and the third term represents the electrical effect, both of which usually result in a negative shift. In this equation, Δf and f₀ are the resonant frequency shift and the operating frequency, respectively. C_e is the elasticity coefficient and C_m is the mass sensitivity parameter. h represents the longitudinal height of the sensing layer. The shear modulus of the sensitive film is expressed by G′. The mass per unit area is represented by ρ_s. K² is the electromechanical coupling of the piezoelectric substrate material, and the sheet conductivity of the sensing layer is replaced by σ_s. C_s represents the permittivity and its value is usually 0.5 pF cm⁻¹. And V₀ is the original SAW wave velocity, and its value is 3158 m s⁻¹.

According to the above experimental results, both types of SAW sensors exhibit a negative shift when exposed to NO₂ gas, indicating that the main factor for the augmented negative frequency shift should be ascribed to the mass loading or the electrical loading.^22,23,35,39 Accordingly, the effect of elastic loading on frequency shifts can be excluded from the sensing mechanism. An impedance-type sensor was manufactured and measured under the same conditions to evaluate and demonstrate the main contribution of mass and conductivity to the frequency response. As depicted in Fig. S11a (ESI†), the resistance of ZnO@N-PCNs obviously increased when exposed to 100 ppm NO₂ gas, whereas the resistance of N-PCNs slightly decreased. As can be observed from Fig. S11b (ESI†), the ZnO@N-PCNs sensor exhibits a sensitivity about 0.2% with a response/recovery time of 84.6 s/100 s, respectively.^22,35 Besides, the relevant data were substituted into the third term of eqn (1) to calculate the resonant frequency shift. It shows that the resonant frequency shift caused by resistance changes can be almost negligible at a concentration of 100 ppm NO₂. These results imply that the frequency change caused by resistance accounts for a small, negligible proportion of the overall frequency shift, further clarifying that the mass loading effect is the dominant cause of the negative frequency shift in the ZnO@N-PCNs SAW sensor. This also provides a feasible method to quantitatively calculate the mass loading effect of the SAW gas sensor. The gas sensing mechanism schematic diagram of the ZnO@N-PCNs is depicted in Fig. 5. In an air atmosphere, O₂ molecules are attached to the ZnO@N-PCN surface and are ionized into oxygen species (e.g., O²⁻ and O₂⁻) by accepting free electrons from the conduction bands. This process is accompanied by the generation of an electron depletion layer (eqn (2) and (3)), as shown in Fig. 5a. When the ZnO@N-PCNs are exposed to a NO₂ gas atmosphere (Fig. 5b), the generated oxygen species chemically adsorb NO₂ molecules to produce some of the NO₂⁻ and NO₃⁻ ions, which consume electrons to form a deeper depletion layer on the surface. This process is accompanied by the decay of electron concentration and the increase in sample resistance, as given in the following eqn (4)–(6). It should be noted that the negatively charged sites located on the pyridinic-N of N-PCNs contribute to the process of adsorbing NO₂ gas molecules, and a number of active oxygens species adsorbed on the surface of the sensing material also provide desired sites for the rapid adsorption of NO₂.²² Moreover, the large surface area and abundant defective oxygen vacancies of the ZnO@N-PCNs provide more adsorption sites that are beneficial for adsorbing more oxygen and target gas molecules, thus facilitating the fast diffusion kinetics of NO₂via quick adsorption and desorption.⁴⁶

O_2(gas) → O_2(ads) (2)

O_2(ads) + e⁻ → O₂⁻_(ads) (3)

NO₂ + e⁻ → NO₂⁻_(ads) (4)

NO₂ + O₂⁻_(ads) → NO₂ + O₂ (5)

2NO₂ + O₂⁻_(ads) + e⁻ → 2NO₃⁻_(ads) (6)

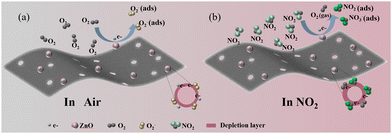

Fig. 5 Schematic diagram of the sensing mechanism (a) in air and (b) in the NO₂ atmosphere.

3. Conclusions

In this work, ZnO@N-PCNs have been designed as a sensitive material for SAW devices to detect NO₂ gas. The porous sensing material, with a large surface area, is deposited onto the SAW device using the drop coating method. It exhibits an outstanding frequency shift of approximately –4.4 kHz at a NO₂ concentration of 20 ppm at room temperature. The ZnO@N-PCNs SAW sensor demonstrates good stability, a fast response time, outstanding selectivity, and excellent short- and long-term repeatability. Furthermore, increased humidity significantly enhances the sensor's performance, while the prepared SAW sensor maintains good stability even under high humidity conditions. The enhanced sensing performance can be attributed to the synergistic effects of the composition and structure of ZnO@N-PCNs, including an enlarged specific surface area, increased adsorption energy, and additional active adsorption sites. These factors facilitate the diffusion and adsorption of NO₂ molecules on sensitive materials. This work is expected to inspire a novel design pathway for the sensing materials used in SAW gas sensors.
