Quantum dots (QDs) are semiconducting inorganic nanocrystals, that have garnered interest in biological and medical spheres due, to their potential benefits in biomedical imaging and drug-delivery systems. Indium phosphide QDs shelled with zinc sulphide (InP/ZnS) are viewed as more biocompatible than previous heavy metal based QDs. However, little is known about how InP/ZnS QDs affect a key blood cell, the platelet. Understanding how platelets interact with QDs is critical as unwanted activation can lead to pathological thrombus formation. Herein, we demonstrate PEGylation of InP/ZnS QDs coated with lipoic acid (QD-LA) or coated with penicillamine (QD-Pen) surface ligands induced markedly less platelet aggregation, platelet–QD interactions, integrin activation, alpha granule secretion and restored platelet spreading in washed platelets in comparison to their non-PEGylated counterparts. Furthermore, in whole blood, PEGylation of QDs reduced the number of QDs in the thrombus, thereby helping to minimise the chance of dysfunctional thrombus formation. Overall, we show that QD PEGylation is important to help prevent QD mediated platelet activation. In combination with the most biocompatible coating, PEGylation markedly reduced platelet activation, widening the concentrations at which QDs were viable for development as potential drug delivery or imaging agents.
At present, there are a range of clinically available imaging modalities to identify thrombi such as computed tomography (CT), magnetic resonance imaging (MRI) and ultrasound.2 However, such modalities are designed to identify hypoperfusion of affected tissues rather than the thrombus. Nanotechnological devices, such as quantum dots (QDs), are the subject of investigation as aides to clinical imaging techniques. QDs are semiconducting nanocrystals with a size-dependent tuneable emission. The core/shell structured QDs historically contain heavy metals in their cores.3,4 These cores can be made up of elements from groups II–VI, group IV, and groups III–V. Importantly, to improve biocompatibility and fluorescent properties, QDs can be shelled with elements from groups II–VI. QDs represent favourable fluorescent probes for biomedical imaging due to their photostability, large Stokes shift, high brightness, and extended excited state lifetimes.4 Indeed, QDs have been previously used to image atherosclerosis in vivo.5–7 There is also the possibility of multimodal imaging capacity due to the potential combination of QDs with radioisotopes for positron emission tomography (PET) or single photon emission computed tomography (SPECT), or contrast agents for MRI.8–10 In addition, QDs have been used as drug delivery systems.11,12
In the context of platelets and coagulation, cadmium (Cd) based QDs have been the most intensively investigated. CdTe/ZnS QDs have been found to interact with, and cause conformation changes in, the clotting proteins fibrinogen, plasminogen, and prothrombin.13 In addition, the size and surface chemistry of the QDs is also relevant with smaller QDs associated with activation of the coagulation cascade.14
It has been demonstrated that Cd-based QDs can activate platelets with resultant aggregation. Smaller CdTe QDs cause activation at lower concentrations than larger QDs.15 CdSe/ZnS QDs functionalised with carboxyl groups cause thrombosis in a dose-dependent manner, which was not observed with amine-functionalised QDs, potentially due to differing zeta potentials. These QDs did not result in platelet aggregation, with observed platelet activation being secondary to activation of the coagulation cascade.16
Previously, we have investigated InP/ZnS QDs as a biocompatible alternative to toxic Cd based QDs. The InP/ZnS QDs were coated with either thioglycolic acid (TGA), lipoic acid (LA), penicillamine (Pen), or glutathione (GSH) before being phase transferred to biocompatible aqueous media. We found that platelet–QD activation of platelets was coating-dependent, with QDs coated with TGA and Pen surface coatings having greater platelet biocompatibility.17
However, although more biocompatible than Cd-based QDs, significant further work was needed to further improve the biocompatibility of InP/ZnS QDs. Such an improvement in biocompatibility would reduce dysregulation of platelet activation and therefore prevent unwanted thrombus formation. To reduce InP/ZnS QD mediated platelet activation, QDs were coated with polyethylene glycol (PEG). Alongside improved biocompatibility, PEG has been shown to improve pharmacokinetic behaviour of proteins and small molecule drugs.18 PEGylation of QDs decreased the activation of platelets when compared to non-PEGylated QDs, both in terms of platelet aggregation as well as in respect of platelet activation markers. In addition, PEGylation of QDs re-established the ability of platelets to spread on fibrinogen and collagen (another marker of platelet activation), and reduced interaction of QDs with thrombi in whole blood.
Overall, PEGylation reduces QD mediated platelet activation, further demonstrating the potential of InP/ZnS QDs as potential drug delivery or imaging agents for use in vivo.
The hydrophobic ligands on the surface of the InP/ZnS QDs were exchanged for hydrophilic ligands to promote dispersibility in water (Fig. 1).21 This was undertaken with two different thiol species; Pen, or LA, in a biphasic phase transfer reaction.
A slight decrease in the nanoparticle diameter is observed following phase transfer DTEM(QD-Pen) = 2.63 ± 0.5 nm and DTEM(QD-LA) = 3.29 ± 0.6 nm (Fig. S5 and S6, ESI†), and both the cubic InP and ZnS phases are retained (Fig. S3, ESI†). Thermogravimetric analysis of QD-Pen (Fig. S7A, ESI†) and QD-LA (Fig. S7B, ESI†) gives inorganic contents of 62.5% and 80.6% respectively. The presence of each ligand can also be confirmed by FT-IR spectroscopy, with a key stretch at 1600 cm−1 being identifiable in the QD-Pen sample (Fig. S8, ESI†), and at 2865, 2920 1570, and 1400 cm−1 being observed for QD-LA (Fig. S9, ESI†).
QD-LA has a more compact hydrodynamic diameter (DH(QD-LA) = 7.8 ± 0.5 nm), in comparison to QD-Pen (DH(QD-Pen) = 29.6 ± 0.9 nm, Fig. S10A and B, ESI†); this is also accompanied by a more negative zeta potential (ζ(QD-LA) = −27.3 ± 1.39 mV (Fig. S11A, ESI†), ζ(QD-Pen) = −14.7 ± 0.31 (Fig. S11B, ESI†)).
Slight differences were observed in the optical properties of QD-Pen and QD-LA; a minor red shift in both 1st excitonic peak and emission maxima were observed for QD-LA (Table S2 and Fig. S12, S13, ESI†). Furthermore, the photoluminescent quantum yield (φ) for QD-LA was greater (φ(QD-LA) = 23.6%, φ(QD-PEN) = 7.4%) and the emission lifetime was longer (〈τ〉amp(QD-LA) = 76.8 ± 5.9 ns, 〈τ〉amp(QD-Pen) = 58.0 ± 3.4 ns, Table S2 and Fig. S14, S15, ESI†).
O-[2-(3-mercaptopropionylamino)ethyl]-O′-methylpolyethylene glycol (HS-PEG5k-OMe) ligands were added to the QDs through a ligand exchange reaction yielding QD-Pen-PEG and QD-LA-PEG (Fig. 1). QD-Pen-PEG were determined to have a similar size to QD-Pen (DTEMQD-Pen-PEG = 2.82 ± 0.7 nm, Fig. S16, ESI†). In contrast, QD-LA-PEG were substantially smaller than QD-LA (DTEM(QD-LA-PEG) = 1.99 ± 0.4 nm, Fig. S17, ESI†). The cubic InP and ZnS structures are retained upon ligand exchange in both cases (Fig. S3, ESI†). Evidence for addition of the HS-PEG5k-OMe ligands can be seen through FT-IR spectroscopy; the appearance of stretches at 2865 cm−1 and 1100 cm−1 correspond to the presence of HS-PEG5k-OMe. However, stretches corresponding to Pen at 1600 cm−1 and LA at 2920, 2865, 1570, and 1400 cm−1 are still observed (Fig. S8 and S9, ESI†). These samples showed a reduced inorganic mass content; 59.4% of QD-Pen-PEG, and 59.3% of QD-LA-PEG (Fig. S7C and D, ESI†).
QD-Pen-PEG have a smaller hydrodynamic diameter than QD-Pen (DH(QD-Pen-PEG) = 24.63 ± 0.45 nm, Table S2 and Fig. S10C, ESI†); in contrast QD-LA-PEG display an increased hydrodynamic diameter than QD-LA (DH(QD-LA-PEG) = 12.56 ± 0.72 nm, Table S2 and Fig. S10D, ESI†). However, in both cases, zeta potential was reduced following PEGylation (Table S2 and Fig. S11C, D, ESI†).
The optical properties were broadly retained upon PEGylation (Table S3, ESI†); QD-Pen-PEG displays a 12 nm red shift in emission maximum (Fig. S18 and S19, ESI†), and in both cases φ increases following PEGylation to 15.7% for QD-Pen-PEG and 26.7% for QD-LA-PEG. QD-Pen-PEG has an extended lifetime (〈τ〉ampQD-Pen-PEG = 62.9 ± 3.5 ns, Table S3, ESI†), QD-LA-PEG has a reduced lifetime in comparison to QD-LA (〈τ〉ampQD-LA-PEG = 72.1 ± 3.1 ns, Table S3, ESI†).
It is clear that some changes to the physical properties of these nanomaterials are observed following the addition of HS-PEG5k-OMe ligands. To investigate the impact the addition of HS-PEG5k-OMe ligands to the surface of the QDs had on their interactions with platelets, QD-Pen, QD-LA, QD-Pen-PEG, and QD-LA-PEG were all tested using a panel of assays, allowing for comparisons between ligands, and following the addition of HS-PEG5k-OMe.

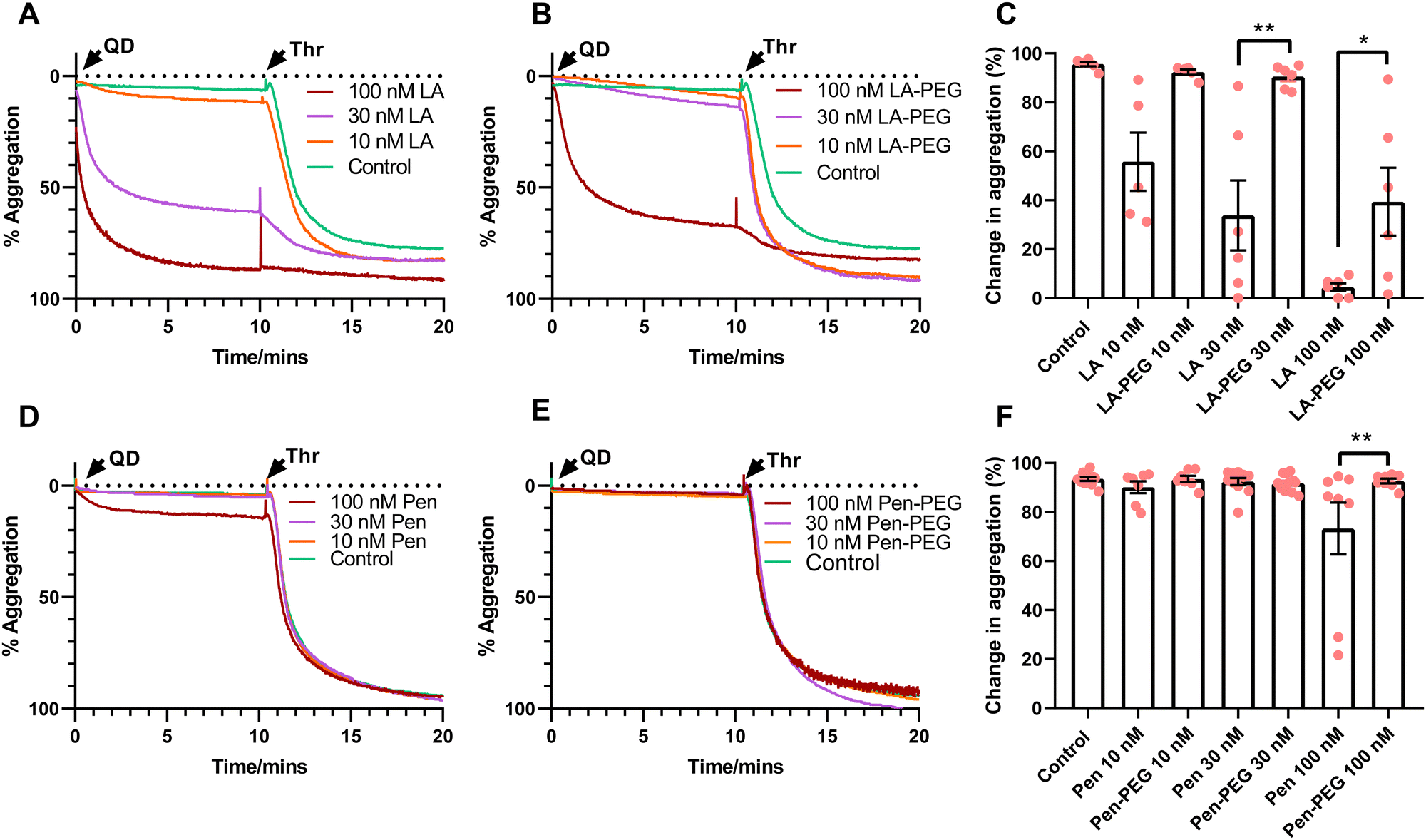

Light transmission aggregometry (LTA) was performed to assess platelet aggregation in response to QDs. Washed platelets were incubated with QD-LA, QD-LA-PEG, QD-Pen, or QD-Pen-PEG (10–100 nM) for 10 minutes (Fig. 2). As previously observed, both 30 and 100 nM QD-LA caused platelet aggregation.17 Interestingly, PEGylation of QD-LA caused two effects: at 30 nM QD-LA-PEG caused no aggregation, whilst at 100 nM QD-LA-PEG caused a delayed induction of aggregation, as well as a reduced overall maximum aggregation compared to 100 nM QD-LA. This profile was mimicked with QD-Pen, with QD-Pen-PEG no longer inducing aggregation in comparison to QD-Pen. Additionally, PEGylation even reduced the response to 200 nM QD-Pen with a marked delay in aggregation induced by the QD-Pen-PEG in comparison to QD-Pen, even if both induced a similar level of aggregation after 10 minutes (Fig. S20, ESI†). Overall, this shows that PEGylation of QD is effective at reducing QD induced platelet aggregation.

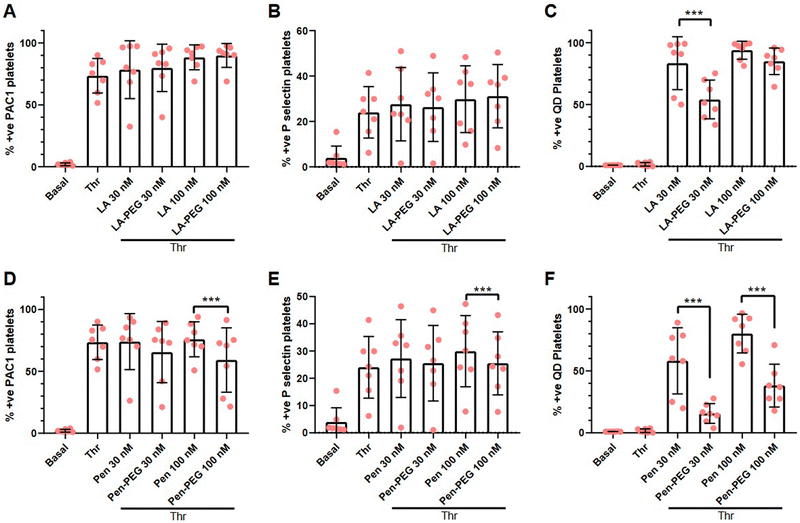

To confirm the platelet aggregation results, flow cytometric analysis was used to investigate P-selectin (a marker of platelet secretion) and PAC1 (a marker of activated integrin αIIbβ3), a critical component of platelet aggregation. Platelets were incubated with QD-LA, QD-LA-PEG, QD-Pen, or QD-Pen-PEG for 20 min and stained for P-selectin and PAC-1. Platelets were first gated by size and then for the platelet specific marker CD42. The gating strategy for each antibody and QD used can be found in Fig. S1 (ESI†).
We observed that QD-LA caused a high level of platelet activation in a dose-dependent manner (Fig. 3). 100 nM QD-LA caused similar levels of platelet activation as thrombin stimulation in terms of P-selectin and PAC1 expression. PEGylation of QD-LA showed a decrease in platelet activation markers, with 30 nM QD-LA-PEG having similar levels of PAC1 and P-selectin expression as basal platelets and significantly lower than thrombin activated platelets. In agreement with the aggregation results, QD-Pen induced less platelet activation than QD-LA, with QD-Pen PAC1 and P-selectin expression being significantly lower in comparison to thrombin stimulation. Again, PEGylation of QD-Pen resulted in platelet expression levels of PAC1 and P-selectin being similar to basal platelets.
The self-fluorescence of the QDs also facilitated the analysis of these elements by flow cytometry. The number of platelets positive for QD-LA or QD-Pen increased in a dose-dependent manner. This interaction is reduced by PEGylation. The trends in platelet activation and QD binding is also reflected in the Mean Fluorescent Intensities (MFIs, Fig. S22, ESI†). Overall, this shows that PEGylation of QDs is effective in lowering the extent of QD-mediated platelet activation.
In agreement with the above data, flow cytometry analysis showed that the addition of thrombin had no effect on integrin activation or P-selectin exposure in samples treated with QDs that induced aggregation by themselves, as platelets were already fully activated (Fig. S24, ESI†), whilst integrin activation and P-selectin exposure was able to be induced effectively in the presence of PEGylated QDs (Fig. 5). In contrast, levels of QD-Pen bound to platelets was reduced upon PEGylation and this was also the case for QD-LA-PEG at 30 nM, indicating that increased QD-platelet interaction could underlie increased activation.

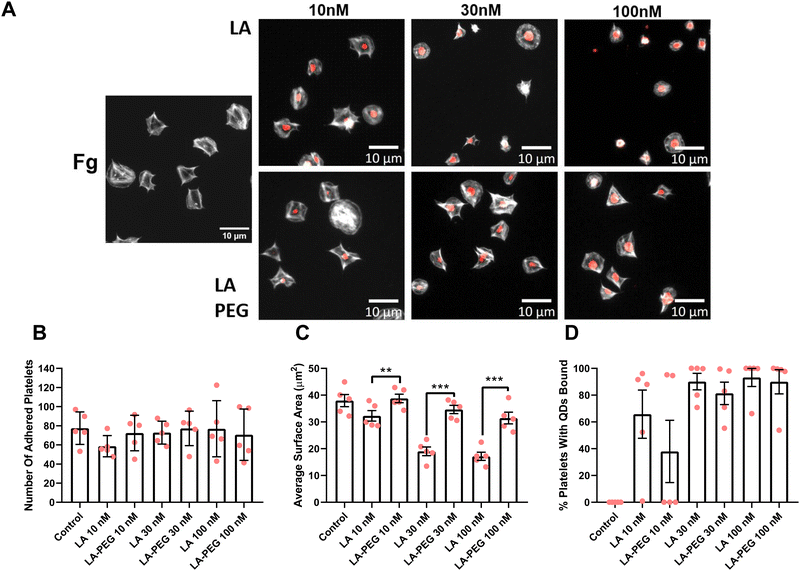

As shown previously,17 QD-LA decreased platelet surface area in a dose-dependent manner, whilst the number of adhered platelets remained the same (Fig. 6). However, PEGylation of QD-LA restored the surface area of platelets, with 100 nM QD-LA-PEG having no significant difference in surface area compared to the control. Interestingly, QD-LA was observed to bind to platelets at all concentrations and this was not remedied by PEGylation. QD-Pen and QD-Pen-PEG had no significant changes in platelet adherence and surface area when compared to the control (Fig. 7). QD binding to platelets was observed at 100 nM QD-Pen, which was further increased by PEGylation.
PEGylation of QD-LA, and QD-Pen induced a similar re-establishment of platelet spreading on collagen (Fig. S25 and S26, ESI†). Interestingly, although binding of QD-LA and QD-LA-PEG was also of similar levels to the results seen with fibrinogen spreading, QD-Pen-PEG did not bind platelets at any of the concentrations tested on collagen.

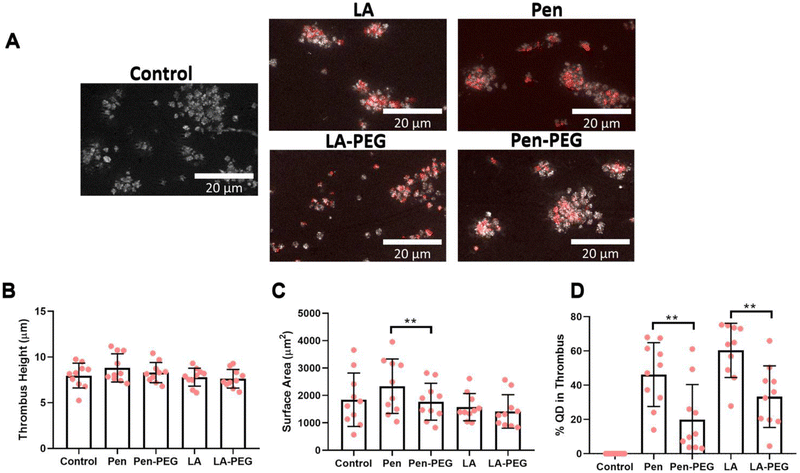

The thrombus height was unaffected by any of the QDs when compared to the control (Fig. 8). However, surface area was more variable. No group was statistically different to the control, but there was a difference between QD-Pen and QD-Pen-PEG. Importantly, PEGylation of both QD-LA and QD-Pen significantly reduced levels of QDs in the platelet rich thrombus, indicating these QDs interacted less with the thrombus itself.
InP/ZnS QDs were prepared according to literature protocols, and the resulting nanoparticles had physical and optical properties in line with these reports.17,19 The QD cores have the expected structure and In:
P ratio for the material. The increase in diameter following shelling corresponds to a shell of thickness 0.455 nm; this is less than 1 unit cell thick (α(ZnS) = 5.345 Å) and is in agreement with the increase in Zn
:
In ratio observed by EDX (calculated ratio = 85
:
15, observed = 88
:
12 ± 1.5, Table S1, ESI†). The increased phosphorous content following shelling is likely due to the use of trioctylphosphine as a reagent during the shelling process; this can act as a coordinating ligand.17
The QDs were synthesised with hydrophobic ligands in organic media and therefore, for biological application, transfer to aqueous media is essential. Phase transfer was undertaken using two ligands – Pen and LA – under reducing basic conditions. This results in the cleavage of any disulfide bonds and the attachment of small hydrophilic thiols to the QD surface allowing for dispersion in aqueous media. These two ligands were selected based on our previous studies as examples of systems with minimal and significant interactions with platelets respectively.17 The decrease in nanoparticle diameter observed following phase transfer may be due to removal of some Zn from the surface of the shell, evidenced by the reduction in Zn:
In ratio (Table S1, ESI†). A distinct shift in Zn
:
S ratio is also observed, supporting both the removal of some Zn atoms and the addition of thiol ligands. This is less pronounced in QD-LA than in QD-Pen; less Zn is removed (evidenced through both Zn
:
In and Zn
:
S ratios, Table S1, ESI†). Alongside this the organic fraction of each sample, as determined by TGA, corresponds to 794 and 438 ligands per QD for QD-Pen and QD-LA respectively. The differences with both the removal of Zinc and organic fractions may be due in part to the bidentate nature of the reduced LA in comparison to the monodentate Pen ligand.
The decrease in zeta potential of QD-Pen when compared to QD-LA is likely due to the amphoteric nature of the Pen ligand, resulting in a lower overall charge per ligand. This difference in charge may be the cause of the difference in DH, or this might be due to the increased number of ligands on the surface of QD-Pen promoting an increased amount of water molecules to be associated with the nanoparticles. The differences in emission wavelength and φ upon phase transfer and between surface ligands was previously attributed to a change of the dielectric environment and surface charge.21 The longer fluorescent lifetime of QD-LA compared to QD-Pen may be indicative of a reduction in non-radiative decay pathways for this system, this may be the cause of the increased quantum yield. This would presumably be due to a more complete shelling in QD-LA than in QD-Pen, as a result of the removal of less Zn during the phase transfer reaction.
PEGylation was investigated as a route to reduce QD mediated platelet effects. PEGylation is a technique that has been used clinically to improve the biocompatibility of drug preparations. It can have multiple effects, increased stability, changing the chemical and physical properties, and also reducing the immunogenicity of the drug compound.18 In this study we used PEGylation to prevent unwanted platelet activation by QD preparations that we had previously identified as problematic.17 PEGylation of the QDs had the desired effect, decreasing the extent of QD-associated platelet aggregation, integrin activation and P-selectin exposure for both QD-Pen and QD-LA. This reduction in QD driven platelet activation also meant that platelets were then able to respond to physiological agonists as expected. This data clearly demonstrates that PEGylation offers a profound benefit to QD preparations with regards to the reduction of platelet activation. This decrease in QD mediated platelet activation in the presence of PEG is similar to that seen with gold nanoparticles, where PEGylation offered increased biocompatibility to platelet aggregation,37 whilst Bakhaidar et al. also showed no effect of PEG-PLGA nanoparticles on platelet aggregation and P-selectin exposure.39
Although the effect of PEGylation was beneficial, there were assay specific effects. In the platelet spreading assay, PEGylation of QDs restored the ability to platelets to spread effectively in comparison to unPEGylated QDs. However, the interaction of QDs with platelets was surface specific. Platelets spread on collagen did not interact with PEGylated QDs, whilst platelets spread on fibrinogen still had significant QD-platelet interactions. The matrix protein dependent nature of QD-platelet interaction is of interest as collagen is present in the subendothelial matrix, whilst fibrinogen, which is then changed into fibrin, is present within a thrombus itself.40 However, one significant caveat with the spreading assay is that there is no shear force present, and therefore QDs can interact more easily with the platelets spread on the matrix proteins. This is demonstrated through comparison with the results from the flow cytometry and in vitro flow assays. Within flow cytometry, where the platelets and QDs are in suspension, PEGylation of both QD-LA and QD-Pen decreased QD binding to platelets, even under stimulated conditions. The in vitro flow assay includes a shear force of 1000 s−1, similar to that seen within arteries.41 Again, the amount of QD in the thrombus was significantly reduced for both QD-LA-PEG and QD-Pen-PEG. This highlights that the specific conditions of the assay could in part be responsible for the effectiveness of the QD platelet interactions, and therefore potentially the effect of the QD on platelet activation.
Additionally, within the spreading assay, the QDs that did interact were present in or on the centre of the platelet. Although it is not possible to distinctly identify if the QDs are within or on the outside of the platelet due to resolution limitations, another study has found that when QDs were interacting with platelets, platelet organelles were centralised within the platelet, with degranulation having occurred.15 This was suggested to be due to QD interaction with GPIIb/IIIa. This is similar to the proposed mechanism of action for platelets binding to bacteria, resulting in bacteria localisation to the centre of platelets close to organelles, in which GPIIb/IIa has a large role,42 which allows for spatial regulation of granule secretion,43 potentially towards the QD. Further research is needed to fully understand how and why QDs interact, and what the specific effect on the platelet is when that interaction occurs.
Previous studies have assessed the impact of zeta potential on platelet activation. CdSe/ZnS functionalised with carboxyl caused thrombosis in pulmonary vasculature. The amine-functionalised QDs with a less negative zeta potential did not cause thrombosis to the same extent. The authors hypothesised that the QDs were affecting coagulation more than platelets themselves, and it was this effect on coagulation which had a knock-on effect on platelets.16 Interestingly, we observed the zeta potential of QD-LA to be more negative than that of QD-Pen. PEGylation of both QDs resulted in less negative zeta potentials, though QD-LA-PEG was more negative than that of QD-Pen. This corresponds to the levels of platelet activation the QDs elicit. Hence, zeta potential could act as a determinant for platelet activation. As washed platelets do not contain coagulation factors, our results would suggest that whilst QDs in other systems could be utilising coagulation factors to further increase platelet activation, platelets alone are also strongly activated by QDs. It would be interesting to further look at the effects of PEGylated QDs on coagulation factors.
Size of the QD has also been linked to activation of platelets, with QDs of smaller size having been observed in Samuel et al. to cause higher levels of platelet activation.15 The mechanism for the increased activation effects of smaller QDs is thought to be due to a greater surface-to-volume area which would allow for more QD interactions with platelets. We have previously shown QD-LA and QD-Pen to have a diameter of 6.0 and 4.1 nm respectively, and yet the smaller QDs induce less platelet activation.17 Here again, PEGylated QDs were either the same size (QD-Pen and QD-Pen-PEG) or the QD-LA PEG was smaller than the QD-LA itself. Therefore, size is likely to be less relevant that charge and surface coating of the QDs.
To conclude, the above studies have demonstrated that PEGylation of QDs is a viable option to reduce QD mediated platelet activation. We have shown PEGylated permutations of QDs that initially cause significant activation, cause markedly less platelet activation upon PEGylation. This in turn allowed the platelet to retain the ability to respond to platelet agonists. Furthermore, the PEGylated QDs showed reduced interaction with basal and activated platelets, both in washed platelets and crucially in whole blood, making them preferable for further development for QD mediated therapies or imaging agents for thrombus management in vivo.
