Crosslinked sulfonated polyphenylenes: overcoming the performance–gas permeation–stability trilemma in water electrolyzers

Clara Schare a, Giorgi Titvinidze ab, Noortje Platenburg a, Marco Viviani ac, Edgar Cruz Ortiz a, Severin Vierrath c, Klaus-Dieter Kreuer ad, Carolin Klose *ac and Andreas Münchinger *ac
aHahn-Schickard, 79110 Freiburg, Germany. E-mail: andreas.muenchinger@hahn-schickard.de; carolin.klose@hahn-schickard.de
bAgricultural University of Georgia, Tbilisi 0159, Georgia
cElectrochemical Energy Systems, IMTEK – Department of Microsystems Engineering, University of Freiburg, 79110, Freiburg, Germany
dMax-Planck-Institute for Solid State Research, 70569 Stuttgart, Germany

Received 21st February 2025 , Accepted 2nd June 2025

First published on 3rd June 2025


Abstract

Thermal crosslinking of Pemion®, a highly sulfonated polyphenylene membrane, is used as a viable route to combine high proton conductivity, low gas permeability and mechanical robustness. Crosslinked Pemion® not only outperforms any other membrane reported so far, as a PFAS-free membrane, it is also considered to be environmentally more benign.


The prospect of high voltage efficiency and dynamic load operation renders proton exchange membrane (PEM) electrolysis highly attractive for future green hydrogen production. To meet the U.S. Department of Energy (DOE) cost target of only $1 per kg of green hydrogen, an efficiency of 3 A cm−2 at 1.6 V must be reached. Decreasing the area specific resistance (ASR) of the membrane is a major lever for achieving this goal.

State-of-the-art PEM water electrolyzers utilize PFSA-membranes, which are well established for other electrochemical technologies such as PEM fuel cells and chlorine-alkaline electrolysis. Unfortunately, in the presence of high gas partial pressure gradients (for hydrogen and oxygen) that are characteristic of electrolyzer operation, high inherent gas crossover leads to severe safety issues.1 Increasing the membrane thickness diminishes this hazard by reducing the gas crossover but also increases the ASR and with that, reduces performance. Other mitigation strategies like recombination catalysts2 are discussed controversially, as they are expensive, do not improve faradaic efficiency3 and might accelerate degradation.4 Moreover, there is a global aspiration to substitute so-called ‘forever chemicals’ such as PFSAs.

Hydrocarbon membranes offer a promising alternative since first, they characteristically exhibit a higher ionic conductivity to gas permeability ratio compared to PFSAs5,6 and second, they are not subject to potential restrictions for per- and polyfluoroalkyl substances (PFAS). However, severe swelling up to disintegration of these membranes under electrolysis conditions negatively affects durability.

So far, remediation measures like introducing a mechanical reinforcement have not been able to resolve the issue entirely. For instance, Qelibari et al. reduced in-plane swelling of a sulfonated polyphenylene sulfone (sPPS) membrane by introducing a PEEK mesh (Fig. 1 PEEK sPPS). Thereby a stable voltage (dV/dt: 80 μV h−1) over more than 600 h at 1 A cm−2 and 80 °C was reached. Nevertheless, using such type of reinforcement layer comes with restrictions in terms of minimum viable membrane thickness and hence resistance.7 Recently, Noh et al.8 and Kang et al.9 successfully introduced other reinforcements (expanded polytetrafluoroethylene, Fig. 1 5L-5/S50 and liquid crystal polymer fabric, Fig. 1 L-SP50) into hydrocarbon based ionomers, realizing high performance (∼6.9 A cm−2 and ∼4.25 A cm−2 at 1.8 V, loading >2 mg cm−2) but still falling short of state-of-the-art degradation rates (330 μV h−1 and 290 μV h−1 @ 2 A cm−2).


image file: d5ta01474c-f1.tif
Fig. 1 Overview of current densities at 1.8 V, hydrogen in oxygen contents in the anode gas stream at 1 A cm−2 and degradation rates achieved with hydrocarbon membranes in PEM water electrolyzers. A H2 in O2 content below 1% (25% of lower explosion limit) and a degradation rate below 50 μV h−1 were defined as acceptable and highlighted in green. Apart from Klose et al.6 PFSA was used as the ionomer binder in the catalyst layer.7–14 For more details see ESI (Table S1).

A promising alternative to integrating reinforcements into the membrane is molecular modification of the ionomer by thermal crosslinking. Di Vona et al.15,16 demonstrated thermal formation of sulfone (SO2) bridges from sulfonic acid groups. The onset of this reaction depends on the reactivity of the sulfonic acid groups and the nature of the polymer backbone,17 but once crosslinking occurs, swelling decreases as a direct consequence of an increased mechanical strength.15,17

Despite its high proton conductivity, low gas crossover and chemical stability, the sulfonated phenylated polyphenylene Pemion®18 is limited by its mechanical weakness under electrolyzer conditions,10 which makes it a good candidate for applying thermal crosslinking. In the following, we explain how this simple and economically feasible treatment enables stable electrolyzer operation with low gas crossover while virtually meeting the DOE performance target.

According to the reaction suggested by Di Vona et al.,16 the formation of each crosslink from a sulfonic group and an unsulfonated phenyl ring eliminates one fixed ionic group (Scheme 1). Therefore, the density of SO2-crosslinks is estimated to be around 0.4 per repeat unit. Since each SO2-group connects two repeat units, almost every repeat unit is involved in cross-linking.16,19


image file: d5ta01474c-s1.tif
Scheme 1 Schematic of the presumed crosslinking reaction of sulfonated phenylated polyphenylenes during the heat treatment step.

At high water content in the membrane, which is typical under electrolyzer conditions, conductivity remains relatively unaffected by the number of water molecules per sulfonic acid group (λ) because the mobility of charge carriers and dilution effects almost compensate each other. However, gas permeability, exclusively taking place within the aqueous phase of hydrocarbon ionomers,20 strongly increases with the membrane's water content. Therefore, reducing λ is crucial for achieving a high ionic conductivity to gas permeability ratio. Hydrocarbon membranes generally have high ion exchange capacities (IEC) compared to PFSAs in order to reach similar specific conductivities. For a given value of λ, this automatically leads to a higher uptake of water. Beyond this expected effect, hydrocarbon membranes in contact with water take up even more water per sulfonic acid group (i.e. higher λ). In the case of Pemion® with an IEC of 3.1 meq. g−1, water uptake is as high as 225 wt% corresponding to λ = 40 at T = 80 °C.

Heat treatment of a 20 ± 5 μm thick Pemion® membrane reduces the water uptake by a factor of two, which translates into a decrease of λ by 40% compared to the water uptake before the heat treatment. At the same time, the IEC of the treated membrane (further named XL-Pemion®) is reduced by only 10% (Table 1).

Table 1 IEC, water uptake, number of water molecules per sulfonic acid group λ (at 80 °C) and Young's modulus E (wet samples, at 25 °C) for Pemion® and crosslinked Pemion® (XL-Pemion®)
IEC in meq. g−1 Water uptake @ 80 °C in % λ @ 80 °C E @ 25 °C, from water in MPa
Pemion® 3.1 ± 0.1 225 ± 15 ∼40 79
XL-Pemion® 2.8 ± 0.1 120 ± 5 ∼24 222


A natural consequence of crosslinking is an increase of mechanical strength (Table 1 and Fig. S1) leading to a higher internal swelling pressure corresponding to a lower value for λ.21 While the emerging insolubility of XL-Pemion® in the corresponding solvents (dimethyl sulfoxide or ethanol) provides qualitative evidence for the formation of sulfone crosslinks, their characteristic symmetric and asymmetric S[double bond, length as m-dash]O stretching signals can be observed in FTIR (Fig. S2).

For electrochemical characterization, catalyst coated membranes (CCMs) were fabricated by ultrasonic spray-coating electrodes onto a Nafion N212 and a self-cast Pemion® membrane using Nafion as the binding ionomer with an IrO2 anode (1 mgIr cm−2) and a Pt/C cathode (0.5 mgPt cm−2). The Pemion® containing CCM (Pemion®-CCM) was heat-treated for 1 h at 175 °C under vacuum to thermally crosslink the ionomer. The electrolysis cell setup includes on the anode side platinized titanium fiber felts (Bekaert), and on the cathode side a carbon fibre gas diffusion layer with a micro porous layer on top from Freudenberg (H24C5). More details can be found in the ESI.

The two key-metrics of performance are ohmic losses and hydrogen crossover. The former is closely related to the ASR of the membrane material while the latter to its gas permeability. Since the dependence of both key-metrics on membrane thickness is just opposite, i.e. ohmic losses increase with membrane thickness while gas crossover decreases, the thickness of each membrane is chosen to optimize the overall performance profile. Of course, this is only possible within the limits of sufficient mechanical robustness.

Therefore, the thickness of the Nafion reference membrane was chosen to be 50 μm, more than double the thickness of XL-Pemion (20 ± 5 μm). For Nafion, this thickness yields a hydrogen concentration close to the lower explosion limit in the anode compartment even at 1 A cm−2 (Fig. 2a).


image file: d5ta01474c-f2.tif
Fig. 2 (a) HFR over current density and H2 in O2-concentration in the anode gas stream at 1 A cm−2 (red) for XL-Pemion®- (squares) and N212-CCM (circles). (b) Cell polarization for XL- Pemion®- (squares) and N212-CCM (circles). The measurements were conducted at 80 °C.

The data for a Nafion N212-CCM (blue circles) and XL-Pemion®-CCM (black squares) recorded under electrolyzer conditions impressively demonstrate that for the chosen thicknesses, all relevant key figures are significantly better for the latter: ohmic losses are lower by a factor of about 2 with a corresponding decrease of high-frequency resistance (HFR) while the hydrogen (H2) in oxygen (O2) concentration is lower by more than a factor of 7 (Fig. 2a). In numbers, this gives a noteworthy low H2-concentration measured in the anode O2 stream of only 0.3% (red square) compared to 2.2% (red circle) for the thicker N212-CCM at a current density of 1 A cm−2 (Fig. 2a). Lower gas permeation of hydrocarbon vs. PFSA membranes is reported throughout the literature,6,11,20 but the permeation ratios are generally smaller than observed in the present work. A possible reason could be the relatively low water uptake of XL-Pemion® (λ = 24 at T = 80 °C) compared to other hydrocarbon membranes. Note that in hydrocarbon membranes residual gas permeation is constrained to the aqueous ionic domain.20

Additionally, the XL-Pemion®-CCM shows the highest voltage efficiency for hydrocarbon CCMs, reported so far (Fig. 1). Almost identical iR-free voltages and comparable Tafel slopes for the XL-Pemion®- and N212-CCM (Fig. S3) indicate that the high voltage efficiency is the immediate consequence of the low HFR of 23 mOhm cm2vs. 46 mOhm cm2. The low HFR reflects the high specific conductivity of XL-Pemion®, the low membrane thickness and good contact between the membrane and electrodes. Apparently, the heat treatment neither negatively affects the membrane–electrode contact, nor kinetics and gas transport within the electrodes.

As a side note, it is worth mentioning that the presented H2 in O2 contents are in line with values reported in the literature for non-optimized catalyst layers22,23 or cell configurations24 on the cathode side (for details see ESI).

During a 100 hour constant current hold at 1 A cm−2, the XL-Pemion®-CCM and N212-CCM show stable performance with degradation rates of 40 μV h−1 and 27 μV h−1 (Fig. 3a). These degradation rates are within the lower range of degradation rates reported in the literature for Nafion-CCMs with N212 membranes,25 and the degradation rate for the XL-Pemion®-CCM appears to be the lowest reported for hydrocarbon CCMs, so far (Fig. 1). The polarization curves at the beginning and end of the test can be found in the ESI (Fig. S4). The virtually constant H2-crossover over time (Fig. 3b) underlines the stability of both CCMs, furthermore supported by no changes in the IEC and thickness of the XL-Pemion® membrane before and after the 100 h operation (see Fig. S5).


image file: d5ta01474c-f3.tif

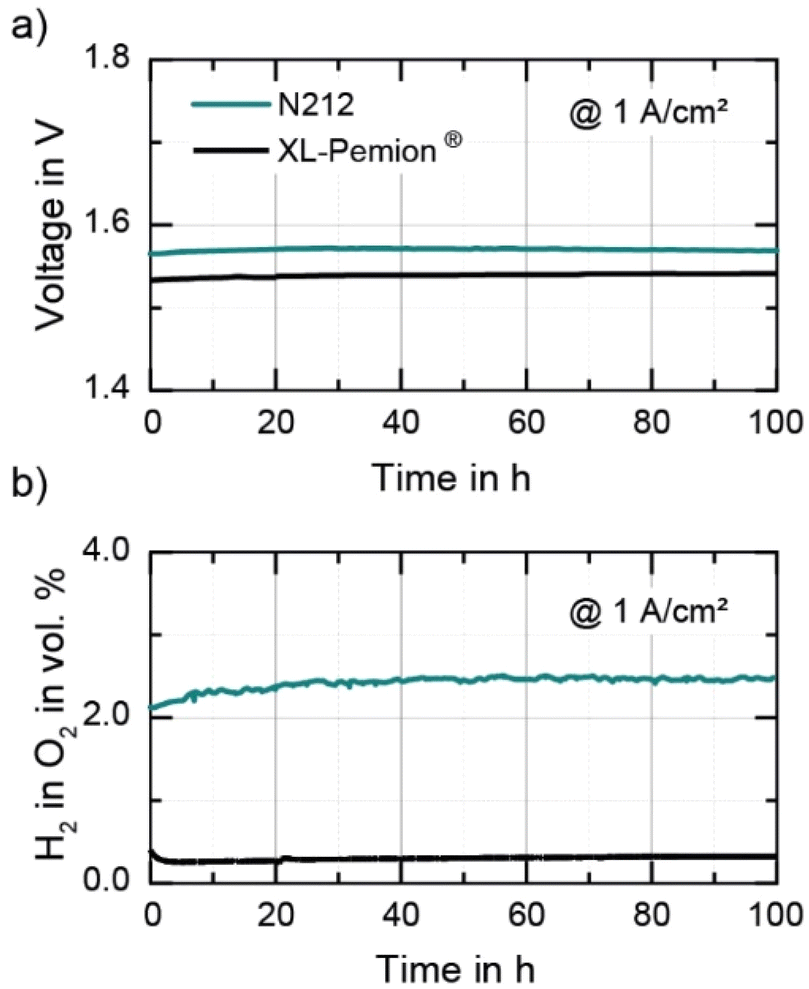

Fig. 3 (a) Voltage evolution and (b) H2 in O2-concentration in the anode gas stream during a constant current hold at 1 A cm−2 and 80 °C of the XL-Pemion®-CCM (black) and N212-CCM (green).

For the XL-Pemion®-CCM, stable performance is observed only after heat treatment. An untreated Pemion membrane with similar thickness showed only a stable performance for the first two hours and disintegrated during the following 6 hours under electrolysis conditions (Fig. S6). This can be underlined by the results from Wang et al.,10 reporting a lifetime of less than 86 hours for an untreated sulfonated phenylated polyphenylene membrane that is accompanied by an increase in H2 in O2-content from 0.55% to 1.17% during the first 40 hours of the test.10

Thermal crosslinking of highly sulfonated polyphenylene Pemion® membranes leads to a combination of properties, which is outstanding for application in PEM water electrolysis. Swelling and gas permeability are significantly reduced while conductivity remains high. The easy treatment also improves membrane durability. In electrolyzer tests, these properties translate into very high voltage and faradaic efficiencies: at a voltage of only 1.61 V, the current density reaches 3 A cm−2, exceeding state-of-the-art voltage efficiency for any type of membrane. At a current density of 1 A cm−2, a stable hydrogen concentration in the oxygen stream of 0.3%, well below the explosion limit, is recorded. Stable performance over 100 h is demonstrated with a degradation rate of <50 μV h−1. These results are obtained without any PFAS in the membrane. Considering the possibility that PFSAs may fall under a future PFAS ban, the suggested approach gains further relevance for the next generation of PEM electrolyzers. Extending the approach to larger areas, longer testing times under various conditions and high pressures are next obvious steps for implementing thermally crosslinked sulfonated polyphenylene membranes in commercial PEM electrolyzers.

Data availability

All data generated or analysed during this study are included in this article and its ESI.

Author contributions

C. S., G. T., A. M. and C. K. conceptualized the study and wrote the initial draft. C. S., G. T., M. V., A. M., N. P., conducted the experimental work. C. K., K.-D. K. and S. V. acquired project funding. All authors discussed the results and commented on the manuscript.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors gratefully acknowledge financial support from the Federal Ministry of Research, Technology and Space of Germany within the framework of Fluorfreie-MEA (Grant No. 03HY106A) and within the framework of 105scaled (Grant No. 03SF0719A). The authors would also like to thank Heraeus Precious Metals GmbH & Co. KG for providing the catalyst material and ionomr Innovations Inc. for providing the ionomer.

References

  1. M. Bernt, J. Schröter, M. Möckl and H. A. Gasteiger, Analysis of gas permeation phenomena in a PEM water electrolyzer operated at high pressure and high current density, J. Electrochem. Soc., 2020, 167, 124502 CrossRef CAS .
  2. C. Klose, P. Trinke, T. Böhm, B. Bensmann, S. Vierrath, R. Hanke-Rauschenbach and S. Thiele, Membrane Interlayer with Pt Recombination Particles for Reduction of the Anodic Hydrogen Content in PEM Water Electrolysis, J. Electrochem. Soc., 2018, 165, F1271 CrossRef CAS .
  3. P. Trinke, P. Haug, J. Brauns, B. Bensmann, R. Hanke-Rauschenbach and T. Turek, Hydrogen Crossover in PEM and Alkaline Water Electrolysis: Mechanisms, Direct Comparison and Mitigation Strategies, J. Electrochem. Soc., 2018, 165, F502–F513 CrossRef CAS .
  4. Z. Zeng, R. Ouimet, L. Bonville, A. Niedzwiecki, C. Capuano, K. Ayers, A. P. Soleymani, J. Jankovic, H. Yu, G. Mirshekari, R. Maric and S. Bliznakov, Degradation Mechanisms in Advanced MEAs for PEM Water Electrolyzers Fabricated by Reactive Spray Deposition Technology, J. Electrochem. Soc., 2022, 169, 54536 CrossRef CAS .
  5. H. Nguyen, C. Klose, L. Metzler, S. Vierrath and M. Breitwieser, Fully Hydrocarbon Membrane Electrode Assemblies for Proton Exchange Membrane Fuel Cells and Electrolyzers: An Engineering Perspective, Adv. Energy Mater., 2022, 12, 2103559 CrossRef CAS .
  6. C. Klose, T. Saatkamp, A. Münchinger, L. Bohn, G. Titvinidze, M. Breitwieser, K.-D. Kreuer and S. Vierrath, All-Hydrocarbon MEA for PEM Water Electrolysis Combining Low Hydrogen Crossover and High Efficiency, Adv. Energy Mater., 2020, 10, 1903995 CrossRef CAS .
  7. R. Qelibari, E. C. Ortiz, N. van Treel, F. Lombeck, C. Schare, A. Münchinger, N. Dumbadze, G. Titvinidze, C. Klose and S. Vierrath, 74 μm PEEK-Reinforced Sulfonated Poly (phenylene sulfone)-Membrane for Stable Water Electrolysis with Lower Gas Crossover and Lower Resistance than Nafion N115, Adv. Energy Mater., 2024, 14, 2303271 CrossRef CAS .
  8. Y. S. Noh, H. Y. Jeong, S. J. Yoon, H.-J. Kim, Y. T. Hong, J. Choi, S. So and D. M. Yu, Multilayered hydrocarbon ionomer/PTFE composite electrolytes with enhanced performance for energy conversion devices, Int. J. Hydrogen Energy, 2023, 48, 5288–5300 CrossRef CAS .
  9. S. H. Kang, H. Y. Jeong, S. J. Yoon, S. So, J. Choi, T.-H. Kim and D. M. Yu, Hydrocarbon-Based Composite Membrane Using LCP-Nonwoven Fabrics for Durable Proton Exchange Membrane Water Electrolysis, Polymers, 2023, 15, 2109 CrossRef CAS .
  10. X. Wang, P. Mardle, M. Adamski, B. Chen and S. Holdcroft, Proton Exchange Membrane Water Electrolysis Incorporating Sulfo-Phenylated Polyphenylene Catalyst Coated Membranes, J. Electrochem. Soc., 2023, 170, 24502 CrossRef CAS .
  11. S.-Y. Han, D. M. Yu, Y.-H. Mo, S. M. Ahn, J. Y. Lee, T.-H. Kim, S. J. Yoon, S. Hong, Y. T. Hong and S. So, Ion exchange capacity controlled biphenol-based sulfonated poly(arylene ether sulfone) for polymer electrolyte membrane water electrolyzers: Comparison of random and multi-block copolymers, J. Membr. Sci., 2021, 634, 119370 CrossRef CAS .
  12. F. O. Egemole, A. L. G. Biancolli and S. Holdcroft, Water electrolysis using fluorine-free, reinforced sulfo-phenylated polyphenylene membranes, Electrochim. Acta, 2024, 508, 145259 Search PubMed .
  13. S. J. Hong, H. Y. Jung, S. J. Yoon, K.-H. Oh, S.-G. Oh, Y. T. Hong, D. M. Yu and S. So, Constrained hydrocarbon-based ionomers in porous Poly(tetrafluoroethylene) supports for enhanced durability of polymer electrolyte membrane fuel cells and water electrolyzers, J. Power Sources, 2022, 551, 232221 CrossRef CAS .
  14. Y. S. Noh, H. Y. Jeong, T.-H. Kim, J. Choi, J. Y. Lee, S. So and D. M. Yu, Sulfonated poly(p-phenylene)-based ionomer/PTFE composite membrane with enhanced performance and durability for energy conversion devices, J. Power Sources, 2023, 580, 233422 Search PubMed .
  15. M. L. Di Vona, E. Sgreccia and P. Knauth, Cross-linked Aromatic Polymers for High Durability PEM Membranes: Materials and Methods, ECS Trans., 2013, 50, 1021 Search PubMed .
  16. M. L. Di Vona, E. Sgreccia, S. Licoccia, G. Alberti, L. Tortet and P. Knauth, Analysis of Temperature-Promoted and Solvent-Assisted Cross-Linking in Sulfonated Poly(ether ether ketone) (SPEEK) Proton-Conducting Membranes, J. Phys. Chem. B, 2009, 113, 7505–7512 CrossRef CAS .
  17. M. Schuster, K.-D. Kreuer, H. T. Andersen and J. Maier, Sulfonated Poly(phenylene sulfone) Polymers as Hydrolytically and Thermooxidatively Stable Proton Conducting Ionomers, Macromolecules, 2007, 40, 598–607 Search PubMed .
  18. M. Adamski, T. J. G. Skalski, B. Britton, T. J. Peckham, L. Metzler and S. Holdcroft, Highly Stable, Low Gas Crossover, Proton-Conducting Phenylated Polyphenylenes, Angew. Chem., 2017, 129, 9186–9189 Search PubMed .
  19. A. Künzel-Tenner, C. Kirsch, O. Dolynchuk, L. Rößner, M. Wach, F. Kempe, T. von Unwerth, A. Lederer, D. Sebastiani and M. Armbrüster, Proton-Conducting Membranes from Polyphenylenes Containing Armstrong’s Acid, Macromolecules, 2024, 57, 1238–1247 CrossRef .
  20. D. Yazili, E. Marini, T. Saatkamp, A. Münchinger, T. de Wild, L. Gubler, G. Titvinidze, M. Schuster, C. Schare, L. Jörissen and K.-D. Kreuer, Sulfonated Poly(Phenylene sulfone) blend membranes finding their way into proton exchange membrane fuel cells, J. Power Sources, 2023, 563, 232791 Search PubMed .
  21. K.-D. Kreuer, The role of internal pressure for the hydration and transport properties of ionomers and polyelectrolytes, Solid State Ionics, 2013, 252, 93–101 CrossRef CAS .
  22. P. Trinke, G. P. Keeley, M. Carmo, B. Bensmann and R. Hanke-Rauschenbach, Elucidating the Effect of Mass Transport Resistances on Hydrogen Crossover and Cell Performance in PEM Water Electrolyzers by Varying the Cathode Ionomer Content, J. Electrochem. Soc., 2019, 166, F465–F471 Search PubMed .
  23. Z. Zhang, A. Baudy, A. Testino and L. Gubler, Cathode Catalyst Layer Design in PEM Water Electrolysis toward Reduced Pt Loading and Hydrogen Crossover, ACS Appl. Mater. Interfaces, 2024, 16, 23265–23277 Search PubMed .
  24. M. Stähler, A. Stähler, F. Scheepers, M. Carmo, W. Lehnert and D. Stolten, Impact of porous transport layer compression on hydrogen permeation in PEM water electrolysis, Int. J. Hydrogen Energy, 2020, 45, 4008–4014 CrossRef .
  25. H. Su, V. Linkov and B. J. Bladergroen, Membrane electrode assemblies with low noble metal loadings for hydrogen production from solid polymer electrolyte water electrolysis, Int. J. Hydrogen Energy, 2013, 38, 9601–9608 CrossRef CAS .

Footnotes

Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d5ta01474c
These authors contributed equally to this work.
