Copper(I) bis(diimine) sensitized titania nanotube array photoelectrodes for photoelectrochemical water oxidation

Abstract

Dye-sensitized photoelectrochemical cells (DS-PECs), devices inspired by photosynthesis, are being developed to advance the goal of using the sun as the sole source of energy for converting abundant resources to fuel and valuable chemicals. Herein, we report compact and vertically aligned titanium dioxide nanotubes grown through self-organized electrochemical anodization as semiconducting materials functionalized with a molecular copper(I) bis(diimine)-based acceptor–chromophore–donor to yield a photoanode capable of carrying out oxidative processes. The ability of these dye-sensitized photoanodes to drive oxidative processes is further confirmed photoelectrochemically through activation of a molecular iridium(III) water oxidation pre-catalyst where ultimately a Faradaic efficiency of 84% is found for O₂ production.

---

Introduction

Creating devices that replicate intricate systems found in nature has been a research point of interest towards achieving current sustainability goals. Such devices, inspired by natural photosynthesis, are dye-sensitized photoelectrochemical cells (DS-PECs).^1,2 DS-PECs store energy by conversion of sunlight to chemical bonds allowing for the generation of “solar fuels” at the point of deployment.^3,4 In these devices, semiconductor photoelectrodes generate excitons from light absorption, leading to free charge carriers that can drive redox reactions like the direct reduction/oxidation of adsorbed species on the photocathode/anode.^5–8 Previously, copper(I) bis(diimine) complexes have been used to sensitize wide bandgap semiconductors for visible light absorption to construct photoelectrodes for DS-PEC applications.^9–14 In these systems, the fast recombination of electron–hole pairs was mitigated through the use of acceptor–chromophore–donor triads to generate long-living charge separated states. These molecular copper(I)-based photosensitizers are of interest when considering the low-cost and analogous photophysical properties compared to ruthenium(II) polypyridine photosensitizers typically used in these types of cells.^15–19

Titania, TiO_2, is one of the most broadly studied wide bandgap semiconductors (often as a photocatalyst where the anatase polymorph has a bandgap of 3.2 V and, as a result, can only carry out photocatalysis under UV-light irradiation).^1,20–24 TiO₂ is considered a sustainable material, is relatively inexpensive, chemically stable, and is the prototypical photocatalyst for water oxidation.^22,25–27 One-dimensional (1D) semiconductor nanostructures of TiO₂ have been shown to grant added benefits such as two-dimensional confinement, directional charge transport, and orthogonal charge separation.^23,24,28,29 Previous reports have highlighted self-organized electrochemical anodization (SOA) as a method to yield organized vertically oriented arrays of TiO₂ nanotubes.^{23,25,26,28,30–32}

Herein, we describe the use of TiO₂ nanotubes (NTs) as a semiconducting surface for photoelectrodes sensitized with a Cu(I) bis(diimine)-based acceptor–chromophore–donor A–Cu(I)–D complex (Fig. 1). Through characterization and photoelectrochemical studies of the supposedly undecorated TiO₂ NTs, we find that they are intrinsically sensitized with carbon impurities (e.g., carbon nitride). As-prepared TiO₂ NTs are photosensitized with a previously reported acceptor–chromophore–donor triad A–Cu(I)–D where the electron acceptor A is 3,6-dimethyldipyrido[3,2-a:2′,3′-c]-phenazine-11-carboxylic acid (dppz) and electron donor D is 4-(6,9-dimesityl-1H-imidazo[4,5-f][1,10]-phenanthrolin-2-yl)-N,N-diphenylaniline (TPA) (Fig. 2).¹⁰ To validate the resulting photoelectrode architectures, we report photocatalytic water oxidation by incorporating two water oxidation catalysts (WOCs): molecular [Cp*Ir(pyalc)OH] (Cp* = pentamethyl-cyclopentadienyl, pyalc = 2-(2′-pyridyl)-2-propanoate) pre-catalyst and surface deposited cobalt oxide CoO_x.^33,34 In all cases, the as-prepared photoanodes can drive oxidative processes. A significant increase of photocurrent generated by the photoanode is observed when functionalizing TiO₂ NTs with A–Cu(I)–D (Δj = 58 μA cm⁻² at 0.2 V vs. SCE), attributed to the photoinduced spatial charge separation found in acceptor–chromophore–donor systems.

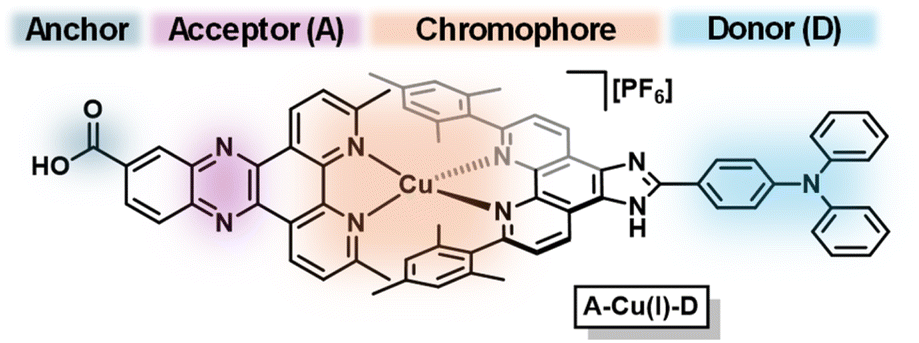

Fig. 1 Proposed structure of acceptor–chromophore–donor triad A–Cu(I)–D.

Fig. 2 Fabrication protocol for the TiO₂ NTs|A–Cu(I)–D photoanode described in this work along with the proposed light-driven oxidation scheme of [Cp*Ir(pyalc)OH] (pre-catalyst) into [Ir^IV(pyalc)(H₂O)₂(μ-O)]₂²⁺ (water oxidation catalyst) and subsequent water oxidation.

Experimental

Materials

All chemicals were used as received from commercial sources. Dichloromethane, ethanol, methanol, sodium sulfate, ammonium fluoride, cobalt nitrate hexahydrate, potassium phosphate monobasic, ethylene glycol, and triethanolamine (TEOA) were purchased from Fisher Scientific. Titanium foil (0.127 mm thick, 99.7% purity) was purchased from Strem Chemicals. Potassium phosphate tribasic monohydrate was purchased from Acros Organics. Triethylamine (TEA) was purchased from TCI. Fluorine doped tin oxide (10 Ω) coated glass substrates (FTO) were purchased from Sigma-Aldrich.

General methods

All moisture sensitive reactions were carried out using standard Schlenk techniques under an inert atmosphere of nitrogen. ¹H NMR spectra were recorded on a 500 MHz Varian spectrometer and a 300 MHz Bruker spectrometer with chemical shifts referenced to the residual solvent peaks.

UV-Vis spectra of A–Cu(I)–D and its component ligands were collected in CH₂Cl₂ using quartz cuvettes with a 1 cm path length on a dual beam Varion Cary 5000 UV-Vis near-infrared (NIR) spectrophotometer with wavelength changeover at 350 nm and a scan rate of 10 nm s⁻¹. Diffuse reflectance UV-Vis spectra of photoanodes were collected using the same instrument with an EasiDiff diffuse reflectance accessory (PIKE Technologies) with Ti foil and TiO₂ NTs as the baseline for Ti|TiO₂ NTs and Ti|TiO₂ NTs|A–Cu(I)–D, respectively.

Electrochemical measurements on molecular species were performed using a WaveDriver 20 Integrated Bipotentiostat/Galvanostat workstation (Pine Research Instrumentation, Inc.) in a conventional three-electrode cell using a glassy carbon button (2 mm) as the working electrode, platinum mesh as the counter electrode and saturated calomel electrode (SCE) as the reference electrode. Photoelectrochemical experiments (deposition of CoO_x and subsequent characterization) were conducted using the same instrument in a three-electrode cell configuration with a TiO₂ NT photoelectrode as the working electrode, platinum mesh as the counter electrode, and a saturated calomel electrode (SCE) as the reference electrode. The working electrode was illuminated with white light from a single Cree CXB3590 LED on a 140 mm pin heatsink. The diode was equipped with a 400 nm long pass filter and has a power output of 540 mW cm⁻² as measured with a PM16-405 thermal sensor power meter from ThorLabs.

Scanning electron microscopy (SEM) images were recorded on a Phenom ProX Desktop instrument and on a Hitachi Regulus 8230 FE-SEM instrument. The films were not sputter-coated. Transmission electron microscopy (TEM) images were recorded on a Talos F200X STEM G2. Samples were analyzed in scanning transmission electron microscopy mode with images obtained using a high-angle annular dark-field (HAADF) detector. Energy-dispersive X-ray spectroscopy (EDS) analyses were done using four SDD Super-X detectors. Sample preparation consists of scratching TiO₂ NTs samples into a vial containing 5 mL of isopropanol, sonicating the resulting suspension for 15 min and drop casting twice on a TEM grid using a micropipette.

Powder X-ray diffraction (PXRD) patterns were obtained using a Rikagu Miniflex 600/600C benchtop diffractometer (Applied Rikagu Technologies Inc., Austin, TX, USA) equipped with a CuKα X-ray source (wavelength, λ = 1.54 Å, radiation operating at 40 kV and 15 mA), a D/teX Ultra 2 high-speed 1D detector or HyPix-400 MF 2D sensitive detector (Applied Rigaku Technologies Inc., Austin, TX, USA) and a nickel filter. Sample data were collected using a continuous coupled θ/2θ scan in the 2θ – range of 20–80° with a step size of 0.01°, scan speed of 10° per minute, and spin speed of 20 rpm. X-ray photoelectron spectroscopy (XPS) was done using a Nexus G2 Surface Analysis System.

Diffuse reflectance infrared Fourier transform spectroscopy (DRIFTS) was done using a Thermo Scientific Nicolet iS50 FTIR spectrometer equipped with a MCT detector with a resolution of 1 cm⁻¹ in the range of 4000–650 cm⁻¹.

Self-organizing anodization of titanium dioxide nanotube arrays

Growth of TiO₂ NTs was carried out in a custom-made electrochemical cell (Scheme S1†) using an adapted previously reported self-organized anodization method.²⁸ Titanium foils (ca. 2 cm × 1.5 cm) were degreased by sonication in acetone, ethanol, and deionized water and dried in air. Titanium foil, acting as a working electrode, was pressed against a copper contact in the electrochemical cell, leaving a circular area (ca. 1 cm in diameter) exposed to a fluoride-containing electrolyte solution (0.15 M NH₄F and 3 wt% H₂O in ethylene glycol). A platinum mesh (12.5 mm × 12.5 mm) was submerged in the electrolyte solution above the titanium foil, serving as a counter electrode. Anodization took place when a potential of 60 V was applied for 15–180 minutes using a Xantrex XFR 100-12 DC power supply. Following the anodization period, the sample was rinsed, immersed in ethanol, and dried in air. The TiO₂ NTs were then annealed at 450 °C for 1 hour in air using a Thermolyne FB1315M muffle furnace. The resulting photoelectrodes were characterized by SEM, PXRD, XPS, diffuse reflectance UV-Vis and DRIFTS.

Ligand and complex synthesis

[Cu(TPA)(dppz)][PF₆], (A–Cu(I)–D). Acceptor ligand 3,6-dimethyldipyrido[3,2-a:2′,3′-c]-phenazine-11-carboxylic acid³⁵ and donor ligand 4-(6,9-dimesityl-1H-imidazo[4,5-f][1,10]-phenanthrolin-2-yl)-N,N-diphenylaniline^36,37 were synthesized as reported previously.¹⁰ The A–Cu(I)–D triad was assembled using the HETphen approach.^38,39 The identities of all synthesized species were confirmed against previous reports. ¹H NMR (500 MHz, DMSO-d₆) δ 14.08 (s, 1H), 9.28 (dd, 4H), 8.80 (s, 1H), 8.49 (d, 1H), 8.38 (d, J = 8.5 Hz, 1H), 8.23 (d, J = 8.3 Hz, 2H), 8.09 (d, 1H), 8.00 (s, 1H), 7.84 (s, 2H), 7.40 (t, J = 7.7 Hz, 4H), 7.21–7.14 (m, 8H), 6.14 (s, 4H), 2.28 (m, J = 12.1 Hz, 6H), 1.66 (m, 12H), 1.21 (d, 6H) ppm. UV-Vis, cyclic voltammetry, and DFT calculations for A–Cu(I)–D are reported in our previous work.¹⁰

[Cp*Ir(pyalc)OH] pre-catalyst (WOC). Synthesis was carried out following procedures reported in the literature.^33,40,41 For the purpose of photoelectrochemical testing, a 0.0081–1 mM solution of [Cp*Ir(pyalc)OH] in reverse osmosis water was prepared to be used as prepared or added in small quantities of 500 μL to the electrolyte. The identity was confirmed by comparison of the ¹H NMR spectrum to existing reports (Fig. S1†).³³

Photoanode assembly

TiO₂ NTs electrodes were left to soak in 0.0125 mM solution of A–Cu(I)–D in CH₂Cl₂ for 12 hours. The photoelectrodes were removed from the solution, rinsed with CH₃OH and CH₂Cl_2, and then dried in an oven for 2 hours at 90 °C. The photoelectrodes were characterized by diffuse reflectance UV-Vis, DRIFTS and TEM. Loading of A–Cu(I)–D on working electrode surface was obtained by determining the concentration, using UV-Vis of a soaking solution of photosensitizer before and after decoration of the TiO₂ NTs. The concentration was calculated using the molar absorptivity constant (ε) 7900 L mol⁻¹ cm⁻¹ for the ¹MLCT transition in A–Cu(I)–D (centered at ca. 460 nm).¹⁰ With the known volume of soaking solution used, the amount (in mol) can be calculated and divided by the area of TiO₂ NTs to yield the loading per surface area of the device.

Deposition of CoO_x water oxidation catalyst on photoanodes

The CoO_x water oxidation catalyst was deposited on photoanodes by photoelectrochemical deposition adapted from previously reported experimental conditions.^34,42 A representative procedure is as follows: photoanodes were immersed in cobalt precursor-containing aqueous electrolyte solution of 0.5 mM Co(NO₃)₂ in 0.1 M pH 7 phosphate buffer (KPi) and held at +0.2 V versus SCE under illumination from a single 540 mW cm⁻² UV-filtered white LED for 180 seconds. Following the deposition, the samples were immersed in and rinsed with deionized H₂O and dried in air.

Photoelectrochemical testing

Photoelectrochemical testing of photoanodes was performed using an adapted method outlined by Jewell et al.³⁴ It was carried out in a single compartment Pyrex® cell with a circular quartz window filled with aqueous 0.1 M Na₂SO₄ pH 8.9 as electrolyte solution. The photoanode was illuminated using the same LED used for photoelectrochemical deposition. Before carrying out the measurements the cell was allowed to rest in the dark for 2 minutes to disperse any prior charge buildup. First, the open-circuit potential, V_oc, was measured against SCE for 90 seconds in the dark and measured again under illumination. Second, chopped-light chronoamperometry was performed, where the photoanode was held at 0 V versus SCE for 300 seconds with 20 seconds light/dark transient, and then the process was carried out a second time at 0.2 V. Third, the circuit was allowed to rest again for 2 minutes before re-measuring V_oc in the dark and under illumination again. Fourth and finally, a current–voltage (i–V) photocurrent transient experiment (linear sweep voltammetry) was carried out with a scan region from −0.2 to +1.0 V versus SCE with a 10 mV s⁻¹ scan rate and 5 seconds light/dark transient.

Oxygen detection

Oxygen detection was carried out using the two-electrode collector-generator method. This technique is used in DS-PECs for in situ quantification of photoelectrochemically produced O₂ where the two electrodes, the collector and the generator, were assembled together with a 1 mm glass spacer (Fig. S2†).⁴³ The procedure for O₂ detection and quantification was derived from work carrying out similar studies.^{2,9,34,43–47} The generator Ti|TiO₂ NTs|A–Cu(I)–D and collector (unfunctionalized FTO) were sandwiched and used as working electrodes in an H-cell with a porous glass separator. The collector-generator assembly and SCE reference electrode were placed together in one compartment and the counter electrode alone was placed in the opposite compartment. The H-cell was filled with aqueous 0.1 M Na₂SO₄ pH 8.9 electrolyte solution which was deaerated by bubbling with N₂ for 1 hour prior to use and further deaerated with Ar in both compartments for an additional 10 minutes prior to current measurements. Photocurrent generated at the TiO₂ NTs photoanode and current generated at the FTO collector from reduction of O₂ to H₂O was measured with a potential held at 0.2 V and −0.6 V versus SCE respectively, which begins with a dark period of 300 seconds, followed by 300 seconds with light illumination and ending with 300 seconds in the dark ensuring residual O₂ diffusion is detected. The resulting data were used to calculate the Faradaic efficiency for oxygen generation (η_O2) for the photoanodes following where Q_col and Q_gen are the total charge passed at the collector and generator electrode respectively and η_eff is the collection efficiency of the collector-generator assembly (70%).⁴³

Results and discussion

Preparation of TiO₂ nanotube arrays

The formation of the TiO₂ NTs by self-organizing electrochemical anodization was carried out using modifications of previously reported methods.^28,31,32 The obtained morphology was observed through SEM and consists of an ordered array of nanotubes where the tubes are aligned in a compact manner, resulting in a uniform surface (Fig. 3A). The lack of spacing between the individual tubes results from the initiation layer, which is described as the collar at the mouth of the tubes.²⁸ This initiation layer provides the surface for photosensitizer deposition and will likely act as the primary site of photoactivity (Scheme S2†). The length of the tubes is directly influenced by the time of the anodization period up to the extent of reaching equilibrium between the formation of the tubes and their dissolution in the fluoride-containing electrolyte. The tube length is obtained by taking cross-sectional SEM of the NTs by physical slicing at the surface using a snap-blade knife (Fig. 3B). The tube length for an anodization period of 15 minutes is observed to be 6.0 ± 0.1 μm with a tube aperture of 73.0 ± 0.5 nm in diameter (Fig. S3†). After the growth process, the films were annealed at 450 °C for 1 hour resulting in an observable change to the color of the surface (Fig. S4†). EDS elemental mapping confirms the presence of TiO₂ and furthermore that it is contacted on Ti metal (Fig. 3C and S5†). PXRD confirms the presence of the desired anatase phase with the appearance of a characteristic (101) reflection at 25.3° 2θ.⁴⁸ The post-anodization product is amorphous with reflections associated primarily with the base Ti foil (Fig. 3D).

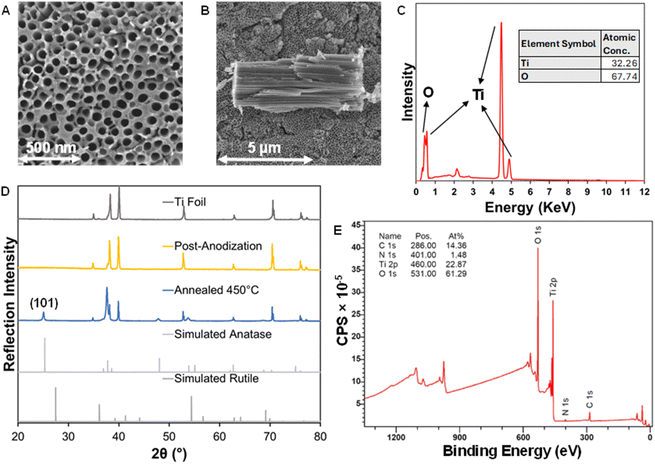

Fig. 3 (A) SEM micrograph of a TiO₂ NT surface, (B) cross-sectional SEM micrograph of TiO₂ NTs, (C) EDS elemental analysis of TiO₂ NTs, (D) PXRD diffractogram of TiO₂ NTs (simulated anatase AMCSD 0019093 and simulated rutile AMCSD 0001735) and (E) XPS survey of TiO₂ NTs.

XPS was used to further examine the surface composition of the TiO₂ NTs. XPS survey confirms the surface composition showing binding energies associated with TiO₂ NTs and of additional interest, surface composition also includes 14.36% carbon and 1.48% nitrogen (Fig. 3E). In the high-resolution scan of Ti 2p, a pair of well-separated binding energies is present, 459.45 and 465.14 eV, associated with Ti 2p_3/2 and Ti 2p_1/2, respectively, generally associated with Ti⁴⁺ and further confirming the anatase phase (Fig. S6†).⁴⁹ In the high-resolutions scan of O 1 s, the main component of the signal is the Ti–O bond at 532.04 eV associated with TiO₂ and another component at 530.69 eV is attributed to C=O resulting from the incorporation of carbon into the inner walls of the nanotubes (Fig. S7†).⁵⁰ Since ethylene glycol electrolyte-based TiO₂ NTs are known to have a carbon rich inner shell that fuses into the inner tube walls during the annealing process, the nature of these carbon impurities is of interest.³² Presumably, these carbon impurities can exist as carbon nitrides incorporated into the nanotubular structure of TiO₂. XPS helps support this presumption as the observed binding energy of N 1s at 401 eV is attributed to carbon nitride (Fig. S8†).^51–53 The high-resolution scan of C 1s yields peaks at 287.33 and 289.43 eV that can be associated to C–O and C=O, respectively (Fig. S9†).⁵⁴ The peaks at 285.70 and 286.64 eV are associated with C–NH_x (x = 1, 2) and –C=N, respectively, and hint at the carbon nitride nature of the carbon impurities.^55–59 The presence of these impurities should result in a TiO₂ surface that is intrinsically sensitized to visible light (as opposed to just UV as implied by the bandgap energy of anatase phase TiO₂).

Photoanode assembly and characterization

TiO₂ NTs samples were grown for periods of 15, 30, 45, 60, 90, 120, 180 minutes and the corresponding photocurrents (without decorating with a photosensitizer) were found to increase in a linear fashion up to 90 minutes (Fig. S10A and B†). From these data alone it is difficult to determine why this may be the case; however, we speculate that there are three possible scenarios: (i) after a 90 minutes anodization period, an equilibrium between the formation of TiO₂ NTs and dissolution has been reached, (ii) the nanotube length associated with the growth up to 90 minutes represent the limit for light absorption (i.e., any light-absorbing sites found deeper within the structure are no longer being illuminated) and (iii) the nanotube length becomes too long to the extent that there is slower charge transfer between the surface and the conductive Ti foil in addition to increasing recombination thus becomes less effective than shorter nanotube lengths. In the regime where nanotube growth corresponds to a linear increase in photocurrent, the respective nanotube lengths were measured (through the cross-sectional SEM micrograph of nanotube array fragments) and used to normalize photocurrent data. From this analysis, photocurrent density per μm of TiO₂ NTs averages resulted in constant values of 0.64 μA cm⁻² μm⁻¹ at 0 V of applied bias and 1.74 μA cm⁻² μm⁻¹ at 0.2 V of applied bias (Fig. S10C and D†). The photocurrent density of TiO₂ NTs photoelectrode can be maximized up to a plateau photocurrent of ≈20 μA cm⁻² for an anodization period of 90 minutes, yielding ≈12 μm long TiO₂ NTs (Fig. S10C†).

The acceptor ligand (A), donor ligand (D) and triad A–Cu(I)–D were synthesized and characterized as previously reported by our lab and confirmed by ¹H NMR (Fig. S11†).^9,10,35–37 The sensitized photoanodes were constructed by soaking TiO₂ NT films for 15 min in a solution of A–Cu(I)–D to yield a Ti|TiO₂ NTs|A–Cu(I)–D film (Fig. 2). This differs from previously reported surface-grafting procedures as the semiconducting TiO₂ NTs are grown using a top-down method, resulting in them being directly attached to the Ti foil.^34,42,46,60 The resulting films were characterized using diffuse reflectance UV-Vis spectroscopy, where the TiO₂ NTs show absorbance associated with the carbon impurities in the visible part of the electromagnetic spectrum extending from the blue-violet region (Fig. 4A).^61,62 These data were used as the baseline for films decorated with A–Cu(I)–D, and as such, any additional absorbance will originate from the addition of the photosensitizer. TiO₂ NTs|A–Cu(I)–D films show an ¹MLCT band (centered at ca. 480 nm) that can be directly compared with the ¹MLCT observed in the A–Cu(I)–D solution UV-Vis spectrum (Fig. 4B) with a λ_max red-shift (Δλ = 10 nm) associated with increased conjugation of the ligands through planarization caused by rigidification of the aromatic groups when the complexes are anchored onto the surface of TiO₂ (Fig. 4C).⁶³ By comparing the DRIFTS spectra of the A–Cu(I)–D complex in a KBr pellet with the TiO₂ NTs films decorated with the complex, we can confirm its attachment through the observation of a mode centered at 786 cm⁻¹ associated with Ti–O (Fig. 4D).^64,65 Additional modes centered around 3000 to 3100 cm⁻¹ indicate the sp² stretching vibrations associated with the presence of aromatic rings in A–Cu(I)–D while modes centered around 2850 to 3000 cm⁻¹ observed are associated with the sp³ stretching vibrations of the methyl groups present on the acceptor ligand. Additionally, when A–Cu(I)–D is on the surface of TiO₂ NTs, the spectra also show pairs of bands at 1585 cm⁻¹ and 1604 cm⁻¹ and 1356 cm⁻¹ and 1371 cm⁻¹ associated with asymmetric stretches and vibrations of carboxylates, respectively.^10,66 A characteristic feature of A–Cu(I)–D in KBr, the carbonyl stretching mode at 1733 cm⁻¹, is lost on TiO₂ NTs upon conversion of carboxylic acid to carboxylate when anchored onto the surface.^10,67,68 Additionally, we note that on the unfunctionalized TiO₂ NTs films, we observe possible C=N and C–N aromatic stretching modes in the ranges of 1400 to 1600 cm⁻¹ further hinting at the presence of carbon impurities (Fig. S12†).^57,69,70 Further supporting evidence of carbon impurities on the surface of unfunctionalized TiO₂ NTs and its decoration with A–Cu(I)–D is obtained by TEM and presented in the HAADF micrographs and corresponding elemental maps (Fig. S13 and 14†).

Fig. 4 (A) Diffuse reflectance UV-Vis spectrum of TiO₂ NTs. (B) UV-Vis spectrum of A–Cu(I)–D in CH₂Cl₂ at room temperature (black arrow indicates the position of the proposed ¹MLCT transition). (C) Diffuse reflectance UV-Vis spectrum of TiO₂ NTs|A–Cu(I)–D (black arrow indicates the position of the proposed ¹MLCT transition mirroring that of the triad in solution). (D) DRIFTS spectrum of TiO₂ NTs|A–Cu(I)–D (red) and A–Cu(I)–D in a KBr pellet (black).

Photoelectrochemistry of unfunctionalized TiO₂ NTs

For comparison purposes, an amorphous sample of TiO₂ NTs and an anatase sample of TiO₂ NTs were examined. Unfunctionalized TiO₂ NTs, after undergoing heat treatment at 450 °C to yield the anatase phase, are capable of visible-light absorption and photocurrent generation (Fig. 5A and S15†) from carbon impurities introduced during annealing.³² TiO₂ nanotubes resulting from anodization of Ti in ethylene glycol-containing electrolyte are known to be composed of an outer shell that consists of pure TiO₂ and an inner shell composed of carbon-rich titanium oxide or oxy-hydroxide following the electrochemical anodization.^71–74 In addition to anatase generally exhibiting higher photoactivity, crystallization into this phase provides high electron mobility compared to its rutile or amorphous counterparts.⁷⁵ Thermal treatment of as-grown TiO₂ NTs at 450 °C in a furnace for 1 hour yields the desired anatase phase. It has been reported that thermal treatments with rates above 50 °C s⁻¹ result in the inner and outer shells to be fused together.⁷¹ Thus carbon-derived impurities such as carbon nitride are likely incorporated into the inner surface of the TiO₂ NTs allowing for photocurrents to be generated upon illumination with light (as supported by XPS analysis, vide supra). In our hands, this was also partially confirmed by the fact that CoO_x was deposited on the surface of unfunctionalized TiO₂ NTs under white light illumination—a process that requires the oxidation of Co²⁺ at the electrode surface through the photogeneration of oxidizing equivalents (Fig. S16A†). Moreover, transient photocurrent measurements of unfunctionalized TiO₂ NTs show plateau photocurrents of ≈8–12 μA cm⁻² under white light illumination (Fig. 5A). By comparison, as-grown TiO₂ NTs generate negligible amounts of photocurrent without a thermal treatment step (Fig. 5A and S15†). Oxidative charge build-up is observed at the surface of the TiO₂ NTs photoelectrode as indicated by the local capacitance (photocurrent “spiking”) upon initial illumination with light.

Fig. 5 (A) Chopped-light chronoamperometry experiments of amorphous TiO₂ NTs (yellow), anatase TiO₂ NTs (blue) and anatase TiO₂ NTs with triethylamine as a sacrificial electron donor (red) at 0.2 V vs. SCE. Transient photocurrent resulting from the addition of [Cp*Ir(pyalc)OH] to (B) TiO₂ NTs|A–Cu(I)–D and (C) TiO₂ NTs. (D) Photocurrent resulting from electrodes with photoelectrochemically deposited CoO_x on TiO₂ NTs and TiO₂|A–Cu(I)–D. All experiments were conducted in aqueous 0.1 M Na₂SO₄ pH 8.9 solution with the photoelectrode as working electrode, platinum mesh as counter electrode and a saturated calomel electrode as reference electrode.

With the addition of triethylamine (TEA) as a sacrificial electron donor to the 0.1 M Na₂SO₄ pH 8.9 electrolyte solution, a maximum plateau photocurrent of ≈22 μA cm⁻² is observed due to quenching the oxidative charge build-up at the surface of the photoanode and further injection of electrons into the conduction band of the TiO₂ NTs (Fig. 5A).

Photoelectrochemical water oxidation

To examine the oxidative capabilities of the fabricated photoanodes, we investigated their ability to activate water oxidation catalysts (WOC) either in an ensemble with the catalyst in solution or with the catalyst bound to the surface. Here, we use a champion molecular electrocatalyst [Cp*Ir(pyalc)OH], to probe the performance of the photoanodes by transforming this precursor into a dimeric form and carrying out water oxidation. From a preliminary analysis it appears there exists a misalignment of redox potentials across this system but we note that it has been shown in other work that it is possible to drive such oxidative processes despite the mismatch (Scheme S3†).⁹ UV-Vis data show that [Cp*Ir(pyalc)OH] has no absorbance in the visible region, but when oxidized into the dimer [Ir^IV(pyalc)(H₂O)₂(μ-O)]₂²⁺ a broad absorbance band centered around 600 nm is observed (Fig. S17†) and associated with the IV–IV state of [Ir^IV(pyalc)(H₂O)₂(μ-O)]₂²⁺ that acts as the active water oxidation catalyst.³³

In parallel, a CoO_x WOC was successfully deposited on TiO₂ and TiO₂|A–Cu(I)–D, yielding TiO₂|CoO_x and TiO₂|A–Cu(I)–D|CoO_x photoelectrodes. CoO_x photoelectrodeposition was initiated through bulk electrolysis where chronoamperograms show a stable current after turning the light on at 3 seconds and throughout the 180 seconds of photoelectrochemical deposition indicating a steady injection of electrons originating from the oxidation of the Co²⁺ precursor into higher oxidation states and depositing at the surface as CoO_x (Fig. S16†). Photoelectrochemical deposition of CoO_x results in a monolayer at the surface of TiO₂ NTs localized on areas where there are high concentrations of photogenerated holes.^42,76,77 This is confirmed by TEM and presented in the HAADF micrograph and elemental maps in which cobalt is present on the surface of the TiO₂ NTs (Fig. S18†).

The sequence of photoelectrochemical testing follows both the light/dark transient at 0 V and 0.2 V of applied bias. All the studied photoanodes present the ability to generate photocurrent under illumination with visible light. The addition of the A–Cu(I)–D triad leads to a drastic increase of the plateau photocurrent from typical ≈8–12 μA cm⁻² at 0.2 V observed for bare TiO₂ NTs to ≈70 μA cm⁻² by the end of the 5 minutes light on/off cycling (Fig. 5B). For the presented photoanode, the addition of ≈50 μL of triethanolamine (TEOA) to the electrolyte solution results in enhanced photocurrents with decreased local capacitance at the onset of illumination resulting from faster regeneration kinetics yielding increased electron injection into the TiO₂ NTs (Fig. S19†). The photoanodes were evaluated for their ability to activate the [Cp*Ir(pyalc)OH] WOC pre-catalyst.

In the presence of the pre-catalyst, unfunctionalized TiO₂ NTs show a decrease in the photocurrent (Fig. 5C). This can be attributed to the previously reported “anti-catalyst” effect where carbon impurities present at the surface of the TiO₂ NTs can act as trap states for recombination from the WOC.^34,78–80 For the TiO₂ NTs|A–Cu(I)–D photoelectrode, a minimal decrease in photocurrent is observed (Fig. 5B). This is expected from the delay in forming the active form of the WOC and photosensitizer desorption over time (Fig. S20†). Despite this minimal decrease in photocurrent, close observations before and after the addition of [Cp*Ir(pyalc)OH] indicate that the ratio of capacitance from the moment the light is turned on and the photocurrent plateau prior to turning the light off is consistently lower after the addition of the pre-catalyst which may indicate a redox process taking place on the surface of the photoanode (Fig. S21†). The addition A–Cu(I)–D on the surface of the TiO₂ NTs may passivate surface localized impurities negating the “anti-catalyst” effect. Although it has been reported previously that despite having a photosensitizer-decorated metal oxide, the “anti-catalyst” effect expresses itself upon the addition of the WOC,^34,78–80 however, in the present work, the siting of the carbon impurities may be restricted to the surface. In other semiconductor preparations, owing to the use of organic stabilizers and binders for templating the assembly layers of metal oxide nanoparticles, carbon impurities are incorporated throughout the bulk of the material compared rather than only at the surface of TiO₂ NTs. Where addition of CoO_x to Ti|TiO₂ NTs resulted in a net photocurrent increase, no increase in photocurrent in the TiO₂ NTs|A–Cu(I)–D|CoO_x photoanode was observed (Fig. 5D) where some desorption of A–Cu(I)–D during photoelectrochemical deposition is likely (Fig. S22†).

Photocurrent origins

To further elucidate the basis of the photocurrent being observed on unfunctionalized and functionalized TiO₂ NTs films, photoaction spectra were plotted. High power density LEDs with specific wavelengths were used for unfunctionalized TiO₂, and a variable wavelength light source with low power density was used for Ti|TiO₂ NTs|A–Cu(I)–D (Scheme S4†). Using different light sources with different power densities should elucidate the contribution to the photocurrent based on light penetration depth and the surface composition of the TiO₂ NTs. When examining the photocurrent plateau of Ti|TiO₂ NTs|A–Cu(I)–D, we observe that the highest photocurrent can be found at excitation wavelengths around 480 nm (Fig. S23†), and in general the photoaction spectrum matches that of the diffuse reflectance UV-Vis where the photocurrent maxima match the absorbance of the ¹MLCT associated with the A–Cu(I)–D complex (Fig. S24†). In unfunctionalized TiO₂ NTs, the photocurrent maximum is found around 475 nm (Fig. S25†). We note that the controls for the respective photoaction spectra do not generate any significant photocurrent at any given wavelength, further confirming that the photocurrent plateau observed can be attributed to the carbon impurities in the inner walls and A–Cu(I)–D on the initiation layer using high power and low power density lights sources respectively (Fig. S23–25†). From these data, the incident photon-to-current efficiency (IPCE) was determined to be 4% and 1% for maximum photocurrent at 0.2 V associated with the absorption maxima for TiO₂ NTs and Ti|TiO₂ NTs|A–Cu(I)–D respectively (Tables S1 and 2†). IPCE for the TiO₂ NTs is highly dependent on morphology, and illumination intensity plays a role in what surface (i.e., initiation layer or inner tube walls) of the TiO₂ NTs will generate the photocurrent.⁸¹

Collector-generator Faradaic efficiency

The collector-generator method was used to probe the efficacy of the Ti|TiO₂ NTs|A–Cu(I)–D architecture for generating O₂ from H₂O. Faradaic efficiency of O₂ generation based on the photoanode systems TiO₂ NTs|A–Cu(I)–D|CoO_x and TiO₂NTs|A–Cu(I)–D + [Cp*Ir(pyalc)OH] versus TiO₂ NTs|A–Cu(I)–D and bare TiO₂ NTs as controls was calculated from their respective current response. The two-electrode collector-generator method has been widely used to evaluate O₂ evolution in photoelectrochemical water oxidation and validated with Clark-type O₂ sensors.^82–84 The Faradaic efficiencies of the controls TiO₂ NTs and Ti|TiO₂ NTs|A–Cu(I)–D are 15% and 27% respectively, both able to carry out water oxidation without the presence of a WOC, however with low Faradaic efficiencies, and the addition of the acceptor–chromophore–donor A–Cu(I)–D system represent a significant increase almost doubling the Faradaic efficiency of unfunctionalized TiO₂ NTs (Fig. S26†). It is important to note that the Faradaic efficiencies mentioned are calculated based on the ratio of total charges (Q_gen and Q_col) for the period between 100 s and 400 s which represents an overall underestimation of the true Faradaic efficiency given that there is still O₂ diffusing to the collector after the light has been turned off (Fig. S27†). When quantifying oxygen production with the addition of [Cp*Ir(pyalc)OH] to the TiO₂ NTs|A–Cu(I)–D photoanode, stoichiometric ratio of the acting oxidant and pre-catalyst need to be considered. This is shown when using a stoichiometric ratio of 1 : 14 (0.1134 mM [Cp*Ir(pyalc)OH]) and 1 : 1 (0.0081 mM [Cp*Ir(pyalc)OH]) of A–Cu(I)–D : [Cp*Ir(pyalc)OH] to run the collector-generator experiment resulting in 64% and 84% Faradaic efficiencies, respectively (Fig. 6). The ratios used are estimates based on loading (3.24 × 10⁻⁸ mol cm⁻²) of A–Cu(I)–D on TiO₂ NTs (Fig. S28†). The pre-catalyst needs to be converted to the catalytically active dimer through oxidation at the photoanode surface. In other words, one excited A–Cu(I)–D can transfer one oxidizing equivalent to an approaching pre-catalyst molecule to yield one equivalent of active catalyst. In a solution where the concentration of [Cp*Ir(pyalc)OH] is lower, the current at the collector electrode increases and plateaus more quickly, hinting that conversion of the pre-catalyst is completed rapidly (Fig. 6B). Furthermore, when 0.1134 mM [Cp*Ir(pyalc)OH] is added to the electrolyte when using a bare TiO₂ NTs photoanode, a Faradaic efficiency of 29% is obtained which represents a 14% increase upon addition of [Cp*Ir(pyalc)OH] compared to a 36% increase when using the TiO₂ NTs|A–Cu(I)–D photoanode with the same concentration of [Cp*Ir(pyalc)OH] (Fig. S26 and 27†). This highlights the effect of the A–Cu(I)–D photosensitizer on the surface of the TiO₂ NTs which allows visible light absorption and the photoinduced charge transfer that enables the oxidation of [Cp*Ir(pyalc)OH]. With TiO₂ NTs|A–Cu(I)–D|CoO_x as the generator electrode, a Faradaic efficiency of 11% (close to the TiO₂ NTs control) was found, attributed to the “anti-catalyst” effect, photosensitizer desorption, or a potential mismatch between the excited state of A–Cu(I)–D and CoO_x (Fig. S27†).

Fig. 6 Collector-generator dual working electrode experiment on TiO₂ NTs|A–Cu(I)–D with the addition of (A) 0.1134 mM and (B) 0.0081 mM [Cp*Ir(pyalc)OH] in aqueous 0.1 M Na₂SO₄ pH 8.9. The generator electrode was held at 0.2 V and illuminated with white light. The collector electrode was held at −0.6 V. reference electrode: saturated calomel electrode; counter electrode: platinum mesh. The experiment is carried out in an H-cell in which the collector-generator assembly and reference electrode are placed together in one compartment and the counter electrode alone is placed in the opposite compartment across a porous glass frit.

Conclusion

The present work represents a study of TiO₂ NTs as a potential nanostructured semiconducting material for applications in DS-PECs. The nanostructure morphology of vertically oriented arrays of TiO₂ nanotubes yields desired directional charge transport properties in addition to somewhat unexpected optical properties that stem from the incorporation of carbon impurities. Photoelectrochemical studies show that the TiO₂ nanotubes can generate photocurrents yielding oxidative potential at the surface and that is further enhanced when sensitized with the acceptor–chromophore–donor system where in the latter we observe contributions primarily from the surface installed triad. We have shown that the TiO₂ NTs can be optimized (maximizing the base photocurrent) for the given application by carefully tuning the anodization period considering the length of the nanotubes by increasing surface area and mitigating the limitation of light absorption associated with the depth of the nanotubes. Photoelectrochemical studies show that the resulting photoanodes can oxidize a [Cp*Ir(pyalc)OH] pre-catalyst into [Ir^IV(pyalc)(H₂O)₂(μ-O)]₂²⁺ active water oxidation catalyst and proceed to carry out water oxidation with a Faradaic efficiency as high as 84% for the TiO₂ NTs|A–Cu(I)–D photoanode.

Data availability

The data supporting this article have been included as part of the ESI.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors thank the Natural Sciences and Engineering Research Council of Canada (NSERC) [M. B. M funding reference number RGPIN-2018-04391; N. T. N. funding reference number RGPIN-2022-04678], the Fonds de Recherche du Québec – Nature et technologies (FRQNT) and the Quebec Centre for Advanced Materials (QCAM) for financial support. The authors thank Tyler Rutherford for his assistance in acquiring NMR spectra. Mass spectrometry was carried out at the Centre for Biological Applications of Mass Spectrometry (CBAMS). The authors thank Dr Melanie Hazlett for allowing us to use the IR spectrometer in her lab and Chris Copeman for assistance in acquiring DRIFTS spectra. TEM imaging and EDS analyses were carried out at the Facility for Electron Microscopy Research (FEMR) – McGill with the assistance of Dr Jesus Angel Valdez Aguilar. XPS analysis was carried out at the McGill Institute for Advanced Materials (MIAM) with the assistance of Dr Lihong Shang. FE-SEM imaging was carried out at the Concordia Materials Characterization Platform (CMCP) with the assistance of Dr Dmytro Kevorkov.
