Regulating charge transfer of copper(I) coordination compounds via conformation engineering for highly efficient radioluminescence and 3D X-ray imaging

Abstract

Copper(I) coordination compounds have emerged as promising candidates for X-ray scintillators because of their superior X-ray absorption capacity and tunable radioluminescence. However, a strategy that realizes efficient radioluminescence by varying the competition between radiative ligand-related transitions and nonradiative cluster-centered charge transfer is yet to be clearly demonstrated. Here, via conformation engineering, a series of copper(I) iodide coordination clusters have been designed and synthesized, and named (POPy)₄Cu₂I₂, (POPy)₄Cu₄I₄-α and (POPy)₄Cu₄I₄-β (POPy = 4-phenoxypyridine). Mechanistic studies reveal that the radioluminescence in isomeric Cu₄I₄ clusters originates from triplet metal/halide-to-ligand charge transfer (³M/XLCT) and cluster-centered (³CC) excited states, respectively. The experimental results disclose that intramolecular charge transfer is desirable for radioluminescence as it can transfer excitons generated by absorbing radiation ionizations to ligands to form thermal electrons. Due to the large X-ray absorption cross-section of the Cu₄I₄ cube and efficient ³M/XLCT emissions, the scintillation film fabricated by using (POPy)₄Cu₄I₄-α realizes a high resolution of 20.2 lp mm⁻¹, and further enables a 3D X-ray imaging demonstration. Our work provides a comprehensive comparison of the radioluminescence characteristics between ³M/XLCT and ³CC excited states in isostructural Cu₄I₄-based clusters, providing a template for enhancing scintillation properties through conformation engineering.

---

Introduction

Scintillators, which emit visible light in response to high energy radiation like X-rays and gamma rays, play a pivotal role in the fields of industrial nondestructive testing, space security inspection, biomedical imaging and so on.^1–6 The pursuit of new scintillators with superior performance, customizable emission colors and low costs is of great interest in materials chemistry.^7–9 The reported CsPbX₃ (X = Cl, Br or I) nanocrystal scintillators with efficient radioluminescence (RL) demonstrate the feasibility to tune radioluminescence covering the entire visible region, which indicates the great potential of metal halides for highly sensitive scintillators.¹⁰ Encouragingly, recent studies reveal that numerous lead-free metal halides can deliver scintillation performance rivaling or even surpassing that of lead-based scintillators.¹¹ Therefore, developing lead-free materials with robust stability, low-cost fabrication and efficient radioluminescence to broaden the family of scintillators is of great significance.

Copper(I) coordination compounds possess several advantageous characteristics, including but not limited to cost-effectiveness, high chemical stability, excellent optical tunability and superior luminescence, thereby arousing significant research interest.^12–15 In the family of copper(I) halide coordination clusters, inorganic modules and organic ligands are connected through Cu–N/P/S coordination bonds.¹⁶ Due to the various coordination environments, there are diverse forms of inorganic skeletons, such as monomeric [CuX], dimeric [Cu₂X₂], trimeric [Cu₃X₃], tetrameric [Cu₄X₄] and staircase-type [CuX]_n polymeric chains.^17–21 In this case, the charge transfer pathways from the ground state to the excited state are complicated, which are associated with inorganic backbones and organic ligands. Typically, the charge-transfer excited states in these clusters can be attributed to several categories, such as the triplet cluster-centered (³CC) state, as well as the metal/halide-to-ligand charge transfer (³M/XLCT) state, also known as the intramolecular charge transfer state.²² The ³CC transition, including the metal-to-halide charge transfer process, has been found in numerous structures with strong Cu–Cu interactions, especially Cu₄I₄ cubes.²³ However, the ³CC state is inferior to the other excited state, as it serves as the quenching site of excited energy and suppresses the radiative transition.²⁴ Therefore, the clusters with ³CC emission are considered to be not suitable for efficiently luminescent applications. The ³M/XLCT state has been manifested to be highly effective in enhancing optical properties in these clusters.²⁵ Under ultraviolet excitation, the ³M/XLCT and ³CC excited states in these clusters exhibit a competitive relationship, eventually resulting in the luminescent behavior in response to stimuli such as pressure and temperature variation.²⁶ When ionized by X-rays, the clusters generate high-energy electrons that are ultimately captured by the organic ligands, producing radioluminescence dominated by intramolecular charge-transfer excited states (Scheme 1).

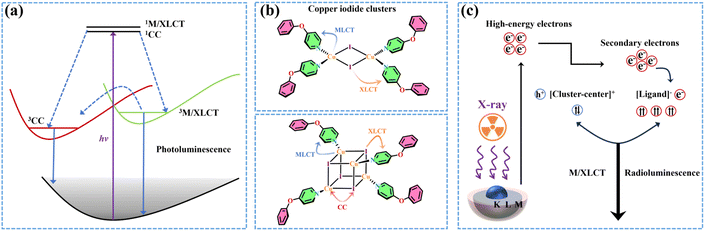

Scheme 1 (a) Photophysical processes of copper iodide coordination clusters. (b) Transition characteristics of copper iodide coordination clusters. (c) Schematic diagram of the scintillation process in clusters.

To gain efficient radioluminescence in copper(I) halide coordination clusters, it is very urgent to find effective strategies to achieve intramolecular charge-transfer predominant characteristics. Through ligand engineering, Xu et al. modified organic ligands with electron-donating groups, achieving intramolecular charge-transfer luminescence and efficient scintillation performance.²⁷ Ju's group also achieved remarkable ligand-related radioluminescence by regulating the coordination mode of inorganic components.²⁸ Intriguingly, some research studies have reported that different structures can be formed with the same chemical formula, which provides inspiration for regulating charge transfer processes by using isomers.^29,30 However, there still remains a lack of conformation engineering strategies for realizing superb radioluminescence by regulating the ³M/XLCT and ³CC excited states in isostructural copper(I) halide coordination clusters.

Herein, we proposed a conformation engineering strategy to regulate the electron transition process. Taking 4-phenoxypyridine (POPy) as an organic ligand, a series of copper(I) iodide coordination clusters were synthesized by the liquid-phase diffusion method, and named (POPy)₄Cu₂I₂, (POPy)₄Cu₄I₄-α and (POPy)₄Cu₄I₄-β, respectively. The conformational changes caused by the effects of flexible chains containing an O atom linker on the ligands are considered to be the key reason for the self-assembly of the isomeric [Cu₄I₄] clusters. Through the regulation of inorganic modules, (POPy)₄Cu₂I₂, (POPy)₄Cu₄I₄-α and (POPy)₄Cu₄I₄-β exhibit blue, yellow and red emission respectively, under both ultraviolet and X-ray irradiation, almost across the entire visible spectrum. Experiments and density functional theory (DFT) calculations indicate that the emissions of (POPy)₄Cu₄I₄-α and (POPy)₄Cu₄I₄-β originate from ³M/XLCT and ³CC excited states, respectively, which is attributed to the different charge distributions caused by the conformational changes. Benefiting from the large X-ray absorption cross section of the [Cu₄I₄] core and efficient ³M/XLCT emission, (POPy)₄Cu₄I₄-α achieves excellent scintillation properties, including a high light yield of 36 700 photons per MeV and a low detection limit of 97.63 nGy_air s⁻¹. Furthermore, the flexible scintillation film fabricated by using (POPy)₄Cu₄I₄-α microcrystal inks achieves a high spatial resolution of 20.2 lp mm⁻¹ and three-dimensional (3D) X-ray imaging. This work not only provides a superb template for understanding the structure–property relationship of the isomeric copper(I) halide clusters, but also demonstrates their great potential as high-performance scintillators.

Results and discussion

Synthesis and structural characterization

Crystals of the target compounds were prepared by the liquid-phase diffusion method (see the Experimental section). In brief, when the molar ratio of POPy to CuI is 2 : 1, or POPy is in excess, (POPy)₄Cu₂I₂ crystals are preferentially formed. (POPy)₄Cu₄I₄-α crystals are readily obtained by rapid diffusion from equimolar (1 : 1) POPy and CuI. The synthesis of (POPy)₄Cu₄I₄-β crystals likewise adopts an equimolar feed ratio, but requires a slower, more precisely controlled crystallization rate than the former. When acetone is employed as the solvent for POPy, crystallization is markedly retarded and the system preferentially affords (POPy)₄Cu₄I₄-β crystals. Single crystal X-ray (SC-XRD) diffraction analysis at room temperature (RT) reveals that (POPy)₄Cu₂I₂, (POPy)₄Cu₄I₄-α and (POPy)₄Cu₄I₄-β crystallize in the monoclinic P2₁/n, tetragonal P4̄, and monoclinic C2/c space groups, respectively (Fig. S1). The crystal structures of the three compounds are shown in Fig. 1a–c, and the detailed crystallographic data are collected in Table S1. As shown in Fig. 1a, the organic ligands combine with Cu–I centers to form a binuclear butterfly-shaped [Cu₂I₂] cluster, in which each Cu atom is coordinated simultaneously with the nitrogen atoms of two POPy ligands to form a robust tetrahedral coordination geometric structure. Fig. 1b and c reveal that (POPy)₄Cu₄I₄-α/β are a pair of isomers with the same chemical formula, in which each copper atom coordinates with a nitrogen atom to present a tetrahedral NCuI₃ geometric environment, eventually forming a classical cubic structure with four copper atoms and four iodine atoms alternately occupying the corner of a twisted cube. According to the connectivity modes of organic and inorganic modules ranging from discrete clusters to extended structures of higher dimension, the three compounds are separated into relatively independent units by organic ligands, featuring zero-dimensional structures. Table S2 lists the Cu–Cu bond lengths in the three compounds, and it can be seen that the Cu–Cu bond distances in (POPy)₄Cu₂I₂ are shorter (2.76 Å) than twice the van der Waals radius of Cu (2.80 Å), indicating the existence of Cu–Cu bonding interactions.³¹ For (POPy)₄Cu₄I₄-α/β, the average Cu–Cu bond lengths are 2.67 and 2.70 Å, respectively, disclosing strong cuprophilic bonding interactions in [Cu₄I₄] cubanes, which may promote the formation of ³CC excited states. The purity of the four compounds was verified by powder X-ray diffraction (PXRD). As shown in Fig. S2, the PXRD patterns of the three compounds are in excellent agreement with the simulation profiles of single crystal data. The state of the Cu ion was measured and analyzed by X-ray photoelectron spectroscopy (XPS). As shown in Fig. S3, the Cu 2p orbital curve of XPS produces two peaks at 931.8 and 951.8 eV, confirming the +1 oxidation state of Cu. Thermal gravimetric analysis (TGA) indicates that (POPy)₄Cu₄I₄-α/β begin to lose weight when heated to 170 °C in a nitrogen atmosphere, while (POPy)₄Cu₂I₂ shows a lower stability and remains stable until approximately 130 °C (Fig. S4). The superior thermal stability of these Cu₄I₄ clusters may be related to their cubic skeleton, as this structure is geometrically rigid.

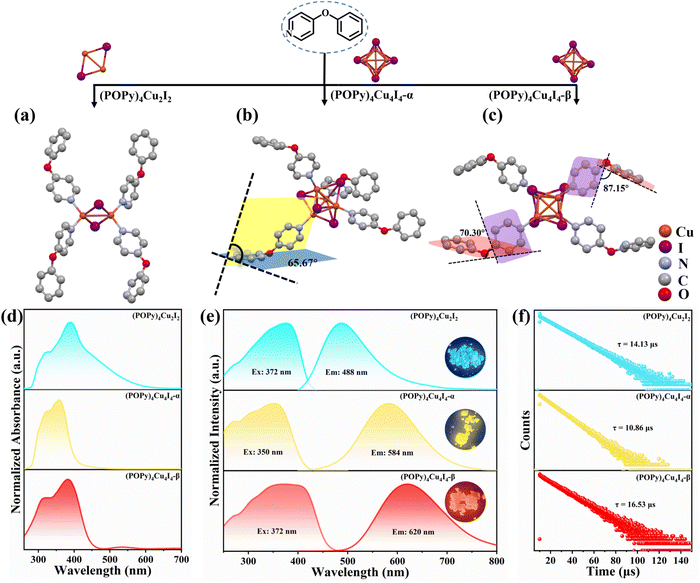

Fig. 1 Crystal structures of (a) (POPy)₄Cu₂I₂, (b) (POPy)₄Cu₄I₄-α and (c) (POPy)₄Cu₄I₄-β. All hydrogen atoms have been omitted for clarity. (d) Normalized UV-visible absorption spectra of the obtained complexes. (e) Normalized excitation and emission spectra of the obtained complexes. (f) Decay lifetime of the obtained complexes.

To elucidate the causes of the formation of the different phases, the crystal data of (POPy)₄Cu₄I₄-α/β are analyzed in detail. It is worth noting that the configurations of ligand molecules are significantly different in (POPy)₄Cu₄I₄-α/β, where the benzene rings of POPy show varying degrees of deflection. In ligand POPy, the connection between the benzene ring and the pyridine ring is achieved by oxygen atoms, which can be regarded as a flexible chain and allows a certain degree of torsion freedom between the two rings. The dihedral angles between the benzene and pyridine ring planes in each ligand POPy of the (POPy)₄Cu₄I₄-α/β are collected to describe the degrees of deflection (Table S3). Fig. S5 displays the smallest asymmetric units of the obtained Cu₄I₄ clusters. It can be seen that (POPy)₄Cu₄I₄-α exhibits a high structural symmetry, where the conformation of ligand POPy is single, with a dihedral angle of 65.67° (Fig. 1b). Whereas for (POPy)₄Cu₄I₄-β, there are two types of POPy ligands with different conformations, which deliver larger dihedral angles than the counterparts in the α-phase, that is, 70.30° and 87.15°, respectively (Fig. 1c). Obviously, the differentiated dihedral angles lead to a lower symmetry in (POPy)₄Cu₄I₄-β. Here, it can be speculated that such distortions of organic ligands result in the formation of different α/β-phases. In addition, the deflection of the benzene rings of POPy has significant effects on the electronic structure of the whole cluster (³M/XLCT structure for Cu₄I₄-α and ³CC structure for Cu₄I₄-β), as it participates in the charge transition and affects the luminescent properties, which has been confirmed and discussed in the electronic structures part below. It is worth noting that, in contrast to (POPy)₄Cu₄I₄-α, the Cu₄I₄ skeleton of (POPy)₄Cu₄I₄-β displays a greater degree of distortion for balancing the larger dihedral angle deflections on the ligand molecules. The polyhedral distortion index (D_tet and σ_tet²) could be utilized to quantify the distortive degree of NCuI₃ tetrahedra using the following formulae (eqn (1) and (2)):³²

where l̄, l_i and σ_i represent the average Cu–I/N bond length, the individual Cu–I/N bond length and the individual I–Cu–I/N bond angle of the tetrahedral unit, respectively. The selected bond lengths and angles are listed in Tables S4 and S5, and the results of distortion index are collected in Table S6. One can see that the polyhedral distortion index of (POPy)₄Cu₄I₄-α (D_tet = 9.898 × 10⁻², σ_tet² = 10.023) is obviously smaller than that of (POPy)₄Cu₄I₄-β (D_tet = 1.019 × 10⁻¹, σ_tet² = 27.295). Here, it is reasonable to infer that the ³M/XLCT structure is characterized with high symmetry, while ³CC structure features marked reduction in the symmetry and dramatic distortion. Very recently, Ihee et al. utilized time-resolved X-ray liquidography to investigate the excited-state structural dynamics of Cu₄I₄(py)₄, and achieved conclusions similar to ours.³³ Our work obtained isomeric Cu₄I₄ clusters with ³M/XLCT and ³CC characteristics respectively under ambient conditions, providing an excellent template for understanding the excited-state structural dynamics of these clusters. In addition, such ligand design gives inspiration for regulating intramolecular charge transfer through conformation engineering.

Photophysical properties

Benefiting from the diverse configurations of the organic and inorganic components, (POPy)₄Cu₂I₂, (POPy)₄Cu₄I₄-α, and (POPy)₄Cu₄I₄-β exhibit rich luminescent properties. As shown in Fig. 1e, (POPy)₄Cu₂I₂, (POPy)₄Cu₄I₄-α, and (POPy)₄Cu₄I₄-β emit blue, yellow and red light under 365 ultraviolet (UV) lamp irradiation, respectively, almost covering the entire visible range. The optical bandgaps of the three compounds are determined by diffuse reflectance spectroscopy (Fig. S6), where the direct bandgaps are estimated to be 2.85, 3.19 and 2.89 eV for (POPy)₄Cu₂I₂, (POPy)₄Cu₄I₄-α, and (POPy)₄Cu₄I₄-β, respectively. As shown in Fig. 1d, (POPy)₄Cu₂I₂ exhibits a wide range of absorption from 300 to 600 nm, which means a strong self-absorption and is not beneficial for emission. The experimental absorption edges of both (POPy)₄Cu₄I₄-α/β are close to their excitation peak maxima (Fig. 1d and e). The photoluminescence and PL excitation (PLE) spectra of the three compounds at RT are characterized by steady-state spectroscopy. As shown in Fig. 1e, (POPy)₄Cu₂I₂ exhibits a broadband emission centered at 488 nm under an excitation wavelength of 372 nm, with a full width at half-maximum (FWHM) of 110 nm and a Stokes shift of 116 nm. Under 350 nm excitation, the PL spectrum of (POPy)₄Cu₄I₄-α shows a strong broadband emission peak at 584 nm with a FWHM of 131 nm and a large Stokes shift of 234 nm. (POPy)₄Cu₄I₄-β produces a broadband emission centered at 620 nm with a FWHM of 149 nm and a Stokes shift of 248 nm under 372 nm excitation. The large Stokes shifts of (POPy)₄Cu₄I₄-α/β indicate negligible self-absorption, which are favorable for efficient luminescence. The photoluminescence quantum yields (PLQYs) of (POPy)₄Cu₂I₂, (POPy)₄Cu₄I₄-α, and (POPy)₄Cu₄I₄-β are measured at RT and determined to be 48.14%, 99.85% and 39.95%, respectively (Fig. S7). Due to the superior PLQY, (POPy)₄Cu₄I₄-α is a preference for lighting applications. According to the PL spectra of the three compounds, the CIE coordinates are calculated to be (0.22, 0.34) for (POPy)₄Cu₂I₂, (0.46, 0.48) for (POPy)₄Cu₄I₄-α and (0.55, 0.44) for (POPy)₄Cu₄I₄-β (Fig. S8). The time-resolved PL decay curves of the three compounds are collected at RT to further investigate their photophysical properties. By single exponential fitting, the lifetimes of (POPy)₄Cu₂I₂, (POPy)₄Cu₄I₄-α, and (POPy)₄Cu₄I₄-β are determined to be 14.13 μs, 10.86 μs and 16.53 μs, respectively (Fig. 1f). These microsecond long lifetimes indicate that the radiative relaxation originates from the recombination of triplet states.³⁴ The PL spectra at different excitation wavelengths are measured at RT, as shown in Fig. 2a–c, and there is only one emission center in each three-dimensional continuous PL mapping, which indicates that their radiative paths are single.

Fig. 2 Excitation-dependent emission spectra of (a) (POPy)₄Cu₂I₂, (b) (POPy)₄Cu₄I₄-α and (c) (POPy)₄Cu₄I₄-β. Temperature-dependent photoluminescence spectra of (d) (POPy)₄Cu₂I₂, (e) (POPy)₄Cu₄I₄-α and (f) (POPy)₄Cu₄I₄-β. (g) PL decay lifetime curves of (POPy)₄Cu₂I₂ at 80, 200 and 300 K. (h) Fitting results of the intensity as a function of temperature for (POPy)₄Cu₄I₄-α and (POPy)₄Cu₄I₄-β. (i) FWHM as a function of temperature for (POPy)₄Cu₄I₄-α and (POPy)₄Cu₄I₄-β.

To further elucidate the photophysical processes, temperature-dependent PL spectra have been measured for the three compounds. It can be observed in Fig. 2d and S9 that the emission intensity of (POPy)₄Cu₂I₂ is gradually enhanced with the temperature increasing from 80 to 130 K. In the temperature range of 130–300 K, the emission of (POPy)₄Cu₂I₂ exhibits a thermal quenching behavior. The emission enhancement behavior of (POPy)₄Cu₂I₂ in the temperature range from 80 K to 130 K is called thermal activation. This demonstrates the existence of a certain energy barrier ΔE, which can be calculated according to the following formula (eqn (3)):³⁵

ΔE = k_BT (3)

where k_B is the Boltzmann constant, T = 130 K, and ΔE is calculated to be 11.2 meV. As shown in Fig. 2g, the lifetimes for (POPy)₄Cu₂I₂ are gradually increasing with decreasing temperatures and are fitted by single exponential, delivering triplet phosphorescent characteristics. Subsequently, it is found that the PL spectra of (POPy)₄Cu₄I₄-α/β have only one emission peak in the temperature range of 80–300 K (Fig. 2e and f), indicating the single emissive mechanism. In addition, the maximum emission wavelength of (POPy)₄Cu₄I₄-α is gradually blue-shifted with the decrease in test temperature, while that of (POPy)₄Cu₄I₄-β is red-shifted at low temperature. The phenomenon that the emission peak position is temperature-dependent has been observed in many Cu(I)-based materials, and is usually attributed to the influence of lattice thermal expansion.³⁶ The intensity of the emission peak of (POPy)₄Cu₄I₄-α/β decreases gradually with the broadening of bandwidths during the temperature increase from 80 to 300 K, which is attributed to the nonradiative decay.³⁷

To deeply examine the PL distinctions in (POPy)₄Cu₄I₄-α/β, the Arrhenius formula is used to calculate the exciton activation energy (E_a), deduced as eqn (4):³⁸

where I(T) and I₀ represent the PL intensity at 0 K and measured temperature, respectively, and k_B denotes the Boltzmann constant. As shown in Fig. 2h, the E_a of (POPy)₄Cu₄I₄-β is determined to be 41.78 meV, a bit smaller than that of (POPy)₄Cu₄I₄-α (51.03 meV). The large values of E_a are conducive for the capture of excitons, thereby promoting radiation decay. Considering broadband emission of (POPy)₄Cu₄I₄-α/β, the relationships between FWHM and temperature are fitted by using the following formula (eqn (5)):³⁹where ħω_phonon means the phonon energy and S denotes the Huang–Rhys factor. As shown in Fig. 2i, the FWHM of both (POPy)₄Cu₄I₄-α/β becomes broad with increasing temperature, indicating an enhancement of electron–phonon coupling. The S value can be estimated to be 39.79 for (POPy)₄Cu₄I₄-α and 81.33 for (POPy)₄Cu₄I₄-β. The larger S value of (POPy)₄Cu₄I₄-β means a stronger electron–phonon coupling, which corresponds to its larger degree of structural distortion to promote Jahn–Teller excited state distortion. The ³M/XLCT structure of (POPy)₄Cu₄I₄-α presents a spatially separated electron–hole distribution, which reduces exciton–phonon coupling and mitigates energy loss caused by Jahn–Teller distortion, eventually culminating in a near-unity PLQY.

Electronic structure

We further performed DFT calculations to gain insights into the mechanism of the optical behaviors of the three compounds. As shown in Fig. S10, flat band edges can be observed on both sides of the valence and conduction bands of the three compounds, indicating that there is almost no overlap of wave functions and electronic coupling between adjacent clusters.⁴⁰ The bandgaps calculated by DFT are 2.83, 3.15 and 3.11 eV for (POPy)₄Cu₂I₂, (POPy)₄Cu₄I₄-α, and (POPy)₄Cu₄I₄-β, respectively, which are in reasonable agreement with experimentally measured optical bandgaps, considering the challenge of accurate prediction of bandgaps of organic–inorganic hybrid semiconductors by standard DFT methods and the difference of definition between optical bandgaps and HOMO–LUMO (the highest occupied molecular orbital – the lowest unoccupied molecular orbital) gaps.⁴¹ The charge density distributions of the three compounds are shown in Fig. S11. It can be clearly seen that the inorganic and organic parts of the three compounds are involved in the composition of the HOMO and LUMO. Fig. 3a–c present the density of states (DOS), orbital composition analysis and electronic charge densities of (POPy)₄Cu₂I₂. It can be seen that the HOMO is localized in the [Cu₂I₂] core, primarily contributed by the Cu 3d and I 5p orbitals, whereas the LUMO is localized in the organic ligands. In (POPy)₄Cu₄I₄-α, the HOMO primarily consists of Cu 3d and I 5p orbitals, while the orbitals of organic components dominate the LUMO (Fig. 3d and e). Similar to (POPy)₄Cu₂I₂, the HOMO and LUMO of (POPy)₄Cu₄I₄-α are localized in the [Cu₄I₄] core and ligands (Fig. 3f), respectively. Therefore, the emissions from (POPy)₄Cu₂I₂ and (POPy)₄Cu₄I₄-α can be assigned to ³M/XLCT, which are consistent with those of previously reported Cu-based clusters with [Cu₂I₂] and [Cu₄I₄] cores.^42,43 Although (POPy)₄Cu₄I₄-β shares the same chemical formula and the [Cu₄I₄] core with (POPy)₄Cu₄I₄-α, their electronic structures are significantly different. It can be seen in Fig. 3g and h that the Cu-3d electron and I-5p electron play a crucial role in the HOMO, while the 4sp/3d shell of Cu and 5sp states of I atoms dominated in the LUMO, indicating the charge transitions of dominant d → s, p cluster-centered (CC). Such metal-to-iodide states can induce structural distortion in the Cu₄I₄ core, which negatively impacts the luminescence of clusters. As shown in Fig. 3i, the HOMO and LUMO of (POPy)₄Cu₄I₄-β are partially overlapping, and mainly concentrate on the inorganic [Cu₄I₄] core, further suggesting the existence of the CC transition. Here, it is clear that the luminescence of (POPy)₄Cu₄I₄-β is attributed to ³CC emission. According to a previous report, ³CC emission is typically characterized by a large Stokes shift and low luminous efficiency, which is consistent with the characteristics of (POPy)₄Cu₄I₄-β.⁴⁴ The Jahn–Teller distortion of the ³CC structure may increase the overlap of the potential energy surfaces between the excited state and the ground state, ultimately resulting in non-radiative relaxation. Meanwhile, because the charge in the ³CC structure is concentrated in the Cu₄I₄ core, the radiative recombination channel of the ligand cannot be fully utilized, culminating in a low probability of radiative transition. As a result, the superior luminescent properties of (POPy)₄Cu₄I₄-α under both UV and X-ray irradiations compared to (POPy)₄Cu₄I₄-β can be well understood. Moreover, it is found in the compositional orbital diagram of (POPy)₄Cu₄I₄-β that the ligand also contributes a lot to the LUMO, which means an existence of competition between ³CC and ³M/XLCT states. Considering that the geometric changes between isomeric (POPy)₄Cu₄I₄-α/β happen in the outer protecting ligands, the distortional degree of organic ligands is associated with their electronic structures, as the large dihedral angle deflection of POPy induces a reduction in the symmetry and a significant distortion in the Cu₄I₄ core. Typically, a compact Cu₄I₄ unit would restrain further deformation and thereby hamper the formation of the ³CC state.⁴⁴ Compared with (POPy)₄Cu₄I₄-α, (POPy)₄Cu₄I₄-β exhibits larger structural distortion and a longer average Cu–Cu distance, yielding a less compact framework. This reduced rigidity facilitates excited-state contraction and deformation, tilting the balance between ³M/XLCT and ³CC toward the latter. On the basis of the results of spectral characterization and theoretical calculations, the frontier energy band diagrams describing the photophysical processes of (POPy)₄Cu₂I₂, (POPy)₄Cu₄I₄-α and (POPy)₄Cu₄I₄-β are illustrated in Fig. 3c, f and i.

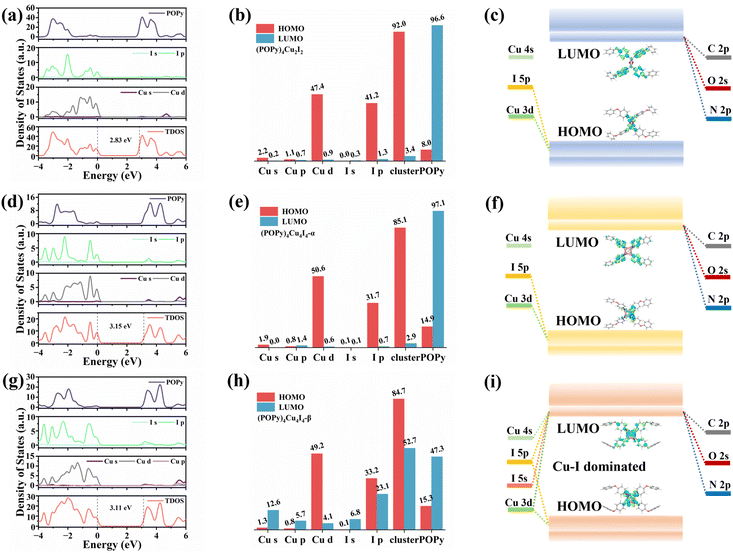

Fig. 3 Density of states, orbital composition analysis (the numerical values denote the percentage contributions of different Cu/I/POPy shells to the HOMO and LUMO, %) and frontier energy band diagrams for (a–c) (POPy)₄Cu₂I₂, (d–f) (POPy)₄Cu₄I₄-α and (g–i) (POPy)₄Cu₄I₄-β.

To further elucidate the structure–property relationship of the Cu₄I₄ cluster, we characterized the excited-state structures of (POPy)₄Cu₄I₄-α and (POPy)₄Cu₄I₄-β by time-dependent DFT (TD-DFT). We examined the ΔQ (the changes between the ground- and excited-state equilibrium position) to reflect the distortion degree in the lowest triplet (T₁) excited states relative to the ground state (S₀) within a periodic unit.⁴⁵ As depicted in Fig. S12a, (POPy)₄Cu₄I₄-α exhibits a small structural change from S₀ to T₁. Whereas for (POPy)₄Cu₄I₄-β, the ΔQ is much higher than that of (POPy)₄Cu₄I₄-α (Fig. S12b), indicating a larger degree of excited-state structural distortion. This might be due to the fact that the highly symmetrical cubic Cu₄I₄ configuration of (POPy)₄Cu₄I₄-α is more resistant to the excited-state deformation, attributed to its robust structural rigidity. The lower excited-state distortion significantly suppresses non-radiative recombination, enabling a pronounced PLQY of up to 99% in (POPy)₄Cu₄I₄-α. The intense Jahn–Teller distortion in (POPy)₄Cu₄I₄-β leads to a decrease in emission energy, which is consistent with the trend of the Huang–Rhys factor.

X-ray scintillation properties

The excellent photophysical properties of the three compounds, including relatively short lifetime and broadband emission with high PLQY, inspire us to explore their potential application as X-ray scintillators. According to the XCOM web database, we calculated the absorption coefficients of the three compounds and the commercial Bi₄Ge₃O₁₂ (BGO) scintillator at different photon energies.⁴⁶ As shown in Fig. 4a, the X-ray absorption coefficients of the three compounds are slightly lower than that of BGO, indicating that they have strong X-ray absorption capacity in the extensive energy range. Similar to the PL properties under UV light excitation, the radioluminescence spectra of (POPy)₄Cu₄I₄-α exhibit the same yellow emission, indicating the same luminescence mechanism (Fig. S13b). Under X-ray irradiation, (POPy)₄Cu₂I₂ exhibits an emission peak at 496 nm with a FWHM of 128 nm (Fig. S13a), and a redshifted and wider spectrum compared with the PL spectrum shown in Fig. 1e. A similar redshift phenomenon also exists in (POPy)₄Cu₄I₄-β (Fig. S13c). The red shifts observed in the RL spectrum may be attributed to the radiative recombination of shallow defects near the LUMO.⁴⁷ In order to evaluate the ability of the three compounds to convert X-rays into visible light, we compared the integrated area of their RL emission spectra with BGO as a reference (Fig. 4b). As illustrated in Fig. 4c, the light yields of (POPy)₄Cu₂I₂, (POPy)₄Cu₄I₄-α, and (POPy)₄Cu₄I₄-β were calculated to be 6420, 36 700 and 19 700 photons per MeV, respectively. The light yield of (POPy)₄Cu₄I₄-α is much higher than that of the commercial scintillator BGO (10 000 photons per MeV), and also higher than those of the reported metal halide scintillators, including (Bmpip)₂Cu₂Br₄ (16 000 photons per MeV) and CsPbBr₃ (21 000 photons per MeV).⁴⁸ Such high light yields benefit from high PLQY, negligible self-absorption, and large X-ray absorption cross section of the heavy [Cu₄I₄] core. In contrast, although (POPy)₄Cu₂I₂ possesses ³M/XLCT characteristics, its radioluminescence is the most inferior in these clusters, attributed to lower X-ray absorption capacity and strong self-absorption. As illustrated in Fig. 4d, the RL intensity of (POPy)₄Cu₄I₄-α linearly increases with the X-ray dose from 0.15 to 3.73 μGy_air s⁻¹, indicating the high sensitivity at low doses. As shown in Fig. 4e and S14, the detection limits are calculated to be 0.83 μGy_air s⁻¹ for (POPy)₄Cu₂I₂, 97.63 nGy_air s⁻¹ for (POPy)₄Cu₄I₄-α and 132.85 nGy_air s⁻¹ for (POPy)₄Cu₄I₄-β, which are lower than the value of 5.5 μGy_air s⁻¹ required for X-ray medical diagnosis.⁴⁹ Subsequently, the irradiation resistance of the three compounds was investigated by exposing them under switched on-off irradiation of high-dose X-rays (Fig. 4f). The results demonstrate that the RL intensity remains unchanged within 15 irradiation on/off cycles for 900 s, indicating excellent X-ray stability. To sum up, considering the high light yield, low detection limit and long-term irradiation stability, (POPy)₄Cu₄I₄-α is considered as an ideal scintillator for X-ray imaging. Building upon these PL and RL properties, it can be speculated that under X-ray excitation, the high-energy electrons generated through the photoelectric effect and Compton scattering relax into secondary electrons. These secondary electrons are transferred to the excited-state energy levels in the materials and achieve efficient ³M/XLCT and ³CC emissions (Fig. S15).

Fig. 4 (a) Absorption coefficients of the obtained complexes and BGO as a function of photon energy. (b) RL spectra of the obtained complexes and BGO under the same conditions. (c) A comparison of light yield between the obtained complexes and conventional scintillators. (d) RL spectra of (POPy)₄Cu₂I₂ under X-ray radiation at different dose rates. (e) Linear fitting of RL response intensity vs. dose rate. (f) The irradiation stability of the obtained compounds under cyclic X-ray illumination.

X-ray imaging applications

Encouraged by the excellent scintillation performance of (POPy)₄Cu₄I₄-α, we fabricated a flexible film as a scintillation screen. The traditional method of fabricating a scintillation screen is to grind the bulk crystals and mix them with the polymer matrix.^50,51 However, the powders obtained by grinding exhibit the problems of large grain size and non-uniformness in film preparation. To address this issue, we obtained rod-like microcrystals by regulating the crystal growth rate of (POPy)₄Cu₄I₄-α through the surfactant poly(vinylpyrrolidone) (PVP). As shown in Fig. 5a, the well-dispersed microcrystals in methanol exhibit the same yellow luminescence as the bulk crystal. By combining microcrystal inks with a polyvinyl alcohol (PVA) polymer matrix, we fabricated a (POPy)₄Cu₄I₄-α@PVA flexible film with a size of about 5 × 5 cm (Fig. 5b and c). Cross-sectional scanning electron microscopy (SEM) is employed to further characterize the morphology and distribution of microcrystals in the polymer matrix (Fig. S16). It can be clearly seen that the thickness of the film is approximately 80 μm and the microcrystals are uniformly distributed. As shown in Fig. S17, the PXRD pattern of the (POPy)₄Cu₄I₄-α@PVA film is consistent with the simulation result of the (POPy)₄Cu₄I₄-α single crystal, demonstrating the same structure after combination. Furthermore, the flexible film retains a sufficient PLQY of 81.62%, illustrating the excellent luminescence performance (Fig. S18).

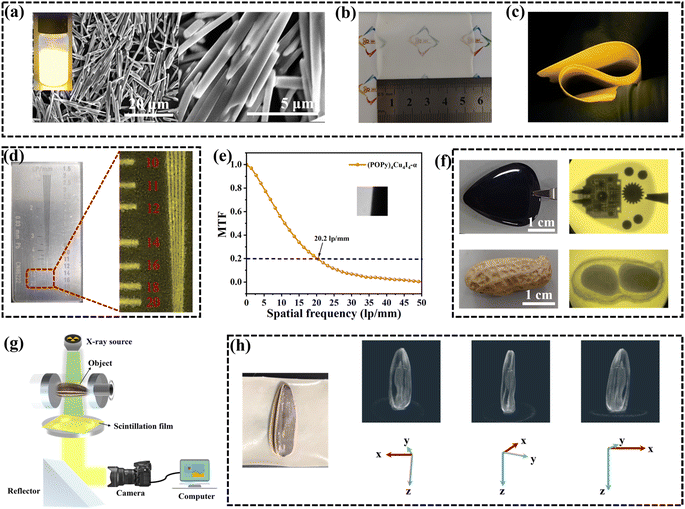

Fig. 5 (a) SEM images of (POPy)₄Cu₄I₄-α microcrystals (the inset shows the colloidal cluster microcrystals under UV excitation). (b) Photograph of the assembled flexible film of (POPy)₄Cu₄I₄-α under sunlight. (c) Photograph of bent flexible films under 365 nm UV light. (d) X-ray images of the test-pattern plate. (e) Modulation transfer function (MTF) curve of the flexible film based on the slanted-edge method (inset). (f) Photograph of the target objects and corresponding X-ray images (X-ray dose rate: 179.6 μGy_air s⁻¹). (g) Schematic diagram of the customized 3D X-ray imaging system. (h) X-ray images and 3D reconstruction of a sunflower seed from multiple perspectives.

Finally, we evaluate the X-ray imaging capability of the (POPy)₄Cu₄I₄-α@PVA film by using a self-built digital radiography system.⁵² A standard X-ray resolution test-pattern plate is used to assess the spatial resolution of the (POPy)₄Cu₄I₄-α@PVA film. As shown in Fig. 5d, a high resolution of 18–20 lp mm⁻¹ can be observed. Meanwhile, we employed the slanted-edge method to determine the modulation transfer function (MTF) of the (POPy)₄Cu₄I₄-α@PVA film. The spatial resolution of the (POPy)₄Cu₄I₄-α@PVA film is measured to be 20.2 lp mm⁻¹ when MTF equals 0.2, which is close to the above result (Fig. 5e). Benefiting from high resolution, the (POPy)₄Cu₄I₄-α@PVA film can clearly image the target objects. As shown in Fig. 5f, the internal structure of electronic equipment can be clearly distinguished due to the large difference in the absorption capacity of X-rays between plastic shell and electronic components. In addition, the internal structure of peanuts can also be clearly observed, indicating the potential application of bioimaging.

In further experiments, we explored the possible X-ray image fusion as well as 3D image reconstruction. As we know, fusing several X-ray images can obtain the most relevant information from images of different perspectives into a unified 3D model, so as to produce more valuable information than traditional 2D images and meet the requirement of tomography in medical diagnosis. Fig. 5g depicts the schematic diagram of the customized 3D X-ray imaging system, where the object is placed on a rotating plate exposed to the X-ray source and the 2D X-ray images of the target are captured at multiple angles. To realize the 3D imaging, a sunflower seed as a sample was fixed on a rotating plate, and X-ray images were captured at intervals of 5° over a range of 180° using the (POPy)₄Cu₄I₄-α@PVA film. Then, the 3D reconstruction algorithm was employed to process these 2D photos to generate high-quality cross-sectional slices. Finally, a demonstration of 3D reconstruction models was successfully realized by restoring these slices using the AVIZO software (Video 1, SI), disclosing the superb X-ray tomography imaging performance. Fig. 5h presents the selected 3D reconstruction models of the sunflower seed. It can be seen that both the internal structure and the outline of the sunflower seed shell are clearly visible at different angles of rotation around the Z axis. These results indicate the great potential of (POPy)₄Cu₄I₄-α in the field of advanced X-ray imaging and detection.

Conclusion

In summary, we report here a series of new copper(I) coordination compounds, which feature a [Cu₂I₂] or a pair of isomeric [Cu₄I₄] inorganic modules without changing the organic components. The emission colors of these compounds range from blue and yellow to red, with the highest PLQY of 99.85%. Crystal structure analysis reveals that the conformational changes caused by the flexible O atom linker on ligands is the reason for this configuration-dependent photoluminescence. Spectroscopies and DFT calculations are employed to comprehensively investigate the excited state properties of isomeric (POPy)₄Cu₄I₄-α/β. It has been evidenced that the conformation significantly affects the electronic structures, leading to ³M/XLCT transitions for (POPy)₄Cu₄I₄-α and ³CC transitions for (POPy)₄Cu₄I₄-β. Moreover, a high-quality X-ray scintillation film is fabricated using (POPy)₄Cu₄I₄-α microcrystals, which exhibits a high spatial resolution of 20.2 lp mm⁻¹. Benefiting from the fascinating optical properties of (POPy)₄Cu₄I₄-α, we successfully realize the 3D X-ray imaging by reconstructing the multi-angle images of a sunflower seed as a sample. These results demonstrate that (POPy)₄Cu₄I₄-α has great potential in practical X-ray tomography. Our study introduces a novel approach for designing highly efficient luminophores based on isomeric copper(I) iodide coordination clusters, and also presents a new template for advanced X-ray imaging applications.

Author contributions

Y. Zhu, S. Liu and Q. Zhao conceived the idea. Y. Zhu prepared the samples, conducted primary testing, and drafted the initial manuscript. Y. Deng helped with the experimental design and contributed to manuscript refinement. N. Ding performed the theoretical calculations. Q. Li assisted with the optical measurements and XRD tests. Y. Wang provided guidance on SEM testing and scintillation film fabrication. M. Wang helped explain the luminescence mechanism. K. Y. Zhang and S. Liu provided valuable suggestions for the experimental data and manuscript revisions. Q. Zhao and S. Liu guided and supervised the experimental design and data analysis and played a crucial role in refining the manuscript.

Conflicts of interest

There are no conflicts to declare.

Data availability

CCDC 2391040–2391042 contain the supplementary crystallographic data for this paper.^53a–c

The authors confirm that the data supporting the findings of this study are available within the article or its supplementary information (SI). Supplementary information: experimental procedures, characterization data (SCXRD, SEM, TGA) and additional figures and tables. See DOI: https://doi.org/10.1039/d5sc06329a.

Acknowledgements

This work was supported by the Basic Research Program of Jiangsu·(BK20243057), the National Key R&D Program of China (2023YFE0202500), and the National Natural Science Foundation of China (62375142 and 62288102).
