Dual-engine-driven synthesis of unsaturated esters over channel-expanding Cu–Cs catalysts

Abstract

This study presents a one-step catalytic synthesis of unsaturated esters (methyl acrylate, MA; methyl methacrylate, MMA) from methanol (MeOH, C1 source) and methyl acetate (MAc) via a Cu–Cs dual-engine-driven (DED) system that integrates four sequential steps—dehydrogenation, aldol condensation, hydrogenation, and secondary aldol condensation. The Cu-engine facilitates proton transfer by capturing protons during MeOH dehydrogenation and donating them in methyl acrylate (MA) hydrogenation, while the Cs-engine activates saturated esters for formaldehyde-mediated aldol condensation. Through systematic optimization of Cu loading methods, deposition sequences, and Cu/Cs ratios, we developed a silicon carrier channel-expanding strategy, enlarging mesopores from 14 nm to 20 nm (30% specific surface area extension) via copper phyllosilicate-induced corrosion. Catalytic performance hinges on balanced medium-strength acid–base sites, a 10 : 7 Cs/Cu ratio, and sequential Cu/Cs loading via the ammonia evaporation method. The optimized 10Cs/7Cu/Q10 catalyst, combined with a downstream Cs–Al/Q10 system, achieves 64.0% unsaturated ester selectivity (55.3% MeOH and 59.8% methyl acetate conversion). This work establishes a design framework for efficient Cu–Cs catalysts in one-step ester synthesis, emphasizing pore engineering, acid–base synergy, and dual-site cooperativity.

---

Introduction

Short-chain unsaturated esters, methyl acrylate (MA) and methyl methacrylate (MMA), serve as pivotal chemical feedstocks with extensive applications spanning adhesives, coatings, functional materials and the modification of plastics and rubber.^1–8 Notably, polymethyl methacrylate (PMMA), synthesized from MMA monomers, assumes an irreplaceable role in biomedical applications,^9–11 underscoring the paramount importance of efficient MMA production methodologies.

Currently, industrial synthesis of MMA predominantly relies on acetone-, isobutene- or ethylene-based routes.¹² The acetone cyanohydrin (ACH) process, utilizing acetone as the starting material, necessitates the use of highly toxic hydrogen cyanide (HCN) and excessive corrosive sulfuric acid during the amination step,¹³ posing significant safety and environmental challenges. Isobutylene-derived processes via methacrolein intermediates are encumbered by the reliance on rare metal catalysts and complex multi-step procedures.^14–17 Ethylene-based pathways include hydroesterification and aldol condensation;^18–20 the former step demands palladium-based catalysts, inflating industrial costs, while the latter step, involving methyl propionate (MP)-formaldehyde condensation under milder conditions, emerges as a promising alternative. Besides ethylene, MP can also be produced by the hydrogenation of MA. Therefore, a three-step cascade process involving aldol condensation, hydrogenation and secondary aldol condensation using formaldehyde and methyl acetate (Mac) as feedstocks offers an environmentally benign route to MMA (Fig. 1). However, this approach requires either dissolving toxic paraformaldehyde in methanol (MeOH) or oxidizing MeOH to generate formaldehyde. Both methods are operationally cumbersome and economically inefficient. Direct utilization of MeOH as a feedstock for unsaturated esters could streamline the synthesis and enhance the value of this abundant C1 compound.

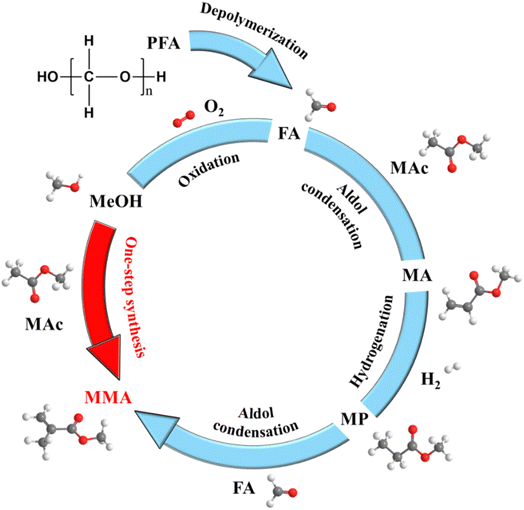

Fig. 1 Traditional process and the one-step synthesis route for MMA.

MeOH was primarily produced via syngas conversion over Cu-based catalysts^21–23 and increasingly via CO₂ reduction pathways.^24,25 In 2013, Tsubaki's team reported a remarkable 56% total carbon conversion and 98% MeOH selectivity at 170 °C from CO₂-containing syngas.²¹ Mature synthesis routes and well-established synthesis processes render MeOH a readily available C1 resource.^26–28 Leveraging MeOH to produce high value-added products not only addresses excess production capacity but also aligns with global efforts toward carbon neutrality.

In the pursuit of more sustainable synthesis methods, numerous strategies have been explored for the catalytic conversion of MeOH into unsaturated esters. Cobalt complexes have demonstrated catalytic activity, yet their intricate molecular structures and elaborate preparation protocols impede practical implementation.^29,30 Noble metal-based systems, such as Au catalysts, exhibit excellent performance but remain cost-prohibitive for large-scale industrial deployment.^31,32 Zeolite-based catalysts, exemplified by Beta zeolites, suffer from inevitable coke formation, leading to rapid deactivation and shortened catalyst lifetimes.³³ Although Duan's team recently reported a Cu/SiO₂ and Cs/SiO₂ catalyst mixture for MMA synthesis,³⁴ the practical application of this system requires the precise arrangement of three distinct catalysts within the reaction bed, with product selectivity highly sensitive to their spatial configuration.

Considering the above challenges and opportunities, the design of a novel catalytic system for the one-step synthesis of MMA or MA from MeOH presents a compelling research direction. Drawing inspiration from the “dual-engine-driven” (DED) catalytic concept,³⁵ we hypothesized that the protons released during methanol-to-formaldehyde conversion could be harnessed for MA hydrogenation. Capitalizing on this synergy, we developed a copper–cesium-based DED catalytic system. The Cu-engine functions as a proton shuttle, facilitating proton abstraction during MeOH dehydrogenation and donation during MA reduction, while the Cs-engine activates MAc and MP, promoting their condensation with formaldehyde. This integrated approach aims to achieve a more efficient and sustainable route to industrially important unsaturated esters.

Experimental

Catalyst preparation

Supported Cu–Cs catalysts were prepared by the impregnation or ammonia evaporation method.

During a typical co-impregnation process, 0.312 g of cesium nitrate (CsNO₃, Sigma-Aldrich, 99%) and 0.534 g of copper nitrate (Cu(NO₃)₂·3H₂O, Sigma-Aldrich, 99%) were dissolved in 5 mL of deionized water separately and stirred for 30 min. The above solutions were then added dropwise to 2 g of SiO₂ (CARiACT Q-10, Fuji Silysia Chemical Ltd.) particles under ultrasonic treatment. After vacuum drying overnight, the sample was further calcined at 500 °C for 6 h. Two samples with different metal loadings were prepared and named 10Cs–7Cu/Q10 and 33Cs–22Cu/Q10, respectively. 10Cs/Q10 was prepared by the same impregnation method without adding Cu sources.

7Cu/Q10 and 22Cu/Q10 were prepared by the ammonia evaporation method. Specifically, 0.534 g of copper nitrate (Cu(NO₃)₂·3H₂O, Sigma-Aldrich, 99%) was dissolved in 50 mL of deionized water. Subsequently, 5 ml of ammonia (NH₃·H₂O, Wako, 25%) was added and stirred for 30 minutes, followed by the addition of 2 g of SiO₂ (CARiACT Q-10, Fuji Silysia Chemical Ltd.). The mixture was stirred at room temperature for 4 h to form a homogeneous slurry and then stirred at 80 °C for 2 h to evaporate the ammonium solution. The obtained precursors with different metal loadings were washed, dried, and then calcined at 400 °C for 4 h to obtain 7Cu/Q10 and 22Cu/Q10.

7Cu/10Cs/Q10-A was obtained by loading Cu on previously mentioned 10Cs/Q10 through ammonia evaporation treatment. 7Cu/10Cs/Q10-I was also prepared in two steps; however, Cu was loaded by the impregnation method rather than ammonia vaporization.

10Cs/7Cu/Q10 and 33Cs/22Cu/Q10 were prepared based on 7Cu/Q10 and 22Cu/Q10, with Cs loaded by the impregnation method. Meanwhile, 13Cs/4Cu/Q10 and 7Cs/10Cu/Q10 with different copper–cesium ratios were also prepared.

10Cs–Al/Q10 was prepared by two step impregnation. 0.91 g of aluminum nitrate (Al(NO₃)₃·9H₂O, Wako, 98%) was dissolved in 5.1 mL of deionized water, then dropwise added to 4 g of SiO₂ (CARiACT Q-10, Fuji Silysia Chemical Ltd) and sonicated for 30 min. Al/Q10 was obtained after overnight drying and calcination at 500 °C for 4 h. Cesium carbonate (Cs₂CO₃, Sigma-Aldrich, 99%) was then dissolved in 3.3 mL of deionized water and dropped onto Al/Q10, followed by overnight drying, and further calcined by a stepwise temperature program of 150 °C for 3 h, then 350 °C for 3 h, and lastly 550 °C for 4 h to get 10Cs–Al/Q10.

7Cu/10Cs–Al/Q10 was prepared by the same method of 7Cu/10Cs/Q10-I except for the replacement of 10Cs/Q10 with 10Cs–Al/Q10.

Catalyst characterization

Powder X-ray diffraction (XRD) was performed on a RINT 2400 diffractometer (Rigaku, Japan) with a Cu Kα (λ = 0.154 nm) radiation source. The operating voltage was 40 KV, and the current was 20 mA. Scanning was carried out in the 2θ range of 5–80° W. The scanning electron microscopy (SEM) images were captured using a JSM-6360 LV (JEOL, Japan) at an accelerating voltage of 10 kV. High-resolution transmission electron microscopy (HRTEM) was performed using a JEM-2100F microscope operated at 200 kV, and elemental mapping was performed using an Oxford spectrometer.

Inductively coupled plasma-optical emission spectrometry (ICP-OES) was conducted using a Thermo Scientific iCAP at an RF power of 1.25 W. A certain amount of the sample was dissolved in mixed acids and diluted to a constant volume, followed by nebulization at a flow rate of 0.7 L min⁻¹ into the spectrophotometric system.

X-ray photoelectron spectroscopy (XPS) of the samples was carried out on a Thermo Fisher Scientific ESCALAB 250Xi multifunctional X-ray photoelectron spectroscope. All data were normalized and corrected with a standard of 284.8 eV for C 1s.

The acidic and alkali properties of the samples were measured using ammonia temperature-programmed desorption (NH₃-TPD) and carbon dioxide temperature-programmed desorption (CO₂-TPD). These measurements were carried out on a BELCAT II catalyst analyzer equipped with a thermal conductivity detector (TCD). In a typical NH₃-TPD measurement, 10 mg of sample powder was pretreated for 1 h at 400 °C under a flow of helium at 30 ml min⁻¹. Then, the mixed ammonia gas flow (5 vol% NH₃/He, 30 mL min⁻¹) was introduced after cooling down to 50 °C. Subsequently, helium (30 ml min⁻¹) was purged for 1 h to remove physically adsorbed ammonia. The desorption of ammonia was carried out under a helium flow of 30 ml min⁻¹ in the range of 50–500 °C. In a typical CO₂-TPD measurement, 40 mg of sample powder was pretreated for 1 h at 400 °C under a flow of helium at 30 ml min⁻¹. The CO₂ gas flow was introduced after cooling down to 50 °C, followed by purging with helium (30 ml min⁻¹) for 1 h to remove physically adsorbed CO₂. The desorption was carried out under a helium flow of 30 ml min⁻¹ in the range of 50–500 °C.

Temperature programmed surface reaction mass spectrometry (TPSR-MS) was conducted using a BELCAT II catalyst analyzer equipped with a mass spectrometer. A 10 mg sample was purged with helium (30 ml min⁻¹) at 400 °C for 1 h and then cooled to 50 °C. Helium (30 ml min⁻¹) was then passed through a cold trap containing 12.1 g of MeOH and 2.1 g of MAc, carrying the saturated vapors of the feedstock through the catalyst bed while the sample was heated up to 700 °C at a rate of 5 °C min⁻¹.

Nitrogen absorption–desorption isotherms were obtained using a Micromeritics 3Flex analyzer. Before measurement, the samples were vacuumed at 200 °C for 4 h to degas the surface. Based on nitrogen absorption–desorption isotherms, the specific surface area was calculated using the Brunauer–Emmett–Teller (BET) method; the pore size distribution was calculated using the Grand Canonical Monte Carlo (GCMC) method.

In situ Fourier transform infrared spectroscopy (In situ FTIR) was performed by collecting 64 scans at a resolution of 2 cm⁻¹ on a Nicolet Nexus 470 FTIR spectrometer equipped with a liquid-nitrogen-cooled MCT detector. In a typical measurement, about 15 mg of sample powder was pressed into a self-supporting wafer and placed into a cell equipped with ZnSe windows. The samples were pretreated at 400 °C in a He atmosphere at 20 ml min⁻¹ for 4 h. Reduction was carried out for 4 h at a flow rate of 20 ml min⁻¹ of H₂, followed by purging with N₂ at 20 ml min⁻¹ for 30 min. Subsequently, 20 ml per min N₂ passed through a 0 °C cold trap containing 12.1 g MeOH and 2.1 g MAc, carrying the mixture gas into the in situ cell while the collection of drift spectra was initiated.

Catalytic performance evaluation

Catalytic performance evaluation for unsaturated ester synthesis was conducted with an 8 mm inner diameter fixed-bed reactor using a designed dual-bed catalyst. First, 200 mg of 40–60 mesh catalyst was loaded into the reactor. Then, a 5 mm layer of quartz wool was filled, followed by filling 200 mg of 40–60 mesh Cs–Al/Q10 catalyst. The reduction process was conducted at 400 °C with 20 mL per min H₂ for 10 h. The reaction was performed at 400 °C with a N₂ flow rate of 20 mL min⁻¹. The nitrogen gas passed through a 0 °C cold trap containing 12.1 g MeOH and 2.1 g MAc. The effluent gas after reaction was analyzed by online gas chromatography (GC) equipped with a capillary column (InertCap 5), which was connected with a flame ionization detector (FID). Conversion of MeOH (C_MeOH), MAc (C_MAC) and selectivity of products (S_i) based on carbon molar numbers were calculated using the following equations:

C_MeOH (%) = (A_{MeOH, in} − A_{MeOH, out})/(A_{MeOH, in}) × 100% (A is the GC peak area of detected species.)

C_MAc (%) = (A_{MAc, in} − A_{MAc, out})/(A_{MAc, in}) × 100%

S_i (%) = n_i/Σn_i × 100% (i = MA, MP, MMA, byproducts; n = the amount of substance of i.)

Results and discussion

Fig. 2A and B illustrate the XRD patterns of as-synthesized and spent catalysts, providing crucial insights into their structural transformations. The characteristic diffraction peaks at 2θ values of 35.6°, 38.4°, and 38.7°, corresponding to the [−111], [111], and [200] crystal planes of CuO (PDF00-041-0254),^36,37 along with additional peaks at 48.7° [−202], 53.5° [020], 58.4° [202], and 71.6° [−311], confirm the successful dispersion of CuO on the Q10 carrier. Notably, samples 33Cs–22Cu/Q10 and 33Cs/22Cu/Q10, characterized by higher Cu loadings, exhibit enhanced diffraction intensities of CuO, as evidenced by patterns b and f in Fig. 2A. Diffraction peaks at 2θ values of 19.7° and 28.1° indicate the presence of Cs in an oxidized state (Cs₂O) within the as-synthesized catalysts;^38,39 however, their relatively low intensities suggest high dispersion. In contrast, the XRD patterns of spent catalysts reveal a significant transformation: the disappearance of CuO and Cs₂O peaks, replaced by the characteristic peaks of metallic Cu at 2θ values of 43.4° [111], 50.5° [200] and 74.1° [220]. The absence of metallic Cs diffraction peaks implies that the Cs site (Cs₂O) might be covered by coke deposition.

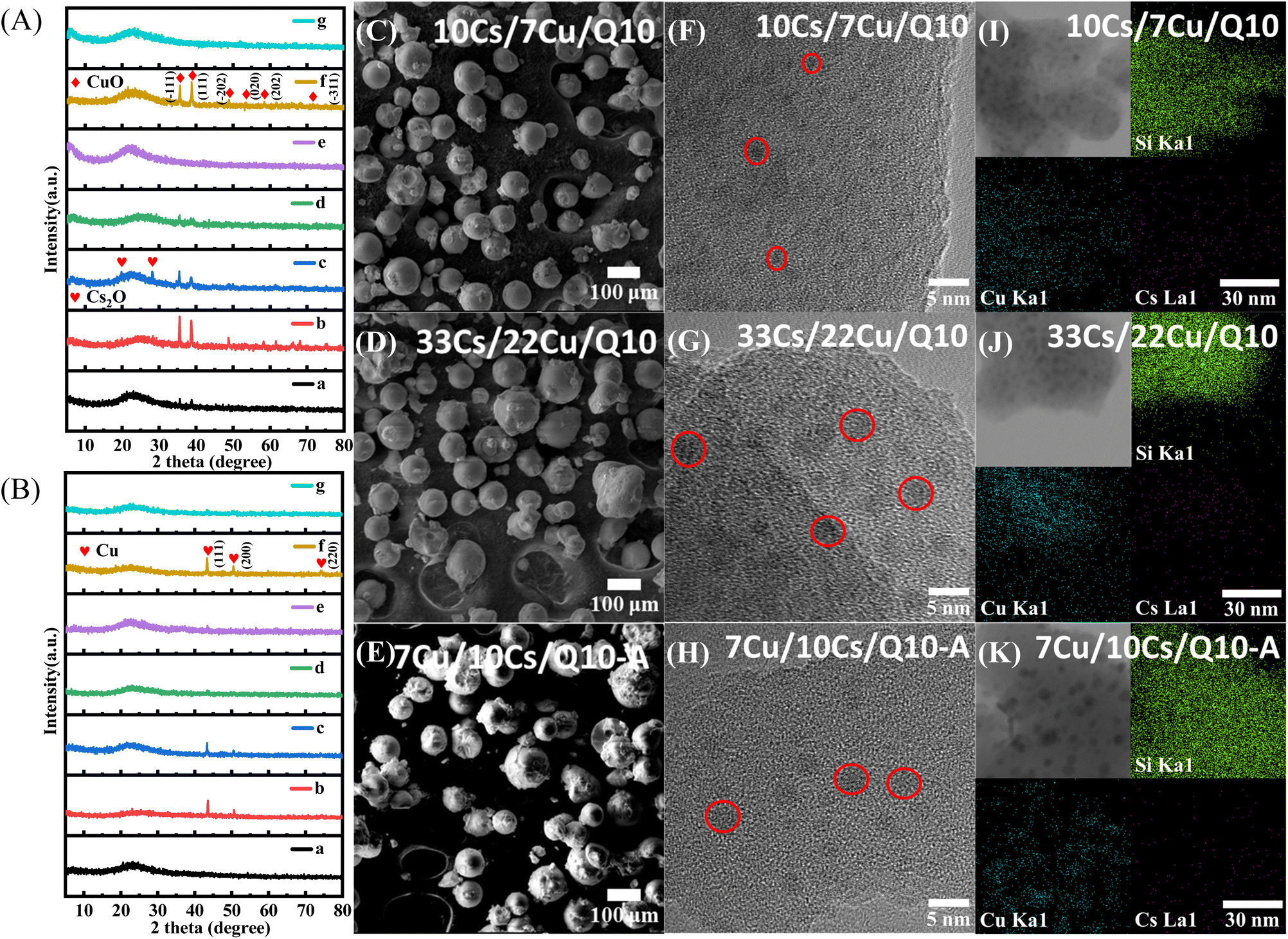

Fig. 2 The XRD patterns of as-synthesized samples (A) and spent samples (B): (a) 10Cs–7Cu/Q10, (b) 33Cs–22Cu/Q10, (c) 7Cu/10Cs/Q10-I, (d) 7Cu/10Cs/Q10-A, (e) 10Cs/7Cu/Q10, (f) 33Cs/22Cu/Q10, and (g) 7Cu/10Cs–Al/Q10; (C)–(E) SEM images of the samples; (F)–(H) HRTEM images of the samples; (I)–(K) EDS mapping analysis of the samples.

Morphological analysis reveals that all catalysts maintain spherical particle shapes with a diameter of approximately 75 μm. Although the sequential loading of metals does not alter the overall morphology, a notable difference emerges in the particle dispersion. As shown in Fig. S1,† 7Cu/10Cs/Q10-I, prepared via double impregnation, exhibits significant particle agglomeration, contrasting sharply with the more dispersed structures of catalysts synthesized by ammonia evaporation (Fig. 2C–E). HRTEM photographs and corresponding EDS surface scanning analysis (Fig. 2F–K) show that CuO and Cs₂O particles are uniformly dispersed on the 10Cs/7Cu/Q10 catalyst, with denser dispersion of these particles observed on the higher metal-loading 33Cs/22Cu/Q10; in contrast, 7Cu/10Cs/Q10-A displays lower Cs energy-dispersive spectroscopy surface scanning density than 10Cs/7Cu/Q10, along with larger metal oxide particles, indicating that the secondary ammonia evaporation treatment causes partial loss of pre-loaded Cs sites and facilitates agglomeration of oxide particles. EDS mapping quantifies the surface loadings of copper and cesium on 10Cs/7Cu/Q10 at 2.1 wt% and 5.3 wt%, respectively, yielding a Cu/Cs mass ratio of 3.96/10 (Fig. S2E†). The catalyst 33Cs/22Cu/Q10, synthesized with increased metal salt inputs, shows substantially higher loadings of 23.3 wt% Cu and 17.2 wt% Cs (Fig. S2F†). The Cu/Cs mass ratio of 4.48/10 on the 7Cu/10Cs/Q10-A catalyst suggests that subsequent metal loading partially covers the sites of the initially loaded metal. Additionally, complementary ICP-OES analysis of the fresh and spent samples (Table S1†) further validates the minimal leaching of Cu, ensuring the stability of the catalytic system.

N₂ adsorption–desorption isotherms (Fig. S3†) and pore size distribution curves (Fig. 3A) provide insights into the catalyst's textural properties. The BET surface areas and average pore diameters are summarized in Fig. 3B. Co-impregnated and multiple impregnated samples retain a consistent mesoporous structure with an average pore size of 14 nm. In contrast, ammonia evaporation treatment induces significant structural modifications. Etching of the silica framework creates larger mesopores (20 nm), as indicated by GCMC modeling. These changes also led to a visible extension of the specific surface area of the catalyst from 150 m² g⁻¹ (7Cu/10Cs/Q10-I) to 200 m² g⁻¹ (7Cu/10Cs/Q10-A). The enhanced surface area likely improves catalytic activity by exposing more active sites.

Fig. 3 (A) Calculated GCMC pore size distribution curves of as-synthesized samples. (B) BET surface area and average pore diameter of as-synthesized samples: (a) 10Cs–7Cu/Q10, (b) 33Cs–22Cu/Q10, (c) 7Cu/10Cs/Q10-I, (d) 7Cu/10Cs/Q10-A, (e) 10Cs/7Cu/Q10, (f) 33Cs/22Cu/Q10, and (g) 7Cu/10Cs–Al/Q10. (C) FTIR spectra of 10Cs/Q10, 7Cu/Q10 and 10Cs/7Cu/Q10. (D) Cu 2p XPS spectra of 7Cu/Q10-I, 7Cu/Q10 and 10Cs/7Cu/Q10. (E) Schematic synthesis routes of 10Cs–7Cu/Q10, 7Cu/10Cs/Q10-A, and 10Cs/7Cu/Q10.

FTIR was used to investigate deformations in the silica-oxygen structure of Q10 carriers during the ammonia evaporation process. As depicted in Fig. 3C, absorption bands at 1087 cm⁻¹ and 763 cm⁻¹ correspond to asymmetric ν_Si–O and symmetric ν_Si–O stretching vibrations of SiO₂, respectively.^40–47 While bands at 1600 cm⁻¹ are associated with physically adsorbed water.⁴⁸ These features, originating from Q10 carriers, are readily observable in all tested samples. For 7Cu/Q10, a shoulder peak at 1006 cm⁻¹ appears adjacent to the 1087 cm⁻¹ bands. This offset asymmetric ν_Si–O stretching vibration originates from copper phyllosilicate (Cu₂Si₂O₅(OH)₂). The absorption bands at 655 cm⁻¹ indicate bending vibration of the hydroxyl group δ_O–H in copper phyllosilicate.^40–42 The shoulder peak around 1006 cm⁻¹ is less pronounced in 10Cs/7Cu/Q10, suggesting that subsequent Cs loading weakens the Si–O vibrational signal in copper phyllosilicate via the formation of Si–O–Cs linkages. However, the absorption bands of the characteristic bending vibrations δ_OH (655 cm⁻¹) remain clearly visible.

XPS analysis (Fig. 3D and S4†) provides further evidence for copper phyllosilicate formation. For CuO, the Cu 2p_1/2 and Cu 2p_3/2 binding energies typically appear at 954 eV and 933 eV, respectively.^34,41 In 7Cu/Q10-I prepared by impregnation, peaks at 953.7 eV and 933.1 eV confirm the presence of surface CuO. A significant shift in the Cu 2p_3/2 binding energy to 934.9 eV was observed over the catalysts prepared by the ammonia evaporation method (7Cu/Q10 and 10Cs/7Cu/Q10). This shift is characteristic of Cu 2p in copper phyllosilicate.⁴⁰ Additionally, the Cu²⁺ satellite peaks in the XPS spectra of all samples within the range of 940–945 eV confirmed the d⁹ electronic configuration of Cu ions.⁴¹ In the Cs 3d region of 10Cs/7Cu/Q10 (Fig. S4B†), peaks at binding energies of 725.5 eV (Cs 3d_5/2) and 739.6 eV (Cs 3d_3/2) indicate the presence of Cs₂O.^39,49,50

These findings elucidate the molecular mechanism of channel-expanding effect by the ammonia evaporation method. As illustrated in Fig. 3E, co-impregnation deposits metals primarily on the external surface and within narrow pores. In contrast, ammonia solutions containing copper–ammonia complexes etch the silica framework by forming copper phyllosilicate. This process enlarges the original 14 nm mesopores to 20 nm, and the larger mesopores result in an extension of specific surface area. The expanded pores facilitate uniform metal dispersion and enhance mass transfer. After Q10 is pre-treated with copper nitrate and ammonia, subsequent Cs species disperse more effectively within the enlarged mesopores. Impregnation methods without prior pore expansion lead to preferential Cs deposition on the catalyst surface.

To probe the activity enhancement benefits from the channel-expanding strategy, the catalytic performance of two series of catalysts—10Cs–7Cu/Q10 and 33Cs–22Cu/Q10 (co-impregnation) vs. 10Cs/7Cu/Q10 and 33Cs/22Cu/Q10 (ammonia evaporation)—was evaluated for one-step unsaturated ester synthesis. As shown in Fig. 4A, 10Cs–7Cu/Q10 achieved 35.9% MeOH conversion and 52.6% MAc conversion, with MA and MP selectivities of 48.8% and 4.8%, respectively (Fig. 4E). Tripling the metal loading (33Cs–22Cu/Q10) reduced MAc conversion to 35.3% (Fig. 4B), implying that the excessive metal loading decreases active site accessibility. Narrow pores and metal stacking likely impede reactant diffusion, leading to increased by-products (e.g., 2-methacrolein, methyl isobutyrate and propionaldehyde) and lower selectivity of MA (38.4%). In contrast, the channel-expanding catalyst 10Cs/7Cu/Q10 significantly improved both MeOH (55.3%) and MAc (59.8%) conversion (Fig. 4C). MA selectivity increased to 59.2%, accompanied by 5.3% MMA formation via the further condensation of MP and formaldehyde. In contrast to catalysts prepared by the co-impregnation method, when increasing the metal loading on 33Cs/22Cu/Q10, it was found that the conversions of MeOH and MAc increased to 60.1% and 67.2%, respectively. This implies that 33Cs/22Cu/Q10 exposes more active sites than 33Cs–22Cu/Q10, which means the channel-expanding strategy mitigates metal stacking and enhances catalytic performance.

Fig. 4 Catalytic performance of (A) 10Cs–7Cu/Q10, (B) 33Cs–22Cu/Q10, (C) 10Cs/7Cu/Q10, and (D) 33Cs/22Cu/Q10. (E) Product selectivity over different samples. Reaction conditions: dual layer catalytic bed with 0.2 g sample loaded in the upper layer and 0.2 g Cs–Al/Q10 in the lower layer, GHSV = 3000 ml g⁻¹ h⁻¹, 400 °C, 0.1 MPa, MeOH/MAc = 2/1, N₂ flow rate 20 mL min⁻¹.

In situ FTIR was employed to monitor surface changes during reduction and reaction (Fig. 5 and S5†). During the 2 h reduction of 7Cu/Q10 (Fig. 5A), a broad inverse absorption band near 3600–3300 cm⁻¹ was assigned to O–H stretching vibrations of water absorbed on the surface of CuO.^51,52 This band was absent in 10Cs/Q10 during the same reduction process (Fig. 5B), confirming that the water originated from CuO surfaces. As H₂ reduced CuO to metallic Cu, adsorbed H₂O desorbed, explaining the band's decline. For the same reason, a similar band around 3200 cm⁻¹ appeared during the reduction of 10Cs/7Cu/Q10 (Fig. 5C). Sharp bands at 2367 cm⁻¹ and 2337 cm⁻¹ in Fig. 5A were assigned to CO₂ infrared signatures.^53,54

Fig. 5 In situ FTIR spectra of as-synthesized samples during reduction and reaction: reduction of 7Cu/Q10 (A), 10Cs/Q10 (B), and 10Cs/7Cu/Q10 (C); reaction over 7Cu/Q10 (D), 10Cs/Q10 (E), and 10Cs/7Cu/Q10 (F).

Surface information of 7Cu/Q10 was also recorded under the atmosphere of MeOH/MAc mixtures to model the reaction process. A sharp negative band at 3744 cm⁻¹ corresponded to O–H stretching vibration of isolated silanol groups (Fig. 5D),^55–57 arising from hydrogen bonding between MeOH and silanol groups. This interaction was negligible on the 10Cs/Q10 surface (Fig. 5E), indicating that MeOH preferentially adsorbs on Cu rather than Cs sites. Bands at 2953 cm⁻¹ and 2854 cm⁻¹ correspond to C–H asymmetric/symmetric vibrations of *CH₃ species in MeOH/MAc.^57–59 The absorption bands at 1765 cm⁻¹ and 1240 cm⁻¹ corresponded to the C=O symmetric stretching vibration and C–O stretching mode of *COOCH₃ species in MAc, respectively.^60–66 Another 1053 cm⁻¹ absorption band indicated C–O stretching mode in MeOH.^67,68

For 10Cs/Q10 (Fig. 5E), apart from characteristic peaks of MeOH and MAc (absorption bands at 2953 cm⁻¹, 2854 cm⁻¹, 1765 cm⁻¹, 1240 cm⁻¹ and 1053 cm⁻¹), a 1583 cm⁻¹ characteristic band revealed C=C symmetric stretching vibration,^69,70 indicating solid evidence for the formation of unsaturated esters (MA and MMA). This implies that aldol condensation occurs at Cs sites.^49,71–75 It is hypothesized that Cs-driven activation of MAc's carbonyl group enables enolate formation even without formaldehyde substitution. The absence of C=C bands on 7Cu/Q10 confirms that Cs sites are critical for condensation.

As shown in Fig. 5F, the more pronounced absorption band at 3744 cm⁻¹ indicated enhanced MeOH adsorption and conversion on 10Cs/7Cu/Q10 compared to 7Cu/Q10. While MeOH and MAc signals persisted (2953 cm⁻¹, 2854 cm⁻¹, 1765 cm⁻¹, 1240 cm⁻¹ and 1053 cm⁻¹), it is noteworthy that the 1583 cm⁻¹ band (C=C) was more intense than that of 1765 cm⁻¹ (C=O), contrasting with 10Cs/Q10. This stems from DED synergy: Cu-engine promotes the conversion of MeOH to formaldehyde, which provides the feedstock for aldol condensation, while protons (*H) produced by the above process can reduce unsaturated MA to MP, enabling subsequent condensation with formaldehyde to obtain more MMA.

The catalytic performance of 10Cu/Q10 and 7Cs/Q10 (Fig. S6†) is consistent with the infrared conclusions: in the Cu-only system, MeOH conversion remains at 27%, while MAc conversion is below 2%. This confirms that Cu promotes MeOH conversion, but MAc activation is negligible without the Cs-engine. Formaldehyde was the main by-product without any ester generation. In the Cu-only system, MeOH conversion is only 5% (lacking Cu-engine), and MAc conversion is 2–3%, significantly lower than the 30–60% observed on the DED catalyst (10Cs/7Cu/Q10). Under formaldehyde-deficient conditions, Cs-engine alone cannot facilitate efficient aldol condensation of MAc with formaldehyde. Trace MA was detected, but no MP was observed, indicating that proton availability for MA hydrogenation is insufficient without Cu-driven dehydrogenation.

These findings underscore the synergistic interplay between Cu and Cs in the DED catalyst: Cu facilitates MeOH dehydrogenation to generate formaldehyde and protons, while Cs activates MAc via carbonyl coordination, enabling efficient aldol condensation. The presumed reaction pathway (Fig. 6), based on in situ FTIR analysis, proceeds as follows: firstly, MeOH is dehydrogenated on Cu sites to produce formaldehyde, which is activated to a carbon cation immediately. Simultaneously, Cs coordinates the carbonyl group of MAc, enhancing α-carbon nucleophilicity. Aldol condensation between these activated species yields a hydroxyl intermediate and the unstable intermediate, which dehydrates to form the primary unsaturated ester MA. Secondly, MA is hydrogenated to the saturated ester MP using protons derived from MeOH dehydrogenation, mediated by Cu sites. This step highlights the dual role of the Cu-engine in both formaldehyde generation and subsequent hydrogenation. Thirdly, Cs coordinates the carbonyl group of MP, enabling Cu-driven α-hydrogen abstraction to form a nucleophilic carbanion. Electrophilic substitution with activated formaldehyde generates a secondary intermediate, which undergoes dehydration to yield MMA. Protons released during this step recombine as H₂ gas. The exclusive α-carbon substitution in unsaturated esters arises from Cs-driven carbonyl polarization, which directs electrophilic substitution to the α-carbon position. This mechanistic insight demonstrates the cooperative roles of Cu (redox) and Cs (base) in enabling the sequential dehydrogenation, condensation, and hydrogenation steps that are critical for efficient MMA synthesis.

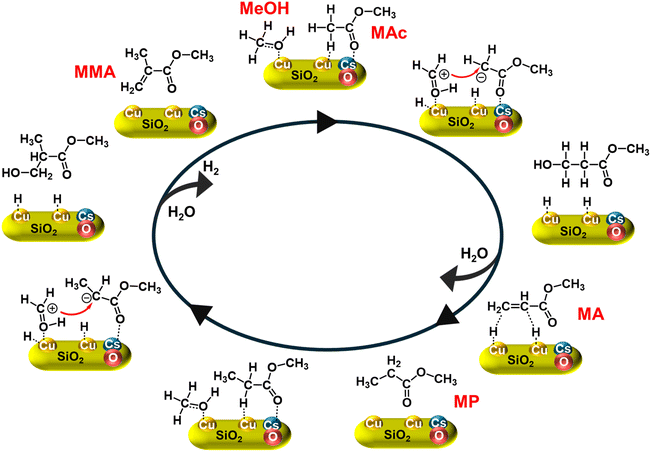

Fig. 6 Presumed reaction pathway for DED synthesis of unsaturated esters over the Cu–Cs catalyst.

Given the critical role of acidity and alkalinity in activating formaldehyde as well as MAc, NH₃-TPD and CO₂-TPD were conducted to characterize the acid–base properties of the samples (Fig. 7A, B and S7†). Desorption peaks appearing at 50–150 °C are attributed to weak acid and base sites, those at 150–300 °C to medium sites, and signals at 300 to 500 °C are summarized as strong acid and base sites.

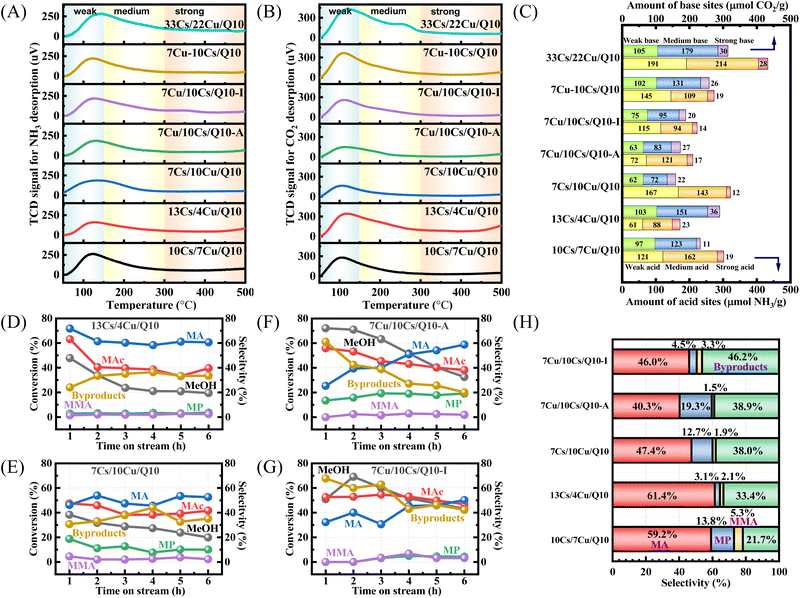

Fig. 7 (A) NH₃-TPD profiles of as-synthesized samples; (B) CO₂-TPD profiles of as-synthesized samples; (C) amounts of acid and base sites determined by NH₃-TPD and CO₂-TPD; catalytic performance of (D) 13Cs/4Cu/Q10, (E) 7Cs/10Cu/Q10, (F) 7Cu/10Cu/Q10-A, and (G) 7Cu/10Cs/Q10-I. (H) Product selectivity over different samples. Reaction conditions: dual layer catalytic bed with 0.2 g sample loaded in the upper layer and 0.2 g Cs–Al/Q10 in the lower layer, GHSV = 3000 ml g⁻¹ h⁻¹, 400 °C, 0.1 MPa, MeOH/MAc = 2/1, N₂ flow rate 20 mL min⁻¹.

Vertical peak integration (Fig. 7C) showed that 10Cs/7Cu/Q10 possessed 302 μmol NH₃ per g total acid sites, primarily weak (121 μmol NH₃ per g) and medium acids (162 μmol NH₃ per g), along with comparable weak (97 μmol CO₂ per g) and medium (123 μmol CO₂ per g) base sites. As expected, 33Cs/22Cu/Q10 exhibited higher acid (433 μmol NH₃ per g) and base site (314 μmol CO₂ per g) densities. These acid and base sites originate from the loaded Cu and Cs elements and linearly correlate with their content. Adjusting the Cu/Cs ratio revealed that increase in Cu loading enhanced weak acids (121 μmol NH₃ per g in 7Cs/10Cu/Q10), while higher Cs loading enriched medium base sites (151 μmol CO₂ per g in 13Cs/4Cu/Q10). Comparing 10Cs/7Cu/Q10 (Fig. 4C) and 13Cs/4Cu/Q10 (Fig. 7D) at close MAc conversions (60%), the latter showed improved MA selectivity in the first 2 h. It highlights the contribution of the Cs-engine in aldol condensation since the extra Cs promotes the MAc conversion. However, the proton transfer between MeOH and MA was limited because of the insufficient Cu-engine, reducing the conversion of MeOH and selectivity of MP (3.1%). For 7Cs/10Cu/Q10 (Fig. 7E), MeOH/MAc conversions were 38.3% and 47.5%, respectively. Despite the guaranteed amount of Cu loading, reduced MeOH conversion stemmed from insufficient Cs-driven MA activation, while 12.7% selectivity of MP indicated near-saturation of proton acceptance by MA. These results confirm that the Cu and Cs engines act synergistically rather than independently to promote the generation of MA and MMA. Catalysts with reversed metal loading order (7Cu/10Cs/Q10-A and 7Cu/10Cs/Q10-I) exhibited lower amounts of acid sites and base sites (210 μmol NH₃ per g, 173 μmol CO₂ per g vs. 223 μmol NH₃ per g, 190 μmol CO₂ per g, respectively). The production over 7Cu/10Cs/Q10-A contains 19.3% MP probably due to a higher amount of medium acid sites (121 μmol NH₃ per g), while 46.2% of by-products were generated on 7Cu/10Cs/Q10-I because of imbalanced acid–base ratios. In contrast, 10Cs/7Cu/Q10's optimal acid–base ratio and a higher percentage of medium acid and medium base, enabled superior catalytic performance.

Notably, Cs–Al/Q10 was introduced as a second catalyst bed in a series of previously executed reactions to enhance the formation of unsaturated esters, as it promotes the condensation of MP with formaldehyde and accelerates the consumption of MAc and excess formaldehyde according to the previous reports.^34,76 Here we investigated the role of the lower Cs–Al/Q10 bed through comparative experiments with or without its loading, using Cu-loaded Cs–Al/Q10 as a reference (Fig. 8E). With dual-bed catalysts (Fig. 8B), the selectivity of MA increased from 21% at 1 h to a stable 59%, whereas the single-bed system without Cs–Al/Q10 showed only 5% MA selectivity at 1 h (Fig. 8D), with 43% MP and 48% byproducts. This confirms that Cs–Al/Q10 preferentially drives MAc to MA rather than to by-products.

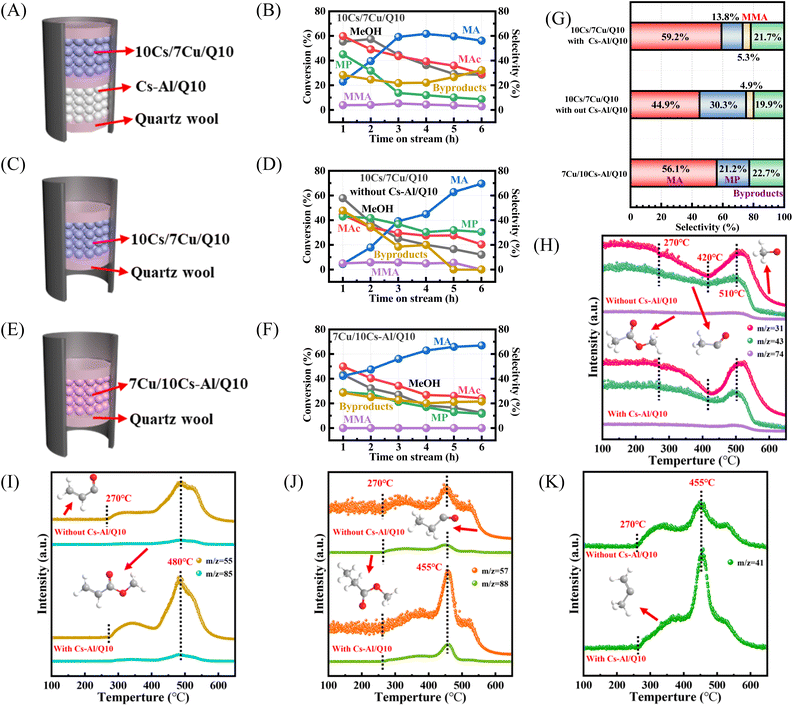

Fig. 8 Catalyst bed loading strategies and catalytic performance of (A and B) 10Cs/7Cu/Q10 with Cs–Al/Q10; (C and (D) 10Cs/7Cu/Q10 without Cs–Al/Q10; (E and (F) 7Cu/10Cs–Al/Q10. (G) Product selectivity over different samples. TPSR-MS profiles of 10Cs/7Cu/Q10 with Cs–Al/Q10 and 10Cs/7Cu/Q10 without Cs–Al/Q10: (H) signals of MeOH and MAc; (I) signals of MA; (J) signals of MP; (K) signals of MMA.

In the dual-bed system (10Cs/7Cu/Q10 + Cs–Al/Q10), the selectivity of the saturated ester MP initially reached 45% but decreased to 15% as the reaction proceeded, compared to 30.3% MP selectivity in the single-bed system (Fig. 8G). This indicates that Cs–Al/Q10 accelerates the condensation of MP to MMA, evidenced by the MMA selectivity enhancement by adding Cs–Al/Q10 (from 4.9% to 5.3%). Conversely, 7Cu/10Cs–Al/Q10 (Fig. 8F) showed 38.3% MeOH and 47.5% MAc conversion without MMA formation, suggesting that Cu loading on Cs–Al/Q10 limits Cs-driven MAc/MP activation. Dual-bed configuration optimizes Cu/Cs site utilization.

TPSR-MS analysis (Fig. 8H–K) probed the reaction dynamics with or without Cs–Al/Q10, and fragment m/z values for relevant chemicals are given in Table S2.† *CH₃ (m/z = 31) fragments represent MeOH, while *COCH₃ (m/z = 43) fragments as well as MAc molecular fragments (m/z = 74) represent MAc. These signals decreased from 270 °C, reaching a minimum at 420 °C, indicating vigorous reaction between MeOH and MAc at this temperature. A rebound in fragment intensity above 510 °C suggested side reactions.

Among the product fragments, *COCH=CH₂ (m/z = 55) and the MA molecule (m/z = 85) fragments peaked at 480 °C,⁷⁷ while *COCH₂CH₃ (m/z = 57) fragments and MP molecule (m/z = 88) fragments showed maximum signals at 455 °C. The decline in MP signals and rise in MA signals between 455 to 480 °C indicate that the hydrogenation of MA favors lower temperatures, consistent with theoretical calculations.⁷⁸ The fragments with m/z = 41 representing *C(CH₃)=CH₂, corresponding to MMA, also peaked at 455 °C, overlapping with MP signals, reflecting abundant formaldehyde in the reaction system. All product fragment intensities were higher in the dual-bed system, reconfirming Cs–Al/Q10's role in the acceleration of MP condensation.

A 24-hour stability test was conducted using the optimal 10Cs/7Cu/Q10 catalyst in the unsaturated ester synthesis system on a dual-layer catalytic bed (Fig. S8†). The results show that the selectivity of MA remains relatively stable over TOS, while the selectivities of MP and MMA decrease gradually. The selectivity of byproducts increases slightly during the test period, and starting from the 12th hour, the conversion of MAc shows a gradual decline. Overall, the 10Cs/7Cu/Q10 catalyst demonstrates good stability in this synthesis system, indicating its potential for practical applications in the one-step synthesis of unsaturated esters.

Conclusions

In this study, a DED catalytic system was developed for the one-step synthesis of unsaturated ester from MeOH and MAc. The designed catalyst integrates a Cu-engine and a Cs-engine, addressing the critical challenge of spatiotemporal mismatch in proton transfer during MeOH dehydrogenation and MA hydrogenation. The Cu-engine facilitates proton shuttling to synchronize these two reactions macroscopically, while the Cs-engine, acting as base sites, activates the α-carbon of the saturated esters (MAc and MP) by carbonyl coordination, enabling efficient aldol condensation with formaldehyde. This dual functionality provides a seamless, synergistic mechanism for the entire reaction network. As evidenced by in situ FTIR, the absence of C=C absorption bands over the single Cu-engine catalyst (7Cu/SiO₂) confirms the indispensable role of Cs for unsaturated ester formation. In contrast, the DED catalyst (10Cs/7Cu/Q10) exhibited enhanced MeOH adsorption and product signals compared to the Cs-only (10Cs/Q10) system.

Additionally, an ammonia evaporation method introduced a channel-expanding strategy during catalyst preparation. Compared to the co-impregnated 10Cs–7Cu/Q10, 10Cs/7Cu/Q10 showed a 50% increase in average pore diameter and a 60% expansion in specific surface area. In a dual-bed catalytic system combining Cs–Al/Q10, the overall selectivity of unsaturated esters reached 64.5%. The present work achieves the efficient synthesis of unsaturated esters via a channel-expanding Cu–Cs DED catalyst, offering a new paradigm for catalyst design and modification in multi-step transformations.

Data availability

The data supporting this article have been included as part of the ESI.†

Author contributions

J. F. and L. S.: data curation, formal analysis, methodology, writing – original draft. W. G. and Y. H.: data curation. W. X., H. H. and Z. L.: formal analysis. C. L. and B. W.: visualization. K. W. and G. L.: validation. J. S., Q. L., T. L., T. X. and S. Y.: resources. Z. Y., G. Y., P. Z. and N. T.: supervision, conceptualization, writing – review and editing. All the authors contributed to the discussions on the results.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

We appreciate the financial assistance from JST SPRING, Grant Number JPMJSP2145, the Science and Technology Innovation Program of Hunan Province (2024RC3195), the Research Foundation of Education Bureau of Hunan Province (23B0241), and the Nature Science Foundation of Hunan Province (2025JJ50095).
