Hong-Wei
Li
abc,
Jingqiang
Wang
*d,
Jing
Yu
d,
Jia-Yang
Li
ab,
Yan-Fang
Zhu
*abf,
Huanhuan
Dong
ab,
Zhijia
Zhang
*c,
Yong
Jiang
c,
Shi-Xue
Dou
e and
Yao
Xiao
*abf
aCollege of Chemistry and Materials Engineering, Wenzhou University, Wenzhou, 325035, China. E-mail: yanfangzhu@wzu.edu.cn; xiaoyao@wzu.edu.cn
bWenzhou Key Laboratory of Sodium-Ion Batteries, Wenzhou University Technology Innovation Institute for Carbon Neutralization, Wenzhou 325035, China
cSchool of Materials Science and Engineering, Tiangong University, Tianjin 300387, China. E-mail: zhangzhijia@tiangong.edu.cn
dCollege of Chemistry and Chemical Engineering, Inner Mongolia University, Hohhot, Inner Mongolia 010021, China. E-mail: jqwangchi@hotmail.com
eInstitute of Energy Materials Science (IEMS), University of Shanghai for Science and Technology, Shanghai 200093, China
fKey Laboratory of Advanced Energy Materials Chemistry (Ministry of Education), Nankai, Tianjin 300071, China
First published on 5th April 2025
Prussian blue analogues (PBAs) are widely recognized as one of the most promising cathode materials for sodium-ion batteries (SIBs). However, many unqualified PBAs with unsatisfactory electrochemical performance are difficult to dispose of and pose a risk of environmental contamination. Additionally, the production process of layered oxides, another popular cathode material for SIBs, requires prolonged high-temperature sintering, resulting in significant energy consumption. To address the aforementioned issues, a “two birds with one stone” strategy is proposed. This approach not only demonstrates the feasibility of directly preparing layered oxides with PBAs as precursors through a fast sintering process but also simultaneously addresses the challenge of treating unqualified PBAs while minimizing excessive energy consumption during the preparation of layered oxides. Furthermore, a series of binary, ternary, and quaternary layered oxides were synthesized directly by utilizing PBAs with varying compositions, showcasing the universality of this strategy. This innovative approach breaks the boundaries between different types of sodium cathode materials and builds a distinctive bridge for the direct conversion of PBAs into layered oxides, thereby widening the feasibility of the cathode for SIBs.
PBAs cathode systems have been extensively studied by many world-renowned SIB companies such as Natron Energy (US), Altris (SE), HiNa, CATL (CN), etc. Logically, a significant yield of unqualified PBAs arises during the optimization process of material preparation as it transitions from the laboratory scale to commercial production scale.21 Owing to the intrinsic structural characteristics of –CN present in PBAs, the potential toxicity undoubtedly poses a considerable threat to the environment and human beings. Consequently, the disposal of these unqualified PBAs is a significant challenge.22,23 Separately, since the early exploration of the Na+ de-/intercalation behavior in NaCoO2 during the 1980s, transition metal layered oxides have been extensively studied as prominent cathode materials for SIBs due to their high specific capacity and facile synthesis methods.24–27 Typically, layered oxide cathodes are produced through high-temperature solid-state sintering of various reagents in stoichiometric ratios that correspond to the desired composition of the target product.28–30 This process often results in significant energy consumption, requiring holding times of over ten hours. Therefore, it is important to explore a fast sintering strategy to reduce the energy consumption in the production of layered oxide cathodes for SIBs.31 It would be very interesting and prospective if layered oxide cathodes could be synthesized through fast sintering of PBAs precursors, with transition metals and sodium ions uniformly distributed in the open skeletal structure of PBAs. This “two birds with one stone” strategy not only conserves substantial energy during the layered oxide production process but also addresses the issue of dealing with unqualified PBAs, thereby achieving both economic and environmental benefits.
Based on the discussion above, a straightforward strategy has been adopted to prepare layered oxide cathodes for SIBs using PBAs as precursors, and the applicability of the fast sintering strategy has been verified. Compared to the traditional solid-state method, the fast sintering strategy eliminates the need for precursor hybridization and reduces the high-temperature holding time from over 10 hours to just 10 minutes. All binary, ternary, and quaternary layered oxides produced from PBAs with different components, whether by the long period sintering or fast sintering method, exhibit favorable crystalline properties and excellent sodium storage performance. Furthermore, this innovative strategy allows for the disposal of unqualified PBAs, achieving waste reutilization while balancing economic and environmental benefits.32–34 Additionally, the fast sintering technology significantly enhances production efficiency and reduces energy consumption. This process also mitigates potential pollution by converting waste materials into valuable products, thereby significantly lowering treatment costs and generating added economic value, making it highly attractive for industrial-scale applications. Take the quaternary Fe/Mn-based layered oxides produced through this fast sintering method for example. These oxides demonstrate a high specific capacity of 124.3 mAh g−1 at 0.1 C and exhibit excellent rate performance, achieving a capacity of 88.5 mAh g−1 at 2 C, as well as maintaining a capacity retention of 76.1% after 250 cycles at 1 C. The structural evolution from the PBAs to layered oxides was elucidated using in situ high-temperature X-ray diffraction (HTXRD). The remarkable reversibility of the layered oxide cathodes, prepared by the fast sintering of PBAs precursors, during sodium ion insertion and extraction was confirmed through in situ XRD. Collectively, these results validate the practicality and scalability of the method for directly fast sintering PBAs into layered oxides.
NaNFM was characterized in detail to verify the feasibility and beneficial effects of the strategy for directly converting PBAs into layered oxides using the long period sintering method. The crystalline structure of NaNFM was further investigated by employing high-resolution transmission electron microscopy (HRTEM). The TEM image in Fig. S5a† further confirms the hexagonal, plate-like layered structure of NaNFM, while the HRTEM images in Fig. S5b and c† reveal a lattice fringe spacing of 0.252 nm, which corresponds to the (101) facet of the O3 phase structure, as calculated using the Bragg equation (2dsin
θ = nλ).39 In addition, the chemical valence states of the transition metals in NaNFM were further investigated using X-ray photoelectron spectroscopy (XPS). As illustrated in Fig. S6,† the high-resolution Ni 2p spectra of the NaNFM can be deconvoluted into two peaks at 854.9 eV and 872.5 eV, which correspond to Ni2+, along with two associated satellite peaks.40 The high-resolution Fe 2p spectra reveal two pairs of peaks with binding energies of 709.9 eV and 723.1 eV, as well as 713.2 eV and 726.3 eV, corresponding to Fe2+ and Fe3+, respectively, along with two satellite peaks.41 Similarly, the binding energies of 641.1 eV and 652.3 eV corresponding to Mn4+, are also observed in the high-resolution Mn 2p spectrum.42,43 The presence of various valence states among these transition metal cations indicates their electrochemical activity, which ensures the capability to deliver high specific capacities in NaNFM derived from the PBAs-NFM precursor. Furthermore, in addition to the lattice oxygen peak with a binding energy of 529.3 eV in the high-resolution O 1s, there is a peak representing OH−, which may result from unavoidable exposure to air during the XPS testing.44,45 Likewise, as demonstrated by the XPS spectra in Fig. S7,† the chemical environment of the transition metals in NaNFMM is consistent with that of NaNFM.
To gain insight into the mechanisms underlying the transition from PBAs-NFM to NaNFM, an in situ high-temperature X-ray diffraction (HTXRD) test was conducted to monitor the dynamic sintering process of PBAs-NFM in an air atmosphere, ranging from 25 to 950 °C. As shown in Fig. 2a, the PBAs-NFM retain their original hexagonal structure from room temperature up to 200 °C (Fig. S8a†). And the gradually diminishing peaks at around 15° can be attributed to the removal of crystallization water from the PBAs-NFM as the temperature increases.46 When the temperature reaches 300 °C, the well-defined crystalline structure of PBAs-NFM is destroyed, causing the atoms to escape the constraints of the lattice and become randomly arranged; additionally, the escape velocity of the lighter oxygen and sodium atoms exceeds that of the heavier transition metal atoms, resulting in an amorphous structure (Fig. S8b†). This amorphous state persists until the temperature increases to 480 °C, at which point the P2 phase begins to emerge. The crystal structure of the P2 phase progressively improves with increasing temperature, as evidenced by the enhanced intensity of the (002), (004), and (100) peaks at 15.4, 31.5, and 35.8°, respectively (Fig. S8c†). Notably, as the temperature continues to increase, the characteristic peaks at 16.0, 32.4, 34.8, and 40.9° corresponding to (003), (006), (101), and (104) crystal planes, respectively, of the O3 phase, gradually increase in intensity within the temperature range of 620–700 °C. This observation signifies the transition from the P2 phase to the O3 phase (Fig. S8d†). In the final stage of sintering, the characteristic peaks of the O3 phase in the temperature range of 760–950 °C become progressively sharper and more intense, indicating an improvement in the crystallinity of the O3 phase structure with increasing temperature (Fig. S8e†).47 Ultimately, a well-crystallized O3 phase structure can be achieved after the temperature reaches 950 °C or upon cooling to 25 °C (Fig. S8f†). Furthermore, Fig. S9† and 2b present the in situ HTXRD patterns corresponding to the main characteristic diffraction peak intensity contour maps (bird's eye view), which further illustrate the phase transition from PBAs to layered oxides during the sintering process. Overall, as schematically depicted in Fig. 2c, the transformation of PBAs-NFM to NaNFM involves a structural evolution from PBAs to an amorphous state, and subsequently, driven by thermodynamic factors, to the P2 phase and ultimately to the O3 structure. The structural transformation process of PBAs-NFMM precursors is similar to that of PBAs-NFM, maintaining the original structure except for the loss of crystallization water below 200 °C, then becoming amorphous between 300 and 460 °C, subsequently forming a P2-type layered oxide structure, with the characteristic peaks gradually intensifying within the temperature range of 480–560 °C. As the temperature continues to increase, the O3 phase gradually becomes the dominant phase, and the P2 phase completely disappears at 740 °C. Ultimately, the material transformed into a fully O3 phase after being sintered at 950 °C or cooled to 25 °C. The conversion process of PBAs-NFMM into the O3 phase layered oxide throughout the entire sintering process is illustrated in Fig. S10 and S11.† The HTXRD test was employed to investigate the formation process of the NaFM from the PBAs-FM precursor in an air atmosphere, with temperatures ranging from 25 to 950 °C (Fig. 2d). Similar to PBAs-NFM, the PBAs-FM can also retain the integrity of their crystal structure below 200 °C (Fig. S12a†). In the temperature range of 300 to 460 °C, organic structure decomposition occurs, resulting in a disordered atomic arrangement that exhibits an amorphous structure (Fig. S12b†). As the temperature increases to 480 °C, thermodynamic forces drive these disordered atoms into an entropy-stable ordered arrangement,48 triggering a transition from the amorphous phase to the P2 phase. The P2 phase becomes progressively more refined as the temperature continues to increase (Fig. S12c and d†). Furthermore, the in situ HTXRD patterns, which correspond to the intensity contour maps of the main characteristic diffraction peaks shown in Fig. S13† and 2e, along with the schematic diagram of structural transformation in Fig. 2f, clearly illustrate this transformation process. These experimental results indicate that PBAs can be directly converted into layered oxide materials after undergoing a series of structural transformations.
To evaluate the practical feasibility of the strategy of sintering PBAs as precursors for the preparation of layered oxide cathodes for SIBs, electrochemical behavior tests were conducted in a half-cell with a potential window of 2–4 V. As illustrated in Fig. 3a and S14a,† the galvanostatic charge/discharge (GCD) profiles of NaNFM demonstrate a discharge capacity of 112.1 mAh g−1 and an energy density of 356.6 Wh kg−1 at 0.1 C, significantly surpassing those of the PBAs-NFM precursor, which exhibited a discharge capacity of 101.1 mAh g−1 and an energy density of 337.1 Wh kg−1. The rate performance of NaNFM and PBAs-NFM precursors was evaluated over a current density range from 0.1 C to 2 C. Fig. 3b, c and S14b† demonstrate that NaNFM maintains a reversible specific capacity of 82.9 mAh g−1 at 2 C, which is 19.3 mAh g−1 higher than that of PBAs-NFM. Furthermore, the capacity retention of NaNFM at 2 C is 73.9%, surpassing that of PBAs-NFM. The cycling performance of both NaNFM and PBAs-NFM is depicted in Fig. 3d, S15a and b.† NaNFM exhibits a superior capacity retention of 89.5% after 100 cycles at 1 C with a coulombic efficiency of approximately 100% (compared to 82.9% for PBAs-NFM after 100 cycles). The electrochemical performance of NaNFMM, prepared through long period sintering of the PBAs-NFMM precursor, was also investigated. This material demonstrates a specific capacity of 125.6 mAh g−1 and an energy density of 397.1 Wh kg−1 at 0.1 C within the voltage window of 2–4 V (Fig. 3e and S16a†), which is roughly 24.1 mAh g−1 and 59.7 Wh kg−1 higher than those of the corresponding PBAs-NFMM precursors. As shown in Fig. 3f, g and S16b,† NaNFMM also exhibits an excellent rate performance, achieving a capacity retention of 71.5% and a specific capacity of 89.7 mAh g−1 at 2 C, higher than that of the PBAs-NFMM precursor. Furthermore, NaNFMM demonstrates both good capacity retention and a higher specific capacity than the PBAs-NFMM precursor over 100 cycles at 1 C (Fig. 3h, S17a and b†). Additionally, as shown in Fig. S18,† NaFM also exhibits superior electrochemical performance compared to its PBAs-FM precursor. All of the above results suggest that utilizing PBAs as precursors for the preparation of layered oxide via the long period sintering method can achieve the purpose of improving electrochemical properties.

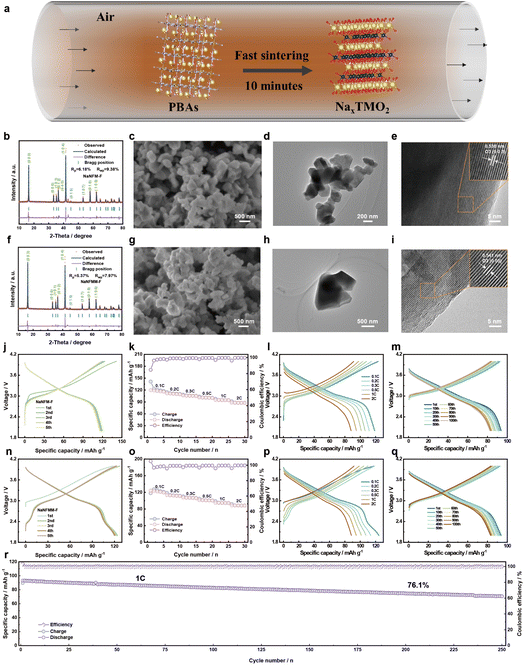

Compared to the direct physical mixing of various metal salts used as the raw materials in conventional solid-state sintering methods, precursor-based approaches have achieved an ordered arrangement of sodium and transition metal elements at the atomic level. This advancement allows for a significantly lower energy requirement to facilitate the formation of layered oxide crystals during high-temperature sintering.49–51 Consequently, the strategy of fast sintering, which reduces the holding time at high temperatures, is feasible for the production of layered oxides utilizing PBAs as precursors (Fig. 4a). Unlike the conventional solid-state method, which necessitates maintaining the high-temperature for over 10 hours, the fast sintering strategy can reduce the holding time to just 10 minutes.52,53 Motivated by this hypothesis, the fast sintering strategy was employed to produce layered oxides using PBAs-FM, PBAs-NFM, and PBAs-NFMM as precursors, respectively.
The layered oxide with the chemical formula of Na0.55Fe0.5Mn0.5O2 (NaFM-F) was synthesized using a fast sintering strategy with PBAs-FM as the precursor. The XRD pattern shown in Fig. S19a† indicates the P2-type phase of NaFM-F, and the crystal parameters derived from the Rietveld refinement results (Fig. S20a†) are presented in Table S3.† The SEM and TEM images in Fig. S20b and c† reveal that NaFM-F has a similar morphology but a smaller particle size compared to NaFM prepared via the long period sintering method. The clear lattice fringes in the HRTEM image (Fig. S20d and S21†) demonstrate that the lattice spacing of NaFM-F is 0.229 nm, corresponding to the (012) facet of the P2 structure. EDS mapping in Fig. S22† confirms the uniform distribution of Fe and Mn within the sample. The HRXPS spectra of Fe 2p, Mn 2p, and O 1s in Fig. S23a–c† indicate that NaFM-F possesses the same chemical valence as the NaFM, with Fe in the +2/+3 valence states, Mn in the +4 valences states and O existing as lattice-O and adsorbed OH−. Similarly, the ternary compound Na0.85Ni0.2Fe0.5Mn0.3O2 (NaNFM-F) was synthesized using ternary PBAs-NFM as the precursor through the fast sintering strategy. The XRD pattern (Fig. S19b†) and its Rietveld refinement results (Fig. 4b) indicate that the phase structure of NaNFM-F is the O3 type structure with crystal parameters a = b = 2.98 Å and c = 16.16 Å (Table S3†). NaNFM-F exhibits a smaller particle size compared to NaNFM, as shown in the SEM and TEM images (Fig. 4c and d). TEM-EDS mapping in Fig. S24† reveals a well-dispersed distribution of Ni, Fe, and Mn elements in NaNFM-F. The HRTEM images of NaNFM-F in Fig. 4e show a lattice fringe distance of 0.536 nm corresponds to the (003) crystal plane of the O3 phase. HRXPS spectra in Fig. S25a–d† suggest that the Ni, Fe, and Mn in NaNFM-F exist in the oxidation states of +2, +2/+3, and +4 respectively. The novel fast sintering strategy was also applied to quaternary PBAs-NFMM precursors to demonstrate its broad applicability. The resulting layered oxide, with the chemical formula Na0.85Ni0.15Fe0.5Mg0.05Mn0.3O2 (NaNFMM-F), exhibits the O3 phase structure within the Rm space group, with cell parameters a = b = 2.97 Å and c = 16.21 Å, as determined from the XRD pattern and Rietveld refinement results (Fig. 4f, S19c and Table S3†). Notably, similar to the binary NaFM-F and ternary NaNFM-F, the quaternary NaNFMM-F prepared using the fast sintering method has a smaller particle size compared to its counterparts obtained through the long period sintering method (Fig. 4g and h). This universal phenomenon can be attributed to the reduced high temperature holding time, which minimizes agglomeration during crystal growth. The EDS mapping in Fig. S26† demonstrates a uniform distribution of Na, Ni, Fe, Mg, Mn, and O in NaNFMM-F. The crystal structure of NaNFMM-F was further studied using the HRTEM images in Fig. 4i, where the lattice spacing of 0.541 nm corresponds to the (003) facets of the O3 structure. Consistent with these findings, the HRXPS spectra in Fig. S25e–g† indicate that Ni, Fe, and Mn in NaNFMM-F exist in the valence states of +2, +2/+3, and +4. Additionally, the HRXPS of O 1s in Fig. S25h† reveals a further reduction in the intensity of the adsorbed (OH)− compared to NaNFM-F, suggesting enhanced air stability of NaNFMM-F due to the substitution of Mg.
For the practical application of the fast sintering strategy, investigations into the electrochemical properties are also necessary. The specific capacity of NaNFM-F is 119.6 mAh g−1 at 0.1 C (Fig. 4j), which is higher than that of NaNFM. This improvement is likely due to the increased number of active reaction sites resulting from the smaller particle size of the material, which increases the contact area with the electrolyte. Fig. 4k and l demonstrate that the specific capacity of NaNFM-F can reach up to 88.1 mAh g−1 even at 2 C, indicating a good rate performance. Interestingly, as shown in Fig. 4n, the quaternary NaNFMM-F exhibits a capacity of 124.3 mAh g−1, slightly higher than that of NaNFM-F. This enhancement can be observed in the GCD profile of NaNFMM-F at approximately 2.1–2.4 V.54 The satisfactory rate performance of NaNFMM-F, with a capacity of 88.5 mAh g−1 at 2 C, is illustrated in Fig. 4o and p. Similarly, Fig. S27† indicates that the binary NaFM-F also demonstrates good electrochemical properties comparable to those of NaFM obtained through the long period sintering method. Furthermore, benefiting from the “pillar effect” of a small amount of Mg substitution in the layered oxide occupying the Na site,55 NaNFMM-F exhibits a capacity retention of 76.1% over 250 cycles at 1 C, which is superior to the 69.1% of Mg-free NaNFM-F (Fig. 4m, q, r, and S28†).
To investigate the charge compensation mechanism of the layered oxides synthesized through the fast sintering method, X-ray absorption fine structure (XAS) measurements were carried out to survey the chemical states and local atomic coordination environments of the elements in NaFM-F and NaNFM-F. The X-ray absorption near-edge structure (XANES) spectra at the Fe K-edges of NaFM-F and reference iron oxides are presented in Fig. 5a. Compared to Fe foil, the spectrum at the Fe K-edge of NaFM-F shifts to a higher energy, falling between the reference spectra of Fe2O3 and Fe3O4, and is closer to that of Fe3O4, manifesting that the valence state of Fe in NaFM-F is between +2 and +3.56 The Fourier-transformed (FT) k3-weighted extended X-ray absorption fine structure (EXAFS) spectra of the Fe atoms in NaFM-F are shown in Fig. 5b. There are two prominent peaks at approximately 1.42 and 2.48 Å, which can be attributed to Fe–O and Fe–TM bonds, respectively.57 These results are consistent with the analyses of the corresponding Wavelet Transform (WT)-EXAFS spectra. In contrast to the single intensity maximum assigned to the Fe–Fe bonds in the WT-EXAFS spectra of Fe foil (Fig. S29a†), the WT-EXAFS spectra of Fe in NaFM-F, as shown in Fig. 5c, exhibit two intensity maxima that can assigned to the Fe–O and Fe–TM bonds, respectively.58 Additionally, the energy position of the XANES spectrum of the Mn K-edge of NaFM-F closely resembles that of MnO2 (Fig. 5d), indicating that the oxidation state of the isolated Mn atom in NaFM-F is approximately +4.59 The EXAFS spectra of the Mn atoms of NaFM-F, depicted in Fig. 5e, reveal two distinct peaks at around 1.32 and 2.42 Å, which can be attributed to the Mn–O and Mn–TM bonds, respectively.60,61 The presence of the Mn–O and Mn–TM bonds in NaFM-F is further supported by the two intensity maxima observed in the WT-EXAFS spectra of Mn in NaFM-F (Fig. 5f), in contrast to the single intensity maximum in the WT-EXAFS spectra of Mn foil, which corresponds to Mn–Mn bonds (Fig. S29b†). In addition, XAFS tests were conducted to investigate the charge compensation mechanism of the ternary NaNFM-F compound. As illustrated in Fig. 5g, the XANES spectrum of the Ni K-edges of NaNFM-F is positioned closer to that of the reference NiO, indicating that the oxidation state of the Ni atom in NaNFM-F is +2.62 The two peaks observed at approximately 1.50 and 2.49 Å in the EXAFS spectra of the Ni atoms in NaNFM-F correspond to the Ni–O first coordination shell and Ni–TM bonds, respectively (Fig. 5j).63 Compared with the single intensity maximum observed in the WT-EXAFS spectrum of Ni foil (Fig. S29c†), the presence of two intensity maxima in the WT-EXAFS spectrum of Ni in NaNFM-F (Fig. 5m) further corroborates these findings. Similar to the Fe K-edges in NaFM-F, the Fe K-edges of NaNFM-F suggest that the valence state of Fe is +2/+3 (Fig. 5h). Additionally, the EXAFS and WT-EXAFS spectra of Fe in NaNFM-F indicate the presence of the Fe–O and Fe–TM bonds (Fig. 5k and n). Furthermore, analogous results are also observed in the charge mechanisms of Mn in NaNFM-F, as indicated by the XAFS analysis, which demonstrates the near +4 valence state of Mn and the existence of Mn–O bonds and Mn–TM bonds (Fig. 5i, l and o).
Furthermore, a potential window of 2–4.3 V was applied to investigate the electrochemical performance of NaNFM-F over a wider operating voltage range. As illustrated in Fig. 6a–d, within this potential range, NaNFM-F exhibits an initial specific capacity of 124.6 mAh g−1 at 0.1 C and demonstrates a rate performance of 74.1 mAh g−1 at 2 C, along with a stable cycling performance of 70.0% capacity retention over 100 cycles at 1 C. To gain insight into the evolution of the crystal structure of NaNFM-F during the Na+ de/intercalation process, in situ XRD tests were conducted during the charge and discharge process at 0.1 C within the potential range of 2–4.3 V during the first two cycles. As shown in Fig. 6e, f and S30,† the in situ XRD patterns and the corresponding intensity contour maps of the main characteristic diffraction peaks reveal the details of the phase evolution. During Na+ extraction, the peaks at (003), (006), (107), and (108) shift to a lower angle, indicating an expansion of the c-axis of the NaNFM-F crystal structure due to increased electrostatic repulsion from the adjacent TMO2 layers as the Na+ is extracted from the lattice.64 In contrast, the peaks at (101), (012), and (104) shift to higher angles, suggesting a contraction of the ab plane caused by charge compensation resulting from Na+ extraction, which leads to the oxidation of transition metal ions and reduced repulsion among Na+ ions.65,66 The phase transition from O3 to O3/P3 occurs during this process. As Na+ is further extracted from the lattice with the charge potential gradually exceeding 4.1 V, the intensity of the (104) peak decreases significantly, indicating the formation of a new OP2 phase.67 During the reverse discharge process, the crystal structure undergoes an opposite evolution from OP2 to O3/P3 to O3, and in the second cycle, the crystal structure evolution process resembles that of the initial cycle. As illustrated in Fig. 6g, the structural evolution follows the sequence O3-O3/P3-OP2-O3/P3-O3 during cycling, indicating the excellent structural reversibility of NaNFM-F in the voltage range of 2.0–4.3 V.68
