Velu
Jeyalakshmi‡
ab,
Siming
Wu‡
a,
Shanshan
Qin
a,
Xin
Zhou
a,
Bidyut Bikash
Sarma
c,
Dimitry E.
Doronkin
d,
Jan
Kolařík
e,
Miroslav
Šoóš
b and
Patrik
Schmuki
*ae
aDepartment of Materials Science WW4-LKO, Friedrich-Alexander-University of Erlangen-Nuremberg, Martensstrasse 7, 91058 Erlangen, Germany. E-mail: schmuki@ww.uni-erlangen.de
bDepartment of Chemical Engineering, University of Chemistry and Technology, Technická 3, Prague 160 00, Czech Republic
cLaboratoire de Chimie de Coordination (LCC), CNRS, Université de Toulouse, INPT, UPR 8241, 205 Route de Narbonne, 31077 Toulouse Cedex 4, France
dInstitute of Catalysis Research and Technology, KIT, Hermann-von Helmholtz Platz 1, 76344 Eggenstein-Leopoldshafen, Germany
eRegional Centre of Advanced Technologies and Materials, Šlechtitelů 27, 78371 Olomouc, Czech Republic
First published on 12th February 2025
Noble metal single atoms (SAs) on semiconductors are increasingly explored as co-catalysts to enhance the efficiency of photocatalytic hydrogen production. In this study, we introduce a “spontaneous deposition” approach to anchor Pd SAs onto graphitic carbon nitride (g-C3N4) using a highly dilute tetraaminepalladium(II) chloride precursor. Maximized photocatalytic activity and significantly reduced charge transfer resistance can be achieved with a remarkably low Pd loading of 0.05 wt% using this approach. The resulting Pd SA-modified g-C3N4 demonstrates a remarkable hydrogen production efficiency of 0.24 mmol h−1 mg−1 Pd, which is >50 times larger than that of Pd nanoparticles deposited on g-C3N4via conventional photodeposition. This significant enhancement in catalytic performance is attributed to improved electron transfer facilitated by the optimal coordination of Pd SAs within the g-C3N4 structure.
Nevertheless, due to strong kinetic hindrance for the photocatalytic hydrogen evolution reaction (HER) on the C3N4 surface, an enhanced efficiency highly depends on the development of highly active co-catalysts – typically noble metals such as Pt, Pd, and Rh need to be deposited on the semiconductor surface to obtain a reasonable H2 production rate. Despite efforts made using non-precious metal HER electrocatalysts,10 noble metal-based materials remain nearly irreplaceable due to their superior activity and chemical stability. However, the scarcity and high cost of these metals pose significant challenges to the large-scale application of these noble metal-based co-catalysts. This has prompted considerable efforts to minimize noble metal usage while retaining high catalytic performance. In this context, single-atom catalysts have garnered wide attention due to their maximized atom utilization efficiency.11–13
As for many other semiconductors and also for C3N4 substrates, a wide range of noble metal SAs have been successfully deposited as nanoparticles, clusters or SA, and accordingly improvement in photocatalytic H2 production has been reported.14–21 In search of the most active SA species, Akinaga et al. conducted a remarkable study on ten transition metal elements, including Cu, Ni, Pd, Pt, Rh, Ru, Ag and Au, as SAs anchored on g-C3N4. Among the metals tested, Pd demonstrated significantly higher hydrogen evolution activity compared to other precious metals such as Pt, Rh as well as other transition metals.14 The authors ascribed the superior activity of Pd on C3N4 to the suitable electronic structure of this metal on C3N4. In their work, Akinaga et al. used a photodeposition approach to achieve a relatively high SA loading (>0.5 wt%).
However, for many semiconductors, the activity of SAs in photocatalysis is extremely dependent on the deposition approach.13,21–23 Namely, for Pt SAs on TiO2, it was reported that “reactive” deposition leads to highly active SA configurations that can provide maximized H2 production, i.e., a very high catalytic efficiency can be reached at very low noble-metal loading. This approach relies on the surface reaction of highly dilute solutions of suitable noble-metal precursors.24–27
In the present work, we first explore various Pd precursors for the feasibility of a reactive SA attachment on C3N4. We find that tetraaminepalladium(II) chloride – Pd(NH3)4Cl2 as a Pd precursor solution with C3N4 allows for an adjustable Pd SA loading with a wide range of deposition concentrations from 0.04 wt% to 0.75 wt%. Our results show that by the reaction of a minimal amount of a 0.05 mM precursor, maximum photocatalytic efficiency can be obtained. The photocatalytic hydrogen production activity of such Pd SA-decorated C3N4 achieves a normalized H2 production activity of 0.24 mmol h−1 mg−1 Pd, which is 55 times higher than that observed with Pd nanoparticle-decorated C3N4 at an effective loading that is more than 10 times lower than that typically reported in the literature for Pd on C3N4. The superior activity of Pd SAs/C3N4 is attributed to the strong coordination of Pd SAs within the C3N4 structure, forming a highly stable and catalytically effective configuration that drastically reduces the charge transfer resistance for the HER. These results illustrate how a refined anchoring of SAs on substrates can enable more cost- and production-effective use of precious metals in photocatalysis.
Fig. 1a shows the SEM image of Pd-deposited g-C3N4 (Pd SAs/C3N4) using Pd(NH3)4Cl2 at a concentration of 0.002 mM, and Fig. S3† shows the SEM image of neat g-C3N4. The introduction of Pd SAs does not affect the morphology of C3N4 – both samples show a sheet-like structure with a thin layer thickness of approximately 16 nm. The high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) image of Pd SAs/g-C3N4 is shown in Fig. 1b and c, which confirms the presence of individual Pd atoms (highlighted in Fig. 1c with red dots and yellow circles). Also, in the HAADF-STEM image (Fig. 1d), there are no observable Pd agglomeration on the g-C3N4 surface. Energy-dispersive X-ray spectroscopy (EDX) mapping (Fig. 1e–g) further proves the uniform dispersion of Pd SAs throughout the g-C3N4 structure. The density of Pd SAs was calculated as 1.6 × 106 μm−2 from HAADF-STEM images shown in Fig. S4.†

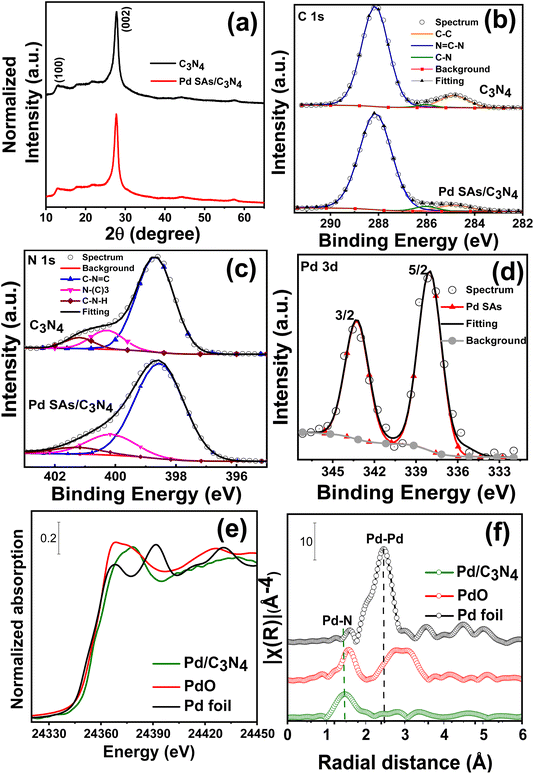

X-ray diffraction (XRD) patterns of g-C3N4 and Pd SAs/g-C3N4 are presented in Fig. 2a. Both samples display two distinct diffraction peaks at 13° and 27.6°, corresponding to the (100) and (002) crystal planes of g-C3N4, respectively.31 Notably, no diffraction peaks related to metallic Pd are observed in the Pd SAs/g-C3N4 sample (as is expected for the SA-decorated sample).14
X-ray photoelectron spectroscopy (XPS) was utilized to investigate the chemical state of g-C3N4 and Pd SAs on C3N4 (Fig. 2b–d and Table S1†). The high-resolution C 1s XPS spectrum (Fig. 2b) of both samples can be fitted by three peaks at 284.7 eV, 286.2 eV, and 288.1 eV corresponding to C–C, C–N and N–CN of the heptazine ring carbon structure, respectively.16 The fitted N 1s spectra (Fig. 2c) exhibit peaks at 398.7 eV (N1), 400 eV (N2), and 401.4 eV (N3), representing the sp2 hybridized aromatic two-coordinated (N2c) nitrogen of the triazine unit (C
N–C, i.e., pyridinic N) and three coordinated (N3c) bridging N atoms connected to carbon as N–(C)3 groups and amino functional (C–NH/NHx) groups respectively.16,32,33 The Pd 3d spectrum of Pd SAs/C3N4 shows two peaks (Fig. 2d), doublets at 337.6 and 342.9 eV corresponding to Pdδ+ 3d5/2 and Pdδ+ 3d3/2 (0 < δ < 2), respectively.16 For comparison, Pd nanoparticles were deposited on g-C3N4 (Pd NPs/C3N4) using an established photodeposition method described in the literature.34,35 SEM images of Pd NPs/C3N4 (Fig. S5†) clearly show distinct Pd nanoparticles on the C3N4 surface with their typical diameter in the range of 7–15 nm. For this sample, the Pd 3d XPS spectra (Fig. S6†) of Pd NPs/C3N4 exhibit doublets at 335 eV and 340 eV, which are typically attributed to metallic Pd0.33
The nature of Pd species was further investigated by X-ray absorption spectroscopy (XAS) and diffuse reflectance infrared Fourier transform spectroscopy (DRIFTS) measurements. Fig. 2e and f show the absorption near-edge structure (XANES) and extended X-ray absorption fine structure (EXAFS) spectra of Pd SAs/C3N4. The X-ray absorption spectrum of Pd SAs/C3N4 measured at the Pd K-edge (24350 eV) indicates the presence of Pd atoms that are non-metallic and carry a positive charge.15,16,20 The EXAFS analysis and the corresponding Fourier transformed (FT) radial distribution function of Pd SAs/C3N4 show a peak at approximately 1.5 Å (without phase correction), attributed to the Pd–N bond, and no obvious scattering is observed for the metallic Pd–Pd bonding.16,20 CO-DRIFT spectra of Pd SAs/C3N4 (Fig. S7†) show a CO vibrational peak at 2125 cm−1, which is characteristic of linearly bonded CO on a Pd single site (usually Pd2+).36,37 These results are well in line with the XPS results, i.e., Pd SAs are N-coordinated in C3N4 with an oxidation state ≈ 2.
We then used the above deposition approach to place Pd SAs from Pd(NH3)4Cl2 solutions in the concentration range of 0.0005 mM to 10 mM on C3N4. Fig. 3a shows the Pd 3d XPS spectra for these Pd SAs loaded on C3N4 samples. Notably, neither metallic Pd peaks nor Cl 2p peaks (Fig. S8†) are observed under any of the deposition conditions. Instead, the incorporation of Pd SAs is evident across all samples, as indicated by the Pd 3d doublet peaks at 337.6 and 342.9 eV. The XPS data align with the SEM images shown in Fig. S9,† where no Pd nanoparticles are observed in any of the samples, even at the highest precursor concentration of 10 mM.
The bulk loading of the samples prepared using different concentrations of Pd(NH3)4Cl2 solutions was further quantified by atomic absorption spectroscopy (AAS) – the results are shown in Table S1.† As the concentration of the Pd precursor increases, the loading of Pd SAs increases (Fig. S10†), which is consistent with the XPS data (Table S2†). For the highest precursor concentration of 10 mM, the Pd SA loading reaches 0.75 wt%.
We then examined for all samples the photocatalytic H2 evolution using a 365 nm LED light source with an intensity of 65 mW cm−2 and an aqueous solution of 10% triethanolamine (TEOA) as a hole scavenger.19,38,39 From the results shown in Fig. 3b, it is evident that the decoration of either Pd NPs or Pd SAs significantly enhances the H2 production activity compared to bare C3N4. In the concentration range of 0.0005 mM to 0.05 mM, corresponding to Pd SA loadings from 0.04 wt% to 0.26 wt% (Fig. S10†), the photocatalytic H2 production activity increases with loading (Fig. 3c). It is worth mentioning that Pd SAs deposited through our method, utilizing the Pd(NH3)Cl2 precursor, lead to the notable finding that even a minimal loading of 0.05 wt% outperformes Pd NPs synthesized via photodeposition, the latter having a much higher loading of 1.5 wt% (Table S2†). As a side note, this loading is also much more efficient than using PdCl2 and (NH4)2PdCl6 precursors (see Fig. S11†). Also, in this comparison, the photocatalytic H2 production results show that an SA deposition approach using Pd(NH3)4Cl2 leads to much higher activity, despite the significantly lower Pd loading compared with PdCl2 and (NH4)2PdCl6.
In general, the data clearly show that the H2 production amount increases with Pd precursor concentration loading until reaching a maximum at 0.05 mM (with a Pd SA loading of 0.26 wt%). Beyond this point, a further increase in Pd loading does not increase the activity any further but even leads to a slight drop in the activity and in the 10 mM case a very obvious decrease (Fig. 3c). This is likely due to the decrease in the density of Pd SAs and the formation of Pd agglomerates, which may increase charge recombination.40
To further assess and compare the effectiveness of Pd as a co-catalyst in both single-atom and nanoparticle forms, we normalized the data from Fig. 3b relative to Pd loading (Table S1†); the results are shown in Fig. 3d. The analysis reveals that the highest mass-specific photocatalytic efficiency, resulting in an H2 production rate of 0.24 mmol h−1 mg−1 Pd, is achieved with 0.002 mM Pd precursor (0.05 wt%). This efficiency is 55 times higher than that obtained through conventional photodeposition of Pd nanoparticles on g-C3N4, highlighting the superiority of our reactive deposition method for optimizing photocatalytic H2 production. The exceptional performance of low Pd SA loading on g-C3N4, prepared using our direct deposition method, is evident when compared to other Pd SA-loaded g-C3N4 structures reported in the literature for photocatalytic H2 generation. As shown in Table S3,† our work demonstrates the highest photocatalytic hydrogen evolution per Pd atom. Notably, even when compared to studies with similar or higher Pd SA loadings, the Pd SAs obtained through our reactive deposition method using Pd(NH3)4Cl2 exhibit the highest efficiency.

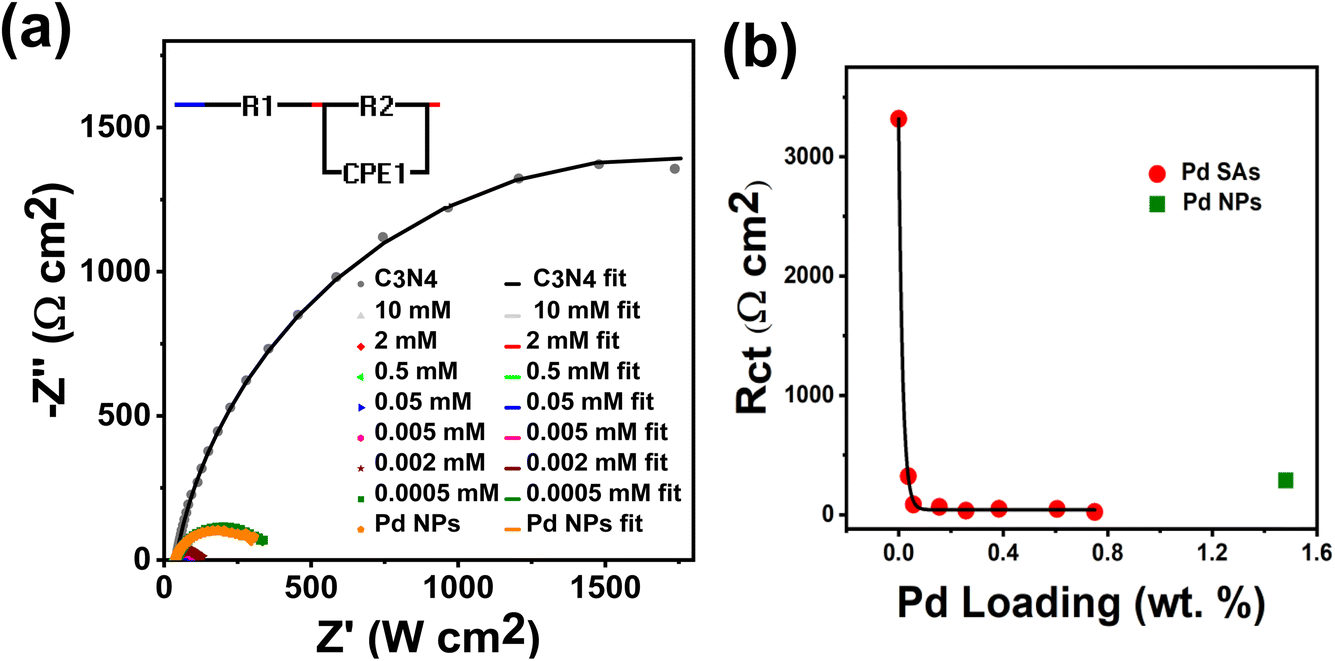

To better examine the origin of high activity of our SAs on C3N4, we evaluated the charge transfer properties of the Pd-decorated C3N4 photocatalysts by electrochemical impedance spectroscopy (EIS). The measurements were performed in the 0.1 M Na2SO4 electrolyte at −0.5 V vs. Ag/AgCl, i.e., close to flat band conditions (details are outlined in the ESI-Experimental section†). Fig. 4a presents the Nyquist plots for bare g-C3N4, and g-C3N4 decorated with varying amounts of Pd SAs, and g-C3N4 decorated with Pd NPs (see the zoomed-in spectra shown in Fig. S12†). The Nyquist plots were fitted using the classic Randle's equivalent circuit model (inset of Fig. 4a).41,42 The significantly smaller radius of the fitted curve for Pd SAs/C3N4, compared to bare C3N4, indicates a substantial reduction in charge transfer resistance (Rct) upon Pd SA loading. Quantitative fitting data in Table S4† show a 98-fold decrease in Rct due to Pd SA incorporation (already at a concentration of 0.05 mM). Fig. 4b shows the Rct values plotted against Pd SA loading, showing that even a minimal amount of Pd SAs (0.03 wt%) can dramatically enhance the charge transfer of C3N4 to the electrolyte. This aligns with the low loading required to achieve peak efficiency in photocatalytic H2 production. Conversely, Pd NPs on C3N4 also reduce Rct compared to bare C3N4 (Fig. 4b) but require a much higher loading (1.5 wt%) to achieve a similar reduction in charge transfer resistance, as compared to the Pd SA-loaded sample, which achieves this with just 0.03 wt%. PEIS measurements for all the samples were measured using a 365 nm LED (as described in the ESI Experimental section†). As shown in Fig. S13,† the results indicated a similar trend to the EIS data collected in the dark (Fig. 4 and Table S4†), although Rct values were different. Under illumination, Rct values decreased due to enhanced charge transfer dynamics in the presence of light (Fig. S13 and Table S5†). Notably, Pd SAs demonstrated lower Rct values compared to Pd nanoparticles, indicating the superior performance of Pd SAs. These results underscore the effectiveness of small Pd SA quantities in significantly improving the charge transfer characteristics of C3N4.
Incident photon-to-current conversion efficiency (IPCE) measurements were also conducted to assess the photoelectrochemical characteristics of C3N4 and Pd SAs/C3N4. Fig. S14† shows photocurrent spectra for both samples with a photocurrent onset in the visible range. The bandgap (determined from a replot of the photocurrent data according to an indirect transition, Fig. S14-inset†) was 2.7 eV, consistent with the typical bandgap of g-C3N4.14,43 Additionally, the photocurrent (Fig. S15†) increases after the decoration of Pd SAs on g-C3N4 (under near flat band conditions), which confirms the beneficial effect of Pd SAs in promoting charge transfer under illumination conditions.
The enhanced performance of Pd-SAs deposited by our decoration technique, compared with the literature, must be attributed to the used precursor Pd(NH3)42+ that leads to the direct formation of active Pd–N configurations (as confirmed by EXAFS, Fig. 2e and f) – in the literature, such sites are regarded as premier active sites in C3N4.16,20,44,45
The presence of NH3 groups in Pd(NH3)42+ ions may promote the formation of such a Pd–N coordination structure compared to the chloride-coordinated Pd precursors due to suitable ligand exchange energetics.46,47 Furthermore, the Pd2+ in Pd(NH3)4Cl2 enables stronger interactions with nitrogen atoms in C3N4 than the Pd4+ in (NH4)2PdCl6 or Pd2+ in PdCl2.48,49 Evidently, chloro-coordinated Pd precursors in the Pd2+ or Pd4+ state are either adsorbed onto the C3N4 surface at less specific sites, as shown by the XPS Pd 3d spectra (Fig. S1a†) and the significant presence of Cl detected in the XPS Cl 2p spectra (Fig. S1b†), or reduced and form metallic Pd agglomerates, as clearly observed in the SEM images (Fig. S2†). The tetraammonium complex, on the other hand, leads without any evident change in the reduction state to active Pdδ+ (δ ≈ 2) N-coordinated SAs, accompanied by the complete loss of Cl coordination during the reaction (Fig. S8†). Therefore, Pd(NH3)4Cl2 is identified as the most suitable precursor for direct reactive deposition of Pd SAs on C3N4.
Considering that many literature studies, particularly those involving DFT calculations, suggest that Pd in an N4-coordination on C3N4 exhibits the highest degree of stability and activity, one may conclude that Pd²⁺ undergoes a ligand exchange process to form this active Pd–N4 configuration. This means that the process is of self-homing nature (as described for the reactive deposition of Pt)23–25,35i.e., the Pd precursor reacts and deposits Pd SAs at most active surface sites on g-C3N4, these sites then provide a maximized electron transfer and thus are highly catalytically active. This explains why such a low loading of Pd SAs is sufficient in our work to achieve maximised photocatalytic H2 production efficiency compared to the higher Pd loadings required, as reported in most literature studies (Table S3†).14,45,49,50
The remarkable activity becomes particularly clear if the present data are compared to the work of Akinaga et al.,14 where a 0.5 wt% Pd SA loading was required to maximize the photocatalytic H2 production activity, i.e., our very low Pd SA loading of 0.05 wt% demonstrates a tenfold increase in efficiency. This superior performance highlights the importance of the attachment chemistry and process of Pd SAs within C3N4,i.e., processes that lead to Pd SAs located at the most active sites can lead to maximized efficiency with minimal Pd usage, avoiding the waste of Pd associated with random Pd SA or NP deposition.
