A BODIPY-tagged trivalent glycocluster for receptor-targeting fluorescence imaging of live cells

Abstract

Multivalent glycoclusters have been extensively used as a targeting agent for drug delivery. However, tools capable of investigating their dynamic interactions with a target receptor remain elusive. Here, we synthesized fluorescently-tagged galactoclusters for the fluorescence imaging of cells that overly express the asialoglycoprotein receptor (ASGPr). A trivalent galactoside was synthesized, to which a boron dipyrromethene (BODIPY) dye was conjugated. The resulting fluorescent glycocluster was used for the targeted fluorescence imaging of liver cancer cells with a high ASGPr expression level. The trivalent probe was also demonstrated to be applicable for super-resolution imaging of ASGPr-mediated ligand endocytosis and the dynamic intracellular translocation to the lysosomes. As such, this study provides a suitable chemical tool for the study of receptor dynamics using fluorescently tagged glycoclusters.

---

Introduction

Sugar-receptor interactions are known to mediate a number of biological processes.^1–3 A representative example is the selective interaction between the asialoglycoprotein receptor (ASGPr) and glycoconjugates bearing galactosyl (Gal) or N-acetyl-galactosaminyl (GalNAc) residues, which leads to cell endocytosis.⁴ ASGPr has been determined to be highly expressed in hepatocytes.⁵ Previous studies suggest that ASGPr exhibits important biological functions including disruption of cholesterol metabolism,⁶ alleviation of liver injury^7,8 and degradation of serum glycoproteins.^9–11

ASGPr has long been exploited as a molecular target for targeted drug delivery. To enhance the receptor-binding avidity, multivalent glycoclusters have been designed and synthesized. Considering the trimeric nature of ASGPr, a variety of trivalent Gal and GalNAc-based glycoclusters have been developed and used for conjugation with therapeutics for targeted drug delivery.¹² For example, several GalNAc-conjugated small-interfering RNA (siRNA) therapeutics have been approved by the FDA.^13–15 Bertozzi et al. developed lysosome-targeting chimeras (LYTACs), a novel protein degradation strategy exploiting sugar receptors including ASGPr to mediate endocytosis of membrane-bound proteins.¹⁶ Furthermore, by targeting ASGPr, small-molecule drugs such as docetaxel¹⁷ and immuno-virotherapeutics such as oncolytic herpes simplex virus¹⁸ have been delivered to liver cancer cells in a target-specific manner.

A survey of literature also indicates extensive interest in the development of fluorescent glycoprobes for targeted imaging of live cells and animals. Yan et al. synthesized a Gal-conjugated amphiphilic small molecular dye, which can form multivalent nanoparticles in aqueous solution, for NIR-II imaging-guided photothermal therapy (PTT) of liver cancer cells.¹⁹ Wang et al. developed Gal-conjugated fluorescent probes for the targeted detection of Fe³⁺ in the lysosomes of hepatocytes.²⁰ Xing et al. designed lactosylated fluorescent prodrugs that self-assemble into multivalent nanoparticles for photodynamic therapy and chemotherapy of liver cancer.^21,22 The same group also constructed aggregation-induced emission (AIE)-active fluorescent nanoparticles bearing multiple copies of glucosamine, mannose or sialic acid for the inhibition of insulin fibrillation.²³ We have also developed series of fluorescent dye-conjugated glycoprobes^24–26 and glycoclusters^27–33 for targeted imaging and therapy of bacterial infection as well as cancer. Despite the rapid development of glycocluster-based delivery systems, fluorescent tools capable of tracking glycocluster–receptor interactions remain elusive.

Here, we developed boron dipyrromethene (BODIPY) tagged galactoclusters for the multimodal fluorescence imaging of live cells that overly express ASGPr (Fig. 1). Owing to the unique photophysical properties of BODIPY, we were able to achieve the visualization of the glycoclusters upon cell endocytosis and their dynamic translocation to the lysosomes via super-resolution imaging techniques. This offers scope for the monitoring of receptor dynamics upon sugar-receptor interactions.

Fig. 1 (a) Chemical structures of Gal₃-BODIPY, Gal-BODIPY and PEG₃-BODIPY. (b) Schematic illustration of receptor-targeting cell imaging.

Results and discussion

The synthesis of the glycocluster is detailed in Schemes S1 and S2.† Gallic acid was used as a template, on which three molecules of galactose (Gal) were displayed. Three tert-butoxycarbonyl-protected alkylamines were first introduced to the phenolic positions of gallic acid, and then an azido poly(ethylene glycol) (PEG) was coupled with the carboxylic group of the template through an amidation reaction. After removal of the Boc groups, three pentanoic acid-modified per-O-acetyl-1-O-β-galactosides were coupled to the template through amide bonds. Finally, reaction with an alkynyl BODIPY derivative via Cu(I)-catalyzed azide–alkyne cycloaddition reaction, and removal of the acetyl protecting groups resulted in the desired product Gal₃-BODIPY being obtained. A monovalent probe (Gal-BODIPY) was synthesized as control with just one galactosyl group introduced to the BODIPY. Another control compound (PEG₃-BODIPY) where the Gal groups were replaced with methyl groups was also synthesized in a similar manner.

With the glycocluster in hand, we determined its photophysical properties. To our delight, the glycocluster is well soluble in phosphate buffered saline (PBS). Therefore, the absorption and fluorescence emission spectra for Gal₃-BODIPY (Fig. 2a), PEG₃-BODIPY (Fig. 2b) and Gal-BODIPY (Fig. S1†) were readily obtained. A quantum yield of 0.49 and a lifetime of 1.4 ns was determined for Gal₃-BODIPY in PBS (Table S1†). In addition, the fluorescence of the glycocluster was not compromised by continuous light irradiation for up to 30 min (Fig. 2c) or exposure to a wide range of pH conditions (Fig. 2d). These results suggest that the BODIPY-tagged glycocluster is suitable for cellular imaging applications.

Fig. 2 Absorption (40 μM) and fluorescence emission (10 μM, λ_ex = 488 nm) spectra of (a) Gal₃-BODIPY and (b) PEG₃-BODIPY measured in PBS buffer (0.01 M, pH 7.4) (c) fluorescence changes of Gal₃-BODIPY (10 μM) and PEG₃-BODIPY (10 μM) in PBS buffer (0.01 M, pH 7.4) under white light (560 nm, 1 W cm⁻²) and UV light (365 nm, 1 W cm⁻²) irradiation with time. (d) Fluorescence changes of Gal₃-BODIPY (5 μM) and PEG₃-BODIPY (5 μM) in 21 different pH PBS buffers (0.01 M, pH 2–12). The slit width was set as 5 nm.

Next, we turned our attention to evaluate the applicability of the fluorescent glycocluster for targeted cell imaging. Six cell lines including HepG2 (human hepatoma cell), Huh7 (human hepatoma cell), MHCC-97H (human hepatoma cell), MDA-MB-231 (human triple-negative breast cancer cell), HeLa (human cervical cancer cell) and RAW264.7 (mouse macrophage cell) with different ASGPr expression levels were used (HepG2, Huh7, MDA-MB-231, HeLa and RAW264.7 cell lines were purchased from American Type Culture Collection (ATCC), and MHCC-97H cell line was purchased from National Collection of Authenticated Cell Cultures). First the quantitative polymerase chain reaction was first used to determine the relative ASGPr mRNA level of all six cell lines. Then, cells were incubated with Gal₃-BODIPY, PEG₃-BODIPY or Gal-BODIPY, and imaged by a high-content screening system. We determined that the fluorescence of Gal₃-BODIPY was stronger in HepG2 than in other cells (Fig. 3a and b). The quantified fluorescence intensity of the probe agreed with the endogenous ASPGr expression level of the cells (Fig. 3c). Interestingly, the fluorescence intensity of Gal-BODIPY in all the tested cells was seen to be constantly smaller than that of Gal₃-BODIPY, suggesting a stronger binding between the trivalent ligand and ASGPr. This agrees with the observation in a previous study.³⁴ In contrast, a similar level of fluorescence was detected in all six cells for PEG₃-BODIPY without Gal modification (Fig. 3a and b). We also determined that the fluorescence imaging of HepG2 cells by Gal₃-BODIPY was concentration (Fig. S2†) and time-dependent (Fig. S2†), and that the glycocluster was not toxic to the cells tested (Fig. S3†). These results help confirm the ASGPr-targeting ability of Gal₃-BODIPY.

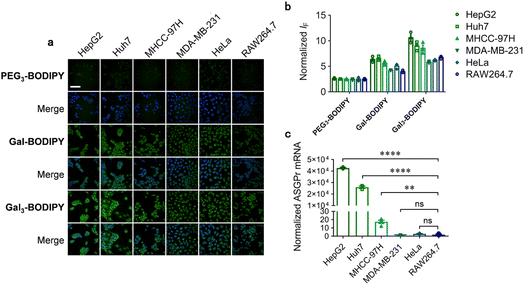

Fig. 3 (a) Fluorescence imaging and (b) quantification of HepG2, Huh7, MHCC-97H, MDA-MB-231, HeLa and RAW264.7 cells after treatment with Gal₃-BODIPY (5 μM), PEG₃-BODIPY (5 μM) or Gal-BODIPY (5 μM) for 1 h. (c) ASGPr mRNA expression level of the cell lines used for imaging measured by RT qPCR (scale bar = 100 μm).

To corroborate that the targeted imaging is receptor-dependent, several other experiments were carried out. RNA interreference was carried out to suppress the ASGPr expression level in HepG2 cells (Fig. 4c). We determined that cells treated with ASGPr siRNA exhibited a significantly lower cellular uptake of the glycoclusters than those without siRNA treatment (Fig. 4a and b). Incubation of HepG2 cells with Gal₃-BODIPY at 4 °C significantly decreased the fluorescence intensity with respect to 37 °C incubation (Fig. 4d and e), suggesting the internalization of the glycocluster is kinetically controlled.³⁵ In addition, preincubation of the cells with an excess of free Gal suppressed the fluorescence of the glycocluster (Fig. 4f and g).

Fig. 4 (a) Fluorescence imaging, (b) quantification and (c) mRNA expression level of ASGPr knock-down HepG2 cells and relative control cells. (d) Fluorescence imaging and (e) quantification of Gal₃-BODIPY cultured HepG2 cells at different temperature. (f) Fluorescence imaging and (g) quantification of HepG2 cells preincubated with free D-galactose (scale bar = 100 μm). BODIPY channel excitation at 488 nm, emission at 500–550 nm. Hoechst 33 342 channel excitation at 405 nm, emission at 435–480 nm.

With promising imaging results obtained, we set out to examine the applicability of the BODIPY-tagged glycocluster for multimodal cell imaging. BODIPY is a class of popular organic dyes often used for live cell imaging because of its high brightness and amenability for super-resolution imaging.^36–39 We used a Leica STELLARIS 8 STED (stimulated emission depletion) system to image HepG2 cells after incubation with 10 μM of Gal₃-BODIPY for 5 min under STED and confocal mode (Fig. S4†). With STED, we obtained fluorescence images with suppressed background signals and higher resolution compared to the confocal images. We then set out to explore the super-resolution imaging of ASPGr-mediated endocytic processes using Gal₃-BODIPY. Ly-Red-BODIPY, a lysosomal tracker developed in our laboratory was used for this experiment (Scheme S3 and Fig. S5†).

HepG2 and HeLa cells pre-incubated with Ly-Red-BODIPY were treated with Gal₃-BODIPY and then imaged every 30 s (Fig. 5). During an imaging period of 300 s, we observed that Gal₃-BODIPY was rapidly internalized by HepG2 cells from 0–30 s and translocated to the lysosomes immediately. Then, the probes resided in the lysosomes over the complete imaging cycle as evidenced by its high Pearson's coefficient values determined when overlapped with Ly-Red-BODIPY (Fig. 5a and b, and ESI movie 1†). In contrast, Gal₃-BODIPY was hardly internalized by HeLa cells under the same imaging conditions, and a low overlap between the fluorescence of the probe and that of the lysosomal tracker was determined (Fig. 5c, d, and ESI movie 2†). In the meantime, PEG₃-BODIPY used as a control was found to be barely internalized by both HepG2 and HeLa cell lines (Fig. S6†), which agrees with the results obtained by high-content fluorescence imaging. We also found that Gal₃-BODIPY was applicable for lifetime imaging, and a lifetime of 3.98 ns was determined for the probe (Fig. S7†). This indicates that BODIPY-modified glycoclusters can be used for lifetime imaging of ASGPr-mediated endocytosis.

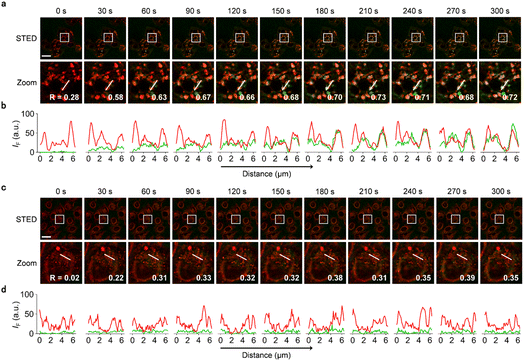

Fig. 5 (a) Fluorescence imaging and (b) linear quantification of HepG2 cells incubated with Gal₃-BODIPY and Ly-Red-BODIPY under STED mode. The Zoom images are those enlarged from the white boxes shown in the STED images. (c) Fluorescence imaging and (d) linear quantification of HeLa cells incubated with Gal₃-BODIPY and Ly-Red-BODIPY under STED mode. BODIPY channel: excitation at 488 nm, emission at 500–550 nm and depletion with 775 nm STED laser. Ly-Red-BODIPY channel: excitation at 638 nm, emission at 640–700 nm and depletion with 775 nm STED laser. Green and red lines represent the fluorescence intensity of Gal₃-BODIPY and that of Ly-Red-BODIPY, respectively. The corresponding Pearson's Correlation Coefficient is labelled in the bottom-right (scale bar = 25 μm).

Conclusions

We have synthesized a BODIPY-tagged galactocluster for targeted imaging of live cells. A gallic acid-based tripod was used to display three molecules of Gal, and the resulting trivalent glycocluster was shown to be selectively internalized by cells that overly express ASGPr. In addition, the unique photophysical properties of BODIPY enabled us to visualize ASGPr-mediated endocytosis and intracellular translocation to the lysosomes using super-resolution imaging techniques. This study offers insights for the elaboration of receptor dynamics in live cells using BODIPY-tagged glycoclusters.

Data availability

All data generated during this study have been included as part of the ESI.†¹H and ¹³C-NMR spectra for unreported compounds can be found in the ESI.†

Author contributions

T. D. J., J. L., C.-Y. W. and X.-P. H. designed research; C. G., F.-Y. S., C.-H. W. and N. W. performed research; X.-L. H., T. D. J. and X.-P. H. wrote the paper.

Conflicts of interest

The authors declare no conflict of interest.
