Catalysis of a LiF-rich SEI by aromatic structure modified porous polyamine for stable all-solid-state lithium metal batteries

Abstract

Poly(ethylene oxide) (PEO)-based solid-state polymer electrolyte (SPE) is a promising candidate for the next generation of safer lithium-metal batteries. However, the serious side reaction between PEO and lithium metal and the uneven deposition of lithium ions lead to the growth of lithium dendrites and the rapid decline of battery cycle life. Building a LiF-rich solid electrolyte interface (SEI) layer is considered to be an effective means to solve the above problems. Here, porous organic polymers (POPs) with aromatic structures and non-aromatic structures were synthesized and introduced into the PEO-based SPE as fillers to explore the effect of aromatic structures on LiF-rich SEI formation. The results show that the POPs containing aromatic groups could catalyze the decomposition of LiTFSI to form a stable LiF-rich SEI layer and inhibit the growth of lithium dendrites. The discharge capacity of the LFP/Li battery is 103 mA h g⁻¹ after 500 cycles at 1C (100 °C). It provides a promising way to improve the stability of the solid electrolyte matrix and SEI layer.

---

Introduction

All-solid-state lithium metal batteries (ASSLBs) are considered the next generation of high safety and high specific capacity energy storage devices due to the lowest potential of the lithium metal anode (−3.040 V vs. the standard hydrogen electrode) and high specific energy (3860 mA h g⁻¹).^1–3 Solid polymer electrolyte (SPE) is one of the important components widely used because of its high flexibility and easy preparation among all kinds of solid electrolytes.^4–6 In particular, polyethylene oxide (PEO)-based SPEs have broad application prospects due to their low manufacturing cost, large permittivity, and good mechanical properties.^7–9 However, the serious side reaction between PEO and lithium metal and the uneven deposition of lithium ions lead to the growth of lithium dendrites, resulting in significant capacity degradation and poor cycle performance.^10,11 The practical application of PEO-based SPE in high-energy density solid-state lithium metal batteries (LMBs) is seriously hindered.

Aiming at the tricky problem of the Li/PEO interface, a LiF-rich solid electrolyte interface (SEI) layer is constructed to solve the above problem.¹² The low Li⁺ diffusion barrier and excellent electronic insulation of LiF are used to promote Li⁺ transfer and uniform deposition in LMBs.¹³ Zhao et al.¹⁴ enhanced battery performance by tuning the spatial site resistance of the electrolyte to produce LiF-rich SEIs. Zhang et al.¹⁵ formed a stable Li₃N–LiF interface between PEO-based SPE and a lithium anode by adding a lithium nitrate (LiNO₃) filler; LiNO₃ promoted the uniform deposition of lithium. At the same time, the solid-state electrolyte itself cannot be ignored. Fang et al.¹⁶ improved battery performance through aluminum-oxo molecular clusters (AlOCs) used to reconstruct an efficient conductive network in the continuous amorphous structural domains of PEO. Lu et al.¹⁷ developed stimuli-responsive pre-grafted solid polymer electrolytes (PGSPEs) by utilizing the unique property of stimulus-induced phase transition in polymers to affect the interfacial structure. The polymer is capable of forming a void-free SSE electrode interface and an effective permeable ion transport network inside the electrode. These strategies have positive effects on the construction of PEO electrolytes and LiF-SEI layers. However, the regulating mechanism of filler chemical structures on the stability of SEI layers remains unclear, and few people discuss what kind of chemical structure is conducive to the construction of a LiF-rich SEI layer. The reason is that it is difficult to regulate the chemical structure of fillers. Therefore, a simple method is needed to adjust the chemical structure of fillers to improve the stability of the SEI layer.

Porous organic polymers (POPs) are widely used due to their large surface area, high stability, flexible synthesis strategy, and functional designability.^18–21 POPs have porous structural controllability and functional designability and their surface structural properties can be regulated at the molecular level.^22–25 Therefore, POP groups can be designed to interact with TFSI⁻ to catalyze the generation of LiF and construct a LiF-rich SEI layer. Practice has proved that the introduction of POP fillers into PEO to prepare composite polymer electrolyte (CPE) is an effective way to improve the stability of the interface between PEO and the lithium anode.^26,27

In this work, two kinds of POPs by polymerization of hydantoin and phenytoin with melamine were prepared as PEO-based CPE fillers (Fig. 1). The effect of aromatic structure of POPs on the stability of the SEI layer was studied. It was found that POPs containing aromatic groups could catalyze the decomposition of LiTFSI to form a stable LiF-rich SEI layer and inhibit the growth of lithium dendrites. Meanwhile, the rigid structure of the aromatic group in POPs can improve the thermal stability and structural stability of the electrolyte film and make the electrolyte film usable at high temperature. A Li/Li symmetric cell cycled for more than 2000 h at 0.1 mA cm⁻² (60 °C). The initial discharge capacity of the assembled LiFePO₄ (LFP)/Li battery is 159.7 mA h g⁻¹ for 500 cycles at 1C at 100 °C. The CPE can still maintain its complete shape even at 120 °C. It provides a promising way to improve the stability and aspect of the solid electrolyte matrix and SEI layer.

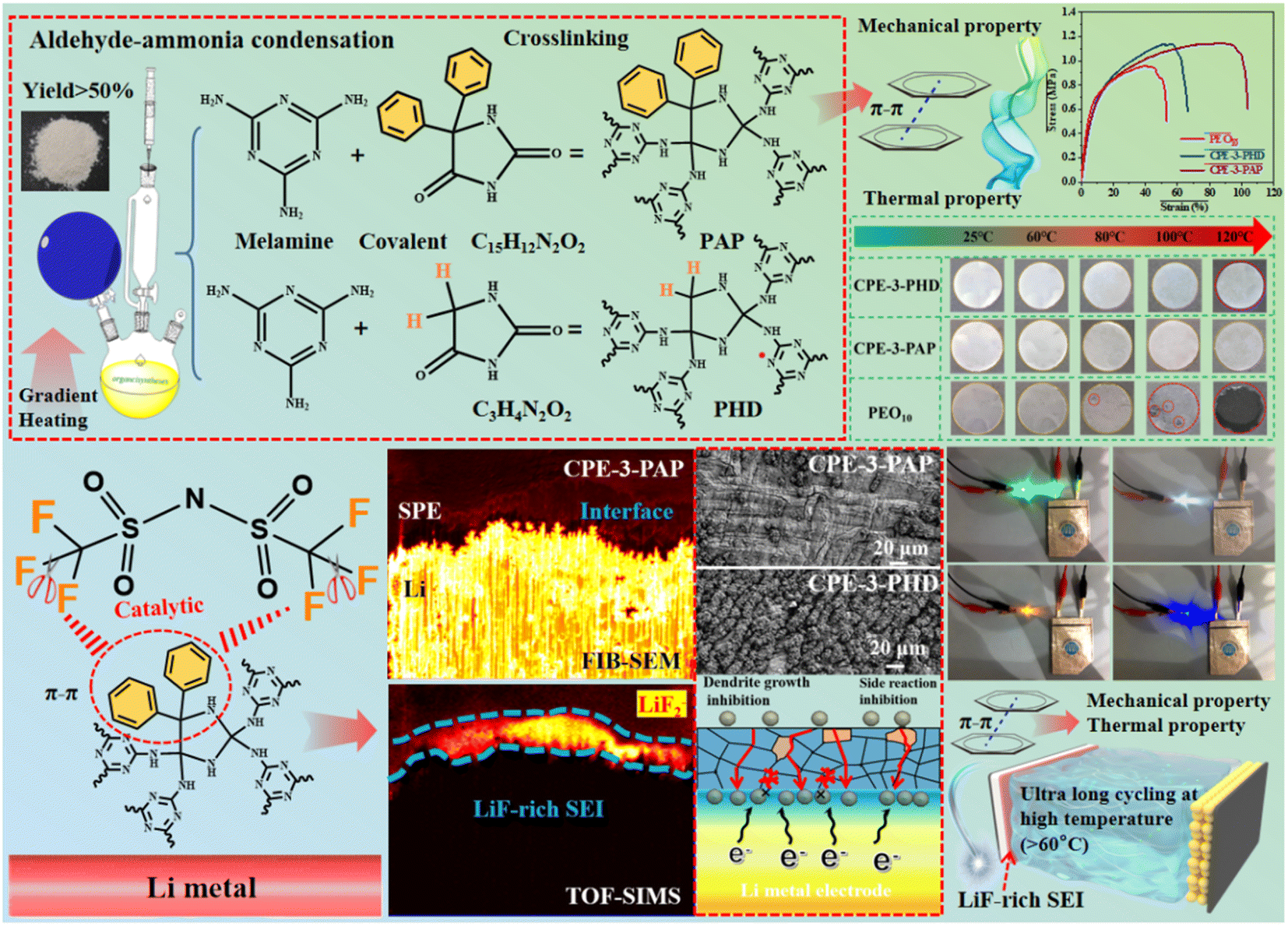

Fig. 1 Design strategy of the PAP/PHD and CPE membrane preparation process and schematic illustration of the interface stabilization mechanism.

Results and discussion

PAP/PHD structural characterization

The microstructure of PAP and PHD was investigated by SEM. The SEM images (Fig. 2a and b) show that the PAP and PHD powders have porous and loose structures. Fig. S1† shows the surface morphology of PAP and PHD powders at higher magnification. Fourier transform infrared spectroscopy (FTIR) confirmed that the carbonyl peak of phenytoin and hydantoin disappeared at 1700 and 1695 cm⁻¹, and the peaks of PAP and PHD at 1547 and 1538 cm⁻¹ proved the existence of the triazine ring which is derived from melamine (Fig. 2c and d).²⁸

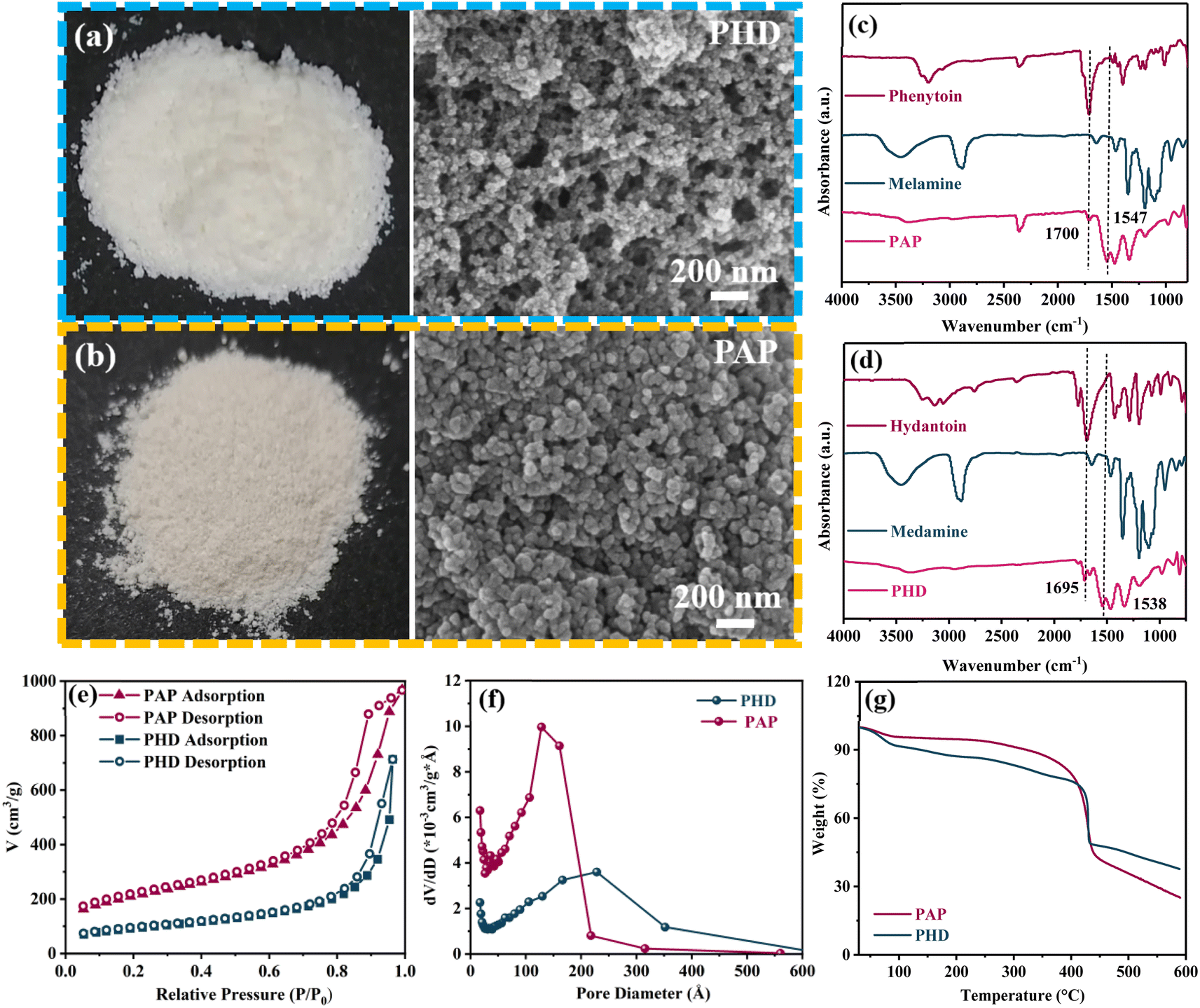

Fig. 2 Photograph and SEM image of (a) PHD and (b) PAP. FTIR spectra in the wavenumber range of 4000–800 cm⁻¹ of (c) PAP and (d) PHD. (e) Nitrogen isotherms at 298 K of PHD and PAP. (f) Pore size distribution of PHD and PAP. (g) TGA curves of PAP and PHD.

Unlike PHD, the medium bimodal in Fig. 2c between 1400 and 1600 cm⁻¹ refers to the characteristic infrared peak of the phenyl group, which is found for the phenytoin monomer and PAP. This confirms the successful synthesis of PAP equipped with a polar phenyl group. The introduction of the aromatic electron-withdrawing group, specifically the phenyl group, facilitates the polarization effect of lithium salts, thereby catalyzing the cleavage of the C–F bond in lithium salts and promoting the formation of inorganic LiF, which enhances the stability of the SEI.

Wide-angle X-ray diffraction (XRD) shows that the two polyamine networks have wide diffraction peaks, which proves that the two polyamine networks are essentially amorphous structures (Fig. S2†).²⁹

The specific area and porous characteristics of PAP and PHD were also characterized by the N₂ adsorption–desorption technique (Fig. 2e, f). The Brunauer–Emmett–Teller (BET) specific surface areas of PAP and PHD were 730 and 326.4 m² g⁻¹, and the pore volumes of PAP and PHD were 1.3 m³ g⁻¹ and 0.8 m³ g⁻¹. The pore size of PAP (12.8 nm) is smaller than that of PHD (23 nm) (Fig. 2f). It can be seen that PAP has a larger specific surface area, higher pore volume and a smaller pore diameter. The reason may be that the rigid benzene ring in PAP expands the pore volume and makes pore channels more abundant.^23–25

Thermogravimetric (TG) analysis was used to test the thermal stability of PAP and PHD, as shown in Fig. 2g. PHD and PAP become weightless due to the evaporation of absorbed water below 100 °C. PAP and PHD showed a weight loss of 23.2 wt% and 20.5 wt% before 400 °C, and it can be seen that PAP is more stable than PHD, and PAP containing a benzene ring has high thermal stability.

Physical and electrochemical performance characterization of the CPEs

Different qualities of PAP/PHD were introduced into the PEO polymer matrix to prepare CPEs. Fig. 3a, S3 and S4† show the surface morphologies of CPE-3-PAP, CPE-3-PHD, and PEO₁₀. CPE has no obvious cavities or cracks proving that PAP and PHD have good dispersion in the polymer matrix. The corresponding EDS mapping shows that elements C and N are evenly distributed which indicated that PAP and PHD are uniformly dispersed in the polymer matrix without obvious agglomeration.

Fig. 3 SEM morphology of (a) surface and (b) cross section of the CPE-3-PAP membrane. (c) EDS mapping of the CPE-3-PAP membrane. (d) X-ray diffraction, (e) DSC curves, (f) ionic conductivity, and (g) FT-IR spectra at 1400–1150 cm⁻¹ of CPE-3-PAP, CPE-3-PHD, and PEO₁₀. (h) Chronoamperometry curve for CPE-3-PAP at 60 °C with a polarization voltage of 10 mV and EIS plots before and after the polarization (inset). (i) LSV curves of CPE-3-PAP, CPE-3-PHD and PEO10 at a scanning rate of 10 mV s⁻¹ at 60 °C. (j) Photographs of CPE-3-PAP, CPE-3-PHD and PEO10 after heat treatment at various temperatures for 1 h.

Conductivity is an important parameter of polymer electrolyte and can reflect the transport capacity of Li⁺. The conductivity of CPEs with different PHD and PAP contents is shown in Fig. S5.† The ionic conductivity of CPE-3-PAP and CPE-3-PHD is higher than that of CPE-x-PAP and CPE-x-PHD (x = 1, 5). The small amount of PAP and PHD packing is not enough to build a continuous Li⁺ transport channel when too little packing is added. And there are fewer PEO amorphous regions, resulting in an insignificant increase in ionic conductivity. In contrast, when the filler addition was too high, a large amount of PAP and PHD fillers would reduce the free volume for the movement of PEO segments and hinder the movement of PEO segments, which was unfavorable for Li⁺ migration.^27,30 In general, the transport capacity of Li⁺ is not only related to the conductivity of CPEs, but also related to the crystallinity of the polymer. Ion migration in PEO-based electrolytes occurs primarily in the amorphous region. Conventional PEOs have high crystallinity and reduced amorphous regions, which hinders Li⁺ transport and results in poor ionic conductivity. Fillers help reduce the crystallinity of PEO and increase the amorphous region of PEO, which helps ionic conductivity and improves Li⁺ transport.³⁰ XRD was used to characterize the motility of PEO chains. XRD patterns in Fig. 3d reflect that the strong characteristic crystallization peaks of PEO are located at 19.3° and 23.2°, indicating that PEO₁₀ has high crystallinity. No obvious crystallization peaks were observed in the spectra of CPE-3-PHD and CPE-3-PAP, due to the decrease of PEO crystallinity. This phenomenon was further supported by DSC measurements. As shown in Fig. 3e, the glass transition temperature of CPE-3-PAP was −42.28 °C which was below that of CPE-3-PHD (−41.5 °C) and PEO₁₀ (−41.2 °C). It was confirmed that the addition of PAP disrupts the crystallization of the –EO chain segment and promotes the movement of the PEO chain, resulting in a decrease in crystallinity and the “T_g” value. On the other hand, the Tm of CPE-3-PAP was 49.82 °C, while the T_m of CPE-3-PHD and PEO10 was 59.04 and 59.98 °C, respectively. Table S1† shows the ionic conductivity of CPE-3-PAP, CPE-3-PHD, and PEO₁₀ at different temperatures. Compared with PEO₁₀ (1.2 × 10⁻⁶ S cm⁻¹ at 25 °C), the ionic conductivities of CPE-3-PHD and CPE-3-PAP were 9.86 × 10⁻⁶ S cm⁻¹ and 2.49 × 10⁻⁵ S cm⁻¹ (Fig. 3b). The ionic conductivity of CPE-3-PHD and CPE-3-PAP increased to 2.07 × 10⁻⁴ S cm⁻¹ and 3.32 × 10⁻⁴ S cm⁻¹, respectively, while the ionic conductivity of PEO₁₀ was only 1.11 × 10⁻⁴ S cm⁻¹ at 60 °C.

In addition to the motility of the PEO chain segment affecting the conductivity of lithium ions, the number of free lithium ions is also one of the factors. The interaction between fillers and LiTFSI was analyzed using FTIR spectra and Gauss–Lorentz fitting lines. As shown in Fig. 3g, PEO₁₀ had the characteristic peak of –SO₂ stretching at 1331.4 cm⁻¹, while in the FTIR spectra of CPE-3-PAP and CPE-3-PHD, the characteristic peak of –SO₂ stretching moved to 1334.9 cm⁻¹ and 1334.4 cm⁻¹. At the same time, –CF₃ symmetrical stretch shifts from 1243.1 cm⁻¹ (PEO₁₀) to 1249 (CPE-3-PHD) and 1249.9 (CPE-3-PAP) cm⁻¹. In addition, –CF₃ asymmetrically stretched from 1200.1 cm⁻¹ (PEO₁₀) to 1198.1 cm⁻¹ (CPE-3-PHD) and 1197.1 cm⁻¹ (CPE-3-PAP).^27,30 PAP causes a more obvious peak position shift of –SO₂ and –CF₃, indicating that the aromatic ring in PAP has strong interaction with LiTFSI, which results in an increase of free Li⁺ and improves ionic conductivity.

As an important parameter of battery electrochemistry, the Li⁺ transference number (t_Li⁺) also plays a critical role in improving the electrochemical performance. Fig. 3h shows that the t_Li⁺ of CPE-3-PAP is 0.36, while the t_Li⁺ of PEO₁₀ and 3-PHD is only 0.19 and 0.2 (Fig. S6†). The electrons on TFSI⁻ can conjugate with the benzene ring, which can weaken the interaction between Li⁺ and TFSI⁻ and promote the migration of Li⁺.^31–33

The electrochemical stability of CPEs is studied through the linear sweep voltammetry (LSV) test. As shown in Fig. 3i, compared to CPE-3-PHD (4.7V) and PEO₁₀ (4.1V), CPE-3-PAP can be stably charged up to above 4.8 V. Lewis acid–base interaction may occur between PAP and PEO, which lowered the highest occupied molecular orbital (HOMO) of PEO and increased the antioxidant stability of CPE.³⁴

The extensibility and elasticity of CPE will affect the battery stability. An ideal CPE must have sufficient mechanical properties to inhibit the puncture of Li dendrites. Fig. S7† shows the strain stress curve of CPE. The maximum strain of CPE-3-PAP, CPE-3-PHD, and PEO₁₀ is 95%, 66.5%, and 40.5%. CPE-3-PAP has higher tensile strength and better ductility compared with CPE-3-PHD and PEO₁₀, because PAP contains conjugated electron-rich benzene rings that can interact with PEO, leading to potential physical crosslinking and formation of a strong network between PEO and PAP.^35,36

Besides good mechanical strength, thermal stability is another important indicator of CPE for practical application in ASSLBs. The thermogravimetric analysis (TGA) was used to evaluate the thermal stability of the electrolytes at 50–600 °C. As shown in Fig. S8,† PEO₁₀ and CPE-3-PHD decompose after 366 °C and 397 °C, while CPE-3-PAP decomposition occurred after 402 °C. The rigid framework of the benzene ring in PAP delays the decomposition of PEO and improves the thermal stability of CPE. Furthermore, Fig. 3j shows the photos of CPEs at 25, 60, 80, 100, and 120 °C. PEO₁₀ partially melts at 80 °C. In addition, CPE-3-PHD also melts and becomes transparent at 100 °C, and its shape shrinks rapidly and melts at 120 °C. In contrast, CPE-3-PAP retains its original form and does not melt, indicating that the introduction of aromatic groups in CPE significantly improved the thermal stability of CPE.

Li plating/stripping stability and dendrite suppression capability of CPEs

The interfacial compatibility between CPEs and lithium metal was investigated using the Li/CPEs/Li cell. Fig. 4a exhibits the plating/stripping curves of the Li/CPEs/Li coin cell at a current density of 0.1 mA cm⁻² and an aerial capacity of 0.1 mA h cm⁻². The initial polarization voltages of CPE-3-PAP, CPE-3-PHD, and PEO₁₀ were 30 mV, 70 mV, and 80 mV, respectively. CPE-3-PAP exhibits excellent long-term cycling stability for over 2000 h, while CPE-3-PHD and PEO₁₀ had short circuit after 860 and 340 hours. The results show that the aromatic groups in PAP have a better optimization effect on the anode interface of CPE than the groups in PHD while PHD also shows a better performance than PEO₁₀.

Fig. 4 (a) Constant current polarization curve fragment of CPE-3-PAP, CPE-3-PHD, and PEO₁₀ measured in a Li/CPE/Li coin cell at 0.1 mA cm⁻² at 60 °C. (b–d) Corresponding partial enlarged images at different times. (e) Constant current polarization curve fragment of CPE-3-PAP, CPE-3-PHD, and PEO₁₀ measured at 0.1 mA cm⁻² at 100 °C. (f) Rate performance of symmetric lithium cells with CPE-3-PAP, CPE-3-PHD and PEO10. (g–i) Surface morphologies of the Li electrode obtained from Li/CPE-3-PAP/Li, Li/CPE-3-PHD/Li, and Li/PEO₁₀/Li symmetric cells cycled for about 400 h. (j) Voltage profiles of the Li/Cu deposition process. (k) Tafel plot for Li plating/stripping of the Li/Li symmetric cells.

We believe that CPE-3-PHD shows improved electrochemical performance and thermal stability compared to PEO, even though CPE-3-PHD has lower conductivity and lithium ion mobility than CPE-3-PAP. It should be that the SEI component of PHD is also improved; just compared with PAP it is worse. However, compared with PEO, there is still a significant improvement. Therefore, the CPE-3-PHD samples still have good long cycle stability at 100 °C. The thermal stability of the CPE-3-PHD samples is also improved. The amplified voltage curve (Fig. 4b–d) shows that the CPE-3-PAP batteries exhibit a flat voltage platform throughout the plating/stripping process, with an overpotential of approximately 40 mV, lower than that of CPE-3-PHD and PEO₁₀, demonstrating the highly reversible and stable lilting/stripping process. Besides, CPE-3-PAP exhibits better interfacial stability than CPE-3-PHD at 100 °C (Fig. 4e). CPE-3-PAP exhibits excellent long-term cycling stability and small overpotential for over 1000 h while PEO₁₀ was short-circuited at 288 h. Moreover, the time–voltage curves of lithium symmetric cells cycled at different current densities (0.05, 0.1, 0.2, and 0.3 mA cm⁻²) are shown in Fig. 4f. With the increase of current density, all voltage platforms in CPE-3-PAP are stable without significant fluctuation while CPE-3-PHD and PEO₁₀ have large polarization and fluctuation.

In order to explore the reasons for the difference in the cycle times of Li/CPEs/Li symmetric batteries cells, the surface morphology of lithium metal after 400 h of cycling was observed by SEM. As shown in Fig. 4g–i. The lithium surface of CPE-3-PHD has a large number of lithium dendrites growing like weeds. The lithium surface of PEO₁₀ has obvious lithium dendrites, resulting from uneven and loose deposition of lithium ions. This means that lithium dendrites grow uncontrollably, which eventually lead to a short circuit in the battery. In contrast, CPE-3-PAP has no obvious lithium dendrites. It was confirmed that PAP makes it possible to form a more stable SEI layer on the CPE/Li surface which could promote the uniform deposition of lithium.

In order to explore the influence of SEI layers formed at different Li/CPE interfaces on Li⁺ nucleation and Li⁺ conduction, the interfacial transfer kinetics of Li⁺ in the SEI layers were systematically studied (Fig. 4j). The initial overpotential of CPE-3-PAP, CPE-3-PHD, and PEO₁₀ is 13, 30, and 59 mV, respectively. The CPE-3-PAP SEI layer shows the lowest initial overpotential, indicating that the SEI layer formed at the Li/CPE-3-PAP interface can reduce the energy barrier of Li⁺ interface travel, which is conducive to nucleation in the initial Li plating stage and greatly enhances the interface stability of subsequent Li growth.^37,38

The exchange current density (i₀) is calculated by fitting with the Tafel plot of the three electrolytes to further investigate Li⁺ transfer kinetics at the SEI layer (Fig. 4k). The exchange current density of the CPE-3-PAP SEI layer (I₀ = 0.34 mA cm⁻²) was much higher than that of the CPE-3-PHD SEI layer (I₀ = 0.19 mA cm⁻²) and PEO₁₀ SEI layer (I₀ = 0.14 mA cm⁻²), indicating faster interfacial transport of Li⁺. This further confirmed that the CPE-3-PAP SEI can promote rapid Li⁺ transfer kinetics and inhibited the growth of lithium dendrites.^14,39

To further investigate the stability of the SEI, the interfacial resistance of the Li/Li symmetric battery is summarized in Fig. S9.† After the 1, 5, 10, 20, and 50 cycles, CPE-3-PAP maintains a relatively stable interfacial resistance and shows a small value (90 Ω) compared to CPE-3-PHD (265 Ω). As the cycle time increased, the impedance of CPE-3-PAP was more stable than CPE-3-PHD, indicating that the SEI of CPE-3-PAP prevented further decomposition of electrolyte and promoted uniform lithium deposition, thereby reducing interfacial impedance.

Characterization of the components of the SEI

To explore the reasons for SEI stability, the chemical composition of the SEI layer on the lithium anode was detected by X-ray photoelectron spectroscopy (XPS) (Fig. 5a). The F 1s spectrum has two peaks at 684.5 eV and 688.7 eV, corresponding to LiF and C–F bonds.^40,41Fig. 5b shows that the LiF ratio of CPE-3-PAP, CPE-3-PHD, and PEO₁₀ SEI layer is 66%, 57%, and 14%, respectively. It can be seen that the different structures of PAP and PHD fillers have different effects on LiF content. The results indicate that the introduction of a benzene ring in POPs may stimulate the decomposition of LiTFSI and generate LiF in the SEI layer.

Fig. 5 (a) XPS characterization of the Li anode after 200 cycles of Li/CPE-3-PAP/Li, Li/CPE-3-PHD/Li, and Li/PEO10/Li. (b) The content comparison of different chemical species calculated from the fitted XPS spectra. (c–e) Corresponding TOF-SIMS LiF₂⁻ species 2D surface distribution. (f–h) Corresponding TOF-SIMS LiF₂⁻ species cross-section distribution spectra. (i) Corresponding TOF-SIMS depth profiles of LiF₂⁻ species intensity distribution (inset: 3D rendering). Multilayer microstructure SEM images of the cycled cell from (j) FIB-prepared cross-section. (k) TOF-SIMS signals of LiF₂⁻. (l) The schematic diagram of the SEI layer containing LiF generated by adding PAP to promote the dissociation of LiTFSI.

Time of Flight Secondary Ion Mass Spectrometry (TOF-SIMS) analysis was employed to further detect the interface chemical species. Relevant ion signals are fed back through continuous face scanning of the ion beam at the cycled Li metal interface. Fig. 5c–h display the surface (Fig. 5c–e), cross-section (Fig. 5f–h) and 3D rendering (Fig. 5i) distribution spectrum of chosen species, LiF₂⁻, which are representatives of LiF. The higher intensity of LiF₂⁻ fragments in the TOF-SIMS spectra of Li/CPE-3-PAP than that in Li/CPE-3-PHD and Li/PEO₁₀ confirms it as the leading component on the Li metal surface of the SEI. According to the 3D reconstruction of the sputtered volume for LiF₂⁻ species, the SEI layer of Li/CPE-3-PAP possesses distinct advantages of density and uniformity over the other two Li/CPEs. To directly detect the distribution of the composition on the Li/CPE-3-PAP interface, we tested a fresh and flat cross-section interface by the focused ion beam (FIB) technique (Fig. 5j). Fig. 5i shows the high lateral resolution mapping of the Li/CPE-3-PAP interface cross section, and the TOF-SIMS analysis provided a clear localization of LiF₂⁻ at the interface, indicating that the addition of the PHD promoted the formation of an artificial SEI layer due to the catalysis interaction of aromatic groups. Fig. 5l shows the SEI layer with LiF generated by adding PAP to promote the dissociation of LiTFSI.

To further validate, first principles calculations were conducted based on density functional theory (DFT) to elucidate the interaction between aromatic groups and TFSI anions. We have listed the bond lengths of C–F in TFSI⁻ in the table in Fig. 6. Compared with PHD without aromatic groups (C₉N₉H₈F₆O₄S₂) and original molecular C₂F₆O₄S₂N, the addition of PAP with aromatic groups (C₂₁N₉H₁₆F₆O₄S₂) results in longer C–F bonds for TFSI⁻. The longest C–F bond in PHD is 1.37 Å, while the PAP bond is 1.38 Å in length. To better illustrate the changes in the C–F bond, we calculated the electron localization function of the structure before and after the group approaches the C–F bond as shown in Fig. 6d–f. When the aromatic group approaches the C–F bond, the white area becomes smaller or even disappears, indicating a weakened interaction between C and F. Consistent with our experimental results, the addition of aromatic groups is more conducive to the cleavage of C–F bonds, thereby promoting the formation of more LiF.

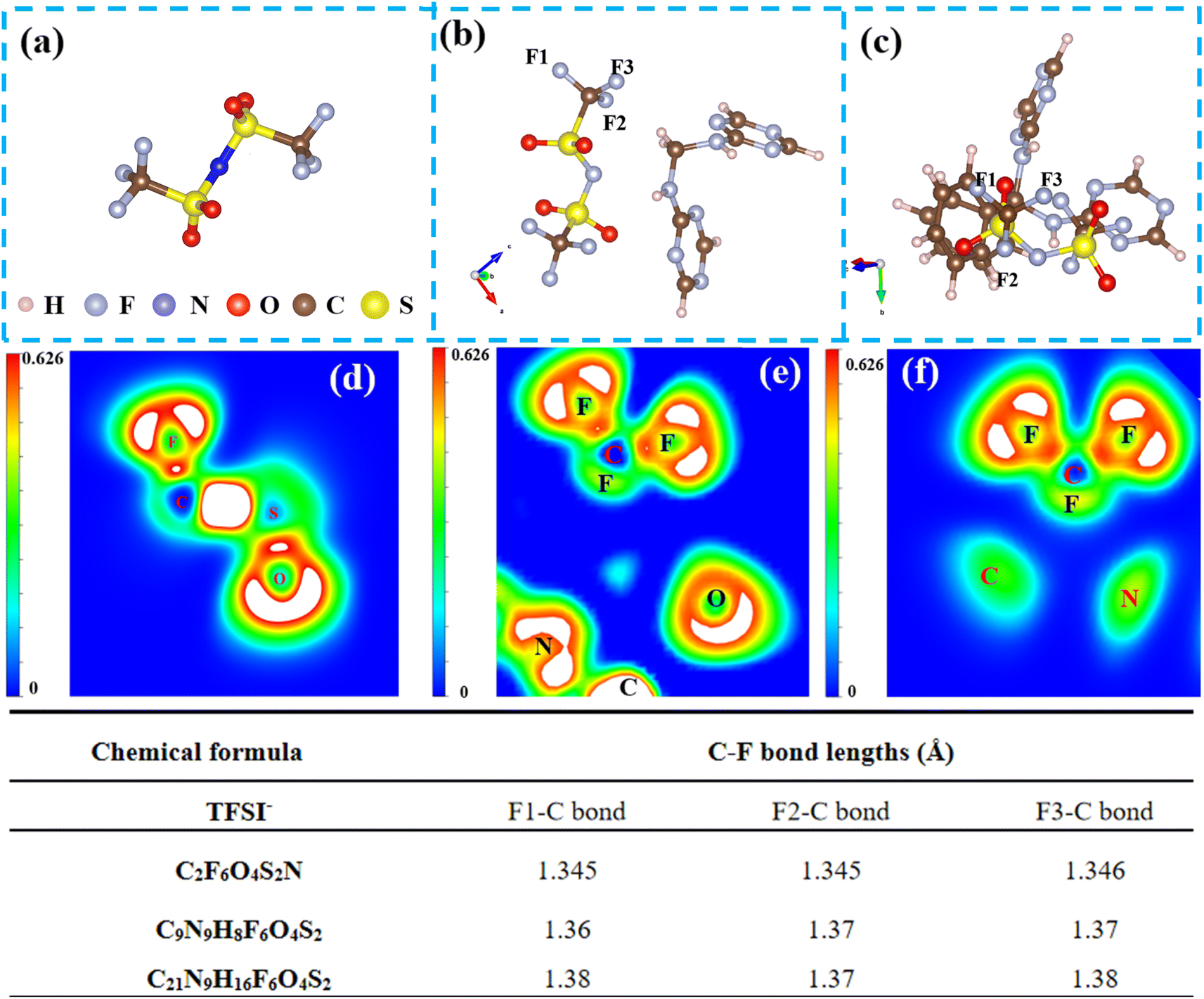

Fig. 6 Molecular structures of (a) C₂F₆O₄S₂N, (b) C₉N₉H₈F₆O₄S₂, and (c) C₂₁N₉H₁₆F₆O₄S₂. The electron localization function (ELF) of (d) C₂F₆O₄S₂N, (e) C₉N₉H₈F₆O₄S₂, and (f) C₉N₉H₈F₆O₄S₂. Inset: The C–F bond length after being fully optimized.

Electrochemical performance of the LMBs

The LFP/Li batteries were installed to evaluate the cycling stability of CPEs. The discharge capacities of CPE-3-PAP and CPE-3-PHD are 106.9 and 14.2 mA h g⁻¹ after 800 cycles at 0.5C, while PEO₁₀ is short-circuited after 96 cycles (Fig. S10†). At 1C (Fig. 7a), the initial discharge capacity of LFP/CPE-3-PAP/Li is 139.8 mA h g⁻¹, and the discharge capacity is 108 mA h g⁻¹ after 600 cycles with about 100% coulombic efficiency. In contrast, LFP/CPE-3-PHD/Li and LFP/PEO₁₀/Li failed after 600 and 76 cycles with a remaining specific capacity of 42.2 and 86.4 mA h g⁻¹. Fig. 7b shows LFP/CPE-3-PAP/Li and LFP/CPE-3-PHD/Li voltage platforms at the 1st and 600th cycles at 1C (60 °C). The charge–discharge characteristic platform of LFP/CPE-3-PAP/Li is more stable compared with LFP/CPE-3-PHD/Li, and the polarization did not increase with the increase of the cycle, which further realizes the stable charge–discharge process. Moreover, the LFP/CPE-3-PAP/Li cells also offer good rates of cycle stability at 60 °C (Fig. 7c). The discharge specific capacities of the LFP/Li cell are 167.6, 157.9, 145.9, 130.4 and 110.9 mA h g⁻¹ at 0.1C, 0.2C, 0.5C, 1C, and 2C, respectively. In contrast, the LFP/CPE-3-PHD/Li and LFP/PEO₁₀/Li rate cycles have lower discharge specific capacities. To verify the cycling performance of CPEs at high load, the LFP active material load is increased to 6 mg cm⁻² and the LFP/CPEs/Li battery is subjected to a cycle test at 60 °C. As shown in Fig. 7d, the initial discharge capacity of LFP/CPE-3-PAP/Li is 137.1 mA h g⁻¹ at 0.2C, and the discharge capacity after 170 cycles is 123.4 mA h g⁻¹. The capacity retention rate is 90%. In contrast, LFP/CPE-3-PHD/Li and LFP/PEO₁₀/Li short-circuited after 23 and 15 cycles. Fig. 7e shows the LFP/CPE-3-PAP/Li voltage platform at the 1st and 180th cycles at 0.2C at a high mass loading of 6 mg cm⁻²(60 °C).

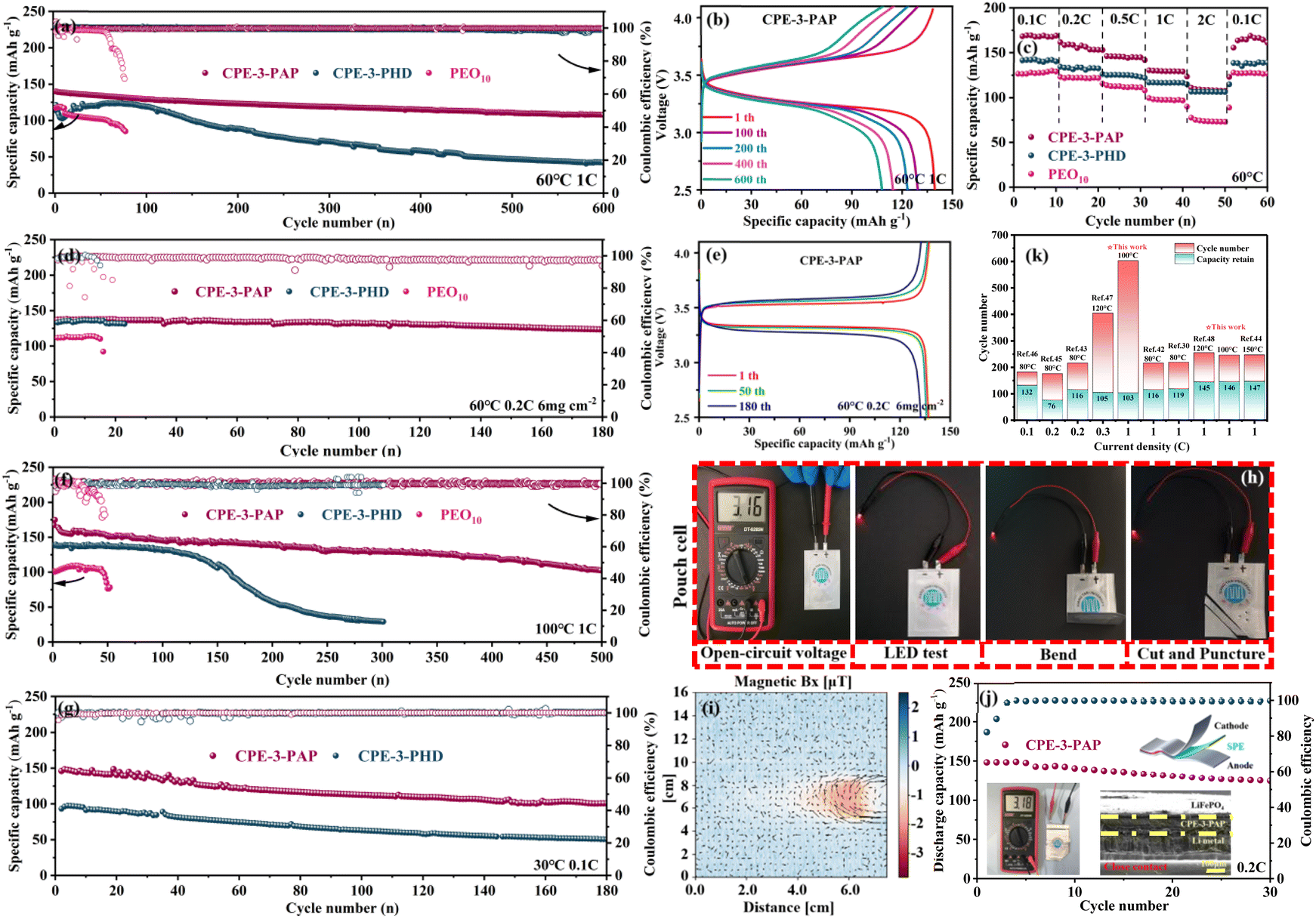

Fig. 7 (a) Cycling performance of the LFP/Li battery at 60 °C and 1C. (b) Charge/discharge curves during the 1st and 600th cycles of LFP/CPE-3-PAP/Li at 1C. (c) Rate performance of the LFP/Li battery at 60 °C. (d) Cycling performance of the LFP/Li battery at 60 °C and 6 mg cm⁻² at 0.02C. (e) Charge/discharge curves during the 1st and 180th cycles of LFP/CPE-3-PAP/Li at 60 °C and 6 mg cm⁻² at 0.02C. (f) Cycling performance of the LFP/Li battery at 100 °C and 1C. (g) Cycling performance of the LFP/Li battery at 30 °C and 0.1C. (h) LED-lighting security test of the pouch cell under extreme circumstances. (i) The distribution of the magnetic field mapping at Bx + By and its corresponding current flow diagram of the multilayer pouch cells. (j) Cycling performance of the pouch-type cell under extreme conditions. Inset: multilayer microstructure characterization of the post-tested battery. (k) Comparison of comprehensive performance with that of related reported CSEs.^35,42–48

In addition, the charge–discharge behaviors of LFP/CPE-3-PAP/Li, LFP/CPE-3-PHD/Li, and LFP/PEO₁₀/Li were measured at 100 °C. As shown in Fig. 7f, the initial discharge capacity of LFP/CPE-3-PAP/Li, LFP/CPE-3-PHD/Li, and LFP/PEO₁₀/Li is 159.7, 138.4, and 101.3 mA h g⁻¹ at 1C. The discharge capacity of LFP/CPE-3-PAP/Li is 103 mA h g⁻¹ after 500 cycles. In contrast, LFP/CPE-3-PHD/Li and LFP/PEO₁₀/Li failed after 301 and 47 cycles. These excellent electrochemical properties indicate that CPE-3-PAP has good interfacial stability and cycling stability at high temperature.

To evaluate the practical value of polymer electrolytes, it is necessary to consider the cycle performance of the battery at room temperature. Here, the LFP/CPE-3-PAP/Li battery is subjected to a cycle test at 30 °C. As shown in Fig. 7g, the initial discharge capacity is 146.1 mA h g⁻¹ at 0.1C, and the discharge capacity after 177 cycles is 100.6 mA h g⁻¹. The initial capacity of LFP/CPE-3-PHD/Li is only 93 mA h g⁻¹. The results show that the LFP/CPE-3-PAP/Li battery can cycle stably at room temperature while the LFP/CPE-3-PHD/Li battery is invalid at room temperature because of its low initial capacity.

To evaluate the safety performance of CPE-3-PAP, a series of flexibility and safety tests were performed on LFP/CPE-3-PAP/Li solid state package tanks at 30 °C. As shown in Fig. 7h, the LFP/CPE-3-PAP/Li pouch battery has a voltage of 3.16V. After folding, extruding, and cutting, the battery can still light up the LED lamp and is safer than typical liquid bag batteries. The distribution of the magnetic field and the flow of current in Bx + By are depicted in Fig. 7i, indicating a uniform magnetic field and a closed-loop current. This implies that there is an even distribution of current within the pouch cell and efficient conduction internally, suggesting a compact and uniform internal structure as well as excellent stability between the electrode and electrolyte. It is worth noting that the CPE-3-PAP pouch cell can maintain a consistent output voltage above 3.18V for more than 30 cycles, while exhibiting a normal charge–discharge capacity performance of up to 150 mA h g⁻¹ (Fig. 7j). Besides, we cut and characterized the multilayer microstructure of the pouch cell that was cycled to death. Obviously, the CPE-3-PAP pouch cell exhibits a tighter Li/electrolyte interface after cycling. These results highlight its significant potential for practical applications compared with other SLMBs (Fig. 7k and Table S2†).

To further emphasize the excellent electrochemical performance from the porous polymer filler, we increased the LFP cathode mass loading and prepared a pouch cell to test the cycling performance. The results are shown in Fig. S12,† where CPE-3-PAP was assembled into a pouch cell with 18.5 mg loading of LFP, and the cell still maintains a high cycling performance. Meanwhile, we assembled CPE-3-PAP with an NCM811 high-capacity cathode into a button cell. The results are shown in Fig. S13,† and the battery still maintains a high cycling performance. This highlights the excellent telephony performance of CPE-3-PAP.

Conclusion

In this work, POPs with aromatic and non-aromatic side groups were successfully synthesized and combined with PEO to prepare CPE-x-PHD and CPE-x-PAP (x = 1, 3, 5). The effects of aromatic groups in POPs on the properties of CPE were investigated. It was found that the aromatic groups in PAP could stimulate the decomposition of LiTFSI and form a LiF-rich SEI layer, which could effectively prevent more side reactions and inhibit the growth of lithium dendrites. Based on the LiF-rich SEI layer, the Li/CPE-3-PAP/Li symmetrical battery is cycled for more than 2000 h at 60 °C. The initial discharge capacity of the LFP/CPE-3-PAP/Li battery is 139.8 mA h g⁻¹ and the discharge capacity is 108 mA h g⁻¹ after 600 cycles at 1C (60 °C). In particular, the network structure of the triamine ring and benzene ring makes the CPEs have high thermal stability. The LFP/CPE-3-PAP/Li battery can also cycle for more than 500 cycles at 1C (100 °C). It provides a promising method to improve the stability of SEI layers and ASSLBs.

Data availability

The data supporting this article have been included as part of the ESI.†
