A novel nanocatalyst praseodymium oxide (Pr₆O₁₁) for the efficient and sustainable synthesis of chromene derivatives via ultrasound irradiation in an aqueous hydrotropic medium

Abstract

The development of sustainable and efficient catalytic methods for organic synthesis is a key focus in green chemistry. In this study, we report for the first time the novel application of praseodymium oxide (Pr₆O₁₁) as a nanocatalyst for the eco-friendly synthesis of 2-amino-3-cyano-7-hydroxy-4H-chromenes. The hydrothermal synthesis of praseodymium oxide (Pr₆O₁₁) nanoparticles was performed, and their structural studies were conducted using FTIR, XRD, TGA-DTA, SEM, EDX, BET, and TEM analysis. The Pr₆O₁₁ NPs were used as a nanocatalyst in the synthesis of 2-amino-3-cyano-7-hydroxy-4H-chromenes. The reactions were conducted under ultrasound irradiation in an aqueous hydrotropic medium, eliminating the need for hazardous organic solvents. The unique catalytic properties of Pr₆O₁₁ facilitated high yields of chromene derivatives, with excellent selectivity within short reaction times. The synergistic effect of ultrasound irradiation and hydrotropy enhanced the reaction kinetics, leading to improved efficiency and sustainability. The catalyst exhibited remarkable reusability and stability, maintaining its activity over multiple cycles without any significant loss in efficiency. This novel approach highlights the potential of Pr₆O₁₁ as a green and reusable nanocatalyst, offering a sustainable alternative for the synthesis of valuable heterocyclic compounds in aqueous hydrotropic media. The significant features of this method are the shorter reaction time, high product yield and use of a non-toxic, reusable, inexpensive, and biodegradable catalyst.

---

1. Introduction

The single-step synthesis of complex molecules is preferred with multicomponent reactions (MCRs), which represent a highly efficient, eco-friendly, and cost-effective synthetic approach.^1–5 MCRs also offer advantages such as atom economy, and selectivity, making them ideal for creating diverse compound libraries.⁶ MCRs are already widely used in medicinal chemistry for drug discovery, as they allow the rapid assembly of molecular scaffolds with minimal time and effort. These reactions are valued for their simplicity, high yields, and environmental sustainability.^7–9

Green chemistry is gaining popularity as a new approach followed in chemical processes and production to eliminate the use and generation of hazardous substances completely or partially. It focuses on minimizing environmental impacts through safer, more sustainable practices,¹⁰ such as using renewable resources, reducing waste, improving energy efficiency, and designing safer chemicals and processes. Green chemistry encourages innovation in synthetic methods, catalysts, and reaction conditions to promote sustainability and protect the environment.^11–13

2-Amino-4H-chromene derivatives exhibit a wide range of pharmacological properties,¹⁴ including antibacterial, antioxidant, solvatochromic,¹⁵ and antitumor activities.¹⁶ They also serve as essential scaffolds in biologically active compounds.¹⁷ Additionally, these derivatives have demonstrated antimicrobial,¹⁸ anticoagulant,¹⁹ and anti-HIV²⁰ properties and have been employed as laser dyes,²¹ as well as homogeneous and heterogeneous catalysts,²² including solid-supported systems.²³ Despite their significance, there is still a need to improve the efficiency and sustainability of their synthesis. Typically, 2-amino-4H-chromene derivatives are synthesized via a one-pot condensation of aromatic aldehydes, malononitrile, and enolizable C–H-activated acidic compounds—a strategy that has gained attention due to its high atom economy and bond-forming efficiency.²⁴ These multicomponent reactions (MCRs) have been catalyzed by various homogeneous and heterogeneous systems, such as heteropolyacids,²⁵ K₂CO₃,²⁶ potassium phthalimide,²⁷ cetyltrimethylammonium chloride,²⁸ nanosized MgO,²⁹ γ-alumina,³⁰ Mg/Al hydrotalcite,³¹ Fe(HSO₄)₃,³² DABCO entrapped in agar,³³ K₅PO₄,³⁴ DBU,³⁵ and sulfonic acid-functionalized MIL-101(Cr),³⁶ all of which provide varying yields. However, many of these methods suffer from drawbacks, including tedious workups, costly catalysts and solvents, high temperatures, extended reaction times, and low product yields. Therefore, developing a simple, eco-friendly, and cost-effective protocol using a reusable catalyst for the one-pot synthesis of 2-amino-4H-chromene derivatives remains a compelling objective.

The use of aqueous media as solvents in organic reactions offers environmental benefits (non-toxic, biodegradable) and economic advantages³⁷ (low cost, easy disposal). Aqueous media provide unique reaction conditions, especially for polar compounds, but may have limitations, like poor solubility for nonpolar compounds and temperature constraints. Hydrotropes are water-soluble surface-active compounds that increase the solubility of organic molecules in water, often by up to 200 times, at higher concentrations. They consist of both hydrophilic and hydrophobic moieties but are typically too small to form micelles. The solubilizing effect of hydrotropes was first observed by Otto Neuberg in 1916.³⁸ Organic compounds are often insoluble in aqueous media, hindering reactions from completing. Hydrotropes like sodium p-toluene sulfonate (NaPTS) can enhance their solubility by solubilizing hydrophobic moieties in water. NaPTS is stable to air and moisture, non-toxic, and can be recycled several times. It has been selected in many studies, including herein, for its effectiveness and sustainability. Among hydrotropes, NaPTS is a preferred choice for facilitating aqueous reactions.³⁹ Herein, we report an efficient synthesis of 2-amino-4H-chromene using Pr₆O₁₁ NPs in an aqueous hydrotropic solution under ultrasonic irradiation.

Pr₆O₁₁ is the stable phase of praseodymium oxide in air at ambient temperature. It is a mixed-valent compound containing Pr³⁺ and Pr⁴⁺. This oxide is more stable than other praseodymium oxides, like Pr₂O₃ and PrO₂, under ambient conditions.⁴⁰ Pr₆O₁₁ nanoparticles (NPs) have been used as catalysts in CO oxidation due to their redox properties and phase stability,⁴¹ as well as electrical conductivity.⁴² They are also effective in dye degradation through photocatalytic mechanisms.⁴³ Additionally, Pr₆O₁₁ NPs synthesized by a precipitation method were used in the synthesis of 2-amino-4H-chromene derivatives, in a hydrotropic aqueous medium, showing their versatility in organic reactions.

Herein, we report for the first time a cost-effective, environmentally benign, and efficient procedure for the synthesis of Pr₆O₁₁ NPs as a catalyst for chromene synthesis in a hydrotropic medium, leveraging their unique oxygen vacancies and Lewis acid properties. This reaction was catalyzed by Pr₆O₁₁ NPs in a hydrotropic aqueous medium as it offers a green alternative for this transformation. Ultrasound irradiation in organic synthesis is a clean, energy-efficient alternative to conventional methods. It can enhance reaction rates, improve yields, and reduce the need for solvents, making it an environmentally friendly technique.⁴⁴ Ultrasound also promotes efficient mixing and generates localized high-energy conditions, making it a versatile tool for various synthetic transformations in organic chemistry.⁴⁵

2. Materials and instruments

Analytical grade praseodymium metal, hydrochloric acid (HCl), potassium hydroxide (KOH), benzaldehyde, malononitrile, resorcinol, 20% NaPTS, ethyl acetate, and hexane were purchased from Sigma-Aldrich. Double-distilled water (DDW) was used as the solvent throughout. A stainless steel autoclave with a polytetrafluoroethylene (PTFE) container was used for the hydrothermal synthesis.

The XRD study was carried out using an X-ray diffractometer (Ultima IV Rigaku D/max2550Vb + 18 kw with CuKα, λ = 1.54056 Å) in the range of diffraction angles (2q) between 10° and 90°. The morphological analysis was performed by SEM (s-4300, Hitachi, Japan). The FTIR study was carried out using an FTIR spectrophotometer (Nicolet iS10, Thermo Scientific, USA) in the wavenumber range of 400–4000 cm⁻¹. Mass measurements were carried using an accurate analytical microbalance (Tapson 100 TS) with at least a count of 10⁻⁵ mg. The SAED patterns confirmed the plane orientations (JEOL JEM 1400 plus, Japan). Transmission electron microscopy (TEM) was carried out using a JEOL JEM-2100 plus system (Japan) at an accelerating voltage of 200 kV equipped with a high-resolution CCD camera. For the Brunauer–Emmett–Teller (BET) surface area analysis and to determine the pore sizes of the material, N₂ sorption isotherms were measured using a Metrohm BELSORP miniX instrument at 77 K with N₂ as the adsorptive gas. Prior to the N₂ sorption measurements, the samples were degassed at 220 °C for 6 h to remove the moisture in the samples.

The surface morphologies and elemental compositions were analyzed by field emission scanning electron microscopy (FESEM) and elemental dispersive X-ray spectroscopy (EDX) using an FESEM + EDS analyzer (JEOL, JSM-7600F). NMR studies were carried out using a nuclear magnetic resonance spectrometer at 400 MHz (Bruker Biospin Switzerland, Ascend) and 750 MHz. Melting points were determined using digital melting/boiling point apparatus (EQ 730A EQUIPTRONICS).

3. Experimental section

The experimental procedure comprised two steps: preparation of the praseodymium oxide nanoparticles (Pr₆O₁₁ NPs) and synthesis of the chromene derivatives using the prepared NPs by ultrasound-assisted catalytic separation.

3.1. Preparation of the Pr₆O₁₁ NPs by hydrothermal oxidation

Praseodymium metal powder (2 g) was dissolved in concentrated hydrochloric acid (5 mL) to form praseodymium chloride solution (0.1 M). An aqueous solution of 5 M KOH was added drop-wise into the 0.1 M praseodymium chloride solution under stirring at 800 r.p.m. until praseodymium hydroxide precipitated completely. The precipitate was aged for 15 min in air and then washed repeatedly with distilled water until the pH became 8 to remove Cl⁻ anions in the precipitate. Next, 40 mL of 5 M KOH was added to the wet precipitate under sonication in the ultrasonic bath. The treated precipitate was then subjected to hydrothermal treatment at 180 °C for 45 h in an autoclave. The solid was recovered and rinsed with deionized water until the pH value approached approximately 7. The as-obtained precipitate was dried at 60 °C for 1 day and then calcined at designated temperatures for 2 h in the air to convert the precipitate into oxide nanoparticles (NPs).

3.2. Synthesis of 2-amino-3-cyano-7-hydroxy-4H-chromene

After successful synthesis of the Pr₆O₁₁, it was utilized for the catalytic separation of the chromene derivatives. In order to develop a green protocol and check the viability of the reaction in aqueous and partially alcoholic media, a long screening test involving various parameters, like the choice of catalyst, NaPTS, application of ultrasound frequencies, and the solvents being fully or partially aqueous, was carried out as part of the method development. The developed method was denoted as ‘model reaction 2’. Aqueous solutions of 0.101 mL of 1 mM benzaldehyde, 0.063 mL of 1 mM malononitrile, 0.11 g of 1 mM resorcinol, and 20% NaPTS were added in a container. To these reactants, 0.01 g of 10 mol% Pr₆O₁₁ NPs was added as a catalyst. These reactants were then subjected to ultrasonic irradiation (ultrasound frequency: 25 kHz; output power: 6.5–650 W) at room temperature for 5 min, and the progress of the reaction was monitored by TLC (ethyl acetate : hexane = 8 : 2). The product was filtered with Whatman filter paper no. 41 to separate the catalyst (Pr₆O₁₁) NPs. The catalyst NPs were preserved for the recyclability test. The product devoid of catalyst obtained after filtration was re-crystallized by ethanol and characterized by ¹H NMR and ¹³C NMR spectroscopy.

3.3. Recyclability of the catalyst

To check whether the catalyst Pr₆O₁₁ could be recycled or not, a recyclability study was carried out. Here, after each reaction, the catalyst was isolated by simple filtration, reactivated by cleaning with ethanol, and then dried in a hot air oven. The product was separated by filtering the solid after adding 15 mL of ice-cold water to the reaction mixture. The aqueous layer was recovered, and the organic reactant/product was extracted using ethyl acetate.

4. Results and discussion

4.1. Structural study of the prepared catalyst

The structure and composition of the prepared catalyst were studied using various material characterization techniques, as described below.

4.1.1. XRD analysis. The prepared catalyst was subjected to XRD analysis. Various diffraction peaks were observed (Fig. 1a). The peaks were closely matched to those present in JCPDS data card 42-1121. Peaks were observed at 2θ values of 18.23°, 29.18°, 32.54°, 41.35°, 48.65°, 58.66°, 65.38°, 79.88°, oriented along the (111), (200), (220), (311), (222), (400), (311), and (420) planes, respectively. These peaks confirmed the formation of Pr₆O₁₁ cubic structures with the space group Fd3̄m.⁴⁶ The average crystallite size of the praseodymium oxide nanoparticles (Pr₆O₁₁ NPs) calculated by Scherrer's equation was 12.84 nm.

Fig. 1 (a) XRD pattern, (b) FTIR spectrum, and (c) TGA-DTA analysis of the prepared Pr₆O₁₁ NPs.

4.1.2. FTIR analysis. The FTIR spectra of the synthesized Pr₆O₁₁ NPs were recorded to identify the functional groups. As shown in Fig. 1b, there was a peak around 3600 cm⁻¹, corresponding to –OH stretching and bending vibrations from surface hydroxyl groups absorbed water molecules, while the peak around 500–700 cm⁻¹ could be attributed to Pr–O stretching vibrations, indicating the presence of Pr₆O₁₁. The peak around 654 cm⁻¹ was due to Pr–O–Pr bridging vibrations while the peak around 508 cm⁻¹ was related to Pr–O stretching modes.

4.1.3. TGA and DTA analyses. The thermo-gravimetric analysis (TGA) curve of Pr₆O₁₁ NPs showed two distinct weight loss steps (Fig. 1c). The first weight loss of approximately 7.2% in the temperature range 50–354 °C was attributed to the loss of physically adsorbed moisture from the surface of the nanoparticles. This was further supported by the corresponding endothermic peak observed in the DTA curve at a temperature of around 250 °C. The second weight loss, in the temperature range 400–750 °C, accounted for an additional 3% weight loss, which may indicate thermal decomposition or phase transformation within the oxide structure. The exothermic peak observed in the DTA curve during this temperature range suggested a release of energy, likely associated with the phase stabilization in Pr₆O₁₁.

4.1.4. SEM and EDX analyses. Fig. 2 displays the FESEM images of the Pr₆O₁₁ NPs at four different magnifications. Specifically, Fig. 2a depicts the NPs clusters at a magnification of 500×, illustrating their morphological structure. Fig. 2b–d also show clusters of NPs with morphological structures of irregular shapes at 2000×, 5000×, and 10 000× magnifications. The average Pr₆O₁₁ NPs cluster size was in the 18–40 nm range. Furthermore, EDX confirmed the Pr and O in the catalysts.

Fig. 2 (a–d) FESEM images at different magnifications; (e) EDX pattern of the prepared Pr₆O₁₁ NPs.

The EDX spectrum is illustrated in Fig. 2e, showing the Pr₆O₁₁ NPs consisted of the elements Pr and O, revealing that organic molecules were present in the Pr₆O₁₁ NPs.

4.1.5. BET analysis. The BET study of the Pr₆O₁₁ was performed by obtaining the nitrogen adsorption–desorption isotherms at 77 K, which demonstrated an H3 type hysteresis loop, indicating their slit-shaped or wedge-shaped pore formation, as observed in Fig. 3a. The pore-size distribution was narrow with no limiting adsorption at high values of P/P₀. Next, a BJH. study was carried out to evaluate the specific surface area and the average pore-size diameter. The Pr₆O₁₁ nanoparticles had a specific surface area of 9.677 m² g⁻¹ and an average pore size of 35.09 nm and pore volume of 0.40 cm⁻³ g⁻¹ (Fig. 3b). A high surface area and average pore size are more beneficial for enhancing the catalytic properties.

Fig. 3 BET analyses (a) adsorption–desorption (b) pore diameter of the prepared Pr₆O₁₁.

4.1.6. TEM analysis. The TEM image of Pr₆O₁₁ NPs showed they were quasi-spherical nanoparticles with an average size 20 nm that were agglomerated together (Fig. 4a). Also some octahedral-shaped particles could be observed, which were due to salt impurities due to PrCl₃ (Fig. 4d), albeit in trace quantities.

Fig. 4 TEM images of the prepared Pr₆O₁₁ at different magnifications.

4.2. Study of chromene derivatives obtained using Pr₆O₁₁ NPs

The catalytic performance of Pr₆O₁₁ NPs was evaluated for the synthesis of chromene derivatives using a model reaction with 4-methoxybenzaldehyde, malononitrile, and resorcinol. Initially, the reaction in an aqueous medium failed, while in ethanol, only a trace amount of the product was formed, indicating the need for a catalyst. When Pr₆O₁₁ NPs were introduced, the reaction proceeded smoothly, leading to higher product yields. This study demonstrated that the Pr₆O₁₁ NPs are effective catalysts, offering a promising approach for green chemistry applications.

To improve the yield, ultrasonication was added to the model reaction, leading to better results than before. We also tested ethanol and ethanol/water with Pr₆O₁₁ NPs, but these did not yield the desired results.

Table 1 and Fig. 5 shows that Pr₆O₁₁ NPs in 20% NaPTS under ultrasound irradiation provided the optimal conditions for chromene synthesis. Specifically, 20% NaPTS played a crucial role as a hydrotrope. Its primary function was to enhance the solubility of the hydrophobic organic substrates in water without forming micelles, like surfactants. This improved the reaction homogeneity and facilitated a better interaction between the reactants and the nanocatalyst in the aqueous phase. Additionally, NaPTS contributed to reducing the interfacial tension, which promoted more efficient mass transfer in the heterogeneous aqueous system. It accelerated the reaction rates by creating a favorable microenvironment around the catalyst surface under ultrasound conditions. These parameters support green chemistry principles by avoiding the need to use harmful organic solvents and enabling reactions to be carried out in water. Overall, NaPTS enhanced the sustainability, efficiency, and environmental compatibility of the synthetic protocol. The catalyst loading was further optimized using 20% NaPTS, with the results shown in Table 2. Table 3 presents a comparative study between previously reported catalysts and the newly developed Pr₆O₁₁ catalyst for the synthesis of chromene derivatives.

Table 1 Screening of catalysts, solvents, and reaction conditions

Sr. no	Catalyst	Solvent	Temp. (°C)	Time	Yield (%)
1	—	Water	RT	24	—
2	—	NaPTS (20%)	RT	3	Trace
3	Pr6O11 NPs	Water/NaPTS (20%)	60 °C	30 min	60
4	Pr6O11 NPs	Water/NaPTS (20%)	RT	20 min	85
5	Pr6O11 NPs	EtOH : H2O (1 : 1)	RT	1	90
6	Pr6O11 NPs	Ethanol	RT	1	92
7	Pr6O11NPs	Water/NaPTS (20%)	Ultrasound	5 min	96

---

Fig. 5 Screening of the optimal concentration of NaPTS for the synthesis of chromene derivatives.

Table 2 Effect of Pr₆O₁₁ NPs loading on the yield of the reaction model

Entry	Catalyst (mol %)	Catalyst (mol %)	Temp. (°C)	Time (min)	Yield 1 h (%)
1	Pr6O11 NPs	5 mol%	RT	40	65
2	Pr6O11 NPs	10 mol%	RT	5	96
3	Pr6O11 NPs	15 mol%	RT	20	82

---

Table 3 Comparison of Pr₆O₁₁ with previously reported catalysts for the preparation of chromene derivatives

Sr. no	Catalyst	Solvent	Temp. (°C)	Time (min)	Yield (%)	References
1	L-Proline	EtOH : H2O (1 : 1)	60 °C	30	86–96	47
2	Na2CO3	Solvent-free	50 °C	40	92	48
3	Nano SiO2	Water	70 °C	30	90	49
4	Fe(HSO4)3	CH3CN	Reflux	4 h	83	32
5	ACDs	Water	RT	3 h	94	50
6	POPINO	Water	Reflux	15	92	51
7	Tungstic acid-SBA-15	Water	100 °C	12 h	86	52
8	Nano-cellulose-OTicl3	EtOH	Reflux	20	90	53
9	Polyoxometalate@dysprosium	EtOH : H2O	Reflux	15	90	54
10	Pr6O11	Water/NaPTS (20%)	Ultrasound	5	96	Present work

---

The best yield was achieved with 10 mol% of Pr₆O₁₁ NPs. Hence, along with the other reaction parameters, it was considered as the optimized choice. The yield of the product was found to be decreased when the molar concentration of the catalyst was increased or decreased. This supports our hypothesis that the small size and porous structure of Pr₆O₁₁ NPs offer more active sites (Fig. 6), facilitating faster reactions in the presence of the hydrotrope and ultrasound irradiation, leading to high yields at room temperature. Various chromene derivatives were synthesized using different aromatic aldehydes with the optimized catalyst loading in the hydrotropic aqueous medium (Scheme 1), and the results are summarized in Table 4.

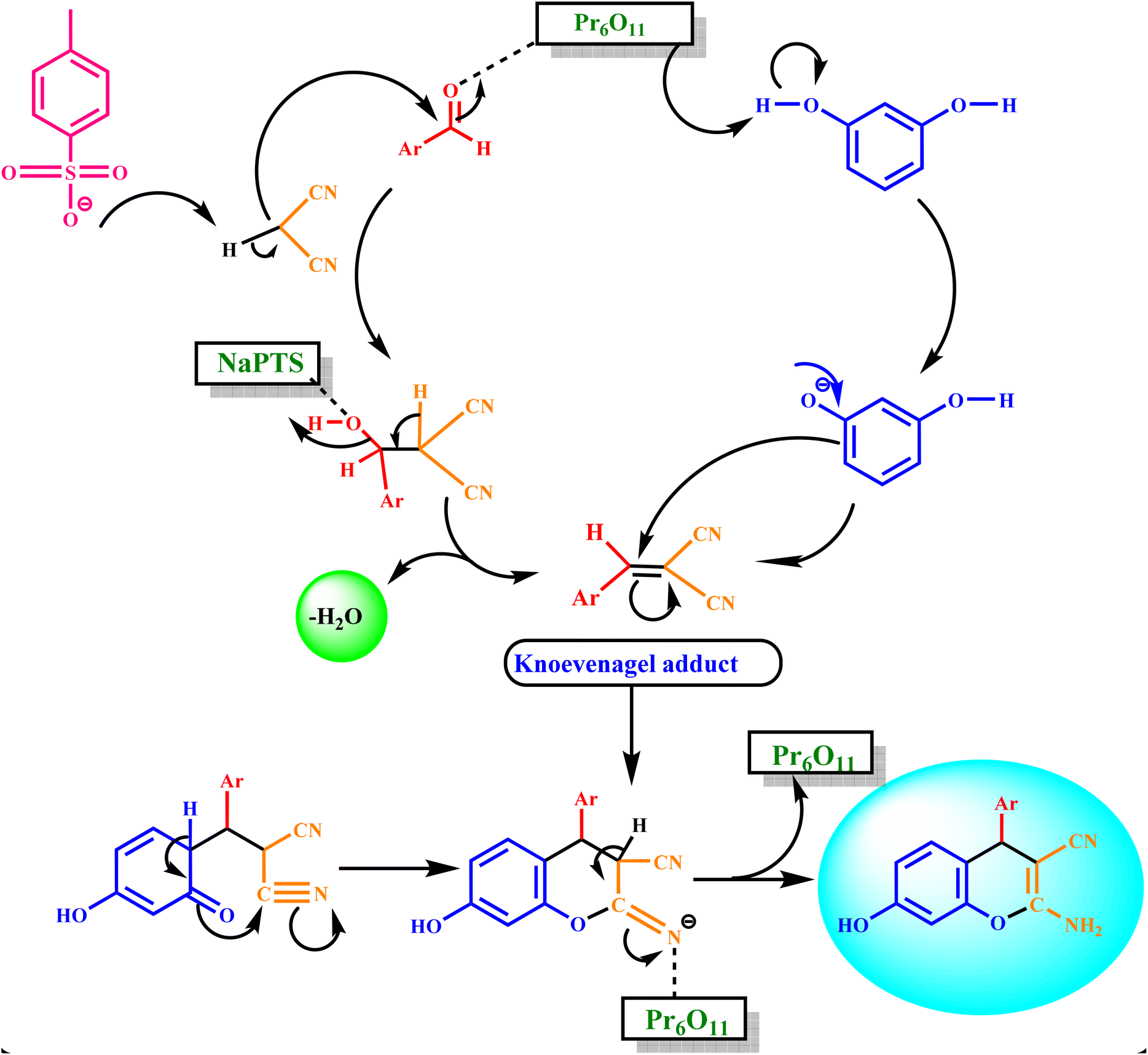

Fig. 6 Mechanism for the synthesis of chromene derivatives.

Scheme 1 Synthesis of chromene derivatives using Pr₆O₁₁ nanoparticles.

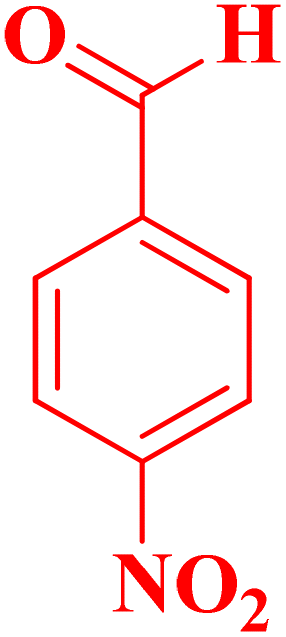

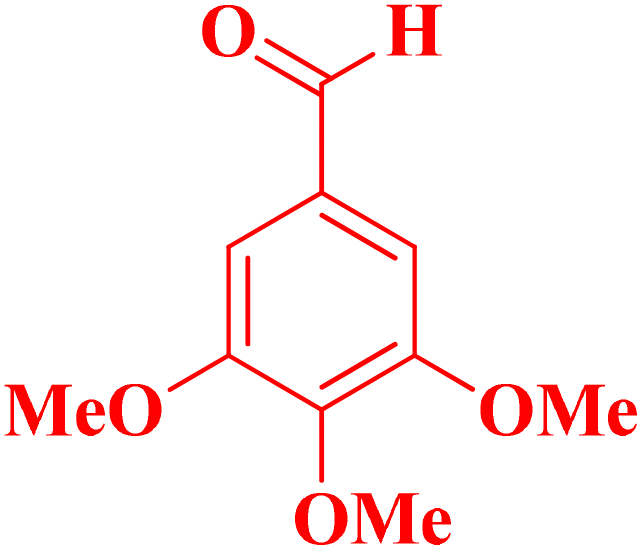

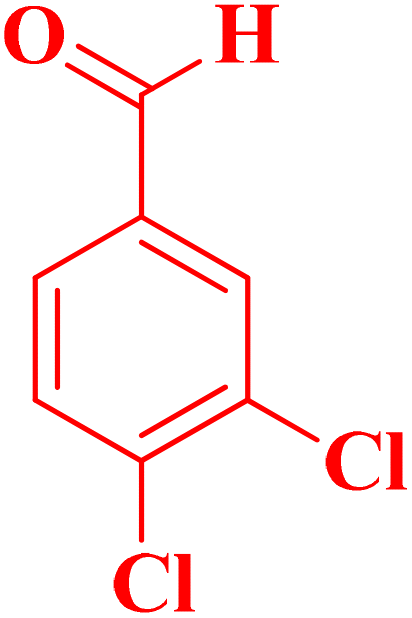

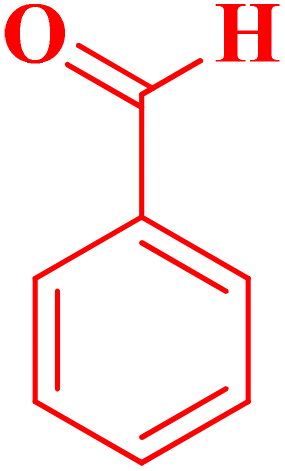

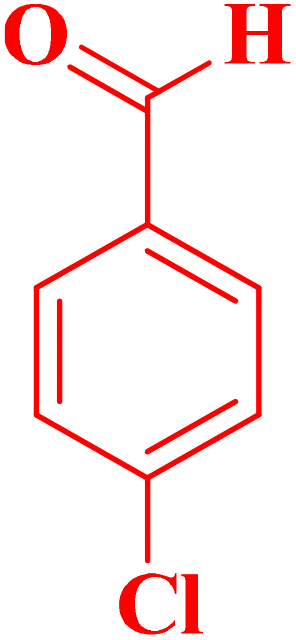

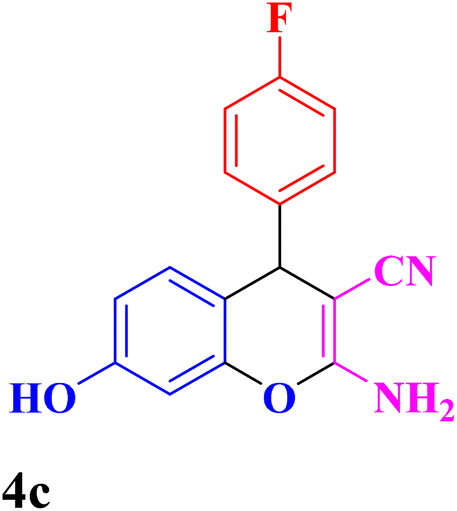

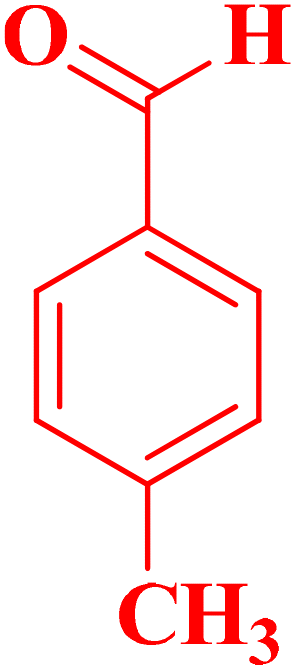

Table 4 Synthesis of chromene derivatives

Entry	Aldehyde	Product	Time (min)	Yield (%)	Melting point (°C)
					Obs.	Lit.
1			5	96	233	(234–236)
2			4	92	208	(209–210)
3			5	92	293	(293–294)
4			5	92	280	(278–280)
5			7	91	215	(213–215)
6			5	93	160	(160–162)
7			7	90	206	(207–209)
8			5	96	192	(192–194)
9			6	92	250	(248–250)
10			4	90	183	(182–183)
11			5	92	257	(256–258)
12			10	83	211	(211–214)

---

4.3. Green chemistry matrix evaluation

4.3.1. Process mass intensity. In accordance with the principles of green chemistry, we evaluated several green metrics to assess the sustainability and efficiency of the developed protocol, which are shown in Table 5. A representative reaction involving 4-methoxybenzaldehyde, malononitrile, and resorcinol was used to calculate the reaction mass efficiency (RME), E-factor, and process mass intensity (PMI). The respective amounts of reactants used were 4-methoxybenzaldehyde (0.136 g, 1 mmol), malononitrile (0.066 g, 1 mmol), and resorcinol (0.110 g, 1 mmol). The reaction yielded 0.292 g (0.95 mmol) of the desired 2-amino-3-cyano-4H-chromene product.

Table 5 Calculation of the green chemistry metrics

S. no.	Parameters	Formula	Characteristics	Ideal value	Calculated value for compound
1	Environmental (E) factor	[Total mass of the raw materials – the total mass of the product]/mass of the product	E-Factor shows the total amount of waste generated in a chemical reaction	0	[(0.136 + 0.066 + 0.110) − 0.292]/0.292 = 0.07
2	Process mass intensity (PMI)	Σ (mass of materials)/[total mass of the isolated product]	PMI takes into account the reaction efficiency, stoichiometry, amount of solvent, and all the reagents used in the chemical reaction	1	(0.136 + 0.066 + 0.110)/0.292 = 1.06
	Reaction mass efficiency (RME%)	[Product/Σ (mass of stoichiometric reactants)] × 100	RME accounts for the atom economy, chemical yield and stoichiometry	100%	[0.292/(0.136 + 0.066 + 0.110)] × 100 = 93.58%

---

These results indicate the high atom economy, excellent mass efficiency, and minimal waste generation of the developed protocol. The low E-factor and PMI value close to 1 highlight the environmental and economic sustainability of the process. The use of a non-toxic, recyclable catalyst in an aqueous hydrotropic medium, along with high yields and short reaction times, further confirmed the green and efficient nature of the developed methodology.

4.3.2. Atom economy. The atom economy is a crucial metric in green chemistry. It assesses the efficiency of a chemical reaction by considering how much of the reactant mass is incorporated into the final product. It is expressed as a percentage and is calculated using the formula:

Atom economy = (total molar mass of reactants/molar mass of desired product) × 100

The atom economy values, as provided in Table 6, ranged from 87.95 to 90.86%, indicating that all these reactions were relatively efficient. A higher atom economy means fewer byproducts, leading to improved sustainability in chemical synthesis. In contrast, reactions with a lower atom economy may involve the loss of atoms as side products or leaving groups, making them less desirable from a green chemistry perspective.

Table 6 Atom economy of the synthesized chromene derivatives

Entry no.	1	2	3	4	5	6	7	8	9	10	11	12
Atom economy	87.95	89.60	88.67	89.76	90.06	89.26	90.86	89.11	88.59	88.52	90.31	89.60

---

Analyzing the data, entry 7 (90.86%) had the highest atom economy, suggesting that this reaction effectively incorporated most of the reactant atoms into the final product. This indicated a well-optimized reaction with minimal waste. On the other hand, entry 1 (87.95%) had the lowest atom economy, implying that some portion of the reactants was not utilized efficiently, possibly due to the formation of byproducts or side reactions. Other entries fell within this range, showing slight variations based on the nature of the reactants, reaction mechanisms, and functional groups involved. For example, reactions with halogenated compounds or protective groups might have slightly lower atom economies due to the elimination of non-contributing atoms during product formation.

From a practical standpoint, reactions with a higher atom economy are highly desirable in industrial and pharmaceutical applications, as they reduce the need for extensive purification, lower the material costs, and decrease the environmental impact. Chemists can enhance the atom economy by selecting appropriate catalysts, designing atom-efficient synthetic routes, and utilizing solvent systems that promote complete reactant conversion. Fig. 7 indicates that all the reactions listed were relatively efficient, demonstrating good alignment with the principles of green chemistry. Further optimization could push these efficiencies even higher, contributing to more sustainable and economically viable chemical processes.

Fig. 7 The atom economy values for the synthesized chromene derivatives.

4.4. Reproducibility and yield consistency

To validate the reproducibility and reliability of the developed protocol, the model reaction involving 4-methoxybenzaldehyde, malononitrile, and resorcinol was performed in triplicate under the optimized conditions. The product yields obtained in three independent experiments were 95%, 96%, and 94%, respectively. The average yield was calculated as 95% with a standard deviation of ±1.0%. These results confirm the excellent consistency and robustness of the catalytic system, supporting the claim of high reproducibility and the practical applicability of this green synthetic approach.

4.5. Recyclability

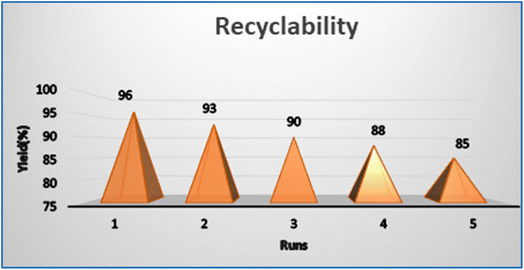

Fig. 8 depicts a graph showing the yields obtained with increasing the number of uses of the Pr₆O₁₁ catalyst. After each reaction, the catalyst was isolated by simple filtration, reactivated by cleaning with ethanol, and then dried in a hot air oven. The figure depicts the catalyst's stability and consistent performance over multiple cycles, whereby the product was separated by filtering the reaction mixture, the aqueous layer was recovered, and the organic layer was extracted using ethyl acetate. Compared to previous studies reported in the literature,^18–30 a key advantage of the present approach is the ability to reuse the Pr₆O₁₁ NPs catalyst up to five times without significant loss in catalytic activity. The Pr₆O₁₁ NPs after the fifth reuse showed no significant changes, indicating that the catalyst retained its original properties.

Fig. 8 Recyclability test of Pr₆O₁₁ NPs.

4.6. Before and after characterization of the catalyst

Fig. 9a shows the XRD patterns of the Pr₆O₁₁ nanoparticles before and after the 5th catalytic cycle, indicating that their crystalline nature was well retained. A slight reduction in peak intensity suggested minor structural changes or surface passivation due to repeated use. Fig. 9b presents a TEM image of the Pr₆O₁₁ nanoparticles after the 5th cycle, showing that the particles were aggregated but preserved their morphology, confirming the good structural stability and reusability of the catalyst.

Fig. 9 (a) XRD spectrum of the Pr₆O₁₁ NPs recycled after 5 cycles. (b) TEM image of Pr₆O₁₁ NPs recycled after 5 cycles.

5. Conclusion

The ultrasonic-assisted synthesis of 2-amino-4H-chromene derivatives was successfully achieved using hydrothermally synthesized Pr₆O₁₁ nanoparticles as an efficient catalyst. The use of Pr₆O₁₁ nanoparticles offers distinct advantages, enabling the facile and efficient synthesis of 2-amino-4H-chromene derivatives. Notably, the catalyst demonstrated excellent reusability, retaining up to 85% yield even after five consecutive cycles. Ultrasonic irradiation played a crucial role in the process by controlling the particle size and crystalline phases of the products, as well as facilitating rapid separation. Therefore, the integration of ultrasonication with Pr₆O₁₁ nanoparticle catalysis represents a novel and effective approach for the synthesis and separation of 2-amino-4H-chromene derivatives.

Data availability

Data will be available from the corresponding author upon reasonable request.

Conflicts of interest

There are no conflicts to declare.
