Lebogang Thobakgale*a,
Lungile Nomcebo Thwalaa and
Patience Mthunzi-Kufaab
aPhotonics Centre, Council for Scientific and Industrial Research, PO Box 395, Pretoria, 0001, South Africa. E-mail: LThobakgale@csir.co.za
bSchool of Interdisciplinary Research and Graduate Studies (UNESCO), College of Graduate Studies, University of South Africa, Preller Street, Muckleneuk Ridge, Pretoria, South Africa
First published on 3rd July 2025
Antiretroviral medications such as lamivudine (LAM) are central to the treatment of HIV/AIDS. Because of the rise in the substandard production of these pharmaceuticals, new methods of quality control are required. In this study, the use of silver nanoparticles (AgNPs) for the detection and quantification of LAM at low concentrations was explored using a new method known as liquid-surface enhanced Raman spectroscopy (liquid-SERS). AgNPs (20–80% v/v) were prepared by chemical reduction and subsequently characterized by assessing their size, shape, absorbance, and molecular properties. A series of LAM samples (0–80 μg ml−1) were then spiked with AgNPs and evaluated using liquid-SERS. Subsequently, a partial least-square analysis was conducted to determine the linearity (R2), sensitivity, limit of detection (LOD) and quantification (LOQ) of selected peak ratios. The results show an improved sensitivity for the 783 cm−1 band of the drug when coupled with the 945 cm−1 band of the citrate stabilizer, which is likely facilitated by intermolecular forces such hydrogen bonding dipole–dipole forces between the functional groups. Secondly, the R2 ranged between 0.96–0.98, while the LOD and LOQ reached 1.12 to 10.49 and 3.39 to 31.77 μg ml−1 respectively. These values were found to be comparative to results reported using common techniques such as UV-vis spectroscopy and high-performance liquid chromatography. As such, it was concluded that further investigation into drug/AgNPs and liquid-SERS could provide new methods of quality control for pharmaceutical products at low concentrations, through a rapid, complementary and cost-effective photonics approach.
The current pharmacopeia approved scientific methods used for quality control of medication have been instrumental in profiling various chemical aspects of pharmaceutical products. Such techniques include (but are not limited to) high-performance liquid chromatography (HPLC), mass spectrometry (MS) and UV-vis spectroscopy (UV), which are often coupled together for simultaneous separation and detection applications. For example, HPLC-UV allows separation and detection of active pharmaceutical ingredients with high specificity and sensitivity where studies using this technique have reported limits of detection and quantification (LOD and LOQ) of ARV lamivudine at 0.32 and 1.06 μg ml−1 respectively,3 while another reported even lower values of 0.1 and 0.32 μg ml−1.4 Similarly, MS research published detection of LAM in plasma at a concentration between 10 and 50 μg ml−1 using liquid chromatography for separation of solutes (LC-MS).5 Another study on HPLC-UV published LOD and LOQ values for lamivudine tablets at 0.58 and 1.75 μg ml−1.6 It is evident that these techniques offer analysis of single molecules at low concentrations, which can be applied to substandard medication. However, there are a few known disadvantages of these techniques that limit their versatility and real-time application. Firstly, HPLC is a complex and expensive method, which may lack sensitivity to compounds that elude at the same time. Secondly, method optimization, sample preparation and the lack of a single detector for analysis of all the chemicals makes it time-consuming.7 Thirdly, MS is an expensive, sample destructive method which is only accurate for pure samples, therefore it is dependent on chromatography.8,9 It is therefore worthwhile assisting these techniques by researching new methods that require less effort, time and finance, while yielding similar or better results.
Raman spectroscopy is an optical, label-free modality widely utilized for drug analysis due to its rapid ability to provide detailed molecular vibrational information. However, conventional Raman spectroscopy suffers from inherently weak signal intensity, necessitating high laser power and long integration times for effective detection. This limitation results in a relatively slow and inefficient analytical process. Surface-enhanced Raman spectroscopy (SERS) addresses these shortcomings by significantly amplifying the Raman signal through the use of plasmonic nanostructures.10 SERS offers several advantages, including non-destructive analysis, specific fingerprint spectra, high sensitivity, low sample consumption, simple operation, and low ongoing costs. The enhancement effect in SERS enables the detection of trace levels of analytes, thereby overcoming the sensitivity limitations of traditional Raman spectroscopy.11,12
In SERS, when molecules are adsorbed onto nano-roughened noble metal surfaces such as silver (Ag), gold (Au), or copper (Cu), the Raman signal is substantially amplified. These plasmonic nanoparticles exhibit strong surface plasmon resonance (SPR) in the visible to near-infrared range, generating a localized SPR (LSPR) effect that can theoretically enhance Raman signals by up to 1014-fold, making single-molecule detection feasible.13 SERS also provides highly specific spectral fingerprints, enabling the differentiation of drugs within complex biological matrices. This feature reduces interference and enhances selectivity in analytical applications.14
SERS techniques are typically categorized into two types: solid and liquid SERS. Solid SERS substrates generally offer stronger signal enhancement than metal colloids. However, they are limited by issues such as fixed analyte distribution within the laser focus area, and potential complications like photobleaching, combustion, sublimation, or photocatalysis due to constrained laser energy and sample density.11 In contrast, liquid SERS employs a solution of nanoparticles without embedding them in a solid substrate, simplifying the preparation process and eliminating the need for drying steps. Colloidal silver and gold nanoparticles, typically ranging from 10 to 150 nm in size, are the most commonly used SERS-active materials due to their pronounced SPR effects in the visible and near-infrared ranges.15,16
Several studies highlight the effectiveness of colloidal SERS in drug detection. For instance, Berg et al. utilized silver colloids synthesized by reducing silver nitrate with hydroxylamine to distinguish between the SERS and normal Raman spectra of amphetamine and amphetamine-H+. Similarly, Alharbi et al. detected tramadol in water and artificial urine using a silver hydroxylamine colloidal solution, achieving limits of detection of 5.0 × 10−4 M and 2.5 × 10−6 M, respectively.17,18 Alder et al. demonstrated the detection of freebase cocaine using a colloidal silver-based SERS substrate.19
In this study, we offer the use of nano-chemistry and liquid surface-enhanced Raman spectroscopy (liquid-SERS).20–22 This approach employs the advantages of silver nanoparticles (AgNPs) for signal enhancement applications via their plasmonic properties, to improve the sensitivity of the technique.23,24 The AgNPs offer molecular functional groups from the stabilizer, which can interact with the analyte via intermolecular forces (hydrogen bonding, polar, dipole–dipole, π–π, etc).25–27 These interactions alter the polarizability, tensile stress, crystallinity, and concentration of the functional groups of the analytes, which allows detection of changes in chemical properties both qualitatively and quantitatively.28,29 AgNPs are excellent choices for SERS due to their ability to generate strong electromagnetic fields, ease of preparation, broad wavelength response, and versatility for creating specific SERS tags. The ability to enhance the Raman signal in the electromagnetic field (EM) of silver is 2–3 times higher than that of gold. This is because its band gap d–s is in the UV region, causing less damping of the plasmon mode.13
Herein, citrate-stabilized silver nanoparticles (AgNPs) were synthesized using chemical reduction method and subsequently characterized using transmission electron microscopy (TEM) (shape and size), dynamic light scattering (DLS) (size), UV-vis spectroscopy and Raman spectroscopy for optical and molecular analysis, respectively. Lamivudine was analyzed at low concentrations with and without the AgNPs for comparison. Lastly, validation parameters such as linearity, limit of detection, and limit of quantification were studied using partial least square analysis. The study is unique because experiments on lamivudine using RS are mostly reported from a computational perspective, leaving room to explore the experimental applications, especially using liquid-SERS.
Statistical evaluation of the data was conducted by calculating the standard deviations (SD) of twenty measurements of the blank (σblank) within the regions of interest using the following equation:
σ(blank) =√[(∑(x − μ)2)/(n − 1)] | (1) |
LOD = 3.3 × σ(blank)/S | (2) |
LOQ = 10 × σ(blank)/S | (3) |
Lastly, propagation errors of the peak ratios (σratio) were also evaluated to measure the precision and/or uncertainty of the method using eqn (4) below.
σ(ratio) = √[(σ(blank)1/peak 1)2 + (σ(blank)2/peak 2)2 × peak 1/peak 2 | (4) |
The data was processed using LabSpec 6 and Microsoft Excel was used to perform linear regression and quantitative analysis of R2, sensitivity, LOD, LOQ and statistical errors.
![]() | ||

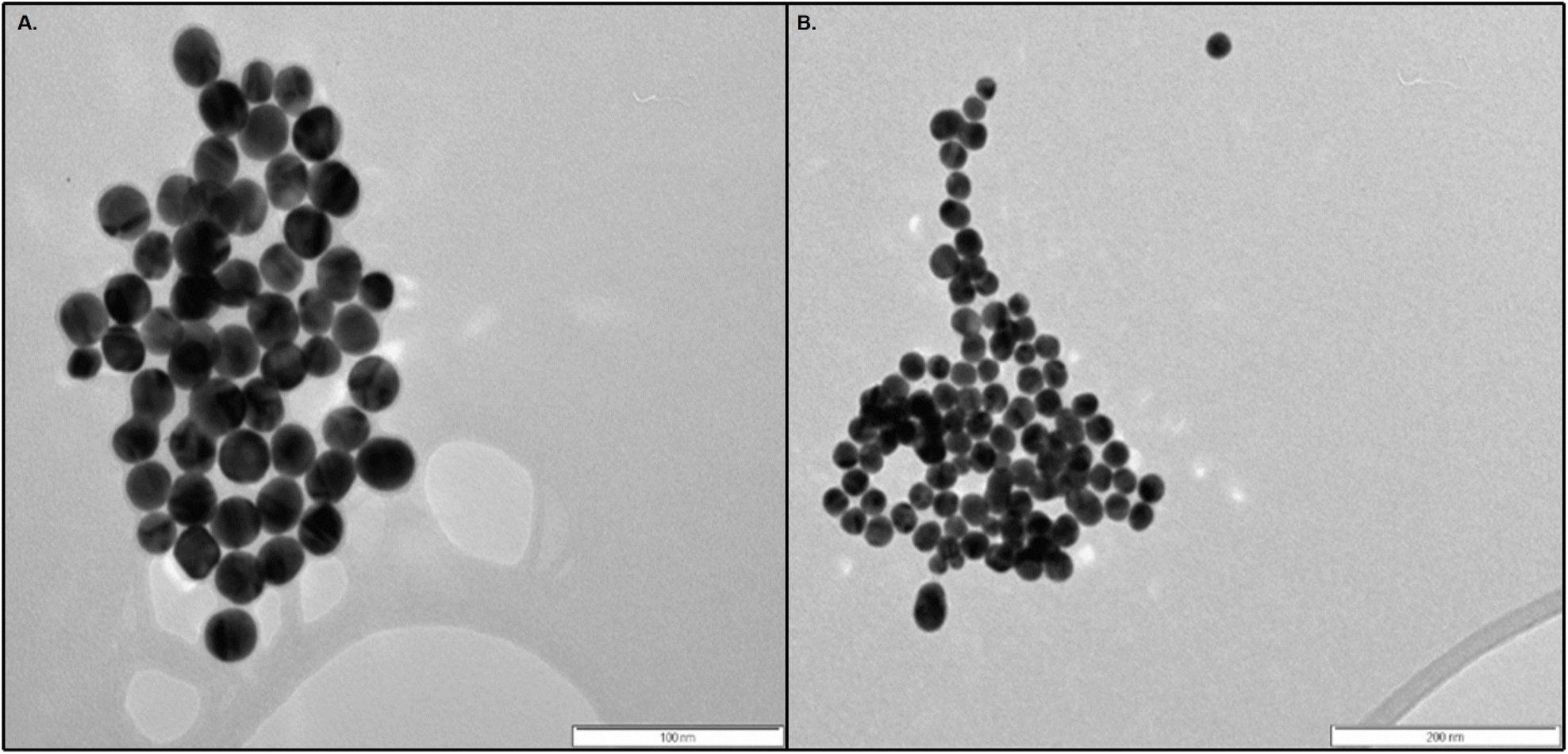

Fig. 1 HR-TEM images of AgNPs. (A) 50![]() ![]() |
In the next section, the molecular properties of nanoparticles such as size, absorption, chemical functional groups and intermolecular forces are evaluated using UV-vis and Raman spectroscopy techniques.
![]() | ||
Fig. 2 Qualitative analysis of AgNPs, 0–100% (v/v). (A). UV-vis spectroscopy. (B) Raman spectroscopy. Nanoparticle concentrations by Mie theory calculations (inset). |
The UV-vis spectral data in Fig. 2A above displays an absorbance band at 436 nm with the undiluted (100%) sample showing maximum absorption. Secondly, a slight redshift towards higher wave numbers was observed as concentration increased. This was attributed to changes in intermolecular forces i.e. hydrogen bonding, as the concentration changes.35,36 The Mie scattering model for citrate stabilized silver nanoparticles obtained from literature was used to determine the molar extinction coefficient to be 739 ×108 M−1 cm−1 , this implies the size of the nanoparticles is approximately 60 nm,37 which is slightly lower than the 70 nm obtained from the DLS experiment in Section 3.1. The difference is attributed to the effects of concentration and refractive index of the media which tends to distort the actual size of the nanoparticle in DLS. Lastly, the Beer–Lambert law equation was used to calculate the actual concentrations of the nanoparticles which ranged between 6.6 × 1011 to 2.52 × 1012 nanoparticles per ml.
Raman spectroscopy experiments revealed key differences that were worth noting. By comparison with pure citrate (1% v/v), the nanoparticle group contained two distinct Raman bands at 150 cm−1 and 216 cm−1 that are absent in the former. These peaks are significant because they arise from the metal–oxygen bond that forms during nanoparticle synthesis.38–40 Also, the bands increase in intensity and redshift towards lower wavenumbers when the concentration increases, similar to the UV-vis data. Broad peaks appear at 396 cm−1 and 330 cm−1 belonging to aliphatic bonds were detected for the citrate and the nanoparticles respectively.41 The difference in peak position is assumed to result from increased polarizability when electron density is shared between the hydroxyl, carboxylic and the metal–oxygen bond.42 New bands such as the weak bending (544 cm−1) 43 and out-of-plane bending (641 cm−1) 44 of carboxylic acid functional groups emerged in the nanoparticle's spectrum, which indicates improved sensitivity towards citrate molecules, induced by increased molecular interactions and possibly plasmonic effects. The aliphatic bond (CC) stretching at 836 cm−1 formed a doublet peak at 794 cm−1 and 825 cm−1, although the reason for the shape of the peak is unclear, the red-shift further supports the observation in the 300 cm−1 region explained above. Another doublet formed from the alpha bond (CCOO) stretching mode, accompanied by a red-shift from 949 cm−1 to 909 cm−1 and 936 cm−1,44 this implies increased bond deformation and tensile stress, while the increased intensity and bandwidth depicts changes in crystallinity. Low-intensity hydroxyl stretching modes appeared at 1044 cm−1 and 1089 cm−1 for the citrate spectra and subsequently increased in intensity and red-shifted to 1019 cm−1 and 1070 cm−1 respectively on the nanoparticles.43 This observation supports the increased Raman sensitivity towards citrate, facilitated by the nanoparticles, as was the case with the carboxylic groups. Lastly, a strong and narrow band was detected at 1408 cm−1 and assigned to the symmetrical stretch of the carboxylic functional group, succeeded by its asymmetrical stretching mode at 1627 cm−1.45 The former peak increased in bandwidth and red-shifted to 1384 cm−1, further signaling increased bond deformation, tensile stress and crystallinity due to molecular interactions such as hydrogen bonding, dipole–dipole and ionic interactions.46 Overall, the UV-vis and Raman spectra confirmed the presence of silver nanoparticles by detecting their characteristic absorption band while the latter showed the presence of metal-oxide bonds and all the functional groups belonging to citrate. Lastly, both techniques show an increased intensity and red-shift pattern with increased concentration. The differences in the Raman spectra of the two groups are summarized in Table 1 below.
Water | Citrate | AgNPs | Assignment |
---|---|---|---|
a vs, symmetric stretch; va, asymmetric stretch; δout-plane, bending. | |||
— | — | 150 | vs (metal–O) |
— | — | 216 | vs (metal–O) |
396 | 330 | vs (CC) | |
— | — | 544 | vs (COO) |
— | — | 641 | δout-plane (COO) |
— | 836 | 794, 822 | vs (CC) |
— | 949 | 909, 936 | vs (C–COO) |
1003 | — | — | vs (CC) |
— | 1044, 1089 | 1019, 1070 | vs (COH) |
— | 1408 | 1384 | vs (COO) |
1631 | 1627 | 1596, 1692 | vs (C![]() |
Given the observed characteristics and considering potential saturation of the analyte Raman signal, the 60% AgNPs containing 1.59 × 1012 nanoparticles per ml was chosen for detection and analysis of lamivudine using liquid-enhanced Raman spectroscopy (Fig. 3).
![]() | ||
Fig. 4 PLS from peak ratios of lamivudine and AgNPs. (A) 783 cm−1/946 cm−1; (B) 783 cm−1/1393 cm−1; (C) 1485 cm−1/946 cm−1; (D) 1485 cm−1/1393 cm−1. |
From top to bottom, the results show two significant peaks from the drug at 1003 cm−1 and 1624 cm−1, which were assigned to the aromatic breathing mode from the polystyrene plate and stretching mode of water, respectively.48,49 When compared to the drug/nanoparticle series, significant peaks were observed, beginning with 549 cm−1 and 592 cm−1 of the citrate carboxylic acid (stretching mode) and a twisting mode of the lamivudine respectively. In the former case, the band is blue shifted compared to the nanoparticles (pink), which implies a change in intermolecular forces. Ring deformation of R2 appeared twice, at 692 cm−1 (weak) followed by a strong sharp signal at 783 cm−1.50–52 Peaks 946 cm−1, 1026 cm−1 and 1074 cm−1 of the citrate functional groups also blue-shifted, indicating an observable change in molecular interactions caused by chemical bonding. Ring 2 vibrations were detected at 1192 cm−1, succeeded by a strong mixture of bending and twisting modes of R2 at 1301 cm−1.52 Band broadening of the carboxylic stretching mode of citrate was observed at a blue shifted position of 1393 cm−1, likely caused by reduced crystallinity in response to chemical bonding with the drug. A new peak from aromatic moieties of the drug, likely carbon and nitrogen double from pyrimidine, emerged at 1485 cm−1, indicating improved sensitivity and detection of the drug. Lastly, a strong narrow band from a combination of carbonyl stretching mode and the bending of water appeared at 1627 cm−1, the shape of the peaks implies improved crystallinity contributed by the drug/nanoparticle interaction. Generally, detection of lamivudine was not possible in the absence of nanoparticles, which indicates the limitations of the conventional Raman technique such as low signal detection.53 When nanoparticles were incorporated, a considerable number of peaks were detected, while the original position of the silver nanoparticle bands shifted to higher wavenumbers. This combination of results confirms molecular interactions between the drug and nanoparticles, which led to improved sensitivity and detection by liquid enhanced Raman spectroscopy.54,55 A summary of the Raman bands reported on the study is shown in Table 2 below.
Water | Lamivudine | Lamivudine/AgNPs | Assignment |
---|---|---|---|
a vs symmetric stretch; va, asymmetric stretch; δout-plane, bending, τ; twisting. | |||
— | — | 549, 592 | τ (skel), vs (COO) |
— | — | 692 | Deformation R2 ring |
— | 783 | Deformation R2 ring | |
— | — | 946 | vs (C–COO) |
1002 | 998 | — | Benzene |
— | — | 1026, 1074 | vs (C–COO); vs (COH) |
— | 1196 | — | vs (C–C) |
— | — | 1192 | vs (C![]() |
— | — | 1301 | τ (R2) |
— | — | 1393 | vs (COO) |
— | — | 1485 | δ (–NH2), vs (COO), vs (C![]() |
1624 | 1638 | 1627 | vs (C![]() |
From the above spectral data and table, it can be seen that peaks 783 cm−1 and 1485 cm−1 of R2 reacted uniquely to the nanoparticles, likely due to hydrogen bonding between their amino and amide groups and the citrate functional groups. As such, peak ratios between the former and the 946 cm−1 and 1393 cm−1 peaks of citrate were used to evaluate the interaction quantitatively by linear regression methods.
The plots shown in Fig. 4 display a linear relationship between the peak intensity ratio and concentration. The R2 values for Fig. 4A and B were found to be similar at 0.96, while the calibration sensitivity, indicated by the slopes of the equations show a higher value on the former. This indicates that the intensity of the alpha carbon peak decreases faster than the carboxylic acid as the concentration of the drug increases, mostly likely due to an increase in dipole moment and polarizability caused by the pulling of electrons away from the alpha carbon towards the carboxylic carbon. Similarly, Fig. 4C and D have the same R2 value, while the former shows a higher sensitivity towards the change in concentration, due to the same molecular interaction explained above. When comparing the behavior of the drug in terms of ring 2 vibrations (Fig. 4A and C), a higher R2 value is observed in the latter, however, the 783 cm−1 intensity increased at a higher rate with concentration. Likewise, the R2 value of peak 1485 cm−1 was higher than 783 cm−1, while the latter was more sensitive (Fig. 4B and D). This is expected because the ring deformation mode is more polarized due to the pi-electron delocalization, which would affect the linearity compared to localized electron bonds, while giving a high Raman signal.
Quantitatively, the standard deviation from the blank measurements σ(blank) ranged between 0.00086 and 0.0009 for the regions of interest (eqn (1)), indicating a low variation and good stability between measurements. Similarly, the propagation errors of the peak ratios were in the region of 0.0005–0.0006 (eqn (4)), which shows acceptable precision for measuring the selected peaks of interest. Generally, low SD values also imply high reproducibility, however, more experiments using larger sample groups are still required to confirm this aspect. Table 3 below is a summary of the parameters evaluated from the PLS analysis.
Parameter | 783 cm−1/946 cm−1 | 783 cm−1/1393 cm−1 | 1485 cm−1/946 cm−1 | 1485 cm−1/1393 cm−1 |
Linear range | 0–80 (μg ml−1) | |||
Regression equation | y = 0.0223x + 0.4128 | y = 0.0137x + 0.2733 | y = 0.0049x + 0.0251 | y = 0.003x + 0.0169 |
R2 | 0.968 | 0.9671 | 0.9814 | 0.9818 |
Sensitivity (S) | 0.0223 | 0.0137 | 0.0049 | 0.003 |
Limit of detection (LOD) | 1.12 | 1.79 | 6.42 | 10.49 |
Limit of quantification (LOQ) (μg ml−1) | 3.39 | 5.44 | 19.45 | 31.77 |
Precision (σratio) | 0.00061 | 0.00053 | 0.00062 | 0.00052 |
An assessment of Table 3 above shows that the LOD and LOQ of peak ratio 783 cm−1/946 cm−1 are lower than the 783 cm−1/1393 cm−1, similar to the 1485 cm−1/946 cm−1 and 1485 cm−1/1393 cm−1 groups. This indicates that the changes in the alpha carbon of the citrates offer better detection of the drug compared to its carboxylic functional group because they are more polarized as explained above. Secondly, when comparing the behavior of 783 cm−1/946 cm−1 to 1485 cm−1/946 cm−1, the former ratio shows higher values of LOD and LOQ, because of the combination of ring deformation and the more reactive alpha carbon. Thirdly, peak ratios 783 cm−1/1393 cm−1 and 1485 cm−1/1393 cm−1 also support the previous observation where, the more Raman reactive ring deformation shows better detection and quantification than its individual bonds. Lastly, the overall detection limit across all the ratios was between 1.12–10.49 μg ml−1, while the limit of quantitation ranged between 3.39 and 31.77 μg ml−1. These values are significant because they are comparable to data published using standard methods such as UV-vis spectroscopy and HPLC. As such, the results in the study show the capability of AgNPs in the improvement of detection of lamivudine at low concentrations, which is essential in method development for drug analysis using Raman spectroscopy.
