Effective anode materials for in situ Sn@C nano-lamellar assembly with doped nanotubes in lithium-ion batteries

Mengna Xieab, Yongheng Zhouc, Shuai Dongb, Fei Lia, Fenghua Zhang*a, Wei Wei*b and Jinhai Cui*b
aSchool of Petrochemical Engineering, Liaoning Petrochemical University, Fushun 113001, P. R. China. E-mail: zhangfenghua@lnpu.edu.cn
bHenan Engineering Center of New Energy Battery Materials, School of Chemistry and Chemical Engineering, Shangqiu Normal University, Shangqiu 476000, P. R. China. E-mail: cuijinhai535@gmail.com; weiweizzuli@163.com
cSchool of Material and Chemical Engineering, Kaifeng University, Kaifeng 475000, P. R. China

Received 6th April 2025 , Accepted 17th May 2025

First published on 6th June 2025


Abstract

Lower lithium-ion diffusion rates and significant volumetric expansion present serious challenges for using SnO2/SnO composites as promising anode materials in advanced lithium-ion batteries. To address this issue, we synthesized a novel Sn@C/CNT composite from a Sn-based organometallic complex with 2-methylimidazole and oxidized multi-wall carbon nanotubes. Structural analysis has confirmed that the tin-based composites consist of nano-lamellar assemblies modified by oxidized carbon nanotubes. In these composites, the tin active particles have an average size ranging from 2 to 3 nm, while the layered nano-lamellar structure has an average thickness of 6 nm. The resulting Sn@C/CNT anode material demonstrated a stable specific capacity of up to 688 mA h g−1 even after 500 cycles at a higher charging–discharging current density of 1 A g−1. The significant diffusion-controlled lithium ion diffusion coefficient of approximately 10−12 cm2 s−1 indicates vigorous dynamic activity from reversible Sn–Li alloy electrochemical reactions. Additionally, the substantial capacity-controlled lithium ion diffusion coefficient, which drops to 10−16 cm2 s−1, illustrates the predominance of the pseudo-capacitance arising from interface reaction. By coupling electrochemical impedance spectroscopy, galvanostatic intermittent titration technique, and linear sweep voltammetry, the mixed lithium-ion diffusion effect was proposed to explain the remarkable adaptability of these Sn-based anode materials for cycling performance across a wide range of specific currents. This work provides a new intention for resolving the drastic volumetric expansion and unsatisfactory dynamic activity of Sn-based anode materials.


1. Introduction

Over the past few decades, significant advancements have been made in the use of lithium-ion batteries (LIBs) as a promising alternative to traditional fossil fuels. These batteries are attractive due to their suitable power density, long cycling life, and zero greenhouse gas emissions.1–3 However, the theoretical capacity of commercial graphite, which is currently the primary anode material in LIBs, is only 372 mA h g−1, making it insufficient for high-energy storage systems.4,5 Therefore, there is ongoing exploration for new cathode materials or innovative combinations of materials that offer higher specific capacities and longer lifespans.6,7

Tin-based materials, including Tin (Sn), SnOx (where 1 ≤ x ≤ 2), and its sulfides, have gained attention as promising anode materials for advanced LIBs due to their high theoretical specific capacity and lower lithiation plateau.8 According to research on the interaction between SnOx and lithium,9 the mechanism by which SnOx stores lithium ions has been described as a two-step electrochemical reaction, as outlined by Chen and others.10

Scheme 1 shows those both SnO2 and SnO have the maximum theory-specific capacity of either 1494 mA h g−1 or 1273 mA h g−1, respectively, when alloy LiySn (y = 4.4) were obtained in reaction (2), in which electrons y can be up to 4.4 (reaction (2)) and has been confirmed by Dahn and Courtney.11 Although 783 and 398 mA h g−1 of the theory-specific capacity can be pinpointed to either SnO2 or SnO, respectively, they seem meaningless because of the irreversible interaction (1) of SnOx and Li+ in Scheme 1. Therefore, the fundamental theory-specific capacities of those SnO2, SnO, and Sn should correspondingly drop down to 783 mA h g−1, 876 mA h g−1, and 994 mA h g−1, respectively, when the alloying reaction reversibly goes on until the final alloy Li22Sn5 (y = 4.4) was obtained (eqn (2)).


image file: d5ra02378e-s1.tif
Scheme 1 Two-step electrochemical mechanism of Tin oxide with lithium-ion.

However, lower dynamic activity in the diffusion of lithium ions and significant volumetric expansion of the Sn–Li alloy phase during the charging and discharging processes of Sn-based anode materials can lead to a substantially reduced specific capacity. Additionally, this can cause severe efflorescence and abnormal growth of the Solid Electrolyte Interface (SEI), ultimately decreasing the cycling life of LIBs.12 So far, exploiting elemental Sn as the anode material in LIBs has been difficult. Researchers have proposed various strategies to address the limitations of Sn-based anode materials.13 One effective approach involves minimizing the particle size of these materials. For instance, X. Ye and colleagues reported that they prepared a type of five-nanometer Sn/C composites by annealing Sn-based sludge, which was degraded by microorganisms, under an inert atmosphere. These fine Sn/C nanorod materials exhibit reduced efflorescence, stable cycling life, and excellent rate capability in LIBs.14 Another method to enhance the performance of Sn-based anode materials is to create functional composites that combine Sn-based materials with structural carbon sources, such as carbon nanotubes (CNTs), graphene (GN), and three-dimensional (3D) network carbon. Among the various Sn-based composites, Sn/CNT, Sn/GN, and Sn/3D-C composites demonstrate significant resistance to efflorescence and deformation, as well as lower impedance. This is achieved by confining the Sn-based materials within the cavities of these carbon structures,15,16 thereby localizing them within their layers17–19 and trapping them in lattices.20 Consequently, the bulk deformation of these anode composites can be effectively controlled, and their impedance can be reduced.

Unlike the mechanical mixing of carbon nanotubes or graphene sheets, 3D network-carbon composites are typically prepared through in situ growth.21 This method allows the 3D network-carbon matrix to better embed the Sn-based active materials, resulting in improved conductive capabilities.22

In this paper, we present a new network-carbon composites made from Sn-based materials. This innovative approach combines both an in situ preparation of 2D nano-lamellar assembly and the mixing preparation of carbon nanotubes, which are annealed at higher temperatures, with carbon nanotube doping, which is annealed at lower temperatures. The goal is to achieve a long-term cycling lifespan of Sn-based anode material by addressing volumetric expansion, enhancing the activity of electro-chemical reactions, and accelerating the migration rate of Li+ ions for this Sn-based anode. Additionally, this method offers a novel synthetic routine for other anode materials. To our knowledge, this proposal has not been previously reported.

2. Experimental

2.1. Preparation of oxidized multi-walled carbon nanotube

Oxidized multiwalled carbon nanotube (MWCNT) (0.2 g, 99%, Shanghai Kelaman Reagent Co., Ltd) was added carefully into a mixed acid solution (40 mL, H2SO4, 98 wt%; HNO3, 65 wt%; VH2SO4[thin space (1/6-em)]:[thin space (1/6-em)]VHNO3 = 3[thin space (1/6-em)]:[thin space (1/6-em)]1) at ambient temperature. The mixture was stirred for 5 hours at 100 °C until it became a dark suspension solution. The brutal acid suspension was fetched out and dropped slowly on the crushed ice to obtain sediment of erosive carbon nanotube. The residue obtained from filtration was dispersed into a glacial acetic acid solution (100 mL, CH3COOH, 99 wt%). It was oxidized by a per-acetic acid solution (50 mL, VCH3COOH[thin space (1/6-em)]:[thin space (1/6-em)]VH2O2 = 1[thin space (1/6-em)]:[thin space (1/6-em)]1) for 2 hours at 80 °C. The residue obtained after filtration and rinse by deionized water was dispersed into an acetone solution of water (C3H6O, 99.5%; VH2O[thin space (1/6-em)]:[thin space (1/6-em)]VC3H6O = 1[thin space (1/6-em)]:[thin space (1/6-em)]24, 250 mL). The suspension of MWCNT milled by ultrasonic cell Pulverizer(JY92-IIN-YT, Tuohe Electromechanical Technology (Shanghai) Co., Ltd)for half an hour has a molar concentration of 0.67 mmol mL−1.

2.2 Preparation of tin(II) complex with 2-methylimidazole

2-Methylimidazole (3 g, C4H6N2, 99 wt%) powder and a tiny amount of phenylamine (1 mL, C6H5NH2, 99 wt%) was dissolved in 150 mL of methanol solution at ambient temperature with stirring. Stannous chloride (3.46 g, SnCl2, 99 wt%) was added slowly into this solution, and stirred for 3 hours when reaction temperature has risen to refluxing temperature. The milky suspension finally changed to a transparent methanol solution of quaternary ammonium salt based on the combination of 2-methylimidazole and stannous chloride. The given methanol solution was centrifuged at 1000 rpm for 15 minutes for removing the unreacted stannous chloride. All volatile components in solution containing methanol, HCl and phenethylamine were gradually removed by vacuum rotary evaporation with increased temperature from 30 °C to 45 °C. the milky gel of tin(II) complex with 2-methylimidazole was collected in a yield of 45 wt%, and the chief component of this complex is SnCl2·2(2-methylimidazole) and its dimer, as indicated by the adducts of 1-vinylimidazole, 1-benzylimidazole, and 1,2,4-triazole with tin(II) chloride reported by vasnin23 Except for MWCNT raw, all the above reagents were purchased from Sinopharm Chemical Reagent Com., Ltd

2.3 Preparation of in situ Sn-based carbon nano-lamellar assembly

The Sn-based 2-methylimidazole compound (1.38 g) was placed in a small porcelain boat wrapped in copper foil and subsequently annealed in a tube furnace at 800 °C for 4 hours. The resulting greyish-black Sn–C composites was collected, yielding 24 wt%. Three Sn–C nano-lamellar assemblies were annealed at temperatures of 700 °C, 800 °C, and 900 °C, and are referred to in this paper as Sn@Ca, Sn@C, and Sn@Cb, respectively.

2.4 Preparation of in situ Sn-based carbon nano-lamellar assemblies doped with MWCNT

The given in situ Sn-based carbon assemblies (0.2 g) was added into 25 mL of acetone–water suspension of oxidized MWCNT (0.067 mmol mL−1), and milled for 6 hours in a planetary ball mill. The fine sediments of the acetone–water solution were centrifuged at 1000 rpm for 15 minutes, and dried in a vacuum chamber for half an hour. The mixture of in situ Sn-based carbon assemblies and the oxidized MWCNT particles was annealed in a tube furnace at 300 °C for 4 hours. The obtained in situ Sn-based carbon nano-lamellar assemblies doped by oxidized MWCNT are marked as Sn@C/CNTa Sn@C/CNT, and Sn@C/CNTb known by different annealing temperatures at 700 °C, 800 °C, and 900 °C, respectively.

With the comparison, the commercial acetylene black (35–45 nm) and nano Tin (100 nm in size, Shanghai Pantian Powder Materials Co., Ltd) were repeatedly mixed in a same dosage of the acetone–water solution, milled, annealed at 800 °C for getting the in situ Sn-based carbon nano-lamellar assemblies, and then doped with the same amount of oxidized MWCNT, dealt with as same as those processes of Sn@C/CNT for getting the in situ Sn-based carbon assemblies doped by MWCNT. The obtained composite is marked as Sn*@C/CNT.

2.5 Material characterizations

The crystalline structure of the composites was analyzed by Philips X'pert X-ray diffractometer with Cu Kα radiation at a scanning rate of 5° min−1 in the range of 10–80° (XRD). The morphology and microstructure of composites were characterized by Thermo Fisher Verios G4 Scanning electron microscopy (SEM), Thermo Fisher Verios G4 energy dispersive X-ray spectroscopy (EDS), and JEM-2100 JEOL transmission electron microscopy (TEM), respectively. Shimadzu DTG-60/DTG-60A Thermogravimetric and differential thermal analysis (TG-DTA) finished the carbon content and structure characteristic of prepared Sn-based composites. Thermo VG ESCALAB 250 X-ray photoelectron spectroscopy (XPS) was used to investigate the chemical composition and elemental valence states of three tin-based materials based on different binding energy (BE) peaks. Nitrogen adsorption–desorption isotherms, Barret–Joyner–Halenda (BET) specific surface area, Barret–Joyner–Halenda (BJH) pore size distribution, and Horvash–Kawazoe (HK) micro-pore analysis were performed by 3H-2000PM high performance specific surface and porosity analyzer. Raman spectra were collected to analyzed the functional groups of three Sn-based composites on a Invia Qontor spectrometer.

2.6 Electrochemical measurement

The assembled CR 2032 coin-type batteries underwent a series of electrochemical performance tests. The active materials, consisting of acetylene black and polyvinylidene fluoride (PVDF), were hand-ground using a pestle in a jade mortar at a weight ratio of 8[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1 for a duration of 0.5 hours. A few drops of N-methyl-2-pyrrolidone (NMP) were added to create a uniform slurry, which was then coated onto a copper foil base and dried overnight in a vacuum oven at 120 °C. The coated copper foil was cut into discs with a diameter of 14 mm to serve as working electrodes. The typical active material load ranged from 1 to 1.5 mg cm−2 (including the weight of acetylene black and the adhesive). Next, a pure lithium sheet was used as the negative electrode, a Celgard 2400 polypropylene porous membrane served as the diaphragm, and lithium-ion electrolyte (LB-141) was used as the electrolyte. The half battery was then assembled in a Vigor glove box filled with high-purity argon, ensuring that the oxygen and water levels were below 2 ppm. LAND CT2001A battery Test system performed charging–discharging measurements of lithium ion at room temperature in a fixed voltage range of 0.01 to 3.0 V. CHI660E electrochemical workstation with a three-electrode system was used to perform cyclic voltammetry (CV), electrochemical impedance spectroscopy (EIS), galvanostatic intermittent titration technique (GITT), and linear sweep cyclic voltammetry (LCV) tests.

3. Results and discussion

3.1 Structural analysis for anode materials

XRD patterns and Raman spectra of Sn@C, Sn@C/CNT, and Sn*@C/CNT are shown in Fig. 1(a) and (b).
image file: d5ra02378e-f1.tif
Fig. 1 XRD patterns (a) for Sn@C, Sn@C/CNT, Sn*@C/CNT, oxidized carbon nanotube (O-CNT), and nano Tin (Sn); and Raman spectra (b) for Sn@C, Sn@C/CNT and Sn*@C/CNT materials.

Fig. 1(a) presents the XRD diffraction peaks of the Sn@C nano-lamellar assemblies, which display significant intensity at 2θ values of 30.02, 30.64, 44.90, and 55.33°. These characteristic peaks, along with several smaller peaks, align with the distinctive lines of the ICDD standard card PDF#04-00673 for tetragonal crystal Sn. This indicates that Sn2+ has been completely reduced to Sn after the in situ Sn-based carbon assemblies was annealed at 800 °C in a nitrogen atmosphere. The lattice parameters for the resulting white tin correspond to a = b = 5.83 Å and c = 3.18 Å. Whatever, the in situ Sn-based carbon annealing at either 700 °C (Sn@Ca and Sn@C/CNTa) or 900 °C (Sn@Cb and Sn@C/CNTb) exhibit either the increased Sn content or the formation of the Sn phase with larger particle sizes in the complexes (see Fig. S1(a) and (b)). These will ultimately impair their cycling performance in LIBs. The XRD pattern of the Sn@C/CNT composites also indicates that the addition of MWCNT does not alter the crystal structure of Sn, but there is a minor presence of SnO as an impurity. This impurity is confirmed by two diffraction peaks at 2θ values of 37.15 and 50.76°, which correspond to the characteristic lines noted in the ICDD standard card PDF#06-0305 for SnO. The presence of hydroxyl or carboxyl groups in the oxidized CNT can further oxidize Sn. The same SnO impurity is also observed in the XRD patterns of both Sn@C/CNTa and Sn@C/CNTb (see Fig. S1 (b)). In comparison with the XRD patterns of the purely commercial Tin particles, Sn*@C/CNT obtained through the addition of acetylene black (annealed at 800 °C) and CNT (annealed at 300 °C) to commercial tin nanoparticles sized 100 nm also displays the presence of SnO impurity. This observation indicates that the impurity arises from the oxidation process between the commercial Tin particles and the oxidized MWCNT. Furthermore, the oxidized CNT material displays acute peaks at 2θ values of 11.65, 23.48, and 28.60, alongside a large, broad XRD diffraction peak at 2θ = 26.62°. This broad peak indicates that both the oxidized CNT and the in situ carbon composites possess a crystal structure similar to that of graphite.24 The ordered carbon structures present in both the tin-situ graphite and oxidized CNT are expected to enhance the electrochemical performance of the Sn-based anode materials.

Fig. 1(b) illustrates the relationship between the D-band peak and the G-band peak in the Raman spectra for three Sn-based carbon materials. The D-band peaks, associated with the stretching vibrations of C–C and C[double bond, length as m-dash]C bonds, are observed at 1340 cm−1. The intensity of these peaks correlates with lattice defects, structural distortions, and the amorphous state of carbon atoms.25 In contrast, the G-band peaks, which result from the in-plane stretching vibrations of sp2 hybrid carbon atoms, are located at 1585 cm−1. These peaks reflect the stratification and topological structures of carbon, such as graphene and graphite.25 The ID/IG value of 1.14 indicates that the Sn@C assembly contains a significant amount of in situ carbon materials, which exhibit a higher number of lattice defects, structural distortions, and an amorphous state of carbon atoms. This condition enhances the internal activity of both carbon matrix and Sn nano particles to combine the lithium ions.26 Reducing the ID/IG ratio by enhancing the structure regularity of the Sn@C nano-lamellar assembly is essential to balance the electronic conductivity and the diffusion efficiency of lithium ions. Lower values of ID/IG realized by incorporating the oxidized MWCNT, precisely 0.12 for Sn@C/CNT and 0.20 for Sn*@C/CNT shown in Fig. 1(a), are expected to achieve this purpose.

The BET adsorption–desorption isotherms, HK micropore analysis, and BJH pore size distributions for Sn@C, Sn@C/CNT, and Sn*@C/CNT are presented in Fig. 2. The pronounced hysteresis loop observed in each adsorption–desorption isotherms shown in Fig. 2(a) indicates that all three materials possess a mesoporous structure.27 In Fig. 2(b), it is evident that Sn@C/CNT exhibits a significantly higher value of dV/d[thin space (1/6-em)]log[thin space (1/6-em)]D = 0.382 cm3 g−1 nm−1 in the HK micropore analysis, while Sn@C and Sn*@C/CNT only show much lower values of 0.038 cm3 g−1 nm−1 and 0.043 cm3 g−1 nm−1, respectively. This suggests that the Sn@C/CNT composites contains nearly ten times more micropores compared to the other two composites.


image file: d5ra02378e-f2.tif
Fig. 2 (a) N2 adsorption–desorption isotherms, (b) HK micro-pore analysis and (c) pore size distributions and specific surface area of Sn@C, Sn@C/CNT and Sn*@C/CNT.

The BJH pore size distributions of three composites at different scales are illustrated in Fig. 2(c) and summarized in Table 1. The results indicate that the micro-pores and meso-pores in the Sn@C/CNT composites contributed the most significantly to the total specific surface area, which measured 687.69 m2 g−1, accounting for 72.8%. In comparison, the Sn@C nano-lamellar assembly had a total specific surface area of 202.16 m2 g−1, contributing 62.4%, while the Sn*@C/CNT sample had 144.37 m2 g−1, contributing 62.3%. Additionally, the Sn@C/CNT composite features the smallest average pore size of 6.09 nm and the largest D90 hole diameter of 58.69 nm among the three composites, further supporting these observations. Overall, the combination of the largest surface area (687.69 m2 g−1), significant micro-pore contributions, and the smallest average pore diameter in the Sn@C/CNT composites may play a crucial role in effectively coating the nano Sn particles, accommodating the bulk expansion of Sn, and facilitating the diffusion rate of Li+.28

Table 1 BJH Pore size distributions and BET specific surface area of three anode materials
Samples SAa (m2 g−1) MSAb (m2 g−1) APDc (nm) D90d (nm) Pore volume (ml g−1)
a Specific area.b Micro-pore specific area.c Average pore diameter.d 90th percentile diameter.
Sn@C 202.16 126.89 7.19 37.59 0.36
Sn@C/CNT 687.69 500.73 6.09 58.69 1.05
Sn*@C/CNT 144.37 90.49 7.18 51.67 0.26


TGA and DTA curves of three composites are presented in Fig. 3(a–d). The Sn content for the three composites shown in Fig. 3(a) is 20.3 wt%, 18.3 wt%, and 26.2 wt%, respectively. The post-weight of the materials annealed in a furnace tube under an air atmosphere should be converted from that of SnO2 to the weight of pure Sn. In Fig. 3(b), the Sn@C precursor displays three exothermic peaks at 110, 208, and 294 °C. The first exothermic peak at 110 °C corresponds to the release of heat from water, while the subsequent peaks at 208 °C and 294 °C indicate heat loss associated with the breakdown of 2-methylimidazole ligands.29 Notably, the additional endothermic peak observed at 356 °C not only marks the onset of the crystallization of Sn but also signifies the reduction of Sn2+ due to the reductive gases released during ligand degradation. In Fig. 3(c) and (d), further annealing of the Sn@C and Sn*@C at 360 °C in a nitrogen atmosphere was conducted with the addition of oxidized MWCNTs. The DTA of both the Sn@C/CNT and the Sn*@C/CNT precursors show weight loss temperatures around 110 °C and 229 °C, respectively. These temperatures correspond to the release of water molecules from the surface of the oxidized MWCNTs and the decomposition of oxygen-containing functional groups such as carboxylic acids and hydroxyls present in the oxidized MWCNTs.30 This indicates that the Sn-based carbon nano-lamellar assembly interacts with the oxidized MWCNTs through decomposition to form a new three-dimensional Sn-carbon materials.


image file: d5ra02378e-f3.tif

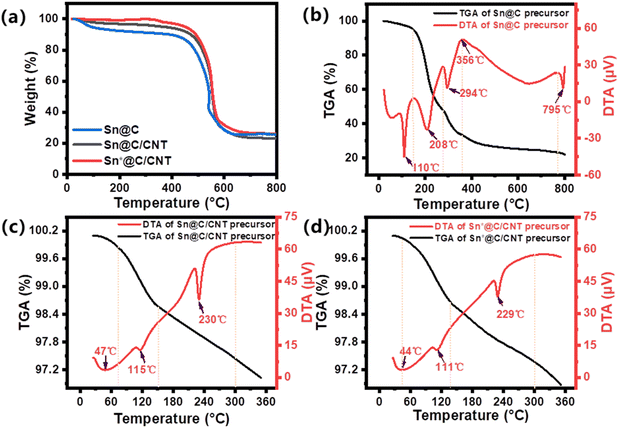

Fig. 3 (a) TG-DTA curves of the three anode materials of Sn@C, Sn@C/CNT, and Sn*@C/CNT under air; TG-DTA curves of (b) Sn@C precursor, (c) Sn@C/CNT precursor, and (d) Sn*@C/CNT precursor in N2 atmosphere.

Fig. 4 illustrates the topographies of oxidized carbon nanotube, Sn@C, Sn@C/CNT, and Sn*@C/CNT materials. Fig. 4(a) highlights the distinct cracks that appear on the wall of the carbon nanotube following the oxidation process. These oxidized cracks can provide more edge carbon atoms, increasing the amount of the naked functional groups (e.g., COOH, OH), and enhancing the compatibility between carbon nanotubes and Sn@C material.31 In contrast to the spherical nano Sn embedded in a disordered carbon matrix found in the Sn*@C/CNT particles (Fig. 4(d)), the Sn@C particles resemble graphite-like nano-lamellar assemblies, as shown in Fig. 4(b). This thin graphite-like slice has an average thickness of only 6 nm (see Fig. S3). Furthermore, Fig. 4(c) illustrates that these lamellar assemblies of Sn@C particles are bound by doped, oxidized MWCNT to form the new Sn@C/CNT particles. This design aligns with our experimental goal of enhancing the conductivity of the Sn@C composites. EDS observations and corresponding mappings of the Sn@C particles reveals the presence of Nitrogen (N) in the Sn@C material, which can be reasonably attributed to the incomplete oxidation of amino groups in the presence of Sn2+ (see Fig. S4). The EDS analysis and mappings of Sn@C/CNT particles (see Fig. S5), indicate the presence of oxygen (O) alongside the Tin (Sn) and nitrogen (N); this O contributes to the tiny SnO impurities observed in the composites. Both the Sn and N elements in the Sn@C particle, as well as the Sn, N, and O elements in the Sn@C/CNT particle, are uniformly distributed throughout their carbon-based composites. In contrast, the elements in the Sn*@C/CNT particle are unevenly distributed (see Fig. S6). This suggests that the simple mechanical mixing of commercial nano-Sn with both acetylene black and oxidized MWCNT cannot ensure structural consistency in the Sn*@C/CNT composites. As a result, we can predict poor electrochemical performance for lithium-ion storage and diffusion. Additionally, the Sn content in both the Sn@C and Sn@C/CNT closely matches the calculations obtained from the TGA results (see Fig. 3(a)).


image file: d5ra02378e-f4.tif
Fig. 4 SEM and TEM images of oxidized carbon nanotube and three Sn-based composites. (a) TEM of oxidized carbon nanotube, (b) SEM of Sn@C, (c) SEM of Sn@C/CNT, (d) SEM of Sn*@C/CNT, (e and f) TEM of graphite-like layer Sn@C/CNT, (g and h) HRTEM of Sn@C/CNT, (i) corresponding micro-area diffraction pattern of Sn@C/CNT in HRTEM.

Fig. 4(e and f) displays the TEM images of the Sn@C/CNT particles. In these images, the bright area represents the carbon matrix, while the small dark spots correspond to the Sn nanoparticles. It is evident that the Sn nanoparticles, which average between 2 and 3 nm in width, are well dispersed within the carbon matrix. Additionally, the lamellar structure of the in situ carbon matrix can also be observed together with the that of HRTEM image of Fig. 4(g). Fig. 4(h) presents a HRTEM image of the Sn nanoparticles within the Sn@C/CNT composites. This image reveals lattice fringe spacings of 0.278 nm and 0.291 nm, which correspond to the (101) and (200) planes of the tetragonal Sn phase, respectively. Furthermore, the micro-area diffraction pattern diffraction patterns of the Sn phase, shown in the Fourier Transform HRTEM image (Fig. 4(i)), display perfect concentric-circle patterns. This observation indicates that various clusters of the tetragonal crystalline Sn phase are arranged in an unordered manner, resulting in a polycrystalline system. Within this system, additional crystal planes, such as (211) at the secondary ring and (312) at the outer ring, are clearly visible.

The XPS survey spectra of the Sn@C/CNT composites shown in Fig. 5 confirms the presence of tin (Sn), carbon (C), oxygen (O), and nitrogen (N). The Sn 3d spectra (Fig. 5(b)) show only two BE peaks at 487.7 eV and 495.8 eV. These peaks correspond to Sn 3d5/2 and Sn 3d3/2 of tin, as reported in the literature.32 In the O 1s spectrum of Sn@C/CNT (Fig. 5(c)), the observed BE peak splits into three simulated peaks at 531.5 eV, 532.5 eV, and 533.6 eV, which can be assigned to different categories of oxygen: carboxyl (–C[double bond, length as m-dash]O), hydroxyl (H2O), and ether groups (C–O–), respectively.33 This also indicates that the oxidized MWCNT can connect to the in situ carbon assemblies through hydroxyl groups. The two BE peaks of the N 1s spectrum for Sn@C/CNT, located at 398.5 eV and 401.1 eV, as shown in Fig. 5(d), indicate the presence of both imino and amino groups within the in situ carbon assemblies.34 This formation occurs when methylimidazole is reduced by Sn2+ during the annealing process. The C 1s spectrum of Sn@C/CNT, shown in Fig. 5(e), displays four BE peaks at 284.6, 285.7, 286.4, and 288.9 eV, as determined through deconvolution analysis. These peaks correspond to various carbon categories, including the graphite structure (sp2 C[double bond, length as m-dash]C), nitrile groups (C–N), ether groups (C–O), and carboyl groups (C[double bond, length as m-dash]O).35 Unlike the XPS spectra of Sn@C/CNT, the Sn@C material only exhibited peaks for Sn, N, and C (see Fig. S7). The C 1s and N 1s spectra for Sn@C showed BE peaks consistent with those observed in Sn@C/CNT. Two deconvoluted BE peaks, depicted in Fig. 5(f), are located at 284.6 eV, corresponding to the signature of graphite (sp2 C[double bond, length as m-dash]C) and amino groups, respectively. Additionally, the BE peak at 288.9 eV can be attributed to the unavoidable absorption of oxygen by the active carbon matrix of Sn@C material.36 The XPS spectra of Sn*@C/CNT (see Fig. S8) did not confirm the presence of nitrogen (N) in the composites, except for the presence of tin (Sn), carbon (C), and oxygen (O). This finding further proved that the source of carbon defects only originates from the annealing process of tin(II) complex with 2-methylimidazole rather than oxidized MWCNT, which has significant implications for our understanding of the material's properties.


image file: d5ra02378e-f5.tif

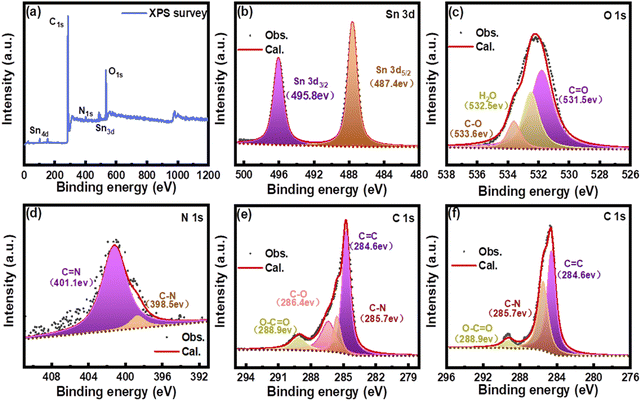

Fig. 5 XPS spectra of Sn@C/CNT: (a) survey and deconvoluted, (b) Sn 3d, (c) O 1s, (d) N 1s, (e) C 1s; and of (f) Sn@C C 1s.

3.2 Long-term cycling electrochemical performances

Fig. 6(a) shows that three in situ Sn-carbon materials (Sn@C, Sn@Ca, and Sn@Cb) and a doping Sn-carbon material (Sn*@C/CNT) maintain 516.0, 638.4, 688.2, and 44.5 mA h g−1 discharging specific capacities, respectively, and almost 99.2% of coulombic efficiency even after 100 cycles. In comparison to the lowest retained specific capacity of the Sn*@C/CNT anode material, the Sn@C material maintains at least 85.6% of its theoretical specific capacity (994 mA h g−1) after 100 cycles at a rate of 0.1C. However, the reversible capacity retention rate for the Sn@C anode materials significantly drops to 42% after 150 cycles while anode materials of Sn@Ca and Sn@Cb drop to 75% and 60%, respectively. This vast decay in retained capacity might contribute to the higher value of ID/IG as was discussed in Raman spectra analysis, in which the excessive carbon defects might ruin the dynamic balance between reaction and diffusion to lithium ion. To enhance the long-term cycling performance of the Sn@C anode material, an improved synthesis strategy was developed for the Sn@C/CNT composite, which now serves as a new anode material. As shown in Fig. 6(b), the Sn@C/CNT maintains a high specific capacity of up to 946 mA h g−1, with a capacity retention ratio of 95.6% and a coulombic efficiency of nearly 99.5%, even after 150 charge/recharge cycles at a current density of 100 mA g−1. Moreover, after approximately 500 charge/recharge cycles at a higher current density of 1 A g−1 (1C), Fig. 6(c) shows that the Sn@C/CNT still retains a specific capacity of 688 mA h g−1, demonstrating a capacity retention ratio of 95.0% and a coulombic efficiency close to 99.5%. Fig. 6(d) illustrates the rate capabilities of the prepared Sn@C/CNT across various current densities, ranging from 0.1 to 10 A g−1. The Sn@C/CNT anode material achieves average reversible discharge capacities of 997.3, 911.4, 794.4, 708.8, 614.7, 476.8, and 341.4 mA h g−1 at current densities of 0.1, 0.2, 0.5, 1, 2, 5, and 10 A g−1, respectively. When the current density is returned to 0.1 A g−1, a stable discharge capacity of 969 mA h g−1 can be restored. This indicates that the Sn@C/CNT exhibits excellent capacity recovery performance even after enduring high current density of up to 10 A g−1. For comparison, two other anode materials, Sn@C/CNTa and Sn@C/CNTb, first annealed at 700 °C and 900 °C, respectively, show inferior long-term cycling performance and rate capabilities, as illustrated in Fig. S9. This further demonstrates that the annealing temperature significantly impacts their electrochemical performance.
image file: d5ra02378e-f6.tif
Fig. 6 Electro-chemical lithium storage performance: (a) efficiency and long-term cycling performance for Sn@C, Sn@Ca (annealed at 700 °C), Sn@Cb (annealed at 900 °C), and Sn*@C/CNT at a current density of 100 mA g−1; (b) and (c) efficiency and long-term cycling performance for Sn@C/CNT anode material at a current density of 100 and 1000 mA g−1, respectively; (d) rate capabilities of Sn@C/CNT anode material from current density of 0.1 to 10 A g−1. * All the testing were finished over 0.01–3.0 V at 20 °C.

The impressive cycling performance and rate capabilities can be attributed to the effective activation of the Sn–Li alloy reaction and the excellent pathways for lithium ion diffusion. The three-dimensional carbon network, formed from a layered in situ nano-carbon matrix woven with oxidized MWCNTs, can effectively accommodate the significant volume changes of Sn particles. This structure promotes the activation of the Sn–Li alloy reaction and maintains the structural integrity of the anode materials during the lithiation and delithiation processes.

The following summarizes the electrochemical performance of various valuable anode materials, including metallic Sn and functional matrix materials, along with Sn@C/CNT, as presented in Table 2.

Table 2 Electrochemical performance for different Sn-base anode materials in LIBs
Materials Cycling stability/cycles/current density (mA h g−1/cyce/A g−1) Rate capability/current density (mA h g−1/A g−1) Year Ref.
a Polyaniline.b 1,2,4,5-Benzene-tetracarboxylic acid.c Two dimensional laminar matrix of graphene composites.d Helical carbon fibers.e Cycles.
Sn-CNTs 437/100/0.1 429/2 2013 21
Sn/MoS2/C 625/500/1 630/2 2015 37
Mn2SnO4/Sn/C 908/100/0.5 550/2 2016 38
Sn-PMAa 707/400/0.8 226/1.6 2019 39
Sn/C-PANIb 855/100/0.1 153/10 2020 40
Sn@2DLMG cc 539/500/0.1 240/5 2021 19
C/Sn/HCNFd 610/200/0.2 317/2 2022 41
Sn@SiOC 547/200/1 538/5 2022 42
Sn@CNT 616.9/100/0.1 558/0.5 2023 43
Sn@C 542/100/0.1 535/0.5 2024 44
Sn@C/CNT 949/150/0.1 341/10 This work


Among these materials, Sn@C/CNT demonstrates exceptional cyclic performance, achieving a remarkable specific capacity of 949 mA h g−1 at a current rate of 0.1 A g−1, even after 150 cycles. It also maintains an impressive specific capacity of 341 mA h g−1 at a highest current rate of 10 A g−1.

In comparison, some significant anode materials reported in the literature include the excellent monometallic anode material of Sn/C-PANI, which reaches a specific capacity of only 855 mA h g−1 at a current rate of 0.1 A g−1 after 100 cycles, and retains a specific capacity of 153 mA h g−1 at a 10 A g−1 rate. Additionally, the energetic bimetallic anode material Sn/MoS2/C shows a maximum specific capacity of 625 mA h g−1 at 1 A g−1 after 500 cycles, maintaining a specific capacity of 630 mA h g−1 at a current rate of 2 A g−1 for rate performance.

These results indicate that the synthesis method for the new Sn@C/CNT anode material has successfully achieved the goal of developing new Sn-based anode materials for LIBs by incorporating one-dimensional MWCNTs into the in situ carbon matrix.

3.3 Lithium ion storage and diffusion-controlled performances

Fig. 7 discloses the dynamic behavior of three Sn-based anode materials in Lithium storage and interior diffusion behavior. As shown in Fig. 7(a), galvanostatic charge–discharge curves of Sn@C/CNT were tested at a current density of 0.1 A g−1, operating between 0.01 and 3.0 V. The initial charge and discharge capacities were approximately 1080 mA h g−1 and 988 mA h g−1, respectively, while the second cycle yielded 1037 mA h g−1 for charge and 978 mA h g−1 for discharge. Unlike the extremely low coulombic efficiency observed in SnOx (1 ≤ x≤ 2) during the initial cycles,45 the coulombic efficiencies of the Sn-based anode material were notably high, reaching 91.5% and 94.2% in the first two cycles. This indicates that the alloying reaction provides a nearly reversible specific capacity, as outlined in Scheme 1, and suggests that minimal amounts of tin oxide impurities are present in the Sn@C/CNT composite. By the 30th cycle, stable charge and discharge capacities of 754.40 mA h g−1 and 743.37 mA h g−1 were achieved, with coulombic efficiencies remaining no less than 98.5%. This stability can primarily be attributed to the inevitable formation of a SEI film on the electrode surface. Fig. 7(b) further indicates the lithium storage performance originating from different reversible alloy reactions between Sn and Li. Three distinct extremes of differential capacity: a strong current peak around 0.53 V, a mediate current peak around 1.20 V, and a weak current peak around 1.83 V, respectively, represent different Sn–Li alloy species of Sn@C/CNT anode material during the redox reaction. The weak current peak around 1.83 V can be assigned to the irreversible desorption of Li+ from tin oxide due to its disappearance in subsequent cycling; the peaks around 0.53 V and 1.20 V repeated even after 100 charge/discharge cycles, can be associated with the formation of a series of Sn–Li alloy phases including Li2Sn5, Li5Sn2, Li13Sn5, Li7Sn2, and Li22Sn5 in the reversible desorption of lithium reactions.46 The mediate current peak of around 1.20 V finally indicates the formation of the Sn phase in the wholly delithiation.11
image file: d5ra02378e-f7.tif
Fig. 7 Lithium storage and diffusion-controlled dynamics analysis: (a) galvanostatic charge–discharge curves of Sn@C/CNT at 0.1 A g−1, (b) differential capacity curves (dQ/dV vs. voltage) of Sn@C/CNT at 0.1 A g−1; (c) electrochemical impedance spectroscopes; (d) (inset) equivalent circuit, (e) profiles of the real part of impedance (Z′) vs. ω−1/2, (f) profiles of DLi+, Rct vs. ωw, and (g) lithium diffusion coefficients for three Sn-based anode materials based on reversible charge/discharge electro-chemical reaction of both SnLix alloys and C6Li composites at different charge transfer numbers.

EIS analysis is widely used to evaluate the resistance of electrode materials and the diffusion of lithium ions within them.45 The equivalent circuit model used to fit the EIS spectrum is shown in the inset of Fig. 7(d). The series resistance (Rs) is approximately 7.0 Ω, representing the resistance between the electrolyte and the anode materials, as illustrated in Fig. 7(c). This indicates the suitability of the selected electrolyte. In contrast, the charge transfer resistances (Rct) for Sn@C and Sn@C/CNT are 109.8 Ω and 148.1 Ω, respectively. The Rct of 85.0 Ω for the Sn@C/CNT material shows the lowest charge transfer resistance during the electrochemical reaction, indicating superior performance. The Warburg factor (σw), shown in Fig. 7(e), significantly influences the internal resistance related to lithium ion diffusion. This factor can be derived by calculating the slope of the fundamental part of resistance (Z′) versus the −1/2 exponent of angular frequency (ω−1/2) curves, as expressed in the following formula (1):47


Z = Rs + Rct + σωω−1/2 (1)

The diffusion-controlled lithium ion diffusion coefficient (DLi+) can subsequently be calculated using the Nyquist plot (2):48


DLi+ = R2T2/2A2F4n4C2σW2 (2)
In this formula, DLi+ represents the lithium ion diffusion coefficient, R is the gas constant, T is the absolute temperature, n is the charge transfer number for each distinct charge/discharge reaction, A is the surface area of the electrode, F is Faraday's constant, and C is the lithium ion molar concentration for each anode material. According to the varied σw values (153.76, 35.00, and 546.12 Ω S−1) shown in Fig. 7(e) and (f) illustrates the DLi+ values for the three anode materials: 1.98 × 10−14 cm2 s−1 for Sn@C, 4.57 × 10−13 cm2 s−1 for Sn@C/CNT, and 9.25 × 10−16 cm2 s−1 for Sn*@C/CNT when considering the largest reversible alloy reaction (Li4.4Sn, n = 4.4). The detailed values of diffusion-controlled lithium-ion diffusion coefficients for these reversible redox reactions are shown in Table S1.

The lowest Rct and the highest DLi+ confirm that Sn@C/CNT material has a substantial advantage in electrochemical performance over the other two Sn-based materials. However, assuming that lithium ion diffusion efficiency stems solely from the Li4.4Sn alloy is an over-idealization.49 Fig. 7(g) illustrates possible lithium ion diffusion pathways, incorporating the reversible charge/discharge chemical reactions from both C6Li composites50 and LixSn (where x = 1, 2, 3, or 4.4) alloys. The lithium ion diffusion coefficient for Sn@C/CNT from the C6Li composites is 1.9 × 10−10 cm2 s−1, while the coefficients from LixSn alloys (with x = 1, 2, 3, and 4) are 1.9 × 10−10, 1.07 × 10−11, 2.11 × 10−12, and 6.70 × 10−13 cm2 s−1, respectively. These diffusion coefficients decrease in order as the charge transfer number (x) increases during the reversible electrochemical reactions of the LixSn alloy, despite considering the counterbalancing effects of the lithium ion concentration and Rct on DLi+. Similarly, Sn@C and Sn@C/CNT materials exhibit DLi+ values at least one hundred times lower across all stages of the Sn–Li alloy reaction, demonstrating the same trend in lithium diffusion coefficients. Given that the order of magnitude for the highest DLi+ is at least 10−13, it is unlikely that the total reversible specific capacity for the three Sn-based anode materials is solely derived from the higher lithium-rich alloy Li4.4Sn. Instead, a series of reversible electrochemical reactions likely indicates optimal diffusion-controlled dynamics, suggesting that up to five Sn–Li alloys can emerge during these charging and discharging cycles. Therefore, the normal charge transfer number is approximately three rather than 4.4 in these SnLix phases.51 Consequently, the optimal lithium diffusion coefficient is estimated to be in the range of 10−9 to 10−10. The promising anode material Sn@C/CNT shows adequate kinetics to sustain long-term cycling and achieves a higher specific capacity of 688 mA h g−1 at a current density of 1C, confirming its suitability.

In order to verify the analysis of diffusion-controlled lithium ion diffusion based on the Nyquist plot, Lithium ion coefficients of DLi+ based on the GITT curves for three anode materials were finished. The GITT DLi+ can be calculated by using the Weppner–Huggins plot:52


image file: d5ra02378e-t1.tif(3)
In this context, mB, Vm, and MB represent the mass, molar volume, and molar mass of active material, respectively. S represents the surface area of the electrode; ΔES refers to the change in open circuit voltage during the relaxation period, while ΔEτ denotes the total change in cell voltage during pulse time.

Fig. 8(a–c) demonstrate that both Sn@C/CNT and Sn@C anode materials exhibit more pronounced voltage hysteresis and higher GITT specific capacitance (1100 mA h g−1 for Sn@C/CNT and 700 mA h g−1 for Sn@C) compared to Sn*@C/CNT. This indicates that interior-controlled processes predominantly influence the lithium-ion dynamic behavior in the first two materials at a lower exchange current density of 0.1C. In contrast, surface-controlled lithium-ion dynamic behavior prevails for Sn*@C/CNT at the same current density.53 Fig. 8(d) illustrates the variations in DLi+ across different discharge and charge voltages. When comparing the evolution of DLi+ for Sn@C/CNT, these values can be categorized into four distinct ranges: (a) DLi+ values in the order of magnitude of 10−10 to 10−11 cm2 s−1, occurring within a discharge voltage of 1.8 to 1.4 V and a charge voltage of 0 to 0.5 V; (b) DLi+ values around the order of magnitude of 10−11 cm2 s−1, within a discharge voltage of 1.4 to 0.75 V and a charge voltage of 0.5 to 0.75 V; (c) DLi+ values in the order of magnitude of 10−12 to 10−13 cm2 s−1, occurring within a discharge voltage of 0.75 to 0.5 V and a charge voltage of 0.75 to 1.5 V; (d) DLi+ values in the order of magnitude of 10−14 to 10−15 cm2 s−1, occurring within a discharge voltage of 0.5 to 0 V and a charge voltage of 1.5 to 2.5 V. The four components of DLi+ closely align with the analyses of various DLi+ variations corresponding to at least four electrochemical reactions. These include the intercalation/deintercalation lithium reaction of C6Li and the alloying reaction of LixSn (where x can be 1, 2, 3, or 4.4) for the Sn@C/CNT, as illustrated in Fig. 7.


image file: d5ra02378e-f8.tif

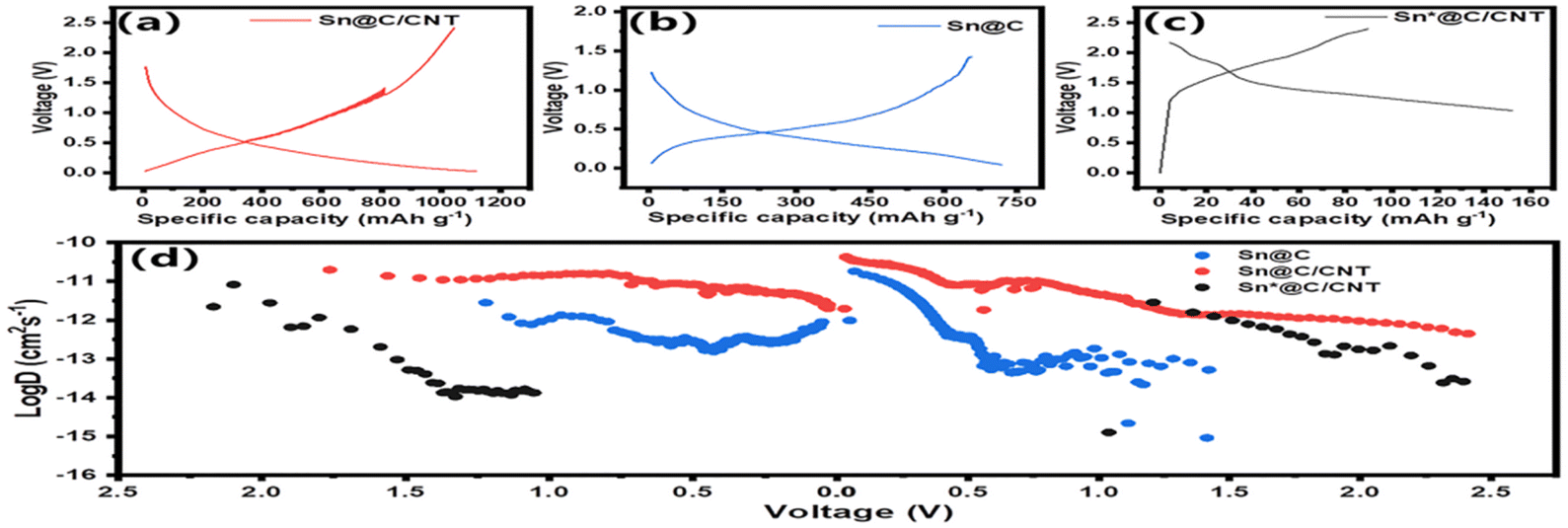

Fig. 8 Analysis of lithium-ion storage and diffusion control kinetics: GITT charge and discharge curves (a) Sn@C/CNT (b) Sn@C and (c) Sn*@C/CNT, as well as (d) illustrates the variations in DLi+ across different discharge and charge voltages.

Additionally, Fig. 8(d) also clearly shows that the Sn@C anode material exhibits lower DLi+ values across all four sections of DLi+ variation, and the Sn*@C/CNT anode material displays even lower DLi+ values, making it challenging to differentiate the four parts of the DLi+ distribution within similar discharging and charging voltages.

3.4 Lithium ion storage and capacity-controlled performance

To explore the capacity-controlled diffusion behavior of three Sn-based anode materials, the truth of lithium ion's storage, diffusion, and contribution from the pseudo-capacitance were further investigated. Fig. 9(a) illustrates the initial three CV curves of the Sn@C/CNT electrode, recorded at a scan rate of 0.1 mV s−1 within a voltage range of 0.01 to 3.0 V (vs. Li+/Li). In the first cathodic scan, two irreversible reduction peaks are observed around 1.17 V and 1.60 V. These peaks are attributed to the formation of metallic tin (Sn) and lithium oxide (Li2O) from SnO impurities, as indicated in Scheme 1(1) where x = 1, and the emergence of a SEI layer on the electrode surface.54 Additionally, reduction peaks at 0.42 V, 0.75 V, and 1.0 V are associated with the alloying process between lithium and tin, as depicted in Scheme 1(2) (1 ≤ x ≤ 4.4). During the subsequent anodic scan, two broad oxidation peaks at 0.53 V and 1.20 V confirm the presence of a reversible delithiation reaction in the LixSn alloy.54 Notably, the CV curves of Sn@C/CNT display a sharp reduction peak around 0.08 V and a prominent oxidation peak at 0.05 V. These peaks correspond to the reversible intercalation and delithiation of lithium ions into the carbon matrix, expressed as (C + xLi + xe ↔ LixC).54 This coexistence of reversible delithiation and lithiation within the Sn@C/CNT material demonstrates a remarkable reinforcing effect that enhances lithium storage capacity. LCV curves of the electrode materials disclose the relationship between peak current (i) and scan rate (v). This power–law relationship can be expressed as the formula (4):51

log(i) = b[thin space (1/6-em)]log(v) + log[thin space (1/6-em)](a) (4)

image file: d5ra02378e-f9.tif
Fig. 9 Capacity-controlled kinetics analyses: (a) CV curves for Sn@C/CNT anode material at a scan rate: 0.1 mV s−1; (b) LCV curves for Sn@C/CNT anode material from a scan rate: 0.1 to 1 mV s−1; (c) relationship between log(i) versus log(v) for Sn@C/CNT anode material; (d) and (e) capacity-controlled contributions for Sn@C/CNT anode material from 0.1 to 1 mV s−1; (f) Capacity-controlled contributions between Sn@C and Sn@C/CNT anode materials from 0.1 to 1 mV s−1.

The slope b in formula (4) is a adjustable parameter which be used to analyze the different diffusion mechanism of lithium ion in electrode material. Typically, when b = 0.5, the principal contribution derives from the diffusion-controlled process. As the b-value approaches 1.0, the capacity-controlled process dominates.51 As shown in Fig. 9(b), LCV curves of the Sn@C/CNT electrode, reveals the variety of summit currents at different scan rates from 0.1 to 1.0 mV s−1. Similar to two broad oxidation current peaks at 0.53 and 1.20 V in the anodic scans, two reduction peaks at 0.08 and 1.0 V in the cathodic scans were also chose to calculate the adjustable parameter b through plotting method based on the formula (5). Fig. 9(c) shows the b-values of the four peaks are 0.925, 0.819, 0.840 and 0.760 responding to summit currents from peak 1 to 4, respectively. It means that a mixed lithium ion diffusion mechanism is dominated by diffusion-controlled and surface-controlled processes.51 Fig. 9(d)–(e) quantitatively describes the their contribution rate of the capacity-controlled diffusion to the total diffusion of lithium ion.55 It indicates that the capacity-controlled diffusion win more and more proportion in the total diffusion control for Sn@C/CNT material when the scan rate increased from 0.1 to 1.0 mV s−1, and the utmost contribution rate can be up to 79% at scan rate of 1.0 mV s−1. In contrast with those of Sn@C/CNT, the capacitive contribution of Sn@C electrode is lower at each scan rate, and only has as lower as 53% at the same scan rate of 1.0 mV s−1 (Fig. 9(f)).

The capacity-controlled diffusion of lithium ion can be known as the pseudo-capacitance control, and be studied in advanced by Randles–Sevcik eqn (5), in which the equation is always used to resolve the interface catalytic activity of the catalyst.56


Ip = 2.69 × 105n3/2A(DLi+)1/2ν1/2ΔC0 (5)
wherein, Ip is the peak current (mA), n is the charges transfer molar number for every charge/discharge reaction, A is the surface area of the electrode (cm2), DLi+ is the Li+ diffusion coefficient (cm2 s−1), ν is the scan rate (mV s−1), ΔC0 is the change of molar concentration of Li+ before and after reaction. Based on the LCV curve for three Sn-based materials (see Fig. S10 for Sn@C, and Fig. S11 for Sn*@C/CNT), a series of DLi+ value revealing the diffusion behavior of three Sn-based material dominated by Ip was listed in Fig. 10(a)–(c).


image file: d5ra02378e-f10.tif
Fig. 10 Lithium ion diffusion efficient based on the pseudo-capacitance: (a) DLi+ of Sn@C; (b) DLi+ of Sn@C/CNT anode material; (c) DLi+ of Sn*@C/CNT. Peak 1, 2, 3(a), 3(b), and 3(c) refer to a reversible Sn–Li alloy reaction between y = 2 and 3, y = 0 and 2, y = 0 and 4.4, y = 0 and 4, y = 0 and 3, respectively; and peak 4 refer to a reversible C6Li reaction between carbon matrix and Li. Tables S2–S7 provide detailed values of capacity-controlled lithium-ion diffusion coefficients for various reversible redox reactions.

Fig. 10(a) and (c) reveal that both Sn@C and Sn*@C/CNT all possess extraordinary lower delithiation–lithiation DLi+ than those of Sn@C/CNT as shown in Fig. 10(b). The lower adjustable parameter (b = 0.705, 0.592, 0.529 and 0.402 for Sn@C, see Fig. S10, and b = 0.486, 0.445, 0.492 and 0.488 for Sn*@C/CNT, see Fig. S11) further confirmed this conclusion.

The significant variations in the series of DLi+ values corresponding to different peak currents, as illustrated in Fig. 10(a)–(c), indicate distinct activation dynamics for each reversible reaction, whether it involves different Sn–Li alloys or the C–Li compound (C6Li). Furthermore, this suggests that the capacity-controlled diffusion performance of Sn@C and Sn*@C/CNT is considerably inferior compared to that of Sn @C/CNT.

The capacity-controlled lithium ion diffusion coefficients (DLi+) of Sn@C/CNT, as shown in Fig. 10(b), reveal significantly higher values in the context of reversible electrochemical reactions in Sn–Li alloys. These coefficients are one or two orders of magnitude greater than those calculated through Warburg factors (refer to Fig. 7(d)). Specifically, the average capacity-controlled DLi+ of 1.72 × 10−8 cm2 s−1, which corresponds to current peak 1 around 0.53 V, is nearly one hundred times higher than the diffusion-controlled DLi+ of 1.9 × 10−10 cm2 s−1 observed between Sn and SnLi (x = 1). Similarly, the average DLi+ of 2.15 × 10−9 cm2 s−1 associated with current peak 2 around 1.20 V is approximately two hundred times higher than the diffusion-controlled DLi+ of 1.07 × 10−11 cm2 s−1 found between Sn and SnLi (x = 2).

In contrast, the average DLi+ of 1.34 × 10−11 cm2 s−1, which corresponds to current peak 3(a) around 0.73 V, is only twenty times greater than the diffusion-controlled DLi+ of 6.70 × 10−13 cm2 s−1 between Sn and SnLi4.4 (x = 4.4). This indicates higher dynamic resistance and minimal formation of SnLi4.4 species. Similar trends can be observed in the average capacity-controlled DLi+ values for both Sn@C and Sn*@C/CNT anode materials (refer to Fig. 10(a) and (c)), compared to those of the two materials shown in Fig. 7(f).

These results align well with the increasing capacity-controlled diffusion behavior in Sn@C/CNT as the charge/recharge current density rises. This implies that reversible Sn–Li alloy reactions with lower charge transfer numbers (1 ≤ y ≤ 3) can generate significantly more pseudo-capacitance due to their enhanced dynamic activity.

For the C–Li compound (C6Li), its capacity-controlled DLi+ value corresponding to current peak 4 around 0.08 V is notably higher, reaching up to 1.08 × 10−6 cm2 s−1, compared to 1.90 × 10−10 cm2 s−1 obtained from EIS testing. This indicates that the carbon matrix has sufficient active sites on the surface of the anode material, enabling the generation of a substantial amount of pseudo-capacitance under large current densities.57 The higher DLi+ value results from the low resistance of the interfacial reaction between the carbon matrix and lithium ions. Additionally, the presence of carbon defects created by nearly 9.53 wt% nitrogen (N) and 9.52 wt% oxygen (O) in the in situ carbon composites significantly enhances Li+ transportation and contributes to the formation of more active sites.58

3.5 Mechanism of lithium storage and diffusion

The investigations summarized in Fig. 7 and 8 indicate that diffusion-controlled lithium-ion (DLi+) mechanisms arise from a minimum of four reversible electrochemical reaction pathways involving Sn–Li alloys. These reversible reactions inherently diminish the transmission efficiency of lithium ions, primarily due to the substantial phase transitions that occur within Sn–Li alloys.12 Furthermore, the active Sn-based sites within the carbon matrix necessitate that lithium ions surmount mass transfer resistance across effective ion transport lengths prior to reaching the surface of the anode material.59 Consequently, these diffusion-controlled dynamic behaviors are generally slower compared to the capacity-controlled diffusion observed in the surface redox reactions.59

Therefore, Fig. 11 delineates a mixed storage and diffusion mechanisms of lithium ions that are influenced by diffusion-controlled and capacity-controlled behaviors in Sn@C/CNT anode material.


image file: d5ra02378e-f11.tif
Fig. 11 Storing and diffusing mechanism of lithium ion in Sn@C/CNT anode material: (I) graphite-like lamellar structure; (II) storage by N and O vacancy; (III) storage by carbon matrix; (IV) storage by Sn–Li alloy; (V) diffusion from N and O vacancy; (VI) diffusion from carbon matrix.

The structure of the obtained Sn@C/CNT anode material, as illustrated in Fig. 11(I), consists of a graphite-like layered nano-lamellar assembly interwoven with oxidized MWCNT fibers, within which tin nanoparticles are aligned. During the charging cycle, lithium ions are sequentially introduced into the material. First, they occupy the nitrogen (N) and oxygen (O) vacancies (Fig. 11(I)). They are trapped by the external active sites of the carbon matrix (Fig. 11(II)), and finally, they combine with the internal active tin nanoparticles (Fig. 11(III)). The third step of lithium insertion is slower than the first two due to unavoidable transmission resistance.

When lithium ions are extracted from the anode material, they follow the same sequence: they separate from the N and O vacancies (Fig. 11(IV)), are released from the carbon matrix (Fig. 11(V)), and then migrate from the inner tin nanoparticles (Fig. 11(VI)). Steps I, II, IV, and V can be categorized as capacity-controlled storage and diffusion behaviors since they involve minimal resistance in the external reactions. In contrast, steps III and VI are classified as diffusion-controlled storage and diffusion behaviors due to the apparent bulk resistance during the internal response.

This mixed mechanism of lithium-ion storage and diffusion ensures that the Sn@C/CNT anode material exhibits excellent long-term charge/discharge performance, achieving a capacity of up to 946 mA h g−1 at a low current rate of 0.1C. It also demonstrates an outstanding long-term cycling performance with a capacity of up to 688 mA h g−1 at a higher current density of 1 A g−1 (1C).

4. Conclusions

A three-dimensional reticulated Sn@C/CNT anode material was developed by annealing of a tin(II) complex with 2-methylimidazole at elevated temperatures and further interweaving with oxidized MWCNT fibers at a substantially lower annealing temperature. Comprehensive analyses, the unique topography for these Sn@C/CNT composites originate from their in situ Sn-based assemblies with the graphite-like nano-lamellar structure.

The Sn@C/CNT composites exhibited impressive long-term cycling spans at both the lower current density of 0.1C and the higher current density of 1C. The dynamic properties of the Sn@C/CNT anode materials are characterized by a higher diffusion-controlled lithium ion diffusion coefficient resulting from the internal reversible charge and discharge reactions of the Sn–Li alloy, as well as a higher capacity-controlled lithium ion diffusion coefficient originating from the pseudo-capacitance induced by the reversible charge and discharge reactions of both the Sn–Li alloy and the C6Li composites.

The topographical features of Sn@C/CNT are crucial for improving both the reversible specific capacity and the long-term cycling lifespan of the material. These features include nano-sized Sn active particles that measure as small as 2 to 3 nm, which are uniformly dispersed within a nano-lamellar carbon matrix, and the matrix consisting of graphite-like layers that are nearly 6 nm thick. Additionally, a comprehensive analytical approach to determining the mixed lithium-ion diffusion mechanism provides a deeper understanding of the electrochemical behavior of electrode materials during internal or interface reactions.
